NOCO Genius G26000 User manual

Welcome. Thank you for buying the NOCO Genius®
G26000. Read and understand the User Guide before
operating the charger. For questions regarding our
chargers, view our comprehensive support information at
www.no.co/support. To contact NOCO for personalized
support (not available in all areas), visit www.no.co/connect.
What’s In The Box.
• G26000 Smart Charger
• (1) Battery Clamp Connectors
• (1) Eyelet Terminal Connectors
• User Guide
• Information Guide and Warranty
User Guide
G26000V2.0
PRIOR TO USE, READ AND UNDERSTAND
PRODUCT SAFETY INFORMATION.
Failure to follow the instructions may result
in ELECTRICAL SHOCK, EXPLOSION,
or FIRE, which may result in SERIOUS
INJURY, DEATH, DAMAGE TO DEVICE or
PROPERTY. Do not discard this information.
DANGER

Contacting NOCO.
About G26000. The NOCO Genius®G26000 represents
some of the most innovative and advanced technology on
the market, making each charge simple and easy. It is quite
possibly the safest and most efcient charger you will ever
use. The G26000 is designed for charging all types of 12V
& 16V lead-acid and 12V lithium-ion batteries, including
Wet (Flooded), Gel, MF (Maintenance-Free), CA (Calcium),
EFB (Enhanced Flooded Battery), AGM (Absorption Glass
Mat), and LIB (Lithium Ion) batteries. It is suitable for
charging battery capacities from 25 to 500 Amp-Hours and
maintaining all battery sizes.
Getting Started. Before using the charger, carefully
read the battery manufacturer’s specic precautions and
recommended rates of charge for the battery. Make sure
to determine the voltage and chemistry of the battery by
referring to your battery owner’s manual prior to charging.
Mounting. The G26000 has four (4) external holes for
mounting. Mount the charger in a desired location with
#10 self-drill screws. Make sure there are no obstructions
behind the mounting surface. It is important to keep in mind
the distance to the battery. The DC cable length from the
charger, with either the battery clamp or eyelet terminal
connectors, is approximately 75-inches (1,900mm). Allow
for 12-inches (304mm) of slack between connections.
Charging Modes. The G26000 has eleven (11) modes:
Standby, 12V NORM, 12V COLD/AGM, 24V NORM,
24V COLD/AGM, 12V LITHIUM, 12V AGM+, 16V AGM,
16V LITHIUM, 13.6V SUPPLY and 12V REPAIR, plus
JumpCharge for engine starting. Some charge modes
must be pressed and held for three (3) seconds to enter
the mode. These “Press and Hold” modes are advanced
charging modes that require your full attention before
selecting. “Press and Hold” are indicated on the charger by
1.800.456.6626
[email protected]
30339 Diamond Parkway, #102
Glenwillow, OH 44139
United States of America
Phone:
Email:
Mailing Address:

222
a red line. It is important to understand the differences
and purpose of each charge mode. Do not operate the
charger until you conrm the appropriate charge mode
for your battery. Below is a brief description:
Mode Explanation
12V
NORM
Standby
12V
COLD/
AGM
14.8V | 26A | 50-500Ah Batteries
24V
NORM
29V | 13A | 25-250Ah Batteries
29.6V | 13A | 25-250Ah Batteries
No Power
14.5V | 26A | 50-500Ah Batteries
24V
COLD/
AGM
In Standby mode, the charger is not
charging or providing any power to
the battery. Energy Save is activated
during this mode, drawing microscopic
power from the electrical outlet. When
selected, an orange LED will illuminate.
For charging 12-volt Wet Cell, Gel Cell,
Enhanced Flooded, Maintenance-Free
and Calcium batteries. When selected,
a white LED will illuminate.
For charging 12-volt batteries in cold
temperatures below 50ºF (10ºC) or
AGM batteries. When selected, a blue
LED will illuminate.
For charging 24-volt Wet Cell, Gel Cell,
Enhanced Flooded, Maintenance-Free
and Calcium batteries. When selected,
a white LED will illuminate.
For charging 24-volt batteries in cold
temperatures below 50ºF (10ºC) or
AGM batteries. When selected, a blue
LED will illuminate.

Mode Explanation
12V
AGM+
16V
AGM
12V
LITHIUM
15.5V | 26A | 50-500Ah Batteries
13.6V | 5A | Max 6A
19.45V | 20A | 25-250Ah Batteries
14.2V | 26A | 50-500Ah Batteries
16.5V | 1.5A | Any Capacity
19.6V | 20A | 25-250Ah Batteries
12V
REPAIR
16V
LITHIUM
For charging 12-volt advanced AGM
batteries, which requires a higher
than normal charging voltage. When
selected, a blue LED will illuminate.
For charging 16-volt AGM batteries,
which are commonly used in racing
vehicles. When selected, a blue LED
will illuminate.
For charging 12-volt lithium-ion
batteries, including lithium iron
phosphate. When selected, a blue
LED will illuminate.
An advanced battery recovery mode
for repairing and storing, old, idle,
damaged, stratied or sulfated
batteries. When selected, a red LED
will illuminate and ash
For charging 16-volt lithium-ion
batteries, including lithium iron
phosphate, which are commonly used
in racing vehicles. When selected, a
blue LED will illuminate.
13.6V
SUPPLY
Converts to a DC power supply for
powering any 12VDC device, like a tire
inator, oil changer, or as a memory
retainer when replacing a battery. When
selected, a red LED will illuminate.
Press & Hold
Press & Hold
Press & Hold
Press & Hold
Press & Hold
Press & Hold

444
Using 12V Lithium. [Press & Hold]
12V Lithium charge mode is designed for 12-volt
lithium-ion batteries only, including lithium iron
phosphate.
CAUTION. USE THIS MODE WITH CARE. THIS MODE
IS FOR 12-VOLT LITHIUM BATTERIES ONLY. LITHIUM-
ION BATTERIES ARE MADE AND CONSTRUCTED
IN DIFFERENT WAYS AND SOME MAY OR MAY NOT
CONTAIN A BATTERY MANAGEMENT SYSTEM (BMS).
CONSULT THE LITHIUM BATTERY MANUFACTURER
BEFORE CHARGING AND ASK FOR RECOMMENDED
CHARGING RATES AND VOLTAGES. SOME LITHIUM-
ION BATTERIES MAY BE UNSTABLE AND
UNSUITABLE FOR CHARGING.
Using 12V AGM+. [Press & Hold]
12V AGM+ charge mode is designed for 12-volt
advanced AGM batteries only. Advanced AGM batteries
are a new battery technology typically found in start-stop
micro-hybrid vehicles. These batteries accept a higher
than normal charging voltage around 15.5-volts. 12V
AGM+ charge mode is NOT suitable for traditional AGM
batteries. Consult the battery manufacturer before using
this mode.
CAUTION. USE THIS MODE WITH CARE. THIS
MODE IS FOR 12-VOLT LEAD-ACID ADVANCED
AGM BATTERIES ONLY. THIS MODE USES A HIGH
CHARGING VOLTAGE AND MAY CAUSE SOME WATER
LOSS IN WET (FLOODED) CELL BATTERIES OR
OVERCHARGE IN SOME BATTERIES.
Using 16V Lithium. [Press & Hold]
16V Lithium charge mode is for 16V lithium-ion batteries
only, including lithium iron phosphate batteries. 16-volt
lithium-ion batteries are commonly found in racing
vehicles, where the alternator might be removed, or used
to improve the performance of the injector or fuel pump.
CAUTION. THIS MODE IS FOR 16-VOLT LITHIUM
BATTERIES ONLY. LITHIUM-ION BATTERIES ARE
MADE AND CONSTRUCTED IN DIFFERENT WAYS

AND SOME MAY OR MAY NOT CONTAIN A BATTERY
MANAGEMENT SYSTEM (BMS). CONSULT THE LITHIUM
BATTERY MANUFACTURER BEFORE CHARGING AND
ASK FOR RECOMMENDED CHARGING RATES AND
VOLTAGES. SOME LITHIUM-ION BATTERIES MAY BE
UNSTABLE AND UNSUITABLE FOR CHARGING.
Using 16V AGM. [Press & Hold]
16V AGM charge mode is for 16V AGM batteries only. 16-
volt AGM batteries are commonly found in racing vehicles,
where the alternator might be removed, or used to improve
the performance of the injector or fuel pump.
CAUTION. USE THIS MODE WITH CARE. THIS MODE
IS FOR 16-VOLT AGM BATTERIES ONLY. DO NOT USE
ON A 12-VOLT BATTERY. CONSULT THE BATTERY
MANUFACTURER BEFORE CHARGING AND ASK FOR
RECOMMENDED CHARGING RATES AND VOLTAGES.
Using 13.6V Supply. [Press & Hold]
13.6V Supply converts the charger to a constant current,
constant voltage DC power supply. It can be used to power
12VDC devices, including; tire inators, oil changers, coffee
pots, seat heaters and more. As a power supply, it can also
be used to retain a vehicle’s on-board computer settings
during battery repair or replacement. 13.6V Supply provides
13.6-volts at 5A with overload protection at 6A (Max).
CAUTION. THIS MODE IS FOR 12-VOLT LEAD-ACID
BATTERIES ONLY. PRIOR TO USE, READ YOUR 12VDC
DEVICE MANUAL TO DETERMINE IF IT IS SUITABLE FOR
USE WITH THIS MODE. BOTH THE SPARK PROOF AND
REVERSE POLARITY SAFETY FEATURES ARE DISABLED
IN THIS MODE. DO NOT ALLOW THE POSITIVE AND
NEGATIVE BATTERY CLAMP OR EYELET TERMINAL
CONNECTORS TO TOUCH OR CONNECT TO EACH
OTHER AS THE CHARGER COULD GENERATE SPARKS.
CHECK THE POLARITY OF THE BATTERY TERMINALS
BEFORE USING THIS MODE.
Using 12V Repair. [Press & Hold]
12V Repair is an advanced battery recovery mode for
repairing and storing, old, idle, damaged, stratied or
sulfated batteries. Not all batteries can be recovered.

666
Batteries tend to become damaged if kept at a low
charge and/or never given the opportunity to receive
a full charge. The most common battery problems are
battery sulfation and stratication. Both battery sulfation
and stratication will articially raise the open circuit
voltage of the battery, causing the battery to appear
fully charged, while providing low capacity. Use 12V
Repair in attempt to reverse these problems. For optimal
results, take the 12-volt battery through a full charge
cycle, bringing the battery to full charge, before using
this mode. 12V Repair can take up to four (4) hours to
complete the recovery process and will return to Standby
when completed.
CAUTION. USE THIS MODE WITH CARE. THIS MODE
IS FOR 12-VOLT LEAD-ACID BATTERIES ONLY. THIS
MODE USES A HIGH CHARGING VOLTAGE AND MAY
CAUSE SOME WATER LOSS IN WET (FLOODED)
CELL BATTERIES. BE ADVISED, SOME BATTERIES
AND ELECTRONICS MAY BE SENSITIVE TO HIGH
CHARGING VOLTAGES. TO MINIMIZE RISKS TO
ELECTRONICS, DISCONNECT THE BATTERY BEFORE
USING THIS MODE.
JumpCharge.
JumpCharge is an innovative new feature for
jumpstarting low-voltage or dead vehicle batteries.
The JumpCharge process is much different than your
traditional battery charger with an “engine start” feature.
JumpCharge uses precision charge control to avoid
overloading the battery that shortens the life of your
battery.
To operate JumpCharge, the charger must be
connected to a 12-volt battery with the Battery Clamp
Connectors connected. Press the JumpCharge button
to begin jumpstarting your vehicle.
Once initiated, the Charge LEDs will begin showing the
progress of the JumpCharge from 25% to 100%.When
using this mode, the Charge LEDs do not display the
battery’s state-of-charge (SOC), only the JumpCharge
progress. Once the 100% green LED is illuminated solid,

and the 25%, 50% and 75% Charge LEDs are “off”, the
JumpCharge process is completed and your are ready to
start your vehicle. For optimal results, allow JumpCharge to
complete its ve (5) minute charge.
If unsuccessful when starting your vehicle, let the battery
rest for fteen (15) minutes and try JumpCharge again.
Most vehicles will start with one (1) JumpCharge, but
larger vehicles with dual battery systems, may require an
additional JumpCharge. If when pressing the JumpCharge
button, an Error Condition (Error LED and Standby LED
ashing) illuminates, the battery is below 2-volts. To
JumpCharge a battery below 2-volts, press and hold the
JumpCharge button for three (3) seconds, and JumpCharge
will being jumpstarting your battery.
CAUTION. USE THIS MODE WITH CARE. THIS MODE
IS FOR 12-VOLT LEAD-ACID BATTERIES ONLY. DO
NOT USE JUMPCHARGE MORE THAN TWO (2) TIMES
WITHIN A TWENTY-HOUR (24) HOUR PERIOD. IF TWO
(2) JUMPCHARGES CANNOT SUCCESSFULLY START
YOUR VEHICLE, HAVE YOUR BATTERY EVALUATED BY A
LOCAL BATTERY STORE.
Connecting to the Battery.
Do not connect the AC power plug until all other connections
are made. Identify the correct polarity of the battery terminals
on the battery. The positive battery terminal is typically
marked by these letters or symbol (POS,P,+). The negative
battery terminal is typically marked by these letters or symbol
(NEG,N,-). Do not make any connections to the carburetor,
fuel lines, or thin, sheet metal parts. The below instructions
are for a negative ground system (most common). If your
vehicle is a positive ground system (very uncommon), follow
Mode Explanation
Delivers 30A for ve (5) minutes to
jumpstart your dead vehicle battery.
When selected, a white LED will
illuminate. (Red Manual Mode)
5Min | 30A | 50-400Ah Batteries
Jump
CHARGE

888
the below instructions in reverse order.
1.) Connect the positive (red) battery clamp or eyelet
terminal connector to the positive (POS,P,+) battery
terminal.
2.) Connect the negative (black) battery clamp or eyelet
terminal connector to the negative (NEG,N,-) battery
terminal or vehicle chassis.
3.) Connect the battery charger’s AC power plug into a
suitable electrical outlet. Do not face the battery when
making this connection.
4.) When disconnecting the battery charger, disconnect
in the reverse sequence, removing the negative rst (or
positive rst for positive ground systems).
Begin Charging.
1.) Verify the voltage and chemistry of the battery.
2.) Conrm that you have connected the battery clamps
or eyelet terminal connectors properly and the AC power
plug is plugged into an electrical outlet.
3.) The charger will begin in Standby mode, indicated by
an orange LED. In Standby, the charger is not providing
any power.
4.) Press the mode button to toggle to the appropriate
charge mode (press and hold for three seconds to enter
an advanced charge mode) for the voltage and chemistry
of your battery.
5.) The mode LED will illuminate the selected charge
mode and the Charge LEDs will illuminate (depending on
the health of the battery) indicating the charging process
has started.
6.) The charger can now be left connected to the battery
at all times to provide maintenance charging.

LED Explanation
Maintenance
Green LED
25%
Red LED
The 25% Charge LED will slowly
pulse “on” and “off”, when the
battery is less than 25% fully
charged. When the battery is 25%
charged, the red Charge LED will
be solid.
50%
Red LED
During maintenance charging, the
100% Charge LED will pulse “on”
and “off” slowly. When the battery
is topped off and fully charged
again, the 100% Charge LED will
turn solid green. The charger can
be left connected to the battery
indenitely.
75%
Orange LED
The 50% Charge LED will slowly
pulse “on” and “off”, when the
battery is less than 50% fully
charged. When the battery is 50%
charged, the red Charge LED will
be solid.
The 75% Charge LED will slowly
pulse “on” and “off”, when the
battery is less than 75% fully
charged. When the battery is 75%
charged, the orange Charge LED
will be solid.
The 100% Charge LED will slowly
pulse “on” and “off”, when the
battery is less than 100% fully
charged. When the battery is fully
charged, the green LED will be solid,
and the 25%, 50% and 75% Charge
LEDs will turn “off”.
100%
Green LED
25% 50% 75% 100%
25% 50% 75% 100%
25% 50% 75% 100%
25% 50% 75% 100%
25% 50% 75% 100%

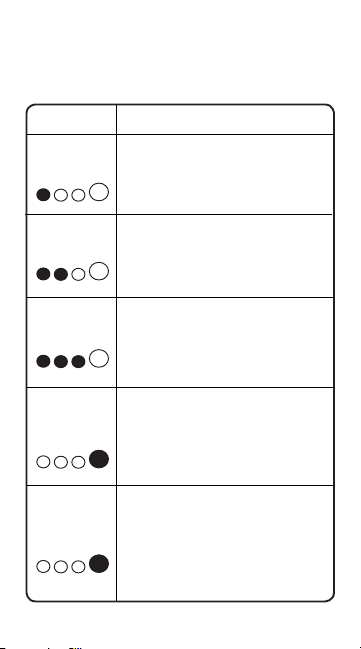

Understanding Charge LEDs.
The charger has four (4) Charge LEDs per bank - 25%,
50%, 75% and 100%. These Charge LEDs indicate the
connected battery(s) state-of-charge (SOC). See the
explanation below:

101010
Understanding Advanced Diagnostics.
Advanced Diagnostics is used when displaying Error
Conditions. It will display a series of blink sequences
that help you identify the cause of the error and
potential solutions.
All Error Conditions are displayed with the Error LED
and Standby LED ashing back and forth. The
number of ashes between each pulse denotes a
potential Error Condition (except reverse polarity and
low-voltage battery).
Error Reason/Solution
Single
Flash
Battery will not hold a
charge. Have battery
checked by a professional.
Possible battery short.
Have battery checked by a
professional.
Battery voltage is too high
for the selected charge
mode. Check the battery
and charge mode.
Error LED
Solid Red
Reverse polarity. Reverse
the battery connections.
Battery voltage is too
low for charge to detect
or charger is in supply.
Jumpstart the battery to
raise the battery voltage.
Double
Flash
Triple
Flash
Standby
Solid Orange

Memory
Returns to last selected mode when
restarted
Interactive
Alters the charging process based on
organic battery feedback
Recovery
Applies a high-voltage pulse charge when
low-voltage, sulfation or lost capacity is
detected
Safe
Protects against reverse polarity, sparks,
overcharging, overcurrent, open-circuits,
short-circuits and overheating
Fast
Charges two times faster than traditional
battery chargers
Compensation
Adjusts for varying A/C line voltage for
consistent charging
Rugged
Dirt, water, UV, impact and crush resistant
Compact
High-frequency energy conversion for
ultra-compact, lightweight and portable
charger
Start-Stop
Counteracts increased cyclic energy
demands placed on batteries in micro-
hybrid vehicles
Firewall
Multi-level safety barrier that prevents
abnormal and unsafe conditions

121212
Optimization
Stabilizes internal battery chemistry for
increased performance and longevity
Maintenance Plus
Keeps the battery fully charged without
overcharging allowing the charger to be
safely connected indenitely
Energy Save
Minimizes energy consumption when full
power is not needed
Load Tracking
Charge LEDs dynamically track the
batteries state-of-charge when a load
outpaces the charge current
Diagnostics
Intuitive visual diagnostic tool for detecting
reverse polarity, low-voltage or damaged
batteries
CANBUS
Automatically enables the charging port to
charge CANBUS systems
Thermal Monitor
Internal temperature sensors adjust charge
based on ambient climate

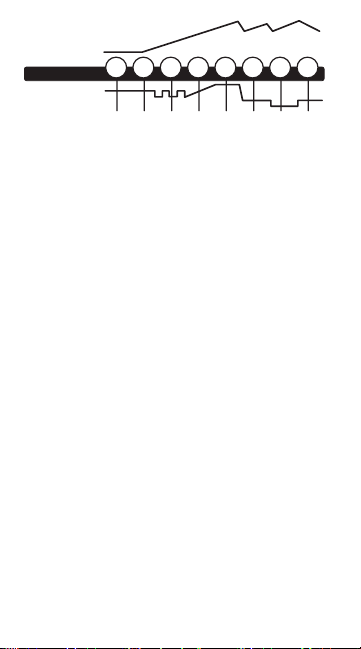

Charging Steps.
Step 1 & 2: Analyze & Diagnose
Checks the battery’s initial condition, including voltage,
state-of-charge and health, to determine if the battery is
stable before charging.
Step 3: Recovery
Initializes the Recovery desulfation process (if needed)
for deeply discharged or sulfated batteries by pulsing
small amounts of current.
Step 4: Initialize
Starts the charging process with a gentle (soft) charge.
Step 5: Bulk
Begins the Bulk charging process based on the
condition of the battery and returns 80% of the battery’s
capacity.
Step 6: Absorption
Brings the charge level to 90% by delivering small
amounts of current to provide a safe, efcient charge.
This limits battery gassing and is essential to prolonging
battery life.
Step 7: Optimization
Finalizes the charging process and brings the battery
to maximum capacity. In this step, the charger utilizes
multi-layered charging proles to fully recapture capacity
and optimize the specic gravity of the battery for
increased run time and performance. The charger will
switch to Maintenance if the battery tells the charger that
more current is needed.
1 2 3 4 5 6 7 8
Analyze
Step
Voltage (V)
Current (A)
Initialize
Diagnose
Bulk
Optimization
Recovery
Absorption
Maintenance

141414
Battery Size Approx. Time to Charge In Hours
12V
50
75
100
150
200
1.0
1.4
1.9
2.9
3.8
1.9
2.9
3.8
5.8
7.7
24VAh
Step 8: Maintenance
Continuously monitors the battery to determine when
a maintenance charge should be initiated. If the battery
voltage falls below its target threshold, the charger will
restart the Maintenance cycle until voltage reaches its
optimal state and then discontinues the charge cycle.
The cycle between Optimization and Maintenance is
repeated indenitely to keep the battery at full charge.
The battery charger can be safely left connected
indenitely without the risk of overcharging.
Charging Times.
The estimated time to charge a battery is shown below.
The size of the battery (Ah) and its depth of discharge
(DOD) greatly affect its charging time. The charge time
is based on an average depth of discharge to a fully
charged battery and is for reference purposes only.
Actual data may differ due to battery conditions. The
time to charge a normally discharged battery is based
on a 50% DOD.
