Noctua NH-D9 TR5-SP6 4U User manual

Scan this code to display multilingual manuals on your phone.
NOCTUA NH-D9 TR5-SP6 4U

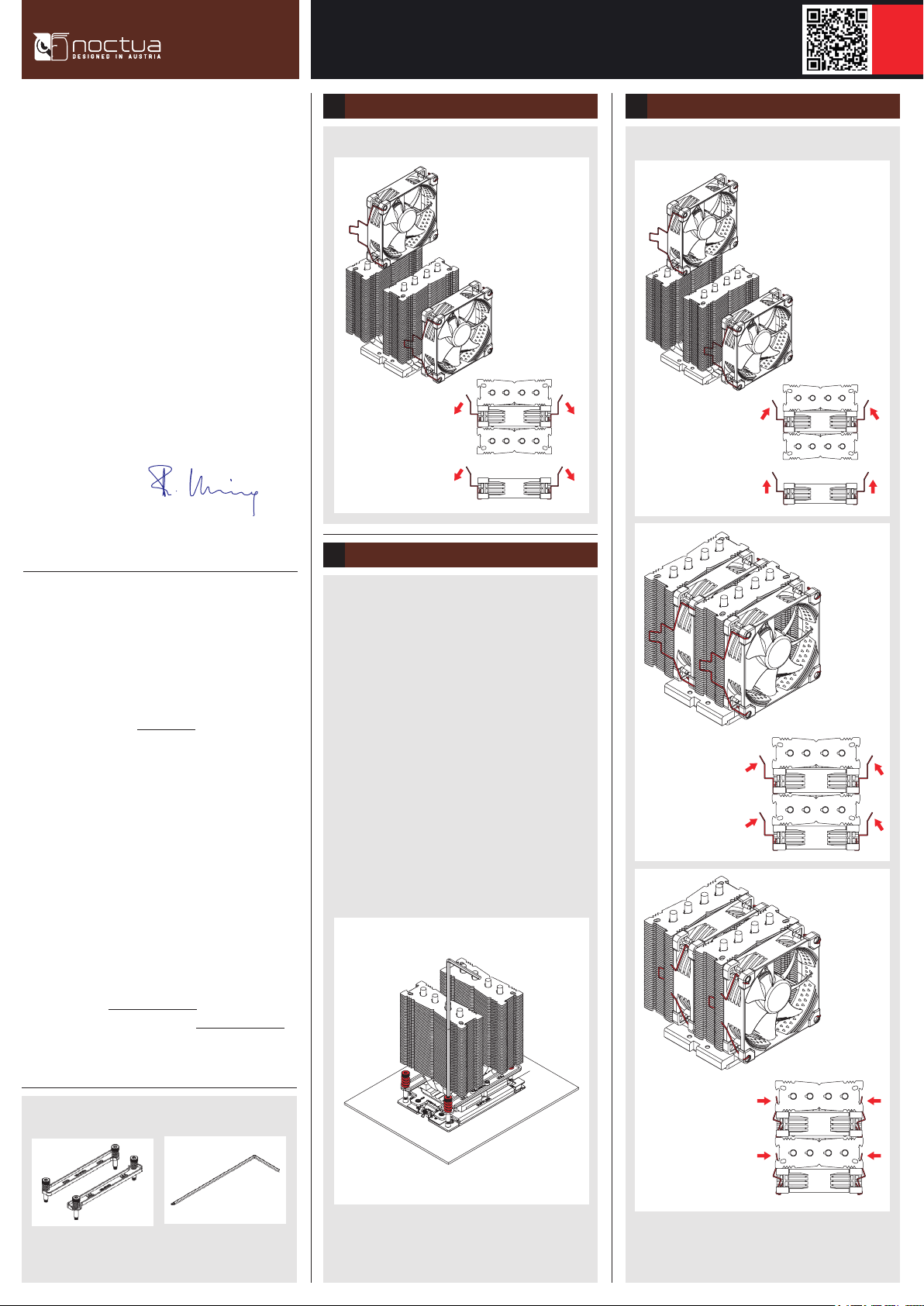

INSTALLATION MANUAL
Take the fans off the cooler.
Removing the fans
1
Fastening the heatsink to the CPU
2
Remove the plastic protection cover from the base of
the heatsink and be careful not to damage the layer of
pre-applied thermal compound.
Caution: If you are not using the heatsink for the first
time and it therefore doesn’t have a fresh layer of
pre-applied thermal compound anymore, you need to
apply a thin layer of thermal compound to the CPU yourself
before clipping it to the heatsink. If there are residual
traces of previous thermal paste or thermal pads on
your CPU or on the heatsink, please clean them off first.
Then put the heatsink onto the CPU so that the four spring-
loaded screws align with the threads of the CPU socket.
Use the supplied mounting tool to tighten the screws.
Perform 3 turns on each screw, then repeat until all are
fully tightened.
This manual will guide you through the installation process
of the SecuFirm2™ mounting system step by step.
Prior to installing the cooler,pleaseconsult thecompatibility
centre on our website (ncc.noctua.at) and verify that the
cooler is fully compatible with your motherboard.
Please also make sure that your PC case offers sufficient
clearance for the cooler and that there are no compatibility
issues with any other components (e.g. tall RAM modules).
Double check that the heatsink and fan clips do not make
contact with the VGA card, other PCIe cards, motherboard
heatsinks or any other components.
Noctua cannot be held responsible for any damage or
losses caused by compatibility issues.
Should you encounter anydifficulties, pleasecheck theFAQs
on our website (www.noctua.at/faqs) and don’t hesitate
to contact our support team at [e-mail].
Dear customer,
Thank you very much for choosing the Noctua NH-D9
TR5-SP6 4U.
Our Threadripper and Epyc coolers have become a standard
choice when it comes to quiet, premium grade air cooling
solutions for AMD-based workstations and servers, and
we’re excited to continue this legacy with the new TR5-SP6
models. I’m confident that you will be able to sense some
of the research, attention and care we’ve put into making
this product.
Enjoy your Noctua NH-D9 TR5-SP6 4U!
Yours sincerely,
Roland Mossig, Noctua CEO
Required mounting parts:
NM-AFB11 fastening brackets
(pre-installed on the cooler)
NM-SMT3 mounting tool Caution: Gently tighten the screws until they stop, but don’t
use excessive force (max. torque 0.6 Nm).
Installing the fans
3
Reattachthefanstotheheatsink using the suppliedfan clips:
Connect the fans to the motherboard’s CPU fan header(s). If
necessary, use the supplied NA-YC1 splitter cable to connect
both fans to one fan header.

Scan this code to display multilingual manuals on your phone.
NOCTUA NH-D9 TR5-SP6 4U
INSTALLATION MANUAL
Transporting your system
!
As it is not possible to reliably calculate or control the forces
that act upon a system during transport (e.g. in shipping),
we generally recommend, for safety reasons, taking the
cooler off.
Noctua cannot be held responsible for any damage that
may arise due to excessive stress during transport if you
keep the heatsink installed.
Warranty, support and FAQs!
Even with high-grade products and strict quality control,
the possibility of defects cannot be eliminated entirely.
Therefore, we aim at providing the highest possible level
of reliability and convenience by offering a warranty period
of 6 years and direct, fast and straightforward RMA service.
Should you encounter any problems with your NH-D9 TR5-
SP6 4U, please don’t hesitate to contact our support team
at [email protected].
Please also consult the FAQ section on our website:
www.noctua.at/faqs
