Nokia 1280 RM-647 User manual

Nokia 1280
RM-647
Service Manual Level 1&2
1 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
SERVICE MANUAL
Level 1&2
RM-647
Transceiver characteristics
Band:
EGSM 900/1800
Display:
1.36” black and white display
96 x 68 pixels resolution
Operating System:
S30
Connections:
Cellular radio: GSM
2.0 mm DC charger connector
3.5mm AV connector
Talk time Standby
GSM:
Up to 12.78 hours
GSM:
Up to 720 hours
Note: Talk times are dependant on network
parameter settings.

Nokia 1280
RM-647
Service Manual Level 1&2
2 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
Table of Contents
Change history.........................................................................................................................................................................................3
1.Copyright..........................................................................................................................................................................................4
2.Warnings and cautions...............................................................................................................................................................5
2.1Warnings ................................................................................................................................................................................5
2.2Cautions ..................................................................................................................................................................................5
3.ESD protection................................................................................................................................................................................6
4.Care and maintenance ................................................................................................................................................................7
5.Battery information .....................................................................................................................................................................8
6.Exploded view................................................................................................................................................................................9
7.Service devices .............................................................................................................................................................................10
8.SW-update.....................................................................................................................................................................................11
9.Disassembly instructions .........................................................................................................................................................12
10.Assembly hints ........................................................................................................................................................................17
11.Solder components................................................................................................................................................................18


Nokia 1280
RM-647
Service Manual Level 1&2
3 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
CHANGE HISTORY
Status Version No. Date Comments
Approved 1.0 3.3.2010
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to
carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA
service suppliers, and the content of it is confidential. Please note that NOKIA provides also other
guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and
comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may
exist. If you find any errors or if you have further suggestions, please notify NOKIA using the
address below:
Nokia Care Academy
mailto:[e-mail]
Please keep in mind also that this documentation is continuously being updated and modified,
so watch always out for the newest version.

Nokia 1280
RM-647
Service Manual Level 1&2
4 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
1. COPYRIGHT
Copyright © 2010 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of
Nokia Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region.
IMPORTANT
This document is intended for use by qualified service personnel only.

Nokia 1280
RM-647
Service Manual Level 1&2
5 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
2. WARNINGS AND CAUTIONS
Please refer to the phone’s user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
2.1 Warnings
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,
EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE
DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF
ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING
AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY
INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT
A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.
OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
2.2 Cautions
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist
strap is worn.
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing
and alignment.
5. Ensure all cables and wires are repositioned correctly

Nokia 1280
RM-647
Service Manual Level 1&2
6 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
3. ESD PROTECTION
Nokia requires that service points have sufficient ESD protection (against static
electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SIM card can be replaced without ESD protection if the product
is otherwise ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too, can be
damaged by static electricity discharge.
All ESD sensitive parts must be packed in metallized protective bags during
shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD
Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.

Nokia 1280
RM-647
Service Manual Level 1&2
7 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
4. CARE AND MAINTENANCE
This product is of superior design and craftsmanship and should be treated with care. The
suggestions below will help you to fulfil any warranty obligations and to enjoy this product for
many years.
Keep the phone and all its parts and accessories out of the reach of small children.
Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can
contain minerals that will corrode electronic circuits.
Do not use or store the phone in dusty, dirty areas. Its moving parts can be
damaged.
Do not store the phone in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
Do not store the phone in cold areas. When it warms up (to its normal temperature),
moisture can form inside, which may damage electronic circuit boards.
Do not drop, knock or shake the phone. Rough handling can break internal circuit
boards.
Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
phone.
Do not paint the phone. Paint can clog the moving parts and prevent proper
operation.
Use only the supplied or an approved replacement antenna. Unauthorised antennas,
modifications or attachments could damage the phone and may violate regulations
governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any accessory.

Nokia 1280
RM-647
Service Manual Level 1&2
8 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
5. BATTERY INFORMATION
Note: A new battery’s full performance is achieved only after two or three complete charge and
discharge cycles! The battery can be charged and discharged hundreds of times but it will
eventually wear out.
When the operating time (talk-time and standby time) is noticeably shorter than normal, it is
time to buy a new battery. Use only batteries approved by the phone manufacturer and
recharge the battery only with the chargers approved by the manufacturer.
Unplug the charger when not in use. Do not leave the battery connected to a charger for longer
than a week, since overcharging may shorten its lifetime.
If left unused a fully charged battery will discharge itself over time Temperature extremes can
affect the ability of your battery to charge.
For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by
leaving the product switched on until it turns itself off (or by using the battery discharge facility
of any approved accessory available for the product).
Do not attempt to discharge the battery by any other means Use the battery only for its
intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object
(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal strips
on the battery) for example when you carry a spare battery in your pocket or purse.
Shortcircuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,
will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C
and 25°C (59°F and 77°F).
A phone with a hot or cold battery may temporarily not work, even when the battery is fully
charged. Batteries’ performance is particularly limited in temperatures well below freezing.
Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.
recycling).
Do not dispose as household waste.

Nokia 1280
RM-647
Service Manual Level 1&2
9 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
6. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
A1
A1
ATO ASSY
(I0004 - I0009)
A2
D-COVER ASSY
(I0010 - I0012)
A-COVER ASSY
I0001
MFD BARD-A 16x4.5mm
I0010
DC JACK
I0011
UI SHIELDING
I0004
KEYMAT
I0002
DOMESHEET
I0007
BATTERY COVER
I0013
LIGHT GUIDE
I0005
LCD MODULE
I0006
TYPE LABEL
I0009
D-COVER
I0012
SCREWS RF1.4 X 5.0
I0003
PWB
I0008

Nokia 1280
RM-647
Service Manual Level 1&2
10 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1

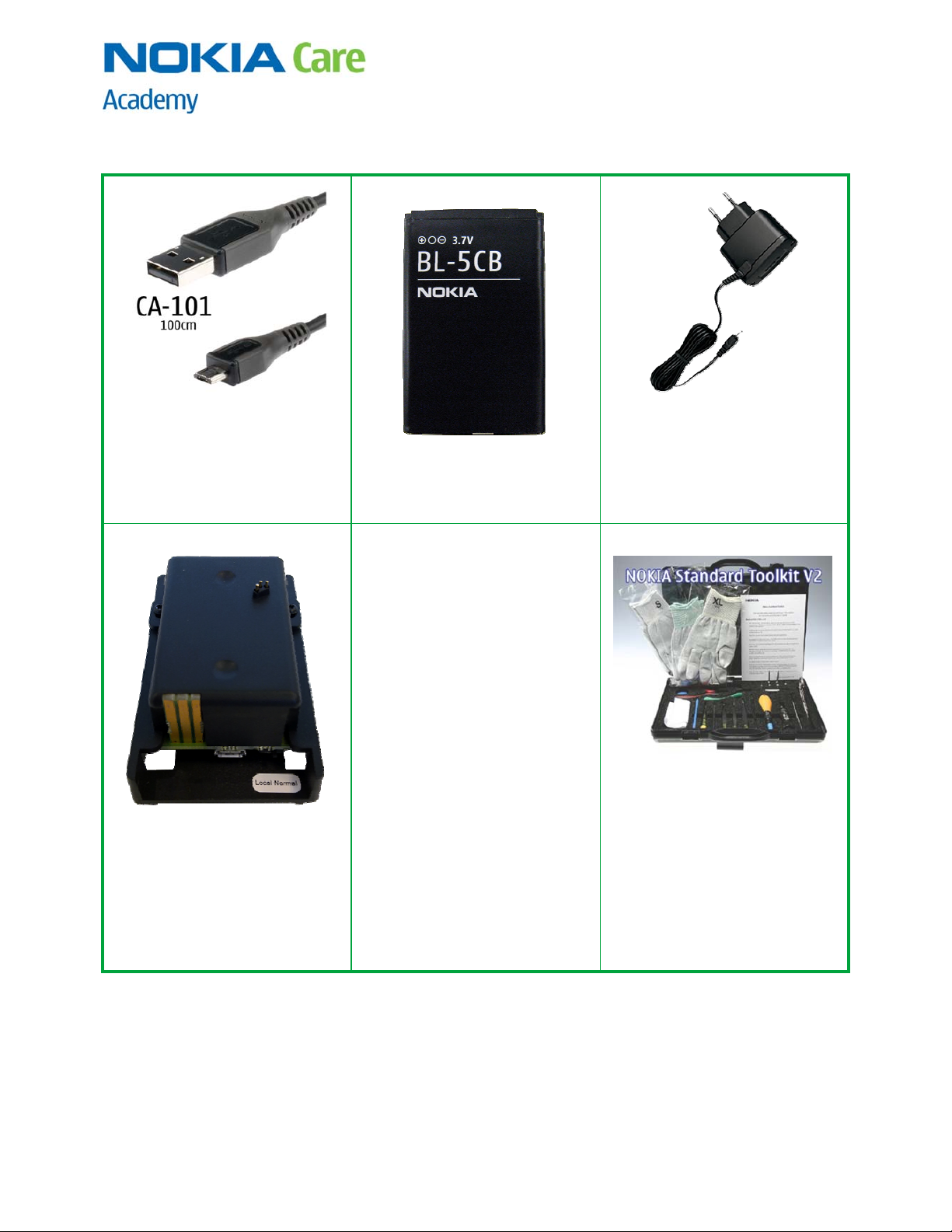

7. SERVICE DEVICES
CA-101 Service Cable
BL-5CB Battery
AC-3 Travel Charger
(For China the charger is AC-8C
travel USB charger)
SF-204 Flash adapter
Note that the switch must be set
to Normal mode!
NMP standard toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on NOKIA
Online. Supplier or manufacturer
contacts for tool re-order can be
found in “Recommended service
equipment” document on NOKIA
Online.

Nokia 1280
RM-647
Service Manual Level 1&2
11 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
8. SW-UPDATE

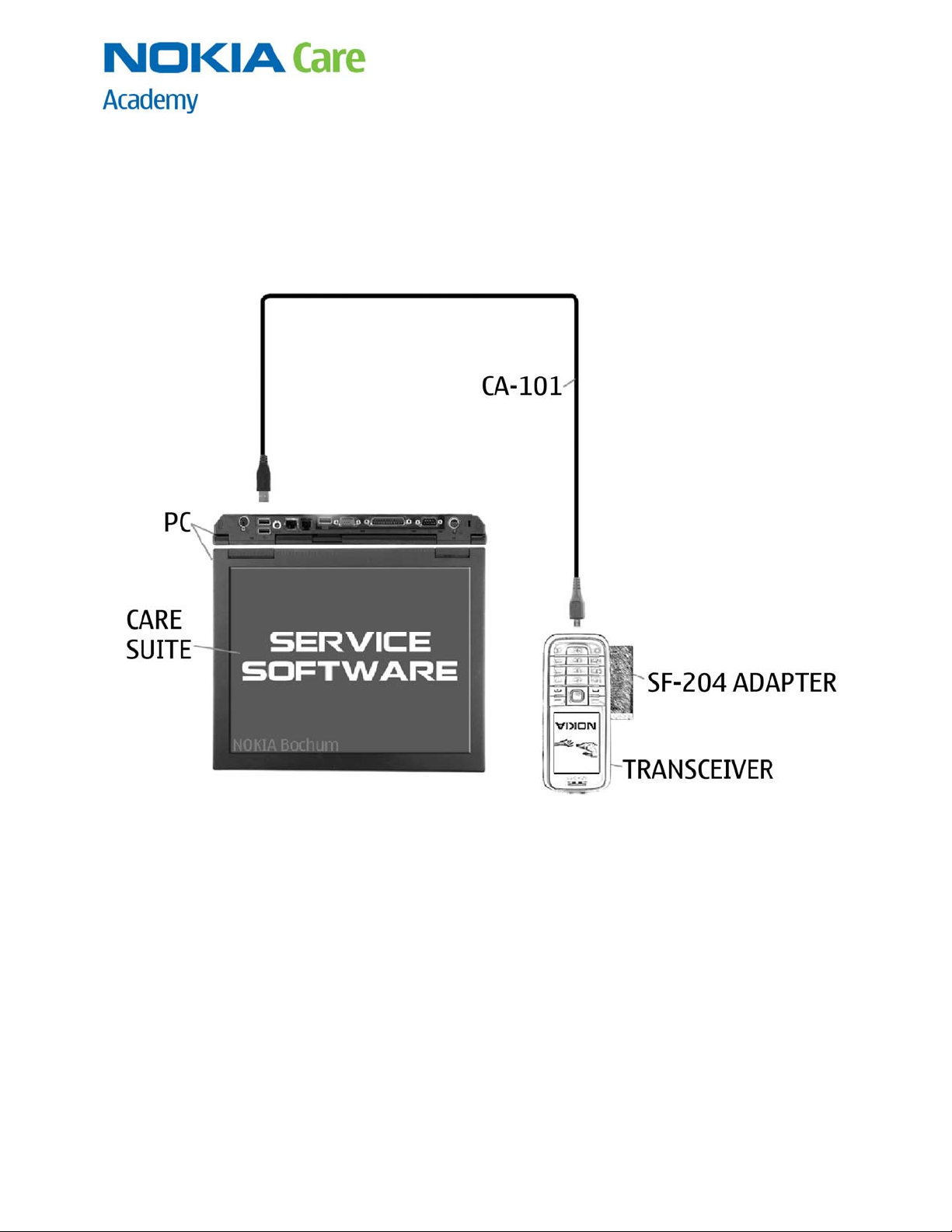

Flash concept - (Point of Sales)
Please check always for the latest version of flash software, wich is available on Nokia Online.

Nokia 1280
RM-647
Service Manual Level 1&2
12 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1

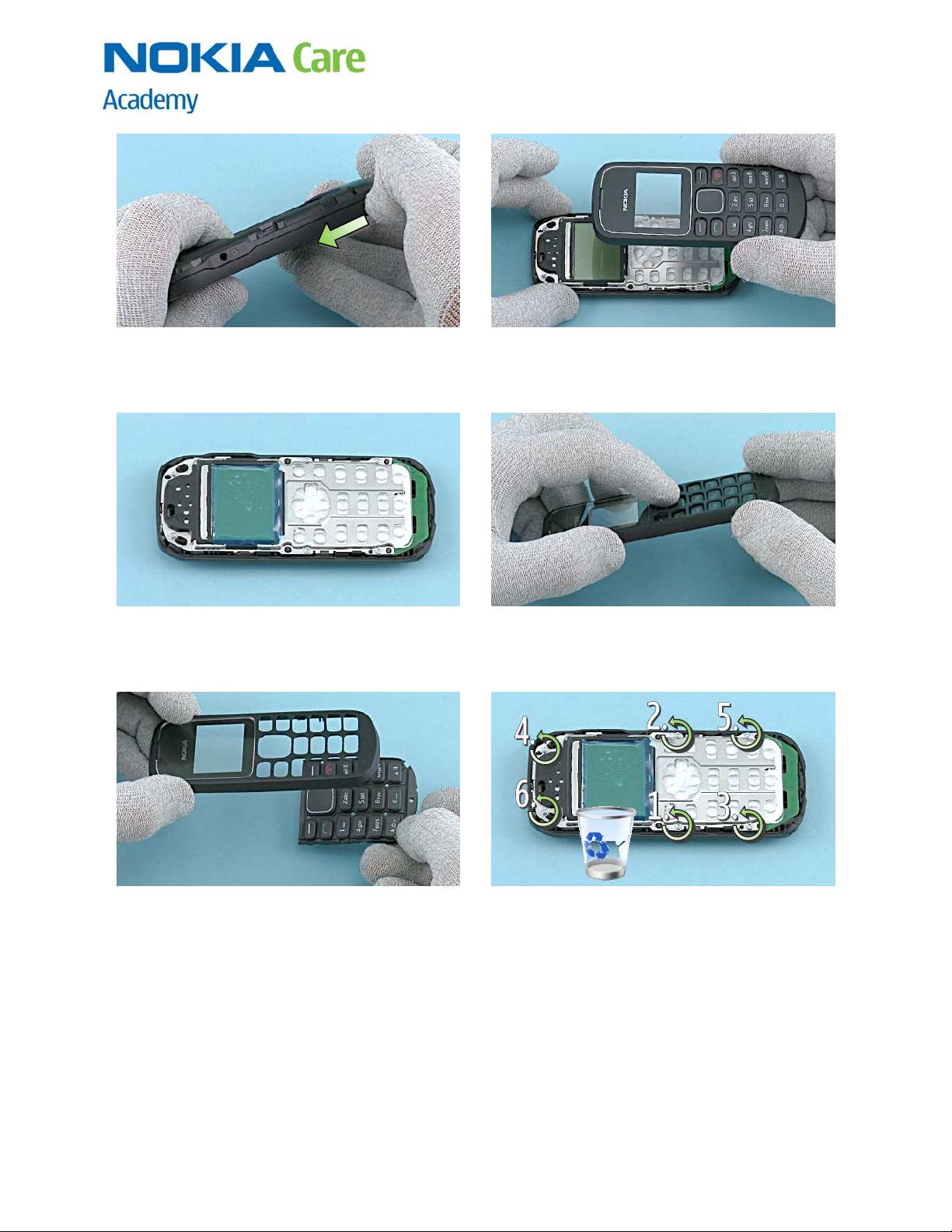

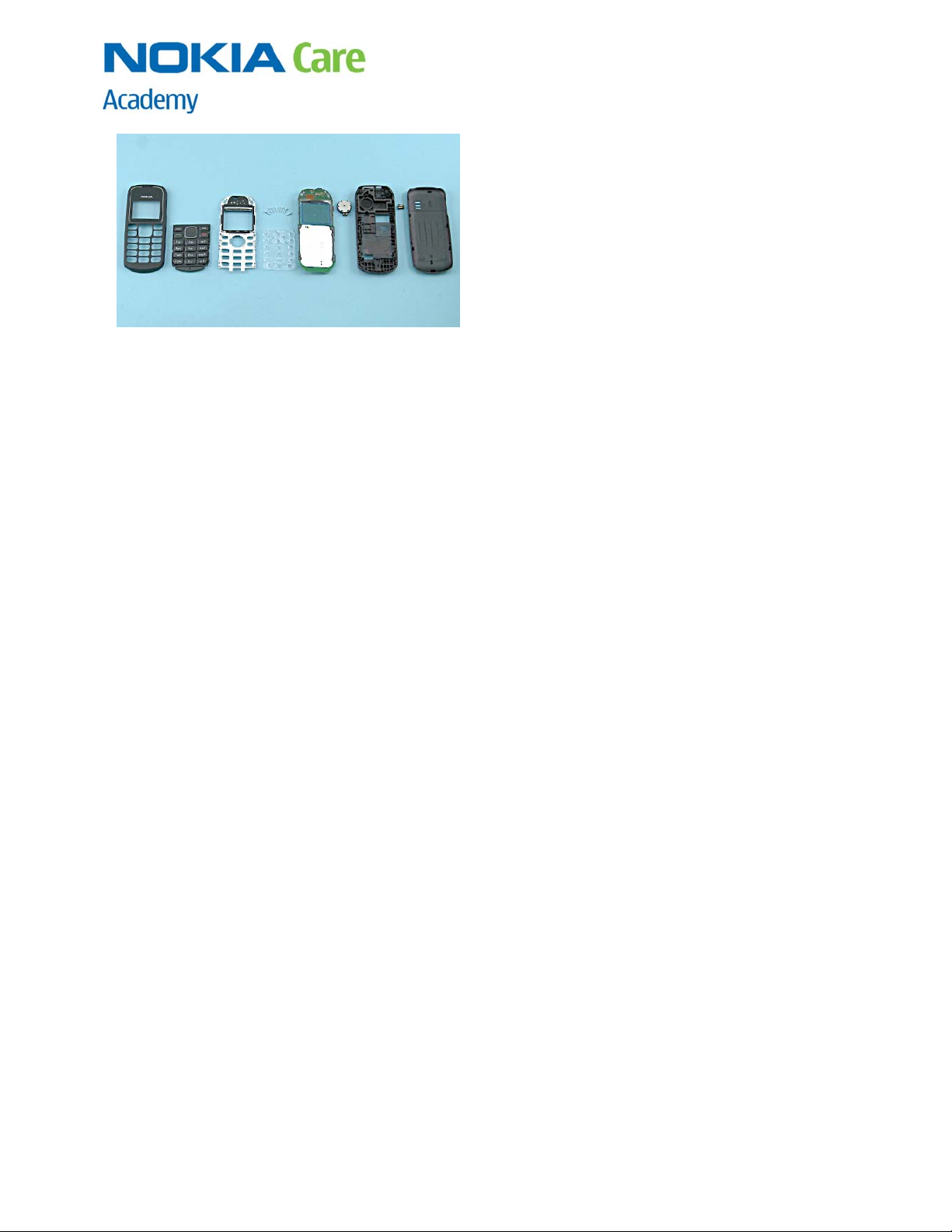

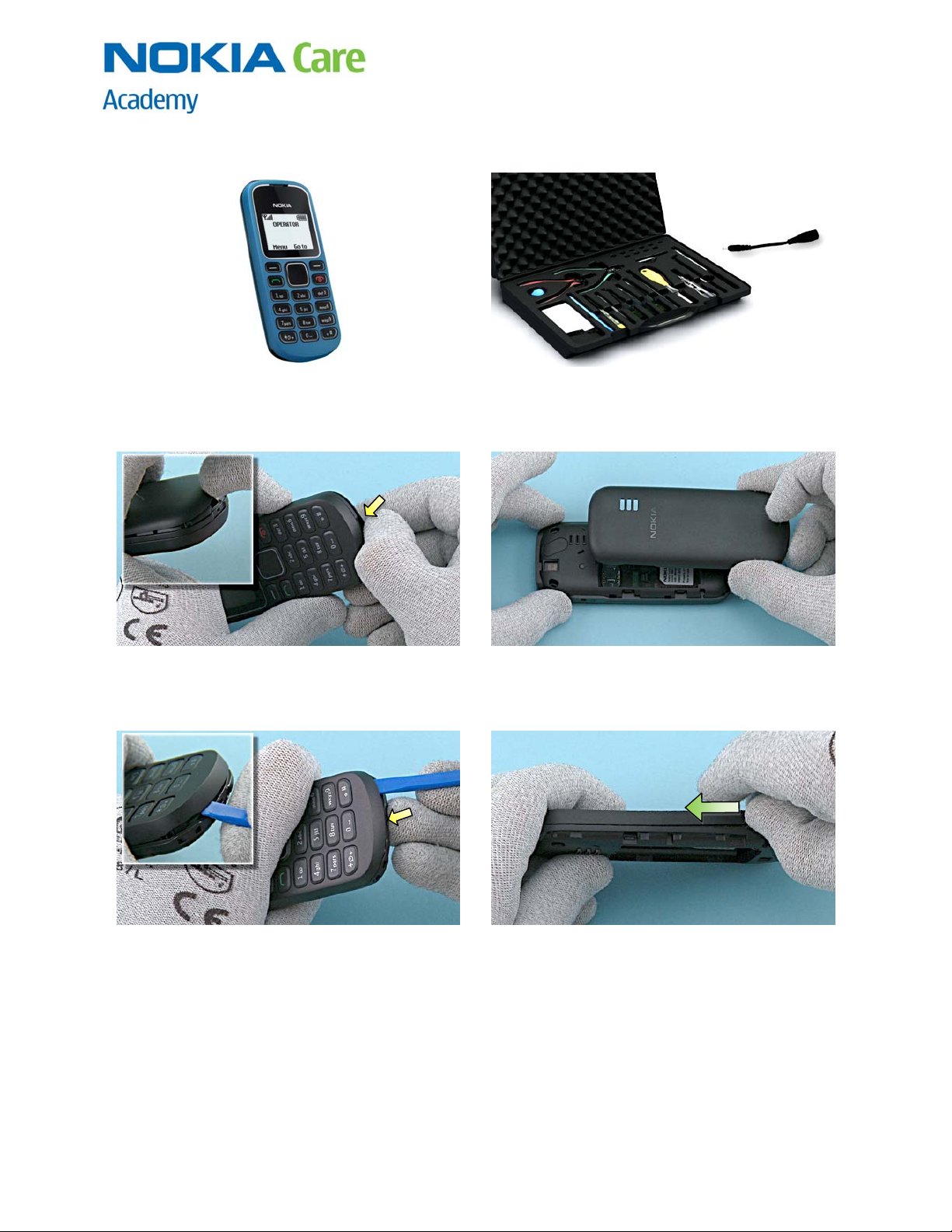

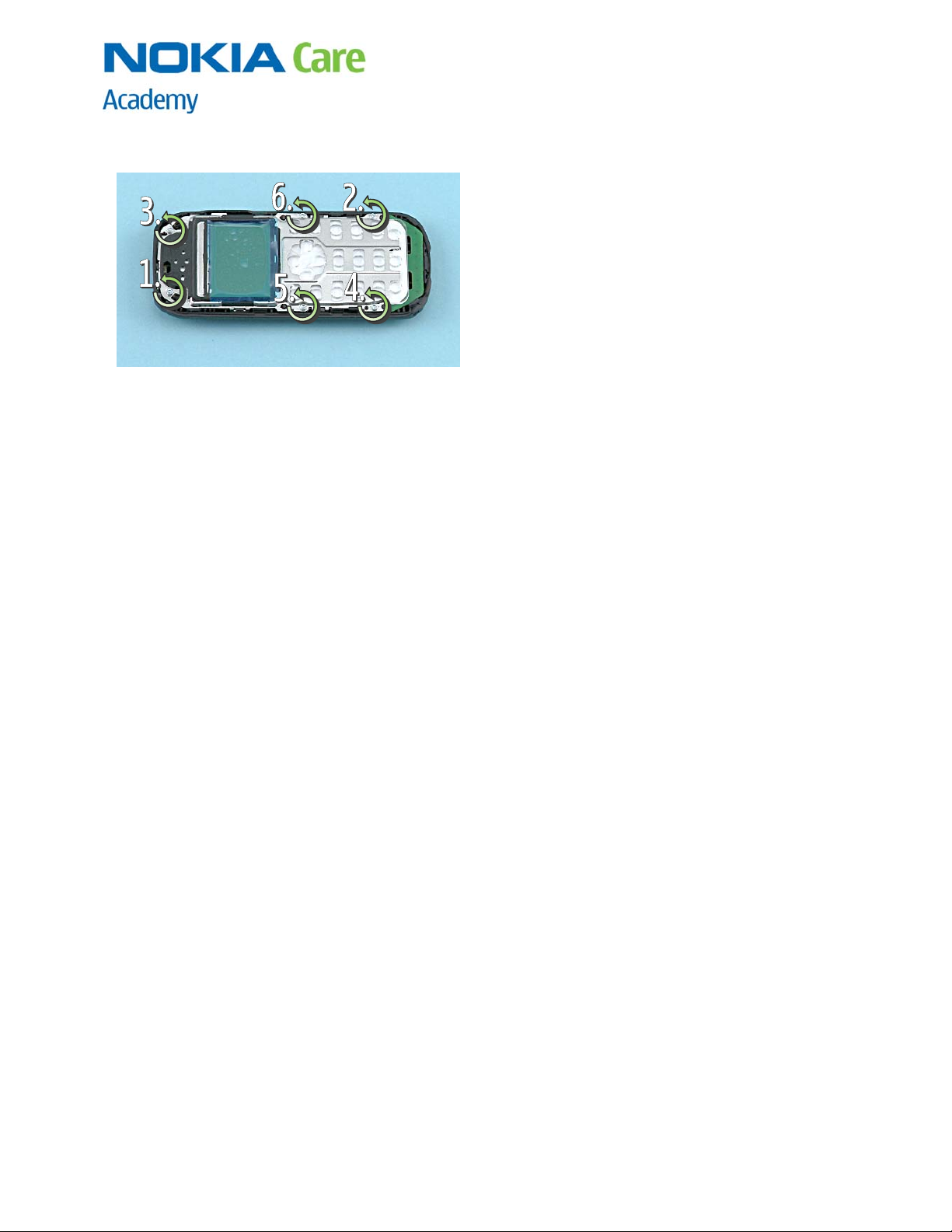

9. DISASSEMBLY INSTRUCTIONS
1) Nokia 1280 disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need a DC plug.
3) Use the opening notch to release the BATTERY
COVER.
4) Remove the BATTERY COVER.
5) Use the opening notch to release the bottom end
of the A-COVER. The SS-93 can be used to support
the releasing procedure.
6) Then release the left side of the A-COVER by
sliding finger between the A-COVER and the D-
COVER.

Nokia 1280
RM-647
Service Manual Level 1&2
13 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
7) Release also the other side by sliding finger
between the A-COVER and the D-COVER.
8) The A-COVER can be now removed.
9) Protect the LCD with protective film. 10) Push out the KEYMAT.
11) The KEYMAT and the A-COVER can be separated. 12) Unscrew the six TORX+ size 4 screws in the order
shown. Remove them with the tweezers. Do not use
them again. Discard them.

Nokia 1280
RM-647
Service Manual Level 1&2
14 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
13) Release the two clips holding the ENGINE
BOARD/UI SHIELDING with the SS-93.
14) Release the third clip as shown with the sharp
end of the SS-93.
15) Release also the clips on the other side with the
SS-93.
16) Lift up the bottom end of the ENGINE BOARD/UI
SHIELDING. Next pull the ENGINE BOARD/UI
SHIELDING to direction shown, so that the audio
jack is properly released from the D-COVER.
17) The ENGINE BOARD/UI SHIELDING can be
separated from the D-COVER.
18) Release the four shown clips with the SS-93, to
release the UI SHIELDING.

Nokia 1280
RM-647
Service Manual Level 1&2
15 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
19) Remove the UI SHIELDING. 20) Remove the LIGHT GUIDE.
21) Use a dc plug to lift up the DC JACK. 22) Remove the DC JACK with the tweezers.
23) Lever out the SPEAKER with the sharp end of the
SS-93.
24) Remove the SPEAKER with the tweezers.

Nokia 1280
RM-647
Service Manual Level 1&2
16 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
25) Nokia 1280 disassembly is now complete.
-END OF DISASSEMBLY-

Nokia 1280
RM-647
Service Manual Level 1&2
17 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
10. ASSEMBLY HINTS
1) Tighten the six screws to the torque of 15 Ncm in the
order shown.

Nokia 1280
RM-647
Service Manual Level 1&2
18 Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
11. SOLDER COMPONENTS
No Level 1 and 2 soldering work for Nokia 1280
