Nokia 5030 User Guide

DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this
RM-524 product is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC. A copy of the Declaration of
Conformity can be found at http://www.nokia.com/phones/
declaration_of_conformity/.
© 2009 Nokia. All rights reserved.
Nokia, Nokia Connecting People, and Navi are trademarks or registered
trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia
Corporation. Other product and company names mentioned herein may be
trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the contents in
this document in any form without the prior written permission of Nokia is
prohibited.
US Patent No 5818437 and other pending patents. T9 text input software
Copyright © 1997-2008. Tegic Communications, Inc. All rights reserved.
Nokia operates a policy of ongoing development. Nokia reserves the right to
make changes and improvements to any of the products described in this
document without prior notice.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO
CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY
LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR
INDIRECT DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED
BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN

RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT.
NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY
TIME WITHOUT PRIOR NOTICE.
The availability of particular products and applications and services for these
products may vary by region. Please check with your Nokia dealer for details,
and availability of language options.
Export controls
This device may contain commodities, technology or software subject to
export laws and regulations from the US and other countries. Diversion
contrary to law is prohibited.

Contents
Safety........................5
General
information .............7
About your device.............7
Network services...............7
Nokia support and
contact information..........8
Get started................9
Insert the SIM card and
battery................................9
Remove the SIM card ......10
Charge the battery..........10
Switch on and off............11
Your phone.............12
Keys and parts.................12
Main features...................13
Make and answer a call...14
Loudspeaker....................14
Write text.........................15
Text modes and text
input..............................15
Message...........................16
Contacts...........................17
Multi-phonebook............17
Flashlight.........................18
.............19
Battery....................22
Battery and charger
information.....................22
Nokia battery
authentication
guidelines........................24
Authenticate
hologram .....................25
What if your battery is
not authentic?..............25
Care and
maintenance..........27
Nokia original
accessories
.
..

Additional safety
information............29
Small children..................29
Operating environment..29
Medical devices...............30
Implanted medical
devices..........................30
Hearing aids..................31
Vehicles............................31
Potentially explosive
environments..................32
Emergency calls...............33
Certification information
(SAR).................................34

Safety
Read these simple guidelines. Not following them may be
dangerous or illegal. Read the complete user guide for
further information.
SWITCH ON SAFELY
Do not switch the device on when wireless
phone use is prohibited or when it may cause
interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free
to operate the vehicle while driving. Your first
consideration while driving should be road
safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in
aircraft, near medical equipment, fuel,
chemicals, or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may install or repair
this product.
© 2009 Nokia. All rights reserved. 5

ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do
not connect incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
© 2009 Nokia. All rights reserved.6

General information
About your device
The wireless device described in this guide is approved for
use on the EGSM 900 and 1800 MHz networks. Contact your
service provider for more information about networks.
When using the features in this device, obey all laws and
respect local customs, privacy and legitimate rights of
others, including copyrights.
Copyright protection may prevent some images, music,
and other content from being copied, modified, or
transferred.
Warning: To use any features in this device, other
than the alarm clock, the device must be switched on. Do
not switch the device on when wireless device use may
cause interference or danger.
Remember to make back-up copies or keep a written
record of all important information stored in your device.
Network services
To use the device you must have service from a wireless
service provider. Many of the features require special
network features. These features are not available on all
networks; other networks may require that you make
specific arrangements with your service provider before
© 2009 Nokia. All rights reserved. 7

you can use the network services. Using network services
involves transmission of data. Check with your service
provider for details about fees in your home network and
when roaming on other networks. Your service provider
can give you instructions and explain what charges will
apply. Some networks may have limitations that affect
how you can use network services. For instance, some
networks may not support all language-dependent
characters and services.
Your service provider may have requested that certain
features be disabled or not activated in your device. If so,
these features will not appear on your device menu. Your
device may also have a special configuration such as
changes in menu names, menu order, and icons. Contact
your service provider for more information.
Nokia support and contact information
information, downloads, and services related to your
Nokia product.
On the website, you can get information on the use of
customer service, check the list of local Nokia contact
For maintenance services, check your nearest Nokia service
© 2009 Nokia. All rights reserved.8
Nokia products and services. If you need to contact
web site for the latest version of this guide, additional
Check www.nokia-asia.com/support or your local Nokia
centers at www.nokia-asia.com/contactus.
center at www.nokia-asia.com/repair.

Get started

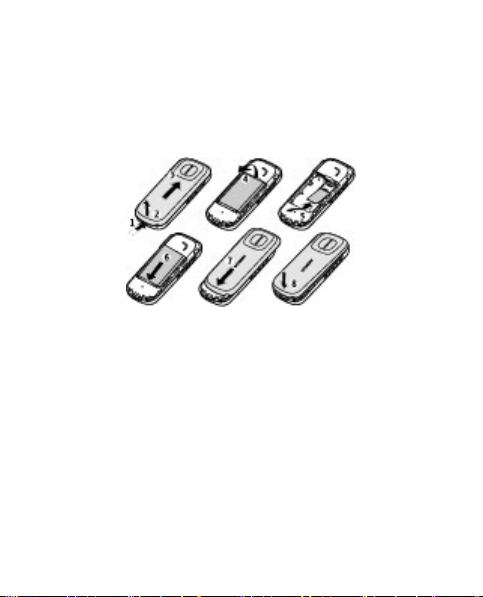

Insert the SIM card and battery
This phone is intended for use with the BL-5C battery.
Always switch the device off and disconnect the charger
before removing the battery.
1. Press the release button (1) to release the back cover,
and lift it (2). To remove the back cover, slide it upwards
(3).
2. Lift the battery, and remove it (4).
3. Insert the SIM card (5). Ensure that the gold-coloured
contact area is facing down and the bevelled corner of
the SIM card is facing the bottom of the device.
4. Replace the battery and back cover (6, 7, 8).
© 2009 Nokia. All rights reserved. 9

Remove the SIM card
Press the release spring (1), and slide out the SIM card (2).
Charge the battery
Your battery has been partially charged at the factory. If
the device indicates a low charge, do the following:
1. Connect the charger to a wall outlet.
2. Connect the charger to the device.
3. When the device indicates a full
charge, disconnect the charger from
the device, then from the wall outlet.
Tip: To save energy, unplug the charger when the
battery is fully charged.
You do not need to charge the battery for a specific length
of time, and you can use the device while it is charging. If
the battery is completely discharged, it may take several
minutes before the charging indicator appears on the
display or before any calls can be made.
© 2009 Nokia. All rights reserved.10

Switch on and off
Press and hold the end key.
Use the phone only in its normal operating
position.
Your device may have internal and external
antennas. As with any radio transmitting
device, avoid touching the antenna area unnecessarily
while the antenna is transmitting or receiving. Contact
with such an antenna affects the communication quality
and may cause the device to operate at a higher power
level than otherwise needed and may reduce the battery
life.
© 2009 Nokia. All rights reserved. 11

Your phone
Keys and parts
1Earpiece
2Display
3Selection keys
4Navi™ key;
hereafter referred
to as scroll key
5Call key
6End/Power key
7Keypad
© 2009 Nokia. All rights reserved.12

8Release button
9Microphone
10 Flashlight
11 Wrist strap eyelet
12 Channel selection keys
13 FM radio key
14 Headset connector
15 Charger connector
16 Loudspeaker
Main features
Select Menu and from the following:
●Messages — to create, send, open, and manage
messages
●Contacts — to save names and phone numbers in the
SIM card and phone memory
●Call register — to access phone numbers of missed,
received, and dialled calls
●Settings — to set up various features of your phone
●Clock — to set the time for the alarm
© 2009 Nokia. All rights reserved. 13

●Radio — to manage radio features
●Reminders — to manage reminders
●Games — to set up game effects, or play the games
installed in your phone
●Extras — to access various applications, such as the
calculator or stopwatch
●SIM services — to use additional services, if supported
by your SIM card
Make and answer a call
To make a call, enter the phone number, including the
country code and area code, if necessary, and press the call
key. To increase or decrease the volume of the earpiece or
headset during the phone call, scroll right or left.
To answer an incoming call, press the call key. To reject the
call without answering, press the end key.
Loudspeaker
If available, to use the loudspeaker or earpiece of the
phone during a call, you may select Loudsp. or Hands..
Warning: Do not hold the device near your ear
when the loudspeaker is in use, because the volume may
be extremely loud.
© 2009 Nokia. All rights reserved.14

Write text
Text modes and text input
You can enter text using traditional text input or
predictive text input .
To use traditional text input, press the key repeatedly until
the letter appears.
To set predictive text input on when writing, select
Options > Dictionary and the desired language; to set it
off, select Options > Dictionary > Dictionary off.
When using predictive text input, press each key once for
a single letter. If the displayed word is the one you want,
press 0, and start writing the next word.
To change the word, press *repeatedly until the word you
want appears.
If ? is displayed after the word, the word is not in the
dictionary.
To add the word to the dictionary, select Spell, enter the
word (using traditional text input), and select OK.
Tips for writing text:
To add a space, press 0.
To quickly change the text input method, press #
repeatedly, and check the indicator at the top of the
display.
© 2009 Nokia. All rights reserved. 15

To add a number, press and hold the desired number key.
To get a list of special characters when using traditional
text input, press *; when using predictive text input, press
and hold *.
To undo the clearing of a message in the editing window,
select Options > Undo clear.
Message
The message services can only be used if they are
supported by your network or service provider.
Your device supports text messages beyond the limit for a
single message. Longer messages are sent as two or more
messages. Your service provider may charge accordingly.
Characters with accents or other marks, and characters
from some language options,take up more space,and limit
the number of characters that can be sent in a single
message.
1. Select Menu > Messages > Create message.
2. Write the message. The message length indicator
shows how many characters you can enter in the
message. For example, 10/2 means that you can still
add 10 characters for the text to be sent as two separate
text messages.
© 2009 Nokia. All rights reserved.16

3. To send the message, select Options > Send, enter the
recipient's phone number or select it from Contacts,
and select OK.
To delete all read messages or all the messages in a folder,
select Menu > Messages > Delete messages > All
read or the desired folder.
Contacts
You can save names and phone numbers in the phone and
SIM card memory. The contacts list can contain up to 500
contacts, stored in the phone memory.
To search for a contact, scroll down in the standby mode,
and enter the first letters of the name. Scroll to the desired
contact.
1. To save names and phone numbers to the contacts list,
select Menu > Contacts > Add contact.
2. To copy names and phone numbers all at once or one
by one between the phone and SIM card memory, select
Menu > Contacts > Copy.
Multi-phonebook
Your phone supports up to five separate phonebooks for
multiple users. When the multi-phonebook is activated,
only the contacts in the active phonebook are visible.
© 2009 Nokia. All rights reserved. 17

To activate the multi-phonebook, select Menu >
Contacts > Settings > Multi-Phonebook >
Phonebook style > Multi-Phonebook.
To activate a phonebook, select Menu > Contacts >
Settings > Multi-Phonebook > Current phonebook
and the desired phonebook or Shared contacts.
A contact can belong to one or several phonebooks. The
contacts in Shared contacts are accessible from all
phonebooks. To assign a contact to one or several
phonebooks, select Menu > Contacts > Settings >
Multi-Phonebook > Manage contacts. Scroll to the
desired contact, and select it. Mark the phonebooks in
which you want to save the contact, and select Done >
Yes.
To rename the phonebooks, select Menu > Contacts >
Settings > Multi-Phonebook > Rename
phonebooks and the desired phonebook.
Flashlight
To switch the flashlight on or off, select Menu > Extras >
Flashlight > On or Off.
© 2009 Nokia. All rights reserved.18

© 2009 Nokia. All rights reserved. 19
Nokia original accessories
Warning: Use only batteries, chargers, and
accessories approved by Nokia for use with this particular
model. The use of any other types may invalidate any
approval or warranty, and may be dangerous.
For availability of approved accessories, check with your
dealer.
An extensive range of accessories is
available for your device. For more
accessories.
details, see www.nokia-asia.com/
