Nokia 5500d User manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
1
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
RM-86
Transceiver characteristics:
Band: Tri-band phone for GSM 900/1800/1900MHz
Camera: 2 Megapixel
Display: Active matrix color display with 262.144 colors,
resolution 208 x 208 pixel
IrDA
Bluetooth
FM radio
Push to talk (POC)
Connector: Pop-Port™ connector
SERVICE MANUAL
Level 1&2
Environmental characteristics:
• Lead-free soldered
Transceiver with BL-5B Li-Ion battery pack
Talk time Standby Note
2h to 4h 6 to 11days
Depends on network
parameters

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
2
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
CHANGE HISTORY
Status Version No. Date Comments
Draft 0.1 18.Jun.2006 Initial draft
Approved 1.0 6.Jul.2006 Approval
Approved 2.0 11.Jul.2006 Exploded view modified / Assembly instruction - Keymat added
Approved 3.0 23.Jul.2007 Exploded view modified - A8 structure
Approved 4.0 12.Sept.2007 Exploded view updated
Page
TABLE OF CONTENTS
INTRODUCTION 3
EXPLODED VIEW AND COMPONENT DISPOSAL 4
COMPONENT OVERVIEW 5
SERVICE DEVICES 6
SW-UPDATE 8
DISASSEMBLY INSTRUCTION 9
ASSEMBLY INSTRUCTION - KEYMAT 13
ASSEMBLY HINTS 14
LEDGEND FOR QUICK TROUBLE SHOOTER 15
QUICK TROUBLE SHOOTER - MAIN OVERVIEW 16
QUICK TROUBLE SHOOTER - ZOOMS PART 1 17
QUICK TROUBLE SHOOTER - ZOOMS PART 2 18
QUICK TROUBLE SHOOTER - ZOOMS PART 3 19
QUICK TROUBLE SHOOTER - ZOOMS PART 4 20
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
3
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to
NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is
confidential. Please note that NOKIA provides also other guidance documents (e.g. Service Bulletins) for service sup-
pliers, follow these regularly and comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may exist.
If you find any errors or if you have further suggestions, please notify NOKIA using the address below:
mailto:c[email protected]
Please keep in mind also that this documentation is continuously being updated and modified, so watch always out
for the newest version.
Warnings and Cautions
Please refer to the phone’s user guide for instructions relating to operation, care and maintenance including impor-
tant safety information. Note also the following:
Warnings:
CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS
AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR
OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHI-
CLE ELECTRONIC SYSTEMS TO RF ENERGY.
THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE
ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.
OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH
THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTUR-
ER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO
INTERFERENCE.
Cautions:
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist strap is worn.
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and alignment.
5. Ensure all cables and wires are repositioned correctly.
1.
2.
3.
Electrostatic discharge can easily damage the sensitive components of electronic products.
Therefore every Service Supplier has to take care of all precautions, which are mentioned in the
service level related “Service Partner Requirements”, available on NOKIA Online. Also see ESD
Protection Requirements in this Service Manual.
INTRODUCTION1.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
4
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)

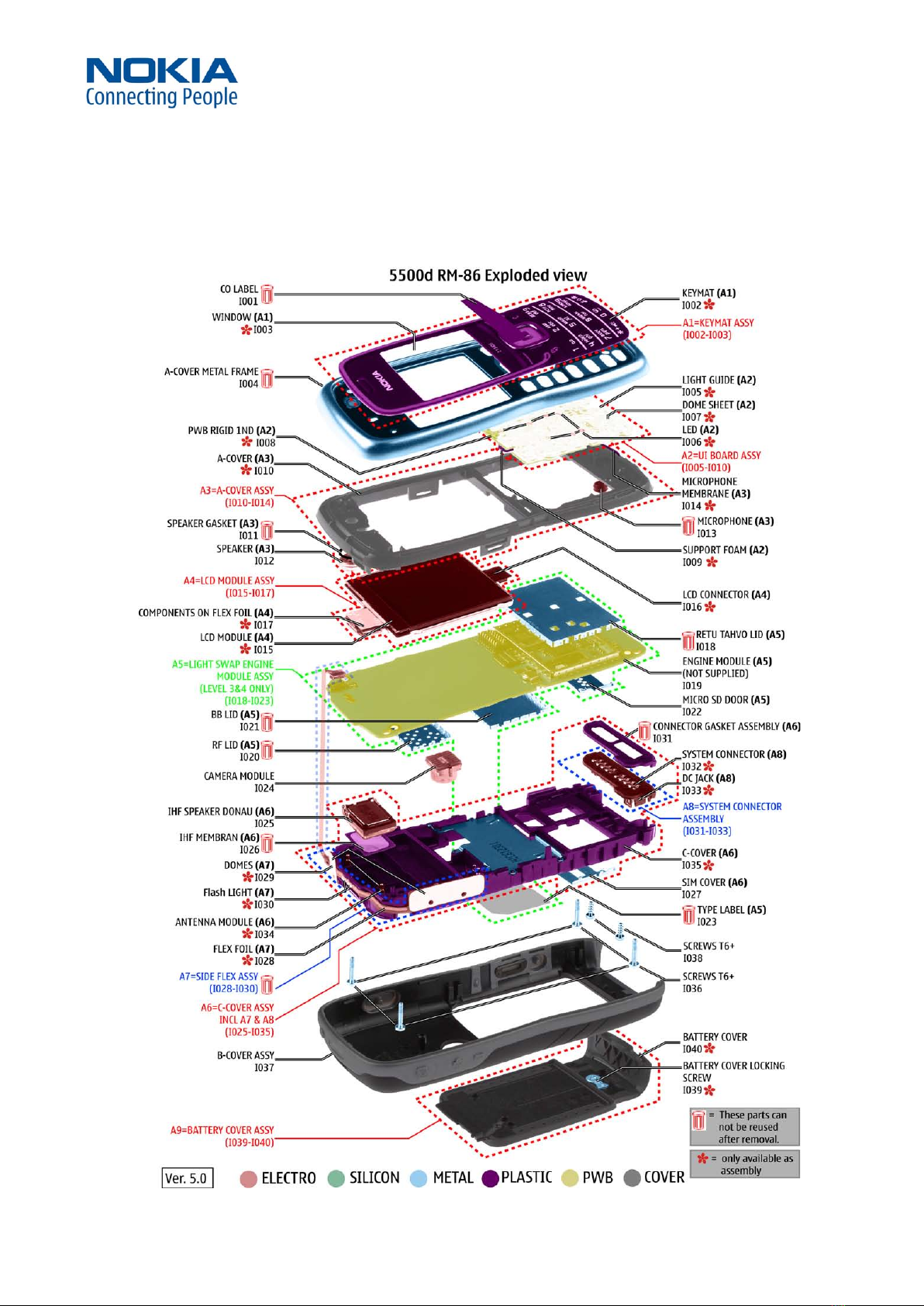

Recommendation for the ecologically friendly disposal of components. Colorized components show the different
categories. See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.
EXPLODED VIEW AND COMPONENT DISPOSAL2.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
5
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
COMPONENT OVERVIEW3.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
6
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)

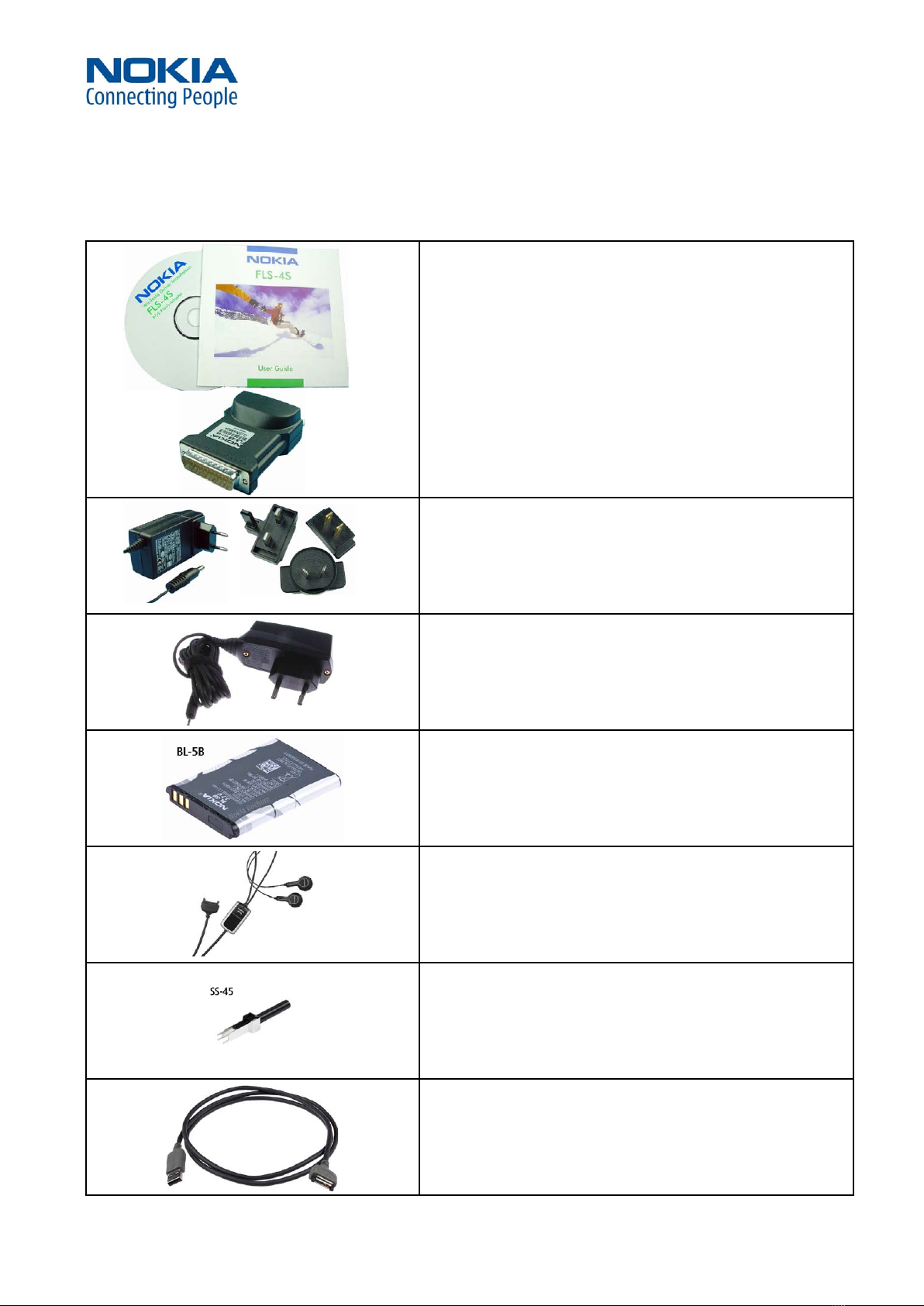

FLS-4S incl. ACF-8, Driver and User Guide
Dongle and flash device incorporated into one package, devel-
oped specifically for POS use.
ACF-8
Universal Power Supply is used to power FLS-4S.
Travel Charger AC-4
Small and lightweight charger for fast charging of your phone
battery.
Internal Battery BL-5B
Inserted under the back cover, this Li-Ion battery provides
power in a lightweight package.
Headset HS-23
Small and lightweight stereo headset with handsfree call han-
dling, volume control, push to talk support, and comfortable
earpieces for listening to the FM radio or music player.
SS-45
Camera removal tool.
CA-53
Service Cable to connect the PC with the Pop-Port™ connector.
SERVICE DEVICES4.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
7
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
RJ-152
Soldering Jig
Lead-free Solder Wire
Mandatory for lead-free products (Level 2 only).
0772040 NMP Standard Toolkit (V2)
For more informations refer to the Service Bulletin (SB-011) on
NOKIA Online.
Supplier or manufacturer contacts for tool re-order can be
found in “Recommended service equipment” document on
NOKIA Online.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
8
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
SW-UPDATE5.

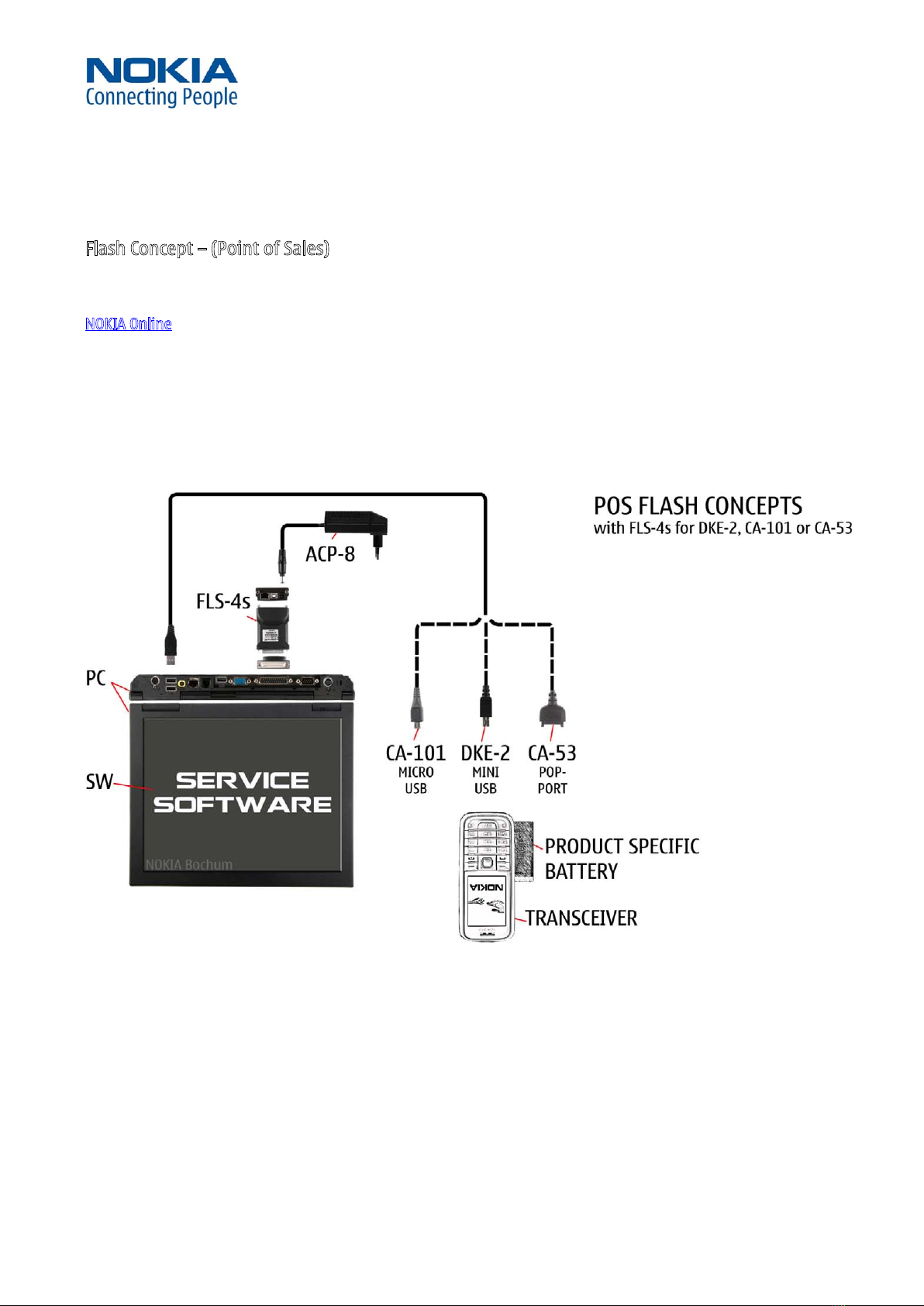

Flash Concept – (Point of Sales)
To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please check always for the
latest version of flash software, which is available on
NOKIA Online.
Choose the CA-53 service cable.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
9
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
DISASSEMBLY INSTRUCTION6.
1. Needed tools : a Torx Plus size 6 screwdriver, metal
tweezers, the dental pick, the SS-93 opening tool, a torque
driver, a Torx size 6 plus bit, the SRT-6 and the SS-45 camera
removal tool.
2. Unlock and remove the BATTERY COVER. Do not turn the
BATTERY COVER LOCKING SCREW over 90°.
3. Undo the screws in the order shown. 4. Place the SRT-6 between the A-COVER METAL FRAME and the
B-COVER ASSY.
5. Slide the SRT-6 along the edge to the middle of the cover. 6. To unlock the A-COVER METAL ASSY lever it out with SRT-6 as
shown.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
10
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)

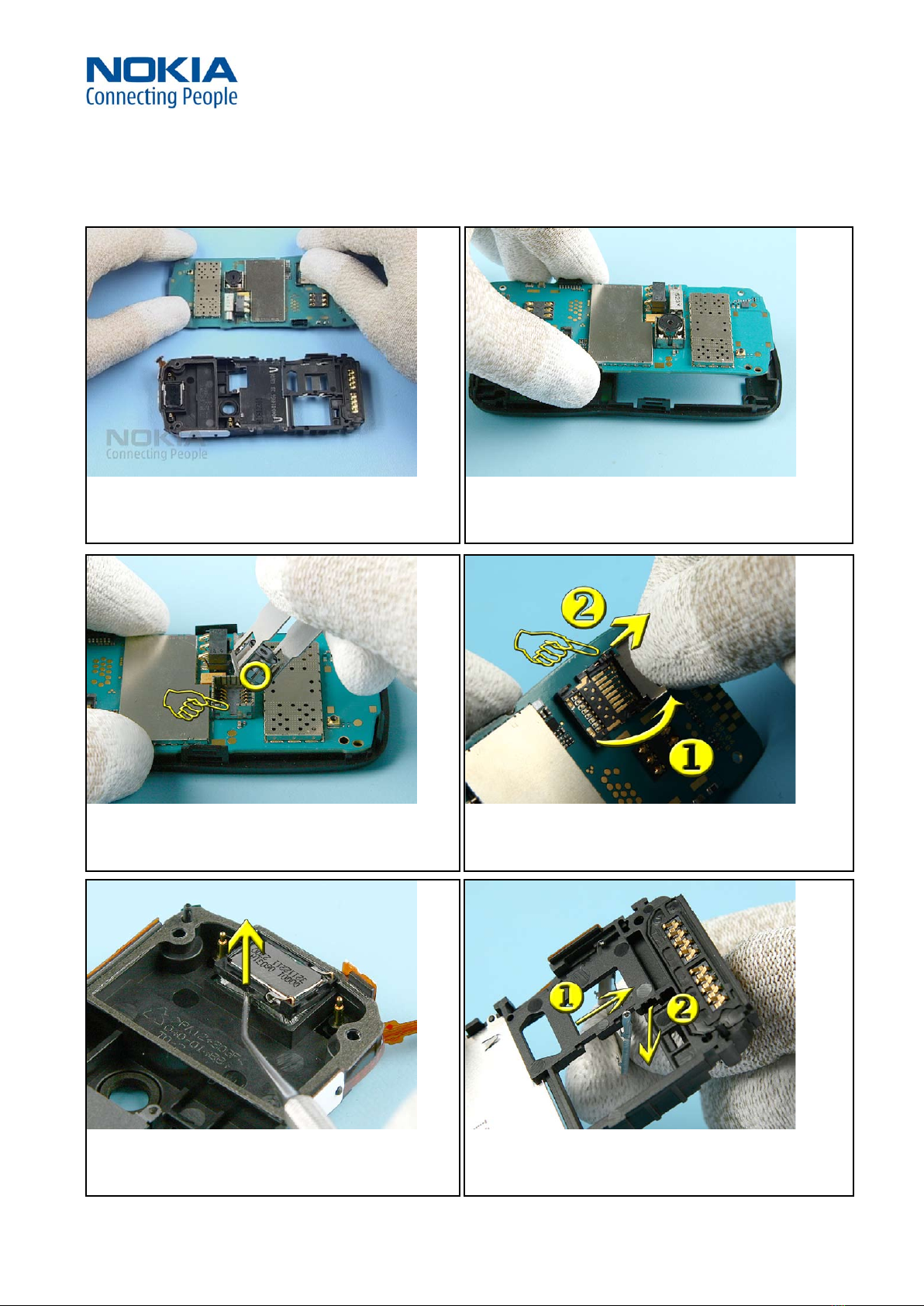

7. Do the same on the other side. 8. Separate the parts from each other.
9. Undo the screws in the shown order. 10. Discard the screws.
11. Unlock the A-COVER ASSY... 12. ...and remove the A-COVER METAL FRAME.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
11
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
13. Remove the A-COVER ASSY. 14. Remove the EARPIECE with the dental pick.
15. Remove the MICROPHONE with the dental pick. 16. Gently, open the LCD CONNECTOR...
17. ...and remove the LCD MODULE ASSY. 18. Open the SIDE FLEX connector.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
12
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
19. Now, remove the ENGINE MODULE. 20. Use the A-COVER ASSY as an support when removing the
CAMERA MODULE.
21. Remove the CAMERA MODULE with the SS-45 camera
removal tool. Note the guide pin for the reassembling
procedure.
22. Remove the MICRO SD DOOR in the shown order.
23. Remove the IHF SPEAKER DONAU with the dental pick. 24. Remove the SIM COVER in the shown order.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
13
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
1. Note the holes in the A-COVER METAL FRAME (left pic.) and
the guide pins on the back of the KEYMAT (right pic.).
2. Remove the protective lm from the A-COVER METAL FRAME.
3. Remove the protective lm from the KEYMAT. 4. Hold the KEYMAT horizontally over the A-COVER METAL FRAME
and align the four guide pins on the KEYMAT with the four holes
in the A-COVER METAL FRAME.
5. Press down the KEYMAT on the A-COVER METAL FRAME. 6. Ensure that the KEYMAT is also glued correctly around the
window area.
ASSEMBLY INSTRUCTION - KEYMAT7.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
14
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
1. Always use new screws when assembling the unit. 2. Set the torque driver to the torque value of 19Ncm.
3. Tighten the screws in the order shown. 4. Set a torque value of 17Ncm for the last two screws.
5. To avoid damaging the plastic threads, rst turn the screws
slightly left to engage the thread and then tighten them
lightly.
6. Tighten the screws in the order shown.
ASSEMBLY HINTS8.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
15
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
LEDGEND FOR QUICK TROUBLE SHOOTER9.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
16
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
QUICK TROUBLE SHOOTER - MAIN OVERVIEW10.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
17
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)

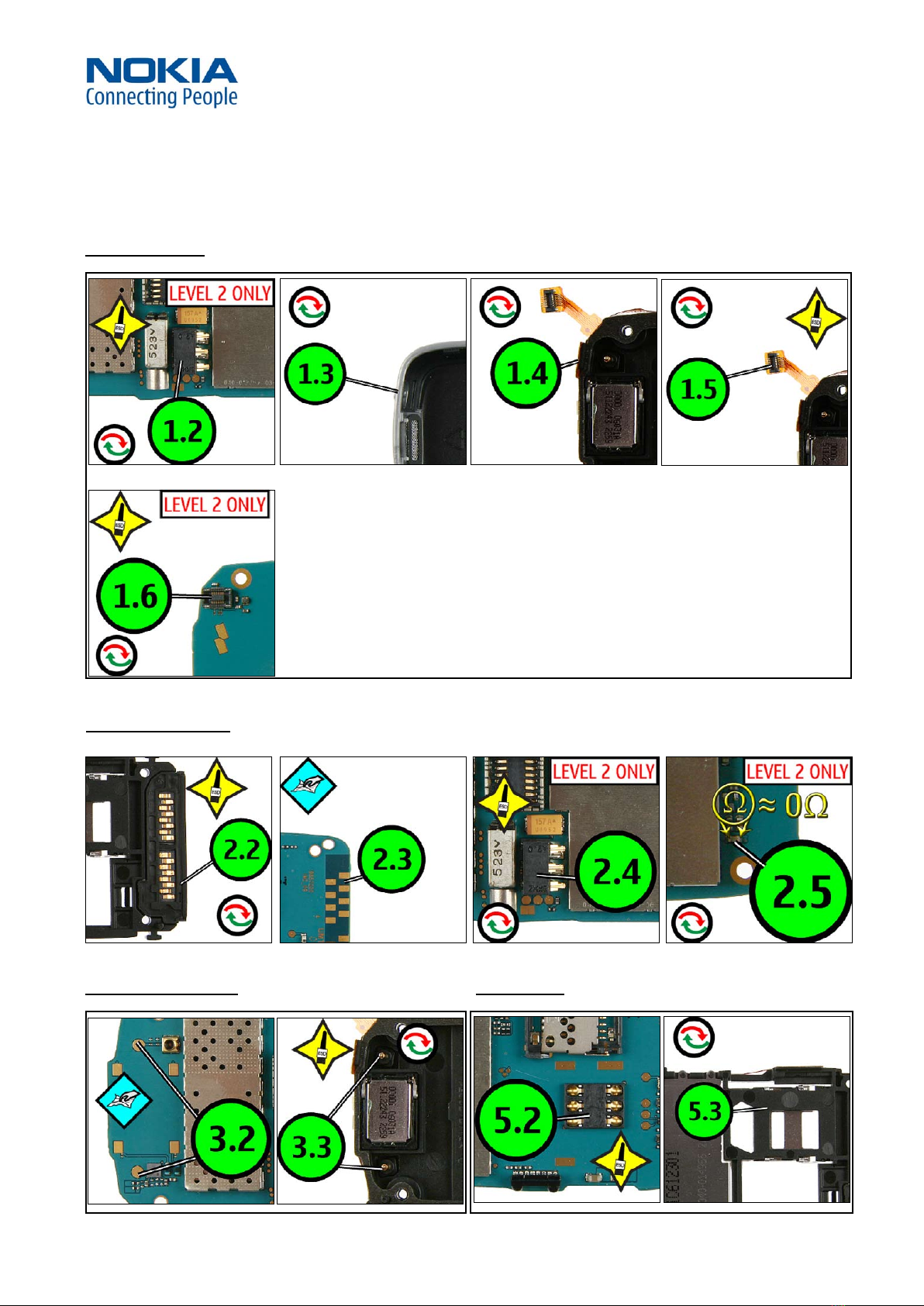

1.1 POWER (5)
2.1 CHARGING (4)
3.1 NO SERVICE (2) 4.1 SIM (2)
QUICK TROUBLE SHOOTER - ZOOMS PART 111.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
18
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
5.1 BLUETOOTH (2)
7.1 KEYPAD (4)
8.1 DISPLAY (2)

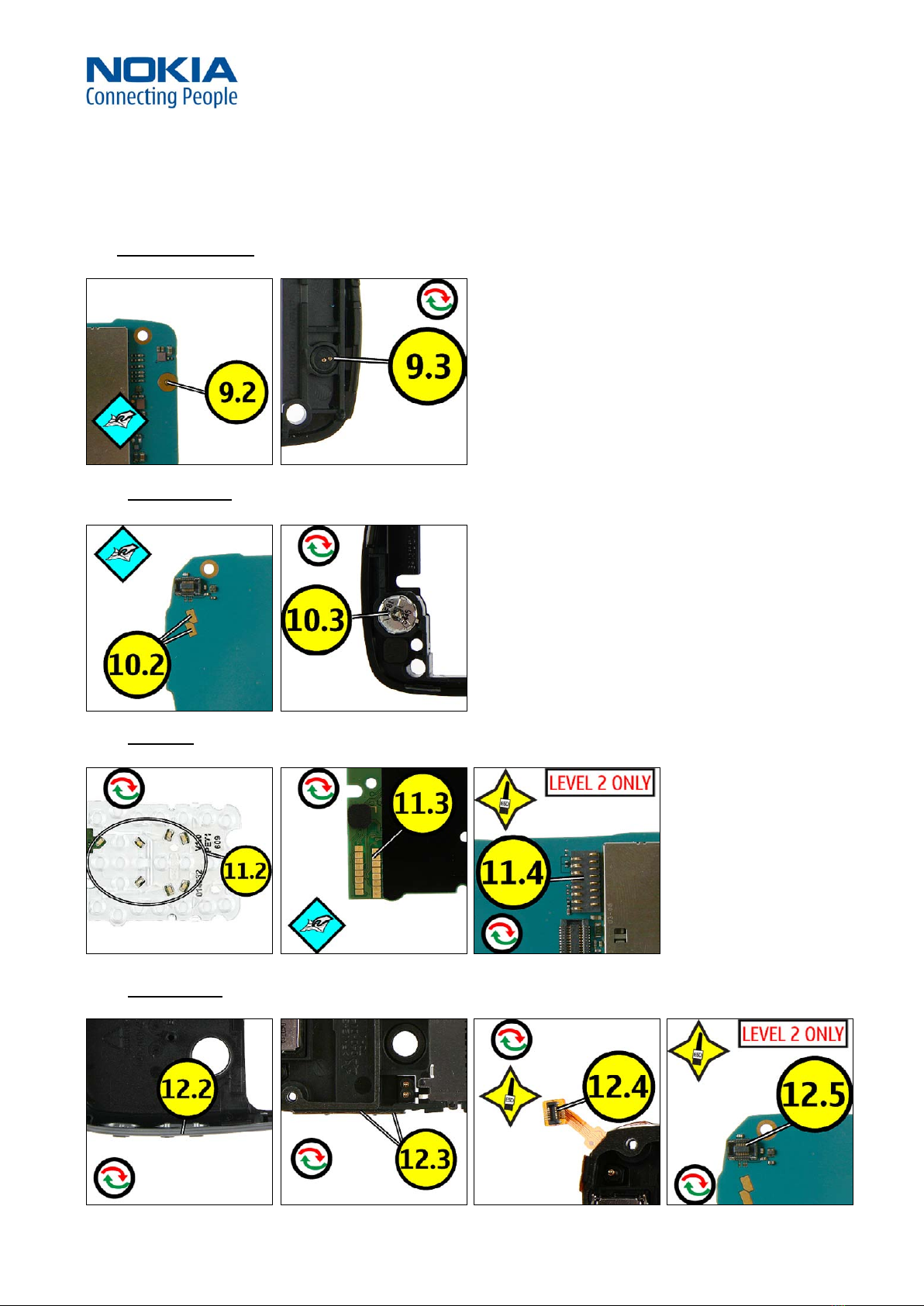

QUICK TROUBLE SHOOTER - ZOOMS PART 212.
6.1 IHF SPEAKER (2)

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
19
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
9.1 MICROPHONE (2)
10.1 EARPIECE (2)
11.1 LEDs (3)
12.1 VOLUME (4)
QUICK TROUBLE SHOOTER - ZOOMS PART 313.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 12.Sept.2007
20
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)
13.1 POC KEY (4)
14.1 EDIT KEY (4)
15.1 INSTANT SWAP KEY (4)
16.1 CAMERA (2)
QUICK TROUBLE SHOOTER - ZOOMS PART 414.
17.1 CARD READER (1)
