Nokia Lumia User manual

User Guide
Nokia Lumia XXX
Issue DRAFT 5 Sep 2012 16:39 EN

Contents
Safety 4
Get started 5
Keys and parts 5
Back, start, and search key 5
Antenna locations 6
Insert the SIM card 6
Remove the SIM card 7
Charge your phone 7
First start-up 9
Lock the keys and screen 12
Connect the headset 13
Change the volume 13
Icons shown on your phone 14
Basics 16
Get to know your phone 16
Personalise your phone 21
Extend battery life 24
Save on data roaming costs 25
Write text 25
Scan codes 29
Clock 29
Nokia account 31
People & messaging 32
Calls 32
Contacts 34
Social networks 36
Messages 38
Mail 42
Camera 48
Take a photo 48
Use different scene modes 49
Download Nokia Lenses from Store 51
Record a video 51
Camera tips 51
Save location info to your photos and
videos 51
Share your photos and videos 51
Manage and edit your shots 52
Maps & navigation 56
Switch location services on 56
Nokia Maps 56
Nokia City Lens 61
Check nearby events and places with
Local Scout 63
Positioning methods 63
Internet 64
Define internet connections 64
Web browser 65
Search the web 67
Share your mobile data connection 67
Close all internet connections 67
Entertainment 69
Watch and listen 69
Nokia Music 70
Sync music and videos between your
phone and PC 72
Store 72
Games 74
Office 76
Microsoft Office Mobile 76
Write a note 79
User Guide
Nokia Lumia XXX
© 2012 Nokia. All rights reserved.
2

Make a calculation 79
Calendar 80
Phone management & connectivity 82
Keep your phone up to date 82
Memory and storage 83
Security 84
Wi-Fi 85
Bluetooth 86
Copy content between your phone and
PC 88
Access codes 88
Help and support 90
Find your phone label 91
Product and safety information 92
Copyrights and other notices 97
© 2012 Nokia. All rights reserved.
3

Safety
Read these simple guidelines. Not following them may be dangerous or illegal.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when mobile phone use is not allowed or when it may cause interference
or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or
blasting areas. Obey all instructions in restricted areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first
consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
BATTERIES, CHARGERS, AND OTHER ACCESSORIES
Use only batteries, chargers, and other accessories approved by Nokia for use with this device.
Third-party chargers that comply with the IEC/EN 62684 standard, and that can connect to
your device micro USB connector, may be compatible. Do not connect incompatible products.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
GLASS PARTS
The device screen is made of glass. This glass can break if the device is dropped on a hard
surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of
the device or attempt to remove the broken glass from the device. Stop using the device until the
glass is replaced by qualified service personnel.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Exercise caution when holding your device near your ear while the loudspeaker is in use.
© 2012 Nokia. All rights reserved.
4

Get started
Get to grips with the basics and have your phone up and running in no time.
Keys and parts
Explore the keys and parts of your new phone.
1Earpiece
2Micro-SIMholder
3 Connector for headphones and
loudspeakers (3.5 mm)
4 Front camera
5Volumekeys
6 Power/Lock key
7 Camera key
8Searchkey
9Micro-USBconnector
10 Start key
11 Loudspeaker
12 Back key
13 SIM door key
14 Camera flash
15 Camera lens
Back, start, and search key
Find your way around your phone. The back, start, and search keys help you navigate your phone.
• To switch between open apps, press and hold , swipe left or right, and tap the app you want.
• To go back to the previous screen you were in, press . Your phone remembers all the apps and
websites you've visited since the last time your screen was locked.
© 2012 Nokia. All rights reserved.
5

• To go to the start screen, press . The app you were in remains open in the background.
• To control your phone with your voice, press and hold , and say a voice command.
This feature is not available in all languages. For info on the supported languages, go to
support.microsoft.com.
• To search the web, press .
Antenna locations
Learn where the antennas are located on your phone to get the best possible performance.
Avoid touching the antenna area while the antenna is in use. Contact with antennas affects the
communication quality and may reduce battery life due to higher power level during operation.
The antenna areas are highlighted.
Insert the SIM card
Read on to learn how to insert a SIM card into your phone.
Important: This device is designed to be used with a mini-UICC SIM card, also known as a micro-
SIM card only. A micro-SIM card is smaller than the standard SIM card. Use of incompatible SIM
cards may damage the card or the device, and may corrupt data stored on the card.
Tip: Use the SIM door key to unlock the SIM holder. If you lose the key, you can use a paperclip.
The phone must be switched off before inserting the SIM card.
1. Push the key into the hole until the holder is released, and pull the holder out.
© 2012 Nokia. All rights reserved.
6

2. Make sure the contact area is face up, and put the card in the holder.
3. Push the holder back into your phone until it locks into place.
Remove the SIM card
Got a new SIM card? Learn how to remove the previous card from your phone.
1. Switch the phone off.
2. Unlock and pull out the holder.
3. Pull the card out of the holder.
Charge your phone
There's more than one way to charge your phone.
© 2012 Nokia. All rights reserved.
7

Charge your phone with a USB charger
Your battery has been partially charged at the factory, but you may need to recharge it before you
can switch the phone on for the first time.
Make sure you use a compatible USB charger to charge your phone.
1. First connect the USB cable to the charger, and plug the charger into a wall outlet, then connect
the micro-USB end of the cable to your phone.
2. When the battery is full, disconnect the charger from the phone, then from the wall outlet.
You don't need to charge the battery for a specific length of time, and you can use the phone while
it's charging.
If your phone is off when you start charging, it automatically switches on.
If the battery is completely discharged, it may take several minutes before the charging indicator is
displayed or before any calls can be made.
Tip: You can use USB charging when a wall outlet is not available. Data can be transferred while
charging the device. The efficiency of USB charging power varies significantly, and it may take
a long time for charging to start and the device to start functioning.
First connect the USB cable to the computer, then to your phone. When the battery is full, first
disconnect the USB cable from your phone, then from the computer.
Charge your phone wirelessly
No need for hassle with cables, just pop your device on a wireless charger, and it immediately starts
charging.
Your phone supports Qi, the global standard for wireless charging, and is compatible with any Qi
wireless charger. The charging areas on the phone and the charger need to touch, so make sure you
align the phone and charger properly. Not all phone models fit in all chargers.
© 2012 Nokia. All rights reserved.
8

Nokia Wireless Chargers are available separately.
1. Make sure the wireless charger is switched on.
2. Place your phone on the wireless charger so that the charging areas touch together.
3. When the battery is full, remove your phone from the charger.
The charging area is highlighted.
Warning: Make sure there’s nothing between the charger and the device. Do not attach anything,
such as stickers, to the device surface near the charging area.
For more info on wireless charging, see the user guide of your charger.
Battery
Take good care of your battery, it's the life force of your phone.
Your phone has an internal, non-removable, rechargeable battery. Use only Nokia approved chargers
designated for this phone. You can also use a compatible USB cable to charge your phone (included).
Do not attempt to remove the battery from the device. To replace the battery, take the device to
your nearest authorised service facility.
Important: Only qualified personnel or an authorised service facility should replace the battery.
Unauthorised battery replacement may invalidate your warranty.
First start-up
Learn how to get your new phone up and running.
© 2012 Nokia. All rights reserved.
9

Switch the phone on
Are you ready? Switch your phone on, and start exploring it.
Press and hold the power key until the phone vibrates.
Switch the phone off
Press and hold the power key, and drag the lock screen down.
Microsoft account
With a Microsoft account, you can access all Microsoft services with a single username and password
on your computer or phone. You can also use the same username and password on your Xbox.
With your Microsoft account, you can, for example:
• Download content from Store
• Back up your contacts
• Upload, store, and share pictures and documents.
• Back up your phone on SkyDrive.
• Play Xbox games
• Get your avatar and gaming achievements on your phone, and add to them when you play games
on your phone
© 2012 Nokia. All rights reserved.
10

• Keep track of and lock your lost phone with Find My Phone
• Get feeds from social networking services to your People hub
To learn more about Microsoft account and what can you do with it, go to
www.windowsphone.com.
Create your Microsoft account
Spice up your life and get more from your phone – create a Microsoft account.
To create a Microsoft account, you need an internet connection. If you don't have a data plan, the
data transmission costs may pile up quickly. For info about possible data costs, contact your network
service provider. If you can't connect to the internet, you can create the account later.
1. Switch on your phone with the SIM card in the phone.
2. To set up your phone, follow the instructions shown on the screen.
3. Create your Microsoft account, or sign in with your existing username and password.
Tip: To create a Microsoft account later, open a Microsoft app or service on your phone. Or on
the start screen, swipe left, and tap Settings > email+accounts > add an account. To create
your account on the internet, go to www.live.com.
To make an emergency call during the initial set-up, tap emergency call.

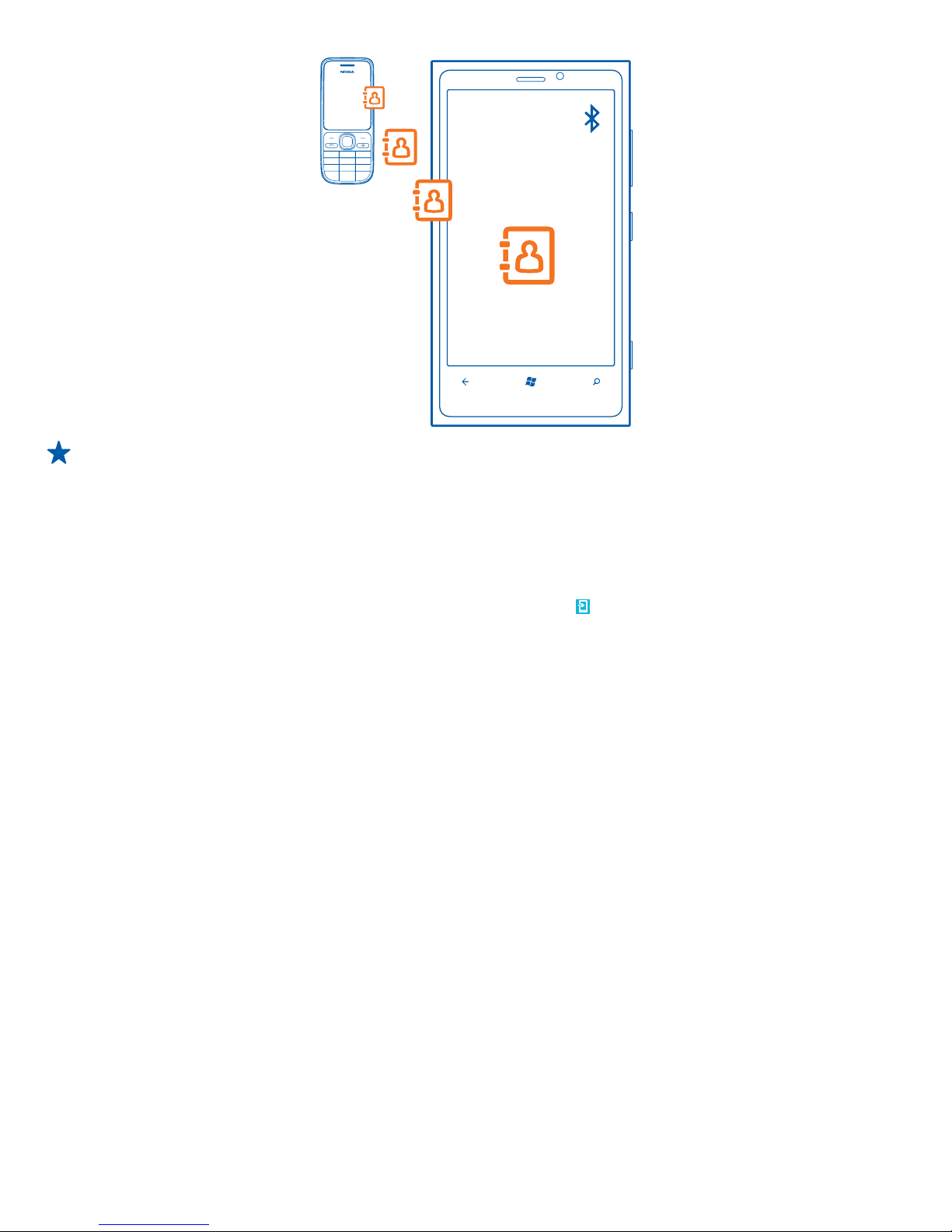

Copy contacts
Have your nearest and dearest instantly at your fingertips. Use the Transfer my Data app to easily
copy your contacts from your old phone.
© 2012 Nokia. All rights reserved.
11

Tip: If you have an older Windows Phone device, or have previously backed up your contacts in
Windows Live, add your account to your phone, and import them to your phone straight from
the service.
Your old phone needs to support Bluetooth. The contacts on your old phone need to be stored in the
phone memory, not on the SIM. The app does not work with all phone models.
1. On your old phone, switch Bluetooth on.
2. On the start screen of your new phone, swipe left, and tap Transfer my Data.
3. Tap continue, and switch Bluetooth on.
4. Select your old phone from the list of found devices, and follow the instructions shown on both
phones.
If your contacts are written in a language that is not supported by your new phone, the contact
information may not be shown correctly.
Lock the keys and screen
Want to avoid accidentally making a call when your phone is in your pocket or bag?
Press the power key.

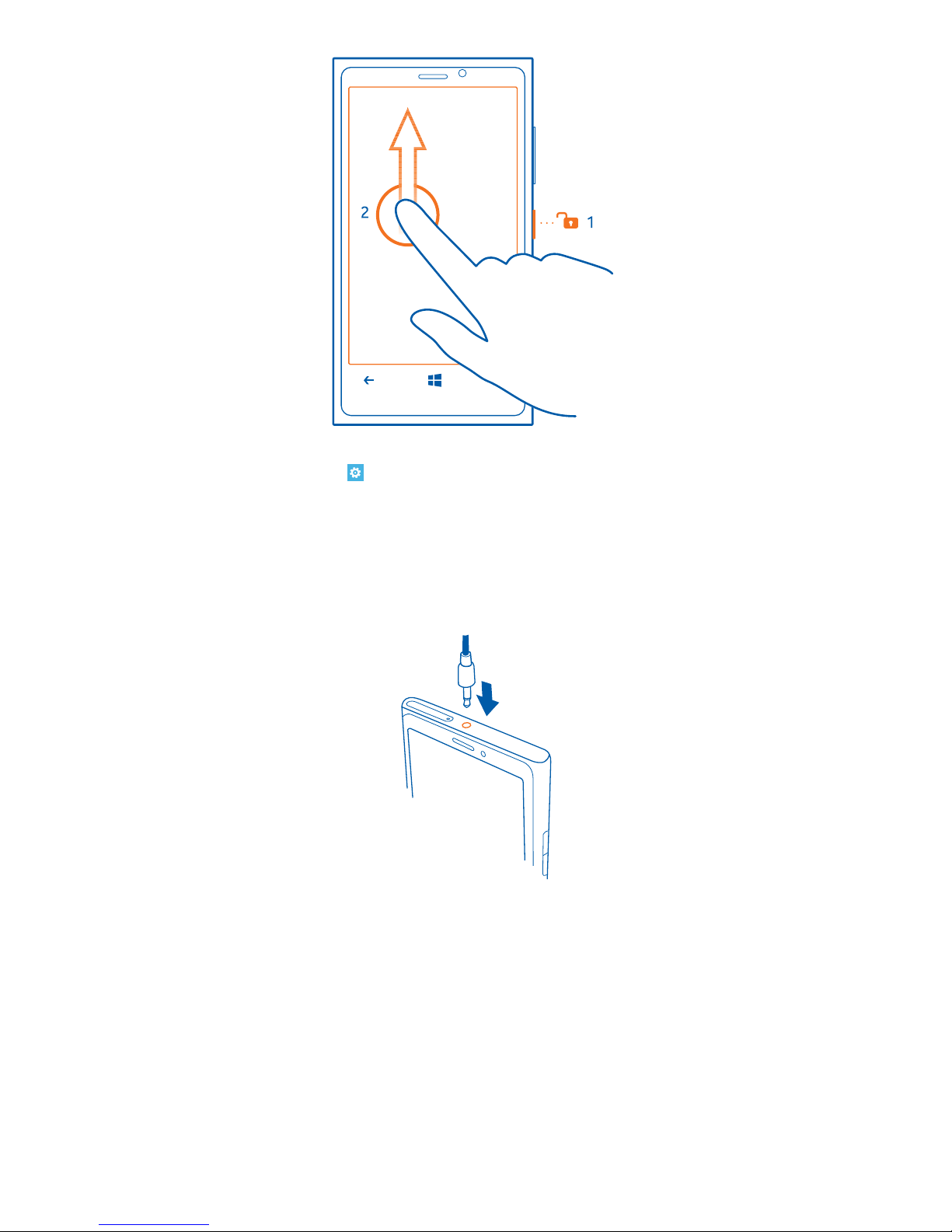

Unlock the keys and screen
Press the power key, and drag the lock screen up.
© 2012 Nokia. All rights reserved.
12

Set the keys and screen to lock automatically
On the start screen, swipe left, tap Settings > lock screen > Screen times out after, and select the
length of time after which the keys and screen are locked automatically.
Connect the headset
Enjoy your favourite music, or free your hands for other things when in a call.
Connect the headset to your phone.
Do not connect products that create an output signal, as this may damage the device. Do not connect
any voltage source to the audio connector. If you connect an external device or headset, other than
those approved by Nokia for use with this device, to the audio connector, pay special attention to
volume levels.
Change the volume
Trouble hearing your phone ringing in noisy environments, or calls too loud? You can change the
volume to your liking.
Use the volume keys.
© 2012 Nokia. All rights reserved.
13

The volume keys control all sounds, including the volume of alarms and reminders.
Tip: When you change the volume, you can also switch your phone to silent or normal mode. On
the volume control bar at the top of the screen, tap , , or .
Icons shown on your phone
The bar at the top of the screen tells you the current time, battery and signal strength, and much
more.
Tip: To see hidden icons, tap the status bar.
Signal strength
Battery power level
The battery is charging.
Battery saver mode is switched on.
Your calls are forwarded to another number or your voice mailbox.
There is no SIM card in your phone.
Your SIM card is locked.
A Bluetooth device is connected to your phone.
A Wi-Fi connection is available.
A Wi-Fi connection is active.
An EDGE data connection is open.
A GPRS data connection is open.
Your phone is connected to a 3G network.
An app or service is using your location info.
An HSDPA/HSUPA data connection is open.
Your phone is connected to a 4G network.
Your phone is roaming and not on your home mobile network.
Vibrate mode is switched on.
Flight mode is switched on.
© 2012 Nokia. All rights reserved.
14

Silent mode is switched on.
The icons may vary depending on your region or network service provider.
© 2012 Nokia. All rights reserved.
15

Basics
Learn how to get the most out of your new phone.
Get to know your phone
Your phone has two main views, making it easy for you to keep up with what is going on and what's
where. To switch between the views, simply swipe left or right.
• Start screen
Animated live tiles show missed calls and received messages, the latest news and weather
forecasts, your friends' online statuses, and more.
You can rearrange and resize the tiles, and pin contacts, apps, feeds, mailboxes, websites, and
other favourites. Updates of your pinned contacts are shown on the tile, and you can call them
directly from the start screen.
• Apps menu
All your apps are listed here, in alphabetical order. Got a lot of apps? To search for an app, tap
. If you've got loads of apps, letters of the alphabet show up in the list to help you search. Tap
any letter in the list, and tap the first letter of the app you want.
Tip: You can also search inside an app, such as Store.
Use the touch screen
Explore your phone with a tap, swipe or drag.
1. To use your phone, simply tap or tap and hold the touch screen.
2. To open further options, place your finger on an item until the menu opens.
Tip: You can use your phone even with gloves on. On the start screen, swipe left, and tap
Settings > display+touch, and switch touch sensitivity to High .
© 2012 Nokia. All rights reserved.
16

Example: To open an app or other item, tap the app or item. To edit or delete a calendar
appointment, tap and hold the appointment, and select the appropriate option.
Tap and hold to drag an item
Place your finger on the item for a second or two, and slide your finger across the screen.
Swipe
Place your finger on the screen, and slide it in the desired direction.
© 2012 Nokia. All rights reserved.
17

Example: Swipe left or right between the start screen and the apps menu, or between different
views in the hubs. To quickly scroll through a long list or menu, slide your finger quickly in a
flicking motion up or down the screen, and lift your finger. To stop the scrolling, tap the screen.
Zoom in or out
Place two fingers on an item, such as a map, photo, or web page, and slide your fingers apart or
together.
© 2012 Nokia. All rights reserved.
18

Important: Avoid scratching the touch screen.
Switch between apps
When you've got lots of different things to do, it's easy to switch between the tasks at hand.
1. Press and hold .
2. Swipe left or right, and tap the app you want.
Use your phone with ease
Struggling with small text or blurry images? Make the fonts larger and the screen easier to view.
1. On the start screen, swipe left, and tap Settings.
2. Tap ease of access.
© 2012 Nokia. All rights reserved.
19

Change the font size
Drag the Text size slider.
Switch high contrast on
Switch High contrast to On .
Magnify the screen
Switch Screen magnifier to On , and double-tap the screen with two fingers. When using the
magnifier, use two fingers to move around the screen. To stop magnification, double-tap the screen
with two fingers.
Use your phone with a TTY/TDD
Under TTY/TDD, tap full.
The available TTY/TDD modes may vary depending on your network service provider.
Use your phone when it's locked
You can use certain features of your phone when it is locked, without having to enter the security
code.
To wake up your phone, press the power key.
Open the camera
Press and hold the camera key.
Change how incoming calls are notified
Press the volume keys, and tap , , or .
Pause or resume music, or skip to another song
Use the music player controls displayed at the top of the screen.
Use your phone in flight mode
In places where you don't want to make or receive calls, you can still access your music, videos, and
offline games if you switch flight mode on.
© 2012 Nokia. All rights reserved.
20
Other manuals for Lumia
2
This manual suits for next models
1
Table of contents
Other Nokia Cell Phone manuals

Nokia
Nokia TA-1341 Specification sheet

Nokia
Nokia 6560 User manual

Nokia
Nokia 5500 Sport User manual

Nokia
Nokia 002Q944 User manual

Nokia
Nokia 2730 classic User manual

Nokia
Nokia 6270 User manual

Nokia
Nokia 9300i User manual

Nokia
Nokia 6160 6160 User manual

Nokia
Nokia 5530 - XpressMusic Smartphone 70 MB User manual

Nokia
Nokia 6255i - Cell Phone - CDMA2000 1X User manual
