Nokia Lumia 520 User manual

User Guide
Nokia Lumia 520
Issue 2.0 EN-US

Psst...
This guide isn't all there is...
Check out the videos at www.youtube.com/NokiaSupportVideos.
For info on Nokia Service terms and Privacy policy, go to www.nokia.com/privacy.
© 2013 Nokia. All rights reserved.
2

Contents
Safety 5
Get started 6
Keys and parts 6
Back, start, and search key 6
Antenna locations 7
Insert the SIM card 7
Insert the memory card 9
Remove the SIM and memory card 11
Charge your phone 12
First start-up 13
Lock the keys and screen 16
Connect the headset 17
Change the volume 17
Icons shown on your phone 18
Basics 19
Get to know your phone 19
Personalize your phone 25
Take a screenshot 29
Extend battery life 30
Save on data roaming costs 31
Write text 32
Scan codes or text 36
Clock 37
SkyDrive 38
Nokia account 39
Store 40
People & messaging 43
Calls 43
Contacts 46
Social networks 49
Messages 51
Mail 55
Camera 61
Camera basics 61
Advanced photography 65
Photos and videos 67
Maps & navigation 71
Switch location services on 71
Download HERE Drive from Store 71
HERE Maps 71
Positioning methods 76
Internet 78
Define internet connections 78
Connect your computer to the web 79
Web browser 79
Search the web 81
Close all internet connections 81
Entertainment 82
Watch and listen 82
FM radio 83
Nokia Music 84
Sync music and videos between your
phone and computer 86
Games 87
Office 89
Microsoft Office Mobile 89
Write a note 92
Continue with a document on another
device 92
Calendar 93
Make a calculation 94
User Guide
Nokia Lumia 520
© 2013 Nokia. All rights reserved.
3

Use your work phone 94
Tips for business users 95
Phone management & connectivity 97
Keep your phone up to date 97
Wi-Fi 98
Bluetooth 99
Memory and storage 101
Copy content between your phone and
computer 102
Security 103
Wallet 105
Access codes 106
Troubleshooting and support 108
Product and safety information 110
© 2013 Nokia. All rights reserved.
4

Safety
Read these simple guidelines. Not following them may be dangerous or illegal.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when cell phone use is not allowed or when it may cause interference or
danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or
blasting areas. Obey all instructions in restricted areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first
consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
BATTERIES, CHARGERS, AND OTHER ACCESSORIES
Use only batteries, chargers, and other accessories approved by Nokia for use with this device.
Third-party chargers that comply with the IEC/EN 62684 standard, and that can connect to
your device micro USB connector, may be compatible. Do not connect incompatible products.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
GLASS PARTS
The device screen is made of glass. This glass can break if the device is dropped on a hard
surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of
the device or attempt to remove the broken glass from the device. Stop using the device until the
glass is replaced by qualified service personnel.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Exercise caution when holding your device near your ear while the speakerphone is in use.
© 2013 Nokia. All rights reserved.
5

Get started
Get to grips with the basics, and have your phone up and running in no time.
Keys and parts
Explore the keys and parts of your new phone.
1 Connector for headphones and
speakerphones (3.5 mm)
2Earpiece
3Volumekeys
4 Power/Lock key
5 Camera key
6 Back key
7Startkey
8Searchkey
9Micro-USBconnector
10 Microphone
11 Camera lens
12 Speakerphone
Some of the accessories mentioned in this user
guide may be sold separately.
Back, start, and search key
The back, start, and search keys help you navigate your phone.
• To switch between open apps, press and hold , swipe left or right, and tap the app you want.
• To go back to the previous screen you were in, press . Your phone remembers all the apps and
websites you've visited since the last time your screen was locked.
© 2013 Nokia. All rights reserved.
6

• To go to the start screen, press . The app you were in remains open in the background.
• To control your phone with your voice, press and hold , and say a voice command.
This feature is not available in all languages. For more info on feature and service availability, see
the How-to section at www.windowsphone.com.
• To search the web, press .
Antenna locations
Learn where the antennas are located on your phone to get the best possible performance.
Avoid touching the antenna area while the antenna is in use. Contact with antennas affects the
communication quality and may reduce battery life due to higher power level during operation.
The antenna areas are highlighted.
Insert the SIM card
Read on to learn how to insert your SIM card into your phone.
Important: This device is designed to be used with a mini-UICC SIM card, also known as a micro-
SIM card only. A micro-SIM card is smaller than the standard SIM card. Use of incompatible SIM
cards, or use of SIM card adapters, may damage the card or the device, and may corrupt data
stored on the card.
Note: Switch the device off and disconnect the charger and any other device before removing
any covers. Avoid touching electronic components while changing any covers. Always store and
use the device with any covers attached.
Make sure your phone is switched off.
1. At the top corner of your phone, put the nail of your index finger in the seam between the screen
frame and the back cover. Press the middle of the back cover, and bend the cover to loosen the top
hooks. Remove the cover.
© 2013 Nokia. All rights reserved.
7

Do not use any sharp tools, as they may damage the screen.
2. If the battery is in, lift it out.
3. Push the SIM into the SIM slot until it is fully inserted. Make sure the contact area is facing down.
4. Line up the battery contacts, and replace the battery.
5. Press the bottom edge of the back cover against the bottom edge of your phone.
© 2013 Nokia. All rights reserved.
8

6. Press the back of the cover until it snaps into place. Don't press the keys while attaching the cover.

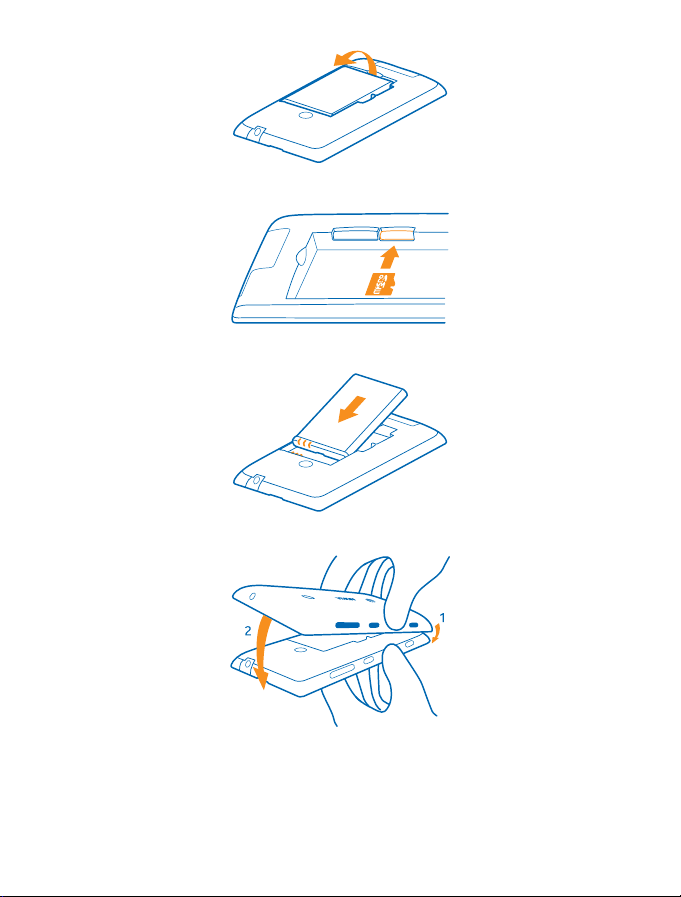

Insert the memory card
Learn how to insert your memory card into your phone.
Use only compatible memory cards approved for use with this device. Incompatible cards may
damage the card and the device and corrupt data stored on the card.
Your phone supports memory cards with a capacity of up to 64 GB.
Make sure your phone is switched off.
1. At the top corner of your phone, put the nail of your index finger in the seam between the screen
frame and the back cover. Press the middle of the back cover, and bend the cover to loosen the top
hooks. Remove the back cover.
Do not use any sharp tools, as they may damage the screen.
2. If the battery is in, lift it out.
© 2013 Nokia. All rights reserved.
9

3. Push the memory card into the memory card slot until it locks into place.
4. Line up the battery contacts, and replace the battery.
5. Press the bottom edge of the back cover against the bottom edge of your phone.
6. Press the back of the cover until it snaps into place. Don't press the keys while attaching the cover.
© 2013 Nokia. All rights reserved.
10

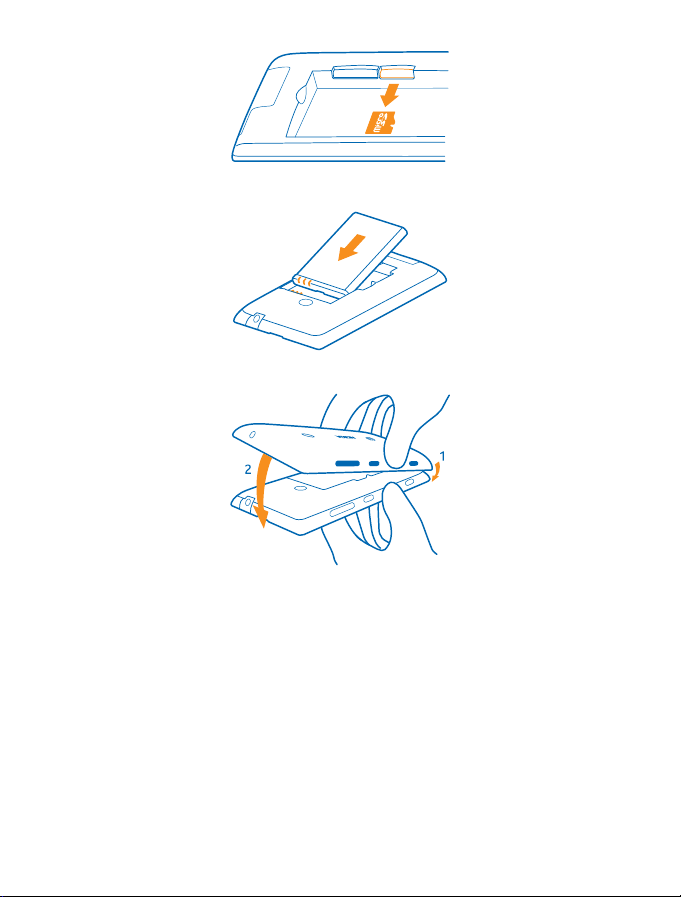

Remove the SIM and memory card
Got a new SIM or memory card? Learn how to remove the previous card from your phone.
Make sure the phone is switched off.
1. At the top corner of your phone, put the nail of your index finger in the seam between the screen
frame and the back cover. Press the middle of the back cover, and bend the cover to loosen the top
hooks. Remove the back cover.
Do not use any sharp tools, as they may damage the screen.
2. If the battery is in, lift it out.
3. Push the SIM through the opening, then pull it out.
4. To remove the memory card, pull it out from the slot.
© 2013 Nokia. All rights reserved.
11

5. Line up the battery contacts, and replace the battery.
6. Press the bottom edge of the back cover against the bottom edge of your phone.
7. Press the back of the cover until it snaps into place. Don't press the keys while attaching the cover.
Charge your phone
Learn how to charge your phone.
Charge your phone with a USB charger
Your battery has been partially charged at the factory, but you may need to recharge it before you
can switch the phone on for the first time.
Make sure you use a compatible USB charger to charge your phone.
1. Plug the charger into a wall outlet, then connect the micro-USB end of the charger's cable to your
phone.
© 2013 Nokia. All rights reserved.
12

2. When the battery is full, disconnect the charger from the phone, then from the wall outlet.
You don't need to charge the battery for a specific length of time, and you can use the phone while
it's charging.
If the battery is completely discharged, it may need to charge for up to 20 minutes before you can
use your phone. The charging indicator may not be displayed in this time.
Tip: You can use USB charging when a wall outlet is not available. Data can be transferred while
charging the device. The efficiency of USB charging power varies significantly, and it may take
a long time for charging to start and the device to start functioning.
First connect the USB cable to the computer, then to your phone. When the battery is full, first
disconnect the USB cable from your phone, then from the computer.
The battery can be charged and discharged hundreds of times, but it will eventually wear out. When
the talk and standby times are noticeably shorter than normal, replace the battery.
Battery
Take good care of your battery, it's the life force of your phone.
Use only Nokia approved chargers designated for this phone. You can also use a compatible USB
cable to charge your phone (included).
First start-up
Learn how to get your new phone up and running.
Your new phone comes with great features that will be installed when you start your phone for the
first time. Allow some minutes for your phone to be ready.
© 2013 Nokia. All rights reserved.
13

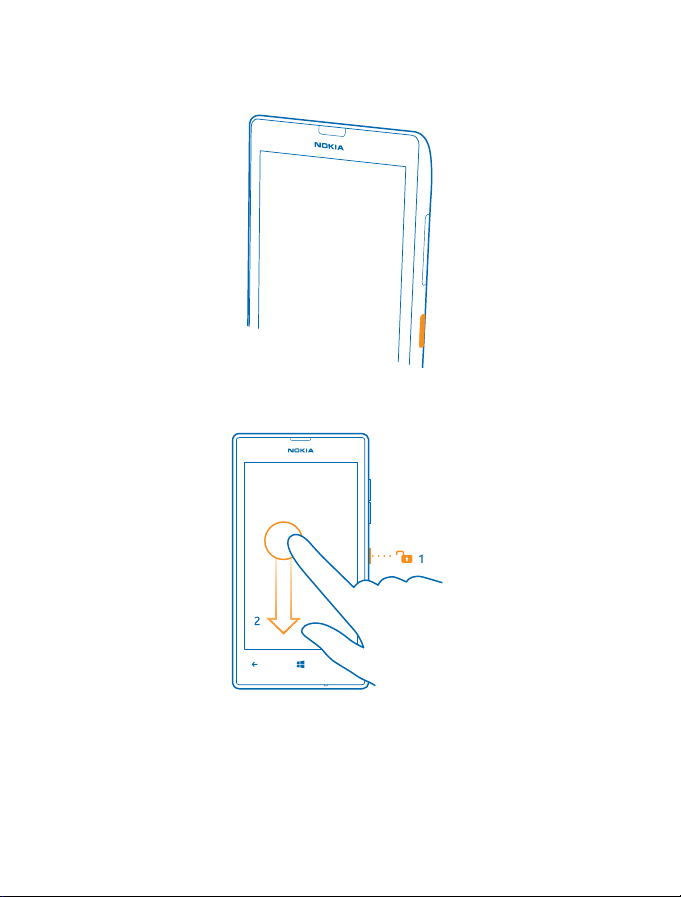

Switch the phone on
Are you ready? Switch your phone on, and start exploring it.
Press and hold the power key until the phone vibrates.
Switch the phone off
Press and hold the power key, and drag the lock screen down.
Microsoft account
With a Microsoft account, you can access all Microsoft services with a single username and password
on your computer or phone. You can also use the same username and password on your Xbox.
With your Microsoft account, you can, for example:
• Download content from Store
© 2013 Nokia. All rights reserved.
14

• Back up your contacts
• Upload, store, and share pictures and documents.
• Back up your phone on SkyDrive.
• Play Xbox games
• Get your avatar and gaming achievements on your phone, and add to them when you play games
on your phone
• Keep track of and lock your lost phone with Find My Phone
• Get feeds from social networking services to your People hub
To learn more about Microsoft account and what can you do with it, go to
www.windowsphone.com.
Create your Microsoft account
Spice up your life and get more from your phone – create a Microsoft account.
To create a Microsoft account, you need an internet connection. If you don't have a data plan, the
data transmission costs may pile up quickly. For info about possible data costs, contact your network
service provider. If you can't connect to the internet, you can create the account later.
1. Switch on your phone with the SIM card in the phone.
2. To set up your phone, follow the instructions shown on the screen.
3. Create your Microsoft account, or sign in with your existing username and password.
To make an emergency call during the initial set-up, tap emergency call.
To create a Microsoft account later, open a Microsoft app or service on your phone. Or on the start
screen, swipe left, and tap Settings > email+accounts > add an account. To create your account
on the internet, or to reset your password, go to www.live.com.
© 2013 Nokia. All rights reserved.
15

Lock the keys and screen
Want to avoid accidentally making a call when your phone is in your pocket or bag?
Press the power key.
Unlock the keys and screen
Press the power key, and drag the lock screen up.
Set the keys and screen to lock automatically
On the start screen, swipe left, tap Settings > lock screen > Screen times out after, and select
the length of time after which the keys and screen are locked automatically.
© 2013 Nokia. All rights reserved.
16

Connect the headset
Enjoy your favorite music, or free your hands for other things when in a call.
Connect the headset to your phone.
Do not connect products that create an output signal, as this may damage the device. Do not connect
any voltage source to the audio connector. If you connect an external device or headset, other than
those approved by Nokia for use with this device, to the audio connector, pay special attention to
volume levels.
Change the volume
Trouble hearing your phone ringing in noisy environments, or calls too loud? You can change the
volume to your liking.
Use the volume keys.
The volume keys control all sounds, including the volume of alarms and reminders.
Tip: When you change the volume, you can also switch your phone to vibrate, silent, or normal
mode. On the volume control bar at the top of the screen, tap , , or .
© 2013 Nokia. All rights reserved.
17

Icons shown on your phone
The status bar at the top of the screen tells you the current time, battery and signal strength, and
much more.
Tip: To see hidden icons, tap the status bar.
Signal strength
Battery power level
The battery is charging.
Battery saver mode is switched on.
Your calls are forwarded to another number or your voice mailbox.
There is no SIM card in your phone.
Your SIM card is locked.
A Bluetooth device is connected to your phone.
A Wi-Fi connection is available.
A Wi-Fi connection is active.
An app or service is using your location info.
Your phone is roaming and not on your home mobile network.
Vibrate mode is switched on.
Airplane mode is switched on.
Silent mode is switched on.
The type of mobile network you're currently connected to may be shown with a single letter, a
combination of letters, or a combination of letters and numbers.
The icons may vary depending on your region or network service provider.
© 2013 Nokia. All rights reserved.
18

Basics
Learn how to get the most out of your new phone.
Get to know your phone
Your phone has two views, making it easy for you to keep up with what's going on.
To switch between the start screen and the apps menu, simply swipe left or right.
Start screen: The animated live tiles show your missed calls and received messages, the latest news
and weather forecasts, and more.
You can rearrange and resize the tiles, and pin contacts, apps, feeds, mailboxes, websites, and other
favorites. Updates of your pinned contacts are shown on the tile, and you can view your contacts'
details directly from the start screen.
Apps menu: All your apps are listed here, all neatly ordered.
Got a lot of apps? To look one up, tap .
Tip: You can also search inside an app, such as Store.
Switch between views
If you don't have all the apps you need on your start screen, you can find them from the apps menu.
Simply swipe left or right between the views.
© 2013 Nokia. All rights reserved.
19

Tip: If you've got lots of different things to do, it's easy to switch between the tasks at hand.
Press and hold , swipe to the app you want, and tap the app. Some apps may not show up
here if they're running in the background. To view them, go to the apps menu, tap Settings,
swipe left, and tap background tasks.
Use the touch screen
Explore your phone with a tap, swipe, or drag.
1. To use your phone, simply tap or tap and hold the touch screen.
2. To open further options, place your finger on an item until the menu opens.
Tip: You can even use your phone while wearing gloves. On the start screen, swipe left, and tap
Settings > display+touch. Swipe to touch, and switch Touch sensitivity to High.
© 2013 Nokia. All rights reserved.
20
