Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)
RM-159
Transceiver characteristics:
Band: Dual Mode Quad-band phone for EGSM850/900 GSM1800/
1900MHz and WCDMA band I
Camera:
- Main: 5Mpix with autofocus and Flash LED
- Sub: CIF for video calls
Display: TFT full transimissive, 24bit QVGA 6.604cm (2.6”)
resolution 240x360 pixel
Operating System: Series 60
Bluetooth
WLAN
GPS
FM radio
Connector: mini USB Connector and AV Connector
SERVICE MANUAL
Level 1&2
Environmental characteristics:
• Lead-free soldered
Transceiver with BL-5F Li-Ion battery pack
Talk time Standby Note
up to 160/210h up to 9days Depends on network
parameters
RM-245

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
2
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)
CHANGE HISTORY
Status Version No. Date Comments
Draft 0.1 11.Dec.2006 Initial draft
Aproved 1.0 08.Feb.2007 Approval
Page
TABLE OF CONTENTS
INTRODUCTION 3
GENERAL REPAIR INFORMATION 4
PATHFINDER FOR WORKSHOP STAFF 5
EXPLODED VIEW 6
SPARE PARTS OVERVIEW 7
GENERAL RECYCLING RECOMMENDATION 8
LEVEL 2 SOLDER COMPONENTS 9
NOKIA ONLINE (NOL) 10
SERVICE TOOLS 11
SW-UPDATE 13
UPPER BLOCK DISASSEMBLY 14
UPPER BLOCK ASSEMBLY 18
LOWER BLOCK DISASSEMBLY 22
LOWER BLOCK ASSEMBLY 28
LEGEND FOR QUICK TROUBLE SHOOTER 36
QUICK TROUBLE SHOOTER - POWER ON 37
QUICK TROUBLE SHOOTER - CHARGING 38
QUICK TROUBLE SHOOTER - NO SERVICE (GSM/WCDMA) 39
QUICK TROUBLE SHOOTER - WLAN/BLUETOOTH 40
QUICK TROUBLE SHOOTER - GPS 41
QUICK TROUBLE SHOOTER - EARPIECE 42
QUICK TROUBLE SHOOTER - IHF SPEAKER 43
QUICK TROUBLE SHOOTER - DISPLAY 44
QUICK TROUBLE SHOOTER - MICROPHONE 45
QUICK TROUBLE SHOOTER - ITU KEYPAD 46
QUICK TROUBLE SHOOTER - S60 KEYPAD 47
QUICK TROUBLE SHOOTER - MM KEYPAD 48
QUICK TROUBLE SHOOTER - REVIEW KEY 49
QUICK TROUBLE SHOOTER - VOLUME KEYS 50
QUICK TROUBLE SHOOTER - CAMERA KEY 51
QUICK TROUBLE SHOOTER - FLASHLIGHT 52
QUICK TROUBLE SHOOTER - AV CONNECTOR 53
QUICK TROUBLE SHOOTER - USB 54
QUICK TROUBLE SHOOTER - CMOS CAMERA 55
QUICK TROUBLE SHOOTER - MAIN CAMERA 56
GONOGO TEST 57
BATTERY TEST 58
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
3
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to
NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is
confidential. Please note that NOKIA provides also other guidance documents (e.g. Service Bulletins) for service sup-
pliers, follow these regularly and comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may exist.
If you find any errors or if you have further suggestions, please notify NOKIA using the address below:
mailto:c[email protected]
Please keep in mind also that this documentation is continuously being updated and modified, so watch always out
for the newest version.
Warnings and Cautions
Please refer to the phone’s user guide for instructions relating to operation, care and maintenance including impor-
tant safety information. Note also the following:
Warnings:
CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS
AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR
OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHI-
CLE ELECTRONIC SYSTEMS TO RF ENERGY.
THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE
ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.
OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH
THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTUR-
ER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO
INTERFERENCE.
Cautions:
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist strap is worn.
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and alignment.
5. Ensure all cables and wires are repositioned correctly.
1.
2.
3.
Electrostatic discharge can easily damage the sensitive components of electronic products.
Therefore every Service Supplier has to take care of all precautions, which are mentioned in the
service level related “Service Partner Requirements”, available on NOKIA Online. Also see ESD
Protection Requirements in this Service Manual.
INTRODUCTION1.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
4
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)
In this section the technician will get some general hints how to carry out repairs:
To familiarize oneself with NOKIA product read the tutorials or user guide on www.nokia.com -->Support-->
Phones, by selecting the Phone Model.
Before starting the repair you must take care of ESD precautions like being in your ESD Protected Area and con-
necting your wristband.
Use gloves to avoid corrosion and fingerprints.
Protect windows and displays with a film to avoid dust and scratches.
When cleaning the LCD Module any lint-free cloth can be used (e.g. Micro-Fibre cloth).
When cleaning the pads you have to use a soft cloth/ESD brush and Isopropanol. It is not allowed to use a glass
fiber pencil because it scratches the surface and will lead later on to corrosion.
Mechanical parts (except shielding lids and bent parts), which didn’t repair the failure, can be reused, if they are
not soldered.
When removing the shielding lids make sure to replace them with new ones, otherwise the high-frequency
leakage can have an influence on the device.
Always use original NOKIA spare parts.
Check the soldering joints of the parts, which are concerned regarding the indicated error (e.g. soldered connec-
tors or switches) and resolder them if necessary (Level 2 only).
Remove redundant soldering flux after repair.
Meet the torque requirements when assembling the unit (see also the document “torques for transceiver as-
sembly” on NOKIA Partner Web Site/NOKIA Online).
Always use your own equipment for testing where you are sure that it works. E.g. if the customer complains
about charger function, please test the phone with your own charger to be sure if phone or charger causes the
malfunction.
A SIM card is needed for all GoNoGo tests.
When doing the fault log entries, always note the Item code, which caused the malfunction. Also, fill in the ap-
propriate part code from the assembly, if needed.
Please be aware that some malfunctions could be software related and solved by an update.
There are several documents available on NOL, which have to be followed:
First, take care for the latest content pages of Service Bulletins, which are always available for each folder on
NOKIA Online. This is also important to recognize, if existing documents have become invalid.
The service level indicator at the bottom of each document tells the appropriate destination.
Downloads > Support Library >
1. Instructions
2. General Service Bulletins
3. Product related documents
4. Spare Part Service Bulletins
5. Service Tools Service Bulletins
6. Common Software Service Bulletins
etc,…
Use General SB-217 as a reference or overview.
Please also check NOKIA Online (NOL) for latest news and files on a regular basis.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
GENERAL REPAIR INFORMATION2.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
5
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)
In addition to the information in this Service Manual, there are several instructions and information, which have
to be followed. Main documentation database is NOKIA Online with the purpose of serving different multimedia
content, like video clips or interactive tutorials.
It is mandatory to watch for newest technical and organizational information on a daily basis to be updated as
required (see “Latest files in Support Library”). Every new information has to be processed and implemented as
soon as possible.
When logged into NOL you can also find needed information in different folder like:
Support Library
Phones
Service Manuals
Service Bulletins
Software
Repair Information
Former NOKIA CarePoint
content, such as
Online Troubleshooting
Product information
Videos – Disassembly/Assembly
•
•
•
can be found on
NOKIA Online
NOKIA Online
Care Services
Training
Phone Models
Level 1&2 e-learning courses offer a quick overview of the NOKIA phone and support for how to repair and use the
phone:
Overview & Guides
Basic information about the phone,
features and technologies
Disassembly & Assembly
Instructions how to disassemble and
assemble the phone
Troubleshooting
Step-by-step instructions on how to
locate and repair the most common
problems with the phone
To reduce the server traffic it is recommended to download newest version of huge files like videos, Phoenix pack-
ages or Service Manuals only once and distribute it internally for further use.
PATHFINDER FOR WORKSHOP STAFF3.

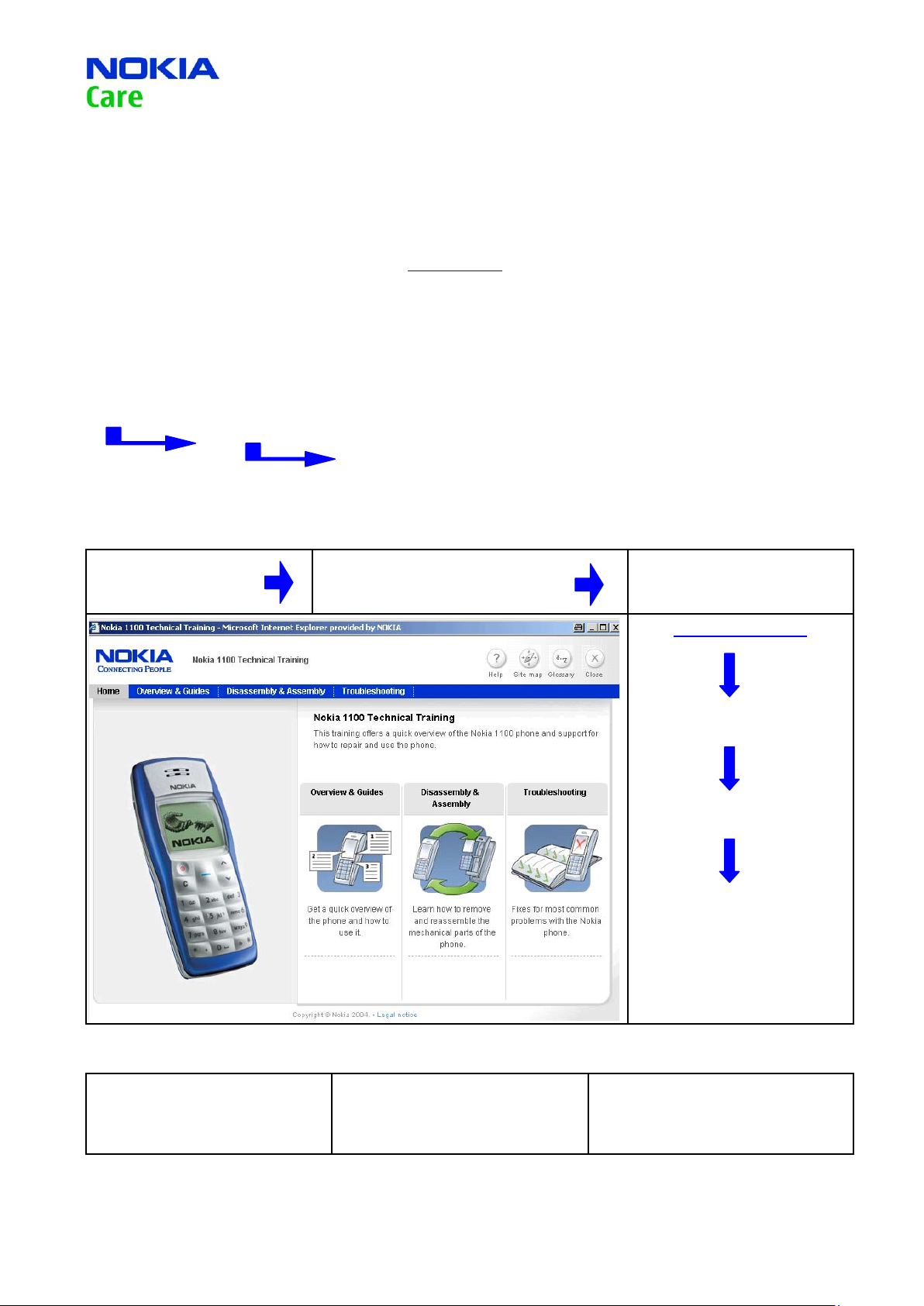

Level 1&2 e-learning (former NOKIA CarePoint) on NOKIA Online
This is the NOL page (NOKIA Online) which is currently available in Europa, Middle East and Africa only!

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
6
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)
See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.

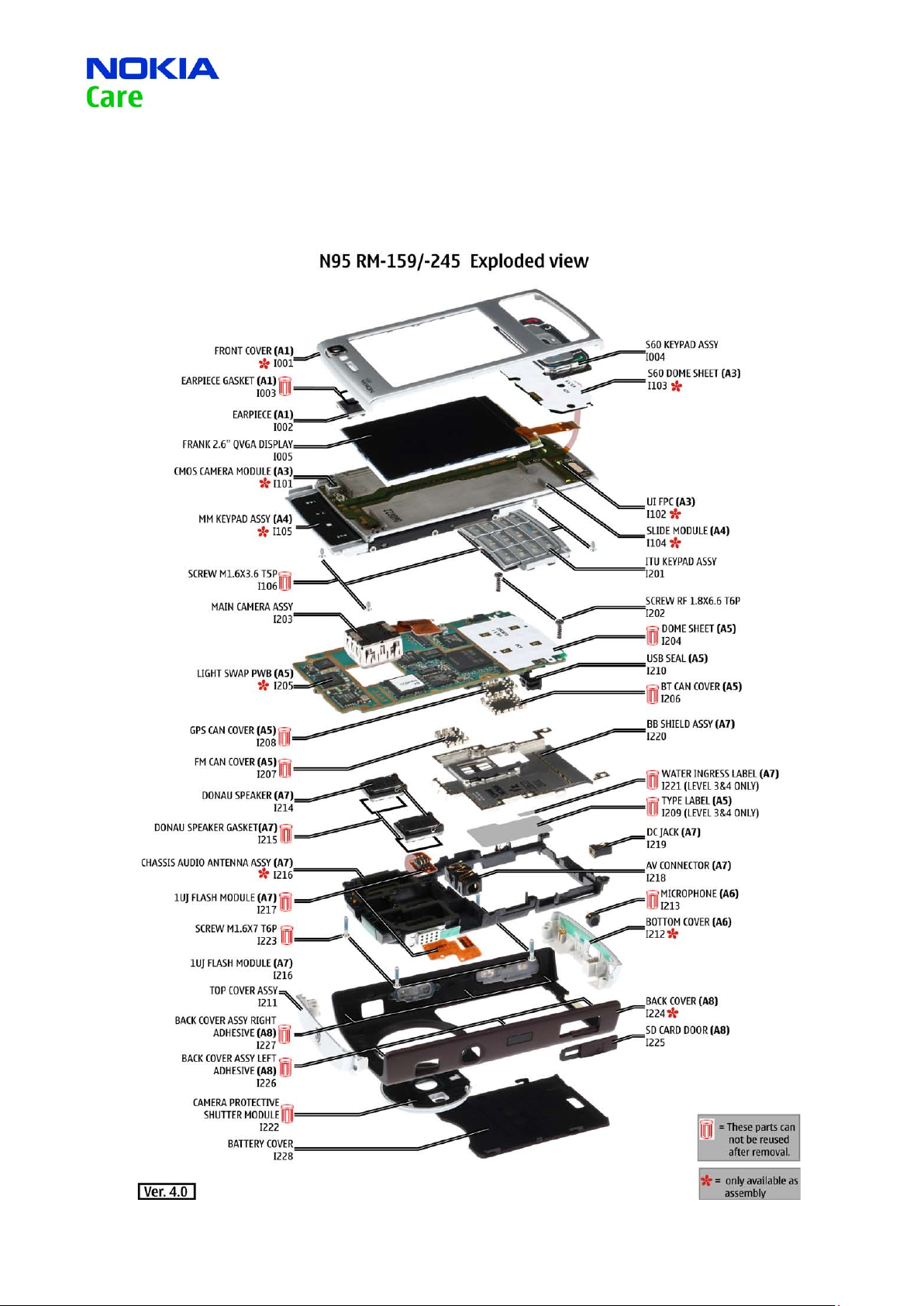

EXPLODED VIEW4.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
7
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)

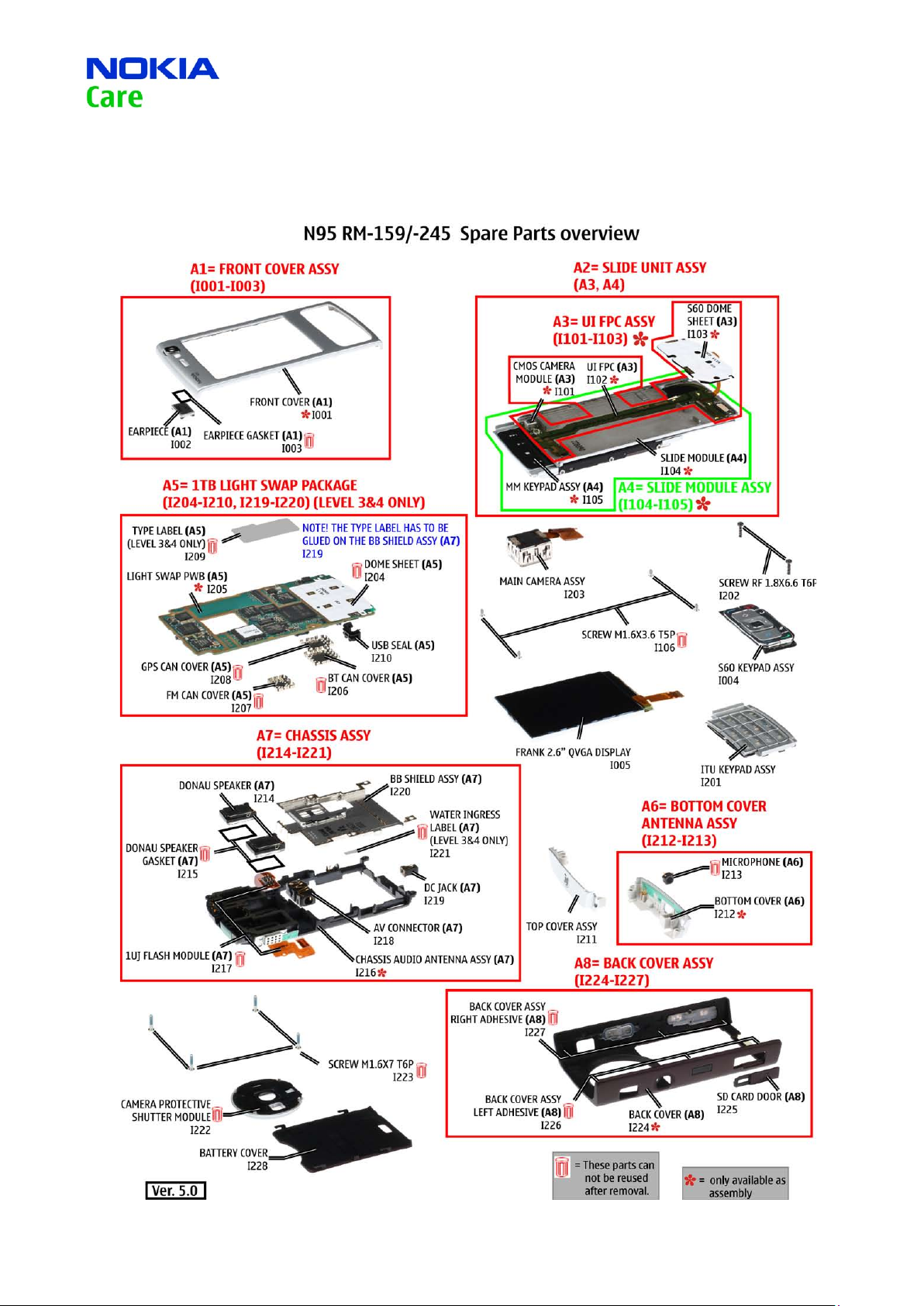

SPARE PARTS OVERVIEW5.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
8
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)
GENERAL RECYCLING RECOMMENDATION6.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
9
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)
LEVEL 2 SOLDER COMPONENTS7.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
10
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)

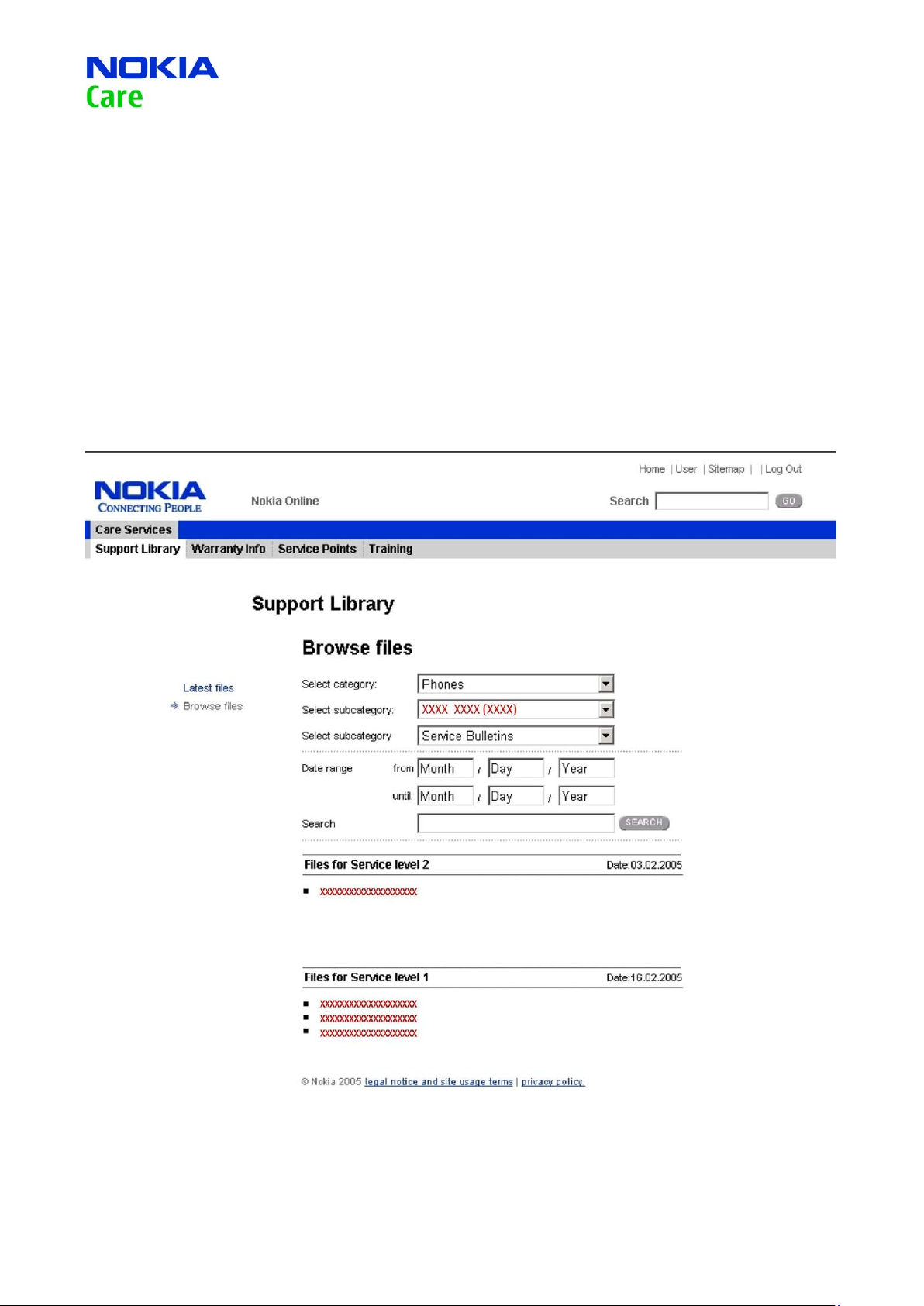

NOL is the database where you can find the latest corresponding Service
Bulletins (spare parts, SWAP units and service tools).
This will ensure, that you are using up-to-date order codes only.
Therefore Service Bulletins have to be checked from NOL on daily basis.
NOKIA ONLINE (NOL)8.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
11
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)

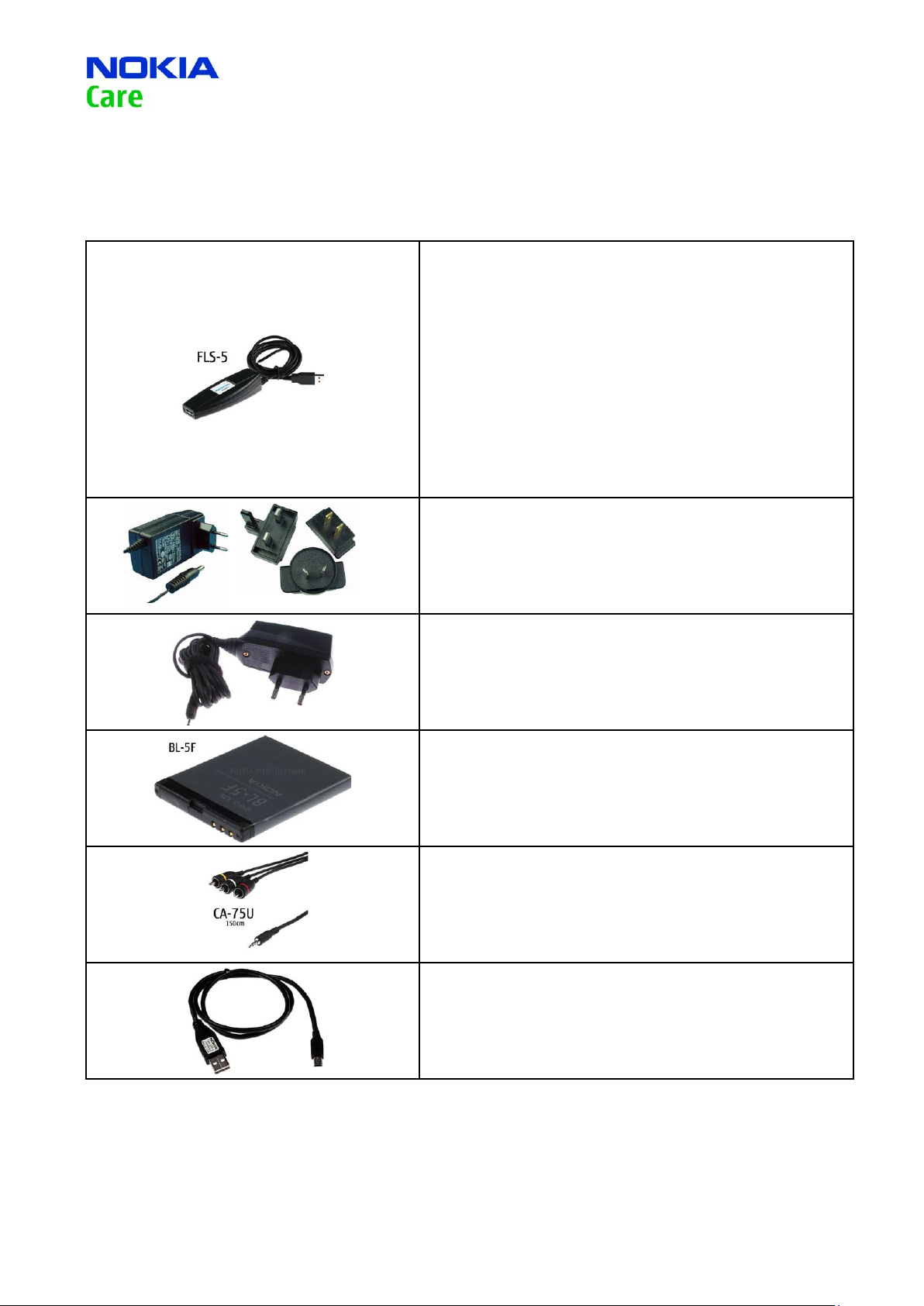

FLS-5 incl. ACF-8, Driver and User Guide
Dongle and flash device incorporated into one package, devel-
oped specifically for POS use.
ACF-8
Universal Power Supply is used to power FLS-4S.
Travel Charger AC-4
Small and lightweight charger for fast charging of your phone
battery.
Internal Battery BL-5F
Inserted under the back cover, this Li-Ion battery provides
power in a lightweight package.
CA-75U
Video connectivity cable for TV-out testing
DKE-2
Service Cable to connect the PC with the phone connector.
SERVICE TOOLS9.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
12
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)
RJ-118
Soldering Jig
Lead-free Solder Wire
Mandatory for lead-free products (Level 2 only).
0772040 NMP Standard Toolkit (V2)
For more informations refer to the Service Bulletin (SB-011) on
NOKIA Online.
Supplier or manufacturer contacts for tool re-order can be
found in “Recommended service equipment” document on
NOKIA Online.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
13
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)
SW-UPDATE10.

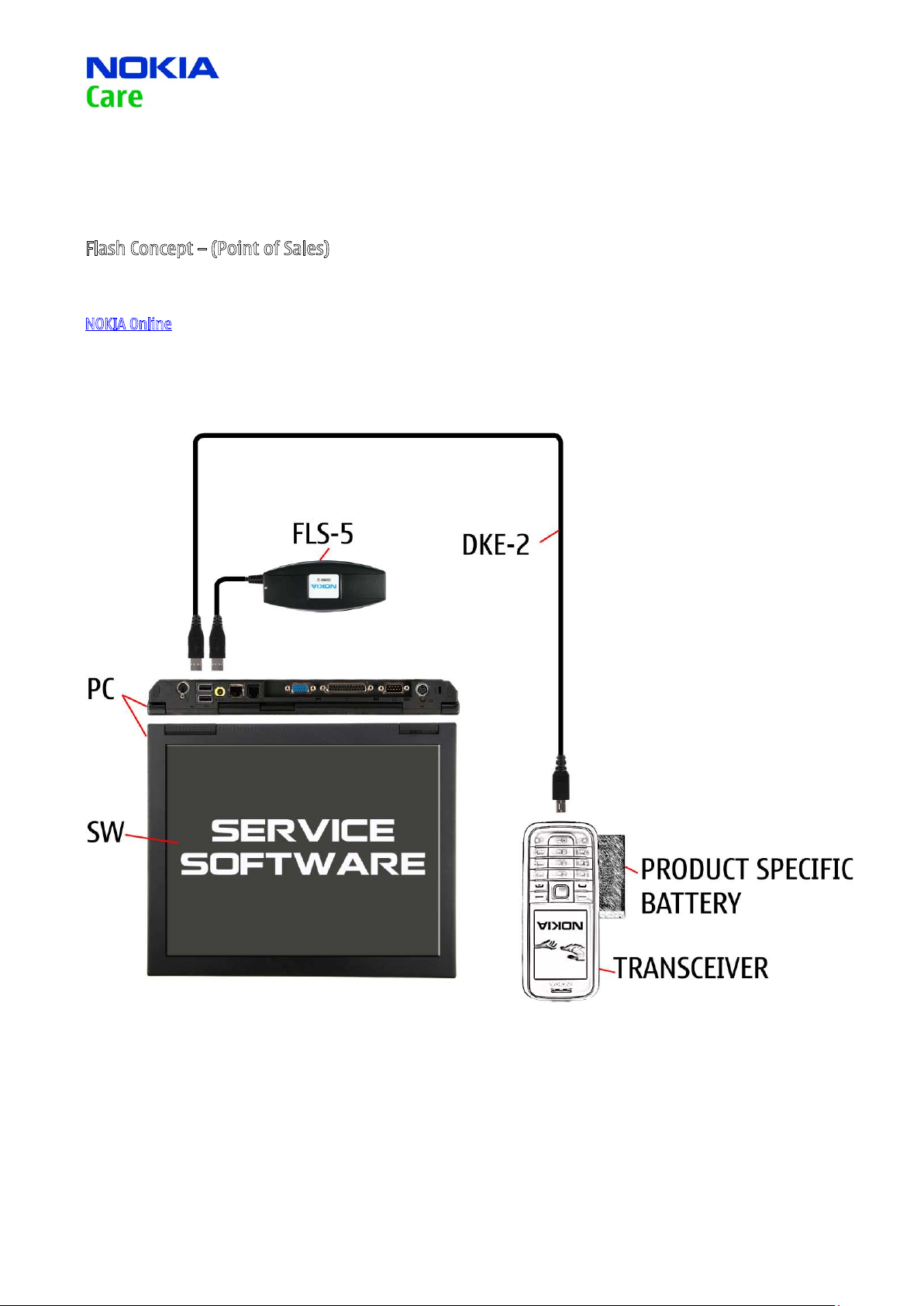

Flash Concept – (Point of Sales)
To use FLS-5 Flash Dongle you have to follow the user guide inside the sales package. Please check always for the
latest version of flash software, which is available on
NOKIA Online.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
14
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)
UPPER BLOCK DISASSEMBLY11.
1. Needed tools: SS-93, the SRT-6, the bit holder with a torx
plus size 5 bit and a torque driver.
2. Cover the display with a protective lm.
3. Check that no battery is still inserted before going on. 4. Shift open the assembly.
5. Unscrew these 2 screws. 6. Discard them, they can’t be reused.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
15
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)

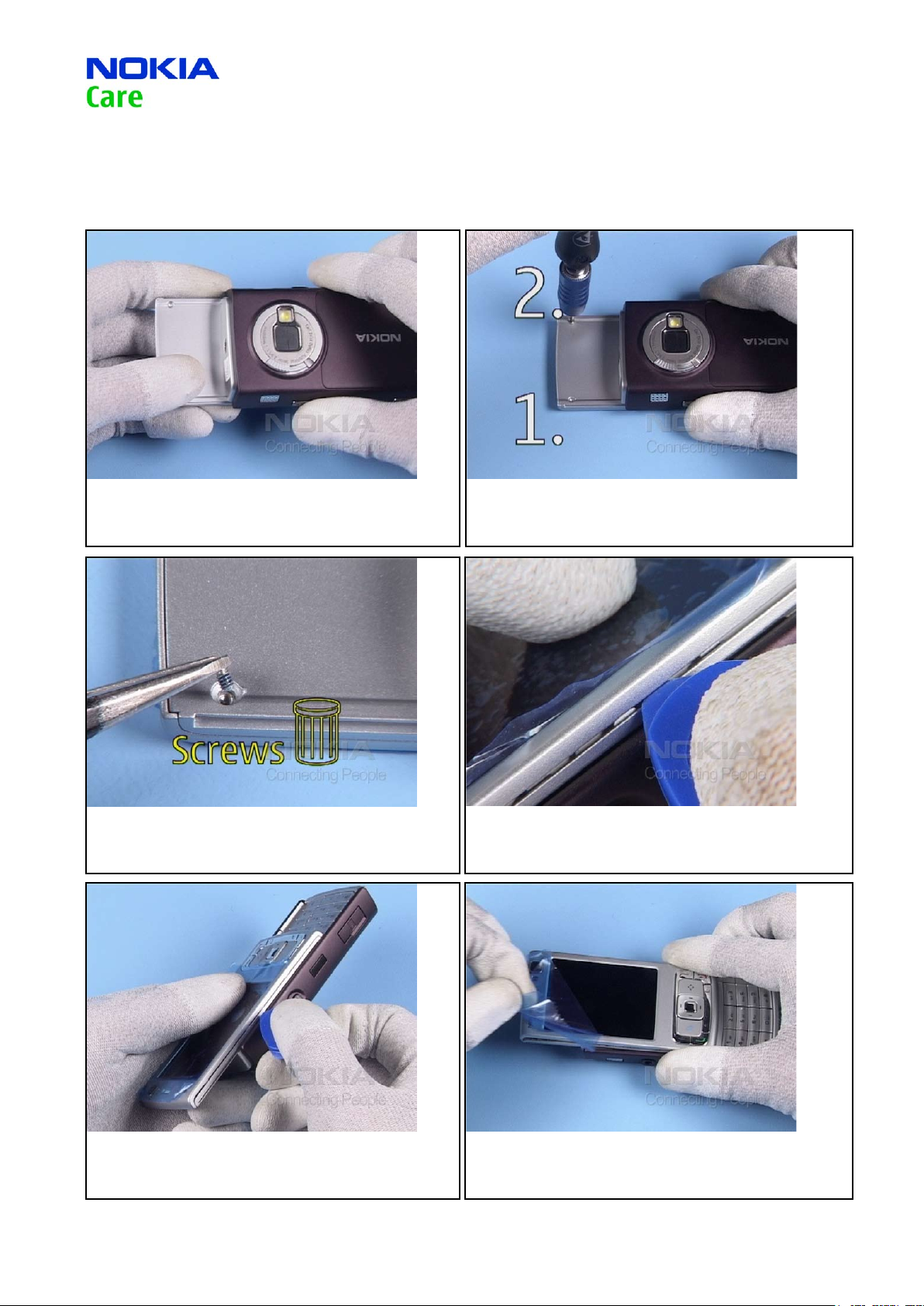

7. Shift the slider into the other position. 8. Unscrew these 2 screws in the order shown and discard them,
too.
9. Do not use them again. 10. Unlock these middle metal clips, hidden under the FRONT
COVER.
11. Turn the unit and release the second connector, too. 12. Peel up the protection lm.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
16
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)

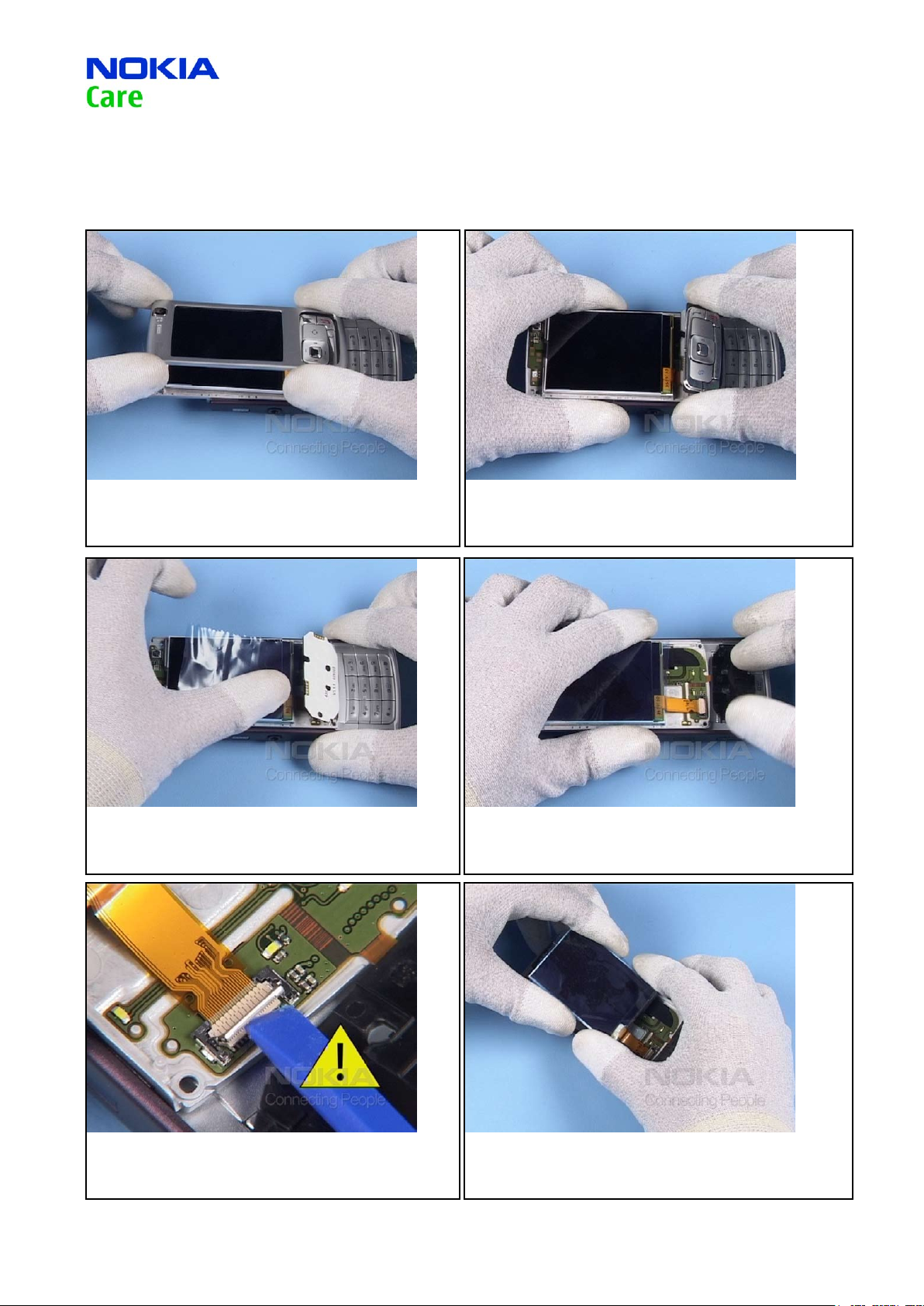

13. Now, lift up the FRONT COVER. 14. Remove the S60 KEYPAD.
15. Cover the display with a protective lm. 16. Flip over the keypad.
17. Be double careful while opening this connector. The whole
SLIDE MODULE must be replaced if damaged.
18. Lift up the display.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
17
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)

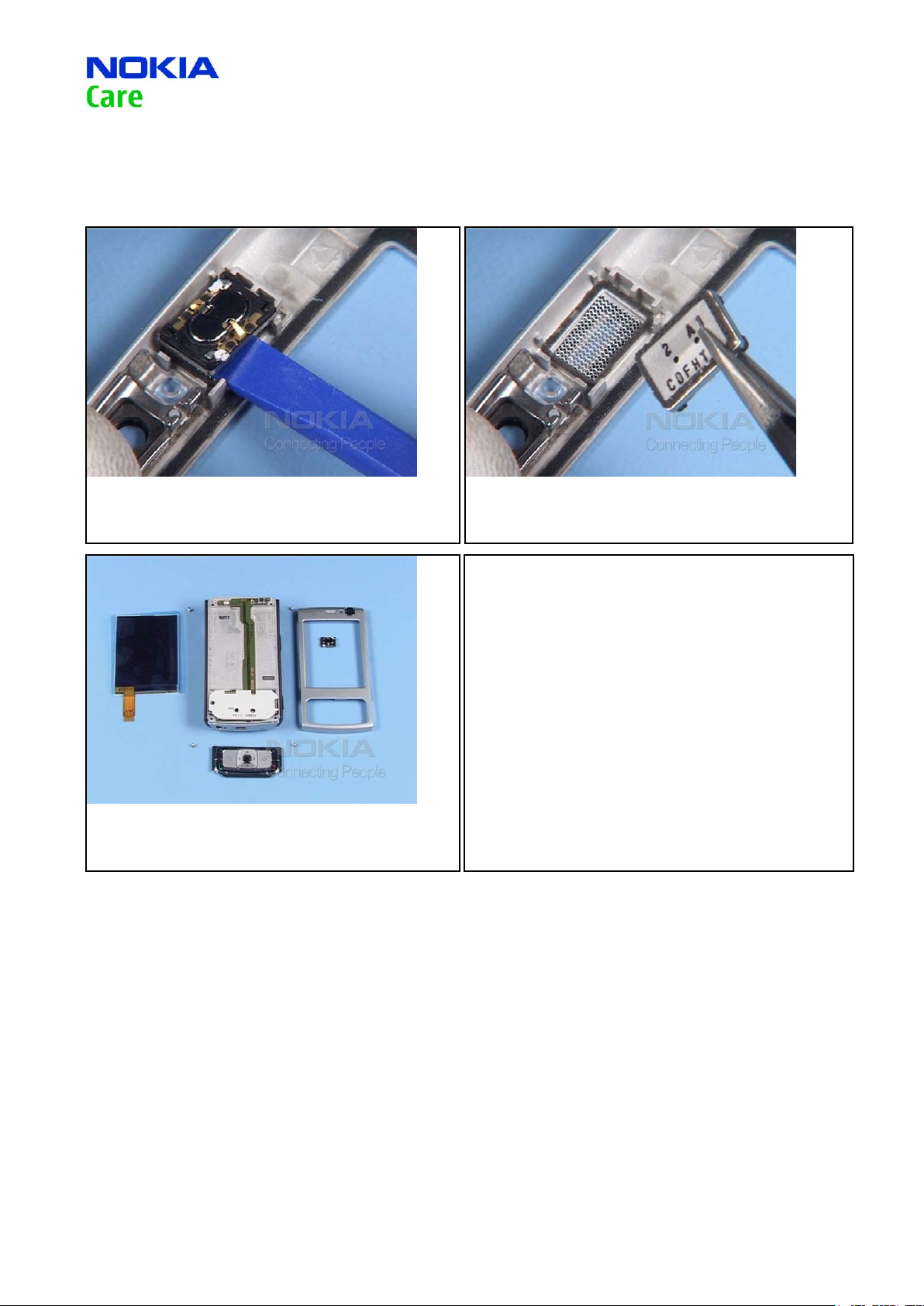

19. Gently release the adhesive of the EARPIECE. The gasket
will be destroyed while removal.
20. …and must be replaced when reassemble.
21. The disassembly procedure is now complete.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
18
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)

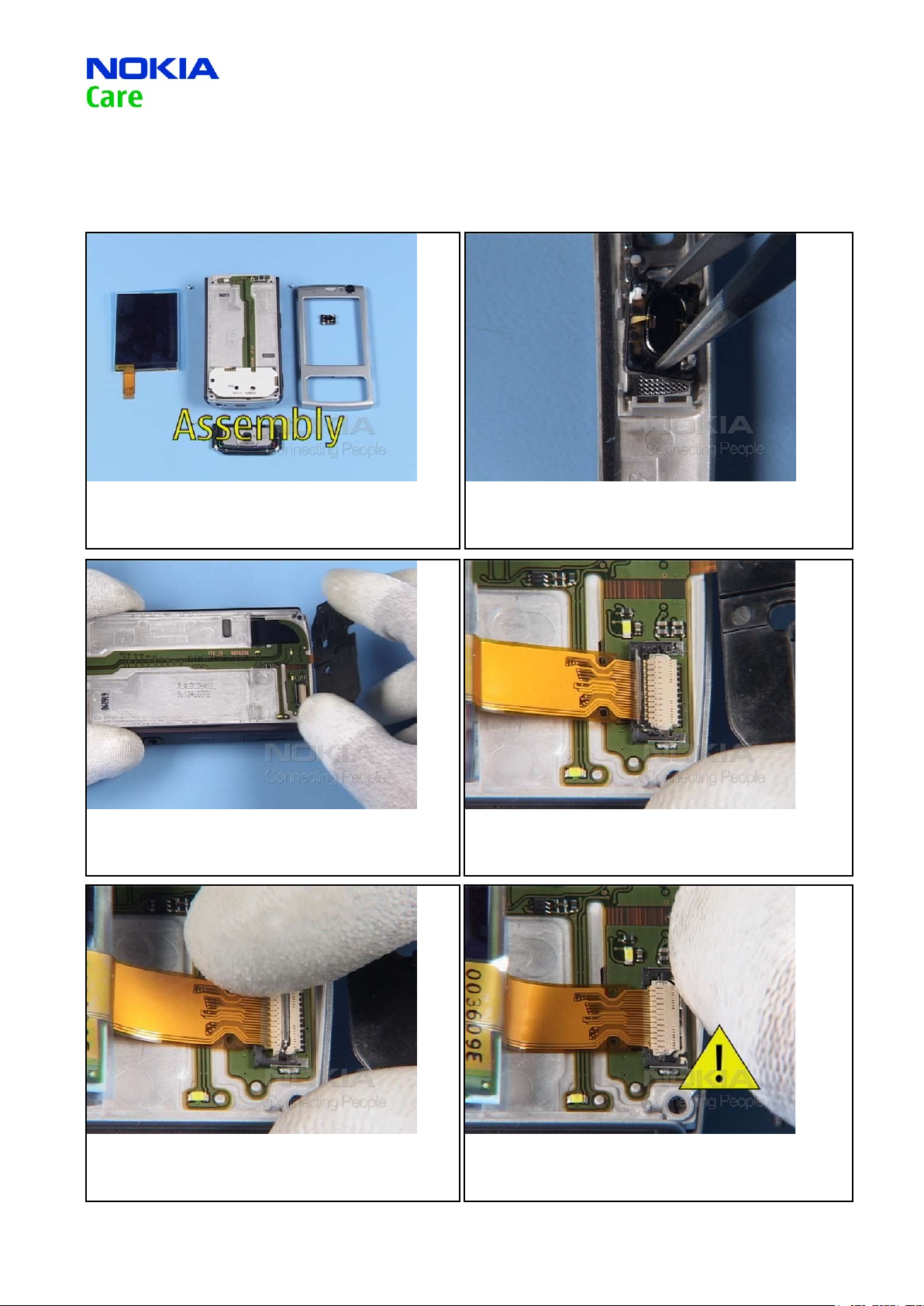

UPPER BLOCK ASSEMBLY12.
1. Assembly 2. Fit a new gasket and place the EARPIECE into the FRONT COVER.
3. Flip over the keypad. 4. Insert the ex foil of the display into the connector evenly.
5. Open the connector if necessary while inserting. 6. Carefully close the connector. Again, when destroying this
connector or parts of it, the whole SLIDE MODULE must be
replaced.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
19
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)

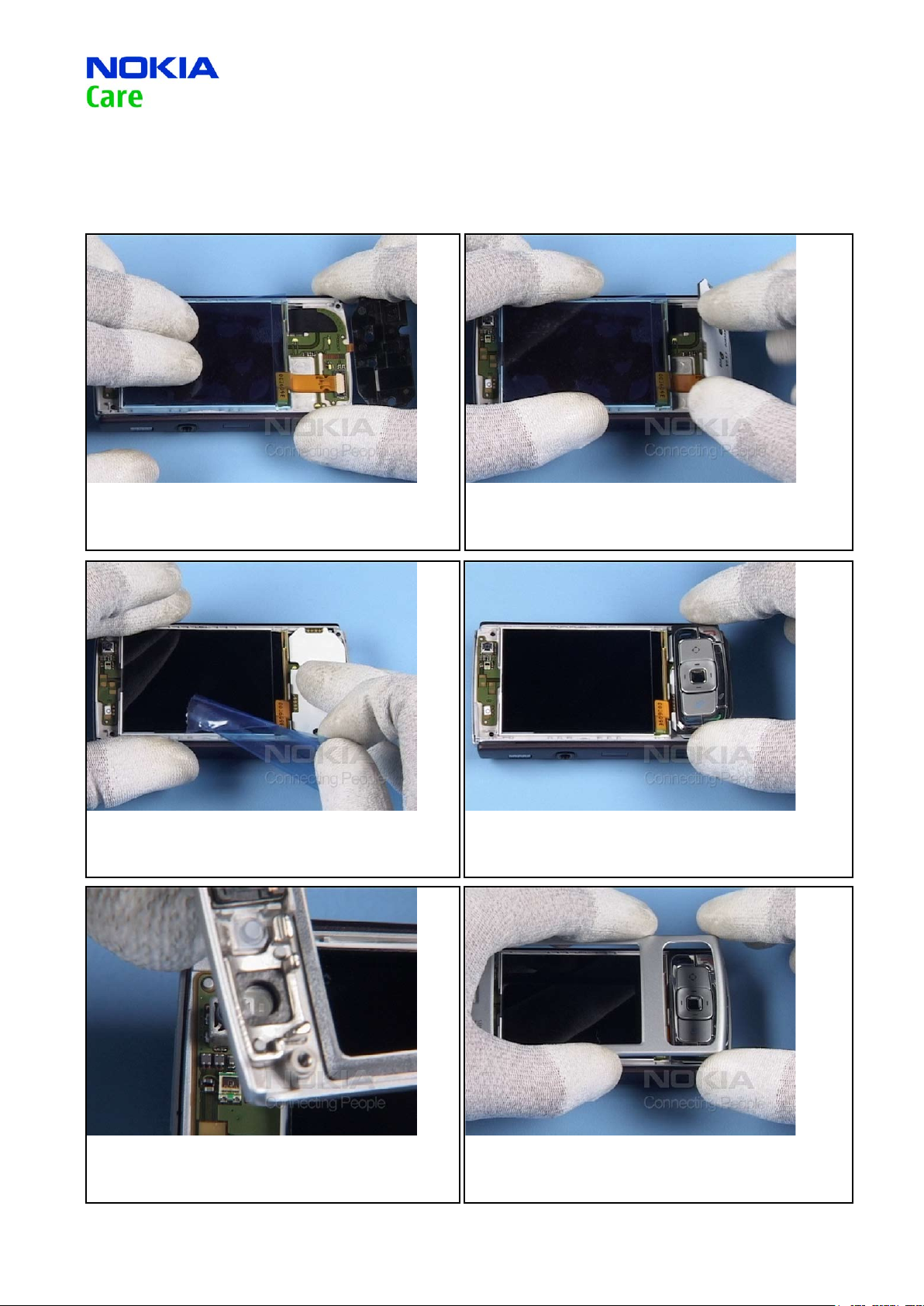

7. Place the display into its compartment. 8. Flip over the keypad.
9. Peel up the protection lm. 10. Place the S60 KEYPAD.
11. Check that the window and camera are clean, otherwise
clean it up before going on.
12. Place the FRONT COVER and smooth it down evenly.

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL 08.Jan.2007
20
Service Manual N95 RM-159/RM-245 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (58)

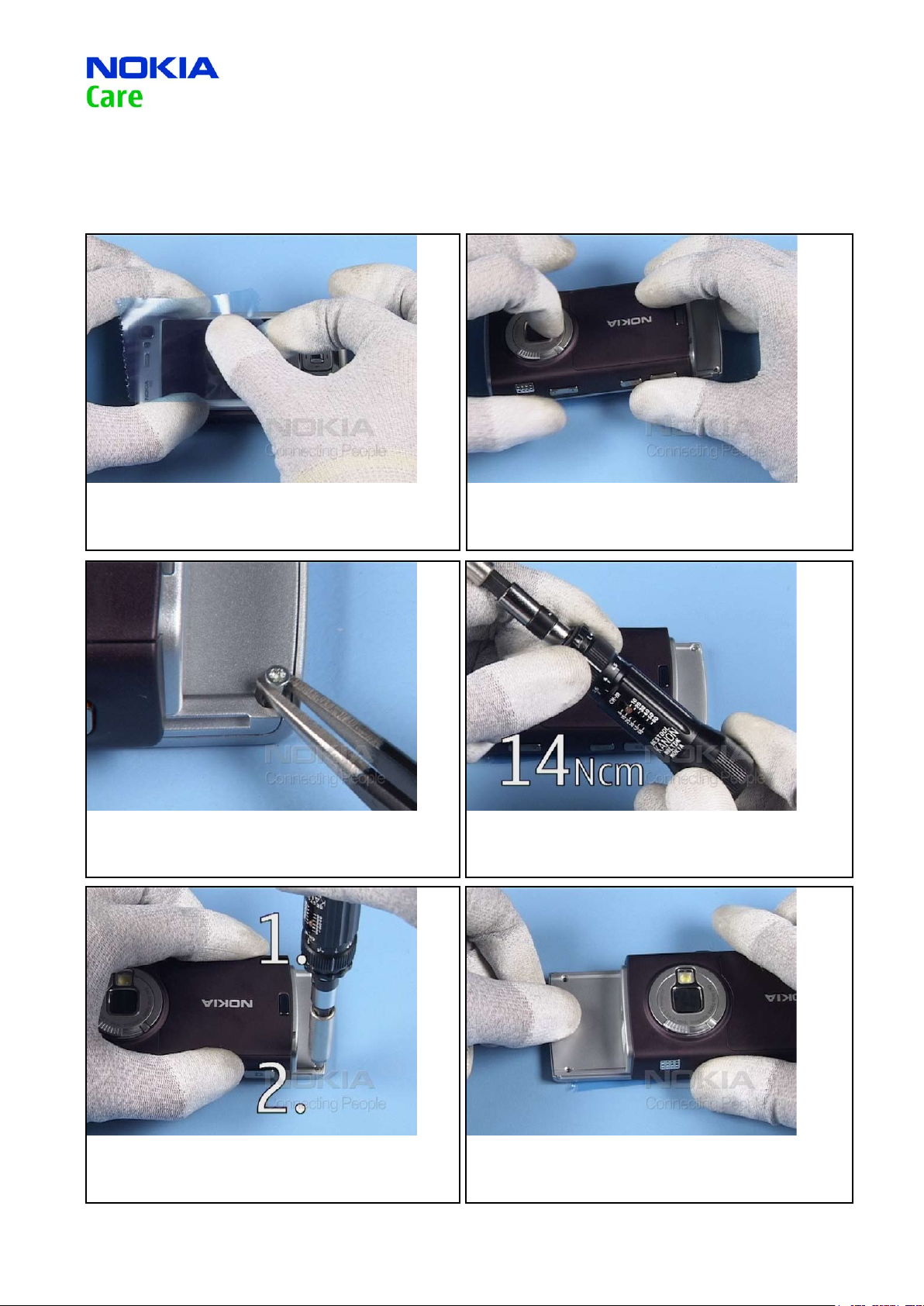

13. Protect the display again. 14. Shift open the slider.
15. Insert two new screws. 16. Set the correct torque.
17. Tighten both screws in the order shown. 18. Slide the assembly into the second position to access the
next treads.
