Get started Nokia N70 Music Edition
Nokia N70-1

Nokia, Nokia Connecting People, and Pop-Port are trademarks or registered trademarks of Nokia Corporation. Other product and
company names mentioned herein may be trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written
permission of Nokia is prohibited.
9251821, Issue 2 EN
© 2007 Nokia. All rights reserved.

3
Model number: Nokia N70-1. Hereinafter referred to as Nokia N70 Music Edition.
Keys and parts
• Power key (1)
• Loudspeaker outlet (2)
• Light sensor (3) constantly observes the lighting
conditions. May cause the display and keypad to flash
in low light.
• Selection keys (4) to select commands and
items
• Call key (5)
• 5-way scroll key (6) to move around the menus.
Press the scroll key in the middle ( ) to select,
accept, or activate.
• Menu key (7) opens the main menu.
• Edit key (8) opens a list of commands when you
edit text.
• Microphone (9)
• Press and hold (10) as a shortcut to a Web
connection.
• Clear key (11) deletes text and items.
• Music access key (12) is a shortcut to music
applications.
• End key (13)
• Camera shutter key (14) for still image capture with the back camera
• Memory card slot (15)
• Front camera (16) for video calling (lower resolution than the back camera).

4

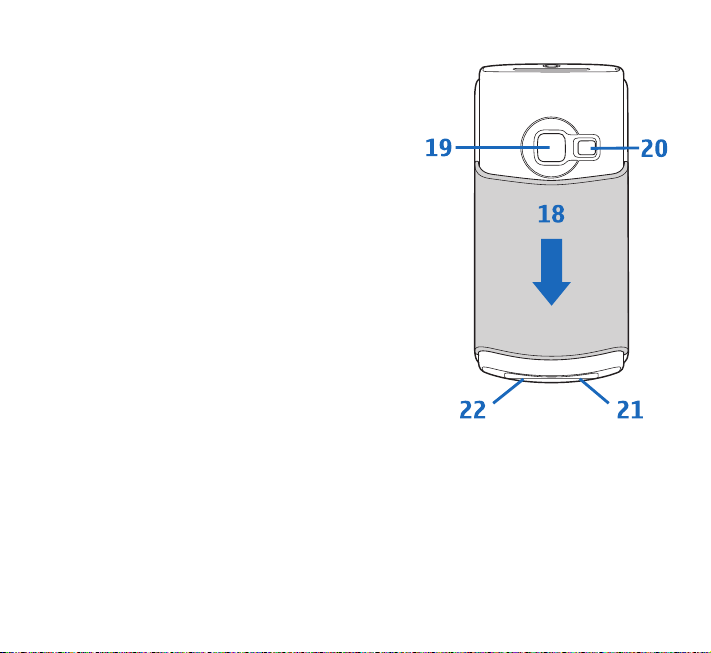

• Earpiece (17)
• Open the camera lens cover (18) to activate the back
camera.
• Back camera (19) for high resolution image capture
or video recording
• LED flash (20)
• Charger connector (21)
• Pop-PortTM connector (22) for a compatible USB data
cable, remote control unit, and other enhancements
Insert the (U)SIM card and
battery
Glossary: The USIM card is an enhanced version of the SIM card and is supported by UMTS
mobile phones.
Keep all SIM cards out of the reach of small children.
Always switch the device off, and disconnect the charger before removing the battery.

5
1With the back of the device facing you, press the release
button (1), and slide the cover in the direction of the arrow
(2).
2Lift the cover (3).
3To release the (U)SIM card holder, lift the holder up (4).
4Insert the (U)SIM card (5). Make sure that the contact area
on the card is facing the connectors on the device and the
bevelled corner on the card is facing the base of the device.
5Close the holder, and lock it into place.
6Insert the battery (6).
7Replace the back cover.
Insert the memory card
Use only Reduced Size MultiMediaCards (RS-MMC) approved by
Nokia for use with this device. Nokia utilizes the approved
industry standards for memory cards but not all other brands may function correctly or be fully
compatible with this device.

6
Use only compatible Reduced Size MultiMediaCards (RS-MMC) with this device. Other memory
cards, such as Secure Digital (SD) cards, do not fit in the memory card slot and are not
compatible with this device. Using an incompatible memory card may damage the memory card
as well as the device, and data stored on the incompatible card may be corrupted.
Use a compatible memory card to save the memory on your device. You can also back up
information from your device to a compatible memory card, for example:
• Reduced Size MultiMediaCard (RS-MMC) memory card
• MultiMediaCard (MMC) adapter
You do not need the adapter when you use the RS-MMC in your Nokia N70 Music Edition.
The adapter allows you to use the RS-MMC in another compatible device that has a full-size
MMC slot.
A compatible memory card may already be inserted in your device.
1To insert a memory card, open the door of the memory card
slot (7). Place your finger in the recess on top of the door,
and lift out the door.

7
2Insert a compatible memory card in the slot (8). Make sure
that the contact area on the card is facing up and the
bevelled corner is facing the base of the device.
3Push the card in (9). You can hear a click when the card
locks into place.
4Close the door. You cannot use the memory card if the door is open.
Eject the memory card
1Open the door of the memory card slot.
2Press the memory card to release it from the slot.
3Remove the memory card. If the device is switched on, select OK.
Important: Do not remove the memory card in the middle of an
operation when the card is being accessed. Removing the card in the
middle of an operation may damage the memory card as well as the
device, and data stored on the card may be corrupted.

8
Charge the battery
1Connect a compatible charger to a wall outlet.
2Connect the power cord to the device. The battery indicator
bar starts scrolling. The device can be used while charging.
If the battery is completely discharged, it may take a few
minutes before the charging indicator is shown.
3When the battery is fully charged, the bar stops scrolling.
Disconnect the charger, first from the device, then from the
wall outlet.
Headset and remote
control unit
You can use the headset to handle calls and to
listen to music on your Nokia N70 Music Edition
device.
Insert the headset plug into the headset connector
of the remote control unit. Insert the Pop-Port plug
of the remote control unit into the Pop-Port
connector on your device. The headset is now ready
for use.
To make a call, enter the number on the device
keypad as you do when the remote control unit is
not connected to your device. During the call, speak
into the microphone of the remote control unit. To
answer and end phone calls, press .

9
To control the music player, use the media keys of the remote control unit. To adjust the earpiece
volume, press the volume key on the side of the remote control unit. To lock the remote control
keys, slide the lock switch on the side of the remote control unit.
Switch the device on
Press and hold .
If the device asks for a PIN code, UPIN code, or lock code, enter
the code (displayed as ****), and select OK. The (U)PIN code is
usually supplied with the (U)SIM card. The factory setting for
the lock code is 12345. For more information on the access
codes, see the user guide for your device.
Your device has an internal antenna.
Note: As with any other radio transmitting device, do not touch the
antenna unnecessarily when the device is switched on. Contact with the
antenna affects call quality and may cause the device to operate at a higher
power level than otherwise needed. Avoiding contact with the antenna area
when operating the device optimizes the antenna performance and the
battery life.
When you switch on the device for the first time, it may ask you to set the following
information: Select current city:, Time:, and Date:. Use the scroll key ( ) and the number
keys. To find the city, enter the first letters of the city name. The city you select also defines the
time zone for the clock in your device.
Press to open the main menu.

10
Your service provider may have requested that certain features be disabled or not activated in
your device. If so, they will not appear on your device menu. Your device may also have been
specially configured. This configuration may include changes in menu names, menu order, and
icons. Contact your service provider for more information.
About the display
Remove the protective plastic films covering the display and front camera.
A small number of missing, discoloured, or bright dots may appear on the screen. This is a
characteristic of this type of display. Some displays may contain pixels or dots that remain on
or off. This is normal, not a fault.
MMS and mobile Internet settings
Your Nokia N70 Music Edition normally has MMS, GPRS, streaming, and mobile Internet settings
automatically configured in the device, based upon your service provider or network operator
information.
Essential indicators
The device is being used in a GSM network.
(network service) The device is being used in a UMTS network.
You have received one or several messages to the Inbox folder in Messaging.
There are messages waiting to be sent in the Outbox folder.
You have missed calls.

11
Shown if Ringing type is set to Silent and Message alert tone, IM alert tone, and E-mail
alert tone are set to Off.
The phone keypad is locked.
A clock alarm is active.
(network service) The second phone line is being used.
All calls to the device are diverted to another number. If you have two phone lines, the
divert indicator for the first line is and for the second .
A headset is connected to the device.
A loopset is connected to the device.
The connection to a headset with Bluetooth connectivity has been lost.
A data call is active.
A GPRS or EDGE packet data connection is available.
A GPRS or EDGE packet data connection is active.
A GPRS or EDGE packet data connection is on hold.
A UMTS packet data connection is available.
A UMTS packet data connection is active.
A UMTS packet data connection is on hold.
Bluetooth connectivity is on.
Data is being transmitted using Bluetooth connectivity.
A USB connection is active.
An e-mail that has been read is waiting for you to retrieve to your device.

12
An e-mail that has not been read is waiting for you to retrieve to your device.
Keypad lock (keyguard)
Use the keypad lock to prevent the keys from being accidentally pressed.
To lock: In the standby mode, press , then . When the keys are locked, is shown on
the display.
To unlock: Press , then .
When the keypad lock is on, calls may be possible to the official emergency number programmed
into your device.
Opening the camera lens cover deactivates the keypad lock, if it is on. Closing the camera lens
cover returns the device to the previous mode, and keypad lock is reactivated, if it was on.
To turn on the display light when the keypad lock is on, press .
Standby mode shortcuts
• To switch between applications that are open, press and hold . If memory is
low, the device may close some applications. The device saves any unsaved
data before closing an application.
Leaving applications running in the background increases the demand on
battery power and reduces the battery life.
• To change the profile, press , and select a profile.
• To start a connection to Web, press and hold . For more information on
Web, see the user guide for your device.
For further shortcuts available in the standby mode, see the user guide for your device.

13
Tips for efficient use
• When you take a picture or record a video, press to start sending the item as a
multimedia message. You cannot send video clips that are saved in the .mp4 format in a
multimedia message.
• To send the message you are writing, press .
• In the standby mode, press to open the last dialled numbers list.
• To switch between General and Silent profiles, press and hold . If you have two phone
lines, this action switches between the two lines.
For more shortcuts, see the user guide for your device.
Transfer content from another device
To use the Transfer application, see the user guide for your device.
Nokia Content Copier is available in Nokia PC Suite to copy content from a compatible Nokia
phone. See the CD-ROM supplied with your device. Nokia Content Copier supports several Nokia
phone models. For more information on the devices supported by each Nokia PC Suite, refer to
the www.nokia.com/pcsuite pages.
Help
Your device has a help function, which provides you instructions and information when using
the device. To access it from an application, select Options > Help.
Example: To view instructions on how to create a contact card, start to create a contact
card, and select Options > Help; or in the main menu, select Tools > Help and open the
instructions for Contacts. When you are reading the instructions, to switch between Help and
the application that is open in the background, press and hold .

14
User guide
Read the user guide to get familiar with your Nokia N70 Music Edition.
Further detailed information is given in the separate user guide. Do not use this get started guide
in place of the complete user guide, which provides important safety and maintenance
information.
Check www.nokia.com/support or your local Nokia Web site for the latest version of the user
guide, additional information, downloads, and services related to your Nokia product.
