Nokia N8-00
RM-596
Service Manual Level 1&2
SERVICE MANUAL
Level 1&2
RM-596
Transceiver characteristics
Band
WCDMA HSPA 850/900/1700/1900/2100
EGSM 850/900/1800/1900
Display
3.5” AMOLED, up to 16.7 million colors, 16:9
widescreen aspect ratio, 640x360 pixel resolution
Camera
12 Mpix Carl Zeiss autofocus camera with CMOS
sensor, Xenon flash, 1280x720 25 fps HD video
recording
Operating System
Symbian^3
Connections:
HDMI connector with Dolby Digital 5.1 audio, analog
TV out with stereo audio via 3.5 mm AV connector,
Micro USB 2.0 with OTG support, Bluetooth 3.0, WLAN
802.11 b/g/n
Transceiver with BL-4D battery pack
Talk time Standby
GSM:
Up to 12 hours
WCDMA:
Up to 5.8 hours
GSM:
Up to 390 hours
WCDMA:
Up to 400 hours
Note:
Talk times are dependent on network parameters
and phone settings

Nokia N8-00
RM-596
Service Manual Level 1&2
2 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0
Table of contents
1.COPYRIGHT...............................................................................................................................................................................4
2.WARNINGS AND CAUTIONS.................................................................................................................................................5
2.1WARNINGS .....................................................................................................................................................................5
2.2CAUTIONS .......................................................................................................................................................................5
3.ESD PROTECTION....................................................................................................................................................................6
4.CARE AND MAINTENANCE ....................................................................................................................................................7
5.BATTERY INFORMATION.......................................................................................................................................................8
6.EXPLODED VIEW .....................................................................................................................................................................9

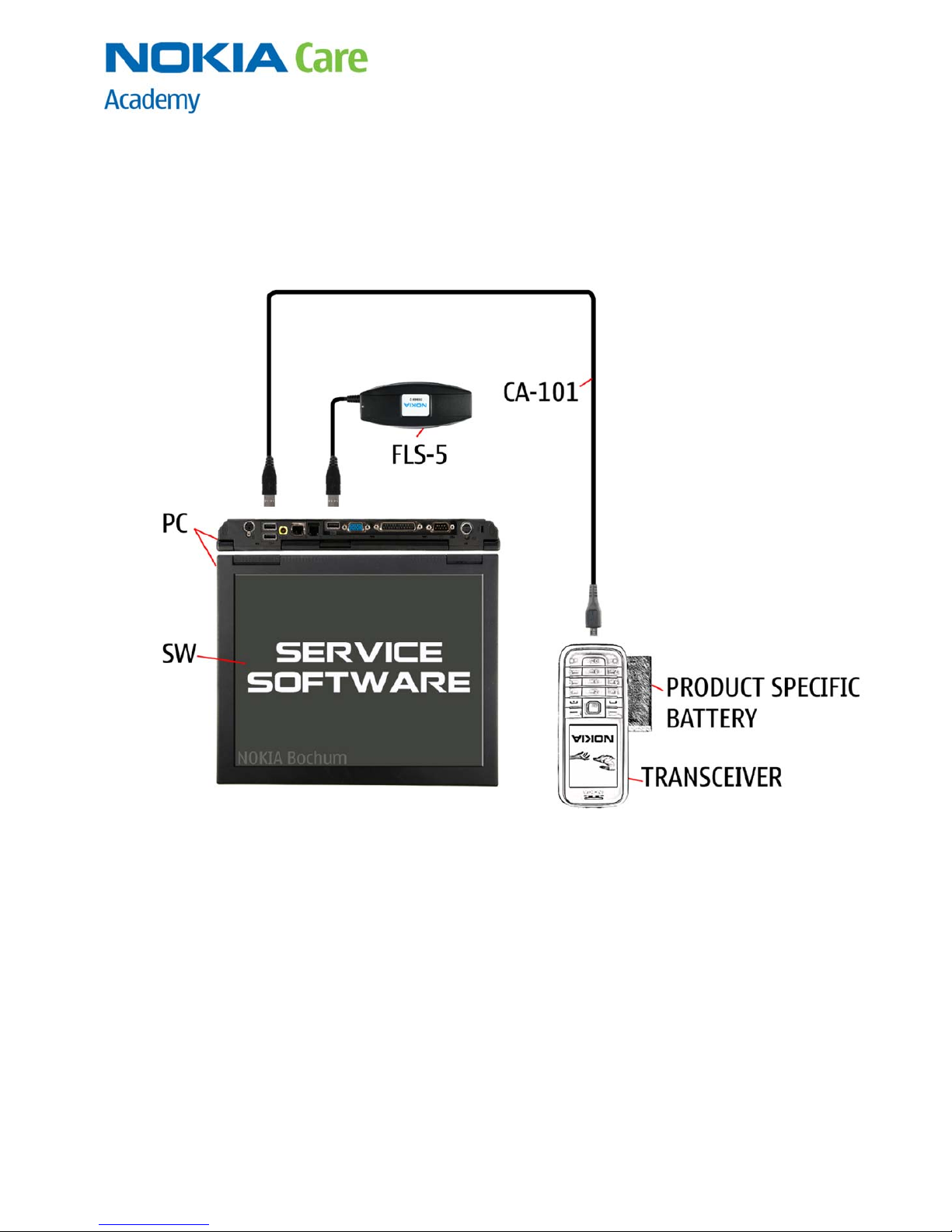

7.SERVICE DEVICES.....................................................................................................................................................................11
8.SOFTWARE UPDATE ...............................................................................................................................................................12
9.DISASSEMBLY INSTRUCTIONS .............................................................................................................................................13
10.ASSEMBLY INSTRUCTIONS....................................................................................................................................................23
11.SOLDER COMPONENTS ..........................................................................................................................................................32

Nokia N8-00
RM-596
Service Manual Level 1&2
3 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0
CHANGE HISTORY
Status Version No. Date Comments
Approved 1.0 28.6.2010 First approved version
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to
carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA
service suppliers, and the content of it is confidential. Please note that NOKIA provides also other
guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and
comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may
exist. If you find any errors or if you have further suggestions, please notify NOKIA using the
address below:
Nokia Care Academy
[e-mail]
Please keep in mind also that this documentation is continuously being updated and modified,
so watch always out for the newest version.

Nokia N8-00
RM-596
Service Manual Level 1&2
4 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0
1. COPYRIGHT
Copyright © 2010 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of
Nokia Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region.
IMPORTANT
This document is intended for use by qualified service personnel only.

Nokia N8-00
RM-596
Service Manual Level 1&2
5 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0
2. WARNINGS AND CAUTIONS
Please refer to the phone’s user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
2.1 Warnings
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,
EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE
DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF
ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING
AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY
INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT
A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.
OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
2.2 Cautions
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist
strap is worn.
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing
and alignment.
5. Ensure all cables and wires are repositioned correctly

Nokia N8-00
RM-596
Service Manual Level 1&2
6 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0
3. ESD PROTECTION
Nokia requires that service points have sufficient ESD protection (against static
electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SIM card can be replaced without ESD protection if the product
is otherwise ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too, can be
damaged by static electricity discharge.
All ESD sensitive parts must be packed in metallized protective bags during
shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD
Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.

Nokia N8-00
RM-596
Service Manual Level 1&2
7 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0
4. CARE AND MAINTENANCE
This product is of superior design and craftsmanship and should be treated with care. The
suggestions below will help you to fulfil any warranty obligations and to enjoy this product for
many years.
Keep the phone and all its parts and accessories out of the reach of small
children.
Keep the phone dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits.
Do not use or store the phone in dusty, dirty areas. Its moving parts can be
damaged.
Do not store the phone in hot areas. High temperatures can shorten the life
of electronic devices, damage batteries, and warp or melt certain plastics.
Do not store the phone in cold areas. When it warms up (to its normal
temperature), moisture can form inside, which may damage electronic circuit
boards.
Do not drop, knock or shake the phone. Rough handling can break internal
circuit boards.
Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the phone.
Do not paint the phone. Paint can clog the moving parts and prevent proper
operation.
Use only the supplied or an approved replacement antenna. Unauthorised
antennas, modifications or attachments could damage the phone and may
violate regulations governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any accessory.

Nokia N8-00
RM-596
Service Manual Level 1&2
8 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0
5. BATTERY INFORMATION
Note: A new battery’s full performance is achieved only after two or three complete charge and
discharge cycles! The battery can be charged and discharged hundreds of times but it will
eventually wear out.
When the operating time (talk-time and standby time) is noticeably shorter than normal, it is
time to buy a new battery. Use only batteries approved by the phone manufacturer and
recharge the battery only with the chargers approved by the manufacturer.
Unplug the charger when not in use. Do not leave the battery connected to a charger for longer
than a week, since overcharging may shorten its lifetime.
If left unused a fully charged battery will discharge itself over time Temperature extremes can
affect the ability of your battery to charge.
For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by
leaving the product switched on until it turns itself off (or by using the battery discharge facility
of any approved accessory available for the product).
Do not attempt to discharge the battery by any other means Use the battery only for its
intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object
(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal strips
on the battery) for example when you carry a spare battery in your pocket or purse.
Shortcircuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,
will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C
and 25°C (59°F and 77°F).
A phone with a hot or cold battery may temporarily not work, even when the battery is fully
charged. Batteries’ performance is particularly limited in temperatures well below freezing.
Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.
recycling).
Do not dispose as household waste.

Nokia N8-00
RM-596
Service Manual Level 1&2
9 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0
6. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0 Page 1/2
A3
ENGINE CHASSIS ASSY
(I0015 - I0018)
A1
TOP ASSY
(I0002 - I0006
A2
WINDOW ASSY
(I0008 - I0011)
A6
BOTTOM ASSY
(I0042 - I0044)
TOP COVER
I0006
WINDOW
I0010
DISPLAY GASKET
I0011
TOP DECO PK
I0002
POWER KEY
I0004
HDMI HATCH
I0005
TOP DECO AV
I0003
BOTTOM COVER
I0044
MAIN ANTENNA
I0043
BOTTOM DECO ASSY
I0045
WINDOW FRAME
FIXING SPRINGS
I0019
BOTTOM KEY
I0042
TOUCH WINDOW
I0009
WINDOW FRAME ASSY
I0008
DC JACK
I0015
OLED DISPLAY
I0012
FRONT CAMERA
BOOT ASSY
I0020
SCREW TORX+ 5
RF 1.2x3.2
I0001
COMBO ANTENNA
I0007
SCREW TORX+ 6
RF 1.4x5.5
I0013
EARPIECE
I0016
EARPIECE ADHESIVE
I0017
ENGINE CHASSIS
I0018

Nokia N8-00
RM-596
Service Manual Level 1&2
10 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0
Page 2/2
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
A4
A4
LIGHT SWAP PACKAGE
(I0021 - I0023)
A5
BODY ASSY
(I0029 - I0040)
CAMERA MODULE
I0024
BL-4D BATTERY
I0027
IHF SPEAKER
I0035
CAMERA KEY
I0032
VOLUME KEY
I0031
LOCK KEY
I0030
CAMERA WINDOW
I0029
IHF GASKET
I0036
SIDE SWITCH
I0037
SCREW TORX+ 5
M1.4x5.0
I0025
MICROSDCARDHATCH
I0034
FLASH MODULE
I0026
PWB SPACER ASSY
I0022
PROXY SENSOR BOOT
I0046
SIM CARD HATCH
I0033
LIGHT SWAP PWB
I0021
BODY ASSY
I0040
SCREW TORX+ 4 M1.4
I0039
BATTERY PULL-OUT TAPE
I0028
FIXING NUT
I0038
BATTERY LID
I0041
SCREW TORX+ 5
M1.4x5.0
I0014
TYPE LABEL
I0023

Nokia N8-00
RM-596
Service Manual Level 1&2
7. SERVICE DEVICES
FLS-5 Flash Device
CA-101 Service Cable AC-15 Travel Charger
BL-4D Battery
SS-182 Camera Removal tool
Nokia Standard Toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on Nokia
Online. Supplier or manufacturer
contacts for tool re-order can be
found in “Recommended service
equipment” document on Nokia
Online.

Nokia N8-00
RM-596
Service Manual Level 1&2
12 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0
8. SOFTWARE UPDATE
Flash concept (Point of Sale)
To use the FLS-5 Flash Dongle, follow the user guide inside the sales package. Please check
always for the latest version of flash software, which is available on Nokia Online.

Nokia N8-00
RM-596
Service Manual Level 1&2
9. DISASSEMBLY INSTRUCTIONS
1) Nokia N8-00 disassembly. 2) You must use the Nokia Standard To
2. You will also need the camera remo
v
182 and the DC plug.
3) Protect the WINDOW ASSY with protective film. 4) Unscrew the Torx+ size 4 screw 7 full
t
not remove the screw completely!
5) Unscrew also the second Torx+ size 4 screw on
the other side of the phone 7 full turns. Do not
remove the screw completely!
6) Pull out the BOTTOM ASSY to the direc
t
and remove it.

Nokia N8-00
RM-596
Service Manual Level 1&2

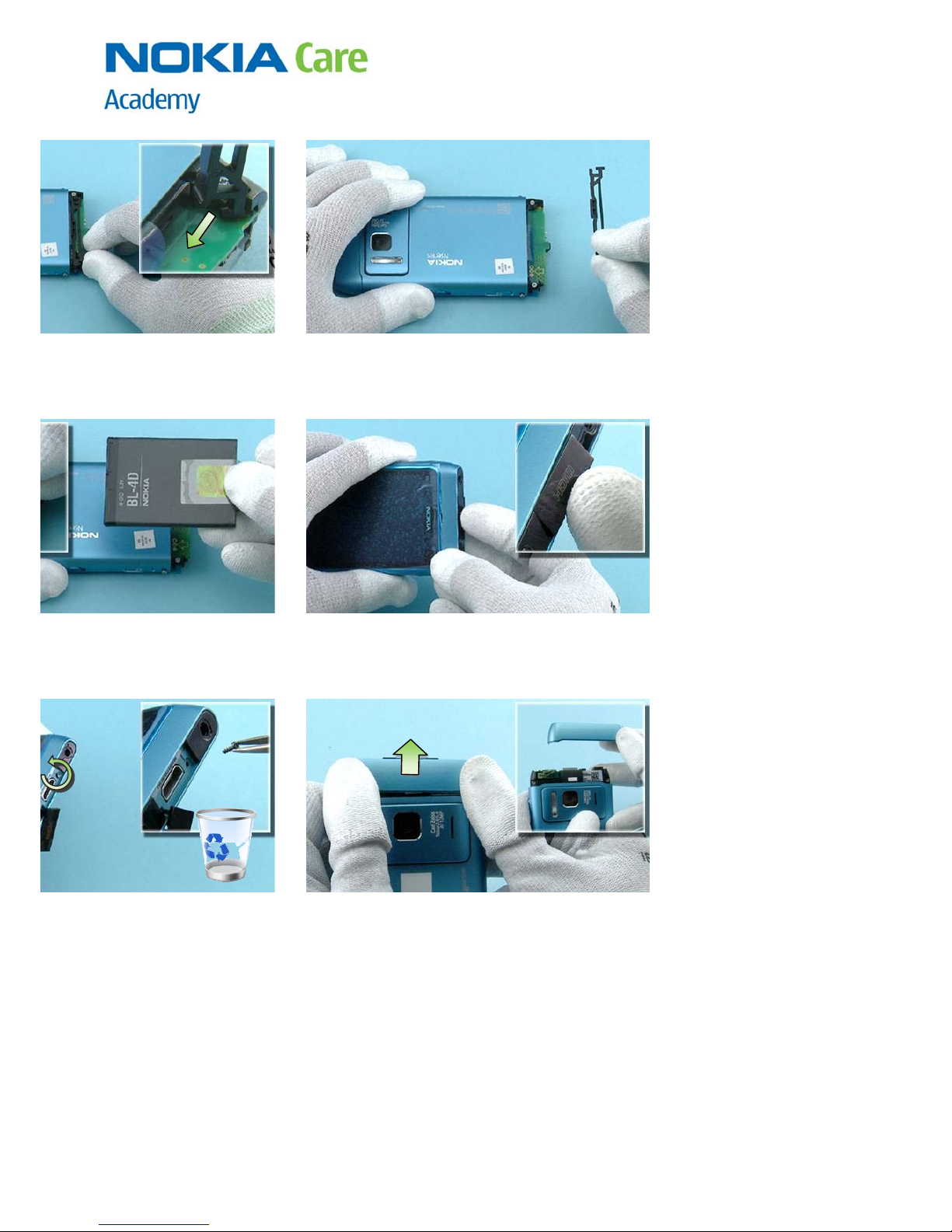

w
n end of the BATTERY LID. Release
d
by pulling it into direction
8) Now the BATTERY LID can be removed.
move the BATTERY by using the
T
TAPE.
10) Open the HDMI HATCH.
T
orx+ size 5 screw. Do not use it 12) Remove the TOP ASSY by pushing it from the
back side to the direction shown.

Nokia N8-00
RM-596
Service Manual Level 1&2
13) Pull out and remove the HDMI HATCH. 14) Unscrew the four Torx+ size 5 screw
s
order shown. These screws cannot be us
e
Discard them.
15) Slide SRT-6 to the direction shown to release
the clip holding the WINDOW ASSY.
16) Release also the second clip on the o
t
the phone by sliding the SRT-6 to the dir
e
shown.
17) Carefully lift up the top side of the WINDOW
ASSY to gain access to the connectors underneath.
Be careful not to damage the connectors while
lifting up the WINDOW ASSY!
18) Use the SS-93 to open the WINDOW
A
CONNECTOR. Be careful not to damage th
e
or components nearby!

Nokia N8-00
RM-596
Service Manual Level 1&2
19) Open also the LCD CONNECTOR with the SS-93 by
lifting it from the side shown. Be careful not to
damage the connector or components nearby!
20) The WINDOW ASSY can now be separ
a
21) Insert the SS-93 between the LCD and the
WINDOW ASSY. Slide the SS-93 to the direction
shown to release one side of the LCD. Be careful not
to damage the LCD while releasing it!
22) Release also the other side of the LC
D
SS-93. The LCD can now be removed.
23) Protect the other side of the WINDOW ASSY with
protective film.
24) Protect the display with protective fil

Nokia N8-00
RM-596
Service Manual Level 1&2
25) Release the COMBO ANTENNA with the SS-93. 26) Remove the COMBO ANTENNA.
27) Unscrew the three Torx+ size 6 screws in the
order shown. These screws cannot be used again.
Discard them.
28) Lift up and remove the ENGINE CHAS
S
29) Use tweezers to remove the two WINDOW
FRAME FIXING SPRINGS. Do not use them again.
Discard them.
30) Remove the EARPIECE GASKET with th
Do not use it again. Discard it.

Nokia N8-00
RM-596
Service Manual Level 1&2
31) Use the DC plug to lift up the DC JACK. 32) Release the EARPIECE with the SRT-6
a
33) Remove the EARPIECE with the tweezers. The
EARPIECE cannot be used again. Discard it.
34) Remove the EARPIECE GASKET with th
tool. Be careful not to injure yourself wit
h
end of the dental tool! The EARPIECE GAS
K
reusable. Discard it.
35) Remove the FRONT CAMERA BOOT with the
tweezers. Do not use it again. Discard it.
36) Lift up the AV JACK carefully as show
n
releasing the ENGINE BOARD.

Nokia N8-00
RM-596
Service Manual Level 1&2
37) To separate the ENGINE BOARD from the BODY
ASSY, lift up the shown side (1). Then pull the
ENGINE BOARD to the direction shown (2).
38) The ENGINE BOARD can now be separ
a
39) Open the two clips holding the SUB PWB with
the SS-93.
40) Turn over the SUB PWB. Be careful n
o
damage the flex!
41) Use the SS-93 to release the SUB PWB SUPPORT.
Be careful not to damage the components nearby!
42) Remove the SUB PWB SUPPORT. Do n
o
again.

Nokia N8-00
RM-596
Service Manual Level 1&2
43) To release the CAMERA, push down the camera
removal tool SS-182 until camera retaining clips are
released. Lift up the SS-182 and remove the CAMERA.
44) Release the IHF SPEAKER with the de
n
and remove it with the tweezers. Do not
SPEAKER again.
45) Remove the IHF SPEAKER GASKET with the dental
tool. Do not use it again. Discard it.
46) Pull out and remove the SD CARD HA
T
47) Remove also the SIM CARD HATCH. 48) Carefully lever out the FLASH MODULE
SS-93.
