Nokia RM30 User manual

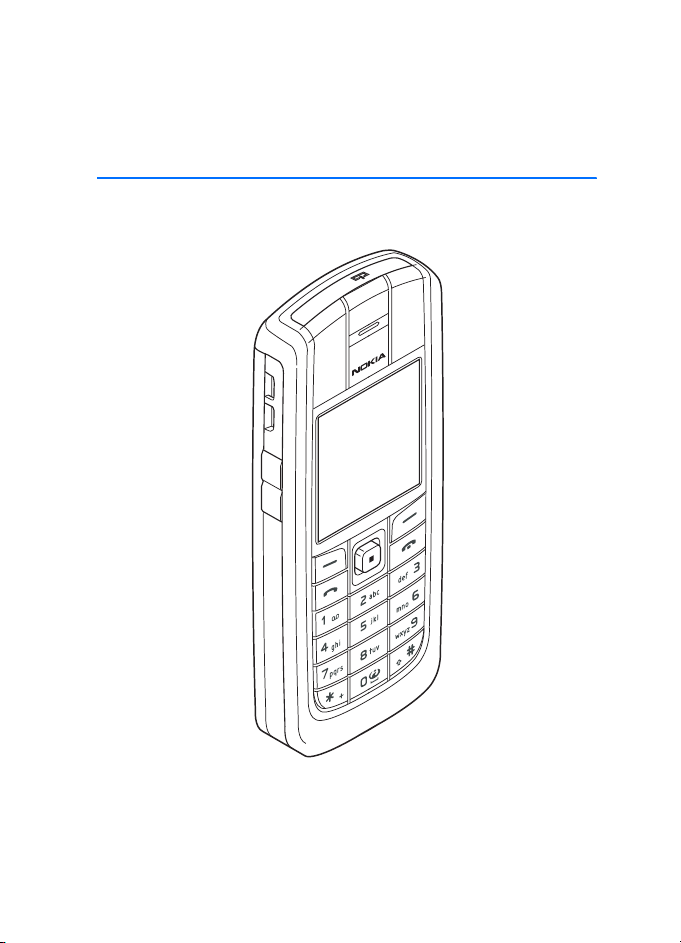

Nokia 6020 user guide
EN 9236467
Issue 1

DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the product RM-30 is in
conformity with the provisions of the following Council Directive: 1999/5/EC.
A copy of the Declaration of Conformity can be found from
http://www.nokia.com/phones/declaration_of_conformity/.
Copyright © 2004 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document
in any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, Xpress-on and Pop-Port are trademarks or registered
trademarks of Nokia Corporation. Other product and company names mentioned herein may
be trademarks or tradenames of their respective owners.
Nokia tune is a sound mark of Nokia Corporation.
US Patent No 5818437 and other pending patents. T9 text input software Copyright (C)
1997-2004. Tegic Communications, Inc. All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from RSA Security.
Java is a trademark of Sun Microsystems, Inc.
USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4
VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE DIRECTLY RELATED TO (A)
DATA OR INFORMATION (i) GENERATED BY AND OBTAINED WITHOUT CHARGE
FROM A CONSUMER NOT THEREBY ENGAGED IN A BUSINESS ENTERPRISE, AND
(ii) FOR PERSONAL USE ONLY; AND (B) OTHER USES SPECIFICALLY AND
SEPARATELY LICENSED BY MPEG LA, L.L.C.
Nokia operates a policy of continuous development. Nokia reserves the right to make
changes and improvements to any of the products described in this document without prior
notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with the Nokia dealer
nearest to you.
Export Controls
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
EN 9236467/Issue 1

UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR
INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES
HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT
AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO
THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE
RIGHT TOREVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
EXPORT CONTROLS
This device may contain commodities, technology, or software that may only be exported in
accordance with the U. S. Export Administration regulations. Diversion contrary to U.S. or
Canadian law is prohibited.
FCC/INDUSTRY CANADA NOTICE
Your phone may cause TV or radio interference (for example, when using a telephone in close
proximity to receiving equipment). The FCC or Industry Canada can require you to stop using
your telephone if such interference cannot be eliminated. If you require assistance, contact
your local service facility. This device complies with part 15 of the FCC rules. Operation is
subject to the condition that this device does not cause harmful interference.

Manufactured or sold under one or more following US Patents.
Asterisk (*) indicates design patents pending.
RE32,580 4558302 4868846 4945633 4969192 5001372
5101175 5151946 5173927 5212834 5230091 5241583
5311151 5317283 5331638 5335362 5353328 5371481
5378935 5384782 5396657 5400949 5416435 5442521
5446364 5479476 5526366 5553125 5557639 5565821
5570369 5581244 5600708 5625274 5677620 5692032
5729541 5760568 5794142 5802465 5809413 5818437
5827082 5839101 5844884 5845219 5870683 5884103
5889770 5907823 5912570 5914690 5914796 5917868
5920826 5953541 5956332 5956625 5956633 5966378
5977887 5987137 5991857 6006114 6011554 6011853
6014551 6014573 6026161 6035189 6038238 6043760
6047196 6049796 6050415 6055439 6060193 6069923
6072787 6081732 6084920 6084962 6094587 6097964
6105784 6112099 6115617 6119180 6121846 6128509
6138091 6140966 6144243 6144676 6148209 6151485
6151507 6163609 6164547 6167248 6185295 6188909
6249584 6259312 6266330 6272361 6282436 6292668
6295286 6311054 6314166 6324389 6324412 6347218
6363259 6370362 6370389 6377820 6381468 6392660
6400958 6453179 6463278 6470470 6487397 6522670
6198928 4969192 5266782 5390223 5444816 5487084
5640395 5664053 5699482 5701392 5722074 5754976
5805301 5835889 5857151 5859843 5862178 5898925
5930233 5946651 5960354 5960389 5963901 6005857
6011971 6031827 6118775 6128322 6137789 6167248
6285888 6356759 6377803 6430163 6438370 6456237
6170073 6178535 6195338 6199035 6240076 6266321

5
Contents
FOR YOUR SAFETY................... 8
General information .............. 10
About your device ............................... 10
Overview of the functions
of the phone ......................................... 10
Shared memory................................. 11
Nokia PC Suite software.................... 11
Access codes......................................... 11
Security code (5 to 10 digits) ....... 11
PIN and PIN2 codes (4 to 8 digits),
module PIN, and signing PIN........ 12
PUK and PUK2 codes (8 digits) .... 12
Barring password (4 digits) ........... 12
Wallet code (4 to 10 digits).......... 12
Network services.................................. 13
Configuration settings service ..... 13
Downloading content and
applications........................................... 14
Nokia support on the Web................ 14
1. Getting started................... 15
Installing the SIM card
and the battery .................................... 15
Charging the battery.......................... 16
Switching the phone on and off ..... 17
Normal operating position................ 18
Putting on a wrist strap..................... 18
2. Your phone ......................... 19
Keys and connectors........................... 19
Standby mode....................................... 20
Wallpaper........................................... 21
Screen saver....................................... 21
Power saving ..................................... 21
Essential indicators.......................... 21
Keypad lock (Keyguard) ..................... 22
3. Call functions ..................... 23
Making a call ........................................ 23
Speed dialling a phone number ... 23
Answering or rejecting an
incoming call ........................................ 24
Call waiting ....................................... 24
Options during a call.......................... 24
Writing text........................................... 24
Setting predictive text input
on or off.............................................. 25
Using predictive text input ........... 25
Using traditional text input .......... 26
Tips for writing text ........................ 26
4. Using the menu .................. 28
Accessing a menu function .............. 28
List of menu functions ....................... 29
5. Menu functions .................. 33
Messages................................................ 33
Text messages (SMS) ...................... 33
Multimedia messages (MMS)....... 36
Flash messages ................................. 39
Instant messages (Chat)................. 40
E-mail application ........................... 45
Voice messages................................. 47
Info messages ................................... 47
Service commands........................... 47
Deleting all messages
from a folder ..................................... 47
Message settings.............................. 48
Message counter .............................. 50
Call register........................................... 51
Recent calls lists............................... 51
Counters and timers for calls, data
and messages .................................... 52
Positioning information ................. 52
Contacts................................................. 52
Selecting settings for contacts .... 53

6
Saving names and phone numbers
(Add contact).................................... 53
Saving multiple numbers or
items per name ................................ 53
Adding an image to a name or
number in contacts......................... 54
Searching for a contact................. 54
Editing or deleting details............. 55
My presence...................................... 55
Subscribed names............................ 57
Copying contacts............................. 59
Sending and receiving a
business card .................................... 59
Speed dials ........................................ 60
Voice dialling .................................... 60
Service numbers............................... 61
My numbers ...................................... 61
Caller groups..................................... 61
Settings................................................. 62
Profiles................................................ 62
Themes................................................ 63
Tone settings..................................... 63
Personal shortcuts........................... 63
Display settings................................ 64
Time and date settings................... 65
Call settings ...................................... 65
Phone settings.................................. 66
Connectivity...................................... 67
Enhancement settings.................... 69
Configuration settings ................... 70
Security settings.............................. 71
Restore factory settings................. 72
Operator menu..................................... 72
Gallery .................................................... 72
Media...................................................... 73
Camera ............................................... 73
Voice recorder................................... 75
Push to talk........................................... 75
Push to talk menu ........................... 76
Connecting to and disconnecting
from the push to talk service....... 77
Callback requests............................. 77
Making and receiving a
push to talk call ............................... 78
Adding one-to-one contacts........ 80
Creating and setting up groups... 80
Settings for push to talk................ 82
Organiser ............................................... 83
Alarm clock ....................................... 83
Calendar............................................. 83
To-do list............................................ 84
Notes................................................... 85
Wallet ................................................. 85
Synchronisation ............................... 88
Applications.......................................... 89
Games and applications ................ 89
Calculator .......................................... 91
Countdown timer ............................ 91
Stopwatch ......................................... 92
Web......................................................... 93
Basic steps for accessing and
using services ................................... 93
Setting up the phone
for a service....................................... 93
Making a connection to a service 94
Browsing the pages of a service . 94
Disconnect from a service............. 95
Appearance settings
of the browser .................................. 95
Cookies ............................................... 96
Bookmarks ......................................... 96
Downloading..................................... 97
Service inbox .................................... 97
Cache memory.................................. 98
Browser security .............................. 98
SIM services........................................ 101
6. PC Connectivity ................ 102
PC Suite ............................................... 102
(E)GPRS, HSCSD and CSD............ 103
Using data communication
applications ........................................ 104
7. Battery information ......... 105
Charging and Discharging .............. 105

7
8. Technical Information...... 106
CARE AND MAINTENANCE . 107
ADDITIONAL SAFETY
INFORMATION...................... 108
APPENDIX ............................ 112
A message from the CTIA............... 112
A message from the U.S. Food
and Drug Administration to
all users of mobile phones ............. 115

FOR YOUR SAFETY
8
FOR YOUR SAFETY
Read these simple guidelines. Not following them may be dangerous or illegal.
Read the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the phone on when wireless phone use is prohibited or
when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the
vehicle while driving. Your first consideration while driving should be
road safety.
INTERFERENCE
All wireless phones may be susceptible to interference, which could
affect performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the phone off near medical
equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause interference in
aircraft.
SWITCH OFF WHEN REFUELLING
Don't use the phone at a refuelling point. Don't use near fuel or
chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Don't use the phone where blasting is in
progress.
USE SENSIBLY
Use only in the normal position as explained in the product
documentation. Don't touch the antenna unnecessarily.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries. Do not connect
incompatible products.

FOR YOUR SAFETY
9
WATER-RESISTANCE
Your phone is not water-resistant. Keep it dry.
BACK-UP COPIES
Remember to make back-up copies or keep a written record of all
important information stored in your phone.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read its user guide for detailed
safety instructions. Do not connect incompatible products.
EMERGENCY CALLS
Ensure the phone is switched on and in service. Press as many
times as needed to clear the display and return to the start screen. Key
in the emergency number, then press . Give your location. Do not
end the call until given permission to do so.

General information
10
General information
■About your device
The wireless device described in this guide is approved for use on the
EGSM 900, GSM 1800 and GSM 1900 network. Contact your service
provider for more information about networks.
When using the features in this device, obey all laws and respect privacy
and legitimate rights of others.
Warning: To use any features in this device, other than the
alarm clock, the device must be switched on. Do not switch the
device on when wireless device use may cause interference or
danger.
Your device and its enhancements may contain small parts. Keep them
out of the reach of small children.
For availability of approved enhancements, please check with your
dealer. When you disconnect the power cord of any enhancement, grasp
and pull the plug, not the cord.
■Overview of the functions of the phone
The Nokia 6020 phone provides many functions that are practical for
daily use, such as a calendar, a clock, an alarm clock and a built-in
camera. Your phone supports:
• Multimedia messaging, see Multimedia messages (MMS) on page 36.
• Instant messages, see Instant messages (Chat) on page 40.
• Polyphonic sound (MIDI) that consists of several sound components
played at the same time. The phone supports Scalable Polyphonic
MIDI (SP-MIDI) format.
• E-mail, see E-mail application on page 45.
•Audible alerts to check the battery status and the network status via
acoustic signals, see Voice commands on page 64.
• Presence-enhanced contacts, see My presence on page 55.

General information
11
• EDGE (Enhanced Data rates for GSM Evolution), see (E)GPRS on
page 68.
• Push to talk, see Push to talk on page 75.
• Java 2 Micro Edition, J2METM, see Applications on page 89.
• XHTML browser, see Web on page 93.
Shared memory
The following features in this device may share memory: contacts, text
messages, instant messages and SMS e-mail, voice tags, calendar and
notes. Use of one or more of these features may reduce the memory
available for the remaining features sharing memory. For example,
saving many SMS e-mail may use all of the available memory. Your
device may display a message that the memory is full when you try to
use a shared memory feature. In this case, delete some of the
information or entries stored in the shared memory features before
continuing. Some of the features, such as contacts, text messages,
instant messages and SMS e-mail may have a certain amount of
memory specially allotted to them in addition to the memory shared
with other features.
■Nokia PC Suite software
With the Nokia PC Suite software you can, for example, manage the
photos captured with the phone’s camera and handle ringing tones and
wallpapers. Nokia PC Suite is available on Nokia’s Web site at
www.nokia.com.
■Access codes
Security code (5 to 10 digits)
The security code helps to protect your phone against unauthorised use.
The pre-set code is 12345. Change the code, and keep the new code
secret and in a safe place separate from your phone. To change the code,
and to set the phone to request the code, see Security settings on
page 71.

General information
12
If you key in an incorrect security code five times in succession, the
phone ignores further entries of the code. Wait for 5 minutes and key in
the code again.
PIN and PIN2 codes (4 to 8 digits), module PIN, and
signing PIN
• The PIN (Personal Identification Number) code, supplied with your
SIM card, helps to protect your SIM card against unauthorised use.
See Security settings on page 71.
• The PIN2 code may be supplied with the SIM card and is required to
access some functions, such as call counters.
• The module PIN is required to access the information in the security
module of your SIM card. See Security module on page 98.
• The signing PIN is required for the digital signature. See Digital
signature on page 100.
PUK and PUK2 codes (8 digits)
The PUK (Personal Unblocking Key) code is required to change a blocked
PIN code. The PUK2 code is required to change a blocked PIN2 code.
Barring password (4 digits)
The barring password is required when using the Call barring service. See
Security settings on page 71.
Wallet code (4 to 10 digits)
The wallet code is required to access the wallet services. For further
information, see Wallet on page 85.
Note: If the codes or passwords are not supplied with the SIM
card, contact your local service provider.

General information
13
■Network services
To use the phone you must have service from a wireless service provider.
Many of the features in this device depend on features in the wireless
network to function. These Network Services may not be available on all
networks or you may have to make specific arrangements with your
service provider before you can utilize Network Services. Your service
provider may need to give you additional instructions for their use and
explain what charges will apply. Some networks may have limitations
that affect how you can use Network Services. For instance, some
networks may not support all language-dependent characters and
services.
Your service provider may have requested that certain features be
disabled or not activated in your device. If so, they will not appear on
your device menu. Your device may also have been specially configured
for your network provider. This configuration may include changes in
menu names, menu order and icons. Contact your service provider for
more information.
This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/
IP protocols. Some features of this device, such as multimedia messages,
e-mail application, instant messages, presence service, Java games and
applications and Internet services require network support for these
technologies.
Configuration settings service
To use some of the network services, such as mobile Internet services,
MMS, Instant messages, E-Mail application, or Synchronisation, your
phone needs the correct configuration settings. You may receive the
settings directly as a configuration message and you need to save the
settings on your phone. The service provider may provide a PIN that is
needed to save the settings. For more information on the availability of
the settings, contact your network operator, service provider, nearest
authorised Nokia dealer or visit the support area on the Nokia Web site,
www.nokia.com.
When you have received a configuration message Configuration sett.
received is displayed. To view the received settings, press Show.

General information
14
• To save the received settings, press Save. If the phone asks Enter
settings' PIN:, key in the PIN code for the settings and press OK. Set
these settings as the default or not. For availability of the PIN code,
contact the service provider that supplies the settings.
• To discard the received settings, press Discard.
To view and edit the settings see Configuration settings on page 70.
■Downloading content and applications
You may be able to download new content (for example images and
video clips) and applications into the phone (network service).
1. Select the download function for example in the Collection and
Gallery menus. To access the download function, see the respective
menu descriptions.
A list of bookmarks is shown. Select More bookmarks if you want to
view the bookmarks available in the Web menu.
2. Select the bookmark of the browser page that you want to access. If
the connection fails, change the active set of connection settings in
the Web menu and try the connection again. Follow the instructions
provided by the service.
For the availability of different services, pricing and tariffs, contact
your network operator and/or the service provider.
Your device may have some bookmarks loaded for sites not affiliated with Nokia.
Nokia does not warrant or endorse these sites. If you choose to access them, you
should take the same precautions, for security or content, as you would with any
Internet site.
■Nokia support on the Web
Check www.nokia.com/support or your local Nokia Web site for the
latest version of this guide, additional information, downloads, and
services related to your Nokia product.

Getting started
15
1. Getting started
■Installing the SIM card and the battery
Keep all SIM cards out of the reach of small children. For availability and
information on using SIM card services, contact your SIM card vendor. This may
be the service provider, network operator, or other vendor.
Note: Always switch off the power and disconnect the charger and any
other device before removing the cover. Avoid touching electronic
components while changing the cover. Always store and use the device
with the covers attached.
1. To remove the back cover of the
phone:
Push the back cover release button (1)
and slide the back cover towards the
bottom of the phone (2). When the
back cover is released, take it off the
phone.
2. Remove the
battery by lifting
it as shown.
Insert the SIM
card into the
SIM card holder
until it snaps
into position.
Make sure that the SIM card is properly inserted and that the golden
contact area on the card is facing downwards.

Getting started
16
3. To remove the SIM card press the SIM
card release (1) and slide the SIM card
towards the top of the phone (2).
4. Position the battery with the
contacts aligned to the golden
contacts of the phone. Insert the
battery into the battery slot.
5. Align the back cover on the back of
the phone (1) with a gap above the top
of the back cover of approximately
3 mm. Push the back cover up to the
top of the phone to lock it (2).
■Charging the battery
Warning: Use only batteries, chargers, and enhancements approved by
Nokia for use with this particular model. The use of any other types may
invalidate any approval or warranty, and may be dangerous.
Check the model number of any charger before use with this device.
This device is intended for use when supplied with power from ACP-
7and ACP-12 chargers.

Getting started
17
1. Connect the lead from the
charger to the socket on the
bottom of your phone.
2. Connect the charger to an AC
wall socket. If the battery is
completely empty, it may take a
few minutes before the charging
indicator appears on the display
or before any calls can be made.
The charging time depends on the charger and the battery used. For
example, charging a battery with the ACP-12 charger takes
approximately 1 hour and 20 minutes while the phone is in standby
mode.
■Switching the phone on and off
Warning: Do not switch the phone on when wireless phone use is
prohibited or when it may cause interference or danger.
Press and hold the power key as shown.
Note that if the phone displays Insert SIM card even
though the SIM card is properly inserted, or SIM
card not supported, contact your network operator
or service provider. Your phone does not support 5-
Volt SIM cards and the card may need to be
changed.
If the phone asks for a PIN or security code, enter the code supplied with
your SIM card (displayed as ****), and press OK.
See also Access codes on page 11.

Getting started
18
■Normal operating position
Your phone has an internal antenna.
Use the phone only in its normal
operating position as shown.
Note: As with any other radio
transmitting device, do not touch the
antenna unnecessarily when the
device is switched on. Contact with the
antenna affects call quality and may
cause the device to operate at a higher
power level than otherwise needed.
Avoiding contact with the antenna
area when operating the device optimises the antenna performance and the
battery life.
■Putting on a wrist strap
The upper left edge of the phone
contains an eyelet for the wrist strap.
Thread the strap as shown in the
picture and tighten it.

Your phone
19
2. Your phone
■Keys and connectors
1. Power key
2. Earpiece
3. Loudspeaker
4. Volume keys
5. Push to talk (PTT) key
To activate push to talk (if available) or
voice recorder. See Push to talk on
page 75 and Voice recorder on page 75.
6. Left and right Selection keys and
, middle selection key
The function of these keys depends on the guiding text shown on the
display above the keys. See Standby mode on page 20.
7. 5-way joystick
Enables scrolling through names, phone numbers, menus or settings.
The 5-way joystick is also used to move the cursor up and down, and
left and right when writing text, using the calendar, and in some
game applications. Pressing the joystick also functions as the middle
selection key, and pressing it briefly selects the function shown on
the display above the joystick.
In standby mode, the joystick functions as a shortcut. Move the
joystick right to access push to talk (if available) or the calendar, left
to start writing an SMS message, up to activate the camera and
down to access the list of contacts.
8. dials a phone number, and answers a call. In standby mode, it
shows the list of the most recently called numbers.
9. ends an active call. Exits from any function.
10. - enter numbers and characters.
and are used for various purposes in different functions.

Your phone
20
11.Charger connector
Pop-PortTM connector used, for example, for
headsets and the data cable.
12.PTT key to make a push to talk call (only if
available) or to activate the voice recorder.
13.Infrared (IR) port
14.Camera lens
■Standby mode
When the phone is ready for use, and you have
not keyed in any characters, the phone is in
standby mode.
1. Shows the name of the network or the operator
logo.
2. Shows the signal strength of the cellular network
at your current location.
3. Shows the battery charge level.
4. The left selection key in standby mode is Go to.
Press Go to to view the functions in your personal shortcut list.
Select a function to activate it. Press Options and select Select 'Go
to' options to view the list of available functions that you can add.
Scroll to the desired function and press Mark to add it to the
shortcut list. To remove a function from the list, press Unmark.
Select Organise 'Go to' options to rearrange the functions on your
personal shortcut list. Select the desired function and press Move,
then select where you want to move the function. See also Go to
options on page 64.
5. The middle selection key in standby mode is Menu.
6. The right selection key in standby mode is Names to access the
Contacts menu or another shortcut to a function you can select. See
Personal shortcuts on page 63. Or the key has an operator-specific
name to access an operator-specific web site.
