Nokia Mobile TV Receiver User manual

Nokia Mobile TV Receiver
User Guide
9208270
Issue 1.1 EN

DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this SU-33W
product is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
A copy of the Declaration of Conformity can be found at
http://www.nokia.com/phones/declaration_of_conformity/.
© 2008 Nokia. All rights reserved.
Nokia and Nokia Connecting People are registered trademarks of
Nokia Corporation. Other product and company names mentioned
herein may be trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the
contents in this document in any form without the prior written
permission of Nokia is prohibited.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of ongoing development. Nokia reserves the
right to make changes and improvements to any of the products
described in this document without prior notice.
To the maximum extent permitted by applicable law, under no
circumstances shall Nokia or any of its licensors be responsible for
any loss of data or income or any special, incidental, consequential
or indirect damages howsoever caused.
0434

The contents of this document are provided "as is". Except as
required by applicable law, no warranties of any kind, either express
or implied, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose, are made in
relation to the accuracy, reliability or contents of this document.
Nokia reserves the right to revise this document or withdraw it at
any time without prior notice.
The availability of particular products may vary by region.
Please check with your Nokia dealer for details.
Export controls
This device may contain commodities, technology or software
subject to export laws and regulations from the US and other
countries. Diversion contrary to law is prohibited.
9208270 / Issue 1.1 EN

Contents
4
Contents
1. Introduction ................................................................. 5
Nokia Mobile TV application....................................................................... 6
Mobile TV services ......................................................................................... 6
Bluetooth wireless technology................................................................... 7
2. Get started.................................................................... 8
Parts................................................................................................................... 8
Batteries and chargers.................................................................................. 9
Insert the battery ........................................................................................ 10
Charge the battery...................................................................................... 11
3. Basic use..................................................................... 13
Switch on ...................................................................................................... 13
Switch off...................................................................................................... 13
Pair with another device........................................................................... 13
Attach a strap .............................................................................................. 15
Clear settings or reset................................................................................ 16
4. Battery information................................................... 17
Nokia battery authentication guidelines.............................................. 20
Care and maintenance ................................................... 23
FCC/Industry Canada notice .......................................... 26

Introduction
5
1. Introduction
With the Nokia Mobile TV Receiver, you can receive digital
TV broadcasts in the DVB-H (Digital Video Broadcasting-
Handheld) format on your compatible Nokia mobile device
and the Nokia Mobile TV application.
You can connect the receiver to a compatible device using
Bluetooth wireless technology.
Check www.nokia.com/support or your local Nokia website
for the latest version of the user guide and additional
information (for example, a list of compatible devices)
related to the receiver.
Read this user guide carefully before using the receiver. Also
read the help of the Nokia Mobile TV application and the
user guide for the device that you connect to the receiver.
Keep all accessories and enhancements out of the reach of
small children.

Introduction
6
■Nokia Mobile TV application
With the Nokia Mobile TV application, you can access
mobile television and radio services (network service)
and watch and listen to digital TV programs.
If the Nokia Mobile TV application is not already installed in
your mobile device, check the availability of the application
for your device from the support pages of this receiver at
www.nokia.com/support or your local Nokia website.
You may need to update the software of your Nokia device
(such as the Nokia N73 device) to use the application.
■Mobile TV services
Mobile TV services may only be available upon subscription.
Check with your service provider for the mobile TV network
coverage, the availability and pricing of the services and
instructions on how to access the services.
If you do not have access to a mobile TV service, the operators
in your area may not support mobile TV services.

Introduction
7
In some countries, owners of a television receiver are
required to pay a television licence fee. Contact your local
authorities for more information.
■Bluetooth wireless technology
Bluetooth wireless technology allows you to connect
compatible devices without cables. The receiver and a
compatible device do not need to be in line of sight, but
they should be within 10 metres (33 feet) of each other.
Connections may be subject to interference from
obstructions, such as walls, or other electronic devices.
The receiver complies with the Bluetooth Specification
2.0 + EDR.

Get started
8
2. Get started
Before you can use the receiver with the Nokia Mobile TV
application, you must do the following:
• Install the application to your compatible Nokia device
that you connect to the receiver.
• Fully charge the battery of the receiver.
• Pair your device with the receiver.
■Parts

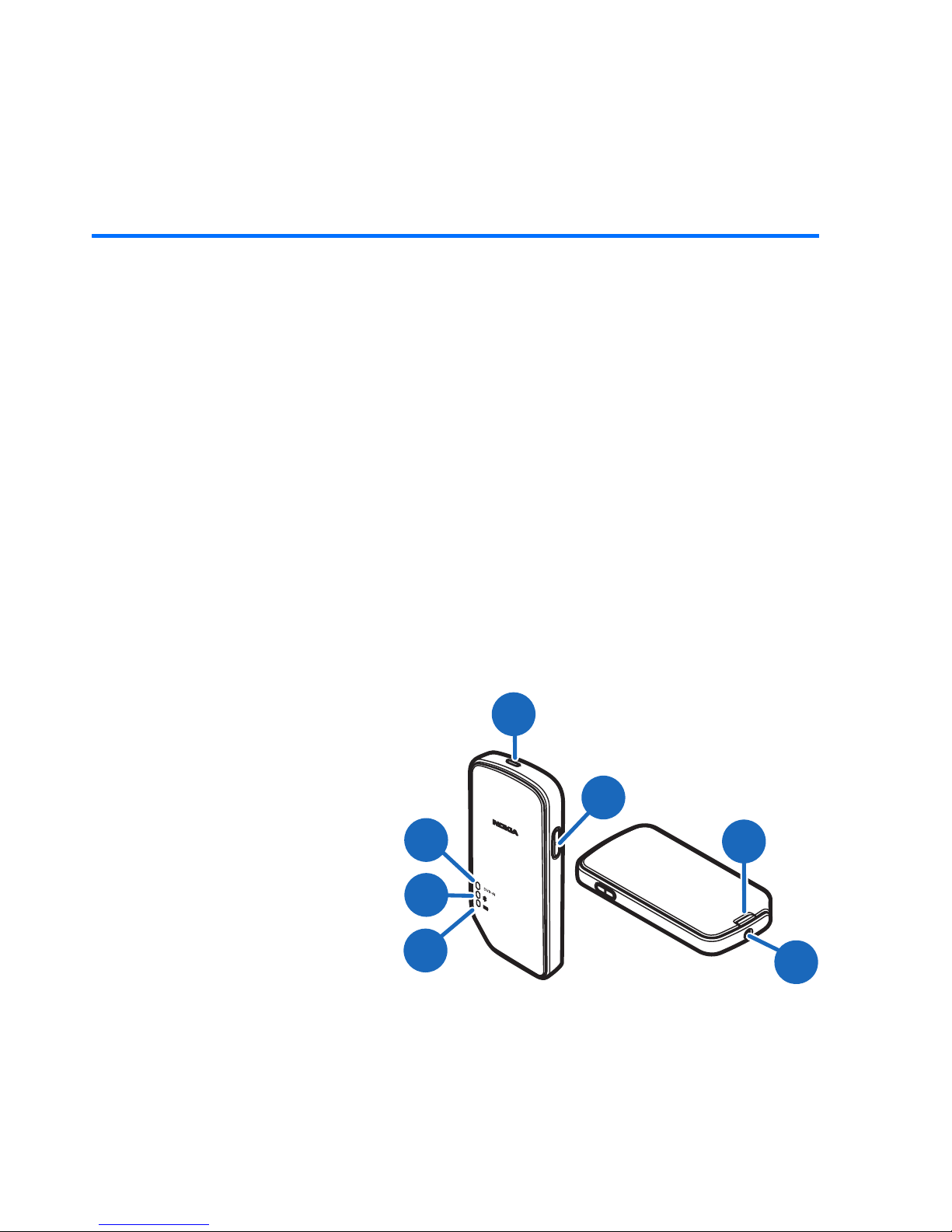

The receiver contains
the following parts:
1. Eyelet for
an optional
carrying strap
2. TV signal
indicator light
6
2
3
47
5
1

Get started
9
3. Bluetooth indicator light
4. Battery charge indicator light
5. Power key
6. Release button for the battery cover
7. Charger connector
■Batteries and chargers
This device is intended for use when supplied with power
from the following chargers: AC-4, AC-5, and DC-4.
Warning: Use only batteries and chargers approved
by Nokia for use with this particular enhancement.
The use of any other types may invalidate any
approval or warranty and may be dangerous.
When you disconnect the power cord of any enhancement,
grasp and pull the plug, not the cord.

Get started
10
■Insert the battery
1. With the back of the
device facing you, press
and hold the release
button for the battery
cover (1), and lift up the
cover from the bevelled
corner (2).
2. Insert the battery into the
compartment so that the
Nokia logo is facing
upwards and the contact
area of the battery is facing
towards the contacts on the
receiver (3). Press the battery into place.
1
2
3

Get started
11

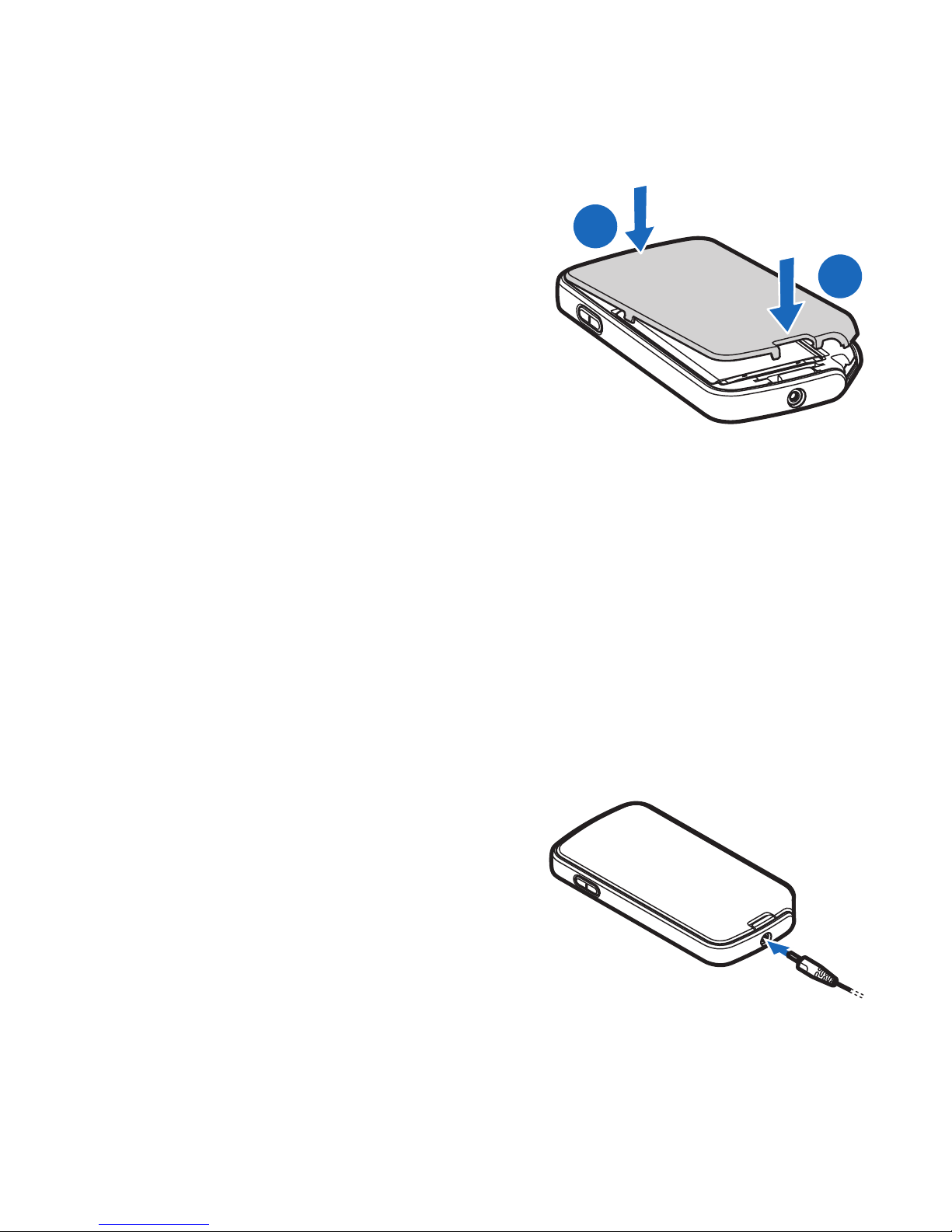

3. Replace the cover so that
the locking catches are
directed towards their
slots (4), and press the
cover into place (5).
To remove the battery, open
the battery cover, and lift the
battery with your finger. Always switch the receiver off and
disconnect the charger before removing the battery.
■Charge the battery
Before charging the battery, read “Battery information,”
p. 17.
1. Connect the charger to a wall outlet.
2. Connect the charger cable
to the charger connector.
The receiver switches on.
4
5

Get started
12
During charging, the battery charge indicator light is red
(when the receiver is off) or alternates between green
and red (when the receiver is on). It may take a while
before charging starts. If charging does not start,
disconnect the charger and plug it in again.
Charging the battery fully typically takes about 3 hours.
3. When the battery is fully charged, the indicator light
turns green. Disconnect the charger from the receiver
and the wall outlet.
The fully charged battery has power for up to 12 hours of
operating time.
When battery power is low, the battery charge indicator
light flashes red. Recharge the battery.

Basic use
13
3. Basic use
■Switch on
To switch the receiver on, press and hold the power key for
one second until the green battery indicator light turns on.
When the receiver is receiving TV signals in the DVB-H
format, the TV signal indicator light flashes white.
The antenna of the receiver is located above the Nokia logo.
■Switch off
To switch the receiver off, press and hold the power key
until the battery indicator light turns red.
If the receiver is not connected to a charger or a paired device
within about 30 minutes, it switches off automatically.
■Pair with another device
Before you can use the receiver, you must pair it with a
compatible Nokia device.

Basic use
14
You can also pair and connect the receiver within the Nokia
Mobile TV application without using the Bluetooth menu of
your device. See the user guide of the application.
To pair the receiver in the Bluetooth menu, do the following:
1. Ensure that the receiver and your Nokia mobile device
are switched on.
2. Activate the Bluetooth feature on the mobile device,
and set it to search for Bluetooth devices.
3. Select the receiver (Nokia SU-33W) from the list of
found devices.
4. Enter the passcode 0000 to pair and connect the receiver
to your device. In some devices, you may need to make
the connection separately after pairing. You only need
to pair the receiver with your device once.
5. Start using the Nokia Mobile TV application. If you want
to use the application without disturbing others, you can
connect a compatible wired headset to your mobile device.
When the receiver is connected to your device, the Bluetooth
indicator light flashes blue.

Basic use
15
You can pair the receiver with up to eight compatible
devices, but you can connect it to only one at a time.
If you need to disconnect the receiver, switch it off, or
disconnect it in the Bluetooth menu of the device or in
the Mobile TV application.
■Attach a strap
1. Remove the battery cover.
For details, see “Insert the
battery,” p. 10.
2. Thread a strap through the hole
at the top of the receiver so
that the loop runs around the
small pin. Tighten the strap.
3. Replace the cover.

Basic use
16
■Clear settings or reset
To clear all the pairing settings from the receiver, press and
hold the power key (for about 10 seconds) until the battery
charge indicator light alternates between red and green.
To reset the receiver if it stops functioning, even though it is
charged, remove the battery.

Battery information
17
4. Battery information
Your device is powered by a rechargeable battery. The battery
intended for use with this device is BL-5C. The battery can
be charged and discharged hundreds of times, but it will
eventually wear out. When the operating time is noticeably
shorter than normal, replace the battery. Use only Nokia
approved batteries, and recharge your battery only with
Nokia approved chargers designated for this device. Use of
an unapproved battery or charger may present a risk of
fire, explosion, leakage, or other hazard.
If a battery is being used for the first time or if the battery
has not been used for a prolonged period, it may be necessary
to connect the charger, then disconnect and reconnect it
to begin charging the battery. If the battery is completely
discharged, it may take several minutes before the charging
indicator appears.
Always switch the device off and disconnect the charger
before removing the battery.

Battery information
18
Unplug the charger from the electrical plug and the device
when not in use. Do not leave a fully charged battery
connected to a charger, since overcharging may shorten its
lifetime. If left unused, a fully charged battery will lose its
charge over time.
Always try to keep the battery between 15°C and 25°C (59°F
and 77°F). Extreme temperatures reduce the capacity and
lifetime of the battery. A device with a hot or cold battery may
not work temporarily. Battery performance is particularly
limited in temperatures well below freezing.
Do not short-circuit the battery. Accidental short-circuiting
can occur when a metallic object such as a coin, clip, or pen
causes direct connection of the positive (+) and negative (-)
terminals of the battery. (These look like metal strips on the
battery.) This might happen, for example, when you carry a
spare battery in your pocket or purse. Short-circuiting the
terminals may damage the battery or the connecting object.
Do not dispose of batteries in a fire as they may explode.
Batteries may also explode if damaged.

Battery information
19
Do not dismantle, cut, open, crush, bend, deform, puncture, or
shred cells or batteries. In the event of a battery leak, do not
allow the liquid to come in contact with the skin or eyes. In the
event of such a leak, flush your skin or eyes immediately with
water, or seek medical help.
Do not modify, remanufacture, attempt to insert foreign
objects into the battery, or immerse or expose it to water
or other liquids.
Improper battery use may result in a fire, explosion, or other
hazard. If the device or battery is dropped, especially on a
hard surface, and you believe the battery has been damaged,
take it to a service centre for inspection before continuing
to use it.
Use the battery only for its intended purpose. Never use any
charger or battery that is damaged. Keep your battery out of
the reach of small children.
Important: Operating times are estimates only
and depend on network conditions, features used,
battery age and condition, temperatures to which
battery is exposed, and many other factors.

Battery information
20
■Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To check
that you are getting an original Nokia battery, purchase it
from an authorised Nokia dealer, and inspect the hologram
label using the following steps:
Successful completion of the steps is not a total assurance
of the authenticity of the battery. If you have any reason to
believe that your battery is not an authentic, original Nokia
battery, you should refrain from using it, and take it to the
nearest authorised Nokia service point or dealer for assistance.
Your authorised Nokia service point or dealer will inspect the
battery for authenticity. If authenticity cannot be verified,
return the battery to the place of purchase.
