NOMA ASHTON User manual

ASHTON 44” LED CEILING FAN
PRODUCT NO. 052-9603-8
USER MANUAL
READ AND SAVE THESEINSTRUCTIONS

TABLE OF CONTENTS

3
01. SAFETY/CAUTIONS
02. TOOLS REQUIRED
03. EXPLODED VIEW
04. ELECTRICAL SAFETY
05. ASSEMBLY
06. OPERATION
07. TROUBLESHOOTING
08. DYNAMIC BLADE BALANCING KIT
09. MAINTENANCE
10. WARRANTY & DISPOSAL
4
6
7
11
13
19
21
23
25
26
11. IC STATEMENT 27

4
SAFETY / CAUTIONS
SAFETY CONCERNS
•
•
•
•
•
•
•
•
•
•
TO REDUCE THE RISK OF ELECTRIC SHOCK, ENSURE ELECTRICITY HAS
BEEN TURNED OFF AT THE CIRCUIT BREAKER OR FUSE BOX BEFORE
BEGINNING.
ALL WIRING MUST BE IN ACCORDANCE WITH NATIONAL AND LOCAL
ELECTRICAL CODES. ELECTRICAL INSTALLATION SHOULD BE PERFORMED
BY A QUALIFIED LICENSED ELECTRICIAN.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO
NOT USE THIS FAN WITH ANY SOLID-STATE FAN-SPEED CONTROL
DEVICE. IT WILL PERMANENTLY DAMAGE THE ELECTRONIC CIRCUITRY.
CAUTION: TO REDUCE THE RISK OF PERSONAL INJURY, USE ONLY THE
SCREWS PROVIDED WITH THE OUTLET BOX.
THE OUTLET BOX AND SUPPORT STRUCTURE MUST BE SECURELY
MOUNTED AND CAPABLE OF RELIABLY SUPPORTING A MINIMUM OF
35 LB (15.9 KG). USE ONLY UL-LISTED OUTLET BOXES MARKED “FOR FAN
SUPPORT.”
THE FAN MUST BE MOUNTED WITH A MINIMUM OF 6’11’’(2.1M) FROM
THE TRAILING EDGE OF THE BLADES TO THE FLOOR.
AVOID PLACING OBJECTS IN THE PATH OF THE BLADES.
TO AVOID PERSONAL INJURY OR DAMAGE TO THE FAN AND OTHER
ITEMS, BE CAUTIOUS WHEN WORKING AROUND OR CLEANING THE
FAN.
DO NOT USE WATER OR DETERGENTS WHEN CLEANING THE FAN
OR FAN BLADES. A DRY DUST CLOTH WILL BE SUITABLE FOR MOST
CLEANING.
AFTER MAKING ELECTRICAL CONNECTIONS, SPLICED CONDUCTORS
SHOULD BE TURNED UPWARD AND PUSHED CAREFULLY UP INTO
THE OUTLET BOX. THE WIRES SHOULD BE SPREAD APART WITH THE
GROUNDED CONDUCTOR AND THE EQUIPMENT-GROUNDING
CONDUCTOR ON ONE SIDE OF THE OUTLET BOX AND THE
UNGROUNDED CONDUCTOR ON THE OTHER SIDE OF THE OUTLET BOX.
ALL SET SCREWS MUST BE CHECKED AND RE-TIGHTENED WHERE
NECESSARY BEFORE INSTALLATION.

5
01
•
•
•
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
AND PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED
“ACCEPTABLE FOR FAN SUPPORT” WITH THE SCREWS PROVIDED WITH
THE OUTLET BOX.
WARNING: TO AVOID RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES) OR THE BRACKETS
WHILE BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
AND PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED
“ACCEPTABLE FOR FAN SUPPORT” OF 35 LB (15.9 KG) OR LESS”
AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX.
MOST OUTLET BOXES COMMONLY USED FOR THE SUPPORT OF
LIGHT FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND MAY
NEED TO BE REPLACED. DUE TO THE COMPLEXITY OF THIS FAN, A
QUALIFIED LICENSED ELECTRICIAN IS STRONGLY RECOMMENDED FOR
INSTALLATION.

6
01 02
TOOLS REQUIRED
INSTALLATION PREPARATION
Flat-head
screwdriver
Cross-head
screwdriver
Safety glasses Pliers
Wire cutters Electrical tape Stepladder Wire strippers
6' 11"
(2.1 m)
30”
(76 cm )
To prevent personal injury and
damage, ensure that the hanging
location allows the blades a
clearance of 6' 11" (2.1 m) from the
floor and 30" (76 cm) from any wall or
obstruction.
This fan can be mounted with a
downrod on a regular (no-slope) or
vaulted ceiling, such as flush mount.
Blade Edge
Flush Mount
Installation
Downrod
Installation
Vaulted
ceiling angle
is not to
exceed 18°

7
03
EXPLODED VIEW
PACKAGE CONTENTS
07
10 11 12
15 16
03
09
14
05 06 08
Installation
Instruction
X 3
X 2
X 3
X 3
X 2
X 16X 3
X 1
X 16
X 5

8
03 EXPLODED VIEW
PACKAGE CONTENTS
01.
02.
03.
04.
05.
06.
07.
08.
HANGER BRACKET
CANOPY
CANOPY COVER
DOWNROD STAND COVER
DOWNROD, HANGER PIN
& LOCK PIN
FAN MOTOR ASSEMBLY
FAN BLADES (5 PCS)
BLADE BRACKETS (5 PCS)
09. LIGHT PLATE
11. REMOTE CONTROL
12. REMOTE CONTROL HOLDER
14. BLADE BALANCING KIT
15. INSTALLATION INSTRUCTIONS
10. 18 W LED ASSEMBLY
13. 12 V BATTERY
16. PARTS PACK CONTAINING:
3 x Wood Screws
2 x Machine Screws
3 x Flat Washers
3 x Spring Washers
2 x Star Washers
3 x Wire Nuts
1 x Blade Bracket Screw
16 x Blade Screws
16 x Fiber Washers
5 x Screw Retainers

9
03
EXPLODED VIEW
DETAIL
01.
02.
03.
04.
05.
06.
07.
08.
09.
10.
HANGER PIN
CANOPY
HANGER BALL
HANGER BRACKET
LIGHT PLATE
COLLAR
BLADE BRACKET
FAN BLADE
LOCK PIN
FAN MOTOR ASSEMBLY
11.
12.
13.
DOWNROD STAND COVER
DOWNROD
CANOPY COVER 18 W LED ASSEMBLY14.

10
03
13
11
01
09
10
02
03
04
07
05
06
08
12
14

11
04
ELECTRICAL SAFETY
Instructions
•
01.
02.
03.
04.
Making the Electrical Connections
•
•
Read all safety information and installation instructions before
you begin to install the fan and save instructions.
All set screws of the fan must be checked and re-tightened
where necessary before installation.
To reduce the risk of personal injury, do not bend the blade
brackets when installing the brackets, balancing the blades
or cleaning the fan. Do not insert foreign objects between
rotating fan blades.
Before changing the fan direction, turn off the fan and wait for
the fan blades to stop completely.
The safeguards provided by these safety instructions and by
the separate installation instructions are not meant to cover all
possible conditions and situations that may occur. It must be
understood that common sense, caution and care are factors
which cannot be built into this product. These factors must be
supplied by the person(s) installing, caring for and operating
the fan.
WARNING: To avoid risk of electric shock, be sure to shut off
power at the main fuse or circuit breaker box before installing
To reduce the risk of injury, install the fan so that the blades are
at least 6’ 11’’ (2.1M) above the floor and at least 30’’ (76cm)
from the tip of the blades to the wall.

12
04
•
•
•
•
•
mount the outlet box marked “ACCEPTABLE FOR FAN
SUPPORT” and use mounting screws provided with the outlet
box.
The installation must be in accordance with the national
electrical code, ANSI/NFPA 70-1999 and local codes. If you
are unfamiliar with the methods of installing electrical wiring,
injury, mount to outlet box and use mounting screws provided
with the outlet box.
IMPORTANT: Before you begin installing the fan, carefully read
all information on the separate sheet “SAFETY INSTRUCTIONS”
as well as the following “Installation Instructions Steps”. If in doubt,
NOTE: The fan weight is 13 lb 3 oz (5.99 kg). Be sure the outlet box
you are using is securely attached to the building structure and can
support the full weight of the fan. Failing to do so can result in
serious injury.
consult a qualified electrician.

13
05
01 02
ASSEMBLY
INSTRUCTIONS
Fig. 1 Fig. 2
Outlet
Box
Outlet Box
Screw
03 Fig. 3
Lock
Pin
Hanger
Pin
Hanger
Pin
Cross Pin
Hanger Ball
Downrod

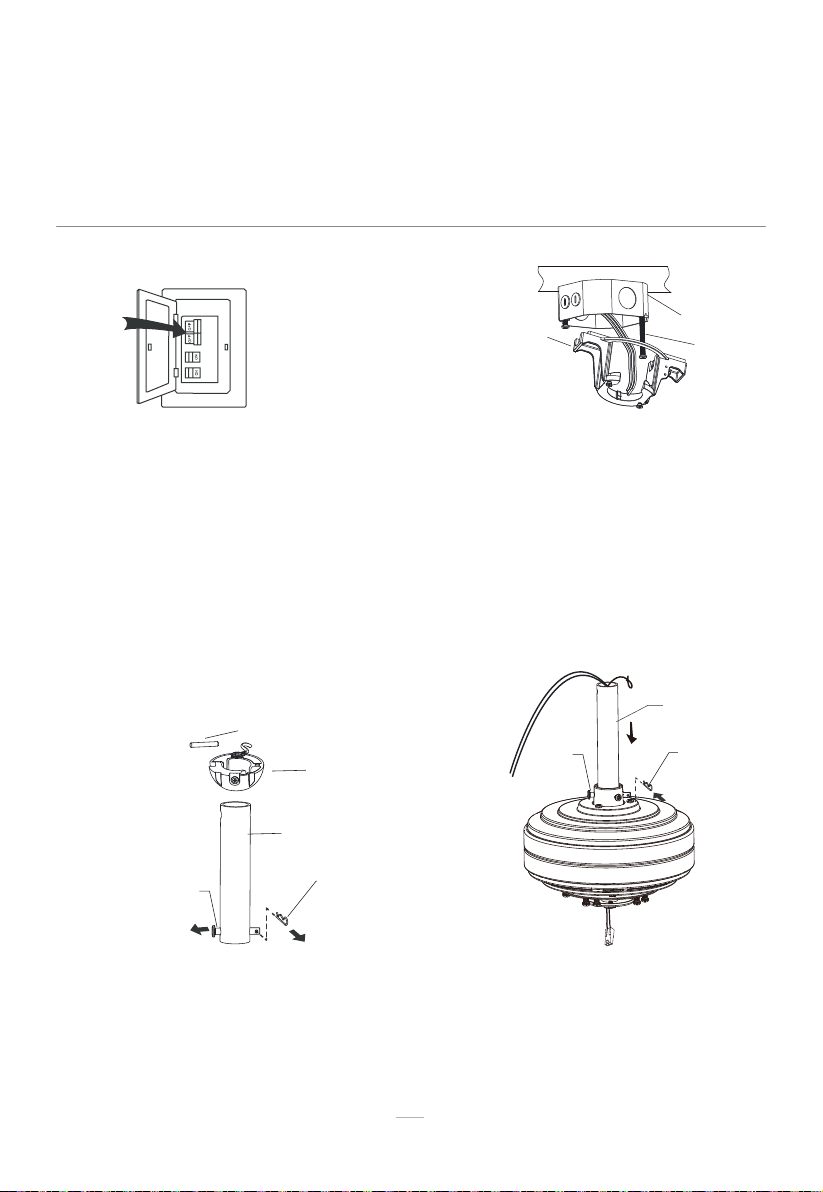

Remove the lock pin and take out the hanger
pin; then remove the hanger ball from the
downrod assembly by loosening the set
screw and removing the cross pin (Fig. 3).
04
Downrod
Turn OFF the electric circuit at the main
fuse of circuit breaker box (Fig. 1).
Securely attach the hanger bracket to
an outlet box marked "ACCEPTABLE FOR
FAN SUPPORT" using the supplied outlet
box screws with spring washers (Fig. 2).
Lock
Pin
Fig. 4
Warning: Ensure wiring is not pinched or
twisted.
Hanger
Bracket
Thread the motor wires safety cable through
the downrod and downrod stand. Insert the
downrod into the collar. Slide hanger pin
through holes of collar and downrod (Fig. 4).

14
05
Cross Pin
Set Screw
Fig. 8Fig. 7
07
Hang the fan onto the hanger bracket,
and make sure the slot of the hanger ball
is aligned with the clip of the hanger
bracket (Fig. 8).
08
Hanger
Bracket
Slot Clip
Insert and tighten the two collar screws.
Slide lock pin into hanger pin until it is
locked into position (Fig. 5).
05
Safety Cable
Hanger
Pin
Fig. 6
06
Lock Pin
Downrod
Canopy
Canopy Cover
Collar
Hanger
Pin
Downrod
Stand Cover
Fig. 5
Lock Pin
Collar Screws
Motor Wires
Hanger Ball
Hanger Ball
Slide downrod cover, canopy cover
and canopy over the downrod as
shown (Fig. 6).
Carefully reinstall the hanger ball onto rod,
being sure that cross pin is in correct position,
set screws are tightened and wires are not
twisted (Fig. 7).

15
05
Fig. 9
ASSEMBLY
IMPORTANT: If you are not sure if the electrical outlet box and fan are
grounded, contact a licensed electrician for advice. They must be
grounded for safe operation.
WARNING: To avoid possible electric shock, be sure electricity is turned
off at the main fuse box before wiring.
Wiring Instructions
•
•
VIEW AFTER INSTALLATION
09

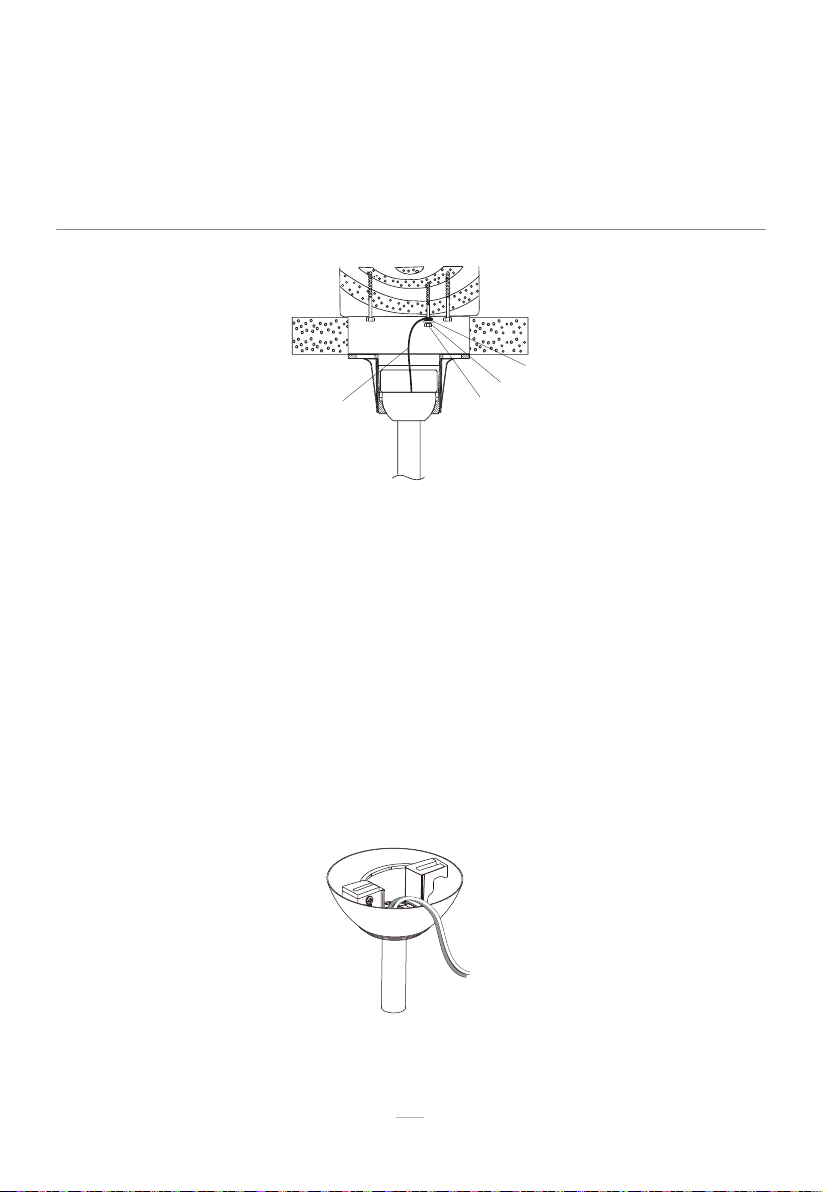

The safetycable preventsthe fan from falling. Secure the safetycable to the ceiling joist with
a wood screw, star washer and flat washer (Fig. 9).
Safety
Cable
Star Washer
Wood
Screw
Flat Washer

16
05
NOTE: Fan must be installed at a maximum distance of 40’ (12.2 m) from
the transmitting unit for proper signal transmission between the transmitting
unit and the fan’s receiving unit.
Fan to House Supply Wires Electrical Connections: Connect the WHITE
wire (Neutral) from the outlet box to the WHITE wire marked “AC in N”
from the fan. Connect the BLACK wire (Hot) from the outlet box to the
BLACK wire marked “AC in L” from the fan. Secure all wire connections
with the plastic wire nuts provided.
Between Fan & Mains
•
WIRE NUT
WIRE NUT
WIRE NUT
WIRE NUT
WIRE NUT
OUTLET BOX
HOT
NEUTRAL
GROUND
AC IN N
OUTLET BOX
YELLOW & GREEN
AC IN L
YELLOW & GREEN
AC IN N
AC IN L
GROUND
GROUND
HOT
NEUTRAL
Connect the ground wire (yellow & green or bare copper) from the
outlet box to the ground wire of hanging ball and the ground wire of
hanger bracket and the receiver ground wire. Secure wire
connection with the plastic wire nut provided.
•
HANGER
BRACKET

17
05
ASSEMBLY

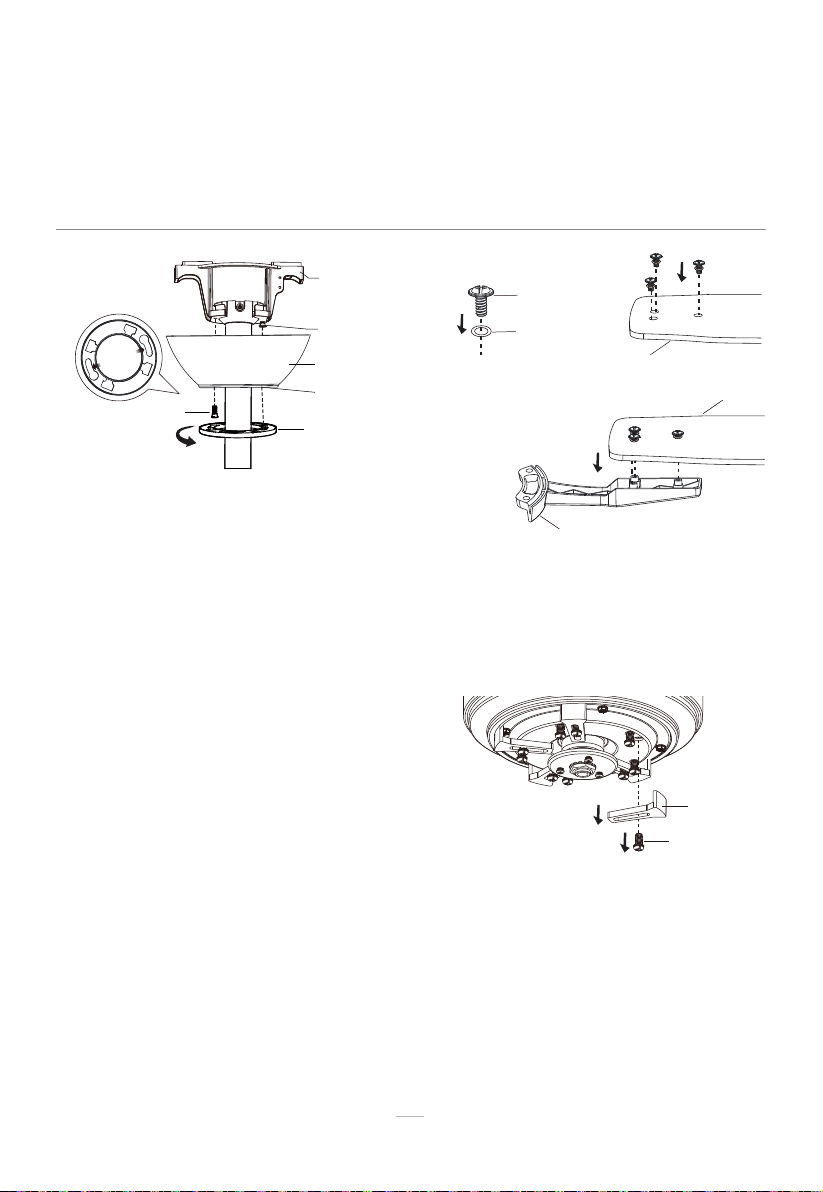

Remove 1 of the 2 screws from the bottom
of the hanger bracket and loosen the other
one half a turn from the screw head. Slide
the canopy up towards the hanger bracket
and place the key hole on the canopy over
the screw on the hanger bracket, then turn
canopy until it locks in place at the narrow
section of the key holes. Align the circular
hole on the canopy with the remaining
hole on the hanger bracket, secure with
previously removed hanger bracket screw,
and tighten both hanger bracket screws
securely (Fig. 10).
Push up the canopy cover until the screw
heads engage to the slots on the canopy
cover, and rotate the canopy cover until it
is attached to the bottom of the canopy
securely (Fig. 10).
Attach the fan blades to the blade bracket
by using three blade screws and fibre
washers. Tighten screws and fibre washers
securely. Repeat these steps for the
remaining blades (Fig. 11-3).
Remove all the blade bracket screws from
the fan motor assembly, including the
plastic blocks from the fan motor assembly.
Discard the plastic blocks (Fig. 12).
NOTE: Adjust the canopy screws as
Warning:
These plastic blocks are used to avoid
collision damage between motorized main
engine shell during transportation. Please
discard the plastic blocks prior to installation.
necessary until the canopy and canopy
cover are snug.
10
Hanger
Bracket
Hanger
Bracket Screw
Canopy
Canopy
Screw
Key
Hole Slot
Canopy
Cover
12
11
Fig. 10
Fig. 12
Fig. 11-1 Fig. 11-2
Fig. 11-3
Blade Bracket
Screw
Plastic Block
Blade
fiber washer
blade screws
Blade
Blade Bracket

18
05
Attach two blade bracket screws to the
blade brackets by using the screw retainer
to keep the screws in place. Repeat for all
remaining blades (Fig.13).
13 Fig. 13
Blade
Assembly
Blade Bracket
Screw
14
Remove 3 light kit screws from the fan
motor assembly. Attach the light plate to
the fan motor assembly. Secure by
tightening the 3 screws (Fig. 14).
15 Fig. 15
18 W LED
Assembly
Light Plate
Connection
Plugs
While holding the LED assembly under your fan, firmly snap the wire connection plugs together.
Align the two arrow marks on the light plate and the LED assembly, then turn the LED assembly
clockwise until it stops to ensure tight fit (Fig. 15).
Fig. 14
Round
Hole light kit screws
Light Plate
Motor
Assembly
Attach the fan blade assembly to the fan
motor assembly by aligning the blade
bracket screws with the screw holes in the
motor assembly. Tighten screws securely
(Fig. 13), Repeat for all remaining blades.
Screw Retainers (This will
help keeping the screws
in place for ease of assembly)

19
06
OPERATION
Step 1: Turn off the AC power to all fans to begin the learning process
on any single fan.
Step 2: Restore power to only one fan at atime for
pairing; the rest remain off by use of your wall-mounted
power switch.
Step 3: After the AC power is on, do not press any other button on the
remote control before pressing the (FAN ON/OFF) button. Doing so
will cause the procedure to fail. Within 30 seconds of turning the fan’s
AC power ON, press and hold the button for 5 seconds to enter the
learning function.
Once the receiver has detectedthe set frequency, the light will blink
two times when the pairing is complete.
Step 4: Repeat steps 1, 2, and 3 with each fan to ensure each fan can
be operated by the pairedremote only, and without interfering with
each other.
Remote Control Operation Instructions
WARNING: Do not short-circuit, disassemble, heat up,
connect improperly, or dispose of used batteries in fire.
Do not recharge or mix batteries with used or other batt-
erytypes. Immediately remove used batteries.
WARNING:
a) The batteries shall be disposed of properly, including
keeping them away from children; and
b) Even used batteries may cause injury.
Install a 12 V batteryinto the remote control. Fasten the battery
cover screw after installation. To prevent damage to the remote
control, remove the battery if not used for long periods of time.
Learning Process
NOTE: Should you desire to install more than one fan in your
home, please install one by one by following the steps
below to ensure each fan can be operated individually:
01

20
06
NOTE: On start-up your ceiling fan will oscillate back and forth. This is
NORMAL OPERATION for DC ceiling fan as it goesthrough its calibration
cycle. The fan is NOT DEFECTIVE.
•
•
•
•
•
•
•
Attach the remote controlholder with the two
remote controlholder mounting screws.
1. Fan button. Press and release the button to turn the fan on or off.
Fan on/off. The fan memoryfunction will store the current setting for the next
time the fan is in use.
2. 1,2,3,4,5,6 buttons:
These six buttons are used to set the fan speed as follows:
1=low speed2=medium low speed
3=medium speed4=medium high speed
5=high speed6=extrahigh speed
3. Light functions
Press and release button one time to turn the light on or off.
Press to increase the desired light level.
Press to decrease the desired light level.
4. Fan reverse button (Must be pushed when the fan is in operation.)
(Counter-clockwise direction)A downward air flowcreates a cooling effect.
This allows you to set your air conditioner on ahigher setting without affecting
your comfort.
(Clockwise direction)An upward air flowmoves warm air off the ceiling. This
allows you to set your heating unit on a lower setting without affecting your
comfort.
Installing The Remote Control Holder
02
•Press and release button to select the desiredcolour
temperature.
