NOMA Miles User manual

model no. 052-6966-2
Instruction Manual
IMPORTANT: Please read and understand this manual before any assembly. Before
beginning assembly of product, make sure all parts are present. Compare parts
with exploded view.If any part is missing, or if you have any questions, contact
customer service at 1-866-827-4985 (toll free).
Miles 52" Ceiling Fan
Toll Free: 1-866-827-4985

Table of Contents
IMPORTANT: RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY
Toll Free : 1-866-827-4985 model no. 052-6966-2
.................................................................................................................................... 1
.................................................................................................. 2
...............................................................................................................2
Tools required for assembly ............................................................................................................3
Assembly .....................................................................................................................................................3
Operation ....................................................................................................................................................7
Maintenance ..............................................................................................................................................8
Care and cleaning ..........................................................................................................................................8
Troubleshooting .................................................................................................................................... 8
Environmental protection .............................................................................................. 9
Warranty .....................................................................................................................................................10
Exploded view
Rules for safe installation
Important safety instructions

3
Exploded View
1
No Description Qty
A
B
C
D
E
Mounting bracket
Downrod
Canopy
Flange cover
Motor
1
1
1
1
1
No Description Qty
FGlass shade 1
GBlades 5
HBulbs(E12X60W) 2
IRemote control 1
JReceiver 1
EXPLODED VIEW
G

3
Instructions
IMPORTANT SAFETY INSTRUCTIONS
Please retain this manual for future reference.
Note: Always turn the power off before servicing the ceiling fan.
· A dry dust cloth is suitable for most cleanings.
· Should the ceiling fan become wet, have a qualified electrician inspect it before next use.
· In order to comply with safety regulations and to avoid safety hazards, ceiling fan repairs must be
· carried out by qualified personnel.
· Pay attention to the ceiling fan blades when cleaning, painting or working nearby.
· Children do not recognize the dangers that may occur when operating ceiling fan. Keep children away
from ceiling fans.
DO NOT: · Expose the ceiling fan to water or immerse it in water.
· Operate the ceiling fan if it shows any signs of damage or if it has been dropped.
· Attempt to remove any parts of the housing or insert any object while the ceiling fan is
operating.
· Position the ceiling fan on or near hot surfaces such as stove tops, or near open flames.
· Expose the ceiling fan to rain or moisture.
. Operate the ceiling fan outdoors or
with wet hands.
· Use the reverse switch while the fan blades are in motion. This could result in
damage to the ceiling fan.
RULES FOR SAFE INSTALLATION
This ceiling fan is designed for household use only and not for commercial applications. No responsibility
is accepted for damage resulting from improper use or noncompliance with the instructions.
CAUTION!
· To avoid possible electric shock, be sure electricity at the fuse box or the circuit breaker
is turned off before wiring.
· All wiring must be done in accordance with national and local wiring codes. Consult a
qualified
electrician to ensure correct branch circuit conductor.
· Follow the recommended instructions for the proper method of wiring for the new ceiling
fan.The ceiling fan must be grounded as a precaution against possible electric shock.
· If you do not have sufficient electrical wiring knowledge, have the fan installed by a licensed
electrician.
· The outlet box and joist must be securely mounted and capable of reliably supporting at
least 15.9 kg (35 lbs).
· Mount the lowest moving parts at least 6’ 11” (2.1m) above floor or ground level.
· Make sure all electrical connections are sealed with proper connectors and electrical tape
inside the outlet box.
· Make sure the ceiling fan is securely fastened to the ceiling.
· All set screws must be checked and re-tightened where necessary before fan operation.
WARNING!
· Mount only to an outlet box marked acceptable for fan support.
· To prevent injury, make sure the fan blades are not bent and that there are no objects
within the rotation area.
· The important precautions, safeguards and instructions appearing in this manual are not
meant to cover all possible situations. It must be understood that common sense and
caution are factors which cannot be built into the product.
Not suitable for use with solid-state speed controls.
Toll Free: 1-866-827-4985 model no. 052-6966-2
2
·

This manual is designed to make it as easy as possible for you to assemble, install, operate and maintain
3
12
3
Assembly
the ceiling fan.The following tools listed are required for assembly and intallation:

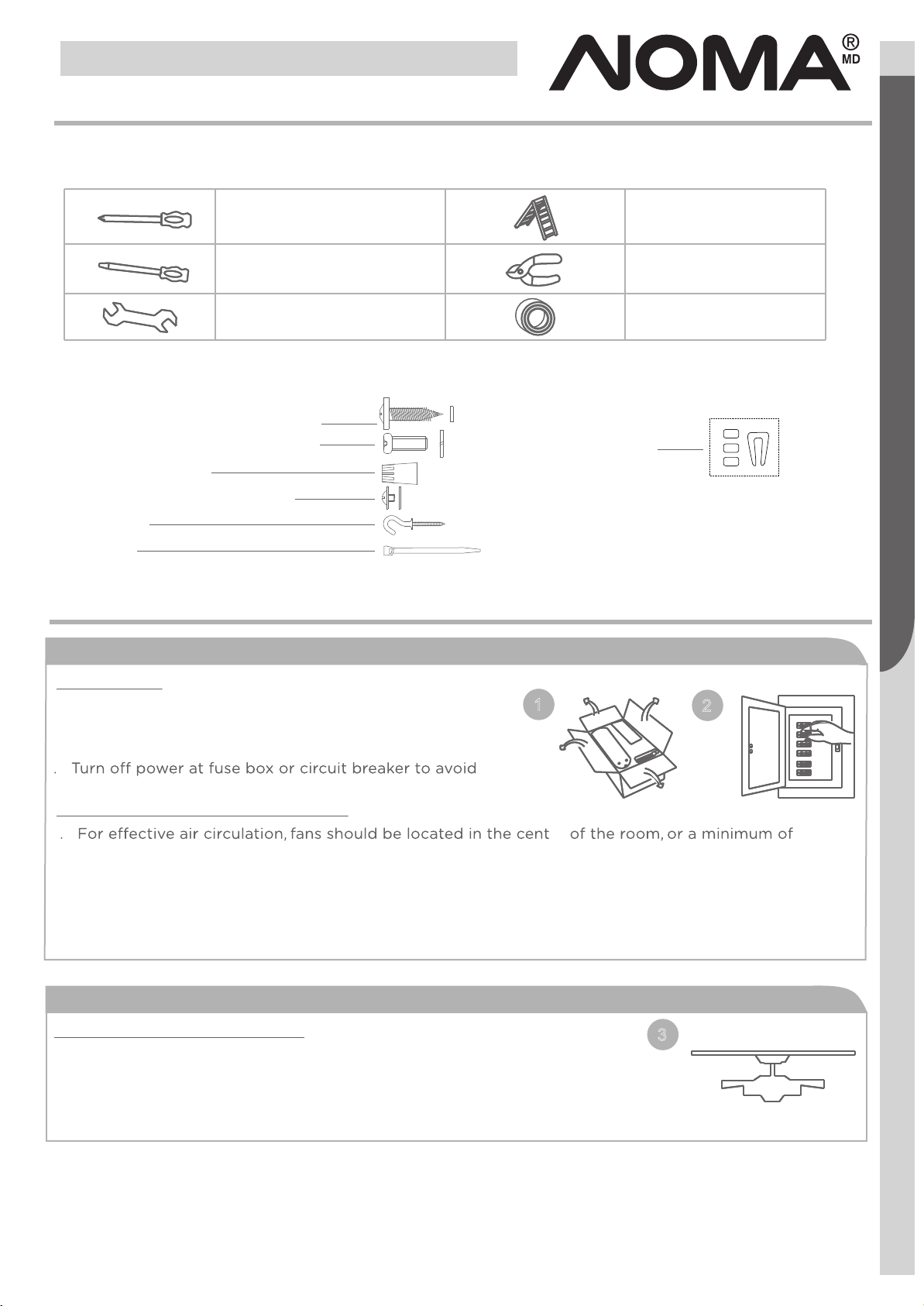

TOOLS REQUIRED FOR ASSEMBLY
1 x star-head screwdriver
1 x flat screwdriver
1 x wrench
1 x stepladder
1 x wire stripper/pliers
1 x electrical tape
After opening the package you should find all the necessary parts for installing this ceiling fan.
The box should also contain:
Parts Pack Containing:
2 wood screws with flat washers
2 5/32” screws with lock washers
3 wire connectors
16 blade screws with washers
1 “J” hook
1 zip tie
3 balance pieces
3 tape
1 instruction sheet
ASSEMBLY
Preparing for installation
Getting ready
. Unpack and inspect carefully to make sure all parts are
included and not damaged (see Fig. 1). Lay all pieces out
on a working space.
possible electric shock (see Fig. 2).
Choosing a location for the ceiling fan
32" (81.3 cm) from adjacent walls or obstructions.
. Choose a location where there is a high enough ceiling clearance (at least 2.1 m (6' 11") from the floor
to the ceiling fan’s lowest moving part).
. Ensure that the outlet box in the room’s ceiling can support the weight of the fan.Typically, if the
outlet box is marked “acceptable for fan support” , it can hold the fan securely.
Mounting options
Drop-mount (for normal ceilings)
. This method is preferred if the ceiling is sloped or vaulted, or if the ceiling
is extra high, requiring the need of a downrod (see Fig. 3).
. Follow steps 1 to 9, omitting step 2 in the manual.
re

2. Attach blade to motor
4
1. Mounting bracket
Installation
Assembly
ASSEMBLY
4
5
Note: The mounting bracket depicted will vary
depending on the model (see Fig. 4).
Wood screw
with flat washer
. Secure the mounting bracket to outlet box marked
“ACCEPTABLE FOR FAN SUPPORT” and use
outlet box screws provided with outlet box (see Fig. 4).
. Remove three screws from flange cover and
lift the cover set aside. Remove three screws
from top plate located on the motor yoke. Lift
top plate and set aside.
. Time Saver: Washers can be set on each blade
screw prior to installing blades.
. Slide downrod through canopy and flange cover.
. Thread electrical wires through downrod and pull
extra wire slack from the upper end of the downrod.
. Loosen yoke set screw and nut and remove pin and
clip if preinstalled. Place downrod into the motor
housing yoke and insert pin and clip. Tighten yoke
set screw and nut securely (see Fig. 6).
. Locate 15 blade attachment screws and washers in
hardware pack. Slide blade through centre band and
align holes. Insert 3 blade attachment screws and
washers with fingers. Tighten securely with a
screwdriver. Repeat for the remaining blades.
. Reattach top plate to motor yoke and install it by
aliging the keyslot holes on the motor yoke using
previously removed screws (see Fig. 5).
Note: The reverse switch must be sited in the
rectangle hole labelled on the top plate.
6
3. Drop-mount and hands-free wiring
. Carefully lift the fan assembly onto the mounting
bracket.
. Rotate the fan until the notch (b) on the nylon
ball fits against the ridge (a) on the mounting
bracket (see Fig. 7a).
. With the mounting bracket holding the fan assembly,
follow wiring instructions (step 4).
a
b
7a
Set screw
Top plate
Blade
Motor yoke
Centre band
Electrical wiring Downrod
Pin
Yoke set screw
Toll Free: 1-866-827-4985 model no. 052-6966-2

Ground wire
ASSEMBLY
8a 8b 8c
“J” hook zip tie
Assembly
5
NOTE: For added security, attach safety
cable from fan unit to “J” hook in outlet
box. Secure by looping zip tie through
safety cable and “J” hook. Tighten zip
tie securely (see Fig.7b).
4. Wiring instructions
IMPORTANT: If you are not sure if the electrical outlet box and fan are grounded, contact a
licensed electrcian for advice.They must be grounded for safe operation.
WARNING
before wiring.
Your outlet box should have 3 wires. If they are not there, contact a certified electrician to help set up
this part. Match up and connect wires from the ceiling fan to the wires from your outlet box according
to the chart below:
Connect with wire connector
Ground & ground
Motor, light & live
Neutral & neutral
On fan
2 ground wires (green)
Motor wire (black)
Light wire (blue)
Neutral wire (white)
On receiver
Liv
Neutral wire
(white)
e wire
(black)
In outlet box
(typically copper or green)
Live wire
(typically black)
Neutral wire (white)
. When wires are matched up, connect them by twisting frayed ends together (see Fig. 8a).
. Screw wire connectors (3 are provided) onto the tops of the twisted wires (see Fig. 8b).
. Fasten them with electrical tape (see Fig. 8c).
WARNING:Be sure no bare wire or wire strands are visible after making connections. Place
green and white connections on opposite side of box from the black and blue (if applicable)
connections.
7b
possible electric shock, be sure electricity is turned o at the main fuse box

6
9
Assembly
5. Attach assembly to mounting bracket
. Unhook the assembly from the mounting bracket.
. Hold the assembly by the canopy and raise up to
align the two holes in the canopy with the holes in
the mounting bracket.
. Tighten the loosened screws. Now re-secure the
screws and washers which were removed (see Fig. 9).
ASSEMBLY

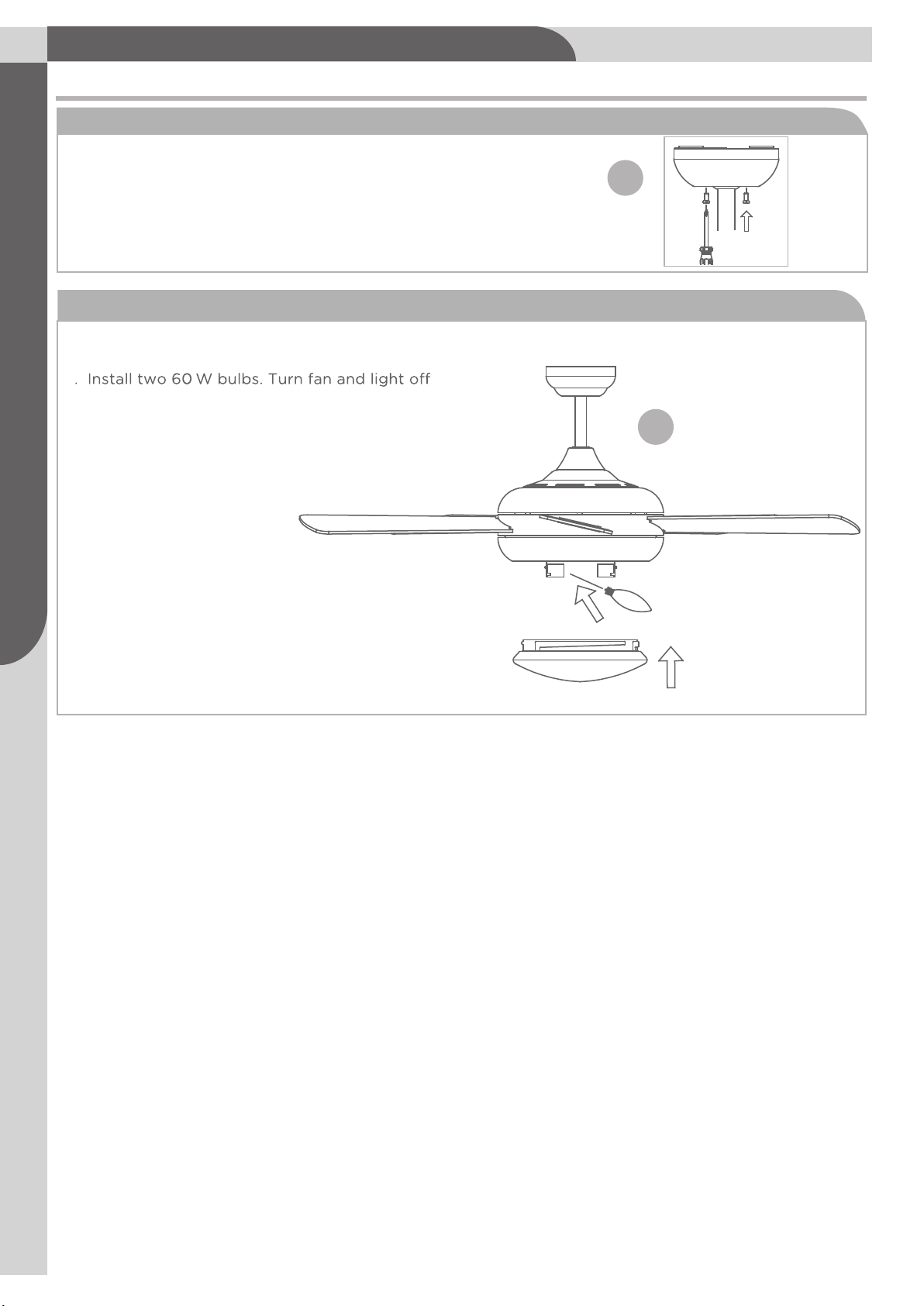

6. Install the light kit
10
and install the glass shade onto the light kit
by turning the glass shade clockwise (see Fig. 10).
Toll Free: 1-866-827-4985 model no. 052-6966-2

11
12
Operation
7
OPERATION
. Restore power to ceiling fan and test for proper operation.

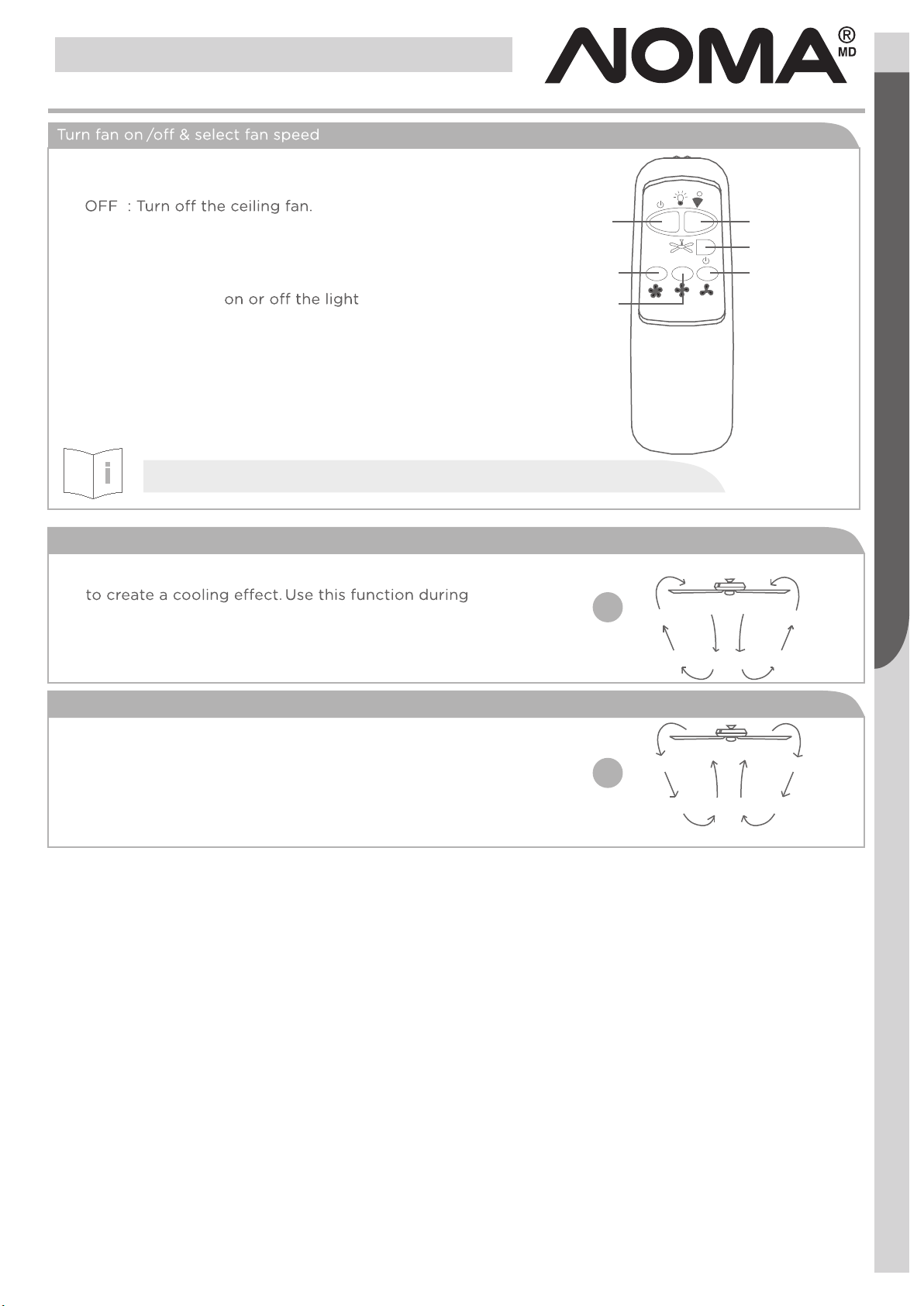

. The fan remote control controls the fan settings:
Forward and reverse direction function.
This ceiling fan is equipped with a reverse switch
for downward or upward air-flow.
Note: Do not use the reverse switch when the fan blades are in motion.
Forward function
. On this setting, the fan will turn counter-clockwise
warmer weather to circulate hot air away from
your living space (see Fig. 11).
Reverse function
. On this setting, the fan will turn clockwise. Use this
function during cooler weather to re-circulate warm
air (see Fig. 12).
HI : Turn on the fan at high speed.
MED : Turn on the fan at medium speed.
LOW : Turn on the fan at low speed.
LIGHT: ON/OFF : Press and release immediately to turn
DIMMER : Press and hold on to dim or brighten
lights to the desired level and release
(Only for the tungsten bulb).
LIGHT
ON/OFF
HI
MED
DIMMER
FAN OFF
LOW
．

Troubleshooting
8
MAINTENANCE
. Because of the fan’s natural movement, some connections may become loose. Check the support
connections, brackets and blade attachments twice a year. Make sure they are secure.
. There is no need to oil your fan.The motor has permanently lubricated bearings.
CARE AND CLEANING
. Dust your fan periodically with a soft, dry cloth. Do not use harsh cleaners or materials as they may
damage the unit.
. To prevent bending the blades during cleaning, support the blades so that no pressure is applied to
them.
Caution!
Do not allow water to come in contact with fan blades or the ceiling fan. Doing so will create
fire and/or shock hazards, damaging property.
TROUBLESHOOTING
If problems persist, seek help from a certified electrician.
Problem
Fan is noisy
during
operation
Fan does not
start
Possible reason
. Blade screws are loose.
. The mounting bracket or canopy is loose.
. Screws securing decorative housing to
hanger are loose.
. Lamp shades or bulbs are loose.
. Screws securing downrod to hanger are
loose.
. Wire connectors are vibrating against the
inside of canopy.
. Light kit or light bulb is not firmly
attached.
. Canopy is rattling against ceiling.
. Motor housing screws have come loose.
. Fuse is blown, or circuit breaker has
tripped.
. Loose or incorrect power line
connections to the fan or switch wires.
Solution
. Tighten screws on blades with a
screwdriver.
. Check and tighten the screws.
. Check and tighten the screws.
. Tighten by hand, as necessary.
. Check and tighten screws.
. Disconnect power at fuse box, loosen
canopy and re-position connectors.
. Remove and re-attach.
. Be sure canopy is not touching ceiling.
. Check and tighten the screws.
. Check main fuse and branch circuit
fuses or circuit breaker. Repair as
necessary.
. Check all the wire connections to
fan and housing wiring. Repair as
necessary.
Caution! Make sure the main
Toll Free: 1-866-827-4985 model no. 052-6966-2

Troubleshooting
9
13
TROUBLESHOOTING
Problem
Light does
not work
Fan does
not seem to
move much
air
Fan wobbles
or shakes
excessively
Possible reason
. Wires are not properly connected.
. Light bulbs are faulty.
. This fan is equipped with a 190 W
LIMITER that will automatically turn
total wattage exceeds the maximum
wattage level.
. Fan is in reverse (blades are moving in
clockwise direction).
. Fan is not properly located.
. Screws securing fan blade clips to motor
are loose.
. Fan blade and its blade clip are not
fastened securely.
. Canopy and mounting bracket are not
tightened securely.
. Blades are unbalanced.
Touching
ceiling
Solution
. Ensure wire connector in switch
housing is connected.
. Unscrew light bulbs and discard
properly.
. Turn the power OFF and replace
the bulbs with lower wattage bulbs
so that the total wattage is
below
190 W.
. Counter-clockwise (forward) is
recommended in warm weather.
rotation to stop. Use the eraser end
of a pencil to change the forward/
reverse slide switch.
. Place fan in the centre of the room
so there is at least 12" (30 cm)
between the end of the blades and
walls or other obstructions.
. Make sure that screws which attach
fan blade clips to motor are fastened
and tightened.
. Tighten screws of fan blade to blade
clip securely.
. Ensure that canopy and mounting
bracket are tightened securely to
ceiling joist.
. Check by selecting a point on the
ceiling above the tip of one of the
blades. Measure this distance and
ensure all blades are even (see
Fig. 13). If all blade levels are not equal,
adjust accordingly (see Balancing Kit
Manual).
ENVIRONMENTAL PROTECTION
Discarded electrical appliances are recyclable and should not be discarded in your regular
domestic waste! Please actively support us in conserving resources and protecting the
environment by returning this appliance to a collection centre (if available).
Battery reclamation (please keep to comply with the local law).
i

Warranty
10
WARRANTY
This Noma product carries a limited ten (10) year warranty against defects in the motor, and a one (1) year
warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective
product free of charge within the stated warranty period, when returned by the original purchaser with
proof of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
Impor
Made in China
Noma® is a registered trademark of Noma Company and is used under licence.
Subject to the conditions and limitations described below, this product, if returned to us with proof of
purchase within the stated warranty period and if covered under this warranty, will be repaired or
replaced (with the same model, or one of equal value or specification), at our option. We will bear the
cost of any repair or replacement and any costs of labor relating thereto.
These warranties are subject to the following conditions and limitations:
a) a bill of sale verifying the purchase and purchase date must be provided;
b) this warranty will not apply to any product or part thereof which is worn or broken or which has
become inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation,
operation or maintenance (as outlined in the applicable owner’s manual or operating instructions)
or which is being used for industrial, professional, commercial or rental purposes;
c) this warranty will not apply to normal wear and tear or to expendable parts or accessories that
may be supplied with the product that are expected to become inoperative or unusable after a
seasonable period of use;
d) this warranty will not apply to routine maintenance and consumable items such as, but not limited
to, fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or adjustments;
e) this warranty will not apply where damage is caused by repairs made or attempted by others
(i.e. persons not authorized by the manufacturer);
f) this warranty will not apply to any product that was sold to the original purchaser as a
reconditioned or refurbished product (unless otherwise specified in writing);
g) this warranty will not apply to any product or part thereof if any part from another manufacturer
is installed therein or any repairs or alterations have been made or attempted by unauthorized
persons;
h) this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited
to, scratches, dents, paint chips, or to any corrosion or discoloring by heat, abrasive and chemical
cleaners; and
i) this warranty will not apply to component parts sold by and identified as the product of another
company, which shall be covered under the product manufacturer’s warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor
the manufacturer shall be liable for any other expense, loss or damage, including, without limitation,
any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or
inability to use this product.
Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which may vary from
province to province. The provisions contained in this warranty are not intended to limit, modify, take
away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or
federal legislation
ted by
Trileaf Distribution Trifeuil Toronto,Canada M4S 2B8
Toll Free: 1-866-827-4985 model no. 052-6966-2
