Nordbo Robotics Mimic User manual

Mimic with FT Tracker
Quick Start Guide - Universal Robots

Want to take control of your robot? Easy, let’s Mimic!
No more stiff movements and programming. Simply transfer movements of
experienced hands to the robot. Gain smooth control of the path, achieve high
consistency and reduce the amount of time used - without any programming.
Years of innovative engineering and high-level testing has now resulted in an
intuitive, easy, and exible application solution: Mimic.
A perfect solution for workow customization and high mix - low volume production.

HOW TO GET STARTED WITH MIMIC UR
Use the Play node to play recorded Trajectories
Use the Teach node to record Trajectories, while
the robot stays still.
Use the Track node to record Trajectories, while
the robot moves with you.
Use the Tune node to tune Trajectories, after
recording.
Mimic UR is a URCap that consists of 4 nodes. See where to nd them and what
they can do below.
Use the 4 nodes in the desired order to build the program you want.

You are now
ready to apply
Mimic to your
setup!
HOW TO INSTALL THE URCAP
1
5
usbdisk
2
3
4
7
8
6

HOW TO CONNECT THE TRACKER
Screw in the bolts and vibration dampers
Flange is optional
3x Vibration dampers
1
2Insert cables
12
Ethernet to switch
Power through robot
3Connect converter box
3
1
A
2345678
1 2 345678
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
23-Sep-21
1/1
eSeries_UR10e
Nordbo Robotics

ABOUT THE FT TRACKER
Precise, fast, and consistent movements!
Mimic with FT Tracker makes it possible to guide the robot by hand. Record
movements in real-time.
In this way, the know-how from the craftsmen is transferred while fully in control of
the tool and the robot - all without writing a single line of code!
The FT Tracker consists of a force- torque sensor and a handle. With these attached
to the robot, the user can
track complex movements.

ABOUT NORDBO ROBOTICS
Nordbo Robotics is a Danish company developing robotic software that enables No
code automation of complex surface treatment and quality inspection.
By combining the process know-how from craftsmen with the repeatability and
precision of robots, we help companies improve their manufacturing capabilities
and scale their businesses.
“At Nordbo Robotics we bridge human skills with robot precision
allowing humans to be creative, and robots – repetitive”
Leo Zhou - CEO, Nordbo Robotics

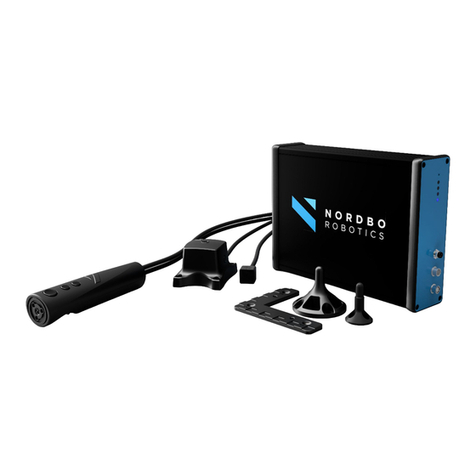

IN THE BOX
1x FT Tracker (incl. Force Sensor, cable
and USB)
1x NRC-ETH Converter
1x UR Flange for Mimic with FT
3x Vibration Dampers
3x M4x16 Hexagon Socket
1x USB ash drive w. URCap
6x M6x16 Hexagon Socket
6x M4x10 Hexagon Socket
