USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial Number
Decal
Model No. NTEVEX99830
Serial No.
Class HC Fitness Product
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you have
questions, or if there are missing
parts, please call:
Or write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds
LS11 8JG
email: [email protected]
08457 089 009

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
NordicTrack is a registered trademark of ICON Health & Fitness, Inc.

3
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the exercise cycle.
1. Read all instructions in this manual before
using the exercise cycle. Use the exercise
cycle only as described.
2. It is the responsibility of the owner to
ensure that all users of the exercise cycle
are adequately informed of all precautions.
3. Use the exercise cycle indoors on a level
surface. Keep the exercise cycle away from
moisture and dust. Place a mat under the
exercise cycle to protect the floor or carpet.
4. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
6. The exercise cycle should not be used by
persons weighing more than 115 kg (250
lbs).
7. Wear suitable clothing when using the
exercise cycle; do not wear loose clothing
that could become caught on the exercise
cycle. Always wear athletic shoes.
8. Always keep your back straight when using
the exercise cycle. Do not arch your back.
9. If you feel pain or dizziness whilst exercis-
ing, stop immediately and cool down.
10. The pulse sensors are not medical devices.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensors are intended
only as exercise aids in determining heart
rate trends in general.
11. The exercise cycle is intended for in-home
use only. Do not use the exercise cycle in a
commercial, rental, or institutional setting.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

4
Congratulations for selecting the new NordicTrack®
SL 850 exercise cycle. Cycling is one of the most
effective exercises for increasing cardiovascular fit-
ness, building endurance, and toning the entire body.
The NordicTrack®SL 850 exercise cycle offers an
impressive array of features designed to let you enjoy
this healthful exercise in the comfort and privacy of
your home.
For your benefit, read this manual carefully before
using the exercise cycle. If you have questions after
reading this manual, please call our Customer Service
Department at 08457 089 009. To help us assist you,
please mention the product model number and serial
number when calling. The model number is
NTEVEX99830. The serial number can be found on a
decal attached to the exercise cycle (see the front
cover of this manual for the location of the decal).
Before reading further, please familiarise yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Handlebar
Fan
Water Bottle Holder*
*No water bottle is included.
FRONT
REAR
Backrest
Seat
Wheel
Pedal/Strap
Console
Bookrack
Seat Knob
Leveling Foot
RIGHT SIDE
BEFORE YOU BEGIN

5
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable spanner .
Use the drawings below to identify the small parts used in assembly. The number in parenthesis below each
drawing refers to the key number of the part, from the PART LIST on page 25. The second number refers to the
quantity needed for assembly. Note: Some small parts may have been pre-assembled for shipping. If a part
is not in the parts bag, check to see if it has been pre-assembled.
M10 Nylon
Locknut (63)–2
M8 Split
Washer (55)–12 M10 Split
Washer (88)–2
M8 x 25mm Button
Screw (79)–4
M8 Washer
(60)–4
M10 x 52mm Button Bolt (82)–2
M4 x 16mm
Screw (57)–4
M10 x 110mm Button Screw (78)–2
1/4” x 16mm Button
Screw (80)–8 M8 x 40mm Button
Screw (54)–8
1. Identify the Front Stabiliser (15). Whilst another person
lifts the front of the Frame (1), attach the Front
Stabiliser to the Frame with four M8 x 40mm Button
Screws (54) and four M8 Split Washers (55).
15
1
55
55 54
54
1

6
2. Whilst another person lifts the rear of the Frame (1),
attach the Rear Stabiliser (16) to the Frame with four
M8 x 40mm Button Screws (54) and four M8 Split
Washers (55).
3
2
1
78
88
88
43
3
3. Have another person hold the Upright (2) in the posi-
tion shown. See the inset drawing. Locate the wire
extending from the bottom of the Upright. Tie the wire
around the ends of the Wire Harness (43) and the
Pulse Wire (3) as shown. Carefully pull the wire up
through the Upright until the Wire Harness and the
Pulse Wire are extending from the top of the Upright.
Untie the wire and discard it. Carefully pull the ends
of the Wire Harness and the Pulse Wire to remove
any slack.
Insert the Upright (2) into the Frame (1). Be careful to
avoid pinching the Wire Harness (43) or the Pulse
Wire (3). Attach the Upright with two M10 x 110mm
Button Screws (78) and two M10 Split Washers (88).
4. Have another person hold the Console (4) near the
Upright (2).
Connect the Wire Harness (43) to the wire harness on
the Console (4). Connect the Pulse Wire (3) to the
pulse wire on the Console. Next, locate the two ground
wires that are connected with a screw to the Upright
(2). Connect the ground wires to the two smallest wires
on the Console.
Carefully insert all excess wiring down into the Upright
(2). Attach the Console (4) to the Upright with four M4
x 16mm Screws (57). Be careful to avoid pinching
the wires.
4
Ground Wires
2
57
43
3
4
Do not pinch the
Wire Harness
(43) or the Pulse
Wire (3) during
this step.
Do not pinch
the wires
during this step.
16
1
55
55 54
54
2
43
3
Wire

7
6. Pull the Seat Knob (10) and slide the Seat Carriage
toward the rear of the Seat Rail (5).
Have another person hold the Seat Frame (7) near the
Seat Carriage (11). Locate the two pulse wires extend-
ing from the Seat Frame. Connect each pulse wire to
the pulse wire of the same color in the Seat Carriage.
Insert the excess wiring up into the Seat Frame, and
set the Seat Frame on the Seat Carriage. Attach the
Seat Frame with two M10 x 52mm Button Bolts (82)
and two M10 Nylon Locknuts (63). Be careful to
avoid damaging the pulse wires with the Bolts.
7. Attach the Backrest (62) to the Backrest Frame (42)
with four 1/4” x 16mm Button Screws (80).
Slide the Backrest Frame (42) onto the Seat Frame
(7). Attach the Backrest Frame with four M8 x 25mm
Button Screws (79) and four M8 Split Washers (55).
63
7
Pulse Wires
11 5
5. Attach the Seat (9) to the Seat Frame (7) with four 1/4”
x 16mm Button Screws (80) and four M8 Washers (60).
7
80
60
60
9
5
62
7
80
79
55
55
55
79
42
7
6
82 10

8
9. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
8. Identify the Left Pedal (22), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal counterclockwise into the Left Crank Arm
(24). Tighten the Right Pedal (not shown) clockwise
into the Right Crank Arm. Important: Tighten both
Pedals as firmly as possible. After using the
exercise cycle for one week, retighten the
Pedals. For best performance, the Pedals must
be kept tightened.
Identify the Left Pedal Strap (25), which is marked
with an “L.” Attach the Left Pedal Strap to the Left
Pedal (22), and adjust it to the desired position.
Attach and adjust the Right Pedal Strap (not shown)
in the same way.
8
22 24
25

9
HOW TO USE THE CHEST PULSE SENSOR
HOW TO PUT ON THE CHEST PULSE SENSOR
The chest pulse sensor consists of two components:
the chest strap and the sensor unit. Follow the steps
below to put on the chest pulse sensor.
See the inset drawing above. Insert the tab on
one end of the chest strap through one end of the
sensor unit. Press the end of the sensor unit
under the buckle on the chest strap.
Wrap the
chest pulse
sensor
around
your chest.
Attach the
free end of
the chest
strap to the
sensor unit as described above. Adjust the length
of the chest strap, if necessary. The chest pulse
sensor should be under your clothes, against
your skin, and as high under the pectoral mus-
cles or breasts as is comfortable. Make sure that
the logo is right-side-up and facing forward.
Pull the
sensor unit
away from
your body
a few inch-
es and
locate the
two elec-
trode areas on the inner side. Using a saline
solution such as saliva or contact lens solution,
wet both electrode areas. Return the sensor unit
to a position against your chest.
CHEST PULSE SENSOR TROUBLESHOOTING
If the chest pulse sensor does not function proper-
ly, or if the displayed heart rate is excessively high
or low, try the troubleshooting steps below.
• Make sure that you are wearing the chest pulse sen-
sor as described at the left. If the chest pulse sensor
does not function when positioned as described,
move it slightly lower or higher on your chest.
• Each time you use the chest pulse sensor, use
saline solution such as saliva or contact lens solu-
tion to wet the two electrode areas on the sensor
unit (see the drawing below). If heart rate readings
do not appear until you begin perspiring, re-wet the
electrode areas.
• Make sure that you are within arm’s length of the
console. For the console to display heart rate
readings, the user must be within arm’s length of
the console.
• If you wear the chest pulse sensor and hold the
handgrip pulse sensor at the same time, the console
may not display your heart rate accurately.
• The chest pulse sensor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the chest pulse sensor can be
affected by magnetic interference caused by high
power lines or other sources. If it is suspected that
magnetic interference may be causing a problem,
try relocating your exercise equipment.
• If the chest pulse sensor still does not function prop-
erly, test the chest pulse sensor in the following way:
Hold the chest
pulse sensor
and place your
thumbs over
the electrode
areas as
shown. Next,
hold the chest
pulse sensor near the console. Whilst holding one
thumb stationary, begin tapping the other thumb
against the electrode area at a rate of about one tap
per second. Check the heart rate reading on the
console.
3
2
1
Chest Strap
Sensor Unit
Tab
Buckle
Electrode Areas
Sensor
Unit
Electrode Areas
Logo

10
•If the chest pulse sensor does not function properly
after you have followed all of the above instructions,
the battery should be replaced in the following way:

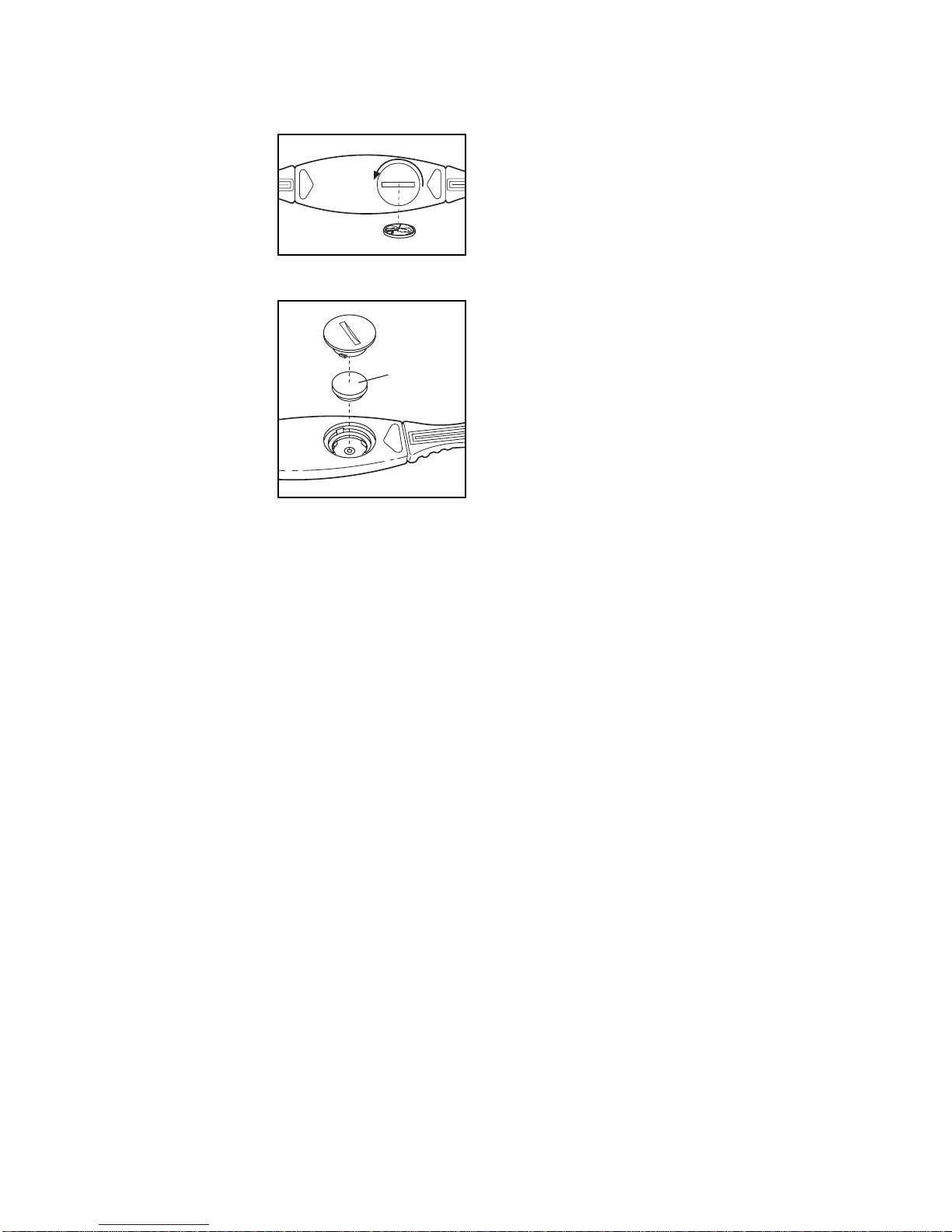

Locate the battery
cover on the back of
the sensor unit. Insert
a coin into the slot in
the cover, turn the
cover counterclock-
wise, and remove the
cover.
Remove the old bat-
tery and insert a
new CR 2032 bat-
tery. Make sure that
the battery is
turned so the writ-
ing is on top.
Replace the battery
cover and turn it
clockwise to close it.
CHEST PULSE SENSOR CARE
• Thoroughly dry the chest pulse sensor after each
use. The chest pulse sensor is activated when the
electrode areas are wetted and the chest pulse sen-
sor is put on; the chest pulse sensor shuts off when
it is removed and the electrode areas are dried. If
the chest pulse sensor is not dried after each use, it
may remain activated longer than necessary, drain-
ing the battery prematurely.
• Store the chest pulse sensor in a warm, dry place.
Do not store the chest pulse sensor in a plastic bag
or other container that may trap moisture.
• Do not expose the chest pulse sensor to direct
sunlight for extended periods of time. Do not expose
the chest pulse sensor to temperatures above 50° C
(122° F) or below -10° C (14° F).
• Do not excessively bend or stretch the sensor unit
when using or storing the chest pulse sensor.
• Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. The chest
strap may be hand washed and air dried.
CR 2032
Battery

11
HOW TO OPERATE THE EXERCISE CYCLE
HOW TO MOVE AND LEVEL THE EXERCISE
CYCLE
Stand in back of the exercise cycle, and lift the exer-
cise cycle until it can be moved on the front wheels.
Move the exercise cycle to the desired location and
carefully lower it. Due to the weight of the exercise
cycle, use extreme caution whilst moving it.
If the exercise cycle
rocks slightly during
use, turn the level-
ing feet under the
rear stabiliser until
the rocking motion
is eliminated.
HOW TO ADJUST THE SEAT
The seat can be
adjusted to the posi-
tion that is the most
comfortable for you.
To adjust the seat,
pull the seat knob,
slide the seat for-
ward or backward,
and then release
the seat knob. Move
the seat forward or
backward slightly
until the pin on the
seat knob snaps into one of the holes in the seat rail.
HOW TO ADJUST THE PEDAL STRAPS
The pedal straps
can be adjusted to
the position that is
the most comfort-
able for you. Press
the tabs on the ped-
als, adjust the
straps to the
desired position,
and then release
the tabs.
Leveling
Foot
Wheel
Seat Seat
Knob
Pedal
Strap
Tab

12
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the exercise cycle can be
changed with the touch of a button. As you exercise,
the console will provide continuous exercise feedback.
You can even measure your heart rate using the hand-
grip pulse sensor or the chest pulse sensor.
The console also offers six resistance and pace pro-
grams. Each program automatically changes the resis-
tance of the exercise cycle and prompts you to
increase or decrease your pace as it guides you
through an effective workout.
In addition, the console features two heart rate pro-
grams that automatically change the resistance of the
exercise cycle and prompt you to vary your pace to
keep your heart rate near a target heart rate as you
exercise.
The console also features iFIT.com interactive technol-
ogy. Having iFIT.com interactive technology is like hav-
ing a personal trainer in your home. Using the included
audio cable, you can connect the exercise cycle to your
home stereo, portable stereo, computer, or VCR and
play special iFIT.com CD and video programs (iFIT.com
CDs and videocassettes are available separately).
iFIT.com CD and video programs automatically control
the resistance of the exercise cycle and prompt you to
vary your pace as a personal trainer coaches you
through every step of your workout. High-energy music
provides added motivation. To purchase iFIT.com
CDs and videocassettes, visit our Web site at
www.iFIT.com.
With the exercise cycle connected to your computer,
you can also go to our Web site at www.iFIT.com and
access programs directly from the internet. Explore
www.iFIT.com for more information.
CONSOLE DIAGRAM
Note: If there is a sheet of clear plastic on the face of the console, remove it before using the console.
Matrix Training Zone Bar
Left Display

13

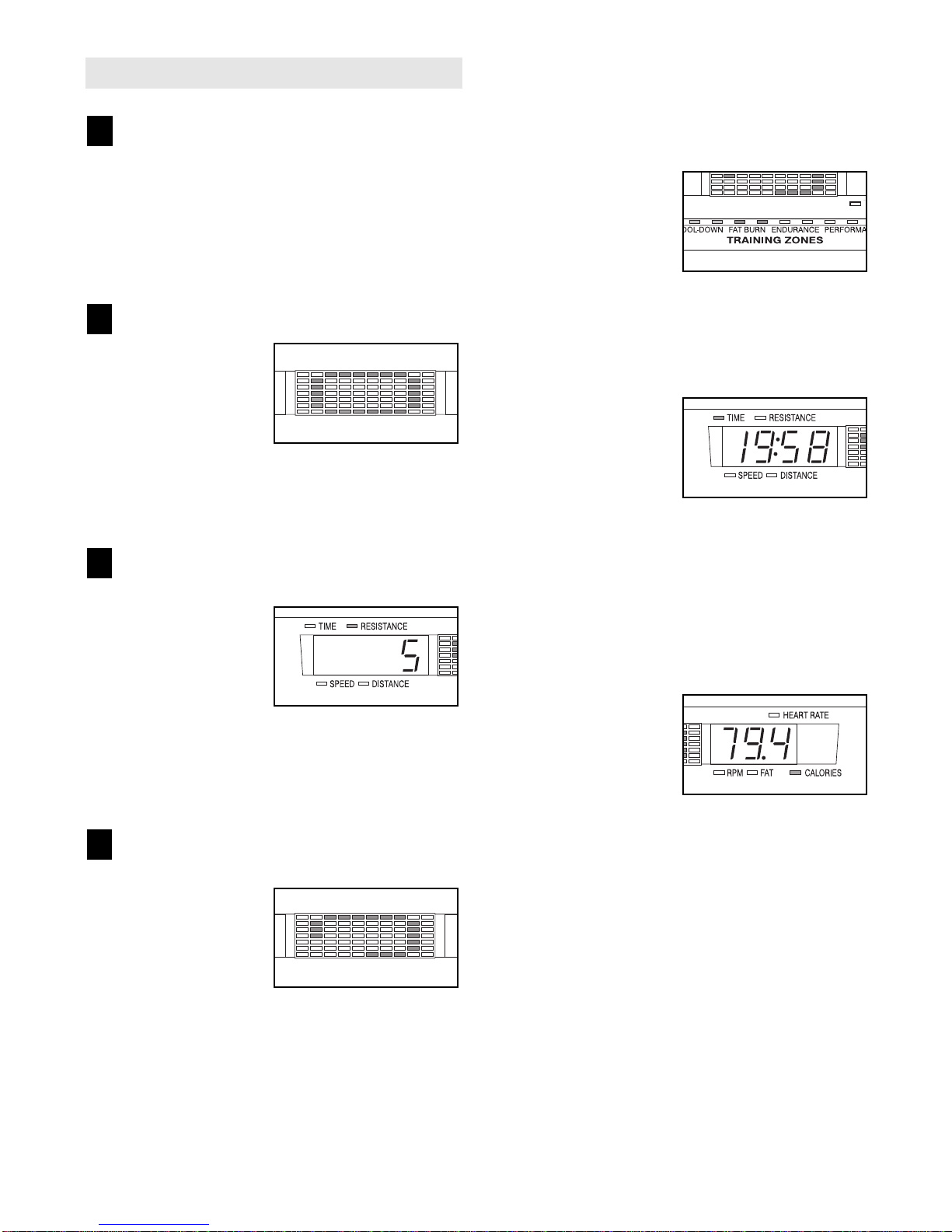

HOW TO USE THE MANUAL MODE
Begin pedaling to activate the console.
The exercise cycle requires no batteries or
external power source. Power is supplied by
a generator as you pedal. To activate the con-
sole, begin pedaling at a speed of about 3 miles
per hour or faster. After a few seconds, the con-
sole displays will light. A tone will then sound
and the console will be ready for use.
Select the manual mode.
When the power is
turned on, the
manual mode will
be selected. If you
have selected a
program or the
iFIT.com mode,
reselect the manual mode by pressing the
Program Select button repeatedly until a track
appears in the matrix.
Begin pedaling and change the resistance of
the exercise cycle as desired.
As you pedal,
change the resis-
tance of the exer-
cise cycle by
pressing the
Resistance but-
tons. There are
ten resistance levels. Note: After the Resistance
buttons are pressed, it will take a moment for the
exercise cycle to reach the selected resistance
level.
Monitor your progress with the matrix, the
Training Zone bar, and the two displays.
The matrix—
When the manual
mode or the
iFIT.com mode is
selected, the
matrix will show a
track representing 1/4 mile. As you exercise, the
indicators around the track will light in succession
until the entire track is lit. The track will then
darken and the indicators will again begin to light
in succession.
The Training Zone
bar—The Training
Zone bar will show
your pace and the
approximate inten-
sity level of your
exercise. For exam-
ple, if three or four indicators in the bar are lit, the
bar shows that your pace is ideal for fat burning.
During programs, the Training Zone bar will also
prompt you to increase or decrease your pace.
The left display—
The left display will
show your pedaling
speed, the distance
you have pedaled,
the resistance level
of the exercise
cycle, and the elapsed time. The display will
change from one number to the next every few
seconds, as shown by the indicators around the
display. Note: Each time the resistance of the
exercise cycle changes, the display will show the
resistance level. When a program is selected, the
display will show the time remaining in the pro-
gram instead of the elapsed time.
The right
display—The right
display will show
your pedaling pace
(in revolutions per
minute) and the
approximate num-
bers of fat calories and calories you have burned
(see FAT BURNING on page 24). The display will
change from one number to the next every few
seconds, as shown by the indicators. The display
will also show your heart rate when you use the
handgrip pulse sensor or the chest pulse sensor.
4
3
2
1

14

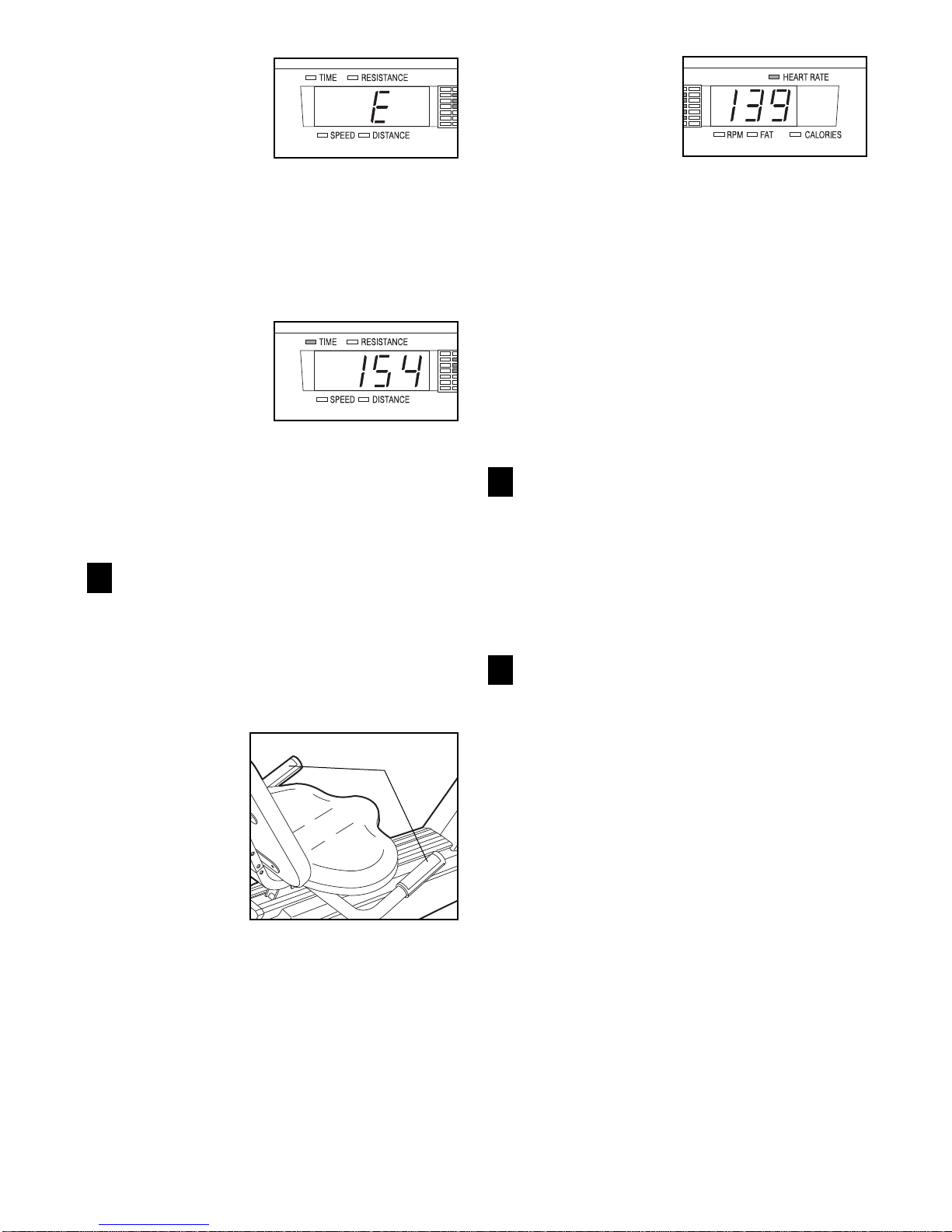

Note: The console
can display speed
and distance in
either miles or kilo-
metres. To find
which unit of mea-
surement is select-
ed, you must select the console’s user mode. Hold
down the Program Select button for about three
seconds. The letter “E” for English miles or the let-
ter “M” for metric kilometres will appear in the left
display. To change the unit of measurement, press
the + button.
Whilst the user
mode is selected,
press the Program
Start button. The
left display will
then show the total
number of hours
that the exercise cycle has been used. Press the
Program Start button again. The left display will
then show the total number of miles pedaled. To
exit the user mode, press the Program Select but-
ton again.
Measure your heart rate if desired.
To use the chest pulse sensor, see page 9. To use
the handgrip pulse sensor, follow the instructions
below. Note: If you wear the chest pulse sen-
sor and hold the handgrip pulse sensor at the
same time, the console will not display your
heart rate accurately.
If there are
thin sheets of
plastic on the
metal contacts
on the hand-
grip pulse sen-
sor, peel off
the plastic. To
measure your
heart rate,
hold the con-
tacts; your
palms must be resting on the upper contacts, and
your fingers must be touching the lower contacts.
Avoid moving your hands.
When your pulse is
detected, the Heart
Rate indicator
above the right dis-
play will begin to
flash, one or two
dashes (– –) will
appear in the display, and then your heart rate will
be shown. For the most accurate heart rate read-
ing, hold the contacts for at least 15 seconds.
Note: If you continue to hold the pulse sensor, the
display will show your heart rate for up to 30 sec-
onds. The display will then show your heart rate
along with the other modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts too tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemicals.
Turn on the fan if desired.
To turn on the fan at low speed, press the Fan
button. Pivot the fan to the desired angle. To turn
on the fan at high speed, press the Fan button a
second time. To turn off the fan, press the Fan
button a third time. Note: If the pedals are not
moved for about thirty seconds, the fan will auto-
matically turn off.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for several seconds, a
tone will sound, the console will pause, and the
left display will begin to flash.
If the pedals are not moved for about one minute,
the console will turn off, but the displays will not
be reset. If the pedals are not moved for about
five minutes, the console will turn off and the dis-
plays will be reset.
7
6
5
Contacts

15
HOW TO USE RESISTANCE AND PACE
PROGRAMS
Begin pedaling to activate the console.
See step 1 on page 13.
Select one of the six resistance and pace
programs.
When the power is
turned on, the
manual mode will
be selected. To
select a resistance
and pace program,
press the Program
Select button repeatedly until “P 1,” “P 2,” “P 3,”
“P 4,” “P 5,” or “P 6” appears in the right display.
When a resistance and pace program is selected,
the matrix will show the first seven target pace
settings of the program. The left display will show
how long the program will last.
Press the Program Start button or begin
pedaling to start the program.
Each program is divided into several time seg-
ments of different lengths. One target pace setting
and one resistance setting are programmed for
each segment. (The same target pace setting
and/or resistance setting may be programmed for
two or more consecutive segments.)
The target pace
setting for the first
segment will be
shown in the flash-
ing Current
Segment column
of the matrix. (The
resistance settings are not shown in the matrix.)
The target pace settings for the next seven seg-
ments will be shown in the columns to the right.
As you exercise, the Training Zone bar will help
you to keep your pedaling pace near the target
pace setting for the current segment. The lit indi-
cators in the bar will show your actual pace. If an
indicator to the
right of the lit indi-
cators is flashing
(see drawing a),
increase your pace.
If an indicator to
the left of any lit
indicator is flashing
(see drawing b),
decrease your
pace. When no
indicator is flash-
ing, your pace
matches the target pace setting. Important: The
target pace settings are intended only to pro-
vide motivation. Your actual pace may be
slower than the target pace settings. Make
sure to exercise at a pace that is comfortable
for you.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and all target pace set-
tings will move one column to the left. The target
pace setting for the second segment will then be
shown in the flashing Current Segment column
and the resistance of the exercise cycle will auto-
matically change to the resistance setting for the
second segment.
Note: If all of the indicators in the Current Segment
column are lit after the target pace settings have
moved to the left, the target pace settings will
move downward so that only the highest indicators
appear in the matrix.
The program will continue until the target pace
setting for the last segment is shown in the
Current Segment column of the matrix and no
time remains in the program.
Note: During the program, you can override the
resistance setting for the current segment, if
desired, by pressing the Resistance buttons.
However, when the next segment begins, the
resistance will automatically change if a different
resistance setting is programmed for the next
segment. If you stop pedaling for several sec-
onds, a tone will sound and the program will
pause. To restart the program, simply resume
pedaling.
3
2
1
a
b
Current Segment

16
Monitor your progress with the two displays.
See step 4 on page 13.
Measure your heart rate if desired.
See step 5 on page 14.
Turn on the fan if desired.
See step 6 on page 14.
When the program is finished, the console
will automatically turn off.
See step 7 on page 14.
HOW TO USE HEART RATE PROGRAMS
Each heart rate program helps you to keep your heart
rate near a certain percentage of your maximum heart
rate during your workout. (Your maximum heart rate is
estimated by subtracting your age from 220. For
example, if you are 30 years old, your maximum heart
rate is 190.) Heart rate program 1 is designed to keep
your heart rate between 50% and 85% of your maxi-
mum heart rate whilst you exercise; heart rate pro-
gram 2 is designed to keep your heart rate near a tar-
get heart rate that you choose.
Follow the steps below to use a heart rate program.
Begin pedaling to activate the console.
See step 1 on page 13.
Select one of the heart rate programs.
When the power is
turned on, the man-
ual mode will be
selected. To select
a heart rate pro-
gram, press the
Program Select
button repeatedly until “H 1” or “H 2” appears in
the right display.
During heart rate
programs, the
matrix will show a
graphic that repre-
sents your heart
rate. Each time a
heartbeat is
detected, an additional peak will appear.
Enter your age or a target heart rate.
If you have
selected heart
rate program 1,
the word “AGE”
and the current
age setting will
flash in the left dis-
play. If you have already entered your age, press
the Enter button and go to step 4. If you have not
entered your age, press the + or – button repeat-
edly to enter your age, and then press the Enter
button.
3
2
1
7
6
5
4

17
If you have
selected heart
rate program 2,
the letters “PLS”
and the current
target heart rate
setting will flash in
the left display. Press the + or – button repeated-
ly to change the target heart rate setting, if
desired. The target heart rate setting can be from
70 to 170 beats per minute.
Hold the handgrip pulse sensor.
To use a heart rate program, you must wear the
chest pulse sensor (see page 9) or use the hand-
grip pulse sensor (see step 5 on page 14). If you
use the handgrip pulse sensor, it is not neces-
sary to hold the handgrips continuously during
the program. However, you should hold the
handgrips frequently for the program to operate
properly. Each time you hold the handgrips,
keep your hands on the metal contacts for at
least 30 seconds. Note: When you are not hold-
ing the handgrips, the letters “PLS” will appear in
the right display instead of your heart rate.
Press the Program Start button or begin
pedaling to start the program.
Heart rate program 1 consists of 20 one-minute
segments. One resistance setting and one target
heart rate setting are programmed for each seg-
ment. (The same resistance setting and/or target
heart rate setting may be programmed for two or
more consecutive segments.) During the pro-
gram, the resistance of the exercise cycle will
periodically change. Heart rate program 2 is 40
minutes long (you may choose to use only part of
the program). The same resistance setting and
target heart rate setting are programmed for the
entire program.
As you exercise, the Training Zone bar will help
you to keep your heart rate near the target heart
rate setting for the current segment. The lit indi-
cators in the bar will show your actual pace.
Whilst you wear the chest pulse sensor or hold
the handgrip pulse
sensor, the con-
sole will periodical-
ly compare your
heart rate to the
target heart rate
setting; if neces-
sary, an indicator
in the bar will then
flash to prompt you
to increase or
decrease your
pace to bring your
heart rate closer to the target heart rate setting. If
an indicator to the right of the lit indicators is
flashing (see drawing a), increase your pace. If
an indicator to the left of any lit indicator is flash-
ing (see drawing b), decrease your pace. When
no indicator is flashing, your heart rate is near
the target heart rate setting. Important: The tar-
get heart rate settings are intended only to
provide motivation. Your actual heart rate
may be slower than the target heart rate set-
tings. Make sure to exercise at a pace that is
comfortable for you.
The program will continue until the resistance set-
ting for the last segment is shown in the Current
Segment column of the matrix and no time
remains in the program.
Note: Heart rate programs cannot be stopped and
then restarted. If you stop pedaling for several
seconds, the program will end.
Monitor your progress with the two displays.
See step 4 on page 13.
Turn on the fan if desired.
See step 6 on page 14.
When the program is finished, the console
will automatically turn off.
See step 7 on page 14.
8
7
6
5
4
a
b

18
HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
To use iFIT.com CDs, the exercise cycle must be con-
nected to your portable CD player, portable stereo, home
stereo, or computer with CD player. See pages 18 and
19 for connecting instructions. To use iFIT.com video-
cassettes, the exercise cycle must be connected to your
VCR. See page 20 for connecting instructions. To use
iFIT.com programs directly from our Web site, the
exercise cycle must be connected to your home comput-
er. See page 19 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the LINE OUT jack on your CD
player. Plug your headphones into the PHONES
jack.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the splitter. Plug the splitter into the
PHONES jack on your CD player. Plug your head-
phones into the other side of the splitter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adaptor. Plug the adaptor into an
AUDIO OUT jack on your stereo.
B. See the drawing above. Plug one end of the audio
cable into the jack beneath the console. Plug the
other end of the audio cable into the LINE OUT jack
on your stereo. Do not use the adaptor.
C. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the splitter. Plug the splitter into the
PHONES jack on your stereo. Plug your head-
phones into the other side of the splitter.
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable Head-
phones
A
PHONES
PHONES
B
Audio
Cable Splitter
Headphones
PHONES
AUDIO OUT
RIGHT
LEFT
Audio Cable
A, B
C
Audio
Cable Splitter
Headphones
Adaptor

19

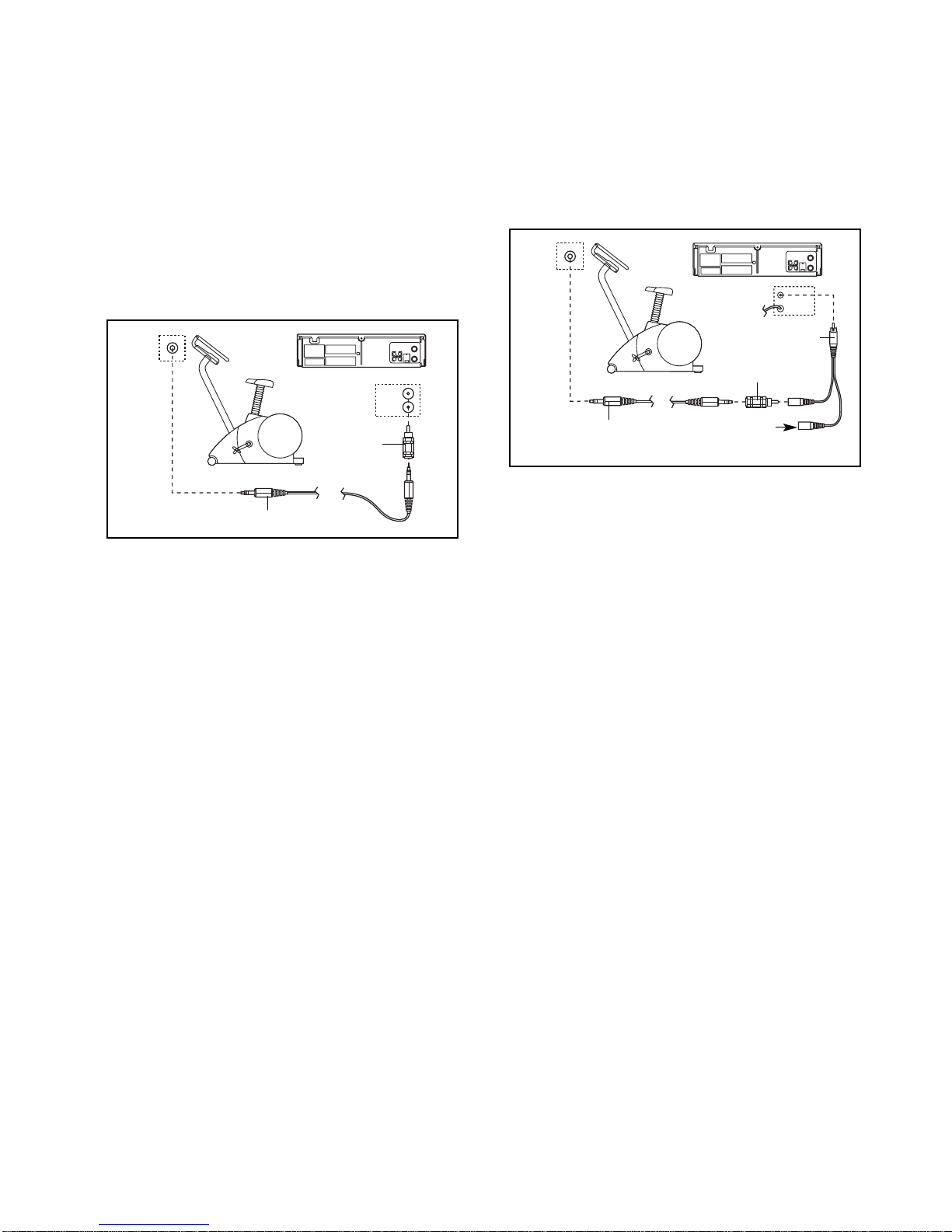

HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adaptor. Plug the adaptor into
the LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adaptor. Plug the adaptor into
an RCA Y-adaptor (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the
wire into the unused side of the Y-adaptor. Plug the
Y-adaptor into the LINE OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT
jack, see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio
cable into the LINE OUT jack on your computer.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the splitter. Plug the splitter into the
PHONES jack on your computer. Plug your head-
phones or speakers into the other side of the splitter.
LINE OUT
Audio
Cable
A
PHONES
B
Audio Cable Splitter
Headphones/Speakers
CD
VCR
Amp
LINE OUT
LINE OUT
Audio Cable
A
CD
VCR
Amp
LINE OUT
B
Adaptor
Audio
Cable
RCA
Y-adaptor
Wire removed from
LINE OUT jack
Adaptor

20
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 19.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adaptor. Plug the adaptor into
the AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adaptor. Plug the adaptor into
an RCA Y-adaptor (available at electronics stores).
Next, remove the wire that is currently plugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y-adaptor. Plug the
Y-adaptor into the AUDIO OUT jack on your VCR.
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio Cable
A
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
B
Adaptor
Adaptor
Wire removed from
AUDIO OUT jack
RCA Y-adaptor
Audio
Cable
