NordicTrack Pro 3000 Treadmill User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER’S MANUAL
www.iconeurope.com
Serial Number
Decal
Model No. NETL30713.0
Serial No.
Write the serial number in the space
above for reference.
CUSTOMER SERVICE
UNITED KINGDOM
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
CASTLEFORD
WF10 5QJ
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2
This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual
size.
WARNING DECAL PLACEMENT
256836
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
THE CHEST HEART RATE MONITOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
OPERATION AND ADJUSTMENT .............................................................14
HOW TO FOLD AND MOVE THE TREADMILL ...................................................31
TROUBLESHOOTING ......................................................................32
EXERCISE GUIDELINES ....................................................................34
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
EXPLODED DRAWING .....................................................................39
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
TABLE OF CONTENTS

3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. Use the treadmill only as described in this
manual.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by per-
sons weighing 400 lbs. (181 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
11. When connecting the power cord (see page
14), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
12. If an extension cord is needed, use only a
3-conductor, 14-gauge (1 mm2) cord that is
no longer than 5 ft. (1.5 m).
13. Keep the power cord away from heated
surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
TROUBLESHOOTING on page 32 if the tread-
mill is not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 16).
16. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
18. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS

4
19. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
20. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 7, and HOW TO FOLD AND MOVE THE
TREADMILL on page 31.) You must be able to
safely lift 45 lbs. (20 kg) to move the treadmill.
21. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
22. Never insert any object into any opening on
the treadmill.
23. Inspect and properly tighten all parts of the
treadmill regularly.
24. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
25. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the revolutionary
NORDICTRACK® PRO 3000 treadmill. The PRO 3000
treadmill offers an impressive selection of features
designed to make your workouts more enjoyable and
effective. And when you’re not exercising, the unique
treadmill can be folded up, requiring less than half the
oor space of other treadmills.
For your benet, read this manual carefully before
using the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number and the location of the serial num-
ber decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Upright
Tray
Key/Clip
Power Switch
Walking Belt
Platform Cushion
Ultrasonic Sensor
(see page 18)
Foot Rail
Idler Roller
Adjustment Screws
Adjustable Console
Heart Rate Monitor
Length: 6 ft. 10 in. (208 cm)
Width: 3 ft. 1 in. (94 cm)
Weight: 248 lbs (113 kg)

6
3/8" Star
Washer (3)–4
3/8" Nut (8)–1
5/16" Star
Washer (4)–4
3/8" x 3" Screw (2)–4
3/8" x 2" Bolt (5)–1
5/16" x 1 1/4"
Bolt (6)–4
5/16" x 1"
Screw (6)–4
5/16" x 3/4"
Screw (1)–8
3/8" x 2 3/8" Bolt (5)–1
3/8" External Star
Washer (4)–4
5/16" Flat Washer
(6)–4
3/8" x 3 1/4" Screw (2)–4
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is pre-
attached. Extra parts may be included.

7
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials, except for the packing materi-
als on the uprights. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
an adjustable wrench
To avoid damaging parts, do not use power tools.
ASSEMBLY
1. Go to www.iconsupport.eu on your computer
and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Service
• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Service (see the front cover of this
manual) and register your product.
1

8
3
B
96
3. Identify the left base leg assembly (B). Insert the
left base leg assembly into the left Upright (96).
Attach the left base leg assembly with two 5/16"
x 3/4" Screws (1). Firmly tighten the Screws.
Attach the right base leg assembly (not
shown) to the right Upright (96) in the same
way.
1
2. Make sure that the power cord is unplugged.
Also, make sure to assemble the treadmill in
the location where it will be used. If there is a
strap around the treadmill, remove it.
With the help of a second person, hold both
Uprights (96) securely and remove the packing
materials (A) at the same time.
Then, carefully raise the Uprights (96) to the
vertical position so that the base of the Uprights
rests flat on the floor. Be careful not to pinch
the power cord.
2
96
A
A
Base

9

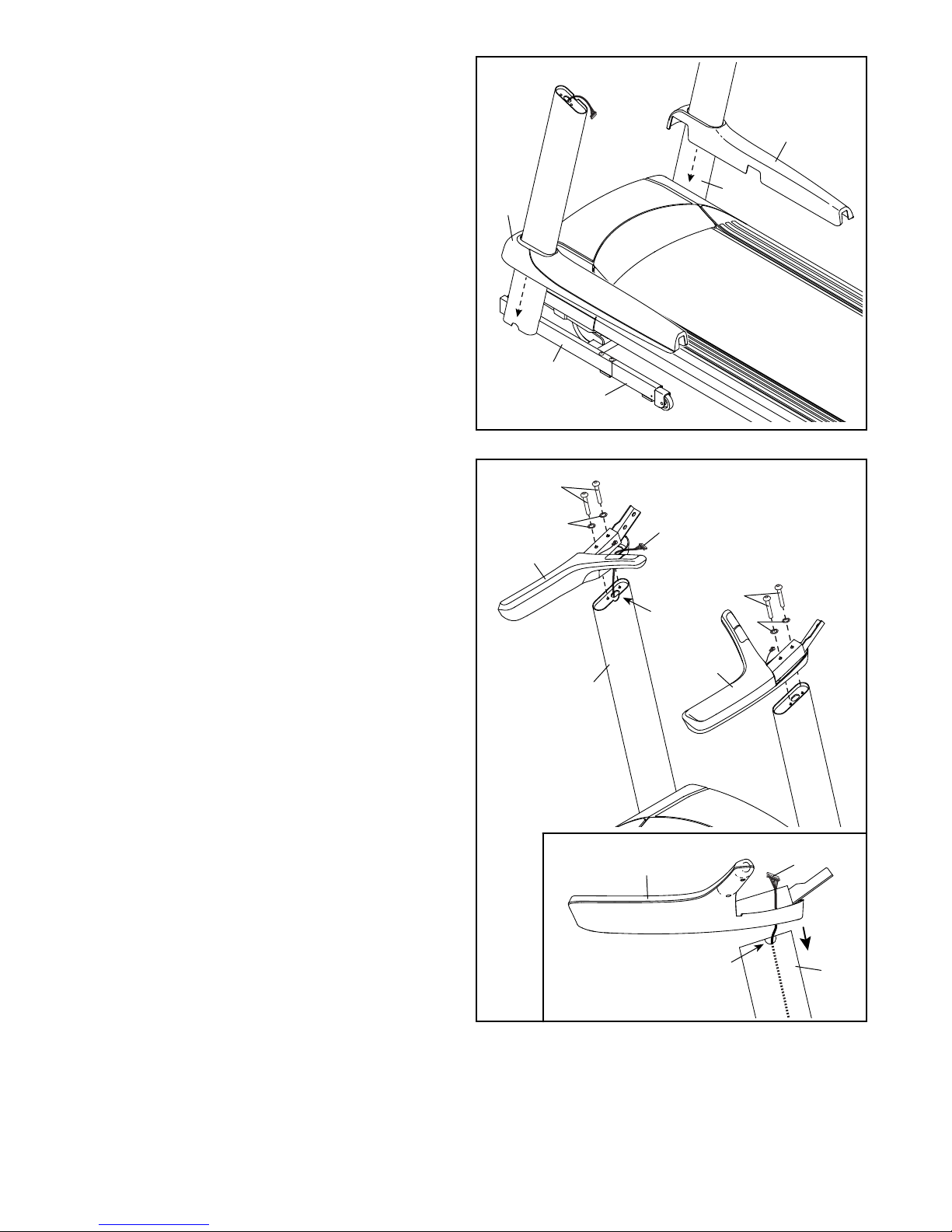

5. Cut the tie securing the Upright Wire (92).
Identify the left handrail assembly (C). Hold the
left handrail assembly near the left Upright (96).
Insert the Upright Wire (92) through the opening
in the bottom of the left handrail assembly.
See the inset drawing. Press the left handrail
assembly (C) onto the left Upright (96). Be care-
ful not to pinch the Upright Wire (92). Make
sure that the Upright Wire is resting in the slot at
the top of the left Upright.
Attach the left handrail assembly (C) to the left
Upright (96) with two 3/8" x 3 1/4" Screws (2)
and two 3/8" Star Washers (3).
Attach the right handrail assembly (D) in the
same way. Note: There is no wire on the right
side.
96
C
Slot
52
D
C
3
2
3
96
92
Slot
92
4. Identify the Left Upright Cover (100) and the
Right Upright Cover (98).
Slide the Left Upright Cover (100) onto the left
Upright (96). Press the Left Upright Cover onto
the lower part of the left Upright and the left base
leg assembly (B) until it snaps into place.
Press the Right Upright Cover (98) onto the
right Upright (96) in the same way.
100
4
98
96
B
96

10
6. With the help of a second person, hold the con-
sole assembly (E) near the Uprights (96).
Connect the Upright Wire (92) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER.
Then, connect the pulse wires (F). Make sure to
connect the pulse wires on the right side (not
shown) also.
E
96
6
F
92
92
Console
Wire

11
8. Identify the Left and Right Trays (107, 109).
Press the Left and Right Trays (107, 109) into
the console assembly (E).
107
8
E
109
1
E
G
7
6
4
C
D
E
C
7. With the help of a second person, hold the
console assembly (E) near the left handrail
assembly (C). Position the wires (G) so that
they will not get pinched as you set the console
assembly on the left handrail assembly. Be care-
ful not to pinch any wires.
See the inset drawing. Make sure that the con-
sole assembly (E) is flush against the handrail
assemblies (C, D) in the locations shown by the
arrows.
Attach the console assembly (E) to the handrail
assemblies (C, D) with four 5/16" x 3/4" Screws
(1), four 5/16" Flat Washers (6), and four 3/8"
External Star Washers (4) as shown (only one
side is shown). Start all four Screws and then
tighten them.

12

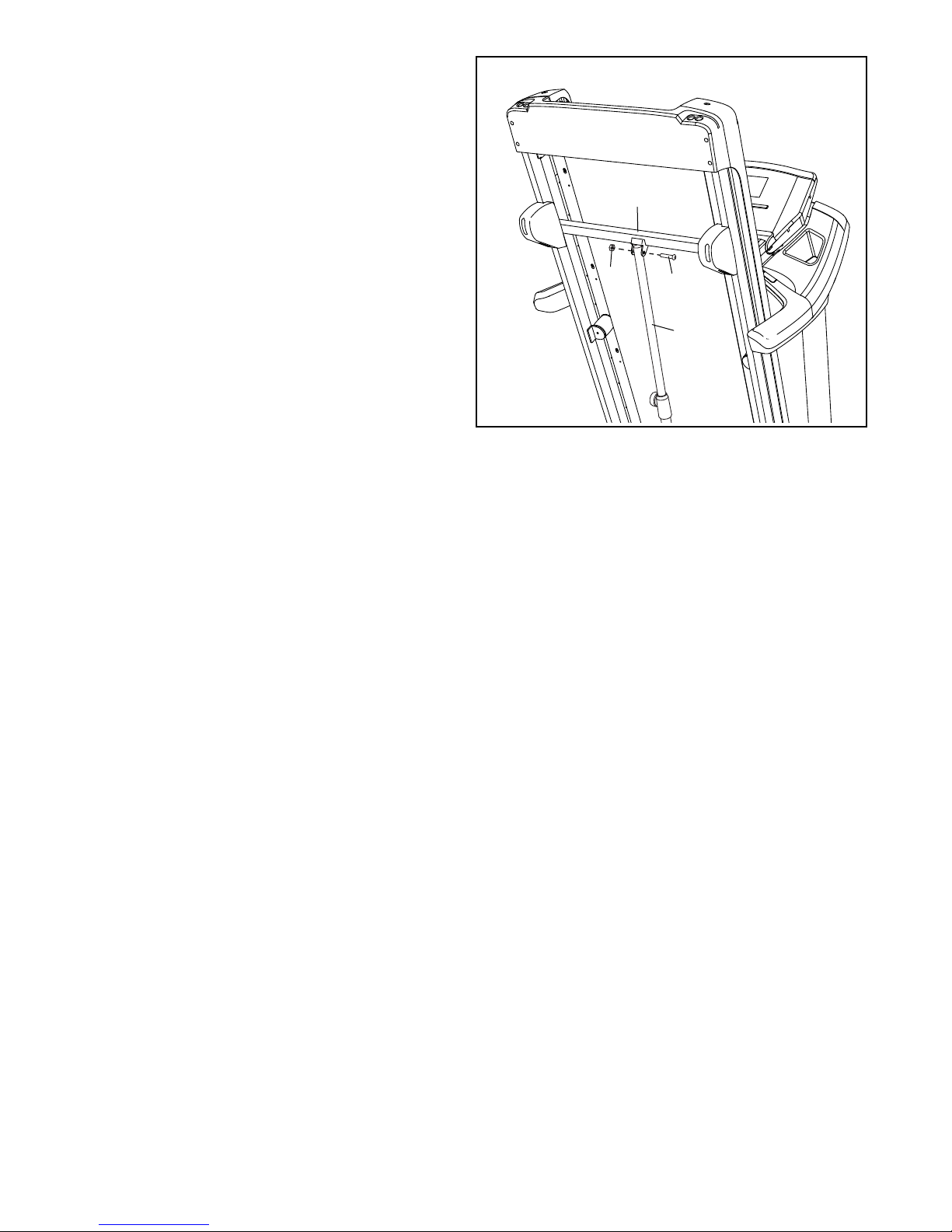

9. Raise the Frame (61) to the position shown.
Have a second person hold the Frame until
this step is completed.
Align the upper end of the Storage Latch (65)
with the holes in the bracket on the Frame (61).
Attach the Storage Latch with the 3/8" x
2" Bolt (5) and the 3/8" Nut (8). Firmly tighten
the 3/8" Nut.
Lower the Frame (61) as described on page 31.
9
5
65
61
10. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill.
Note: Extra parts may be included. Keep the included hex keys in a secure place; one of the hex keys is used
to adjust the walking belt (see page 33).
8

13
HOW TO PUT ON THE HEART RATE MONITOR
The heart rate
monitor consists of
a chest strap and a
sensor. Insert the
tab on one end of
the chest strap into
the hole in one end
of the sensor as
shown. Then, press
the end of the sen-
sor under the buckle
on the chest strap.
The tab should be
flush with the front of
the sensor.
The heart rate moni-
tor must be worn
under your clothes,
tight against your
skin. Wrap the heart
rate monitor around
your chest in the
location shown.
Make sure that
the logo is right-
side-up. Then, attach the other end of the chest strap
to the sensor. Adjust the length of the chest strap, if
necessary.
Pull the sensor away from your body a few inches and
locate the two electrode areas, which are covered by
shallow ridges. Using saline solution such as saliva or
contact lens solution, wet the electrode areas. Then,
return the sensor to a position against your chest.
CARE AND MAINTENANCE
• Thoroughly dry the sensor with a soft towel after
each use. Moisture may keep the sensor activated,
shortening the life of the battery.
• Store the heart rate monitor in a warm, dry place. Do
not store the heart rate monitor in a plastic bag or
other container that may trap moisture.
• Do not expose the heart rate monitor to direct sun-
light for extended periods of time; do not expose it to
temperatures above 122° F (50° C) or below 14° F
(-10° C).
• Do not excessively bend or stretch the sensor when
using or storing the heart rate monitor.
• To clean the sensor, use a damp cloth and a small
amount of mild soap. Then, wipe the sensor with a
damp cloth and thoroughly dry it with a soft towel.
Never use alcohol, abrasives, or chemicals to clean
the sensor. Hand wash and air dry the chest strap.
TROUBLESHOOTING
If the heart rate monitor does not function properly, try
the steps below.
• Make sure that you are wearing the heart rate moni-
tor as described at the left. If the heart rate monitor
does not function when positioned as described,
move it slightly lower or higher on your chest.
• If heart rate readings are not displayed until you
begin perspiring, rewet the electrode areas.
• For the console to display heart rate readings, you
must be within arm’s length of the console.
• If there is a battery cover on the back of the sensor,
replace the battery with a new battery of the same
type.
• The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the heart rate monitor can be
affected by magnetic interference from high power
lines or other sources. If you suspect that magnetic
interference is causing a problem, try relocating the
fitness equipment.
THE CHEST HEART RATE MONITOR
Sensor Buckle
Tab
Chest
Strap
Tabs
Sensor

14
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
Follow the steps below to plug in the power cord.
1. Plug the indicated end of the power cord into the
socket on the treadmill.
2. Plug the power cord into an appropriate outlet that
is properly installed and earthed in accordance with
all local codes and ordinances.
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
OPERATION AND ADJUSTMENT
IT
FR/SP
UK
GR
RU
HU
Socket on Treadmill
IT
FR/SP
UK
GR
RU
HU
UK
GR
FR/SP
IT
AUS
AUS
Outlet
UK Australia
Outlet
Power Cord

15
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effec-
tive and enjoyable. The console features revolutionary
iFit technology that enables the treadmill to communi-
cate with your wireless network. With iFit technology,
you can download personalized workouts, create your
own workouts, track your workout results, and access
many other features. See www.iFit.com for complete
information.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
speed and incline of the treadmill as it guides you
through an effective exercise session. In addition, you
can set a calorie, time, distance, or pace goal.
The console also offers user-defined workouts that
allow you to create your own workouts and store them
in memory for future use.
When you use the manual mode, you can change the
speed and incline of the treadmill with the touch of a
button.
As you exercise, the console will display instant exer-
cise feedback. You can also measure your heart rate
using the handgrip heart rate monitor or the chest heart
rate monitor.
You can even browse the Internet or listen to your
favorite workout music or audio books with the con-
sole’s sound system while you exercise.
To turn on the power, see page 16. To learn how to
use the touch screen, see page 16. To set up the
console, see page 17.
Note: The console can display speed and distance
in either miles or kilometers. To find which unit of
measurement is selected, see step 4 on page 26.
For simplicity, all instructions in this section refer to
kilometers.
ETNE30713
(NETL30713)
CONSOLE DIAGRAM

16
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see
page 14). Next, locate the
power switch on the treadmill
frame near the power cord.
Make sure that the switch is
in the reset position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the demo mode is turned on,
the displays will show a preset presentation after
you plug in the power cord and press the power
switch into the reset position, before you insert the
key. To turn off the demo mode, see step 7 on
page 27.
Next, stand on the
foot rails of the
treadmill. Locate
the clip attached
to the key, and
slide the clip
securely onto the
waistband of your
clothes. Then,
insert the key into
the console. After several seconds, the displays will
light. IMPORTANT: In an emergency, the key can be
pulled from the console, causing the walking belt
to slow to a stop. Test the clip by carefully taking
a few steps backward; if the key is not pulled from
the console, adjust the position of the clip.
Note: It may take a minute for the console to be
ready for use.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you become
familiar with the tablet’s advanced technology:
• The console functions similarly to other tablets.
You can slide or flick your finger against the screen
to move certain images on the screen, such as
the displays in a workout (see step 5 on page 19).
However, you cannot zoom in and out by sliding your
fingers on the screen.
• The screen is not pressure sensitive. You do not
need to press hard on the screen.
• To type information into a text box, touch the text box
to view the keyboard. To use numbers or other char-
acters on the keyboard, touch the ?123 button. To
view more characters, touch the Alt button. Touch the
Alt button again to return to the number keyboard. To
return to the letter keyboard, touch the ABC button.
To use a capital character, touch the button with an
upward-facing arrow. To use multiple capital charac-
ters, touch the arrow button again. To return to the
lowercase keyboard, touch the arrow button a third
time. To clear the last character, touch the button
with a backward-facing arrow and an X.
• Use these buttons on the console to navigate the
tablet. Press the back button to return to the previ-
ous screen. Press the home button to return to the
main menu. Press the settings button to view the
settings menu.
Reset
ETNE30713
(NETL30713)
Key
Clip
Back Home
Settings

17
HOW TO SET UP THE CONSOLE
Before using the treadmill for the first time, set up the
console.
1. Connect to your wireless network.
Note: In order to access the Internet, download iFit
workouts, and use other features of the console,
you must be connected to a wireless network. See
HOW TO USE THE WIRELESS NETWORK MODE
on page 29 to connect the console to your wireless
network.
2. Check for firmware updates.
First, see step 1 on page 26 and step 2 on page 28
and select the maintenance mode. Then, see step
3 on page 28 and check for firmware updates.
3. Calibrate the incline system.
See step 4 on page 28 and calibrate the incline
system of the treadmill.
4. Create an iFit account.
Touch the globe button near the lower-left corner of
the screen and touch the iFit button.
Note: For information about navigating in the
browser, see page 30. The browser will open to the
iFit.com home page. Touch the Register button in
the upper-right corner of the screen.
The browser will open to the iFit.com registration
page. Touch the Buy Now button to register for an
iFit account. If you have an activation code, select
the code activation option. Then, follow the prompts
on the screen to sign up for your iFit membership.

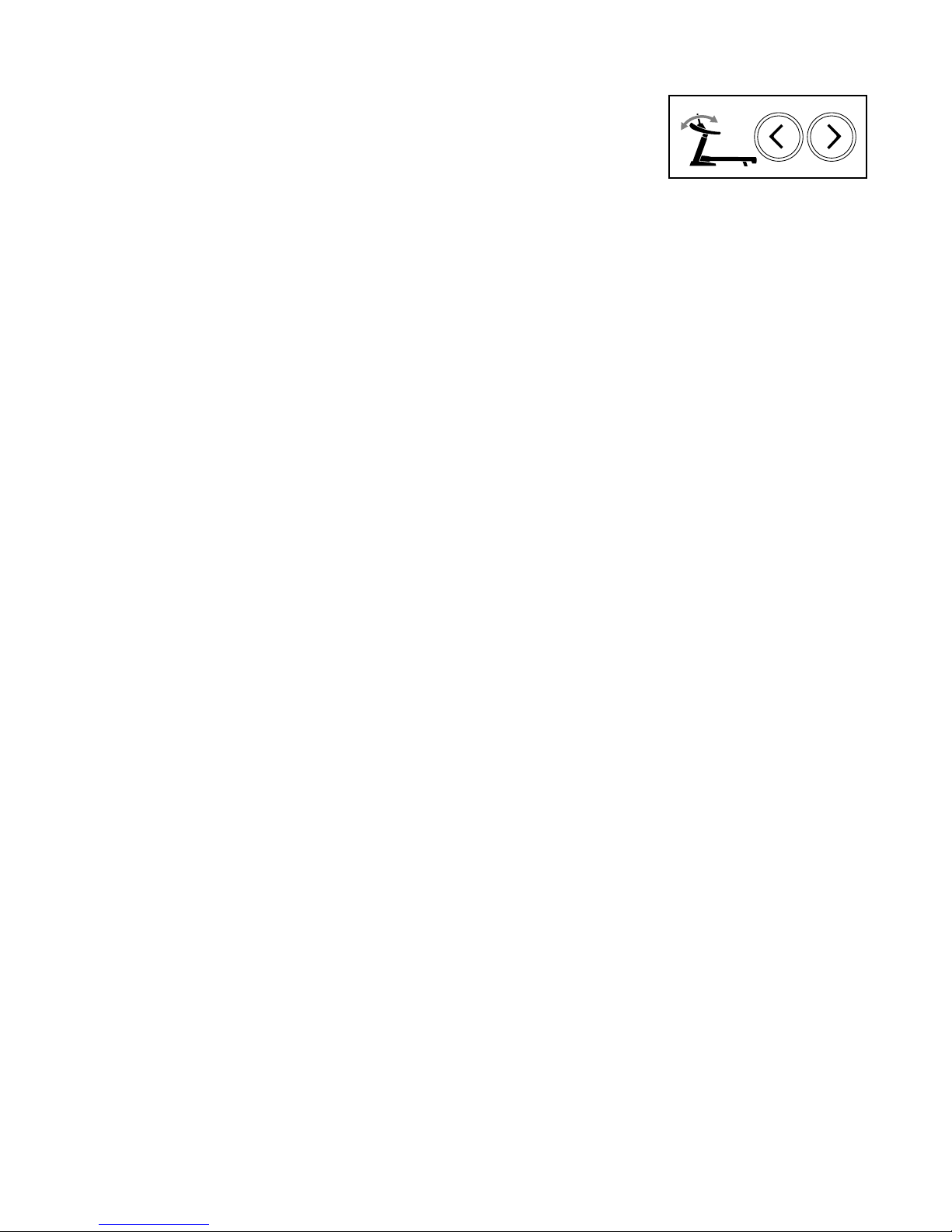

5. Adjust the console angle.
Press the con-
sole tilt buttons to
adjust the angle
of the console as
desired.
You can save up to four console tilt settings for
different users of the treadmill. To save the current
console tilt setting, first press the Memory button,
then immediately press one of the numbered User
buttons.
The console is now ready for you to begin working out.
The following pages explain the various workouts and
other features that the console offers.
To use the manual mode, see page 18. To use an
onboard workout, see page 21. To use a set-a-goal
workout, see page 22. To create a user-defined
workout, see page 23. To use a user-defined work-
out, see page 23. To use an iFit workout, see page
25.
To use the equipment settings mode, see page 26.
To use the maintenance mode, see page 28. To use
the wireless network mode, see page 29. To use
the sound system, see page 30. To use the Internet
browser, see page 30.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use
the treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 33).

18
Note: The treadmill features an ultrasonic sensor
that can detect an object behind the treadmill (to
turn on or turn off the ultrasonic sensor, see steps
1 and 2 on page 26 and step 12 on page 27).
If the ultrasonic sensor detects an object, one
or more messages will appear on the screen to
alert you. If the object is in the zone closest to the
treadmill, the walking belt will stop automatically.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
16. Note: It may take a minute for the console to
be ready for use.
2. Select the main menu.
When you turn
on the power,
the main menu
will appear
after the
console boots
up. Touch the
home button in
the lower-left corner of the screen (not shown here)
to return to the main menu at any time.
3. Start the walking belt and adjust the speed.
Touch the Start button on the screen or press the
Start button on the console to start the walking belt.
The walking belt will begin to move at 2 Km/H.
As you exercise, change the speed of the walking
belt as desired by pressing the Speed increase and
decrease buttons. Each time you press one of the
buttons, the speed setting will change by 0.1 Km/H;
if you hold down the button, the speed setting will
change in increments of 0.5 Km/H.
If you press one of the numbered Speed buttons,
the walking belt will gradually change speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button.

19
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase and decrease buttons or one of
the numbered Incline buttons. Each time you press
one of the buttons, the incline will gradually change
until it reaches the selected incline setting.
Note: The first time you adjust the incline, you must
first calibrate the incline system (see step 4 on
page 28).
5. Monitor your progress.
The console
offers sev-
eral display
modes. The
display mode
that you select
will determine
which workout
information is shown. To select the desired display
mode, simply flick or slide the screen. You can also
view additional information by touching the red
boxes on the screen.
As you walk or run on the treadmill, the screen can
show the following workout information:
• The incline level of the treadmill
• The time elapsed
• The time left (Note: The manual mode does not
have a time left countdown.)
• The approximate number of calories you have
burned
• The approximate number of calories you are
burning per hour
• The distance that you have walked or run
• The number of vertical meters you have climbed
• The speed of the walking belt
• A track representing 400 m (1/4 mile)
• Your pace in minutes per mile
• Your current lap number
• Your heart rate (see step 6 on the next page)
To pause the workout, touch one of the menu
buttons on the screen or press the Stop button
on the console. To continue the workout, touch
the Resume button or press the Start button. To
end the workout session, touch the End Workout
button.
6. Measure your heart rate if desired.
Note: If you use the handgrip heart rate moni-
tor and the chest heart rate monitor at the same
time, the console will not display your heart
rate accurately. For information about the chest
heart rate monitor, see page 13.
Before using
the handgrip
heart rate moni-
tor, remove the
sheets of plastic
from the metal
contacts. In addi-
tion, make sure
that your hands
are clean.
To measure your heart rate, stand on the foot
rails and hold the contacts with your palms for
approximately ten seconds; avoid moving your
hands. When your pulse is detected, your heart
rate will be shown. For the most accurate heart
rate reading, continue to hold the contacts for
about 15 seconds.
Contacts

20
7. Turn on the fan if desired.
The fan features multiple speed settings and an
auto mode. When the auto mode is selected,
the speed of the fan will automatically increase
and decrease as the speed of the walking belt
increases and decreases.
Press the fan increase
button to increase the
fan speed. If you press
the fan increase button
once while the fan is on
its maximum speed set-
ting, the auto fan mode
will be selected. Press the fan decrease button
repeatedly to decrease the fan speed or to turn off
the fan.
8. When you are finished exercising, remove the
key from the console.
Step onto the walking platform and touch the home
button or the back button on the screen or press
the Stop button on the console. A workout sum-
mary will appear on the screen. After you view
the workout summary, touch the Finish button to
return to the main menu. You may also be able to
either save or publish your results using one of the
options on the screen. Then, remove the key from
the console and put it in a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmill’s electrical components may
wear prematurely.
