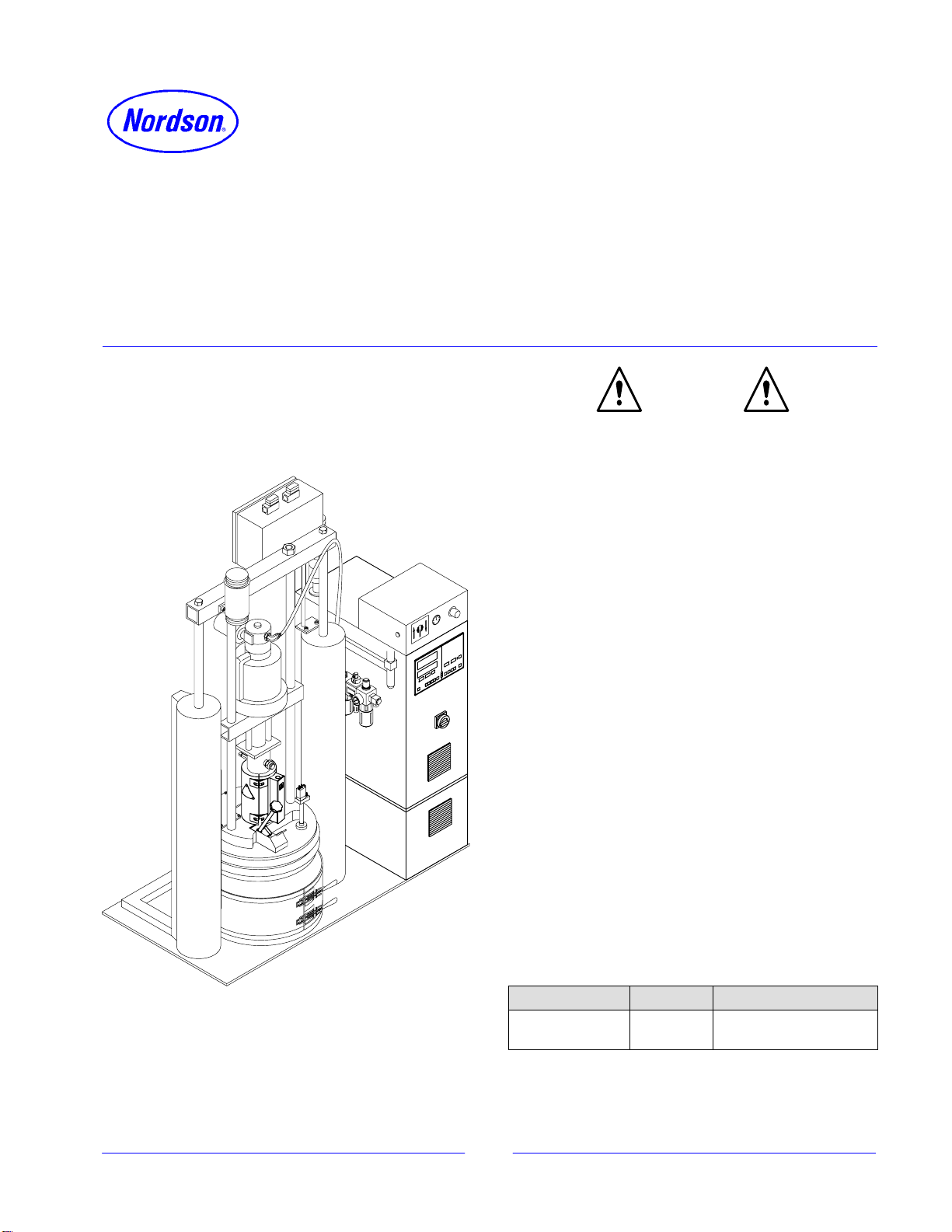

BM 200 Piston Pump Bulk Melter for 200 I Drums
WARNING
SAllow only qualified personnel to perform the
following tasks. Follow the safety instructions in
this document and all other related
documentation.
SRisk of burns. Wear suitable protective clothing
when operating this equipment.
SObtain and read the Material Safety Data Sheets
for all materials used.
SImmediately switch off this system in any
emergency situation.
RELATED DOCUMENTATION
References to other documents may be necessary to
supplement this operator’s card. Review the
following documentation.
SBulk Melters BM 200
with Piston Pump for 200 I Drums
SControl System CS 20
for Bulk Melters BM 20 / BM 200
SWeek Timer (Optional equipment)
CONSUMABLE ITEMS
Keep the following on hand when operating the
bulk melter.
ITEM PART APPLICATION
Centoplex HO 285600 Melt platen sealing
ring lubricant

2
Operator Controls
Become familiar with the operator controls before
operating the bulk melter.
Pneumatic Unit
See Figure 1.
The pneumatic unit controls melt platen movement.
It has a pneumatic switch and two-hand control
buttons.
Pneumatic Switch
Use the pneumatic switch (2) to raise and lower the
melt platen.
Select . . . To . . .
Stop stop melt platen movement.
Lower lower the melt platen.
NOTE: The melt platen can only
be lowered when there is a drum
in the system and the drum clamp
is closed.
Raise
(Aerate Drum) raise the melt platen. If the melt platen is inside of the drum, the
drum is aerated automatically
Refer to Aerating Drum for more
information.
Pressure Controller and Gauge for Operating
Pressure of Cylinders
Operating pressure is applied to the pneumatic
cylinders when the melt platen is lowered into and
raised out of the drum.
Depending on the material to be processed, the
pressure control (4) may need to be set to a different
value. The optimum setting may need to be
determined by trial and error. The gauge (3) displays
the operating pressure.
NOTE: The maximum operating pressure is
7.5 bar (109 psi).
Two-Hand Control
The two-hand control (1) on the pneumatic unit can
only be operated by one person using both hands. It
is used to lower the melt platen into the drum. When
the melt platen enters the drum, the system
automatically switches to the regular lowering mode.
1. Set the pneumatic switch (2) to Lower.
2. Press both buttons on the two-hand control at the
same time (within 0.5 seconds) until the melt
platen enters the drum.
2
1 1
Stop Lower
0
Lifting with automatically
activated drum aeration
34

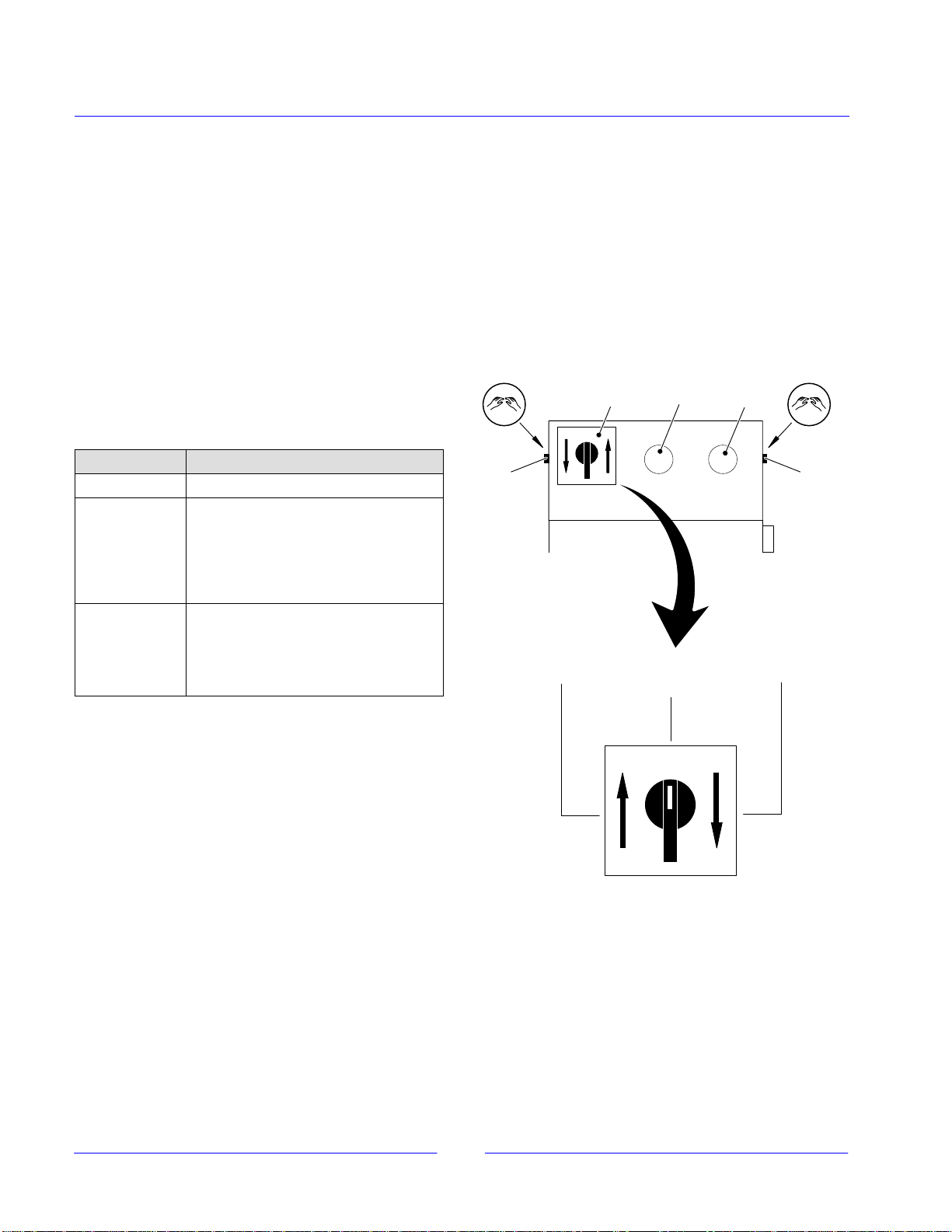

Figure 1 Pneumatic Unit

3
Control System
The control system consists of the motor part and
temperature part.
Motor Part
See Figure 2.
NOTE: The information in the shaded areas only
apply to gear pumps.
Displays
Refer to Display Overview and Service Display
sections in the Control System manual.
Select manual or automatic mode
Press key 27 for approx. 2 seconds (until display 30,
–P–blinks). Then use key 21 to select manual or
automatic mode. In manual mode, symbol 26 lights.
Setting speed (manual mode)
Press key 27 for approx. 2 seconds (until
display 30, –P–blinks). Then increase value
with key 22 or decrease with key 23.
Pressing once changes the value by 1.
Holding the key changes the value faster.
Setting speed (automatic mode)
In automatic mode the motor/pump speed is
regulated synchronously to the speed of the
parent machine. Adjustment directly affects
the parameter rhi. Refer to Display Overview
and Parameter Overview sections in the
Control System manual.
Switch on motor
First press key 27 on the appropriate motor panel (motor is pre-selected, LED in key 27 is lit).
Then press key 25 (motor is switched on, LED in key 25 and illuminated symbol 29 are lit).
Test
Press and hold key 27 until –P–blinks in
display 30.Then press 20 for the
duration of the test
WARNING: Risk of burns. Hot melt
material can flow out of the application
head.
In test mode, the motor runs in manual
mode at the set speed; in automatic
mode at speed rhi. Other components
may also be triggered. Refer to the wiring
diagram to see which components are
controlled.
min–1bar
psi
3027 31
26
23 22 21 20
29
25
Switch off one motor
Press only key 27 on the corresponding motor panel.
Switch off all motors
Press only key 25.
Set values and parameters
Refer to Display Overview in the Control System manual.
1. Press and hold keys 22 and 23 and press key 27 for approx. 2 seconds. Displays 30 and 31 blink.
2. Press key 22 or 23 until the desired parameter appears in display 30.
3. Press and hold key 27 (display 31, –P–blinks) and use key 22 to increase value or key 23 to decrease value.
Complete:
Press and hold keys 22 and 23 and press key 27 for approx. 2 seconds.
Test displays and indicator
beacon (option)
Press key 20.
Switch off automatic temperature setback
Press only key 25 for approx. 2 seconds.

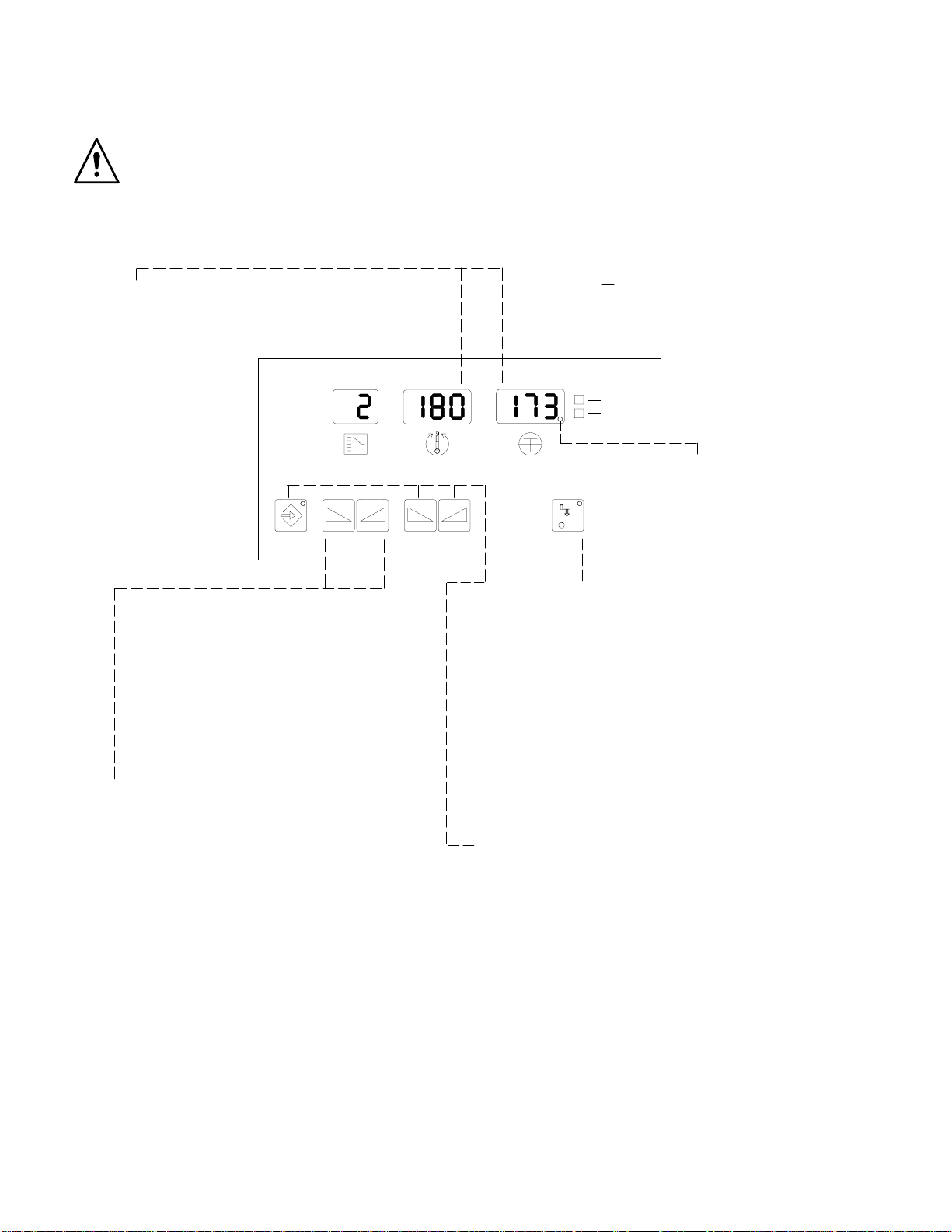

Figure 2 Motor Part

4
Temperature Part
See Figure 3.
WARNING: The temperature prescribed by
the material manufacturer is decisive. Do not
exceed the maximum operating temperatures
of the system and the heated system
components.
NOTE: Nordson Corporation assumes no guarantee
and/or liability for damage caused by incorrect
temperature settings.
Switching on/off immediate temperature setback
Switching ON: Press key 10; SPL blinks in display 4and the
LED in the key lights.
Switching OFF: Press key 10 or wait until the setback
period has expired. The temperature setback does not
automatically end if the setback period is longer than
9.99 hours.
Note: The temperature setback can also be switched on via
the XS 2 interface. When the temperature setback is
switched on, SPL blinks in displays 4and 30 (Figure 2). A
setback period is ineffective in this case.
Note: The Automatic Temperature Setback After Motor
Standstill is ended by pressing key 25 (Figure 2) on the
motor part. Press key 25 for approx. 2 seconds.
Setting temperature setpoint and parameters
Hold down key 16 and increase value with key 11 or
decrease with key 12. Pressing once changes the value by
1, holding the key changes the value faster.
The LED in key 16 is lit when adjustable parameters are
shown in displays 3, 4and 5. The following parameters can
be adjusted:
Switching channels / selecting parameters
Press key 13 or 14 until the desired channel appears
in display 3.
When the highest channel that is switched on is
exceeded, the following displays/parameters can be
called up:
C
F
345
10
1112
13
14
16
Displays
Refer to Overview of Displays and Diagnosis
Program sections in the Control System
manual.
Decimal point
Lit when the displayed
channel is heating.
°C / °F status display
Temperature setpoint
SPL Temperature setback value
h SPL Temperature setback period
Lo Under temperature value
Hi Over temperature value
°C / °FTemperature unit
CLr Return parameter to factory setting
SPL Temperature setback value
h SPL Temperature setback period
Lo Under temperature value
Hi Over temperature value
OFF Over temperature shutdown
SE Service display (sensor type)
°C / °FTemperature unit
CLr Return parameter to factory setting
If no other key is pressed within 120 sec., these
displays return to the reference channel or the
channel with the lowest number.

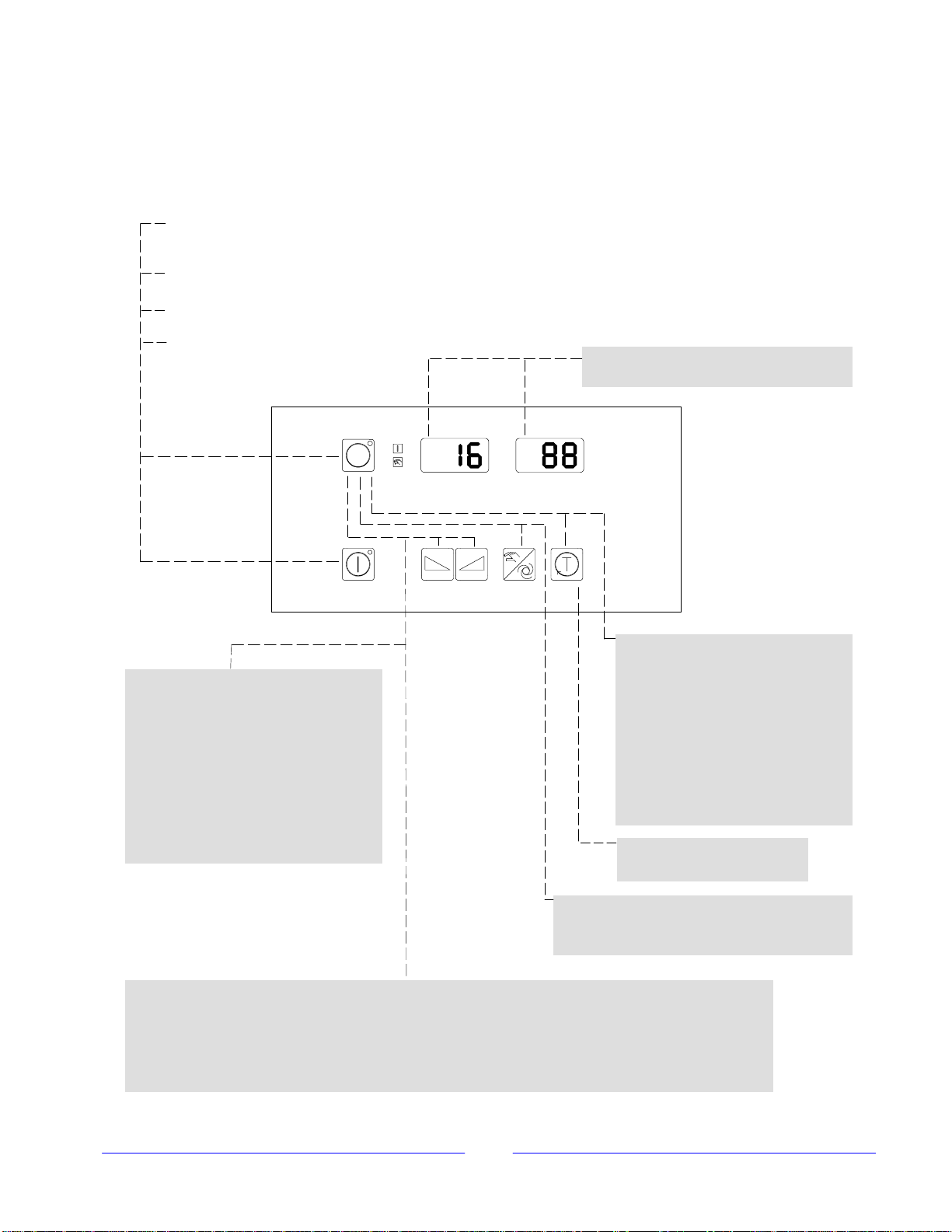

Figure 3 Temperature Part

5
Initial Startup
NOTE: Special test material was used at the factory
to test this system. Residue from this material may be
on the melting plate and in the pump. To remove
residue, melt and feed several kilograms (pounds) of
material before starting production.

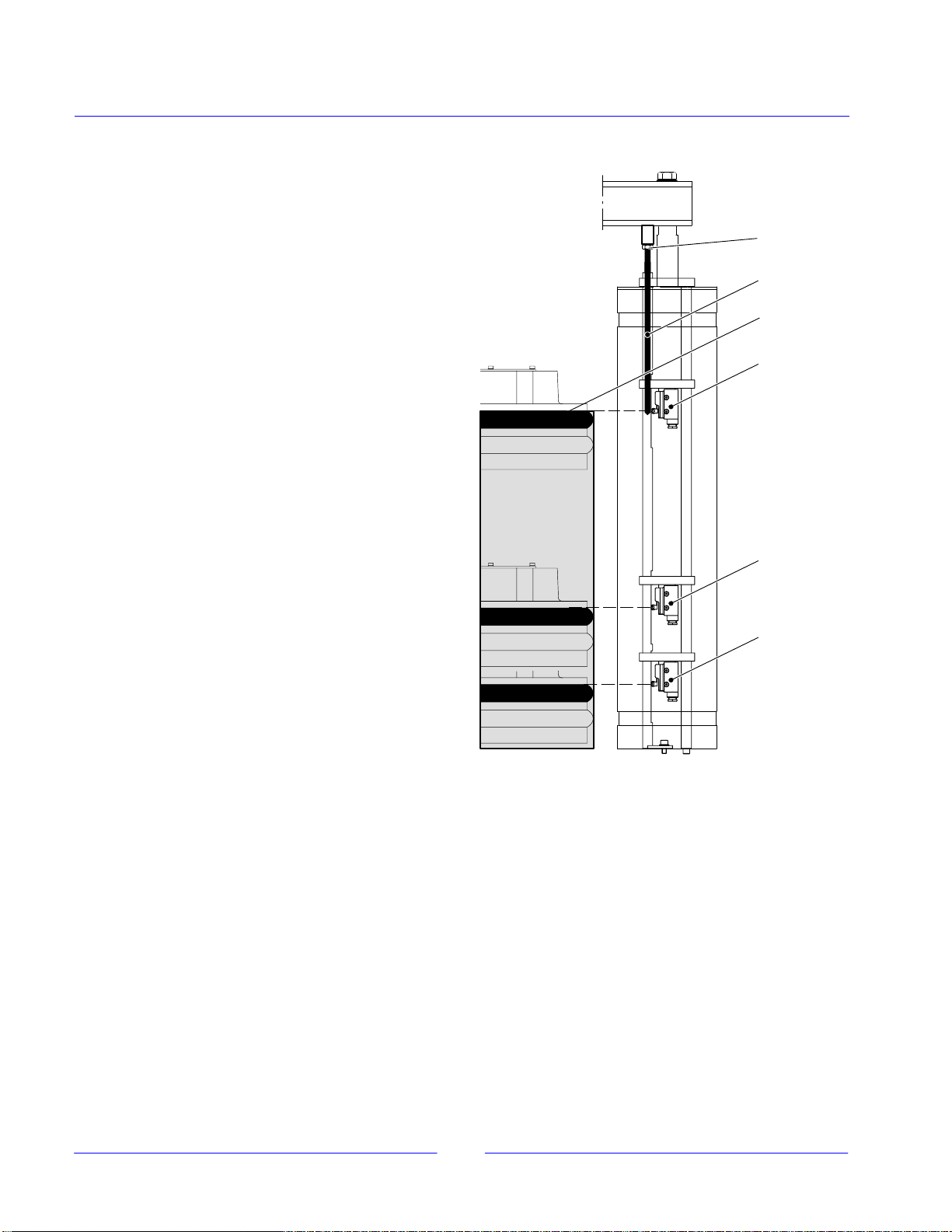

1. Ensure that the switch rod is set to the drum
height. Refer to the Adjusting Switch Rod
procedure.
2. Set pneumatic switch to 0/Stop.
3. Set main power switch to I/ON.
4. Set control system.
NOTE: The main power switch must be set to I/ON
when using the week timer.
5. If used, set the week timer. Refer to the Week
Timer manual for procedures.
6. Wait until system is heated and ready for
operation. Green indicator beacon (if present)
and/or indication lamp of control system is lit.
7. Move melt platen to top position.
NOTE: The melt platen sealing rings must be
lubricated before initial startup and every time the
drum is replaced. Remove material residue before
lubricating.
8. Using Centoplex HO, lubricate the melt platen
sealing rings.
9. Insert the drum. Refer to Replacing Drum
procedure.
10. Preselect motor and switch on.
11. Set the motor stroke frequency on the pressure
control to the desired output quantity.
12. If necessary, set the pressure control on the
pneumatic unit to the desired setting. Do not
exceed 7.5 bar (109 psi).
13. Optimize and record the settings.
Daily Startup
NOTE: Do not operate pumps without material.
Before switching on motor, ensure that a drum of
material is in the system and that the melt platen has
contact with the material.
1. Set main switch to I/ON.
2. Wait until system is ready.
3. Check the material drum and replace if
necessary. Refer to Replacing Drum procedure.
4. Lower melt platen into drum.
5. Pre-select motor.
6. Switch on the motor.
Daily Shutdown
NOTE: The melt platen does not need to be moved
out of the drum. 1. Set main switch to 0/OFF and protect with
padlocks if necessary.
2. Set pneumatic switch to 0/Stop.
3. Conduct daily maintenance.
Emergency Shutdown
WARNING: Immediately switch off the
system in any emergency situation. 1. Either set main switch to 0/OFF or press the
optional EMERGENCY OFF button.
2. Set pneumatic switch to 0/Stop.
3. Correct the fault before turning on the system.

6
Aerating Drum
WARNING: Risk of burns. When the melt
platen leaves the drum, hot material can
come out and/or drip from the melt platen.
Wear suitable protective clothing.
See Figure 4.
If the melt platen is inside of the drum, the drum must
be aerated to support raising. Aerating forces
compressed air under the melt platen.
Drum aeration begins automatically when the
pneumatic switch is set to Raise. Aeration ends when
the pneumatic switch is moved to 0/Stop.
Compressed air
Melt platen
Drum

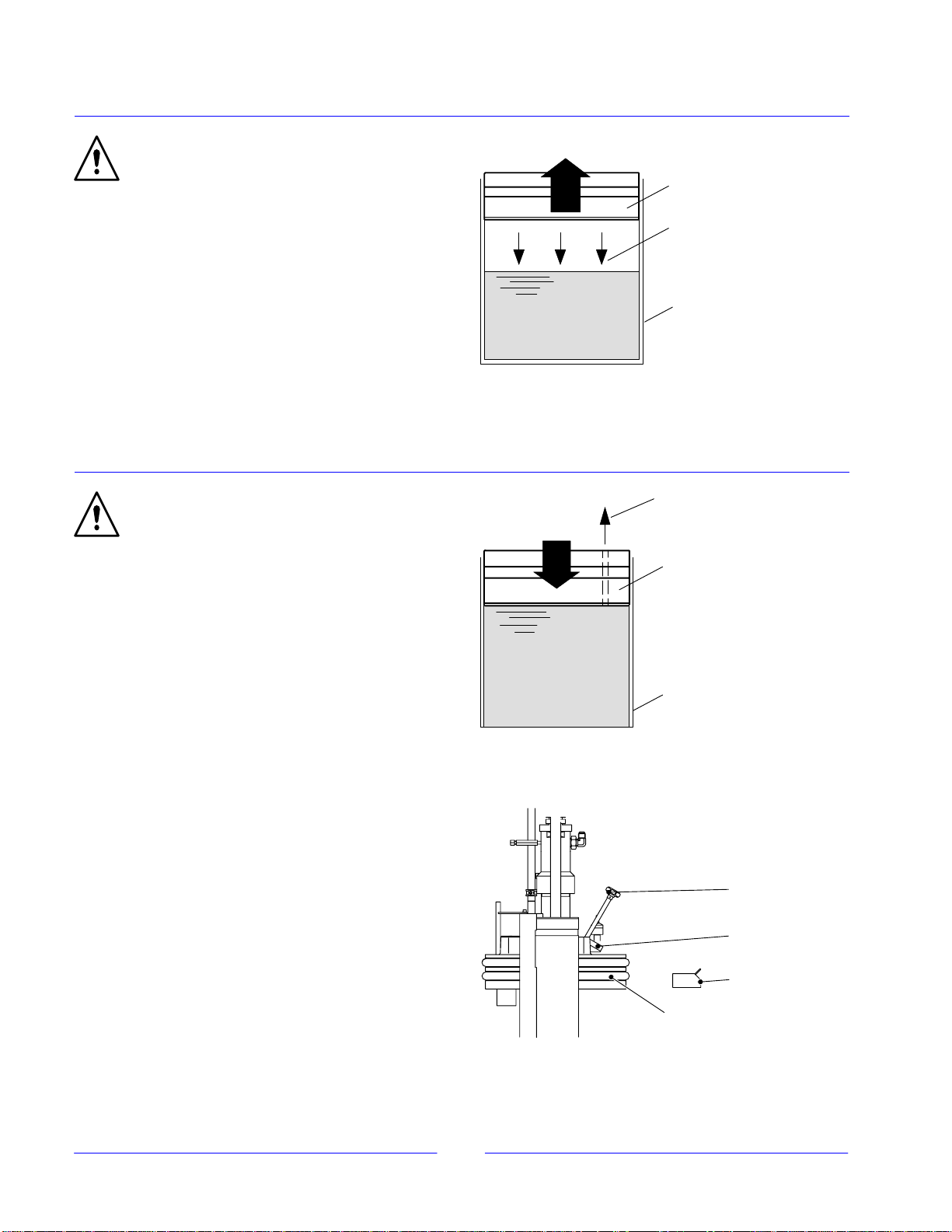

Figure 4 Aerating Drum
Deaerating Drum
WARNING: Risk of burns. Hot material may
flow out of the deaeration valve. Wear
suitable protective clothing.
See Figure 5.
The drum must always be deaerated when the melt
platen is moved into the drum. When the drum is
deaerated, the air that is under the melt platen
escapes.
See Figure 6.
1. Place a reservoir (3) under the drip pan (2).
2. Verify that the system has reached operating
temperature.
3. Open deaeration valve (1) when the upper
sealing ring on the melt platen (4) is completely
immersed in the drum.
4. Close deaeration valve when the material is free
of bubbles.
5. Properly dispose of material according to local
regulations.
Air
Melt platen
Drum
Figure 5 Deaerating Drum
1
2
3
4
Figure 6 Opening the Deaeration Valve

7
Deaerating System
WARNING: Risk of burns. Hot material may
flow out of the deaeration cock. Wear
suitable protective clothing.
The system must be deaerated upon initial startup
and every time the drum is changed. The system is
equipped with a deaeration cock for this purpose.
NOTE: When the system is deaerated, the drum
must be deaerated at the same time. Refer to
Deaerating Drum for more information.
See Figure 7.
1. Place reservoir (2) under deaeration cock (1). The
deaeration valve is located on the back of the
piston pump.
2. Open deaeration cock.
3. Set motor/pump to medium output quantity, then
switch on.
4. Wait until material flows out free of air.
5. Close deaeration cock.
6. Properly dispose of material according to local
regulations.
2
1

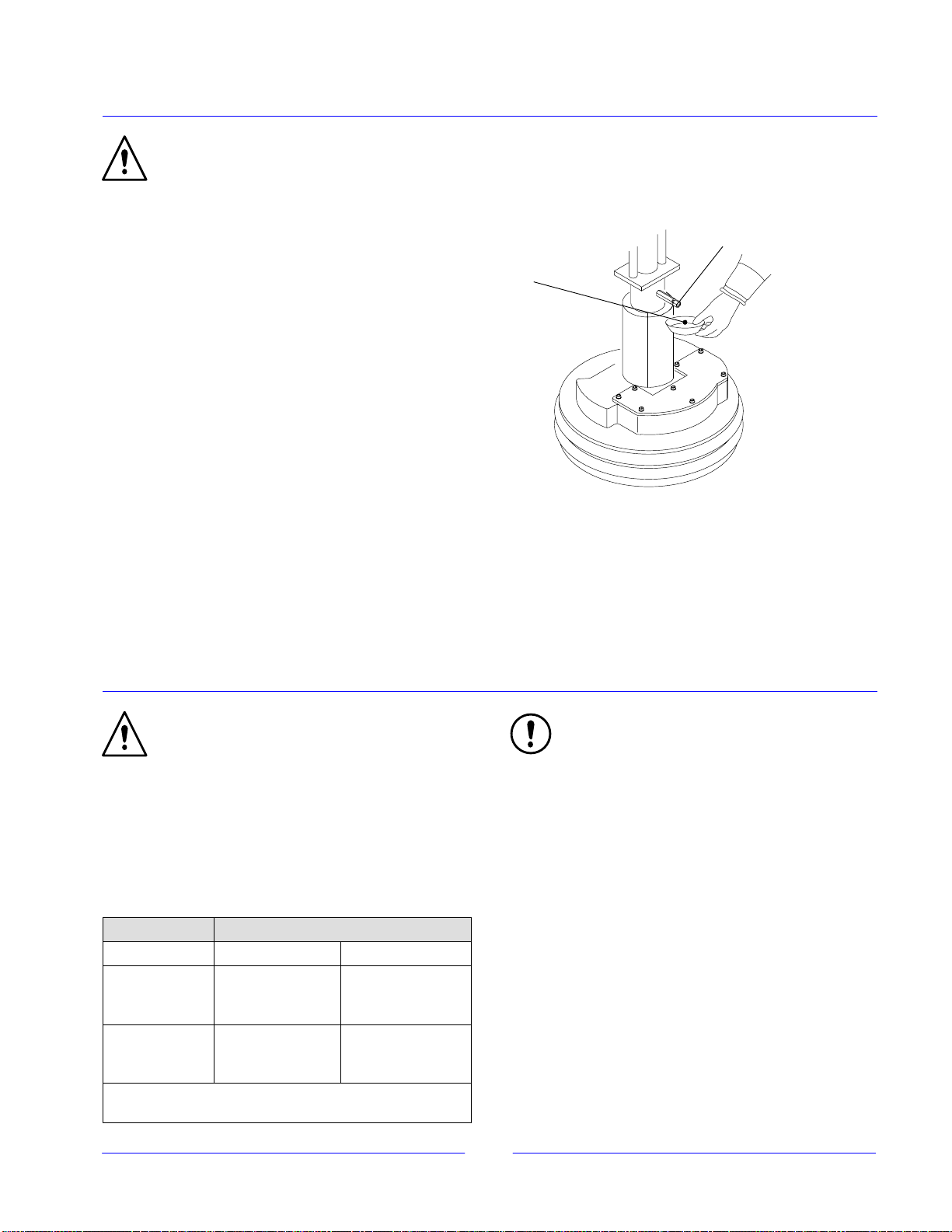

Figure 7 Deaerating the System
Replacing Drum
WARNING: Risk of burns! Hot material can
drip from the melting plate. Wear appropriate
protective equipment.
Always keep the base plate of the system clean so
that the drum is positioned straight. If necessary,
move the switch rod to the height of the drum. Refer
to Adjusting Switch Rod for the procedures.
The following lists the level indications.
Level Level Indications
Standard Option
Drum almost
empty Interface XS2* Indicator beacon (yellow)
flashing
Drum empty Interface XS2* Indicator
beacon (yellow)
lit
* Refer to Interface XS2 in the Installation section
of the Bulk Melter manual for more information.
CAUTION: To prevent damage to the melt
platen sealing ring, use only undamaged
drums in the system
NOTE: The maximum pressure is
7.5 bar (109 psi).
1. Lift melt platen and aerate while it is still in the
drum. Refer to Aerating Drum procedure.
2. Set pneumatic switch to 0/Stop.
3. Replace drum.
4. Close drum clamp.
5. Using Centoplex HO, lubricate the melt platen
sealing rings.
6. Lower melt platen.
7. Deaerate drum and system when the upper
sealing ring on the melt platen is immersed in the
drum. Refer to Deaerating Drum procedure.
8. Properly dispose of material according to local
regulations.

8
Adjusting Switch Rod
See Figure 8.
The system is adapted to the drum height by
adjusting the switch rod. The switch rod activates the
switches (4, 5 and 6) one after the other and thus
triggers the following switching functions.
Switching Functions When Lowering
SSwitch 4 switches from two-hand lowering mode
to normal lowering mode when the upper sealing
ring (3) is completely immersed in the drum.
SSwitch 5 triggers the drum almost empty
indication.
SSwitch 6 triggers the drum empty indication.
Switching Functions When Raising
Switch 4 switches pressurization of pneumatic
cylinders from admission pressure to operating
pressure when the melt platen moves out of the
drum.
Adjust Height
Perform the following:
1. Loosen the nut (1).
2. Adjust the switch rod (2) until it activates switch 4
when the upper sealing ring (3) is completely
immersed in the drum.
3. Tighten the nut.
4
6
5
2
1
3
Figure 8 Adjusting Switch Rod
Issued 3/03
Original copyright date 2003. Nordson and the Nordson logo are registered trademarks of Nordson Corporation.
