Nortel M522 User manual

297-2011-208
DMS-100 Family
M522 Add-On Module
Description, Installation, Operation, and
Maintenance Manual
Release 02.01 Standard February 1999

DMS-100 Family
M522 Add-On Module
Description, Installation, Operation, and
Maintenance Manual
NTP: 297-2011-208
Document status: Standard
Version: 02.01
Date: February 1999
© 1999 Northern Telecom
Printed in Canada
NORTHERN TELECOM CONFIDENTIAL: The information contained in this document is the property of Northern
Telecom. Except as specifically authorized in writing by Northern Telecom, the holder of this document shall keep the
information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to third
parties and use same for evaluation, operation, and maintenance purposes only.
The following are trademarks of Northern Telecom: Nortel, the Nortel globemark, DMS-100, Meridian.

iii
Publication history
297–2011–208 02.01 Standard February 1999
October 1996
Release 01.01. Standard version for NA004 and up.
February 1999
Release 02.01. Standard version changed from NA004 and up to CCM04 and
up.

iv Publication history
297–2011–208 02.01 Standard February 1999

v
Contents
297–2011–208 02.01 Standard February 1999
Publication history iii
Chapter 1: Introduction 1-1
General description 1-1
Peripheral equipment 1-2
Physical characteristics 1-3
Other documentation 1-3
Chapter 2: Specifications 2-1
Environmental and safety considerations 2-1
Temperature 2-1
Relative humidity 2-1
Electromagnetic interference 2-1
Atmospheric pollution 2-1
Vibration 2-2
Shock 2-2
Power 2-2
Chapter 3: Operations and features 3-1
Basic operations 3-1
Features operation 3-2
Available features 3-3
Programmable key numbers and the datafill 3-4
Chapter 4: Installation 4-1
Installing the M522 4-1
Unpacking or packing 4-1
Before you begin the installation 4-1
Chapter 5: Replacement parts 5-1

vi Contents
297–2011–208 02.01 Standard February 1999
Figures
Figure 1-1 M522 attached to M5316 1-2
Figure 3-1 M522 add-on module key numbering 3-4

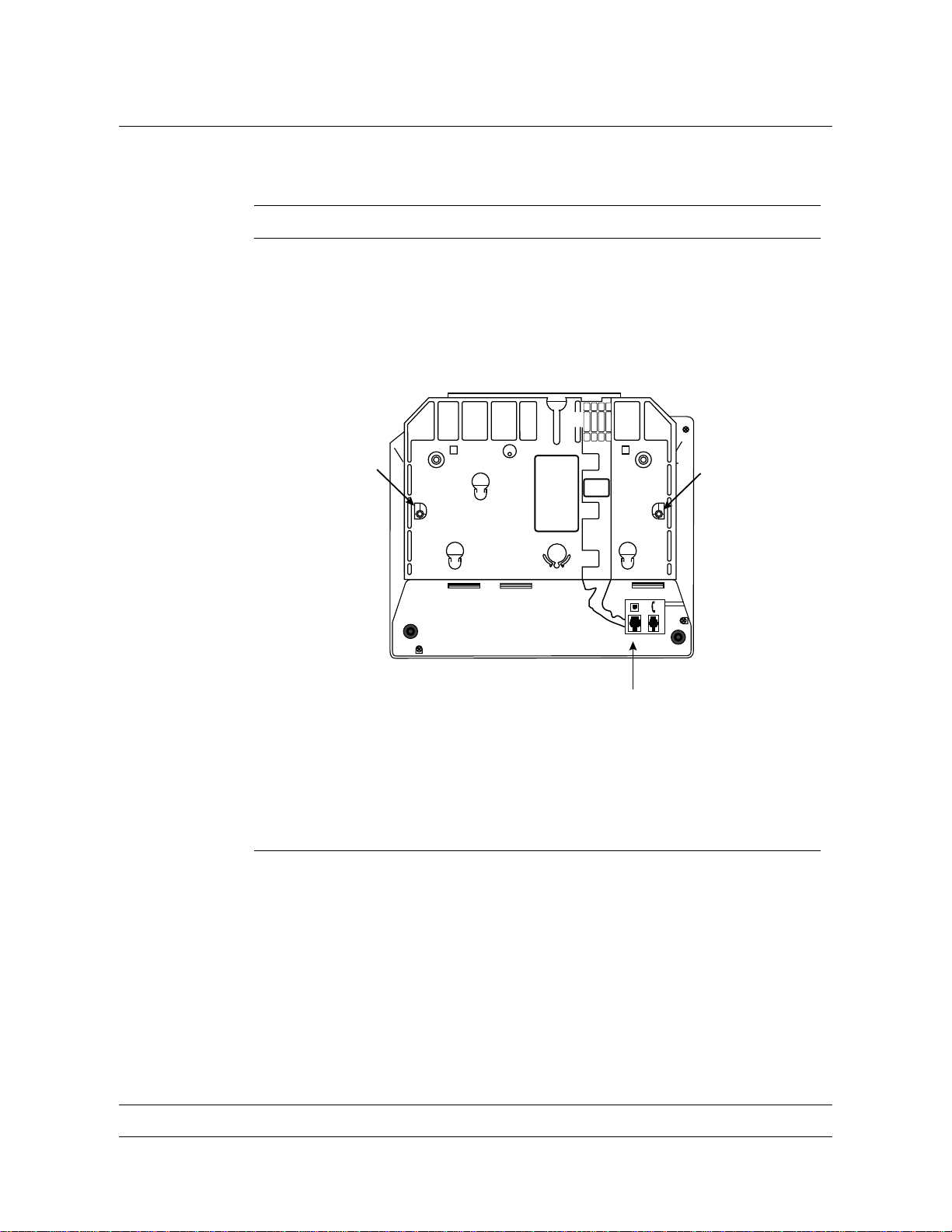

Figure 4-1 M5216/M5316 bottom view 4-2
Figure 4-2 Connecting the ribbon cable(s) 4-3
Figure 4-3 Polarized connection detail 4-4
Figure 4-4 Attaching the base (for one M522 module) 4-5
Figure 4-5 Attaching the base (for two M522 modules) 4-5
Tables
Table 3-1 Summary of M522 keys and indicators 3-2
Table 5-1 Ordering information 5-1

1-1
Chapter 1
Introduction
297–2011–208 02.01 Standard February 1999
General description
The M522 add-on module can be attached to the M5216 or M5316 Meridian
Business Set to provide extra feature/line keys (see Figure 1-1). When one
M522 is connected, 22 additional feature/line keys are available to the
Meridian Business Set. If required, you can also connect one additional
M522 add-on module to increase the number of additional feature/line keys
to 44.
The M5216/M5316 Meridian Business Set is designed for direct connection
(through a non-loaded subscriber loop pair) to the Northern Telecom DMS–
10, DMS–100, DMS–250, or Meridian SL–100 Digital Switching systems.
For more information regarding the M5216 or M5316, refer to the
publications cited in the section “Other documentation”.

1-2 Introduction
297–2011–208 02.01 Standard February 1999

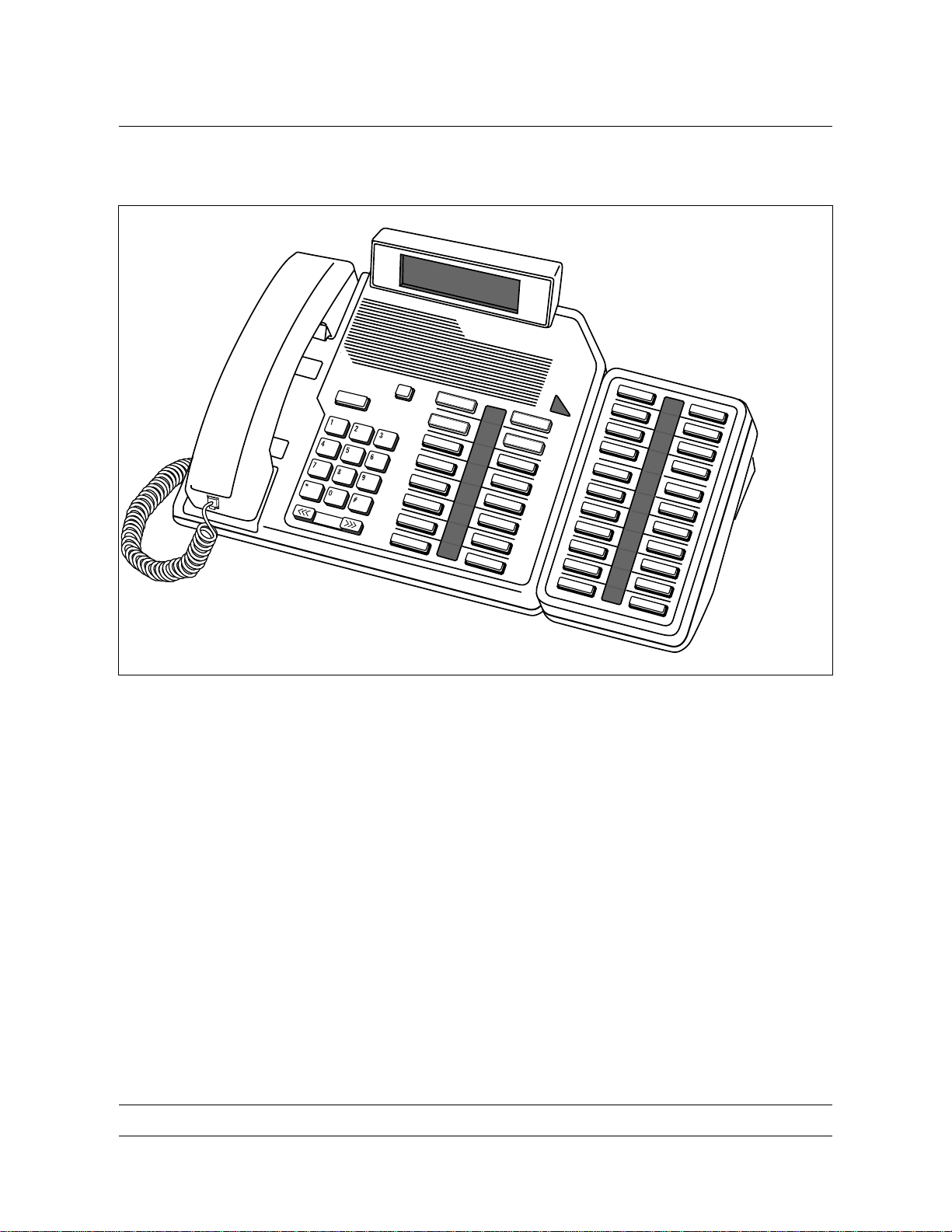

Figure 1-1
M522 attached to M5316
Peripheral equipment
The M522 connects to the M5216 or M5316 Meridian Business Set. The
M5216/M5316 interfaces with the business set (6X21AC) line card in the
Line Concentrating Module (LCM) of the DMS–10/DMS–100/Meridian SL-
100 Central Office (CO) equipment. The 6X21AC supports one business set
per line card.

Introduction 1-3
297–2011–208 02.01 Standard February 1999
Physical characteristics
The add-on module comes in three different colours which match the
M5216/M5316 colours:
• Chameleon-grey (Engineering code NT4X43AA)
• BTS light-grey (Engineering code NT4X43BA)
• Black (Engineering code NT4X43CA)
The Mean Time Between Failure (MTBF) for the M522 is at least 100 years.
Other documentation
Other information pertaining to Meridian Business Sets can be found in the
following documents:
297–2001–100 Integrated Business Network (IBN) —Description
297–1001–114 Operational Measurements (OM)
297–1001–250 Testing and Acceptance for Initial Installation
297–1001–310 Table Editors User Guide
297–1001–518 Operational Measurements—Man-Machine Interface
297–2011–180 DMS-100 Business Set—Line Engineering Rules
P0749053 M522 Installation Instructions (English/French/Spanish)
P0749052 M5216 MBS User Guide (English/French)
P0800730 M5216 MBS User Guide (Spanish)
P0749051 M5316 MBS User Guide (English/French)
P0800729 M5316 MBS User Guide (Spanish)

1-4 Introduction
297–2011–208 02.01 Standard February 1999

2-1
Chapter 2
Specifications
297–2011–208 02.01 Standard February 1999
The following specifications govern the performance of the M522 add-on
module and the environmental conditions under which this performance is
achieved.
Environmental and safety considerations
The M522 meets the Canadian and U.S. mandatory interconnect
requirements for Telephone Equipment.
Temperature
In the Operating State, the M522 temperature range is 0°C to 50°C
(32°F to 122°F).
In the Non-Operating State, the M522 temperature range is -20°C to 70°C
(-6°F to 158°F).
Relative Humidity
20% to 95% (non-condensing). At temperatures above 34°C (93°F), relative
humidity is limited to 52mbar of water vapour pressure.
Electromagnetic Interference
The radiated and conducted electromagnetic interference meets the
requirements of Subpart J of Part 15 of the FCC rules for class B computing
devices.
Atmospheric pollution
The M522 is designed to withstand normal atmospheric conditions
throughout its life and during shipment and storage as defined in the
International Electromechanical Commission (IEC) document 50 (salt, mist,
atmospheric dust, sulfur dioxide, and hydrogen sulfide exposure).

2-2 Specifications
297–2011–208 02.01 Standard February 1999
Vibration
The M522 is designed to work to specifications after being subjected to the
following vibrations in each of three orthogonal directions for 90 minutes:
• Vibration frequency of 5 Hz to 500 Hz
• Maximum half displacement 0.35mm (0.014 in)
• Maximum acceleration 15m/s/s.
Shock When packaged, the M522 is designed to withstand normal handling during
shipment.
When unpacked, the M522 is designed to withstand accidental dropping
during normal use, without sustaining damage, when dropped on any face or
corner from a height not exceeding .75m (30 in).
Power The M522 is powered through its connection to the M5216/M5316. The
M5216/M5316 is partially loop powered by a balanced 440 Ohm battery feed
from the switching equipment. The switch battery voltage supplied to the
loop is nominally 52 VDC with a minimum of 42.75 VDC and a maximum
of 56 VDC. Under normal conditions the polarity must be negative on the
Ring lead with respect to the Tip lead.
The current drawn from the loop is 16 ±1mA when the set is active. The
current drawn from the loop is 10 ±1mA when the set is inactive.
The M5216/M5316 also requires a 16 V AC external power supply rated at
375 mA. During a power failure, the Handsfree and RT clock functions are
not available.

3-1
Chapter 3
Operations and features
297–2011–208 02.01 Standard February 1999
Basic operations
The M5216/M5316 Meridian Business Set can be used to make voice calls
and operate selected DMS–10, DMS–100, or Meridian SL–100 features.
Each installed M522 expands the number of keys available for feature/line
installation by 22. All supported features can be accessed using keys
provided on the M5216/M5316 and the M522. For further details about
software requirements, refer to NTP 297–2011–100 and NTP 297–1001–310
respectively.
Before attempting to operate features installed on the M522, please refer to
the M5216 Meridian Business Set User Guide or the M5316 Meridian
Business Set User Guide. This document is shipped with the set and contains
instructions for making calls and how to use various features.

3-2 Operations and features
297–2011–208 02.01 Standard February 1999
Features operation
The M522 add-on module has 22 keys which can be installed with lines or
features. Once installed with features and/or lines, the keys and LCD
indicators function as those found on the M5216/M5316.
There are 22 LCD indicator segments (half diamonds) on the M522. When
there is activity on keys located on the left side of the M522, a left half
diamond lights on the LCD. When there is activity on keys located on the
right side of the M522, a right half diamond lights on the LCD. A summary
of M522 keys and indicators is provided in Table 3-1.
Table 3-1
Summary of M522 keys and indicators
Key or indicator Description
22 Feature/
Line keys Acts as line key or as a feature key depending upon how the
set is programmed.
LCD Indicators
No half diamond
(Off)
Steady Left or
Right half
diamond (On)
Slow flashing Left
or Right half
diamond
(60 IPM)
Fast Flashing Left
or Right half
diamond
(120 IPM)
Indicates the status of the feature/line keys:
Feature or line is not active.
Feature or line is active.
Line is ringing or feature is being programmed.
Line is on hold .

Operations and features 3-3
297–2011–208 02.01 Standard February 1999
Available features
The feature keys can be assigned a subset of a number of features. Examples of
some of the available features are given as follows:
• Automatic Dial (AUD)
• Automatic Line (AUL)
• Busy Override (EBO)
• Call Forward (CF)
• Call Park (PARK)
• Call Pickup (CPU)
• Call Waiting (CWT)
• Directed Call Park (DCP)
• Directory Numbers (DN)
• Group Intercom (GIC)
• Individual Business Line
• Intercom (ICM)
• Make Set Busy (MSB)
• Malicious Call Hold (MCH)
• Message Waiting (MWT)
• Multiple Appearance Directory Numbers (MADN)
• Privacy Release
• Ring Again (RAG)
• Set Busy Indicator (SBI)
• Speed Calling (SCS, SCL, or SCI)
• 3-way Calling/Call Transfer (TWC/CXR)
• 6-port Conference (CONF 6)

3-4 Operations and features
297–2011–208 02.01 Standard February 1999
Programmable key numbers and the datafill
The 22 feature keys available on the M522 add-on module are assigned key
numbers to enable the switch to identify individual key functions. The
numbering scheme used for key assignments is shown in Figure 3-1.
The presence of the M522 is transparent to the process of data filling the
M5216/M5316 set.
Figure 3-1
M522 add-on module key numbering
Key 15
Key 16
Key 17
Key 18
Key 19
Key 20
Key 21
Key 22
Key 23
Key 24
Key 25
Key 26
Key 27
Key 28
Key 29
Key 30
Key 31
Key 32
Key 33
Key 34
Key 35
Key 36
If a second M522 is installed, key numbering follows the same pattern by
ranging from Key 37–Key 58.

4-1
Chapter 4
Installation
297–2011–208 02.01 Standard February 1999
Installing the M522
Before installing the M522 check the package contents as described below.
To install the M522 follow Procedure 4-1.
Unpacking or packing
Use proper care while unpacking the M522. Check for damaged containers
so that appropriate claims can be made to the transport company for items
damaged in transit.
If a telephone or add-on module must be returned to the factory, make sure it
is packed in its original container to avoid damage during transit. Remember
to include all loose parts in the shipment (e.g. cords, AC transformer, and
handset).
Before you begin the installation
Ensure that you have the following items before you start the M522
installation:
• one M522 add-on module (two if connecting two M522 modules)
• an extended wedge-shaped base to join the M5216/M5316 to the M522
(use the single extended base to join one M522 module to the
M5216/M5316; use the double extended base to join two M522
modules—see Chapter 6 “Replacement parts” for ordering information).
• one long (320mm) ribbon cable
• one short (178mm) ribbon cable (only required for connecting two
M522 modules)
• one screw (pozi-drive)
• key labels
• plastic key caps

4-2 Installation
297–2011–208 02.01 Standard February 1999
Procedure 4-1
How to install the M522
Step Action
1Turn the M5216/M5316 set upside down on a soft surface, as
shown in Figure 4-1. If the line cord is plugged into the line
receptacle (A), disconnect it from the telephone set and set it
aside.
Figure 4-1
M5216/M5316 bottom view
BB
A
2Locate the two screws (B) in the wedge-shaped base. Remove the
screws from the base and set them aside.
3Pull off the base from the telephone set.
—continued—

Installation 4-3
297–2011–208 02.01 Standard February 1999
Procedure 4-1
How to install the M522 (continued)
Step Action
4Place the M522 (1) upside down and to the left of the telephone
set as shown in Figure 4-2 . If you are installing a second M522
(2), place it to the left of the first M522 (1).
Figure 4-2
Connecting the ribbon cable(s)
C
D
E
M5216/M5316
M522(1)M522(2)
F
G
G
H
5Remove the screw from the screw mount post on the M522(s) as
shown at location G in Figure 4-2. Set the screw aside.
—continued—

4-4 Installation
297–2011–208 02.01 Standard February 1999
Procedure 4-1
How to install the M522 (continued)
Step Action
6Insert one end of the long ribbon cable (320mm) into receptacle C
as shown in Figure 4-2. The cable connector is polarized (see
Figure 4-3) to ensure the connector is properly seated in the
receptacle.
Figure 4-3
Polarized connection detail
7Insert the other end of the long ribbon cable into receptacle D as
shown in Figure 4-2. Slide the ribbon cable underneath the
restraining tabs H so that it is not twisted and so that the
ribbon cable avoids the screw mount. This placement ensures
that the cable will not be pinched or squeezed by the screw once
the extended base is attached.
8If you are adding a second M522 (2) to the telephone set, use the
short ribbon cable (172 mm) to connect it to the M522 already in
place. On the M522 (1) already connected to the telephone set,
insert one end of the short ribbon cable into receptacle E. On the
second M522 (2), insert the other end of the ribbon cable into
receptacle F. Make sure the ribbon cable is not pinched or
twisted.
—continued—
