Northern IP4WIR30 User manual

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
1
1
About this Manual
This Manual is applicable to IP4WIR30 Network Cameras.
The Manual includes instructions for using and managing the
product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without
notice, due to firmware updates or other reasons. Please find the
latest version in the company website
Please use this user manual under the guidance of professionals.
Legal Disclaimer
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY
SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL
OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING
FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR
OTHER INTERNET SECURITY RISKS; HOWEVER, OUR COMPANY WILL
PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS
PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE
EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
2
2
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
3
3
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the EMC Directive
2014/30/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards
requirements.

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
4
4
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
Warnings
●In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
●Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 24 VAC or 12 VDC
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
5
5
according to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
●Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
●Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
●If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact
the service center.
●Proper configuration of all passwords and other security
settings is the responsibility of the installer and/or end-user.
Cautions
●Make sure the power supply voltage is correct before using the
camera.
●Do not drop the camera or subject it to physical shock.
●Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period,
please replace the lens cap to protect the sensor from dirt.
●Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a
malfunction), and affect the endurance of sensor at the same
time.

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
6
6
●The sensor may be burned out by a laser beam, so when any
laser equipment is in using, make sure that the surface of
sensor will not be exposed to the laser beam.
●Do not place the camera in extremely hot, cold (the operating
temperature shall be-30°C ~+60°C), dusty or damp locations,
and do not expose it to high electromagnetic radiation.
●To avoid heat accumulation, good ventilation is required for
operating environment.
●Keep internal components of the camera away from liquid while
in use.
●While in shipping, the camera shall be packed in its original
packing, or packing of the same quality.
●If the product does not work properly, please contact tech
support at 855-388-7422 or [e-mail]
your dealer or the nearest service center. Never attempt to
disassemble the camera yourself. (We shall not assume any
responsibility for problems caused by unauthorized repair or
maintenance.)
0504051070109

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
7
7
Table of Contents
1 Appearance Description ................................................................. 8
Overview of IP4WIR30 Mini Dome Camera ..................... 81.1
2 Installation.................................................................................... 11
IP4WIR30 Mini Dome Camera Installation..................... 122.1
2.1.1 Ceiling Mounting ................................................ 12
2.1.2 Install the Micro SD Card .................................... 16

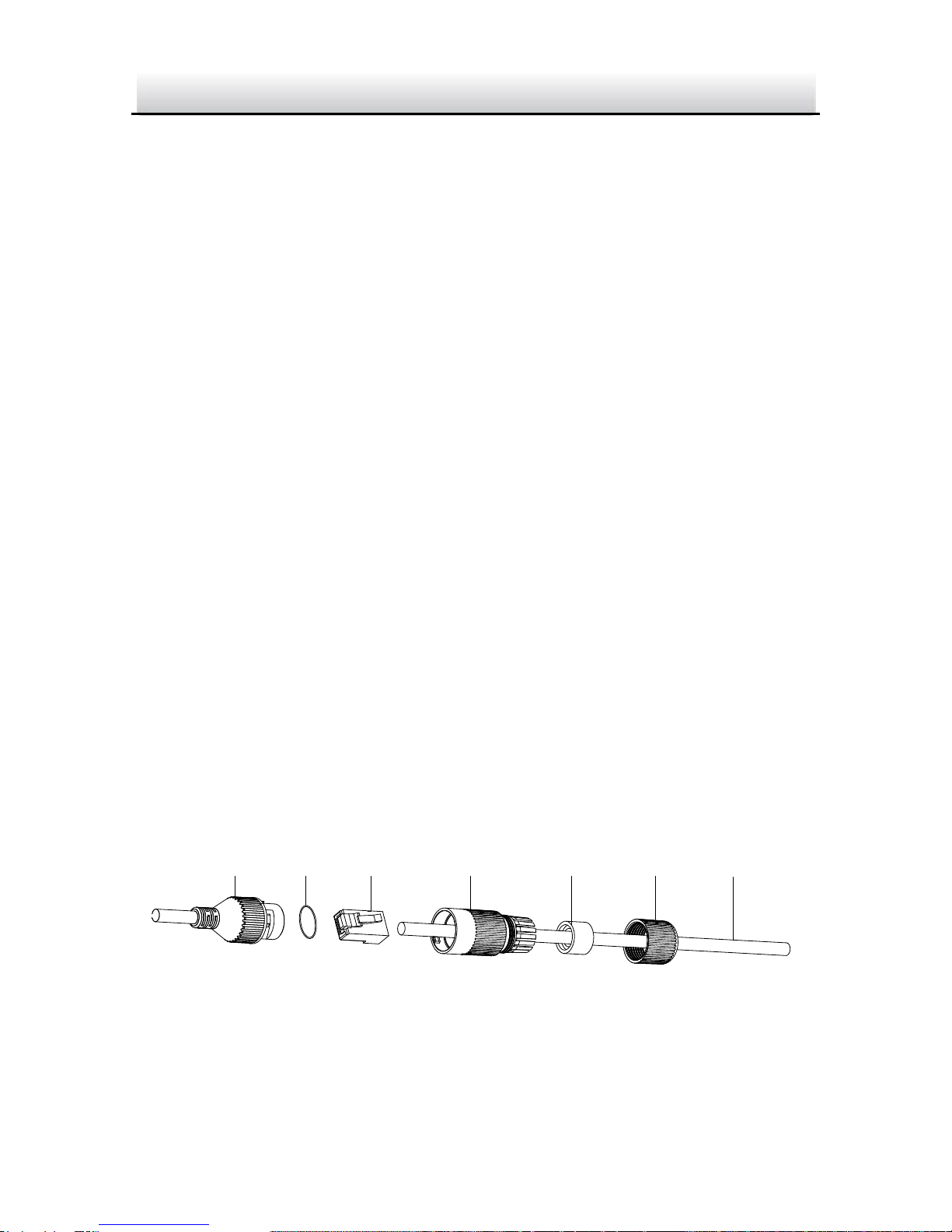

Install the Water-proof Jacket ....................................... 172.2

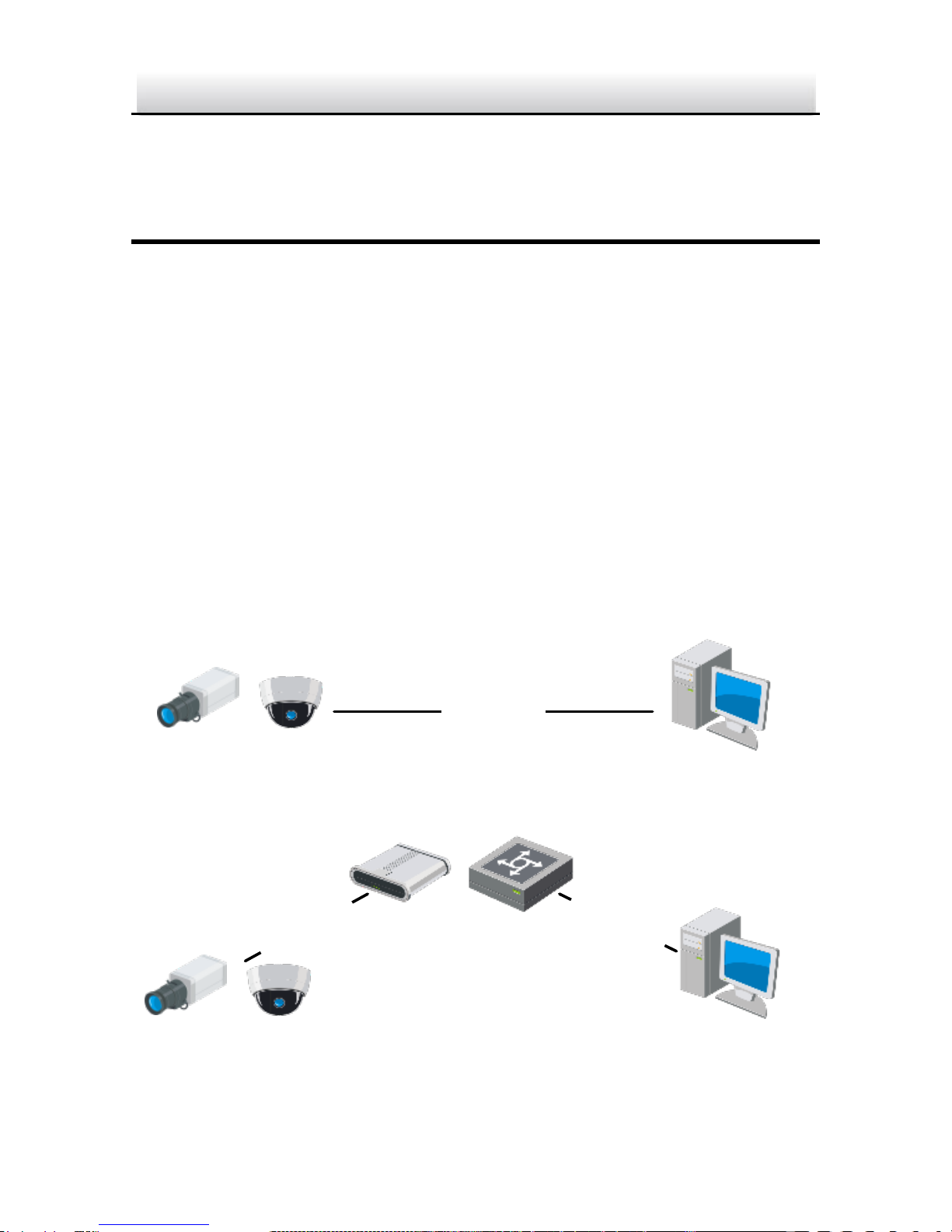

3 Setting the Network Camera over the LAN .................................. 18
Wiring ........................................................................... 183.1
Activating the Camera ................................................... 193.2
Activation via Web Browser................................ 193.2.1
Activation via SADP Software ............................. 203.2.2
Modifying the IP Address .............................................. 223.3
4 Accessing via Web Browser .......................................................... 25
5 Operating via Guarding Vision App .............................................. 27
Enable Guarding Vision on Camera ............................... 275.1
Enable Guarding Vision via SADP Software......... 275.1.1
Enable Guarding Vision via Web Browser ........... 285.1.2
Guarding Vision Setup................................................... 305.2
Adding Camera to Guarding Vision................................ 305.3
Initializing the Memory Card ......................................... 325.4

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
8
8
1Appearance Description
Overview of IP4WIR30 Mini Dome Camera1.1

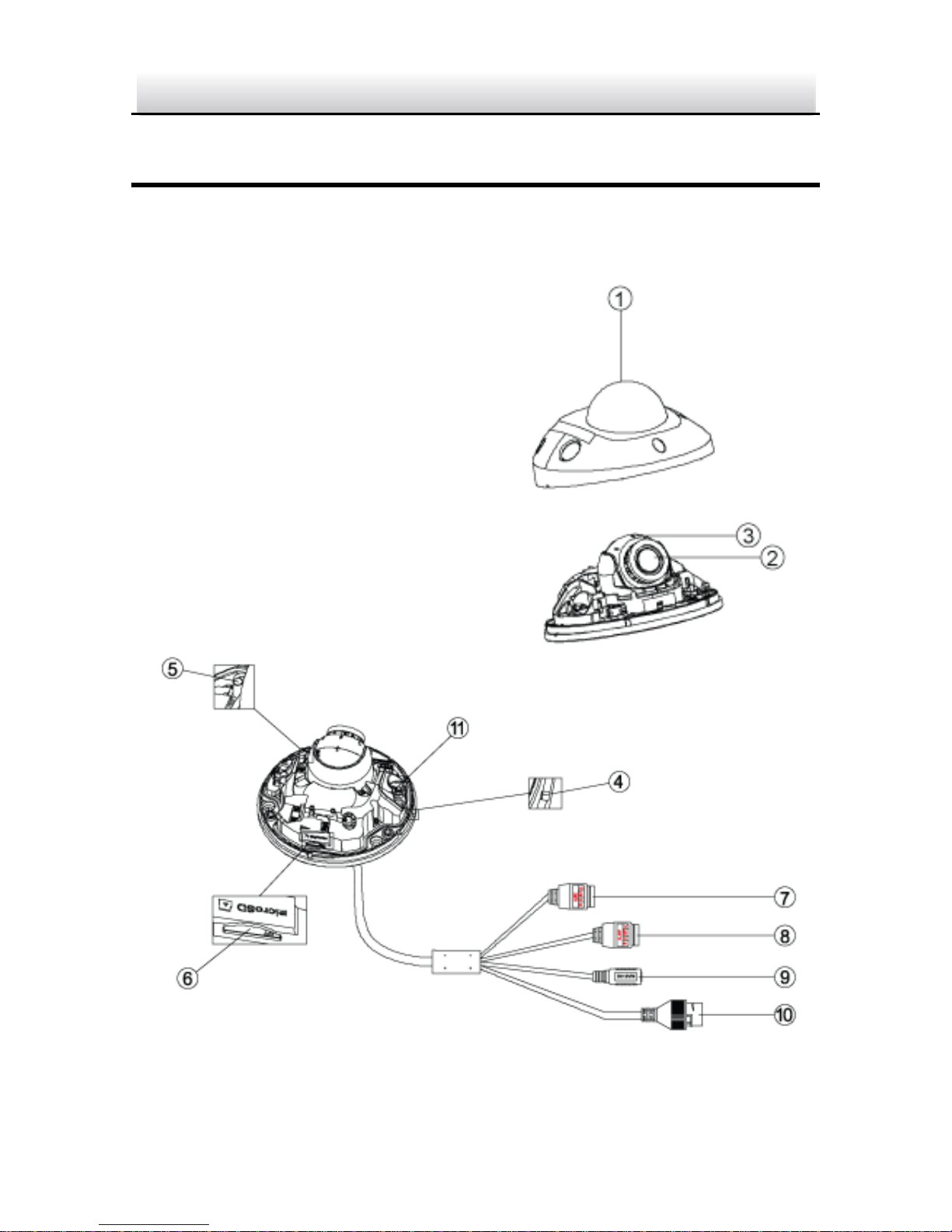

Overview of IP4WIR30 Mini Dome CameraFigure 1-1

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
9
9
Description of IP4WIR30 Mini Dome CameraTable 1-1
No.
Description
1
Front Cover
2
Lens
3
Sphere
4
Microphone
5
Reset
6
SD Card Slot
7
Audio Cables
8
Alarm Cables
9
Power
10
Ethernet Port
11
IR LED
To reset the camera to default status you first need to remove
power from the camera. Then press and hold the reset button
while re-applying power, continue to hold the reset button for
at least 15 seconds after applying power to default the camera.

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
10
10
No.8 is the alarm cable interface, of which the “In”mark
connects to the alarm input, the “Out”mark connects to the
alarm output, the “GND”mark connects the grounding.
This model camera is offered with a “built in microphone” and
Audio is passed over the Ethernet cable with Video. You do
not need to connect anything to the Audio Connector on the
camera. To insure both audio and video are recorded when
connecting to a Northern NVR, make sure to select “Video &
Audio” as the Stream Type in the Recording Parameter Menu on
the NVR.

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
11
11
2Installation
Before you start:
●Make sure the device in the package is in good condition and all
the assembly parts are included.
●If not using POE, the standard power supply is 12V DC, please
make sure your power supply matches with your camera.
●Make sure all the related equipment is power-off during the
installation.
●Check the specification of the products for the installation
environment.
●Make sure that the wall is strong enough to withstand four
times the weight of the camera and the bracket.
For the camera that supports IR, you are required to pay attention to
the following precautions to prevent IR reflection:
●Dust or grease on the dome cover will cause IR reflection.
Please do not remove the dome cover film until the installation
is finished. If there is dust or grease on the dome cover, clean
the dome cover with clean soft cloth and isopropyl alcohol.
●Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing reflection.

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
12
12
IP4WIR30 Mini Dome Camera Installation2.1

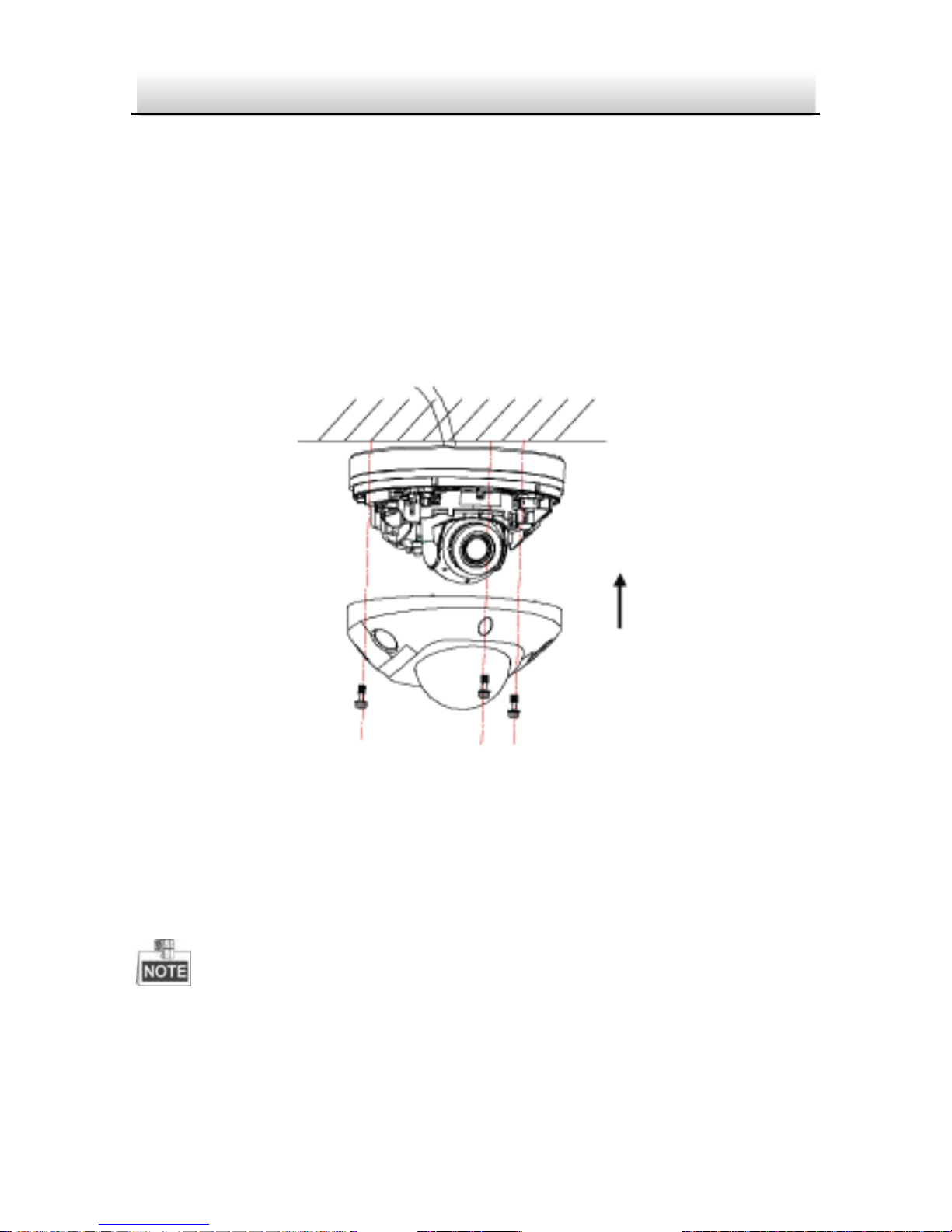

2.1.1 Ceiling Mounting
Steps:

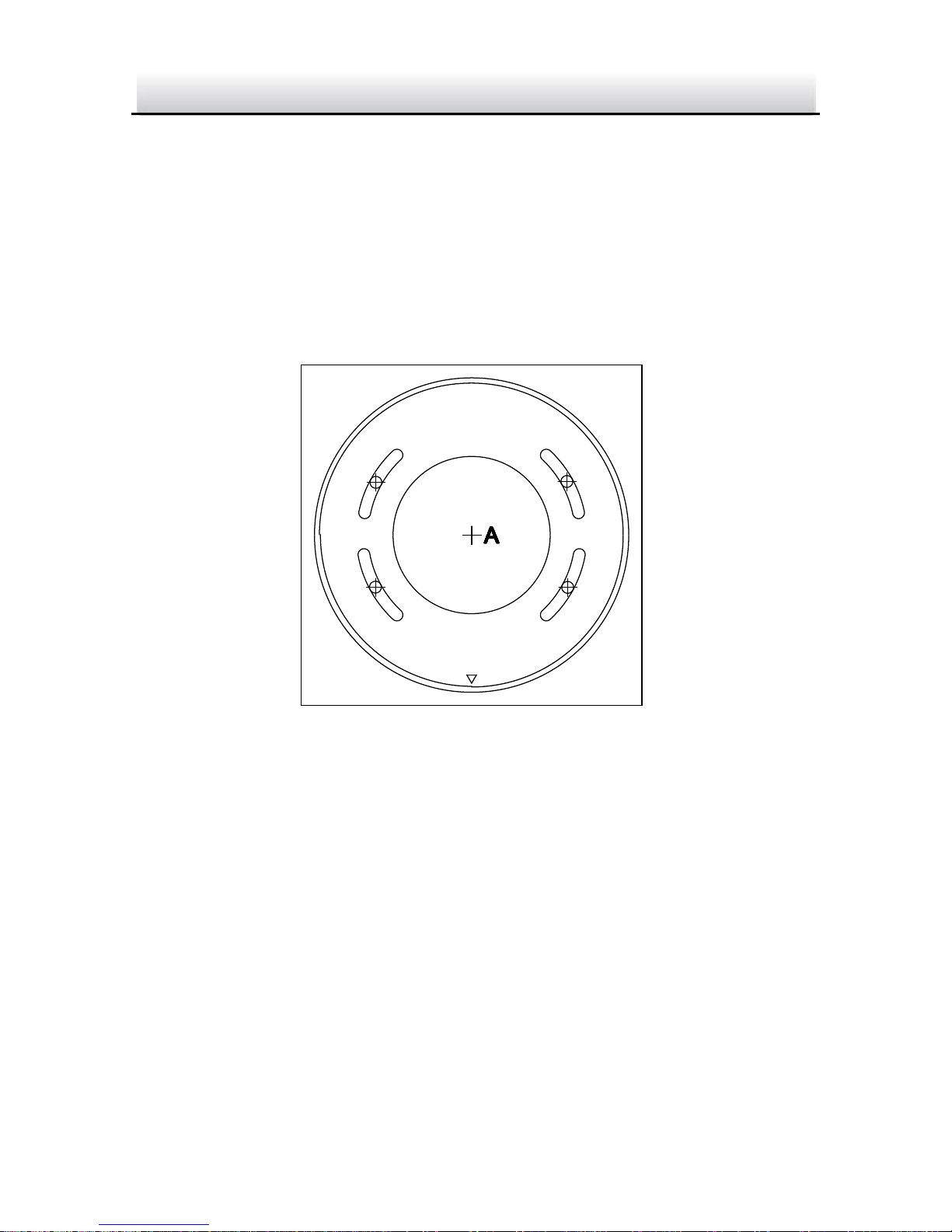

1. Drill the screw holes and the cable hole in the ceiling according
to the supplied drill template.
Drill TemplateFigure 2-1
Drill Template
1
1
11
Hole A:for cables routed through the ceiling
Screw hole 1:for Mounting Base
FRONT

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
13
13
2. Loosen the set screw on the front cover to disassemble the
camera with the supplied Allen key.
Disassemble the CameraFigure 2-2
3. Hammer the plugs of the expansion screws to the screw holes.
4. Align the adapter plate to the drill template, and fix the adapter
plate.
Figure 2-3 Fix the Adapter Plate
5. Connect the power cable, network cable, and the audio/alarm
cables.
6. Fix the camera body to the adapter plate with the supplied
screws.

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
14
14
Fix the Camera BodyFigure 2-4
7. View the image via the web browser.
8. Slightly loosen the screw beside the WPS/RESET button to adjust
the surveillance angle.
9. Adjust the pan [±30°], tilt [0~80°], and rotation direction
[0~360°].
3-Axis AdjustmentFigure 2-5

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
15
15
10. Tighten the hex screw to fix the well-adjusted surveillance angle.
11. Align the front cover to the dome drive and tighten the set
screws on the front cover.
Install the Front CoverFigure 2-6
12. Tear off the protection film softly to complete the installation.
Do not tear off the protection film until the installation is
completed.
Do not touch the inside face of the bubble with your hands.

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
16
16
2.1.2 Install the Micro SD Card
This series of camera supports local storage, please refer to the
following steps to install the micro SD card.
Steps:
1. Remove the front cover by loosening the set screws on it.
Remove the Front CoverFigure 2-7
2. Insert the micro SD card to the card slot until you hear a click.
3. (Optional)Slightly push the inserted micro SD card to uninstall it
from the camera. Install and Uninstall Micro SD Card

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
17
17
Install the Water-proof Jacket2.2
It is recommended to adopt the water-proof jacket (supplied) for
the network interface when the camera is installed outdoor.
Steps:
1. If the network cable has been settled down, cut off the plug of
the network cable first.
2. Route the network cable through the following components in
sequence: fix nut, water-proof ring, and the main body of the
water-proof jacket, as shown in the figure.
3. Insert the water-proof ring into the main body of the
water-proof jacket, to increase the sealing ability of the
components.
4. Wire the plug and network cables up.
5. Fix the O-ring to the network interface of the camera, and then
connect the network cables.
6. Wrap the network interface with the main body of the
water-proof jacket, and then rotate the fix nut clockwise to
assemble it to the main body of the water-proof jacket.
Figure 2-8 Water-proof Jacket
Network Interface O-ring Plug Water-proof Jacket Water-proof Ring Fix Nut Network Cable

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
18
18
3Setting the Network Camera over the
LAN
Note:
You shall acknowledge that the use of the product with Internet
access might be under network security risks. For avoidance of any
network attacks and information leakage, please strengthen your
own protection.
If the product does not work properly, contact your dealer or the
nearest service center for help.
Wiring3.1
Connect the camera to network according to the following figures.
半球
Network Cable
or
Network Camera
Computer
Connecting DirectlyFigure 3-1
网络交换机
半球
Network Cable
Network Cable
or
or
Network Camera Computer
Connecting via a Switch or a RouterFigure 3-2

IP4WIR30 IP Mini Dome Camera ·Quick Start Guide
19
19
Activating the Camera3.2
You are required to activate the camera first by setting a strong
password for it before you can use the camera.
Activation via Web Browser, Activation via SADP, and Activation via
Client Software are all supported. We will take activation via SADP
software and Activation via Web Browser as examples to introduce
the camera activation.
Note:
Refer to the User Manual of Network Camera for Activation via
Client Software.
Activation via Web Browser3.2.1
Steps:
1. Power on the camera. Connect the camera to your computer or
the switch/router which your computer connects to.
2. Input the IP address into the address bar of the web browser, and
press Enter to enter the activation interface.
Notes:
The default IP address of the camera is 192.168.1.64.
The computer and the camera should belong to the same
subnet.
For the camera enables the DHCP by default, you need to use
the SADP software to search the IP address.
