Norton Clipper C1418P User manual

OWNERS
MANUAL
Small Concrete Saw
MODEL:
C1318P
C1418P
FORM: C1318P-C1418P rev 2-2022

2
WARRANTY
Norton warrants all products manufactured by it against defects in
workmanship or materials for a period of one (1) year from the date of
shipment to the customer.
The responsibility of Norton under this warranty is limited to
replacement or repair of defective parts at Norton's Indianapolis IN,
factory, or at a point designated by it, of such part as shall appear to
us upon inspection at such point, to have been defective in material or
workmanship, with expense for transportation borne by the customer.
In no event shall Norton be liable for consequential or incidental
damages arising out of the failure of any product to operate properly.
Integral units such as gasoline engines, electric motors,batteries,
tires, transmissions, etc., are excluded from this warranty and are
subject to the prime manufacturer's warranty.
This warranty is in lieu of all other warranties, expressed or implied,
and all such other warranties are hereby disclaimed.
Important: Before placing equipment in operation, record the following
information.
MODEL:_________ SERIAL NO.___________
PURCHASE FROM: _____________________
ADDRESS: ____________________________
CITY_______ STATE ______ ZIP ________
TELEPHONE NO. ______________________
Before using this equipment, make sure that any person using it
reads and understands the instructions in this owner’s manual.

3
Table of Contents
CONTENTS PAGE
I. Preparation 4-9
A. Safety Precautions 4-6
Dust and Silica Warning 5
B. Assembly 7
C. C1318P and C1418P Series Concrete Saw Specifications 8
D. Engine 9
E. Pointer Alignment 9
II. Operation 9-14
A. Blade Installation 9-10
B. Starting The Engine 10-14
C1318P 13HP Honda 10-11
C1418P 14HP Kohler 11-13
C. Water Supply 13-14
D. Operating The Saw 14-15
E. Cutting Technique 15-16
III. Maintenance 16-25
A. Engine 16
C1318P Honda Powered 16-17
C1418P Kohler Powered 18-19
Dry Cutting Engine Maintenance (Honda and Kohler) 19
B. Bearings 19-20
C. V-Belts 20-23
D. Depth Control 24
E. Inspection and Cleaning 24
F. Wiring Diagrams: C1318P and C1418P 25
IV. Parts List Section 26-42
A. Ordering Information 26
B. Parts Drawing and Service Parts List 27-42
Depth Control And Depth Lock Group 27
Handle Bar Group 28
Blade Guard Group 29
Blade Shaft Group 30-31
Belt Tensioning Group 32
Engine Mount Group 33
Main Frame Group 34
Water Control Group 35-36
Front Pointer Group 37
Decals 38-42
Read Owner’s Manual Before Use
Safety Alert Symbol: Information Following This
Symbol Is Very Important.
Use Only Norton Diamond Blades

4
I. PREPARATION
A. Safety Precautions
Important! The following safety precautions must always be observed.
Hazard Symbols
Fuel (gasoline) is extremely flammable and its vapors can
explode if ignited. Store gasoline only in approved containers,
in well-ventilated, unoccupied approved areas, and away from
sparks or flames. Do not fill the fuel tank while the engine is
hot or running. Do not start the engine near spilled fuel. Never
use the fuel as a cleaning agent
Engine components can get extremely hot from operation. To
prevent burns, do not touch the engine or related parts while
the engine is running or immediately after it is turned off. Never
operate the engine with any heat shields or guards removed.
Keep all guards in place when operating any piece of
equipment
Keep hands, feet, hair, and clothing away from all rotating parts
Lethal Exhaust Gas: use only in well ventilated areas. Engine
exhaust gases contain poisonous carbon monoxide, which is
odorless, colorless, and can cause death if inhaled. Avoid
inhaling exhaust fumes, and never run the engine in a closed
building or confined area.
Never tamper with the governor components of settings to
increase the maximum speed. Severe personal injury and
damage to the engine or equipment can result if operated at
speed above maximum. Always obey the maximum speed
rating of blade.
DO NOT LIFT THE SAW BY THE HANDLE
BARS

5
Dust and Silica Warning
Grinding/cutting/drilling of masonry, concrete, metal and other materials can
generate dust, mists and fumes containing chemicals known to cause serious or
fatal injury or illness, such as respiratory disease, cancer, birth defects or other
reproductive harm. If you are unfamiliar with the risks associated with the
particular process and/or material being cut or the composition of the tool being
used, review the material safety data sheet and/or consult your employer, the
material manufacturer/supplier, governmental agencies such as OSHA and
NIOSH and other sources on hazardous materials and make certain to comply
with all product warnings and instructions for the safe and effective use of the
material being cut. California and some other authorities, for instance, have
published lists of substances known to cause cancer, reproductive toxicity, or
other harmful effects.
Control dust, mist and fumes at the source where possible. In this regard use
good work practices and follow the recommendations of the manufacturer/supplier,
OSHA/NIOSH, and occupational and trade associations. Water should be used
for dust suppression when wet cutting is feasible. When the hazards from
inhalation of dust, mists and fumes cannot be eliminated through engineering
controls such as vacuum and/or water mist, the operator and any bystanders
should always wear a respirator approved by NIOSH/MSHA for the material being
cut.
Use Approved:
Eye Protection Hearing
Protection
Respiratory
Protection
Head Protection

6
1. Before mounting any blade on the saw, the blade should be inspected for
any damage which might have occurred during shipment, handling or
previous use.
2. The blade collars and arbors should be cleaned and examined for damage
before mounting the blade.
3. The blade must be properly fitted over the arbor with the drive pin on the
outside collar projecting through the drive pin hole on the blade and inside
collar.
4. The blade shaft nut, which is a left-hand thread nut, must be tightened
securely against the outside blade shaft collar.
5. The blade must be operated within the specified maximum operating speed
listed on the blade.
6. Turn water control valve to full to provide adequate coolant (4 to 6 gallons
per minute) for diamond blades and wet cutting abrasive blades.
Insufficient coolant could result in severe blade breakage or diamond
segment separation.
7. The blade guard must be in place with the nose guard down and locked
when the saw is running.
8. The operator should wear safety glasses and any other appropriate safety
equipment.
9. When starting the saw, the operator should stand away and to the side of
the blade.
10.If for any reason the saw should stall in the cut, raise the blade out of the
cut. Check the outside blade shaft collar and nut for tightness. Inspect the
blade for damage before restarting the saw. Use caution when resuming a
cut. Be certain that the blade is in alignment with the previous cut.
11.During cutting operations do not exert excess side pressure on the handles
as a method of steering. Do not force the blade into the cut by lowering the
blade too fast or by pushing the saw too fast.
You Are Responsible For Your Safety!!!

7
I. PREPARATION
B. Assembly
The C1318P and C1418P are the same machine except for the engine. The
C1318P utilizes the Honda GX390 13HP engine while the C1418P uses the
Kohler 14HP CH440 engine.
The compact concrete saws are shipped completely assembled and ready for
use except for diamond blade, gasoline, oil, and handle bar. Inspect the saw
for shipping damage. If any damage is found, contact the shipper immediately
and file a freight claim. Norton Clipper is not responsible for any freight-related
damages. Remove the saw from the pallet. Reverse the position of the
handlebars so that the handle bar sticks out towards the operator. Adjust the
handlebars to the desired height. Align the hole located in the operator’s right
side of the Handle Bar Assembly with the M10 Weld Nut in the frame. Attach
the handlebars to the saw with the supplied hardware. The Operator’s Right
Side Screw part# 028098 will pass through a hole in the Handle Bar Assembly.
Tighten 029098 to the Handle Bar Assembly and then tighten the M10 Jam Nut
027006. Tighten 027021 to the Handle Bar Assembly and then tighten the
M10 Jam Nut 027006. Read and understand the remaining sections of this
Owner’s Manual. NOTE: Do not install the blade until it is time to use the saw.
ANSI regulations prohibit the transportation of any concrete saw with the blade
installed.
DO NOT LIFT THE SAW BY THE HANDLE BARS

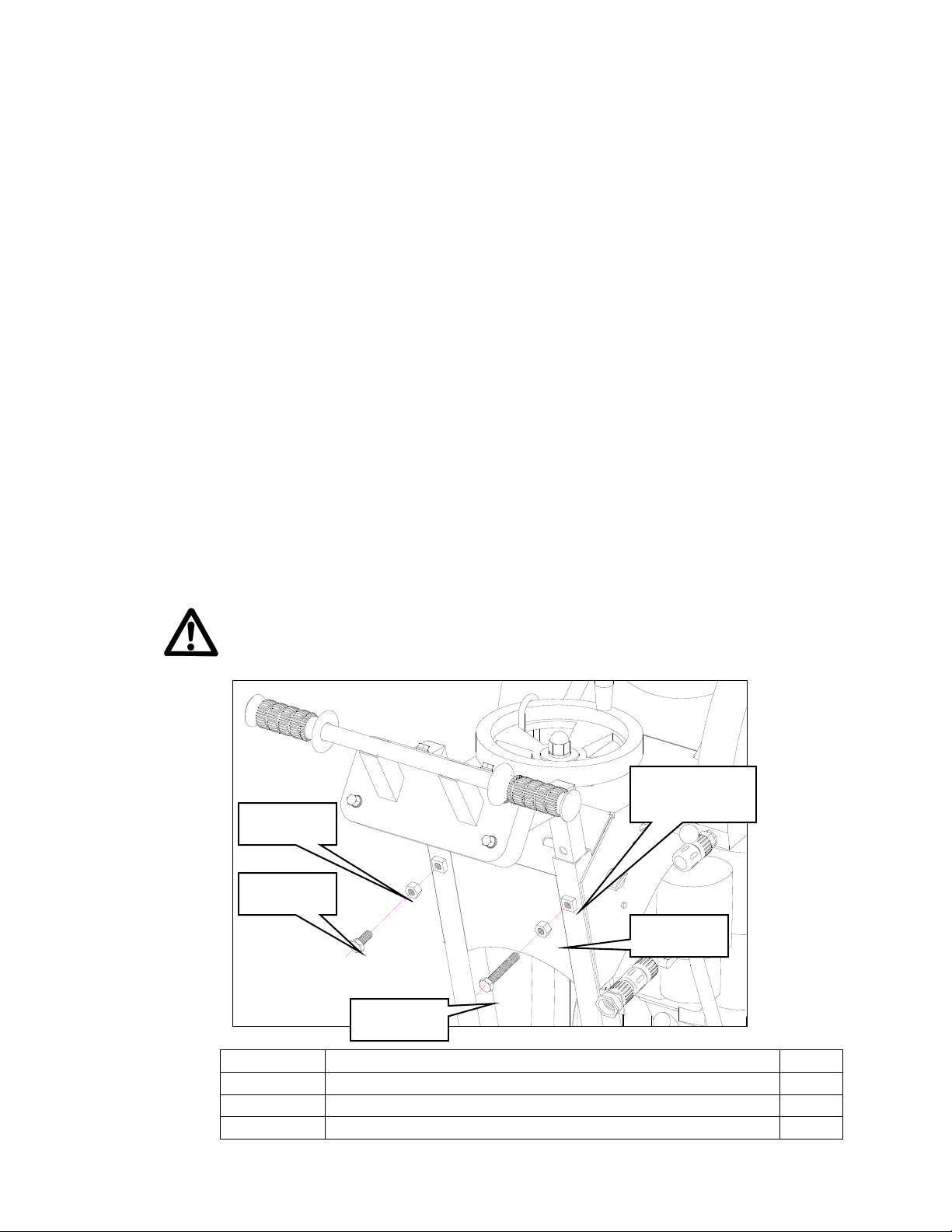

Part # Description QTY
027021 Screw DIN931 M10 x 25 Hex Head Cap 1
028098 Screw DIN933 M10 x 65 Hex Head Cap 1
027006 M10 Jam Nut DIN934 2
027021
028098
027006
027006
M10 Weld
Nut

8
C. C1318P and C1418P Series Concrete Saw Specifications
Dimensions/Weight C1318P C1418P
Length (Working) 45.66” (1160 mm)
Length (Transport) 33.50” (850 mm)
Width 39.50” (1003 mm)
Height 39” (990 mm)
Weight 220 lbs (100 kg)
Engine
Engine Mfg. Honda Kohler
Model GX390 CH440
Manufacturers Spec No. GX390K1QXC9 PA-CH440-3302
Engine Type Single Cylinder 4 Cycle Single Cylinder 4 Cycle
Horse Power - Gross 13 hp* (9.5kW)
@ 3,600 rpm
14 hp* (10.4kW)
@ 3,600 rpm
Max Torque – Gross 19.5 ft-lbs (26.5 Nm, 2.7
kg-m) @ 2,500 rpm
22.7 ft-lbs (30.8 Nm, 3.1
kg-m) @ 3,600 rpm
Cooling System Air Air
Oil Capacity 1.16 US qt (1.1 liter) 1.4 US qt (1.3 liter)
Fuel Capacity 1.79 US gal (6.5 liter) 1.75 US gal (7.0 liter)
Fuel Type Unleaded Gasoline (86 pump
octane)
Unleaded Gasoline (86 pump
octane)
Low Oil Sensor Yes Yes
Air Filtration Four Stage Cyclone Four Stage Quad Clean
Characteristics
Max Blade 18” (450 mm)
Depth of Cut 18” (406 mm) 6.75” (172 mm)
16” (406 mm) 5.75” (146 mm)
14” (356 mm) 4.75” (121 mm)
12” (305 mm) 3.75” (95 mm)
Arbor Bore 1” (25.4 mm)
Blade Shaft Locking Device Machined Into Flats Of Tight Collar
Blade Shaft Speed 2,573 rpm
Depth Control Hand Wheel With Screw Feed
Depth Lock Standard
Depth Gauge Customer Installed Accessory
Number Of Belts Single Ten (10) Groove K Section Belt
Blade Guard Type Hinged, All Steel Construction
Right or Left Side Cutting Yes
Lifting Bale Built In
Handle Bars Adjustable, Stays Level At All Times
Water Tank Standard
Water Tank Capacity 6.5 US Gallons (24.6 liter)
Water Hose Connector Standard Garden Hose With Flow Control Valve
Recessed Rear Wheels Standard
Sound pressure188 db(A)
Sound power1105 db(A)
Vibration emission value 9.18 ft/ s² (2.8 m/s²) (according to EN 12096)
* = Horse power and Torque ratings are Gross Horse power and are supplied by the engine manufacturer. Actual output of the engine will vary due to
many factors including operational speed of engine, environmental conditions, maintenance, fuel, and other variables. Saint-Gobain Abrasives, Inc. makes
NO claim to actual or gross horse power and torque ratings. 1) The sound measures have been made following pr EN 12638, Annex A; 2)“Floor sawing,
grooving and milling machines – Safety “

9
D. Engine
Prior to attempting to operate the engine, read the information
contained in the engine owner's manual. An engine owner’s manual is
supplied with every gasoline powered concrete saw.

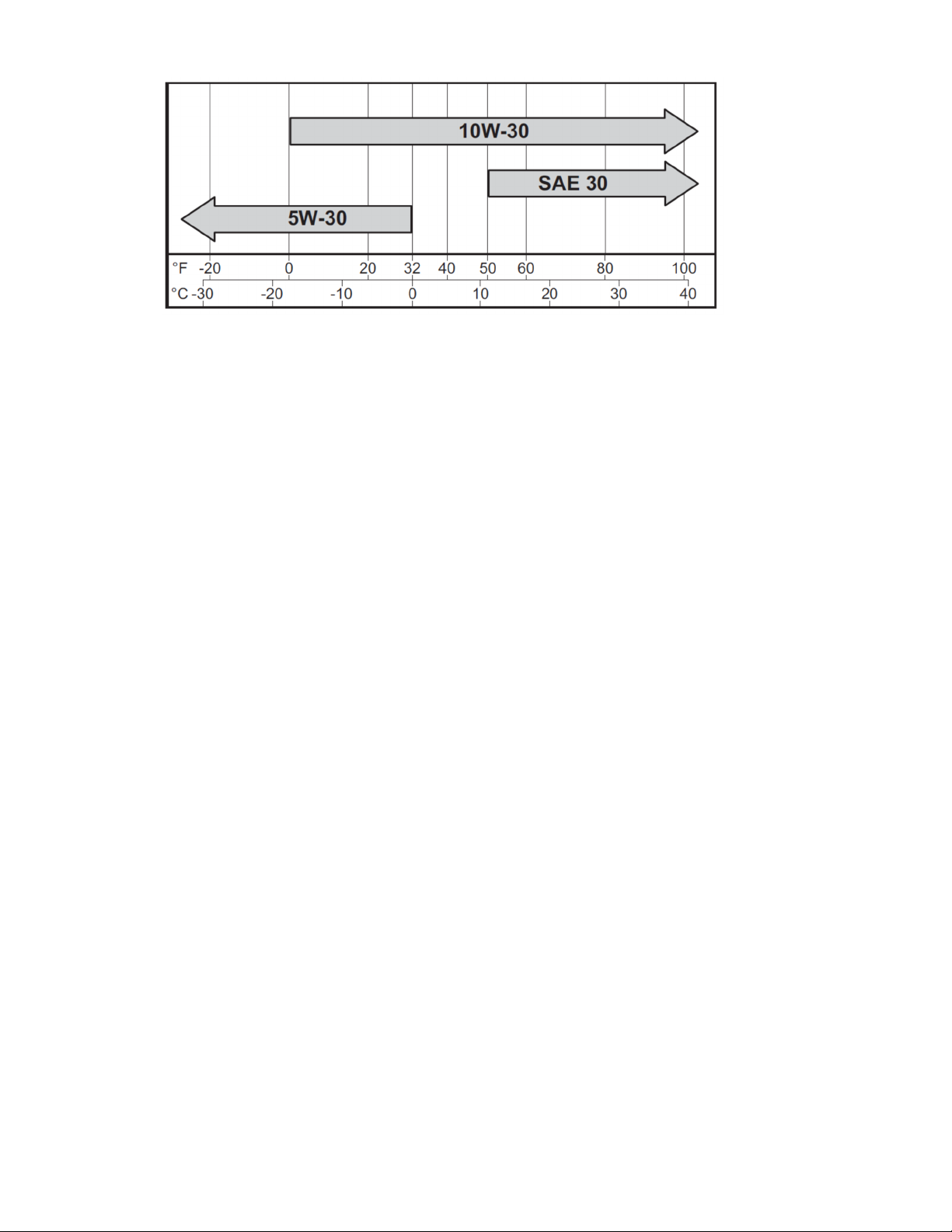

1. Check Oil: Add oil if low. Refer to the engine owner's manual for the
recommended SAE viscosity grades. Capacity of oil is 1.16 US quarts (1.1
liters) for Honda powered C1318P and 1.4 US qt (1.3 liter) for Kohler
powered C1418P models
2. Check Fuel: Fill if low. Use only unleaded gasoline with a pump sticker
octane rating of 86 or higher is recommended. Never use an oil and
gasoline mixture!
3. Air Cleaner: Never run the engine without the air cleaner! Rapid engine
wear will result from contaminants being drawn through the carburetor and
into the engine.
4. Engine Starting: Refer to the engine owner's manual additional proper
engine starting procedure.
E. Pointer Alignment
1. Use a straight edge, and carefully mark a line 12 feet long on a smooth level
surface.
2. Place the saw blade on the marked line, move the saw to the center of the
marked line and then lower the blade until it is about 1/16” above the
marked line
3. Measure from each end of the saw frame to insure that the frame is parallel
to the marked line. Adjust the saw as needed.
4. With the blade centered on the marked line and the saw frame parallel to
the marked line, lower the front pointer.
5. Adjust the pointer by bending it until is aligned with the marked line.
II. OPERATION
A. Installing the Blade
1. Disconnect the spark plug.
2. Remove the blade shaft nut, (Turn clockwise),and remove the outside
collar.

10
3. Clean off any foreign particles on the clamping surfaces of both collars
and on the mounting surface of the blade.
4. Place the blade on the blade shaft, lining up the drive pin hole in the blade
with the drive pinhole in the inside collar.
For Best Performance Use Only Norton Diamond Blades Specified
for the Material Being Cut.
5. Slide the outside blade shaft collar onto the blade shaft. The drive pin on
the outside collar must project through the drive pin hole in the blade and
into the inside collar.
6. Tighten the blade shaft nut (counter-clockwise) securely against the
outside collar.
7. Reconnect the spark plug.
B. Starting the Engine
Starting the C1318P 13HP Honda
1. Refer to the engine owner's manual for detail starting procedures.
2. Always cut with engine rpm in the full throttle setting.
Before starting, insure that the blade is properly installed,
all guards are in place and in safe operating condition,
and that the Blade is not in contact with any surface or
object. Also verify that the area where the work is to be
performed is clean, safe, and has proper ventilation and
lighting. Always located and properly mark all water, gas,
and electrical services before beginning any work.
C1318P Honda Powered
Move the Fuel Control to the ON Position
C1318P Honda Powered
Move the choke lever to the CLOSED position.
NOTE: do not use the choke if the engine is warm or
the air temperature is high.
C1318P Honda Powered C1318P Honda Powered

11
Pull The Throttle Control Slightly to the Rear to
provide some engine throttle.
Place the Console ON/OFF switch to the ON
position
C1318P Honda Powered
Pull the starter grip lightly until you feel resistance,
then pull briskly. CAUTION: Do not allow the starter
grip to snap back against the engine. Return it gently
to prevent damage to the starter.
C1318P Honda Powered
As the engine warms up, gradually move the choke
lever to the OPEN position. Position the throttle
control lever for the maximum engine speed (full
Rear).
To stop the engine, move the Throttle Control Lever fully to the Forward
Position (Slow), then turn the Console Switch to the OFF position. Turn the fuel
valve to the OFF position (move to LEFT).
Never transport the machine with the Fuel Valve in the ON
position. Never Store the machine with the Fuel Valve in
the ON position. Never Transport a machine with the blade
installed.
Starting the C1418P 14 HP Kohler
1. Refer to the engine owner's manual for detail starting procedures.
2. Always cut with engine rpm in the full throttle setting.
3. Check Engine Oil lever per the Honda Engine Manual. Add if
needed, DO NOT OVERFILL.
4. Check Fuel Level and add fuel if needed.
a. Check fuel system for leaks.
5. Verify and clean engine cooling areas, air intake, and external
surfaces of the engine.

12
6. Verify that the air cleaner components, all shrouds, machine blade
guard, machine belt guard are in place and securely fastened.
Before starting, insure that the blade is properly installed,
all guards are in place and in safe operating condition,
and that the Blade is not in contact with any surface or
object. Also verify that the area where the work is to be
performed is clean, safe, and has proper ventilation and
lighting. Always located and properly mark all water, gas,
and electrical services before beginning any work.

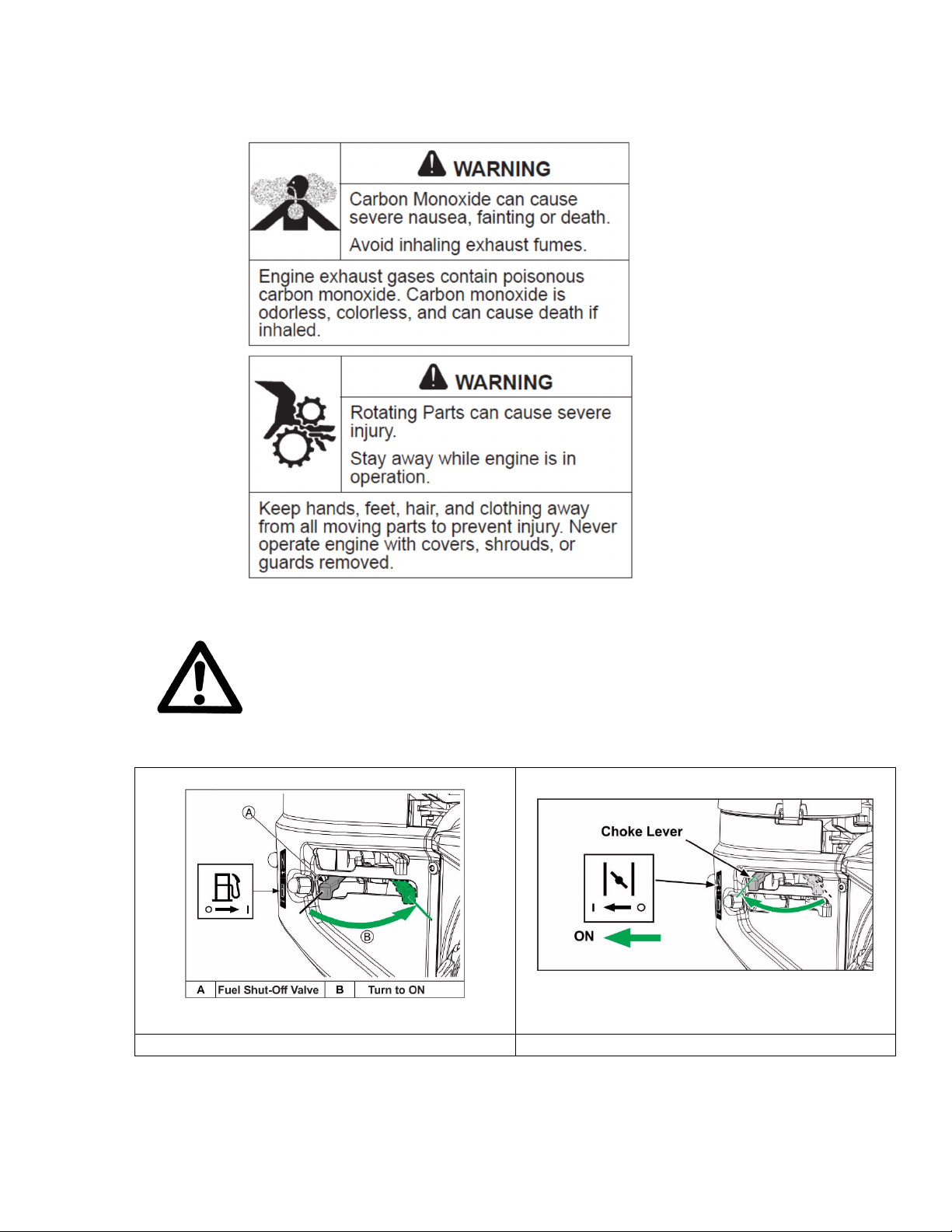

C1418P Kohler Powered
Turn the Kohler Engine Fuel Control To the ON
Position
C1418P Kohler Powered

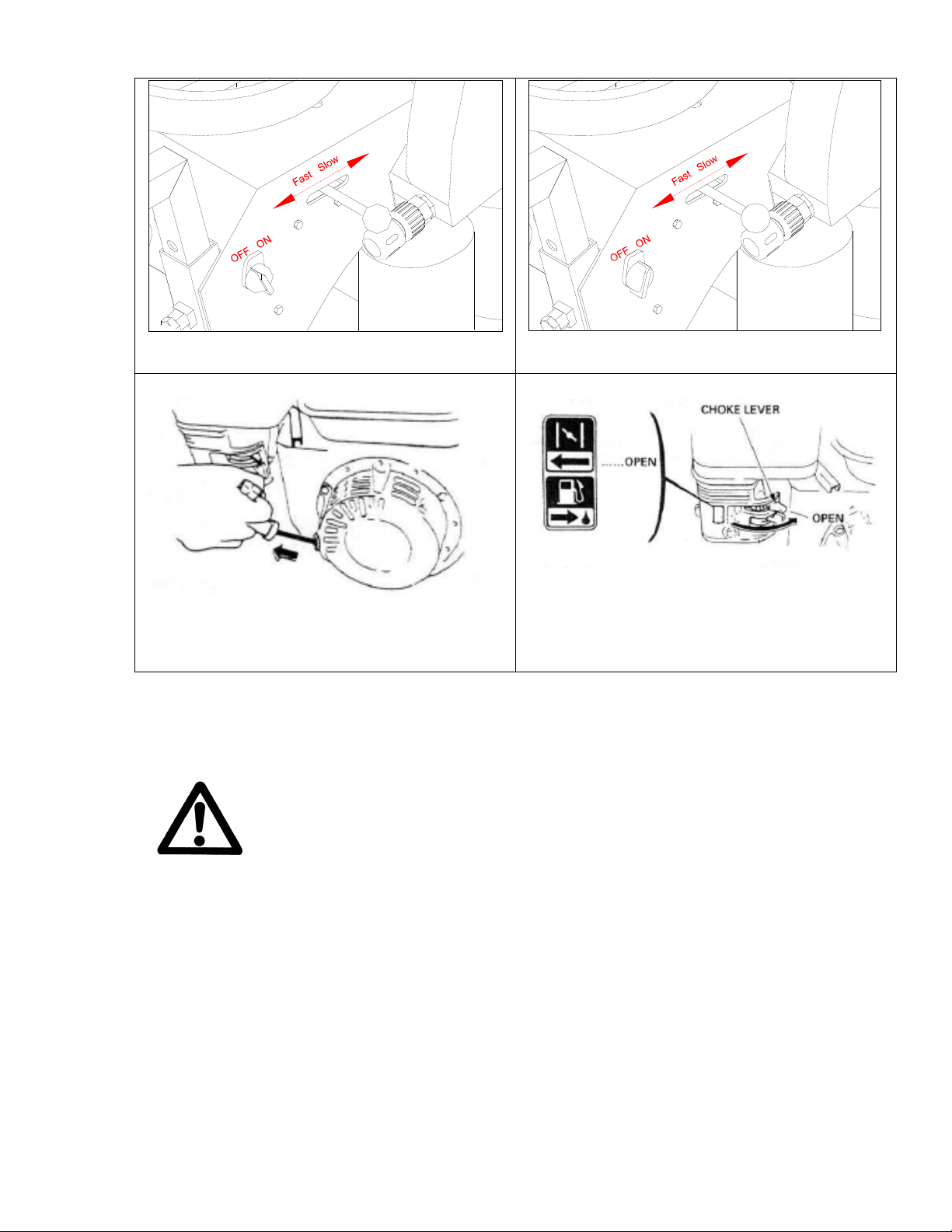

Move the choke lever to the CLOSED position.
NOTE: The Choke may not be needed if the engine
is warm or the air temperature is high.
C1418P Kohler Powered C1418P Kohler Powered

13
Move the Engine Throttle Slightly to the Left
Place the engine ON/OFF switch to the ON position
and NOTE: The Engine ON/OFF Switch is located
on the front of the Engine.
C1418P Kohler Powered
Turn the Console ON/OFF Switch to the ON
Position.
C1418P Kohler Powered
Pull the starter grip lightly until you feel resistance,
then pull briskly. CAUTION: Do not allow the starter
grip to snap back against the engine. Return it gently
to prevent damage to the starter.
C1418P Kohler Powered
As the engine warms up, gradually move the choke
lever to the OPEN position (fully to the right)
C1418P Kohler Powered
Position the throttle control lever for the maximum
engine speed before cutting (fully Forward).
To stop the engine, move the Throttle Control Lever fully to the Slow Position
(fully to the rear, turn the Console ON/OFF Switch to the OFF position, move
the Fuel Control Lever fully to the LEFT (this will turn off the fuel), and Kohler
Engine On/Off switch to the OFF Position.
Never transport the machine with the Fuel Valve in the ON
position. Never Store the machine with the Fuel Valve in
the ON position. Never Transport a machine with the blade
installed.
C. Water Supply
Pressurized source: Turn the water control to full "ON" when using wet
cutting blades. The required flow rate is 4-6 gallons per minute.

14
Water Tank on saw: This supply is designed for use with dry blades to
keep the dust levels down. The tank will not supply the proper water flow
rates when used with wet cut only blades. Do not drink the water from this
tank. Fill the tank with water only. Close the water tank valve. Attach the
saws water supply hose to the tank outlet. Fill the tank with water. The
capacity of the tank is 6.5 US Gallons (24.6 liter). When you are ready to
cut, adjust the water supply rate until a fine mist or a slow trickle is made.
The use of water greatly decreases the amount of dust produced during the
cutting process, aids in the cooling of the blade, and provides additional
stability.
Use Only Water in The Water Tank
Do Not Drink from The Tank
D. Operating the Saw
1. For blade installation instructions see section II. Operation sub heading
A. Installing the Blade. For the engine starting instructions, see the
Engine manual and follow the instructions located in section II. Operation
sub heading B. Starting the Engine.
2. Check the Engine Oil level.
3. Raise the saw to the full upright position. Do not let the blade come in
contact with the ground.
4. Maneuver the saw to the desired starting point.
5. If wet cutting, connect the water supply to the saw.
6. Follow the instructions for starting the engine found in the Engine manual.
7. If wet cutting, turn on the water supply at the source and then open the
water valves on the saw. Make sure that there is a minimum of 4-6 gallons
per minute of water flow!!
8. Be sure the engine is running at full throttle!!!
9. Slowly lower the blade by rotating the hand wheel clockwise until the
desired depth of cut is reached. Use a reasonable rate of feed. Do not
force the blade into the cut!!

15
10. When the end of the cut is reached, slowly raise the blade out of the cut by
rotating the Hand Wheel counter-clockwise until the blade is at least one
(1) inch above the ground.
11. Only move the saw in reverse with the blade in the raised position.
13. When moving the saw to a new location, be sure the blade is not touching
the ground. Always pay close attention to where you are moving and
where the blade is at all times.
E. Cutting Technique
Lower the blade into the concrete to the required depth by turning the hand
wheel clockwise.
Reduce the forward pressure if the saw begins to stall.
Note: For deeper cuts (4 inches or more), several cuts should be made in
incremental steps of 1-1/2 to 2 inches until the desired depth of cut is reached.
Push the saw steadily forward using the front pointer as a guide. Exert enough
forward pressure so that the engine begins to labor, but does not slow down. If
the saw begins to stall, reduce the forward movement until full rpm is restored
to the blade. If the saw stalls, raise the blade out of the cut before restarting.
Avoid excessive side pressure or twisting of the blade in the cut.
Additional Guide Lines for Sawing:
Understand and follow all of the instructions in this owner’s manual.
If wet cutting, turn on the water supply so that there is a minimum of 4-6
gallons per minute of water flow!!
In critically hard aggregate, more than a single pass may be needed to cut
the desired depth.
If the saw stalls in the cut, immediately stop the forward speed and raise the
blade out of the cut. If this is not done the belts can fail or the blade may be
damaged.
Go slowly with a new blade until it opens up, that is, until the diamonds can
be seen and felt.
III. MAINTENANCE

16
A. Engine
Follow the below schedule for engine maintenance. NOTE: Check the Engine
manual that shipped with the engine for any changes to the maintenance
schedule. Or visit the engine manufacturer’s web site for details.
If the charts have any differences, follow the chart in the Engine Manual.
Norton does not warranty the engine. If any warranty or service of the engine
is required contact your nearest Engine Service Center, or from the Internet:
http://www.honda-engines.com (770-497-6400) or www.kohlerpower.com (800-
554-2444)

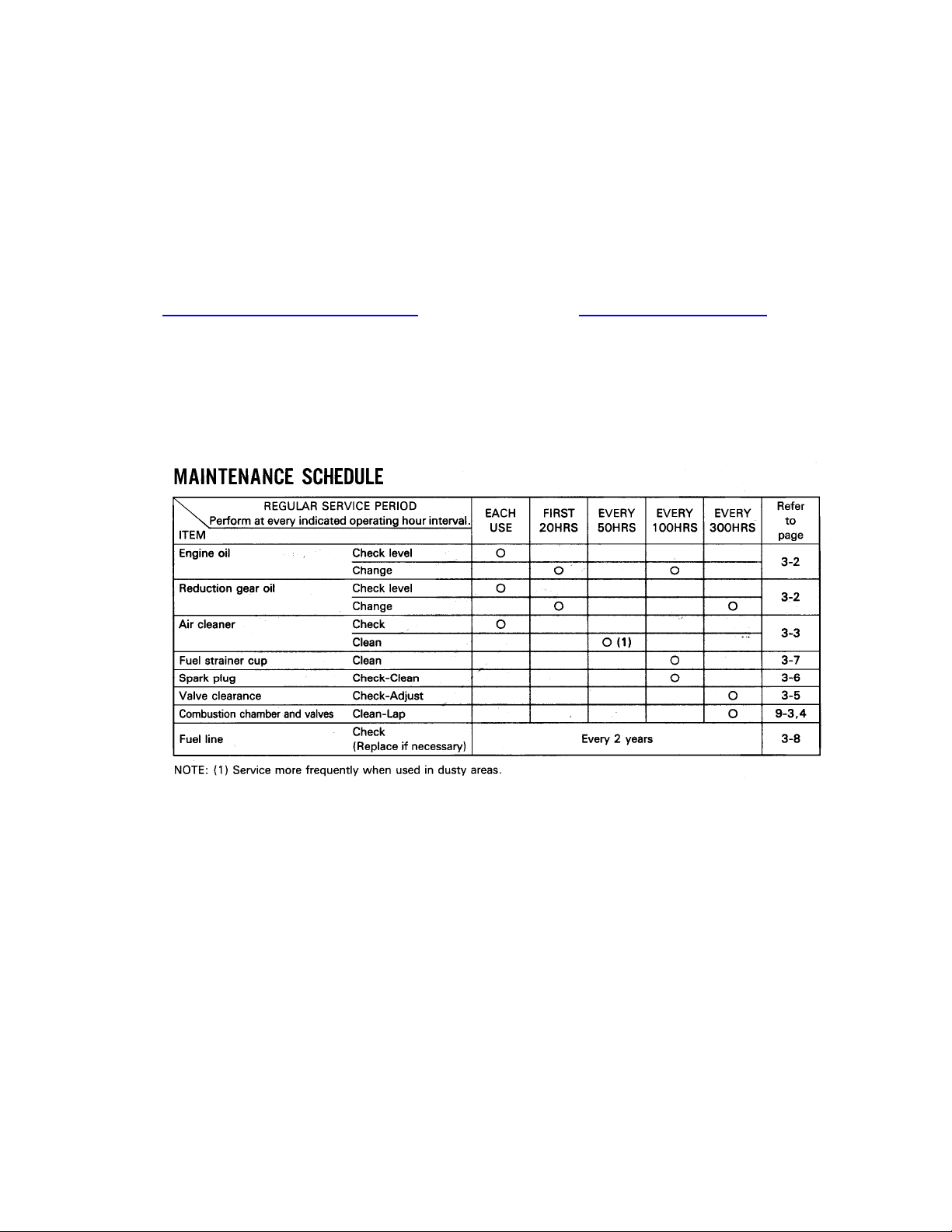

C1318P Honda engine (refer to Honda Engine Owner's
Manual for complete maintenance.)
Check the engine oil level before each use when the engine is cool and the
engine is level. Add oil if the level is low. The oil level should be within the
operating range (see the engine owner’s manual for details).
Only use a high-detergent, premium quality motor oil certified to meet or
exceed U.S. automobile manufacturer’s requirements for Service Classification
SG, SF/CC, CD. Motor oils will show the classification on the container. A
SAE viscosity of 10W-30 is recommend by Honda for general, all temperature
use. Please consult the below chart or contact your local Honda service center
for the proper viscosity for your temperature range.

17
Honda Engine Oil Viscosity vs. Ambient Temperature. Honda Engines
Only.
Always refer to the engine manual for more detailed information on checking
the oil, changing oil, and oil capacity, air filter changes, and fuel type to use.
Use only Honda air filters. Do not clean the air filter with gasoline or other
flammable solvents. A fire or explosion could result. To clean, follow the
instructions found in the Honda engine manual.

18
C1418P Kohler engine (refer to Kohler Engine Owner's
manual for complete maintenance.)
Check the engine oil level before each use when the engine is cool and the
engine is level. Add oil if the level is low. The oil level should be within the
operating range (see the engine owner’s manual for details).
Kohler recommends the use of Kohler oils for the best performance (contact
your local Kohler Dealer to purchase or for additional information: Phone: 1-
800-456-4537 web: https://kohlerpower.com/en/engines/dealers)
Other high-quality detergent oils (including synthetic) of API (American
Petroleum Institute) service class SJ or higher are acceptable. Select viscosity
based on air temperature at time of operation as shown in table below.

19
Kohler Engine Oil viscosity vs. ambient Temperature. Kohler Engines
Only.
Dry Cutting Engine Maintenance (Honda and Kohler)
When operating the engine in dry cutting or dusty environments the following
is required:
Engine oil changed more often.
Every 50 hours (or more often if conditions require) clean all of the engine
cooling fins.
Every 25 hours (or more often if conditions require) clean the engine pre-
cleaner.
Every 100 hours (or more often if conditions require) replace the air filter. If
the engine is equipped with a reusable air cleaner, clean and re-oil it.
Check and clean the air filter after each use. Replace as needed.
B. Bearings
Re lubrication type bearings must be relubricated weekly to assure long life.
The grease used should conform to the NLGI grade two and be free of any
chemical impurities such as free acid or free alkali, dust, rust, metal particles
or abrasives.
For best results, bearings should be relubricated while in operation. Note:
Due caution for personal safety must be observed when servicing
rotating equipment. The grease should be pumped in slowly until a slight
bead forms around the seals. This bead, in addition to acting as an
indicator of adequate relubrication, provides additional protection against
the entry of foreign matter. If necessary to relubricate while the bearing is
idle refer to relubrication table for maximum grease capacity for the various
size bearings.

20
Shaft Size Maximum Grease Capacity of
Bearing Chamber in Ounces
1/2"' to 3/4" 1/8
7/8" to 1-3/16" 3/8
1-1/4" to 1-1/2" 5/8
Improper Maintenance Of Bearings Is Not Covered By Any
Warranty. Over Lubrication Will Damage A Bearing.
Grease Protruding From The Sides Of The Bearing Is A
Sign Of Over Lubrication. Not Lubricating Bearings Will
Damage The Bearing Unit. Damage Caused By Over or
Under Lubricating Bearings Is Not Covered By Any
Warranty.
C. V-Belts
Warning: Never make adjustments to belts or pulleys while
engine is running!
The best tension for a belt drive is the lowest tension at which the belts will not
slip under full load.
To adjust the C1318P/C1418P Belt Tension:
The C1318P/C1418P uses a simple single point tensioning system for the belt
tensioning. The Belt Tensioning Assembly can be found behind the engine and
is located in the center of the Frame. The Belt Tensioning Device is designed to
pull or push the engine from the center which helps to reduce the Engine from
twisting during the Belt Tensioning process. This new system is designed to be
simple to install and to maintain with the tools equipped with the machine.
Insure that the Engine ON/OFF Switch is in the OFF
position and that the Spark Plug is disconnected before
making any adjustment to the Belt tension.
