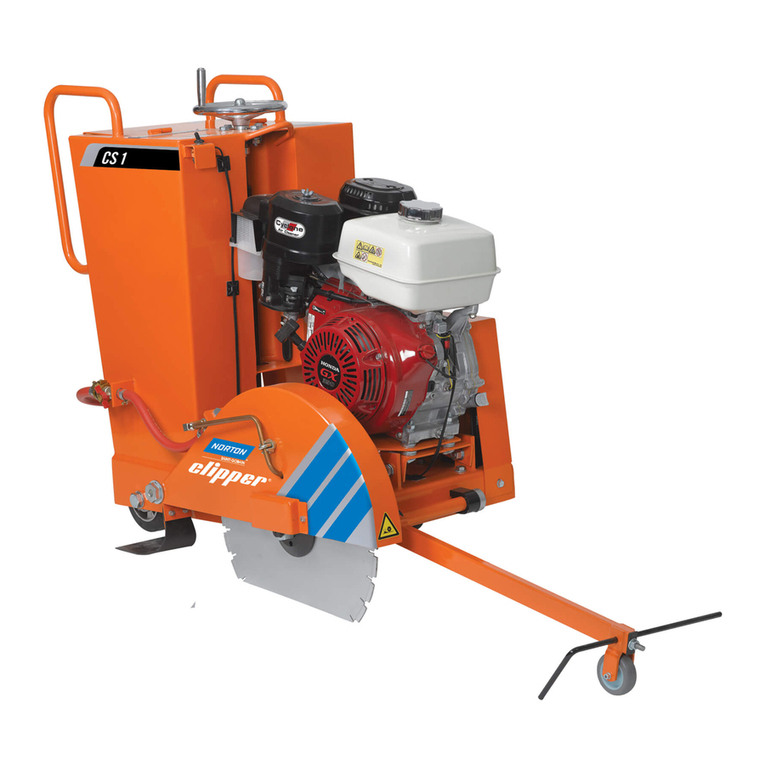

Norton clipper CS 502LV P13 User manual

CS 502LV P13
OPERATING INSTRUCTIONS
Translation of the original instructions

VERS.2022.09.11 CS 502LV P13_MAN_EN
2

VERS.2022.09.11 CS 502LV P13_MAN_EN
3
The undersigned manufacturer:
SAINT - GOBAIN ABRASIVES S.A.
190, BD. J. F. KENNEDY
L-4930 BASCHARAGE
Declares that this product:
« Floor saw »: CS 502LV P13 Code : 70184631994
is in conformity with the following Directives :
"MACHINES" 2006/42/CE
"ELECTROMAGNETIC COMPATIBILITY" 2014/30/CE
"NOISE" 2000/14/CE
And the European standard:
EN 13862 –Floor cutting-off machines –Safety
Valid for machines as of serial number:
4503092913
Storage site for the technical documents:
Saint-Gobain Abrasives 190, Bd. J. F. Kennedy 4930 BASCHARAGE, LUXEMBOURG
This declaration of conformity loses its validity when the product is converted or modified without
agreement.
Bascharage, Luxembourg, 09/11/2021.
François Chianese, executive officer.
Declaration of conformity

VERS.2022.09.11 CS 502LV P13_MAN_EN
4
The undersigned manufacturer:
SAINT - GOBAIN ABRASIVES S.A.
190, BD J.F. KENNEDY
L- 4930 BASCHARAGE
Declares that this product:
Floor Saw: CS 502LV P13 Code: 70184631994
is in conformity with the following standard:
Supply of Machinery (Safety) Regulations 2008
Electromagnetic Compatibility Regulations 2016
Noise Emission in the Environment by Equipment
for use Outdoors Regulations 2001
and European standard:
EN 13862 –Floor cutting-off machines –Safety
Valid for machines with a serial number greater than: 70100000
Authorised Representative:
SAINT-GOBAIN ABRASIVES
Unicorn House • Unit 1, Amison Close
Redhill Business Park • Stafford • England • ST16 1WB
This declaration of conformity loses its validity when the product is converted or modified
without agreement.
Bascharage, Luxembourg, 09.11.2022
François Chianese, executive officer.
Declaration of conformity

VERS.2022.09.11 CS 502LV P13_MAN_EN
5
CS 502LV P13
OPERATING INSTRUCTIONS AND SPARE PARTS LIST
1BASIC SAFETY INSTRUCTIONS 6
1.1 Symbols 6
1.2 Machine plate 7
1.3 Safety instructions for particular operating phases 8
2GENERAL DESCRIPTION OF THE CS 502LV 9
2.1 Short description 9
2.2 Layout 10
2.3 Technical data 12
2.4 Statement regarding the vibration emission 13
2.5 Statement regarding noise emission 14
3ASSEMBLY AND COMMISSIONING 15
3.1 Operator’s handle assembly 15
3.2 Tool assembly 15
3.3 Water cooling system 15
3.4 Starting the machine 16
4OPERATING THE CS 502LV 17
4.1 Site of work 17
4.2 Cutting method 17
5TRANSPORT AND STORING 19
5.1 Securing for transport 19
5.2 Transport and lifting procedure 19
5.3 Long period of inactivity 19
6MAINTENANCE AND SERVICE 20
6.1 Maintenance of the machine 20
6.2 Maintenance of the engine 21
7BREAKDOWNS: CAUSES AND CURES 24
7.1 Breakdown-finding procedures 24
7.2 Trouble-shooting guide 24
7.3 Customer service 25
7.4 Spare parts 26

VERS.2022.09.11 CS 502LV P13_MAN_EN
6
1 BASIC SAFETY INSTRUCTIONS
The CS 502LV is exclusively designed for the cutting of floors made of asphalt, green and cured
concrete (reinforced or not) as well as of industrial cement.
Uses other than the manufacturer's instructions shall be considered as contravening the regulations.
The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne
entirely by the user. Observing the operating instructions and compliance with inspection and
servicing requirements shall also be considered as included under use in accordance with the
regulations.
1.1 Symbols
Important warnings and pieces of advice are indicated on the machine using symbols. The following
symbols are used on the machine:
Read operator’s instructions
Ear protection must be worn
Hand protection must be worn
Eye protection shall be worn
Cutting depth indicator
Danger: risk of cut

VERS.2022.09.11 CS 502LV P13_MAN_EN
7
Rotation of the wheel in the indicated
direction lowers the blade
Rotation of the wheel in the indicated
direction raises the blade
Never move the machine with the blade
running idle.
Rotation direction of the blade
Emergency Stop
1.2 Machine plate
Important data can be found on the following plate located on the machine:
Ø Bore
Machine type
Serial number
Power
Safety standard
Machine Model
Machine Code
Blade speed
Weight
Year of
production
ØMaximum
blade

VERS.2022.09.11 CS 502LV P13_MAN_EN
8
1.3 Safety instructions for particular operating phases
Before commencing work
Before commencing work, make yourself familiar with the working environment at the place of
use. The working environment includes: obstacles in the area of work and manoeuvre, the
firmness of the floor, necessary protection at the site relating to public thoroughfares and the
availability of help in the event of accidents.
Check for correct mounting of the blade regularly.
Immediately remove damaged or badly worn blades, as they endanger the operator whilst
rotating.
Always cut with the blade guard in position.
Only fit NORTON diamond blades to the machine! The use of other tools can damage the machine!
Read the blades’ specifications carefully to choose the correct tool for your application.
Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes No.8
of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1. Also use the other safety
equipment as mentioned in the symbols plus a dust mask when dry cutting is applied.
For security reasons, never leave the machine unattended, untied or unlocked.
While the engine is running
Do not move the machine whilst the blade is running idle.
Do not run the machine without the security guards in place.
Apply cooling water continuously whilst cutting and in good time (even when dry cutting to avoid
dust)!
Petrol powered machines:
Always use the fuel advised.
In confined areas, exhaust gases should be evacuated and the job site properly aerated.
Petrol and diesel machines, which by their nature emit toxic exhaust gases, must not be used in
places prohibited by the Health at Work etc. Act 1974 or which are prohibited by Factory
Inspectors or Safety Officers.
Fuel is flammable. Before filling the tank, shut down the engine, extinguish all open flames and
do not smoke. Take care that no petrol is spilled on any motor part. Always wipe up spilled fuel.

VERS.2022.09.11 CS 502LV P13_MAN_EN
9
2 GENERAL DESCRIPTION OF THE CS 502LV
Any modification, which could lead to a change in the original characteristics of the machine, may
be done only by Saint-Gobain Abrasives S.A. who shall confirm that the machine is still in
conformity with the safety regulations. Saint-Gobain Abrasives S.A. keeps the right of making
technical or design modification without prior notification.
2.1 Short description
The Floor Saw CS 502LV you have chosen is used for small repair works in concrete and asphalt,
for cutting induction loops and installing cables as well as for cutting expansion joints. It can be used
either for wet or dry cutting operations.
An optimized mass repartition and positioning of 25 litre water tank allow outstanding cutting
performance as well as easy handling.
Operator can use specific devices to set cutting depth and track easily.
Ergonomic handles height can be set at right value whatever the cutting depth; handles feature a
built-in vibration absorbing device.
Reinforced frame reduces vibration level as well as operator’s fatigue.
CS 502LV has taper lock pulleys and Poly-V belt for better reliability and easy maintenance.
Being of small construction, it can be transported in a car or van; the handle can be removed,
reversed or retracted. The 25 litre water container is also removable.
All component parts on the CS 502LV are assembled to a high quality standard, ensuring long life,
reliability and a minimum of maintenance.
Special types of blades are available for asphalt, green concrete, cured concrete (reinforced or not)
as well as for industrial cement flooring.

VERS.2022.09.11 CS 502LV P13_MAN_EN
10
2.2 Layout
Made of jig welded open profile steel, the CS 502LV is stable but at the same time, easily
transportable.
The one-piece blade guard (1) fully protects the operator and his working environment. It is firmly
fixed to the main frame but can be opened by rotation to change blades.
A manually operated hand wheel mechanism (2) enables graduated depth setting. Turning the hand
wheel clockwise or anti-clockwise will lower or raise the cutting blade. A depth gauge allows the
operator to control precisely the depth of cut.
The handle (3) is detachable or can be reversed for easy transportation. The height is adjustable
whatever the cutting depth. A specific built-in device reduces vibrations.
Machine frame is designed in a way to reduce vibrations too, improving working conditions.
The pivoting frame (4), hinged on the rear axle, is supporting the engine, the blade shaft assembly,
and the protecting guards. Poly-V belt drives the blade.
3
2
8
1
7
6
5
4
9
10
11

VERS.2022.09.11 CS 502LV P13_MAN_EN
11
The precisely manufactured blade shaft is fitted into two heavy-duty self-aligning pillow block
bearings, including grease nipples. On one end is a Poly-V pulley with taper lock and on the other
end the shaft is reduced to 25,4mm, allowing an inner flange to be fixed. Outer flange is assembled
on the shaft with a 36mm locking nut.
(A 20 mm thick spacer flange and an outer flange, with dowel pinholes, can be provided as
accessories)
The steel belt guard (5) is a sealed two piece unit. The backing plate is bolted to the mainframe of
the machine and locking nuts are welded to it. The outer guard, covering the Poly-V belt and taper
lock pulleys, is held in place by four locking bolts.
The 13 HP Honda GX390 engine (6) is connected to a punch type safety switch (7) on the right side
of the machine near the levers. This allows an immediate stop of the machine in case of danger.
The water cooling system (8) is composed of a 25 litre water tank, a water tank tap and two water
nozzles located on the blade guard ensuring adequate flow of water to both sides of the cutting
blade. This system can be connected directly to tap water too.
The pointers (9) allow the operator to make precise cut easily.
The set including front cutting guide, guide attached to blade cover, and rear cutting guide allow to
align easily and accurately blade with cutting line.
A hook (10) allows the CS 502LV to be lifted in an easy and well balanced way.
Parking brake (11) secures the machine when it is not running.

VERS.2022.09.11 CS 502LV P13_MAN_EN
12
2.3 Technical data
Engine
Honda GX390, 4 stroke, 1 cylinder, 13HP (9,6kW)
Fuel
Automotive unleaded gasoline with a pump octane rating of 86 or higher
(research octane rating of 91 or higher)
Oil
Honda 4-Stroke, or equivalent high detergent, premium quality motor oil certified
to meet or exceed U.S. automobile manufacturer’s requirement for service
classification SG, SF. (SG, SF designated on the oil container).
SAE 10W-30 recommended
Starter
Manual pull cord
Air filter
Cyclone type
Max. blade diameter
500 mm
Bore
25,4 mm
Max. cutting depth mm
190 mm
Flange diameter
108 mm
Blade shaft speed
2573 min-1
Driving belt
Poly-V 698PK10
Water tank
25 l
Machine dimensions
(length x width x height)
1250 x 538 x 1090 mm in cutting configuration
Weight
113 kg
Max. operating weight
146 kg
Sound pressure level
88 dB (A) (ISO EN 11201)
Sound energy level
105 dB (A) (ISO EN 3744)
Vibration emission value
2.8 m/s² (according to EN 12096)

VERS.2022.09.11 CS 502LV P13_MAN_EN
13
2.4 Statement regarding the vibration emission
Declared vibration emission value in accordance with EN 12096
Machine
Model / code
Measured vibration
emission value a
m/s2
Uncertainty K
m/s2
Tool used
Model / code
CS 502LV P13
70184631994
2.8
0.5
Duo Extreme Ø350x25.4
Values determined according to procedure described in annex F of EN 13862
Measurements are made with new machines. Real values in the field could vary the simple
one with the double according to operating conditions, depending on:
oMaterial
oCutting depth
oMachine wear
oLack of maintenance
oTool not adapted to application
oTool in bad shape
oNon-specialised operator
Vibrations exposure time depends on cutting performance too
(adaptation machine / tool / material / operator)
When evaluating risks due to hand-arm vibration, you need to take into account effective
usage at rated power of machine during a full day of work; quite often you will realise that
effective utilisation time represents around 50% of overall duration of work. You have to
consider, of course, breaks, water feeding, preparation of work, time to move the machine,
disk mounting…

VERS.2022.09.11 CS 502LV P13_MAN_EN
14
2.5 Statement regarding noise emission
Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744.
Machine
Model / code
Sound
Pressure level
LPeq
EN ISO 11201
Uncertainty K
(Sound
Pressure level
LPeq
EN ISO 11201)
Sound power
level
LWeq
NF EN ISO 3744
Uncertainty K
(Sound power level
LWeq
NF EN ISO 3744)
CS 502LV P13
70184631994
88 dB(A)
2.5 dB(A)
105 dB(A)
4 dB(A)
Values determined using the procedure described in the standard EN 13862.
The measurements are made with new machines. Actual values may vary with site conditions, in
terms of:
Wear Machine
Lack of maintenance
Inappropriate tool for application
Tool in poor condition
Unskilled operator
Etc…
Measured values relate to an operator in normal use, as described in the manual position.

VERS.2022.09.11 CS 502LV P13_MAN_EN
15
3 ASSEMBLY AND COMMISSIONING
Before beginning the work with the CS 502LV, you have to assemble some parts.
3.1 Operator’s handle assembly
Secure the operator’s handle in a comfortable user position by using the locking screws.
3.2 Tool assembly
Only NORTON blades with a maximum diameter of 500 mm can be fitted on the CS 502LV.
A blade with a maximum diameter of 500 mm can be fitted. All tools used must be selected with
regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation
speed.
Before mounting a new blade, switch the machine off.
To mount a new blade, follow these steps:
Turn the hand wheel until the pivoting frame is in the raised position.
Loosen the screws maintaining the guard and turn the blade guard open.
Loosen the hexagonal nut (attention: left hand thread).on the blade shaft, which holds the
removable outer flange. Remove the nut and the outer flange Remove the nut and the outer
flange.
Clean the flanges and blade shaft and inspect for wear.
Mount the blade on the shaft ensuring that direction of rotation (arrow on blade steel centre) is
correct. Wrong direction of rotation blunts the blade quickly.
Put in place outer blade flange.
Tighten hexagonal nut with spanner supplied for this purpose (left hand thread).
Close the blade guard and tighten the screws.
ATTENTION! The blade bore must correspond exactly to the blade shaft. Cracked or damaged bore
is dangerous for the operator and for the machine.
3.3 Water cooling system
Fill in the water tank with clean water.
Open tank water-tap (note that handle on water-tap should be in line with water-flow).
Ensure that water is flowing freely in the circuit and delivered adequately to both sides of the blade,
as insufficient water supply may result in premature failure of the diamond blade or excessive dust
generation.
If needed, adjust water flow with blade guard water tap.
In case of frost, empty the water cooling system.

VERS.2022.09.11 CS 502LV P13_MAN_EN
16
3.4 Starting the machine
Make sure the blade is raised clear up the ground before starting the machine.
Turn the fuel valve to the ON position.
Move the choke lever to the CLOSED
position.
NOTE: do not use the choke if the engine is
warm or the air temperature is high.
Move the throttle control lever slightly to the
left.
Put the engine switch on ON, and make sure
the emergency switch on the board of the
machine is in the ON position.
Pull the starter grip lightly until you feel
resistance, then pull briskly.
CAUTION: Do not allow the starter grip to
snap back against the engine. Return it
gently to prevent damage to the starter.
As the engine warms up, gradually move the
choke lever to the OPEN position.
Position the throttle control lever for the
maximum engine speed (full left).
To stop the engine, move the throttle control lever fully to the right, then turn the engine switch to
the OFF position. Turn the fuel valve to the OFF position.

VERS.2022.09.11 CS 502LV P13_MAN_EN
17
4 OPERATING THE CS 502LV
4.1 Site of work
Before you start working, please check the following points:
Remove from the site anything, which might hinder the working procedure.
Make sure the site is sufficiently well lit.
Place, when used, the water hose so that it can’t be damaged
Make sure you have a continual adequate view of the working area so you can intervene in the
working process at any time.
Keep other staff out of the area, so you can work securely.
4.2 Cutting method
In this section, you can find instructions on how to make a straight cut at the desired depth.
4.2.1 Preparing your cut
Before starting the machine,
Draw a line on the floor over the cutting length.
Make sure you have filled the engine tank with fuel, and the water tank with water, our, when
possible, the machine is connected to the water net. No petrol is supplied with the machine.
The engine is shipped with oil. Check oil level before starting. Top up if required.
Make sure you have mounted the correct blade as recommended by the manufacturer
depending on the material to be worked, the working procedure (dry or wet cut) to be carried
out, and the efficiency required.
Make sure that the flanges securely hold the diamond blade.
Make sure that the blade is not touching the floor before starting; you can turn the hand wheel
up to the mechanical stop.
Adjust the handle to a comfortable position.
Roll the machine until the blade is over the line.
Lower the guide-a-cut so it touches the line.
Align front cutting guide, guide attached to blade cover and rear cutting guide with the line.

VERS.2022.09.11 CS 502LV P13_MAN_EN
18
4.2.2 Cutting the floor
You can now start the engine. To make your cut,
Turn on the water tap according to the type of blade used and the cut required:
oWater cutting: a sufficient amount of water should be used continuously throughout the
cutting process to cool the disc properly.
oDry cutting: if possible, a small amount of water should be used to limit the creation of
dust.
Turn the depth hand wheel until the blade slightly touches the floor.
To lower blade into the cut, turn hand wheel anti-clockwise. Each turn of the hand wheel will
raise or lower the blade by 7.5mm.
Push the machine forward with steady and gentle pressure and follow the line with the pointer.
The feed speed must be adjusted depending on the material being cut, and depth of cut.
At the finish of the cut, raise the blade out of the cut by turning the hand wheel clockwise, shut-
off the water and switch off the engine.

VERS.2022.09.11 CS 502LV P13_MAN_EN
19
5 TRANSPORT AND STORING
Take the following measures in order to transport and store the CS 502LV securely.
5.1 Securing for transport
Before transporting the machine:
Remove the blade.
Empty the water tank.
Lower the handle in its fixing tube and secure it using the locking screws.
Raise the guide-a-cut in its upright position.
Raise the cutting head to its highest position using the hand wheel, in order to activate the
parking brake.
5.2 Transport and lifting procedure
The machine can be moved on a flat surface using its wheels. Use the metal hook located over the
water tank to lift the machine with a crane. Utilization of other part of the machine (e.g. handles)
is absolutely prohibited.
5.3 Long period of inactivity
If the machine is not going to be used for a long period, please take the following measures:
Completely clean the machine.
Loosen the drive belt.
Grease the threaded shaft.
Possibly change the motor oil.
Empty the water system.
Activate the parking brake by raising the cutting head.
The storage site must be clean, dry and at a constant temperature.

VERS.2022.09.11 CS 502LV P13_MAN_EN
20
6 MAINTENANCE AND SERVICE
CAUTION: to perform maintenance of the machine, always switch it off. Always wear a mask and
safety goggles while performing the maintenance of machine.
6.1 Maintenance of the machine
To ensure a long-term quality from the cutting with the CS 502LV, please follow the maintenance
plan below:
Regular service period
Perform at every
indicated period

After one hour of work
Beginning of the day
During tool change
End of the day
Once a week
After a failure
After a damage
Whole machine
Visual control (general
aspect, sealing)
Clean
Flange and blade fixing devices
Clean
Belt tension
Control
Water hoses and nozzles
Clean
Depth screw
Grease
Engine housing
Clean
Reachable nuts and screws
Tighten up
Adjustment and replacement of the belt
After one hour of work, the belt heats up and stretches. Therefore, you have to re-tighten it.
To adjust the belt, firstly remove the belt guard by unscrewing the 4 nuts. Loose the 4 engine bolts
and shift the engine by using the two screws on the front. Then tighten the 4 bolts.
To replace the belt, move the engine completely to the front. Adjust the belt and retighten it by
shifting the motor to the rear. Then tighten the 4 bolts.
Lubrication
The CS 502LV uses life-lubricated bearings. Therefore, you don’t need to lubricate them at all.
Grease the depth screw once a week.
Cleaning of the machine
Your machine will last longer if you clean it thoroughly after each working day.
