Norton clipper TR 231 GL User manual

TR 231 GL
OPERATING INSTRUCTIONS
Translation of the original instructions

VERS. 2015.07.13 TR 231_MAN_EN
2

VERS. 2015.07.13 TR 231_MAN_EN
3
The undersigned manufacturer:
SAINT - GOBAIN ABRASIVES S.A.
190, BD J.F. KENNEDY
L- 4930 BASCHARAGE
Declares that this product:
Tile Saw: TR 231 GL 230V Code: 70184641991
TR 231 GL 230V UK 70184644108
is in conformity with the following Directives:
"MACHINES" 2006/42/CE
"LOW VOLTAGE" 2006/95/CE
"ÉLECTROMAGNÉTIC COMPATIBILITY" 2004/108/CE
"NOISE" 2000/14/CE
and European standard:
EN 12418 –Masonry and stone cutting-off machines –Safety
Valid for machines as of serial number:
70100000
Storage site for the technical documents :
Saint-Gobain Abrasives 190, Bd. J. F. Kennedy 4930 BASCHARAGE, LUXEMBOURG
This declaration of conformity loses its validity when the product is converted or modified
without agreement.
Bascharage, Luxembourg, 01.02.2012
Olivier Plenert, executive officer.
Declaration of conformity

VERS. 2015.07.13 TR 231_MAN_EN
4

VERS. 2015.07.13 TR 231_MAN_EN
5
TR 231 GL
OPERATING INSTRUCTIONS
1BASIC SAFETY INSTRUCTIONS 6
1.1 Symbols 6
1.2 Machine plate 7
1.3 Safety instructions for particular operating phases 7
2MACHINE DESCRIPTION 8
2.1 Short description 8
2.2 Purpose of use 8
2.3 Layout 8
2.4 Technical Data 9
2.5 Statement regarding the vibration emission 10
2.6 Statement regarding noise emission 11
3ASSEMBLY AND COMMISSIONING 12
3.1 Assembly of the legs 12
3.2 Cutting head 12
3.3 Tool assembly 12
3.4 Electrical connections 13
3.5 Water cooling system 13
3.6 Starting the machine 13
4TRANSPORT AND STORING 14
4.1 Securing for transport 14
4.2 Long period of inactivity 15
5OPERATING THE MACHINE 16
5.1 Site of work 16
5.2 Cutting 16
5.3 Cutting with an angle 18
5.4 General advice for the cutting 18
6MAINTENANCE AND SERVICING 19
7FAULTS: CAUSES AND CURES 20
7.1 Fault-finding procedures 20
7.2 Trouble-shooting guide 20
7.3 Circuit diagram 21
7.4 Customer service 22

VERS. 2015.07.13 TR 231_MAN_EN
6
1 BASIC SAFETY INSTRUCTIONS
The TR 231 is exclusively designed for the cutting of tiles with NORTON diamond disks mainly on
construction sites.
Uses other than the manufacturer's instructions shall be considered as contravening the regulations.
The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne
entirely by the user. Observing the operating instructions and compliance with inspection and
servicing requirements shall also be considered as included under use in accordance with the
regulations.
1.1 Symbols
Important warnings and pieces of advice are indicated on the machine using symbols. The following
symbols are used on the machine:
Read operator's instructions
Ear protection must be worn
Hand protection must be worn
Eye protection shall be worn
Rotation direction of the blade
Danger: risk of cut

VERS. 2015.07.13 TR 231_MAN_EN
7
1.2 Machine plate
Important data can be found on the following plate located on the machine:
1.3 Safety instructions for particular operating phases
Before commencing work
Before commencing work, make yourself familiar with the working environment at the place of
use. The working environment includes: obstacles in the area of work and manoeuvre, the
firmness of the floor, necessary protection at the site relating to public thoroughfares and the
availability of help in the event of accidents.
Site the machine on an even, firm and stable base!
Check for correct mounting of the blade regularly.
Immediately remove damaged or badly worn blades, as they endanger the operator whilst
rotating.
The material to be cut must be held securely in place on the table to allow no unexpected
movement during cutting operation.
Always cut with the blade guard in position.
Only fit NORTON diamond blades with continuous rim to the machine! The use of other tools
can damage the machine!
Read the blades’ specifications carefully to choose the correct tool for your application.
Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes
No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1. Also use the other
safety equipment as mentioned in the symbols plus a dust mask when dry cutting is applied.
Electrical powered machine
Always turn off the TR 231 and separate it from the main source of electricity before any work on
the machine is done.
Make all electrical connections securely to eliminate contact of live wires with spray water or
dampness
When TR 231 is used with water, it is IMPERATIVE that you earth the machine properly. Let a
qualified electrician check in case of doubt.
Press the red button (0) on the switch to stop the machine in case of emergency.
In the event of the TR 231 breaking down or stopping for no apparent reason, switch off the
main electricity supply. Only a qualified electrician is allowed to investigate the trouble and
remedy the fault.
Machine Model
Machine Code
Weight
Year of production
Maximum blade diameter
Machine type
Serial number
Power
Safety standard
Blade speed
Bore
diameter

VERS. 2015.07.13 TR 231_MAN_EN
8
2 MACHINE DESCRIPTION
Any modification, which could lead to a change in the original characteristics of the machine, may
be done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity with
the safety regulations.
2.1 Short description
The TR 231 Saw is designed for durability and high performance for onsite wet cutting operations of
a wide range of tiles.
As with all other NORTON CLIPPER products, the operator will immediately appreciate the attention
given to detail and quality of materials used in construction. The machine and its component parts
are assembled to high standards assuring long life and minimum maintenance.
2.2 Purpose of use
The machine is designed for wet cutting of a large range of building and refractory materials, or tiles.
It is not designed for cutting wood or metals.

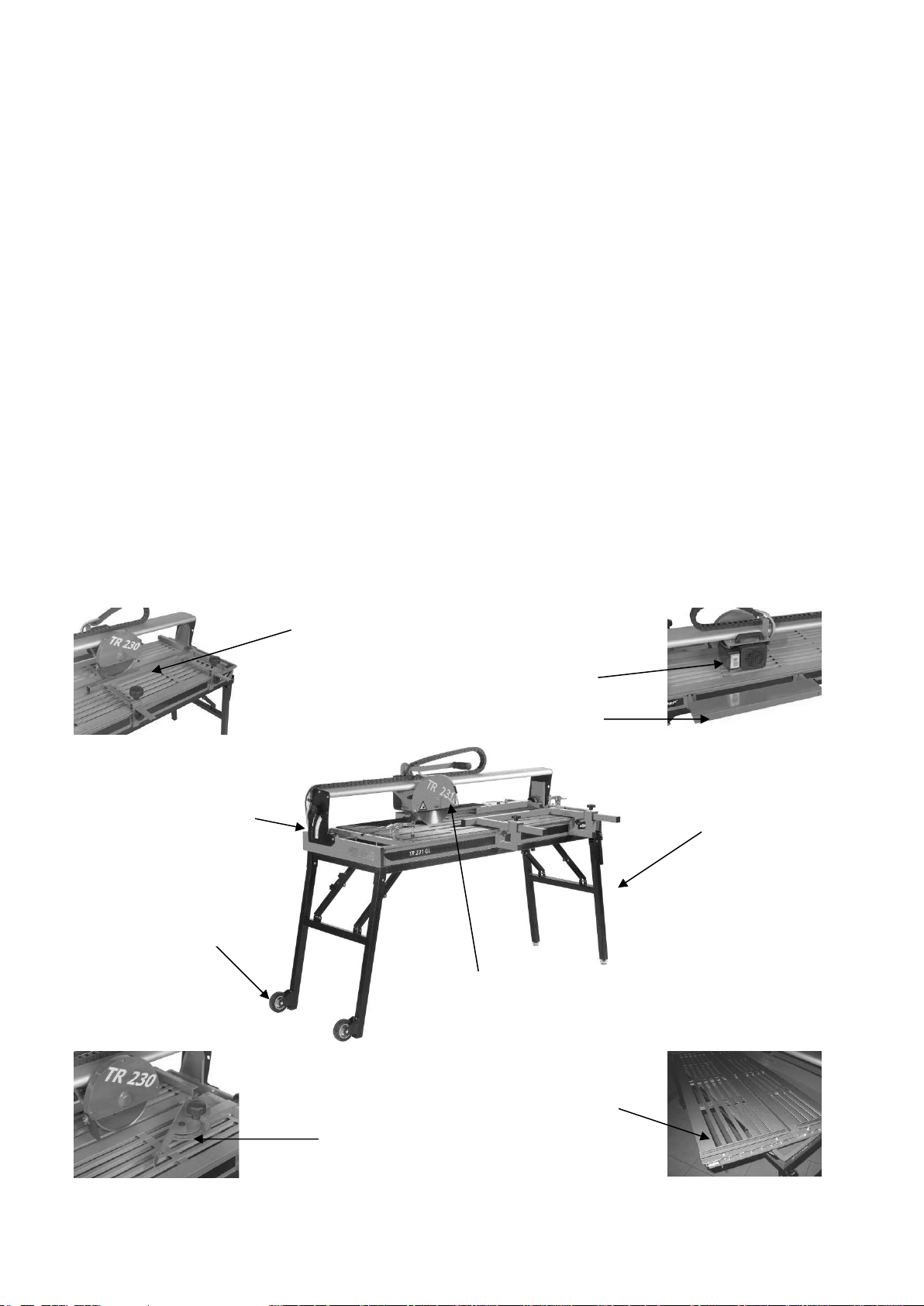

2.3 Layout
Long cutting guide for better accuracy
Integrated side extension for large materials
Transport wheels
Cutting guide for angle cut
Easily removable and large cutting table
1.1 kW motor
Folding legs
230mm blade guard
Tilting rail for mitre cut
(0 to 45°)

VERS. 2015.07.13 TR 231_MAN_EN
9
2.4 Technical Data
TR 231 GL
Item number
70184641991
70184644108
(UK)
Electric Motor
1,1 kW
Supply voltage
230V, 50Hz
Protection rating
IP54
Blade Diameter
231 mm
Bore
25,4 mm
Rotation speed of the blade
2950 min-1
Maximum cutting depth 0°
45 mm
45°
35 mm
Cutting length
1200 mm
Flange diameter
90 mm
Sound pressure level
71 dB (A) (following ISO EN 11201)
Sound energy level
79 dB (A) (following ISO EN 3744)
Table dimensions (LxW)
1200X565 mm
Machine dimensions (LxWxH)
1860x600x1175 mm
Weights :
Machine cpl.
Ready for use (with water)
72 kg
84 kg

VERS. 2015.07.13 TR 231_MAN_EN
10
2.5 Statement regarding the vibration emission
Declared value of vibration emission following EN 12096.
Machine
Model / code
Measured value of vibration
emission at m/s2
Uncertainty K
m/s2
Tool used
Model / code
TR 231 GL
230V
70184641991
TR 231 GL
230V UK
70184644108
<2.5
0.5
Clipper Super Gres XT
The vibration value is lower and does not exceed 2.5 m / s.
Values determined using the procedure described in the standard EN 12418.
The measurements are made with new machines. Actual values may vary with site conditions, in
terms of:
Materials worked
Wear Machine
Lack of maintenance
Inappropriate tool for application
Tool in poor condition
Unskilled operator
Etc…
The exposure time to vibration is based on the performance of work (related to the adequacy
Machine / Tool / worked material / operator)
When evaluating risks due to hand-arm vibration, you need to take into account effective usage at
rated power of machine during a full day of work; quite often you will realise that effective utilisation
time represents around 50% of overall duration of work. You have to consider, of course, breaks,
water feeding, preparation of work, time to move the machine, disk mounting…

VERS. 2015.07.13 TR 231_MAN_EN
11
2.6 Statement regarding noise emission
Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744.
Machine
Model / code
Sound
Pressure level
LPeq
EN ISO 11201
Uncertainty K
(Sound
Pressure level
LPeq
EN ISO 11201)
Sound power
level
LWeq
NF EN ISO 3744
Uncertainty K
(Sound power level
LWeq
NF EN ISO 3744)
TR 231 GL
230V
70184641991
TR 231 GL
230V UK
70184644108
79 dB(A)
2.5 dB(A)
71 dB(A)
4 dB(A)
Values determined using the procedure described in the standard EN 12418.
The measurements are made with new machines. Actual values may vary with site conditions, in
terms of:
Wear Machine
Lack of maintenance
Inappropriate tool for application
Tool in poor condition
Unskilled operator
Etc…
Measured values relate to an operator in normal use, as described in the manual position.

VERS. 2015.07.13 TR 231_MAN_EN
12
3 ASSEMBLY AND COMMISSIONING
The TR 231 is delivered fully equipped. It is ready for operation after assembly of the diamond blade
and after connection to the appropriate power supply.
3.1 Assembly of the legs
Lift up one side of the saw and unfold the legs without wheels. Lift up the other side of the saw and
unfold the legs with the wheels.
3.2 Cutting head
You have to detach the cutting head by unscrewing the knob securing the head on the rail of the
machine.
3.3 Tool assembly
Only NORTON blades with a diameter of 231 mm can be used with the TR 231.
All tools used must be selected with regard to their maximum permitted cutting speed for the
machine’s maximum permitted rotation speed. Before mounting a new blade into the machine,
switch off the machine and isolate it from the main source of electricity.
To assemble a new blade, follow these steps:
Loosen the three screws holding the outer cover of the blade guard using the crosshead
screwdriver supplied with TR 231, and remove it.
Loosen the hexagonal nut (left threaded) on the blade shaft using the 18 mm wrench supplied
with TR 231, which holds the removable outer flange.
Remove the outer flange.
Clean the flanges and blade shaft and inspect for wear.
Mount the blade on the shaft ensuring that direction of rotation is correct (check with the arrow
on the blade guard). Wrong direction of rotation blunts the blade quickly.
WARNING: The blade bore must correspond exactly to the blade shaft. Cracked or damaged
bore is dangerous for the operator and for the machine.
Put outer blade flange back in place.
Tighten hexagonal nut using 18 mm wrench.
Put the outer cover of the blade guard back in place and tighten the three holding screws with
the crosshead screwdriver.
WARNING: the blade bore must correspond exactly to the diameter of the blade shaft. Cracked or
damaged bore is dangerous for the operator and for the machine.

VERS. 2015.07.13 TR 231_MAN_EN
13
3.4 Electrical connections
Check that,
The voltage/phase supply corresponds to the information indicated on the motor plate.
Available power supply must have ground connection in conformity with safety regulations.
The connecting cables should have at least a 2.5mm2-section per phase.
3.5 Water cooling system
Fill the TR 231 with clean water up to 1cm under the top edge of the water tray. The pump will
switch on together with motor.
Ensure that water is delivered adequately to the blade, as insufficient water supply may result in
premature failure of the diamond blade.
The water pump must never run without water. Always make sure that there is enough water in
the pan and refill if necessary.
In case of frost, empty the water cooling system from its water.
3.6 Starting the machine
Connect the machine to the electrical supply. You can start it by pressing the switch on I. To stop
the machine, press switch on 0. 0 is also the emergency switch.

VERS. 2015.07.13 TR 231_MAN_EN
14
4 TRANSPORT AND STORING
4.1 Securing for transport
Before transporting the machine, always remove the blade and empty the water pan. Secure the
cutting head on the rail by using the knob. Store the longitudinal cutting guide and the side
extension in the pan. Fold the legs.
WARNING: this machine is not suited to be lifted with a crane.
Lock cutting head
Tighten angular cutting guide
Store the longitudinal cutting guide and the side extension

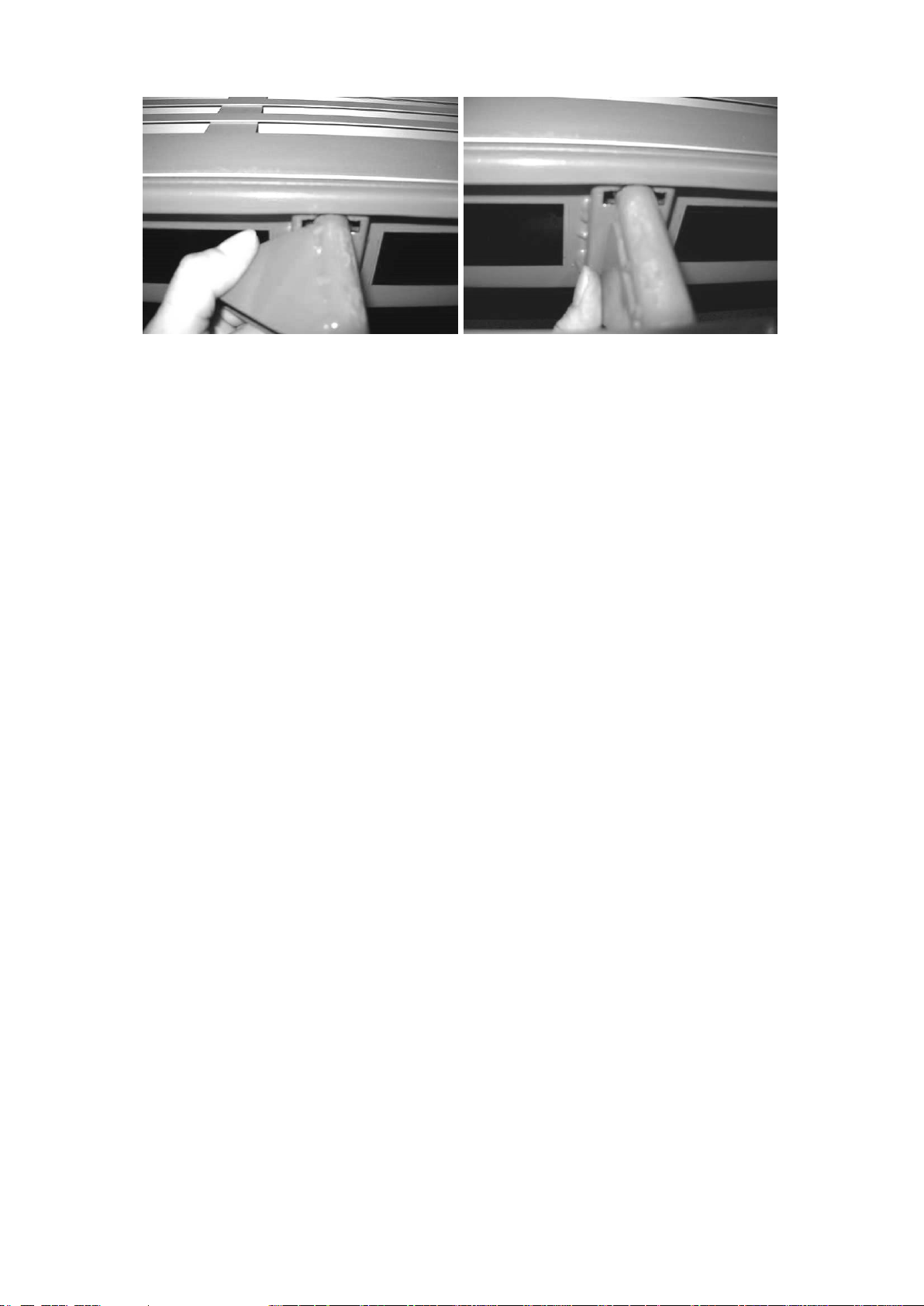

oDismount the table (unlock on each side)

VERS. 2015.07.13 TR 231_MAN_EN
15
oStore the elements in the pan, then put the table back in place
4.2 Long period of inactivity
If the machine is not going to be used for a long period, please take the following measures:
Completely clean the machine
Empty the water system
Take the water pump out of the water tray, and clean it thoroughly.
The storage site must be clean, dry and at a constant temperature.

VERS. 2015.07.13 TR 231_MAN_EN
16
5 OPERATING THE MACHINE
5.1 Site of work
5.1.1 Siting the machine
Remove from the site anything, which might hinder the working procedure!
Make sure the site is sufficiently well lit!
Observe manufacturer's conditions for connecting to power supplies!
Place electric cables in such a way that damage is excluded!
Make sure you have a continual adequate view of the working area so you can intervene in the
working process at any time!
Keep other staff out of the area, so you can work securely.
5.1.2 Space required for operation and maintenance
Leave 2 m in front of the machine and 1.5 m around it for usage and maintenance of the TR 231.
5.2 Cutting
To use the TR 231 correctly, you must face it with one hand on the cutting head, and the other on
the material to be cut to maintain it against the material stops. Always keep your hands away from
the moving blade.
The long longitudinal cutting guide and the side extension can help you to achieve high accuracy
cuts, even with large materials.
Put in place longitudinal guide
Insert 2 threaded and pined shafts Rotate both shafts by 90°

VERS. 2015.07.13 TR 231_MAN_EN
17
Insert both guide supports and lock them with knobs
Insert the guide in both supports then lock the knobs
Put in place side extension
Insert both pined shafts

VERS. 2015.07.13 TR 231_MAN_EN
18
Rotate both shafts by 90° to lock side extension
5.3 Cutting with an angle
You can cut from 0º to 45º by tilting the head rail. For this purpose:
Loosen the two knobs maintaining the head rail to tilt the head to the desired angle.
Retighten the two knobs.
5.4 General advice for the cutting
Only materials with max. dimensions of 1200x800x20mm and max. weight of 15kg can be cut
with the TR 231.
Before commencing work make sure tools are firmly seated!
Select the right tools as recommended by the manufacturer depending on the material to be
worked, the working procedure (dry or wet cut) to be carried out and the required efficiency.
Make sure the water pan contains enough water.

VERS. 2015.07.13 TR 231_MAN_EN
19
6 MAINTENANCE AND SERVICING
To ensure a long-term quality from the cutting with the TR 231, please follow the maintenance plan
below:
Before starting work
During tool change
End of each day or more often if required
During a failure
After a damage
Whole machine
Visual control (general
aspect, water tightness)
Clean
Flange and blade fixing
devices
Clean
Motor cooling fans
Clean
Water pan
Clean
Motor housing
Clean
Reachable nuts and screws
Tighten up
Maintenance of the machine
Always perform the maintenance of the machine with the machine isolated from the electrical
supply.
Lubrication
The TR 231 uses life-lubricated bearings. Therefore, you don’t need to lubricate the machine at all.
Cleaning of the machine
Your machine will last longer if you clean it thoroughly after each day of work, especially water
pump, water pan, motor and blade flanges.

VERS. 2015.07.13 TR 231_MAN_EN
20
7 FAULTS: CAUSES AND CURES
7.1 Fault-finding procedures
Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical
supply. Any works dealing with the electrical system or supply of the machine can only be carried
out by a qualified electrician.
7.2 Trouble-shooting guide
Trouble
Possible source
Resolution
Motor is not running
No electricity
Check the electrical supply
(fuse for example)
Connection cable section too
small
Change connection cable
Defective connection cable
Change connection cable
Defective switch
CAUTION : can only be solved
by qualified electrician
Defective motor
Change motor or contact motor
manufacturer
Motor stops during the cutting,
but can be restarted after a
short period (overload
protection)
Cutting feed speed too quick
Cut slowly
Blade is blunt or glazed
Sharpen the blade in
calcareous stone
Defective blade
Change blade
Wrong blade specification for
the application
Change blade
No water on the blade
Not enough water in the pan
Refill the water pan
Water supply system is blocked
up
Clean water supply system
Water pump is not working
Change the pump
