Nortrac BE-RS30G Application guide

PURCHASE DATE MODEL NO. SERIAL NUMBER
DEALER
3-PT REVERSIBLE
DIRT SCOOP
BE-RS30G
OPERATIONS & PARTS MANUAL
FOR MODELS:
• BE-RS30G

TABLE OF CONTENTS
3Intended Use & Important Safety Information
4Specific Operation Warnings & Assembly Instructions
7Before Each Use
8Maintenance & Replacement Parts
9Exploded view & Parts Breakdown
10 Warranty

BE-RS30G USER MANUAL 3
IMPORTANT SAFETY INFORMATION
WARNING
• Read and understand all instructions. Failure to follow all instructions may result in serious injury or
property damage.
• The warnings, cautions, and instructions in this manual cannot cover all possible conditions or situations
that could occur. Exercise common sense and caution when using this tool. Always be aware of the
environment and ensure that the tool is used in a safe and responsible manner.
• Do not allow persons to operate or assemble the product until they have read this manual and have
developed a thorough understanding of how it works.
• Do not modify this product in any way. Unauthorized modification may impair the function and/or
safety and could aect the life of the product. There are specific applications for which the product was
designed.
• Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this equipment was designed. It will do
the job better and more safely at the capacity for which it was intended. DO NOT use this equipment for
a purpose for which it was not intended.
• Industrial or commercial applications must follow OSHA requirements
WARNING - WORK AREA SAFETY
• Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well lit. Cluttered,
wet, or dark work areas can result in injury. Using the Dirt Scoop in confined work areas may put you
dangerously close to other cutting tools and rotating parts.
• Do not use the scoop where there is a risk of causing a fire or an explosion; e.g., in the presence of
flammable liquids, gases, or dust. The product can create sparks, which may ignite the flammable liquids,
gases, or dust.
• Do not allow the scoop to come into contact with an electrical source. The scoop is not insulated and
contact will cause electrical shock.
• Keep children and bystanders away from the work area while operating the tool. Do not allow children to
handle the scoop.
• Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your work
area. Some of these hazards may be hidden from your view and may cause personal injury and/or
property damage if contacted.
WARNING - PERSONAL SAFETY
• Stay alert, watch what you are doing, and use common sense when operating the scoop. Do not use
the scoop while you are tired or under the influence of drugs, alcohol, or medication. A moment of
inattention while operating the tool may result in serious personal injury.
• Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Air
vents on the tool often cover moving parts and should be avoided.
• Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety
goggles (not safety glasses) with side shields, or when needed, a face shield. Use a dust mask in dusty
work conditions. Also use non-skid safety shoes, hardhat, gloves, dust collection systems, and hearing
protection when appropriate. This applies to all persons in the work area.
• Do not overreach. Keep proper footing and balance at all times.
INTENDED USE
This 3-Pt. Reversible Dirt Scoop (#51482) allows you to attach your tractor to the front or rear of the
scoop, enabling it to work forward as a slip scraper or in reverse as a shovel for scooping, digging, carrying,
dumping, and spreading
ITEM DESCRIPTION WORKING WIDTH CAPACITY (FT2)
BE-RS30G 3-Point Dirt Scoop 24” 9

4 BE-RS30G USER MANUAL
• Remove keys or wrenches before connecting the tool to an air supply, power supply, or turning on the
tool. A wrench or key that is left attached to a rotating part of the scoop may cause personal injury.
• When practical, secure the work with clamps or a vise instead of your hand. This safety precaution
allows for proper tool operation using both hands
SPECIFIC OPERATION WARNINGS
WARNING - PINCH POINT HAZARD
To prevent serious injury or death:
• Read and understand this Owner’s Manual before operating, servicing, or repairing equipment.
• Stop the engine, remove the key, and set brake before dismounting the tractor.
• Operate the controls from the tractor seat only.
• Keep hands away from the dump mechanism.
• Keep bystanders at least 25 feet away while operating.
• Never allow riders on equipment.
• Park and store on a hard, level surface.
• Store out of reach of children. Not for use by or around children.
ASSEMBLY INSTRUCTIONS
General Instructions
Before using your Dirt Scoop, it is very important that you read this Owner’s Manual. The #51482 is
constructed of heavy-duty, square, tubular steel and is strengthened by double gussets. This scoop is
attached to the tractor using a category 1, size 3-point hitch. The scoop allows you to attach your tractor to
the front or rear of the scoop, enabling it to work forward as a slip scraper or in reverse as a shovel. Scoop,
dig, carry, dump, and spread.

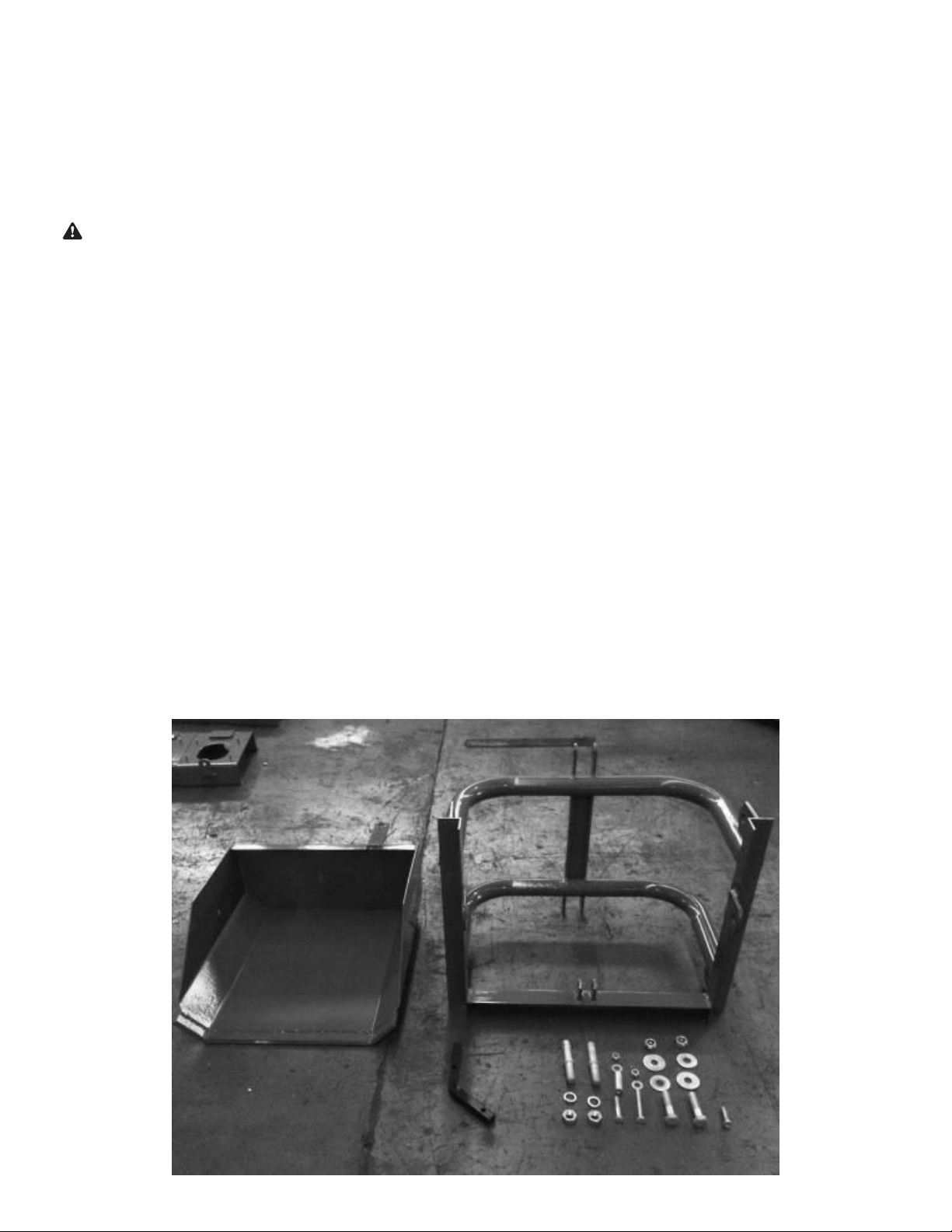

The parts and accessories are pictured:

BE-RS30G USER MANUAL 5
Assembly
1. Install part 59 (bolt) on the mounting plate.
2. Install part 62 (bolt), part 69 (nut nylon insert), and part 17 (hinge tube) on the U type connection board.
3. Install part 3 (lift pin cat 1) in the bottom connection point of the three point suspension.

6 BE-RS30G USER MANUAL
4. Install part 112 (bolt), part 122 (nut), and part 124 (washer) in part 1 (scoop) and part 4 (frame).
5. Install part 156 (bolt), part 69 (nut), and part 2 (scoop latch/bar) together.
6. The final assembly will look this this:
Final Comments
With a little practice working the attachment
combinations and adjustments, you will be able
to eciently operate the unit in a short amount of
time.

BE-RS30G USER MANUAL 7
BEFORE EACH USE
WARNING
Hazard Control and accident prevention are dependent upon the awareness, concern, prudence, and
proper training involved in the operation, transport, storage, and maintenance of the scoop. Therefore, it
is absolutely essential that no one operates the scoop without the first having read, fully understood, and
become totally familiar with this Owner’s Manual. Make sure the operator has paid particular attention to
the safety information.
IMPORTANT SAFETY INFORMATION
Make the following inspections after attaching the scoop to the tractor. See the Tractor Hook-Up section.
• Inspect tractor safety equipment to make sure it is in good working condition.
• Carefully raise and lower the implement to ensure that the drawbar, tires, and other equipment on the
tractor do not contact the frame.
CAUTION - TRANSPORTING
When traveling on public roads, whether at night or during the day, use accessory lights and devices for
adequate warning to operators of other vehicles. Comply with all federal, state, and local laws.
• When raising the scoop to the transport position, be sure that the equipment does not make contact
with the tractor and the tractor drawbar. Move or remove the drawbar if it interferes with the scoop.
• Be sure to reduce the tractor’s ground speed when turning; and, leave enough clearance so that the
scoop does not contact obstacles such as buildings, trees, or fences.
• Select a safe ground travel speed when transporting from one area to another. When traveling on
roadways, transport in such a way that faster moving vehicles may pass you safely.
• When traveling over rough or hilly terrain, shift the tractor to a lower gear.
AFTER EACH USE
WARNING - UNHOOKING THE DIRT SCOOP
• Park on a level, solid surface.
• Lower the scoop until the object is resting on level ground or until its main beam is resting on solid
supports.
• Engage the tractor’s parking brake, shut the tractor engine o, and remove the key before dismounting
the tractor.
• Stabilize the unit with bracing before unhooking the tractor’s 3-point arms. Make sure the bracing is
secure and will not slip while unhooking.
• Unhook the 3-point hitch from tractor. Reinstall hitch pins, linch pins, and hair pin cotters (supplied by
the customer) in the scoop’s hitch for safe keeping.
• Remove the bracing and rotate the scoop down so that it is laying on the ground or use auxiliary
supports such as planted posts, to prevent the possibility of the unit tipping over.

8 BE-RS30G USER MANUAL
MAINTENANCE
Clean, inspect, service, and make necessary repairs to the scoop when parking it for long periods and when
parking it at the end of a working season. This will help ensure that the scoop is ready for field use the next
time you hook up to it. Clean o any dirt or grease that may have accumulated on the scoop. Scrape o
compacted dirt and then wash the surface thoroughly with a garden hose.
1. Inspect the scoop for loose, damaged, or worn parts. Adjust and tighten loose parts or replace if
necessary.
2. Clean dirt, oil, and grease from areas where the paint has been worn, chipped, or scratched. Prime any
bare metal surfaces after cleaning and repaint to prevent rust.
3. A light coat of oil or grease may be applied to the cutting blade to minimize oxidation.
4. Follow the unhooking instructions when disconnecting the scoop from the tractor.
5. Store the scoop in a clean, dry place. Inside storage will reduce the maintenance and make for a longer
scoop life.
6. Lay the unit on the ground or ensure that the main frame is stable by using auxiliary supports, such as
planted posts, to prevent the possibility of the unit tipping over.
REPLACEMENT PARTS
• For replacement parts and technical questions, please call Customer Service at 1-800-222-5381.
• Not all product components are available for replacement. The illustrations provided are a convenient
reference to the location and position of parts in the assembly sequence.
• When ordering parts, the following information will be required: item description, item model number, item
serial number/item lot date code, and the replacement part reference.
• The distributor reserves the rights to make design changes and or improvements to product lines and
manuals without notice.

BE-RS30G USER MANUAL 9

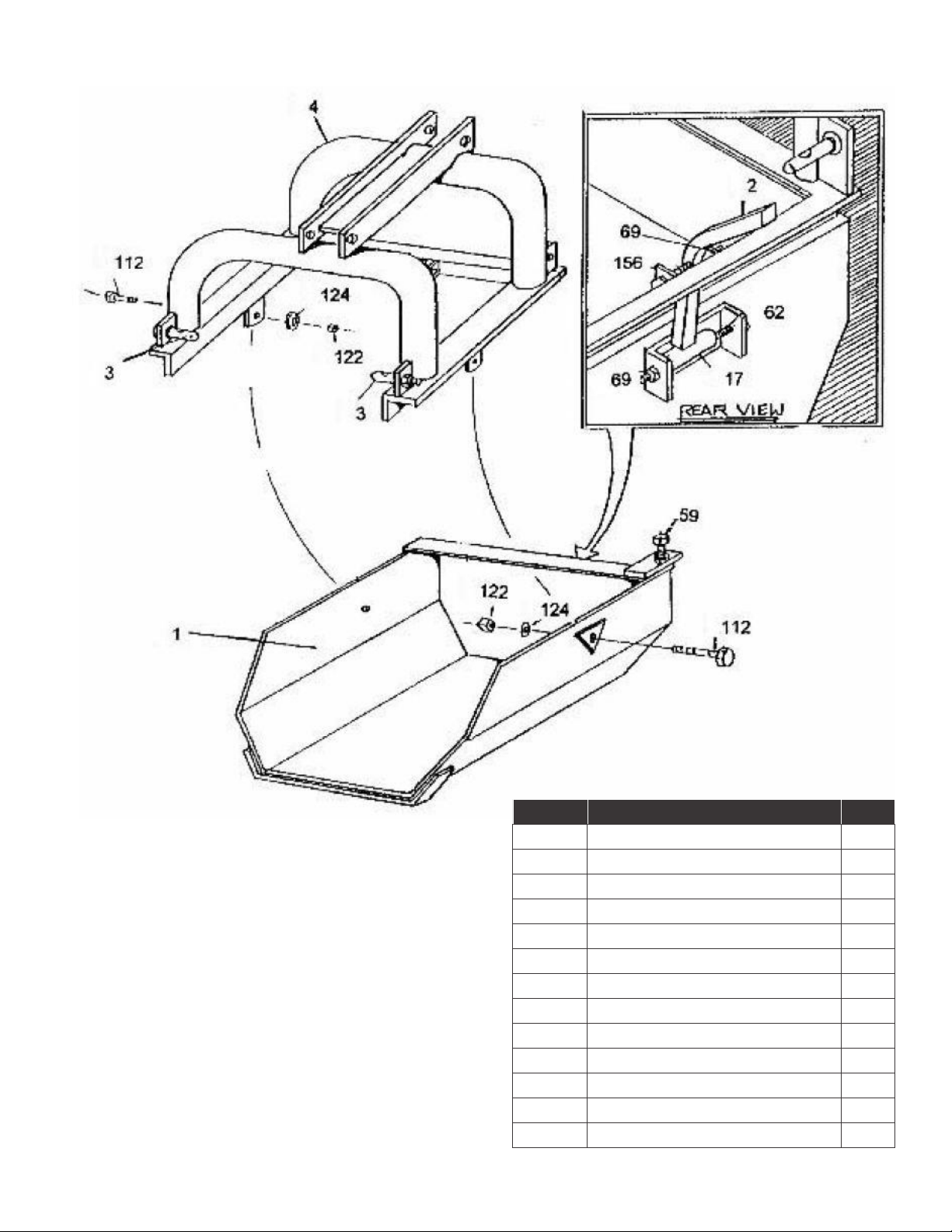

EXPLODED VIEW & PARTS BREAKDOWN
REF DESCRIPTION QTY
69 1/2” Nut Nylon Insert 2
62 1/2” x 3-1/2” Bolt 2
112 3/4” x 3” Bolt 2
122 3/4” Nut with Nylon Insert Fine 2
124 3/4” Flat Washer 2
3 Lift Pin Cat 1 2
17 Hinge Tube 2
4 Frame 1
1 Scoop 24” 1
59 3/4” x 3-1/2” Bolt 2
156 1/2” x 3-1/2” Bolt 2
112 3/4” x 3” Bolt 2
2 Scoop Latch Bar 1

10 BE-RS30G USER MANUAL
LIMITED WARRANTY
Northern Tool and Equipment Company, Inc. (“We’’ or ‘”Us’’) warrants to the original purchaser only (“You’’
or “Your”) that the NorTrac product purchased will be free from material defects in both materials and
workmanship, normal wear and tear excepted, for a period of one year from date of purchase. The foregoing
warranty is valid only if the installation and use of the product is strictly in accordance with product
instructions. There are no other warranties, express or implied, including the warranty of merchantability
or fitness for a particular purpose. If the product does not comply with this limited warranty, Your sole and
exclusive remedy is that We will, at our sole option and within a commercially reasonable time, either replace
the product or product component without charge to You or refund the purchase price (less shipping). This
limited warranty is not transferable.
Limitations on the Warranty
This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect, misuse,
or as a result of any accident or in any other manner; (c) damage from misapplication, overloading, or
improper installation; (d) improper maintenance and repair; and (e) product alteration in any manner by
anyone other than Us, with the sole exception of alterations made pursuant to product instructions and in a
workmanlike manner.
Obligations of Purchaser
You must retain Your product purchase receipt to verify date of purchase and that You are the original
purchaser. To make a warranty claim, contact Us at 1-800-222-5381, identify the product by make and
model number, and follow the claim instructions that will be provided. The product and the purchase receipt
must be provided to Us in order to process Your warranty claim. Any returned product that is replaced or
refunded by Us becomes our property. You will be responsible for return shipping costs or costs related to
Your return visit to a retail store.
Remedy Limits
Product replacement or a refund of the purchase price is Your sole remedy under this limited warranty or
any other warranty related to the product. We shall not be liable for: service or labor charges or damage
to Your property incurred in removing or replacing the product; any damages, including, without limitation,
damages to tangible personal property or personal injury, related to Your improper use, installation, or
maintenance of the product or product component; or any indirect, incidental or consequential damages of
any kind for any reason.
Assumption of Risk
You acknowledge and agree that any use of the product for any purpose other than the specified use(s)
stated in the product instructions is at Your own risk.
Governing Law
This limited warranty gives You specific legal rights, and You also may have other rights which vary from
state to state. Some states do not allow limitations or exclusions on implied warranties or incidental or
consequential damages, so the above limitations may not apply to You. This limited warranty is governed
by the laws of the State of Minnesota, without regard to rules pertaining to conflicts of law. The state
courts located in Dakota County, Minnesota shall have exclusive jurisdiction for any disputes relating to this
warranty.
