Instruction Sheet
NovaLynx Corporation PO Box 240 Grass Valley CA 95945
DOC 110-WS-25N IS 20210503 Phone [phone]
www.novalynx.com
110-WS-25N Quick Start
Hardware Installation
Select a level area on firm ground that will support the tripod. The area
should be away from buildings or trees that block air movement. A grassy
area is preferred as sunlight reflected from gravel or pavement could elevate
the temperature readings. If high winds are expected the legs of the tripod
must be secured to prevent tipping over.
1. Open the tripod to the fullest extent and secure it.
2. Assemble the wind sensor on the swaged end of the 5' mast. Secure it
with the two screws on the base of the sensor. Notice the NORTH label
on the base of the wind sensor.
3. Assemble the mast to the tripod. Rotate the mast until the NORTH label
points north. Tighten the mounting screws on the tripod.
4. Mount the temperature/humidity sensor on the mast, leaving room for
the remaining equipment. Note: the barometric pressure sensor is pre-
installed in the NEMA enclosure.
5. Install the rain gauge on the opposite side of the mast.
6. Mount the NEMA data logger enclosure just above the top of the tripod
or on a leg of the tripod, as desired.
Wiring
Route each sensor wire into the NEMA enclosure through the conduit fitting on the bottom. Attach an earth
grounding wire to the copper lug on the bottom of the enclosure. Connect the other end of the wire to an
earth grounding rod (NovaLynx 190-110 Grounding Kit, sold separately).
1
2
3
4
5
6
7
8
A3
GND
5 Vref
A4
A5
A6
A7
GND
Wind & RainTemp / RH / BP / AUX
Wind Sensor
200-WS-02F
Speed Signal
Excitation
Direction Signal
Direction GND
Speed GND
Shield
Signal
GND
Barometric Pressure
110-WS-25BP
GND
Vin
BP Signal
Temperature & Humidity
110-WS-25THA
Shield
Vin
Temp Signal
Humidity Signal
GND
Rain Gauge
110-WS-25RG
( BLACK )
( RED )
( RED )
( BLACK )
( GREEN )
( SILVER )
( BLACK )
( GREEN )
( WHITE )
( RED )
( WHITE )
( RED )
( BLACK )
( SILVER )
( BROWN )
( WHITE )
An0
An1
An2
GND
5 Vref
A1
A2
GND
1
2
3
4
5
6
7
8
DWG 890-0097-01
Earth Ground Lug
110-WS-25N Weather Station

Instruction Sheet
NovaLynx Corporation PO Box 240 Grass Valley CA 95945
P a g e | 2 Phone [phone]
www.novalynx.com

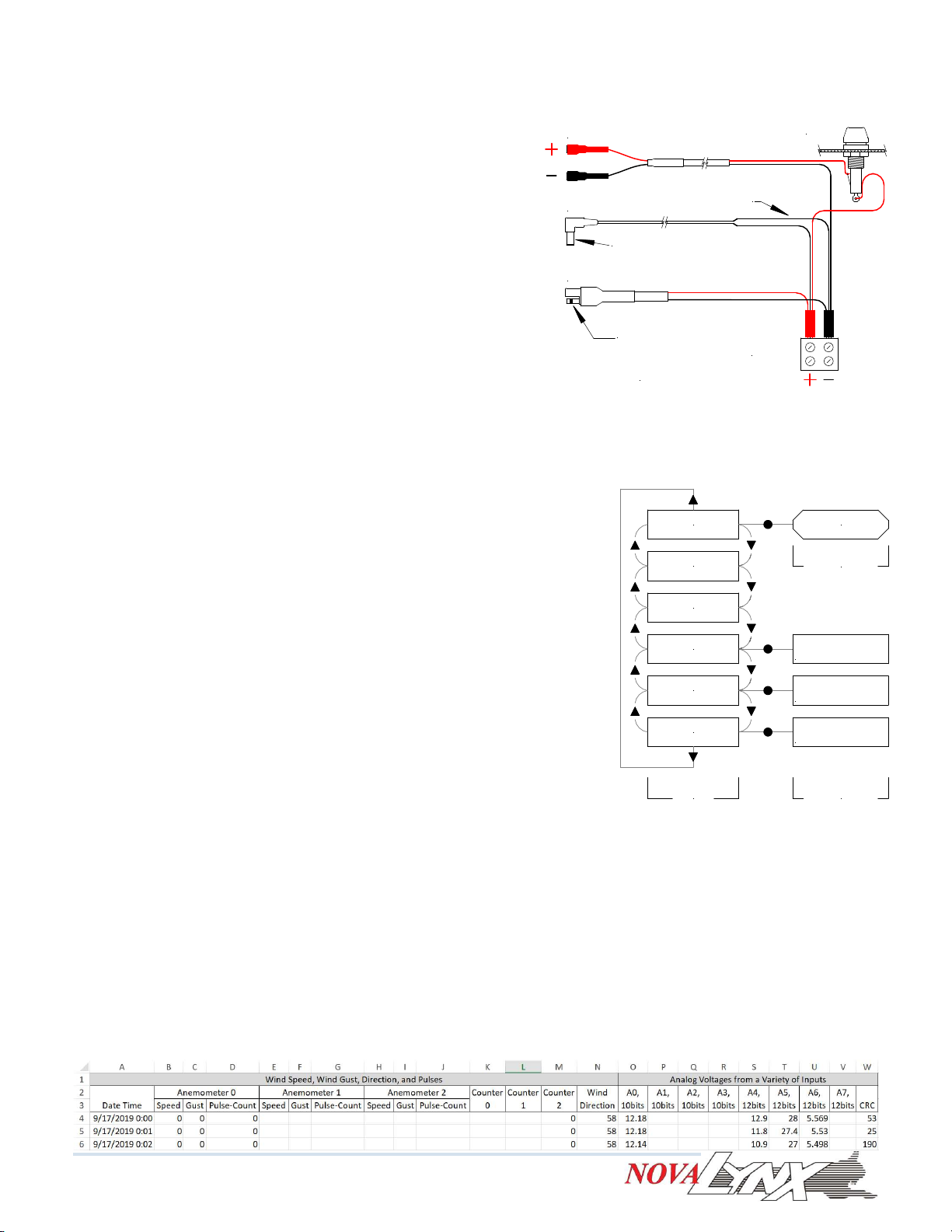

Power
1. To turn on the logger, simply connect the red battery
lead to the positive terminal of the battery. The system
can run for up to 10 days from a fully charged battery.
2. To charge the battery using the internal AC charger,
first locate the 2-pin in-line connectors in the NEMA
enclosure and connect them. Locate the power cord,
extend it, and connect it to a GFCI protected power
outlet (100-240 VAC). Make sure the connection is
weatherproof. RED LED = charging, GREEN = charged.
3. To charge the battery using a solar panel, route the
panel's 2-pin in-line connector into the conduit fitting
and connect it to the matching connector inside the enclosure.
Logger Status
Use the up and down buttons below the display to toggle through
the Main Menu.
1. Check the Date and Time.
2. Check the logging interval, which is expressed in seconds.
3. If correct, insert the memory card to begin logging. Otherwise
consult the instruction manual.
Current Data
Scroll to Counter Channels, Analog Channels or Wind Channels and
then press the SELECT button. Within the sub-menus, press the up
and down buttons to view sensor data.
 Counter Channels 2: Rain Today
 Analog Channels A0: Input Voltage, A4: Temperature,
A5: Humidity, A6: Barometric Pressure
 Wind Channels AN0: Wind Speed/Max, Wind Direction
Download Data
1. Press inwards on the data card to release it.
2. Insert the data card into the USB card reader (included). Connect the card reader to a computer.
3. Open File Explorer to access the contents of the memory card. Copy any files you want to keep.
Note: The logger creates a new file every day, with the date code as the name (YYYYMMDD.csv)
4. Open the file in a spreadsheet. It may be necessary to invoke "Text to Columns" to get the data to
fall into separate columns. The logger does not pre-pend column headings, so you will need to
create headings and copy/paste them into the spreadsheet to make it easier to interpret the data.
Wind Channels
<- SELECT ->
Analog Channels
<- SELECT ->
Counter Channels
<- SELECT ->
Status: LOGGING
00050/00060 sec
Date:
YYYY-MM-DD
Time:
HH:MM:SS
Main Setup Menu
<- SELECT ->
AN0, AN1, AN2
WIND DIRECTION
ANALOG INPUTS
A0 thru A7
COUNTERS
0, 1, 2
MAIN
MENU
CURRENT
DATA
Logger Setup
Menus
CONFIGURE
MENUS
Ground Ring
Ground Wire
TO BATTERY
TO LOGGER
TO CHARGER
FUSE
POWER
TERMINAL
DWG 810-0026-04
Ground Pin
