Novatek CBS Series Installation guide

CBS000A–CBS Kit “A”
CBS000B –CBS Kit “B” Dual Pump
CBS000C–CBS Kit “C” w/ H.E.P.A
CBS000D –CBS Kit “D” Dual Pump w/ H.E.P.A
CBS
Contained Blast System
OPERATIONS AND MAINTENANCE

© Copyright 2014 by NOVATEK Corporation
All rights reserved printed in the United States of America. No part of this manual may be used or reproduced in any form or
by any means, stored in data base or retrieval system, without prior written permission from NOVATEK Corporation.
Making copies of this manual for any purpose other than your own personal use is a violation of the United States copyright
laws.
June 1, 2014 issue 1.0
Specifications subject to changes without notice!
If you have any questions, please contact us:
NOVATEK CORORATION
254 Welsh Pool Road
Exton, PA 19341
USA
www.novatekco.com
Toll Free 866 563-7800
Telephone: [phone]
Fax [phone]
Email: [e-mail]

OPERATION AND MAINTENANCE MANUAL FOR
CONTAINED BLAST SYSTEM KITS
FOR PROFESSIONAL USE ONLY
IMPORTANT SAFETY INFORMATION ENCLOSED.
READ AND UNDERSTAND THIS MANUAL BEFORE OPERATING THIS PRODUCT.
IT IS YOUR RESPONSIBILITY TO MAKE THIS SAFETY INFORMATION
AVAILABLE TO OTHERS THAT WILL OPERATE THIS PRODUCT.
FAILURE TO OBSERVE THE FOLLOWING WARNING COULD RESULT IN INJURY.
PLACING TOOL IN SERVICE
•Always install, operate, inspect and maintain
this product in accordance with all applicable
standards and regulations (local, state, country,
federal, etc.).
•Compressed air models always use clean, dry
air at 90 psi (6.2bar/620kPa) maximum air
pressure at the inlet. Higher pressure may
result in hazardous situations including
excessive speed, rupture, or incorrect output
torque or force.
•Electric models must always utilize proper
gauge, and rated electrical cords with correct
connections.
•Be sure all hoses and fittings are the correctly
sized and secured.
•Ensure an accessible emergency shut off has
been installed in the air or electrical supply line.
Make others aware of its location.
•Do not use damaged, frayed, or deteriorated air
hoses and fittings.
•Always use proper gauge electrical cords with
correct connections. (When applicable.)
•Electric models must not use damaged, frayed, or
deteriorated electrical cords and connections.
•Keep clear of whipping air hoses. Shut off the
compressed air before approaching a whipping
hose.
•Always turn off and disconnect the tool from its
power supply before installing, removing or
adjusting any accessory, or before performing
any maintenance on the tool.
•Do not lubricate tools with flammable or volatile
liquids such as kerosene, diesel or jet fuel. Use
only recommended lubricants.
•Keep work area clean, uncluttered, ventilated and
illuminated.
•Keep all electrical connections clear of water or
other liquids. (When applicable.)
•Do not operate the machine while flammable or
volatile liquids such as gasoline, diesel or jet fuel
are present. Failure to do so can result in
explosion. (When applicable.)
•Do not remove any labels. Replace any damaged
label.
USING THE TOOL
•Always wear protection when operating or
performing maintenance on this tool.
•Always wear hearing protection when operating
this tool.
•Always use Personal Protective Equipment
appropriate to the tool used and material
worked. This may include dust mask or other
breathing apparatus, safety glasses, ear plugs,
gloves, apron, safety shoes, hard hat and other
equipment,
•Prevent exposure and breathing of harmful dust
and particles created by power tool use:
- Some dust created by power sanding, sawing,
and grinding, drilling, and other construction
activities contains chemicals known to cause
cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
- Lead from lead based paints,
- Crystalline silica from bricks and cement and
other masonry products, and
- Arsenic and chromium from chemically treated
lumber
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are
specially designed to filter out microscopic
particles.
•Keep others a safe distance from your work area,
or ensure they use appropriate Personal
Protective Equipment.
•This tool is not designed for working in explosive
environments, including those caused by fumes
and dust, or near flammable materials.
NOTICE
WARNING

•Electrically powered tools are not insulated
against electric shock.
•Be aware of buried, hidden or other hazards in
your work environment. Do not contact or
damage cords, conduits, pipes, or hoses that
may contain electrical wires, explosive gases or
harmful liquids.
•Keep hands, loose clothing, long hair and
jewelry away from working end of tool.
•Power tools can vibrate in use. Vibration,
repetitive motions or uncomfortable positions
may be harmful to your hands and arms. Stop
using any tool if discomfort, tingling feeling or
pain occurs. Seek medical advices before
resuming use.
•Keep body stance balanced and firm. Do not
overreach when operating this tool. Anticipate
and be alert for sudden changes in motion,
reaction torques, or forces during startup and
operation.
•Tool and/or accessories may briefly continue
their motion after throttle is released,
•To avoid accidental starting –ensure tool in
“off” position before applying air pressure or
connecting to electricity. Avoid throttle when
carrying, and release throttle with loss of air or
electricity.
•Ensure work pieces are secure. Use clamps or
vises to hold work piece whenever possible.
•Do not carry or drag the tool by the hose or
power cord.
•Do not use power tools when tired, or under the
influence of medication, drugs, or alcohol.
•Never us a damaged or malfunctioning tool or
accessory,
•Do not modify the tool, safety devices, or
accessories.
•Do not use this tool for purposed other than
those recommended.
•Use accessories recommended by Novatek
Corp.
•Never operate a tool with an accessory unless it
is properly installed and the tool is held firmly
against the work,
•Always use a retainer, when furnished, in
addition to proper barriers to protect persons in
surrounding or lower areas from possible
ejected accessories.
•When wearing gloves and operating models
with inside trigger, always be sure that the
gloves will not prevent the trigger from being
released.
•Wear safety shoes, hard hat, safety goggles,
gloves, dust mask and any other appropriate
protective clothing while operating the tool.
•Do no indulge in horseplay. Distraction can
cause accidents.
•Keep hands and fingers away from the throttle
lever until it is time to operate the tool.
•Never rest the tool on your foot.
•Never point the tool at anyone.
•Compressed air is dangerous. Never point an air
hose at yourself or others.
•Never blow clothes free of dust with compressed
air.
•Be sure all hose connections are tight. A loose
hose not only leaks but can come completely off
the tool and while whipping under pressure, can
injure the operator and other in the area. Attach
safety cables to all hosed to prevent injury in case
a hose is accidentally broken.
•Never disconnect a pressurized air hose. Always
turn off the air supply and bleed the tool before
disconnecting a hose.
•When applicable, the operator must keep limbs
and body clear of the chisel. If a chisel breaks,
the tool with the broken chisel projecting from the
tool will suddenly surge forward.
•Do not ride the tool with one leg over the handle.
Injury can result if the chisel breaks while riding
the tool.
•Know what is underneath the material being
worked. Be alert for hidden water, gas, sewer,
telephone or electric lines.
•Use only proper cleaning solvents to clean parts.
Use only cleaning solvents which meet current
safety and health standards. Use cleaning
solvents in a well ventilated area.
•Do not flush the tool or clean any parts with diesel
fuel. Diesel fuel residue will ignite in the tool
when the tool is operated, causing damage to
internal parts. When using models with outside
triggers or throttle levers, take care when setting
the tool down to prevent accidental operation.
•Do not operate the tool with broken or damaged
parts.
•Never start the tool when it is lying on the ground.
•This tool is not designed for working in explosive
atmospheres.
Refer All Communications to the Nearest
Novatek Corporation Office or Distributor.
Printed in the U.S.A.

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
5
SECTION I
GENERAL.......................................................................................................................................6
SECTION II
KITS "A" & "B"................................................................................................................................. 6
KITS "C" & "D"................................................................................................................................ 6
KITS "A", "B", "C" & "D" - MCV........................................................................................................ 6
SECTION III
SAFETY..........................................................................................................................................6
SECTION IV
EQUIPMENT IDENTIFICATION & FIELD SET-UP.........................................................................7
KITS “A & B” ...................................................................................................................................7
KITS “C & D”................................................................................................................................... 7
MULTI-PORT COLLECTIONS VACUUM........................................................................................7
SECTION V
SET-UP PROCEDURES & EQUIPMENT DESCRIPTION..............................................................7
SECTION VI
START-UP REQUIREMENTS ........................................................................................................9
OPERATING PROCEDURE...........................................................................................................9
MAINTENANCE............................................................................................................................ 10
SECTION VII
GENERAL H.E.P.A. FILTER CARE.............................................................................................. 10
TROUBLESHOOTING.................................................................................................................. 11
SECTION VIII
SYSTEM STAGE PARTS............................................................................................................. 11
SERVICE LAYOUTS .................................................................................................................... 12
SPECIFICATIONS........................................................................................................................ 16
SECTION IX
FLOW DIAGRAMS FOR CBS & MCV........................................................................................... 17
NOVATEK WARRANTY ............................................................................................................... 19

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
6
SECTION I
GENERAL
This manual covers the operation and maintenance manual is furnished with each CBS-Contained Blasting System & MCV-
Multi Component Recovery System. It outlines the general equipment use and the operation and maintenance requirement
for efficient and safe operation. It is also important that the operator/user becomes familiar with the OSHA requirements for
coatings removal, recovery and containment of hazardous wastes that may be generated.
READ ALL INSTRUCTIONS AND DATA IN THIS OPERATION AND MAINTENANCE MANUAL PRIOR TO OPERATION
OF THIS EQUIPMENT.
These instructions are for your protection and convenience. Please read them carefully since failure to follow the
precautions could result in injury. Whenever using electric powered equipment, basic safety precautions should be
followed.
If after reading this manual anything seems unclear, contact a NOVATEK authorized distributor or NOVATEK directly by
dialing 1-866-563-7800.
SECTION II
KITS A & B
Designed to collect and contain abrasives and normal coating material in an efficient and safe manner. Blasting media will
also be collected during this procedure.
KITS C & D
Designed to collect coatings by blasting, as well as, contain normal and hazardous coating material in an efficient and safe
manner. Blasting media will also be collected during this procedure.
KITS A, B, C & D –MCV
Designed to supply a vacuum flow for power tools that remove coatings such as; by needle scaling, Scabbler and roto-
penning. The same hazardous material removal recovery and containment capability is maintained in kits C & D>
SECTION III
SAFETY
The Contained Blasting System (CBS) and Multi-Port Collection Vacuum (MCV) are highly efficient systems designed for
collecting, filtering, and containment of normal or hazardous waste products generated from coating removal operations. In
order to properly operate the system effectively and safely, the following should be strictly adhered to:
1. Do not leave either the CBS Workhead or blast pot connected to a compressed air supply line. Turn off air and
disconnect unit from the air line when it is not in use or before servicing.
2. Follow the procedures outlined in this manual for safe and efficient use of the system. Use only Novatek’s
recommended parts and attachments.
3. Do not operate with damaged parts. If the vacuum or blasting system is not working as specified due to parts
failure or misuse, repair damaged parts or return to a Novatek authorized distribution service center for inspection
and repair as necessary. Always replace parts with genuine Novatek parts to insure operational safety and to
protect your limited liability warranty.
4. Do not pull or carry the equipment by the air or vacuum lines, use the lines as handles, close doors on lines, or pull
the lines around sharp corners or edges. Keep the lines away from heated surfaces or other harsh environments.
5. Do not operate with any opening blocked. Keep vacuum flow path clear of debris for safe efficient operation. Do not
operate system with vacuum lines not connected to equipment to ensure that harmful debris will not be ingested.
6. Keep hair, loose clothing, fingers and all body parts away from the vacuum openings and moving parts of the tool
during operation.
7. Do not ingest anything that is burning or smoking, such as hot ashes, matches or cigarettes.
8. Do not use the machine without the intermediate (cartridge) filter and or H.E.P.A. filter in place, when operating
with hazardous materials.
9. Turn off all controls before disconnecting air supply.

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
7
10. Do not use without approved safety restraints when operating on stairs, ladders, etc.
11. Do not use in areas where flammable or combustible liquids, such as gasoline, may be ingested into the vacuum
lines.
12. Do not use where oxygen or anesthetics are being used.
13. Hazardous waste generated during the operation of the contained blasting systems C and D and multi port
collections systems must be managed in accordance with OSHA regulations to insure safe handling, equipment
cleaning and containment in all respects.
SECTION IV
EQUIPMENT INDENTIFICATION AND FIELD SET-UP
Equipment configuration for the systems discussed in this manual are identified as to type and requirement layouts as
follows:
Kit “A” – CBS –Contained Blasting System (Single Pump –No H.E.P.A.)
Kit “B” – CBS –Contained Blasting System (Dual Pump –No H.E.P.A.)
Kit “C” – CBS –Contained Blasting System (Single Pump –w/ H.E.P.A.)
Kit “D” – CBS –Contained Blasting Systems (Dual Pump –w/ H.E.P.A.)
Each system is discussed as to general assembly and setup requirements down to the stage level of detail. Follow the
illustrations for the general equipment layout and equipment changes for each configuration. A brief discussion of each
system follows:
KIT “A & B” CBS
General set up procedures and equipment are outlined in the next section. All blasting debris (grit and surface coating
material) is collected in the recovery stage and remaining dust in the filter stage. Blasting media is also collected in the
recovery stage. Kit “A” is supplied with a single vacuum pump and Kit “B” is supplied with dual vacuum pumps.
H.E.P.A. filter stage must be added to these kits if hazardous material coatings are being removed, in order to meet OSHA
requirements. The dual vacuum pump may be required to accommodate the use of the #6 nozzle or the increased vacuum
requirement for 5 or 8 vacuum tools.
KIT “C & D” CBS
General set up procedures and equipment arrangement are outlined in the next section. All blasting debris (grit and surface
coating material) is collected in the recovery stage and remaining dust in the filter stage. Blasting media is also collected in
the recovery stage. Kit “C” is supplied with a single vacuum pump and Kit “D” is supplied with a dual vacuum pump.
H.E.P.A. filter stage comes with these kits for containment of hazardous material coatings, in order to meet OSHA
requirements. The dual vacuum pump may be required to accommodate the use of a #6 nozzle or the increased vacuum
requirement for 5 to 8 vacuum tools.
MCV –MULTI-PORT COLLECTION VACUUM
The 4 port or 8 port manifolds, utilized vacuum power tools (VSE) to remove coating from surfaces and collect the debris
consistent with requirements of collecting hazardous or non-hazardous debris from the removal process by means of
vacuum collection.
These manifolds are sufficient to operate 2-8 (VSE) power tools like; needle guns (19/PG or 28/PG), grinders (2”, 5” or 7”)
and roto-peens (2”-4”).
SECTION V
SET-UP PROCEDURE & EQUIPMENT DESCRIPTION
CBS KITS
The general set-up area required should be reasonably flat, convenient to a compressed air facility and close to the
equipment or surfaces to be blasted. Equipment will normally be skid mounted or located where debris can easily be moved
from the area and blast material can easily be loaded into the blast pots. Skid or truck bed mounting will accommodate

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
8
moving from job to job. Units should be located to utilize the standard inter-connecting hose lengths furnished and
positioned to allow accessibility for operators.
Parts list for each stage in the layout should be used to identify parts and assemblies utilized in these kits. These parts lists
are identified as (1) Workhead, (2) recovery stage, (3) Pre-Filter stage, (4) H.E.P.A. filter stage, (5) Vacuum stage, (6) Hose
& other ancillary equipment and compressed air system.

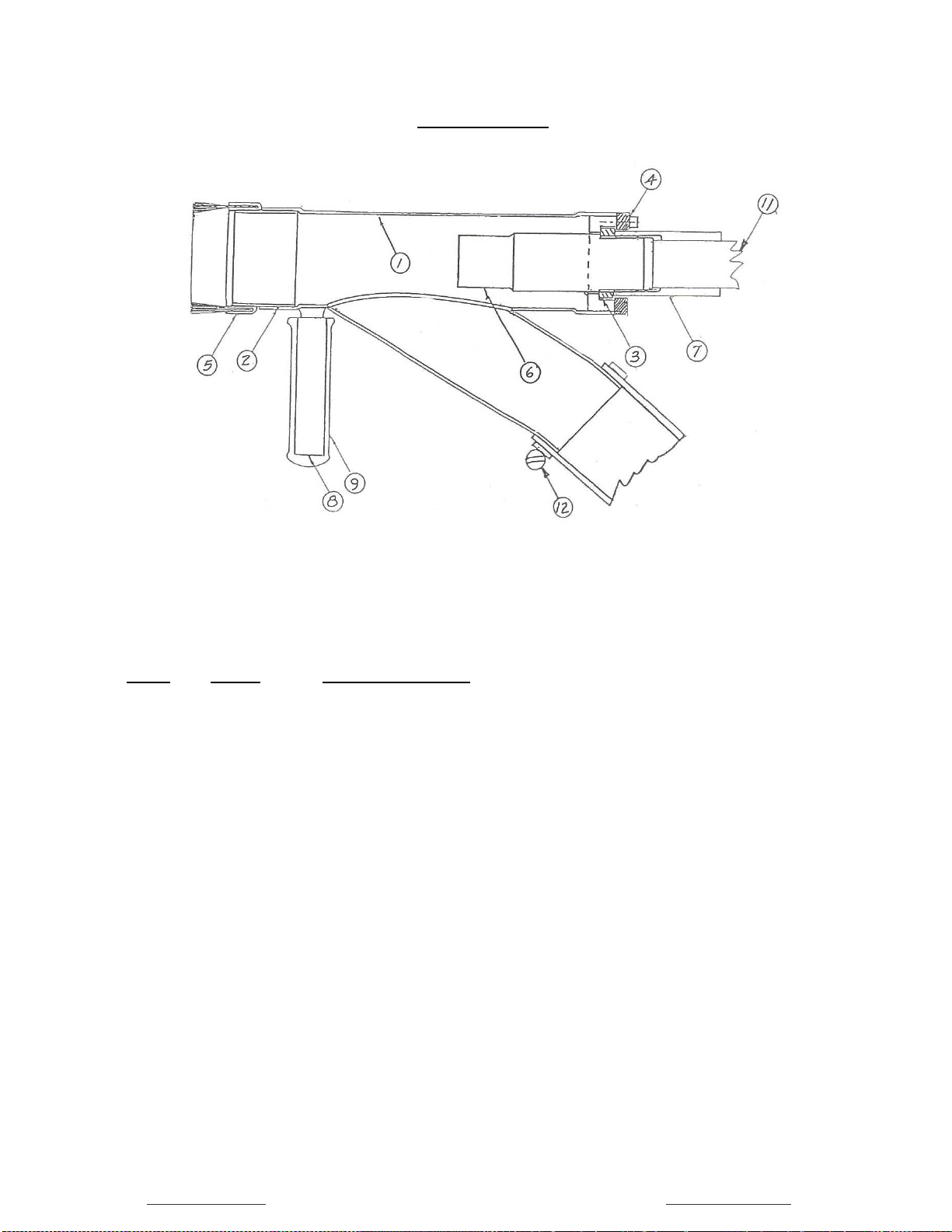

WORKHEAD & ASSOCIATED EQUIPMENT (OPTIONAL)
The Workhead is partially assembled with the exception of the blast whip hose with coupling and the vacuum recovery hose
with coupling. The Workhead assembly is shown in Assembly 1-1 and Parts List 1-1. Individual parts are listed in the parts
list and referenced in each service layout.
•To complete the Workhead assembly, the blast hose is cut to a smooth perpendicular end with the suitable knife.
•This end is screwed into the non-threaded end of the nozzle holder until the hose end reaches the start of the
machined internal thread.
•The locking ring is loosely assembled over the nozzle holder, the nozzle and locking right assembly are screwed
into the nozzle holder until glove tight, and insuring that the hose end and nozzle end seal are mated properly and
sealed.
•The combined locking ring and nozzle assembly is inserted into the Workhead and locked into place by means of
the locating pin and three internal locking screws.
•The nozzle and hose assembly should swivel freely in the Workhead.
•Connect the 3” vacuum hose to the Workhead by means of a hose clamp.
RECOVERY STAGE (1-2)
The recovery stage is a pre-assembled drum lid with the inlet vacuum hose connected to a 3” Cam lock fitting with an
internal elbow directed tangentially to the drum internal surface. The cyclonic action of the flow through the elbow drops
larger particles of dirt and debris from the stream onto the drum base resulting in cleaner air being removed from the
recovery stage through the 2nd Cam lock exhaust fitting and ducted to the filter stage 1-4. Both fittings are assembled with
gasket and lock nuts. Flow direction is marked on the hose fittings and drum lid (color coded on hose end to match stage
connector fittings). The drum top and drum top gasket are installed on the 55 gallon barrel.

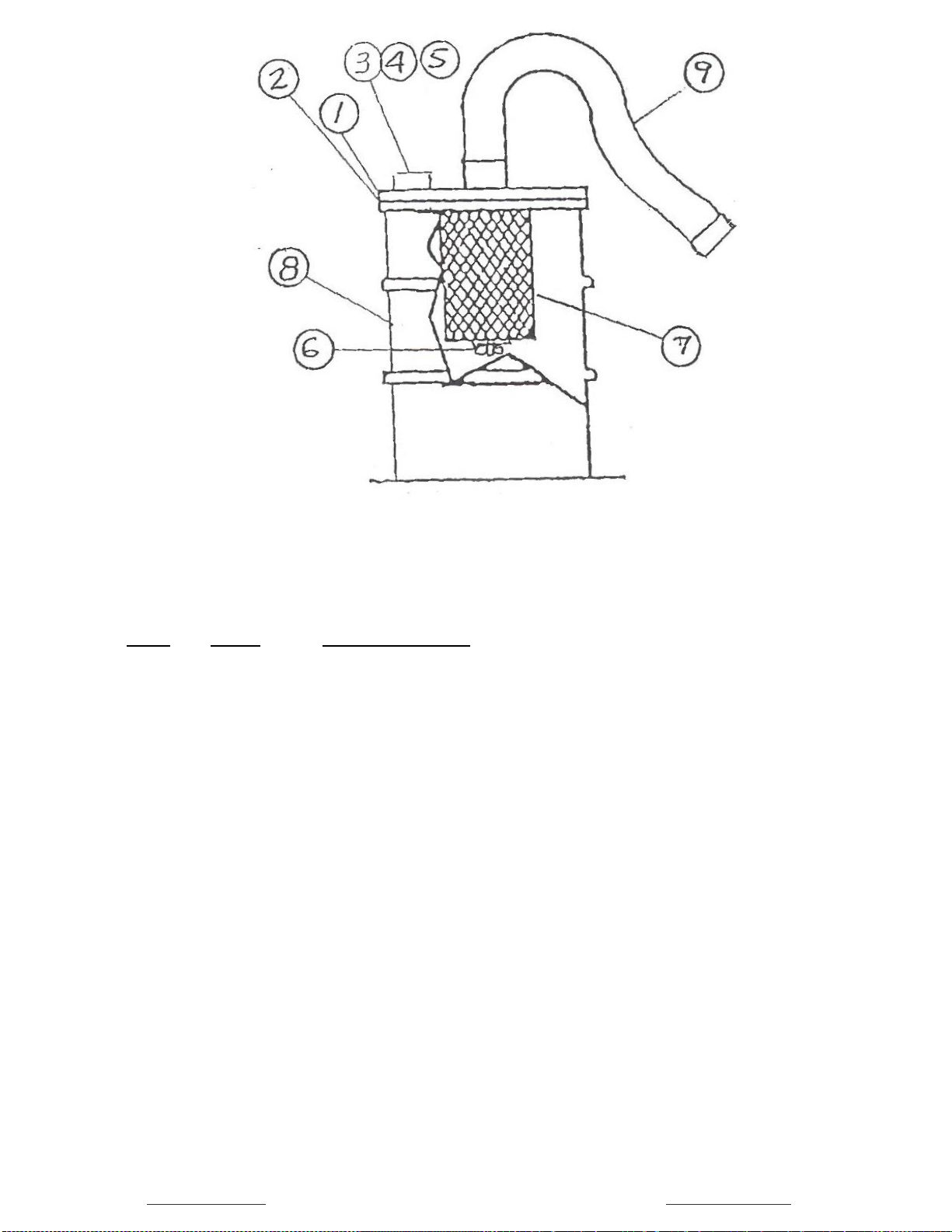

FILTER (CARTRIDGE) STAGE (1-4)
The filter unit is partly assembled on a 55 gallon drum lid with the inlet connected to a 3” Cam lock fitting. The outlet fitting
supports the bracket, filter locating. Both fittings are assembled with gaskets and lock nuts. The filter cartridge is assembled
on the bracket with furnished locking nut. The filter unit (1-4) will not pass particles of size greater than 3.0 micros. The drum
top and drum top gasket are installed on the 55 gallon barrel.
H.E.P.A. FILTER STAGE (1-5)
If the CBS operation is removing hazardous coating materials, a H.E.P.A. filter unit must be utilized. The H.E.P.A. filter unit
will remove all material from the stream down to 0.3 micron size. The unit, if required, is delivered with the H.E.P.A. filter,
implosion valve and vacuum gage installed. The implosion valve is set at 60” H2O vacuum to protect the enclosure. The
vacuum gage is used to determine the filter condition, to be discussed further in the maintenance section. Vacuum hoses
are color coded and flow direction indicators are marked to insure proper equipment installation orientation and vacuum
flow.
VACUUM STAGE (1-6)
The vacuum stage unit, as shipped, is almost completely assembled. The unit should be located to allow easy connection to
the compressor and vacuum lines exiting the pre-filter or the H.E.P.A. filter stage according to the system requirements. The
muffler is assembled to the vacuum stage unit with hardware supplied. Par list 1-6 defines specific equipment included.
Specifications for the vacuum unit are defined in section 1-6. If dual flow vacuum units are required for use with the #6
blasting nozzles, the necessary parts are defined in the stage 1-6 parts list.
An optional dual vacuum pump may be required if a #6 nozzle is used in the Workhead. An additional dual vacuum manifold
(314.D158) and a 6’ vacuum hose with couplings (314.B104) will also be required.

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
9
VAC & COMPRESSED AIR HOSE
The following interconnecting vacuum and air hoses or equipment are required to complete, or as extras (*) to modify, the
equipment installation.
•Vacuum Hose (50’) from the Workhead is furnished, with the Workhead stage.
•Blast Hose (10’ whip) is furnished with the Workhead stage.
•Additional Blast Hose ¾” or 1” diameter vacuum hose (3” diameter) in 50’ length are available as an option to
support Workhead operation from the blast pot.
•Air hose and compressor equipment (by others) may be required to support operation of the CBS Kits Flow
vacuum operation.
SECTION VI
START-UP REQUIREMENTS
CBS KITS
After all equipment has been satisfactorily installed and checked out, the system is ready to be configured for start up. The
following steps should be followed for the correct start up sequence.
1. Insure that all interconnection hoses, both vacuum and air, are laid out with no kinks, minimum bends and
connectors complete and secure.
2. Insure that the Workhead and the shut off safety switch are assembled properly and connected securely at hose
connectors.
3. Insure the operator is equipped with the recommended protective clothing and equipment in accordance with
NIOSH ▪Air-fed hood
▪Remote controls
▪Canvas jacket, pants and leather gloves
▪Also recommended is that the air-lid hood be equipped with an air purifier, free air pump and or
CO (Carbon Monoxide monitor).
OPERATING PROCEDURE
Start-up
•Turn on compressed air.
•Open valve on vacuum pump air supply valve.
Blast Operation
•Pick up Workhead and remote control switch.
•Place Workhead brush in full contact with the work surface and close remote switch.
•A short delay will be observed until the abrasive reaches the Workhead.
•Adjustment of the pot regulators will adjust abrasive flow to the Workhead.
•Adjust regulators until the abrasive flow produces the desired amount of surface cleaning.
•The remote control must be depressed as long as blasting is required.
•The Workhead brush must be in constant contact with the work surface to achieve optimum vacuum recovery and
control of abrasive and dust generation.
Routine Intermittent Shutdown
Release the remote control switch and the blasting will stop. The vacuum runs constantly while the vacuum pump unit is
operating. The switch controls the blasting only. Keep the brush in full contact with the work surface to insure no escape of
the blast abrasive during start-up and shutdown cycles.
Shutdown –Reloading Abrasives
•Release the remote control switch.
•Close the valve on vacuum pump air supply valve.
•Fill blast pot manually to desired capacity.

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
10
•To start blast operation again, open the air supply to the vacuum pump valve and open the blast pot air supply
valve.
•Intermittent shutdowns provide a time for brush inspection for deterioration and replacement as well as inspection
of vacuum for pressure leaks in the system.
Shutdown –End of Work Period
•Close the air supply valve on compression and shutdown in accordance with compressors manufacturers’
instruction.
•Bleed off air in compression supply line by opening air supply valve until pressure is released, then close again.
•System is now de-pressurized.
MAINTENANCE
Periodic maintenance performed as scheduled will insure that the CBS equipment will operate at high efficiency with
minimum unscheduled down time. The recommended program is as follows:
Daily Maintenance
•Check the operation protective equipment to ensure that all required equipment is being used and is in good
working condition.
•All blast hose couplings must be properly safety wired or pinned.
•All rubber washers and seals on nozzles, blasting hose and air line couplings must be properly installed and in
good condition.
•The Workhead nozzle must be tightly secured to the nozzle coupling. A rubber sealing washer must be used to
prevent premature wear on the nozzle and coupling.
•Perform a daily inspection of all equipment to ensure that no damage was incurred over the shutdown period.
Weekly Maintenance
•Check the nozzle for wear. Maximum wear is defined when the nozzle diameter increases in size from ¼” to 3/8”
for a #4 nozzle. Worn nozzles will reduce operating blasting pressure and will reduce production rate.
•Check blast and vacuum hoses for signs of wear or soft spots.
•Check all valves and controls for satisfactory operating condition.
•Check recovery, pre-filter and H.E.P.A. filters for satisfactory operation and recovery accumulated debris or dust if
over ½” barrel deep.
Monthly Maintenance (or approximately 200-500 hours of operation)
•Check and if needed replace the filters.
•Check all seals for signs of wear and replace as needed.
•Hoses should be checked for signs of wear inside and outside.
•Replace drums with clean empty ones. Dispose of used drums according to local regulations.
SECTION VII
GENERAL H.E.P.A. FILTER CARE
1. The Novatek CBS and MCV systems have been specifically designed to remove and contain hazardous material
such as lead-based paint and asbestos while removing protective coatings. Special filters reduce the incidence of
airborne contaminated dust that would be created by other methods of cleaning.
2. During the removal of protective coatings, asbestos dust, and other hazardous materials, do not sweep, scoop or
shovel or in any manner handle other than by vacuuming as covered in this manual.
3. Do not attempt, at any time, to bypass, remove, substitute, or by any other means, change the filters in this system.
Use only approved Novatek vacuum filters. Before attempting to use and before cleaning, be certain that you fully
understand the instructions given for the setting up or cleaning/changing of filters in the vacuum unit.
4. The pre-filter stage on top of the 55 gallon drum removes the majority of dust and dirt before moving through the
H.E.P.A. stage or vacuum pump.
5. The H.E.P.A. filter must be used when processing hazardous waste. This filter will pass only particles smaller than
.3 microns which meets OSHA requirements. The small amount of dust that may be deposited in the upstream side
of the filter should be removed and disposal in an OSHA approved and sealed bag.

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
11
6. In all cases filter should be replaced in stages 4 and 4a to minimize contamination and prolong the efficient
operation of the H.E.P.A. filter.
7. H.E.P.A. filter replacement is accomplished by removing the H.E.P.A. filter box top and lifting the H.E.P.A. out of
the unit. The heap filter must be disposed of in an OSHA approved and sealed bag. The new filters installed and
filter box assembled making sure the assembly is properly sealed.
TROUBLESHOOTING
Poor Production
Low air pressure is the most common cause of poor production or performance. The poor operation is generally caused by
one of the following:
•Compressor is too small for the nozzle being used.
•Air line I.D. is too small. Air line size should be a minimum of 1 ¼” diameter.
•Air restriction in the line caused by improper fittings. Blasting pressure should be 100 psi minimum measure at the
nozzle.
Pulsating or Surging of Nozzle Flow
NOTE: It is normal to have an initial surge of grit due to accumulated grit in the hose and nozzle. Normal flow will occure in
a few seconds.
•Choke valve is partially closed.
oThe choke valve should be open during blasting operations.
•Operating with damp abrasives.
oGrit must be absolutely dry to flow evenly through the blast hose and nozzle. On humid days or with a
filter open to weather, correct operation may require operating with the moisture separator drain cock
slightly open. If this does not correct the problem an air dryer system may be required in line between the
compressed air source and the blast machine.
Flow of Air Through the Nozzle, But Little or No Flow of Abrasives
•Blast pot is empty –refill with abrasives.
•Contaminated abrasives.
oInspect to see if contaminants are introduced at the blaster.
•Clogged grit valve.
oAdjust the grit valve to full open position while the machine is blasting. Close the choke valve for a few
seconds –then open it fully. Repeating this sequence three of four times should clear any temporary
blockages.
SECTION VIII
SYSTEM STAGE PARTS LISTS
CBS Kit “A” (Figure #1, Page 18)
PART # KIT DESCRIPTION
CBS0100 Recovery Stage
CBS0200 Filter Cartridge Stage
CBSD153 Vacuum Pump Stage
CBS Kit “B” (Figure #2, Page 19)
PART # KIT DESCRIPTION
CBS0100 Recovery Stage
CBS0200 Filter Cartridge Stage
CBSD153 Vacuum Pump Stage (2 pieces)
CBSD149 Dual Pump Manifold
CBSD158 Dual Vacuum Manifold Complete

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
12
CBS Kit “C” (Figure #3, Page 19)
PART # KIT DESCRIPTION
CBS0100 Recovery Stage
CBS0200 Filter Cartridge Stage
CBSD153 Vacuum Pump Stage
CBSD153 H.E.P.A. Stage
CBS Kit “D” (Figure #4, Page 19)
PART # KIT DESCRIPTION
CBS0100 Recovery Stage
CBS0200 Filter Cartridge Stage
CBSD153 Vacuum Pump Stage (2 pieces)
CBS0014 H.E.P.A. Stage
CBSD149 Dual Pump Manifold
CBSD158 Dual Vacuum Manifold Complete

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
13
SERVICE LAYOUTS
(1-1)
Workhead Stage
CBS0008
REF. # PART # STAGE DESCRIPTION
- CBS0020 Workhead Kit
- CBS0015 Workhead Complete (Included in Workhead Kit)
1 CBSA001 Workhead Steel Body
2a CBSA032 2” Steel Insert Sleeve (3pc)
2b CBSA033 3” Steel Insert Sleeve (2pc)
2c CBSA034 4” Steel Insert Sleeve (2pc)
3 CBSA020 Threaded Locating Ring
4 CBSA015 Locking Ring w/ hardware
5a CBSA030 3” Flat Brush (3pc)
5b CBSA029 3” Outside Corner Brush (2pc)
5c CBSA028 3” Inside Corner Brush (2pc)
6a CBSA004 #4 Nozzle
6b CBSA006 #6 Nozzle
7 CBSD005 ¾” Nozzle Holder
8 CBSA016 Steel Handle
9 CBSA018 Grip
10 CBSD305 50’ Vac Hose 3” diameter
* CBSB300 Female Hose Coupling (Not Shown)
11 CBSD075 ¾” Blast Hose –10’ length
* CBSD015 Chicago Fitting for Blast Hose (Not Shown)
12 CBSD310 3” Hose Clamp

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
14
(1-2)
Recovery Stage (Lid Assembly)
CBS0100
PART # STAGE DESCRIPTION
1 CBSB100 Drum Top
2 CBSB105 Drum Top Gasket
3 CBSB305 3” Hose Couplings (2)
4 CBSB312 3” Coupling Gaskets (2)
5 CBSB315 3” Lock Nuts
6 CBSB102 3” Elbow
7 CBSB055 Barrel 55 Gallon (Customer Supplied)
8 CBSB104 3” Vac Hose w/ Couplings –6’ length

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
15
(1-3)
Filter Stage
CBS0200
REF. # PART # STAGE DESCRIPTION
1 CBSB100 Drum Top
2 CBSB105 Drum Top Gasket
3 CBSB305 3” Hose Couplings, Cam Lock (2)
4 CBSB312 3” Coupling Gaskets (2)
5 CBSB315 3” Lock Nuts
6 CBSB120 Bracket Assembly Filter Locating
7 CBSB600 Filter Cartridge
8 CBSB055 Barrel 55 Gallon (Customer Supplied)
9 CBSB104 3” Vac Hose w/ Couplings – 6’ length
* For dual pump vacuum pump installation without H.E.P.A. filter additional equipment required
10 CBSD158 Dual Vac Manifold (not shown)
11 CBSB305 3” Male Hose Coupling
12 CBSB104 Vac Hose –3” diameter – 6’ length

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
16
(1-4)
H.E.P.A. Filter Stage
CBS0014
REF. # PART # STAGE DESCRIPTION
1 CBSC002 Filter Housing (H.E.P.A.) Complete/HWD
2 CBSC010 H.E.P.A. Filter
3 Filter Brackets
4 CBSB305 3” Hose Couplings (2)
5 CBSC020 Valve, Implosion (2” NPT)
6 CBSC026 Gauge Plug (¾” NPT)
7 CBSB104 3” Vac Hose w/ Couplings – 6’ length
* For dual vacuum pump installation additional equipment required *
8 CBSD158 Dual Vac Manifold
9 CBSB305 3” Male Hose Coupling
10 CBSB104 Vac Hose –3” diameter – 6’ length

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
17
(1-5)
Vacuum Pump
CBSD153
REF. # PART # STAGE DESCRIPTION
1 CBSD150 Venture Assembly
2 CBSD105 Gage Mount
3 CBSD100 Gage
4 CBSD160 Valve, Ball (1 ¼”)
5 CBSD151 Muffler/Flange w/ Hardware
6 CBSB305 Vac Hose Assembly Fitting –Cam Lock (3”)
8 CBSD112 Venturi Nozzle –3/8” Standard
8 CBSD110 Venturi Nozzle –¼” Optional
9 CBSD155 3” – 2” Reducer – Optional
10 CBSD154 Pipe Nipple (2”) – Optional
* For dual vacuum pump installation additional equipment required *
CBSD149 Dual Pump Manifold

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
18
SPECIFICATIONS
Blast Operation
Bulk Tool Operation
Air
CFM / Static Lift
# 4 Blast
# 6 Blast
1-4
5-8
Requirements
Output Flow
¼” Nozzle
3/8” Nozzle
Tools
Tools
1- Vacuum Pump
200 CFM @ 100 PSI
360cfm @13”Hg
X
X
2 –Vacuum Pumps
400 CFM @ 100 PSI
720cfm @13”Hg
X
X
SECTION IX
FLOW DIAGRAMS FOR CBS AND MCV
CBS Kit “D” Shown
Figure #2
CBS Kit “A” - Single Pump

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
19
Figure #3
CBS Kit “B” –Dual Pump
Figure #4
CBS Kit “C” – Single Pump w/ H.E.P.A.
Figure #5
CBS Kit “D” –Dual Pump w/ H.E.P.A.

*www.novatekco.com * Toll Free: 866.563.7800 * Tel: [phone] * Fax: [phone] * [email protected]*
20
NOVATEK CORPORATION LIMITED WARRANTY
The TOOLS manufactured/distributed by Novatek Corporation are warranted to be free from defects in
material and workmanship for a period of ONE YEAR with the exception of Electric Drive Units, Electric
Motors and Air Blowers - 6 months warranty applies on the electric components from the date of
purchase. This warranty does not apply to accessories or parts subject to normal wear.
This warranty applies only to TOOLS purchased new from NOVATEK CORPORATION or an
authorized distributor. This warranty does not apply to any TOOL which has been abused, misused,
modified or repaired by someone other than NOVATEK CORPORATION or its authorized repair
center.
If a TOOL proves defective in material or workmanship within one year of purchase from NOVATEK
CORPORATION, it should be returned to NOVATEK CORPORATION, transportation pre-paid. The
return must be authorized by a RETURN MERCHANDISE AUTHORIZATION NUMBER (R.M.A. #)
obtained from NOVATEK CORPORATION prior to returning the UNIT. All packages must show
clearly on the outside the return merchandise authorization number. All packages received without
any R.M.A. # on the outside will be refused by NOVATEK CORPORATION receiving department.
Warranty claims will only be considered upon adequate proof of date of purchase. NOVATEK
CORPORATION will, at its option, REPAIR or REPLACE DEFECTIVE PARTS. Repairs or
replacements are warranted as above for the remainder of the original warranty period. The sole
liability of NOVATEK CORPORATION and the user’s exclusive remedy under this warranty is limited
to the repair or replacement of the defective product.
THERE ARE NO OTHER WARRANTIES EXPRESSED OR IMPLIED AND NOVATEK
CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES OR ANY OTHER EXPENSES OR REPAIR OR REPLACEMENT AS DESCRIBED
ABOVE.
All warranty claims should be forwarded to:
NOVATEK CORPORATION
254 Welsh Pool Road
Exton, PA 19341
ATTENTION: CLAIM AND SERVICE DEPARTMENT
R.M.A. # ____________
CALL Toll Free at 1-866-563-7800 for your RMA number prior to shipping.
Also include a brief description of the problem as well as a phone number, contact name and return
address in case NOVATEK CORPORATION service personnel has to get in contact with you.
