Novik Neo EVOD STREETSOUND V User manual

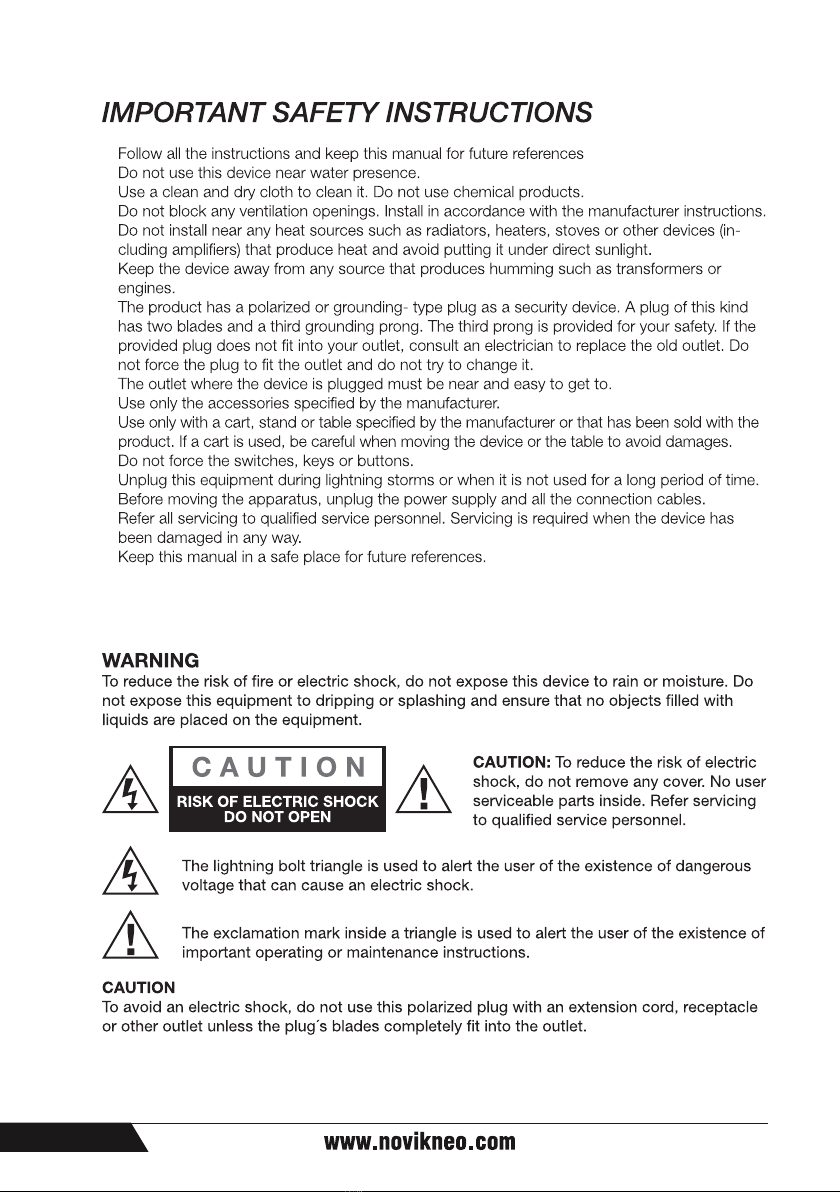

GENERAL CONSIDERATIONS
• Keep out of the reach of children.
• Be sure to place the box in a safe and stable.
• Do not overload the box, avoid damage to the structure and internal.
• Indoor use is recommended; if used outdoors, make sure that no moisture in the box.
• Do not place a ame (eg candles) near or on the box. - Fire Hazard
• Just plug into an outlet with a ground connection
• When not in use, unplug the unit from the mains.
• Unplug the power plug before checking or replacing the fuse.
• To hang the box, only use approved mounting hardware.
• During installation, make sure that nobody is standing under that area.
• Do not place liquids on the case and protect it from moisture; can signicantly shorten the life
of the equipment.
• Use appropriate means of transport in case you want to move the box. Watch your back.
• If the unit has not been used for a long period, can cause condensation inside the housing;
please allow the unit to reach room temperature before use.
• Never attempt to repair the unit yourself. Contains exclusive parts inside.
• Pull the cable so that no one falls on it or put anything on it.
• Set the minimum volume before starting

TECHNICAL SPECIFICATIONS
Conguration Portable PA System
RMS Power 160W + 160W
Program power 320W + 320W
Peak Power 640W + 640W
Frequency response 60Hz - 18KHz
Sensitivity 94dB (@ 1W/1m)
Maximum Sound Pressure Level 122dB
Woofer Impedance 4 ohm
Woofer Diameter 8”
Coil Kapton VC 2”
High Frequency Driver titanium diaphragm 25 mm (1”)
Polar pattern Cardioid
Power supply AC 115V/230V - 60/50Hz
Power Consumition 360W
Fuse 220V: T3,15AL~250V
110V: T5AL~250V
Specications subject to change without notice.

MICM IC MIC
MICL INE MICL INE MICL INE
-12
0
+12
BASS
-12
0
+12
TREBLE
LR
PAN
LR
PAN
LR
PAN
LR
PAN
01 0
EFFECT
01 0
LEVEL
01 0
LEVEL
01 0
LEVEL
01 0
LEVEL
01 0
EFFECT
01 0
EFFECT
01 0
EFFECT
-12
0
+12
TREBLE
-12
0
+12
TREBLE
-12
0
+12
TREBLE
-12
0
+12
BASS
-12
0
+12
BASS
-12
0
+12
BASS
CH 1
12 34
CH 2 CH 3 CH 4
USB/SD/BLUETO OTH DIGI TAL PLAYE R
MODE
ON/OFF USB
SD
STREETSOUND V
Portable PA System
LINE LINE LINE L
R
+12
+6
-6
-12
0
+12
Limit
+3
0
-5
-10
+6
-6
-12
0
+12
+6
-6
-12
0
+12
Limit
+3
0
-5
-10
+6
-6
-12
0
L
R
STEREO GRAPHIC EQUALIZER
STEREO
IN
STEREO
OUT
01 0
EFFECT VOL
01 0
MP3 VOL
01 0 01 0
01 0
TIME
01 0
REPEAT
L
R
L
R
MASTER L MASTER R

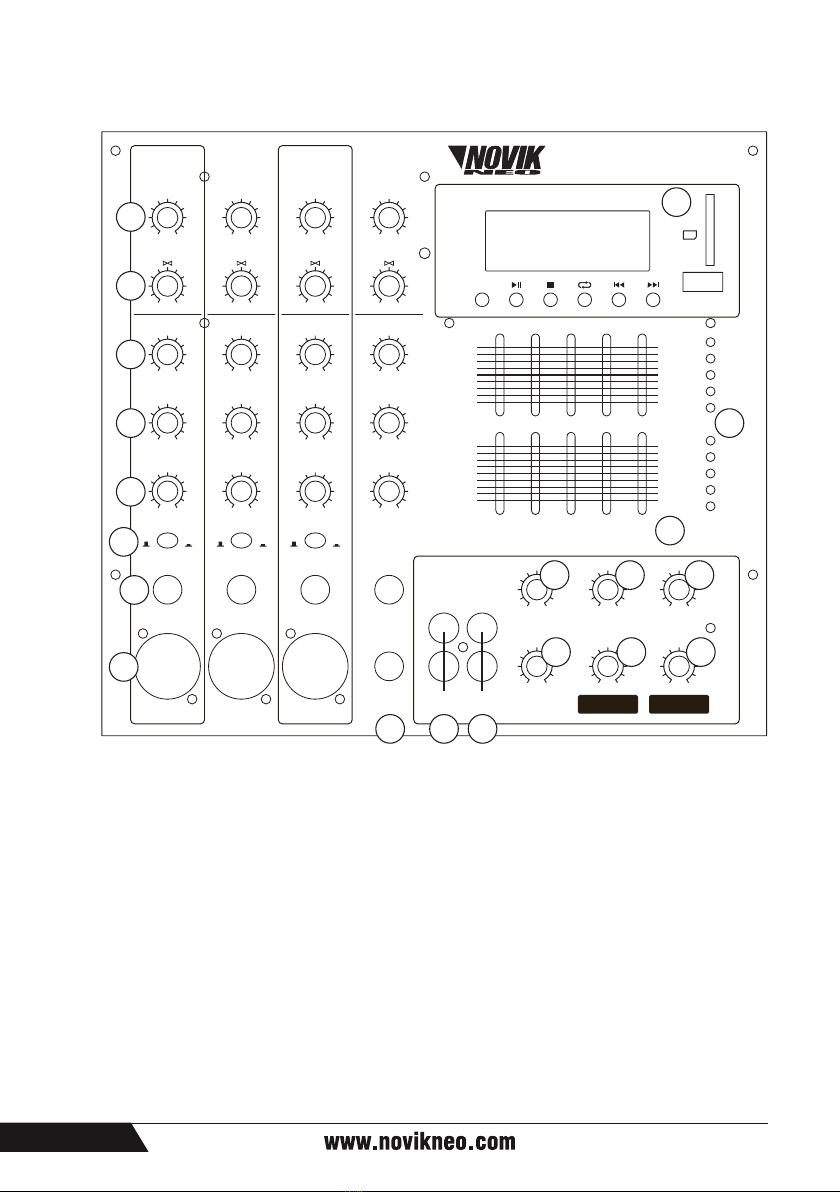

FUNCTIONS AND CONTROLS
1
3
4
5
6
6
4
2
7
8
9
12
10
13
11
14
15 15 16
17
1. Level Control
This is to adjust the channel volume
2. Pan
When the knob is in the middle position , two speaker boxes works ,when the knob turn
to left , the left speaker box volume decrease , when the knob turn to right , the right
speaker volume decrease .
3. Effect Level Control
This is to adjust the the digital effect level
4. EQ (Treble , Bass)
Treble, this knob is to adjust high frequency Bass, this knob is to adjust low frequency
5. MIC/LINE SWITCH
This switch is to adjust the gain of line and microphone , press down to decrease the
gain of microphone and line .
6. LINE IN/MIC IN:
XLR & 1/4” jack Master Level Control
7. 2x5 Band Graphic Equalizer
s to adjust the signal of left speaker box R is to adjust the signal of right speaker box

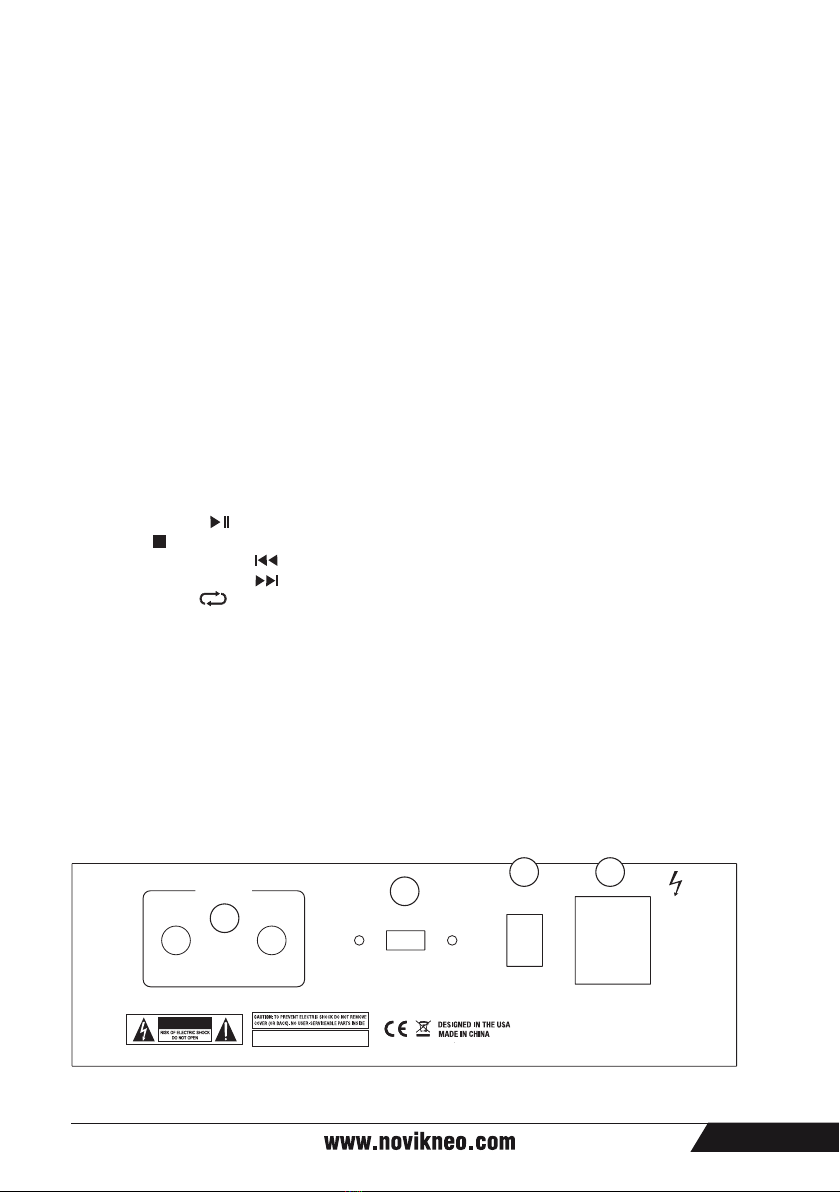

SPEAKER
AC VOLTAGE
POWER
AC INPUT
Fuse 115V: T5AL~250V
Fuse 230V: T3.15AL~250V
ON
OFF
230V115V
LR
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK.
DO NOT EXPOSE THIS EQUIPMENTTO RAIN OR MOISTURE
18
19
20 21
FUNCTIONS AND CONTROLS
8. Signal indicator
When the system works , the indicator will shine , and when the signal is
too much , the limit indicator will shine ,please turn down the volume.
9. Effect Level Control
This is to adjust the total effect volume
10. Time
This is to adjust the echo time
11. Repeat
This is to adjust the repeat times
12. MP3 Level Control
This is is to adjust the total volume of mp3 player
13. Master L
This is to adjust the total volume of left speaker box
14. Master R
This is to adjust the total volume of right speaker box
15. Stereo IN
This is to connect Stereo Signal
16. Stereo OUT
This is to output signal to other devices, such as active speaker box, mixers.
17. MP3 Player
- Play / Pause
- Stop
- Reverse / Vol -
- Forward / Vol +
- Repeat
- Mode: USB/SD, FM, BLUETOOTH®
18. Speaker Output
Please use included speaker cable to connect to 8 inch passive speaker box to power
them.
19. AC selector
Please choose the correct voltage to make sure the product work well.
20. Power switch
When you start the system, please make sure the switch at On position, when you stop
using the system, please make sure the switch at off position.
21. AC Socket
Plug in the power cable when you use the system.
L R

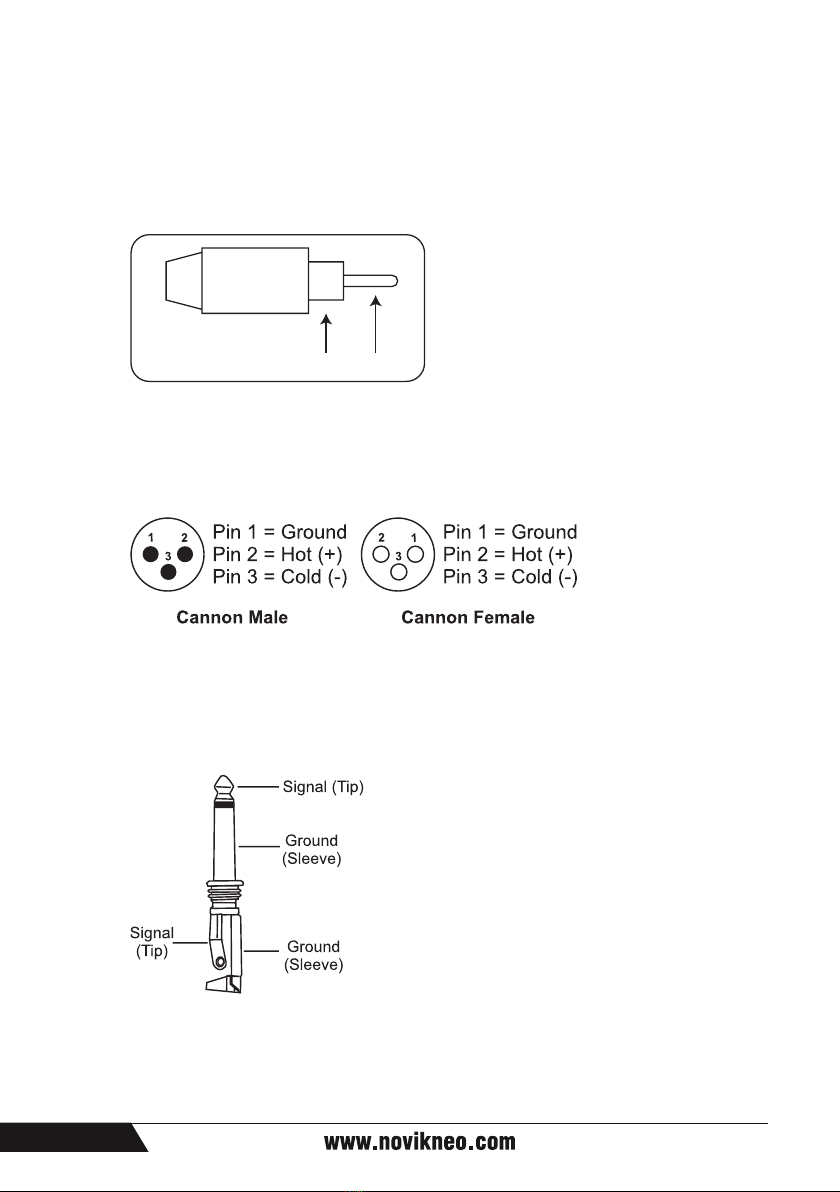

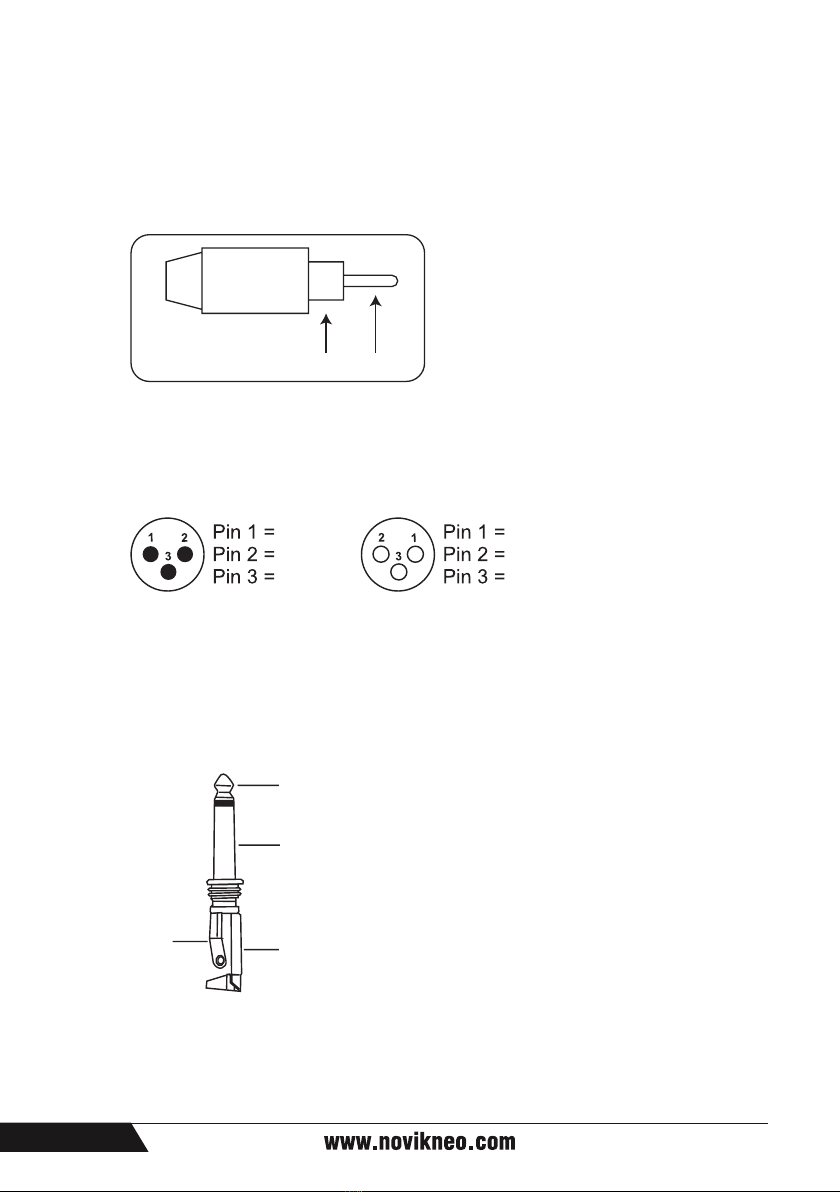

WIRING
1. RCA Connector
This kind of connector is used for audio input and output signal line, such as mixers, lap-
tops, CD players and tape. Each connector transmits a mono signal, but is usually used
in pairs to transmit stereo signals.
SLEEVE PIN
2. XLR Connector
Standard microphone connectors. They are sturdy and easy to install.
BALANCED signal transmission.
3. Mono Plug Connector 6.3mm (1/4¨)
Tip (tip) = Signal
Sleeve (sleeve) = ground / shield

TROUBLESHOOTING
The device does not turn on • Is the device connected to an appropriate
alter current net through the voltage wire
provided by the manufacturer?
• Is the switch on?
Thereis no sound • Are the wires correctly connected?
• Is the audio signal received in the loud-
speaker?
• Is the level control correctly adjusted?
The sound is weak, distorted or noisy • Has the input signal the correct level to enter
in the device?
• Are the wires damaged?
• Move the wires and keep them far from noise
sources.
• Move the monitors and the wires of any
device that can produce interferences (cell
phones, transformers, etc.)
