NOYAFA NF-8208 User manual

INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL
MODEL:NF-8208
ORIGINAL
AUTHENTIC
e
d
p
r
o
d
u
n
t
c
t
e
t
s
a
,
P
i
ng
n
o
t
e
i
t
a
r
f
l
t
e
l
o
n w
u
e
o
d
C
ORIGINAL
AUTHENTIC
REV1.0
Your excellent helper in cable test!
LCD Network Length Tester

Please read and learn safety instructions
before use or maintain the equipment
●Main testerr uses 6V DC for power supply;Receiver uses 9V
battery for power supply .
●Never put the equipment in the place with much dust, humidity
and high temperature (over 40℃).
●Please use battery according to the specification; otherwise, it
may result in damage to equipment.
●Please never dismount the equipment arbitrarily. The maintenance
and care shall be conducted by professional personnel.
●The tester will shut off automatically if it does not work for 30
minutes in succession.
●Please take out the battery in launcher and receiver if the
equipment is not used for a long time so as to prevent that the
battery liquid is leaked in future.
●Never use the equipment to detect power cord with electricity
(such as power supply circuit of 220V), other wise, it may result in
damage to equipment and personal injury.
●Never conduct related operation of communication line in
thunderstorm weather so as to prevent lightning stroke and
impact on personal safety.
Your excellent helper in cable test!

Contents
Overview.............................................................01
Main Functions and features...............................02
Technical index ..................................................02
Product interface and keypad Introduction..........03
Product operation methods.................................05
Start up or shut down AF hunting function..........11

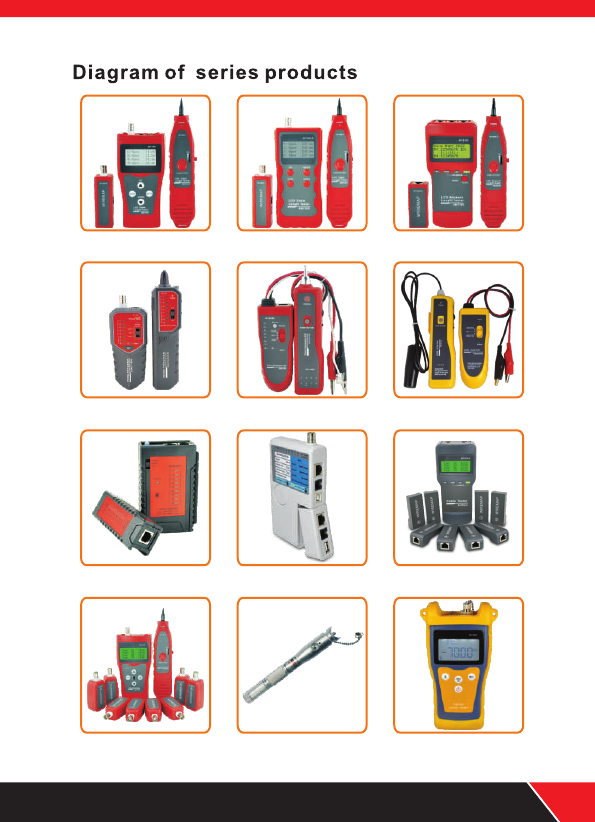

Diagram of series products................................12
Your excellent helper in cable test!

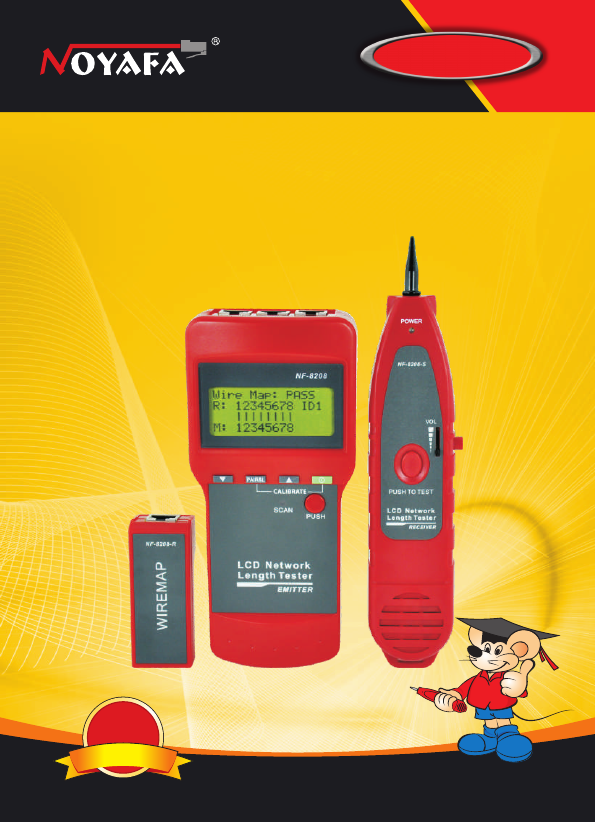

Main tester(NF-8208) Receiver(NF-8208-S) Remote identifier
CALIB RATE
SCAN
PUSH
PAIR&L
1.wiremap
2.pair&length
3 . c o a x / t e l
4 . s e t u p
NF -8 208
PUSH TO TE ST
POWER
NF -82 08 -S
NF -8 208-S
VOL
WIREMAP
LCD Cable
Length Tester
EMITTER
LCD Cab le
Length Tester
REC EIV ER
Overview
LCD cable tester NF-8208 is an updated item after NF-8108. It is
composed of Main tester , Receiver and Remote identifier. Compared
to NF-8108, it can not only wiremap network cable, measure the length
of network cable, but it can also trace cables with its receiver, which
makes it a more popular tool in network and telecommunication field.
Your excellent helper in cable test!
01

Main Functions and features
One person enough to complete cable continuity check.
The funtion of probing the audio and tracing the cable.
Check wiring error in 5E, 6E, such as open circuit, short circuit,
jumper wire, reverse connection.
Simple and easy use. Big screen to display test result clear.
Portable unit with long battery life (wait-case 50 hours).
Automatically time-delay shut off.
Measure length and pair with or without far-end recognizer.
Remote recognizer is with prompting voice.
Self-checking function and automatically compensate any change
in battery capacity or ambient temperature.
Single board computer software watchdog design and reliable
operation.
Measure the length of network cable, and locate the open and
short point.
●
●
●
●
●
●
●
●
●
●
●
Technical indexes
Overall dimension
Main tester: 180×80×40mm; receiver: 218×46×29mm;
Remote identifier: 77×31×21mm.
Power
Main tester uses 6V DC for power supply;Receiver uses 9V battery
for power supply .
Display
Special 4 x 16 character big screen LCD lattice
(valid visual field 61.6 x 25.2 mm).
Type of cable tested
STP/UTP twin twisted cable. telephone cable, coaxial cable, ect.
(1).
(2).
(3).
(4).
Your excellent helper in cable test! 02

(5).
(6).
(7).
(8).
(9).
(10).
(11).
Type of cable detected
5E, 6E
Ambient temperature in work
-10℃~+60℃
Tester Port
Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L),
hunting RJ45 port(SCAN);
Remote identifier RJ45 port (R)
The extra BNC and RJ11 converters are used to measure and check
the continuity of coaxial cable and telephone line.
Length Measurement of Twin Twisted Cable
Scope: 1~350 M ( 3 ~1000 ft)
Calibration accuracy: 3% (+/- 0.5M or +/- 1.5 ft) (calibrating cable > 10 M)
Shipment accuracy: 5% (+/- 0.5 M or +/- 1.5 ft). (AMP, AT&T Class 5
cable)
Display: M or ft.
Length Calibration:
User can set calibration factor by himself with a given length cable.
The length of calibrating cable is more than 10 M.
Wire Sequence and Locating Cable Error:
Check errors such as open circuit, short circuit, reverse connection,
cross-over
Automatic Time-delay Shut Off Time:
The tester does not operate for 30 minutes.
Your excellent helper in cable test!
03

LCD Cable
Lengt h Tester
REC EIV ER
Product interface and keypad Introduction
CALIBRATE
SCAN
PUSH
PAIR &L
1.wiremap
2.pair&l e n g t h
3 . c o a x / t e l
4 . s e t u p
NF -8208
PUSH TO TEST
POWER
NF -82 08- S
NF -82 08 -R
VOL
WIREMAP
SCAN MAIN LOOPBACK
Main tester
Receiver
Remote identifier
LCD Cable
Length Tester
EMITTER
Your excellent helper in cable test! 04

N e t W o r k
C a b l e T e s te r
1 . w i r e m a p
2 . p a i r &l e n g t h
3 . c o a x / te l
4 . s e t u p
Product operation methods
Start and display:
Carry out self-checking at the same time (The dotted line dynamically
displays the course of self-checking from left to right):
5 seconds or push any arbitrary key to display main menu.
Main menu display:
Wiring diagram (WIREMAP) test function:
After entering the wiring diagram (WIREMAP) test function, the tester shall
carry out wiring diagram (WIREMAP) test and displays as follows while
checking is being undertaken:
There are four functions to be chosen on main menu.
1. WireMap --- Wiring diagram measurement to check end-to-end con-tinuity
of cables M, L, R and locate error.
2. Pair & Length---Pair and measure length to verify cable length,open circuit
distance, pairing .
3. Coax/Tel---Coaxial cable and telephone line measurement.
4. SETUP---Calibrate
----T e s t i n g ----
12345678...
Your excellent helper in cable test!
05

Test Result 1: Short circuit (SHORT)
It displays as follows if there is any short circuit in cable or terminal: (e.g.12
short circuit in the sample)
S h o r t :
1 2
At the moment,push key to restart testing or push key to return main
menu.Always correct short circuit error first and then start further
measurement.
Test Result 2: it will display as follows if the far-end of cable to be
checked does not insert into the far-end matcher (ID) or if the cable does
not into the local(L)in local test:
N o a d a p t e r:
At the moment, push key to restart testing or push key toreturn
main menu.
Test Result 3: Normal wiring diagram (WIREMAP) display
it will display wiring diagram (WIREMAP) as follows if it is found the far-
end matcher (ID) or the local port (L) on the far-end of cable to be checked:
W i r e m a p : pa s s
R: 12345678 id1
Iiiiiiii
M: 12345678
"R" means Remote unit "M" means Mian tester
At the moment, push key to restart testing or push key to return
main menu.
PAIR&L
PAIR&L
PAIR&L
Your excellent helper in cable test! 06

Test Result 4: Wiring diagram (WIREMAP) display
when there is an open circuit at the far-end of cable.
W i r e m a p : fa i l
R: 12 x45 x78 id1
Iiiiiiii
M: 12345678
"R:" line "3" and "6" pins location display "x", it indicates an open circuit in
far-end plug "3" and "6” pins and the open circuit is located nearby the far-end
plug.(The open circuit should be located within 10% cable length if it is
measured from the far-end plug)
Note: Because network cable is made of pair cores, if there is open circuit,
it will show faults in pairs, just as above "3" &" 6". it means either "3" pin or
"6" pin exsits an open circuit, or both "3" and "6" exsit an open circuit.
Test Result 5: Wiring diagram (WIREMAP) display when there is an open
circuit at the near-end of cable.It will display wiring diagram(WIREMAP) as
follows if there is an open circuit at the near-end plug of the cable:
W i r e m a p : fa i l
R : 1 2 3 4 5 6 78 i d 1
Iiiiiiii
M : 1 2 x 4 5 6 7 8
"M:" line "3" pin location displays "x", it indicates an open circuit at near-end
plug "3" pin and the open circuit is located nearby the near-end plug. (The
open circuit should be located within 10% cable length if it is measured from
the near-end plug)
Your excellent helper in cable test!
07

it will display as follows to indicate the measurement is being undertaken:
----T e s t i n g ----
1 2 3 4 5 6 7 8. . .
Note:In view of different technical parameters in various brand cables, the
user should apply the tester dynamic calibration function before length
measurement (Refer to the details herein).
Test Result 1: Short circuit (SHORT)
It will display as follows if there is any short circuit in cable or terminal:(12
short circuit in the sample)
S h o r t :
1 2
Test Result 6: Open circuit in the middle of cable
It will display wiring diagram (WIREMAP) as follows if there is an open
circuit in the middle of the cable:
W i r e m a p : fa i l
R : 1 2 3 4 5 6 78 i d 1
Iixiiiii
M : 1 2 3 4 5 6 78
"|” line "3" pin location displays "x", it indicates an open circuit in the middle of
"3" pin cable. (The open circuit should be located within 10%-90%cable length
if it is measured from the near-end plug.) For further locating open circuit, the
function (PAIR & LENGTH) of the tester could used as detailed hereinafter.
Your excellent helper in cable test! 08

Test Result 3: Abnormal pair and length (PAIR &LENGTH) display
It will display the paired lines first if there is unpaired lines in the pair and
length (PAIR & LENGTH) measurement:
P a i r 1 2 1 0 0 . 0 m
7 8
P a i r 3 6 1 0 0 . 3 m
P a i r 4 5 1 0 0 . 2 m
In which, the last line (78 ) indicates there is no pair in lines 7and 8, at
the moment, it will display the length of unpaired line number(as shown below):
It will display "X" to indicate an open circuit if the length is less than 90%of
other line pair length and the open circuit is located at around 89.3M from
the tester. (The open circuit line number could be rechecked by
WIREMAP function.)
P i n 7 1 0 0 . 0 m
P i n 8 8 9 . 3 m x
Note: NF-8208 can not check the wiremap of coax cable and telephone
cable directly, it needs RJ11 cable adaptor and BNC cable adaptor.
(The tester is incapable to know the exact location of short circuit.)
At the moment, push key to restart test or push key to return the
main menu.
Always eliminate short circuit and then start further measurement.
Test Result 2: Normal pair and length (PAIR &LENGTH) display
P a i r 1 2 1 0 0 . 0 m
P a i r 7 8 9 9 . 8 m
P a i r 3 6 1 0 0 . 3 m
P a i r 4 5 1 0 0 . 2 m
At the moment, push key to restart test or push key to return the
main menu.
PAIR&L
It will display as follows if pair and length(PAIR & LENGTH) measurement is
in normal condition:
PAIR&L
Your excellent helper in cable test!
09

Calibration and setup (SETUP) function:
After entering into calibration and setup (SETUP) function, the tester shall
display as follows:
----s e t u p ----
Unit:meter
C a l i b r a ti o n
Q u i t
Dynamic calibration (CALIBRATION) function:
(Another way to quickly enter into dynamic calibration: hold key
while start the tester)
For an accurate measurement of cable length,the calibration operation
should be done as follows.
After entering into dynamic calibration function, the tester shall display
as follows:
C A L I B R A T I O N ?
N O Y E S
Insert same type cable of given length into M port, do not need insert
far-end recognizer, push key (Yes) to undertake measurement and
display the measured length (as shown below):
“ ”
P i e a s e a d ju s t ?
2 0 . 0 m
- o k +
PAIR&L
Your excellent helper in cable test! 10

S h o r t
1 2
C o n t i n u e?
N o y e s
At the moment, push key (No) to exit calibration function. Push key
(Yes) to repeat the measurement.
Note:If the tester is restarted after it shuts off, the tester will recoverthe
standard calibration factor of Class UTP5 cable as setupbefore shipment.
At the moment, push key (No) to exit calibration function. Push key
(Yes) to repeat the measurement.
Start up or shut down AF hunting function
(1). Press PUSH key, the hunting indicator light (SCAN) flashes, which
indicates that audio frequency transmission of main tester is normal,
insert wire to be hunted into RJ45 port hold the receiver to trace the
targeted cable (the usage of receiver is shown in the following).
Usage of the receiver
Install 9V battery in the receiver, press the "PUSH" button to get close to cables
with probe. the transmitter will "beep, beep, beep" , when the probe is close to a
cable which makes the tone is loudest, it means the cable is the targeted one.
At the moment, hold and key (-/+) to display the length to be adjusted to
actual given length and then push key to reserve calibration factor and
exit calibration function.
It will display as follows if the cable length being measured is too short
(<10M) to remind the user to change a longer cable for calibration:
C a b l e t o s h or t !
c o h t i n n t . ca i
N o y e s
PAIR&L
Your excellent helper in cable test!
11

Your excellent helper in cable test! 12
NF-388 NF-903 NF-906A
NF-468L NF-3468 NF8108-M
NF-268 NF-806R
NF-306 NF-868 NF-8208
NF-816

Your excellent helper in cable test!
SHENZHEN NOYAFA ELECTRONIC CO.,LTD
