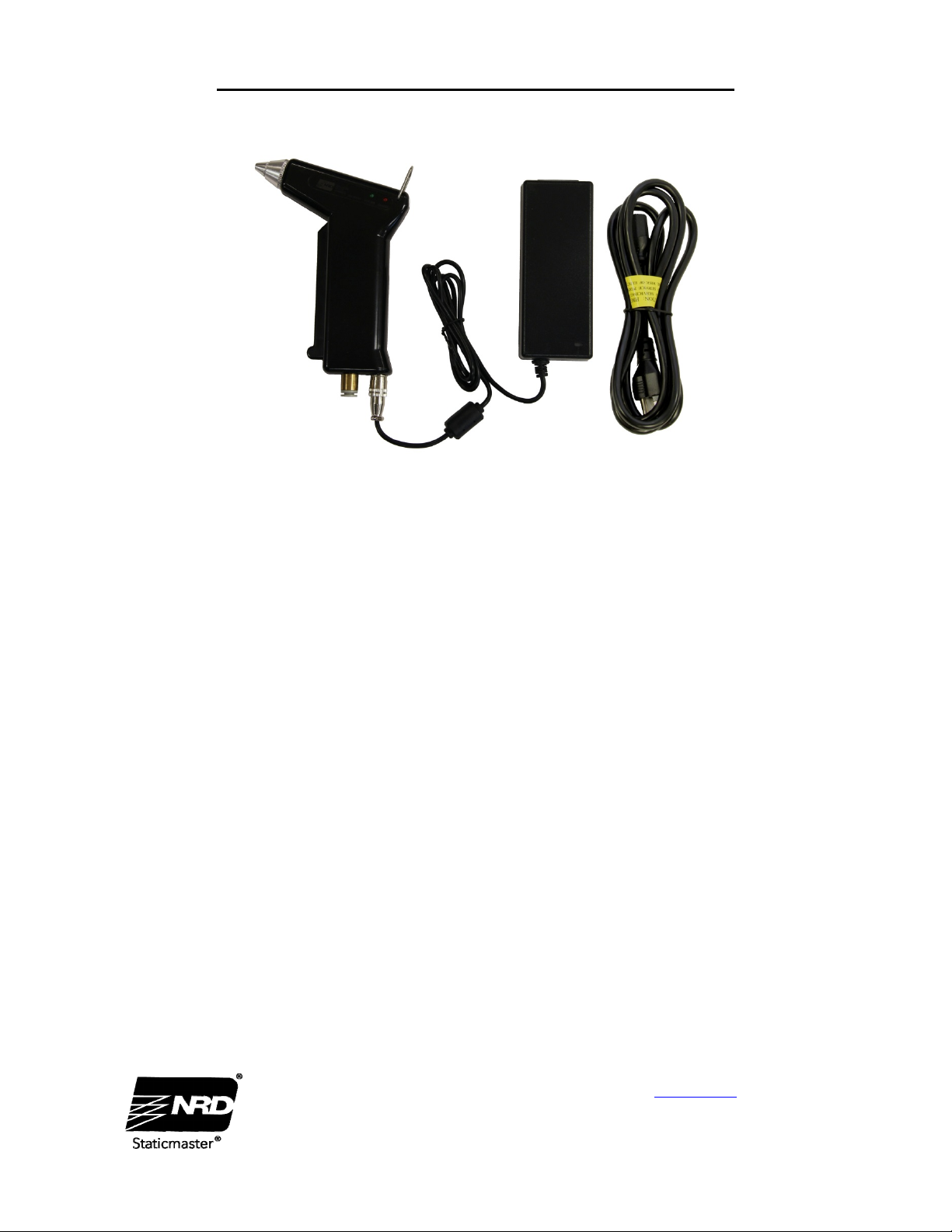

Staticmaster® Ionizing Air Gun
Model 6405
Contents
Precautions
1. Features and Descriptions
2. Installation
3. Operation
4. Alarm LED
1
2
2
2
2
5. Maintenance
6. Technical Specifications
7. Dimensions
8. Warranty
3
3
3
3
Please Observe The Following
NOTICE
Please review the information in this manual prior to operating the Ionizing Air Gun in a work environment.
NOTICE
Please keep this document in a convenient place to refer to as a guide.
WARNING
Do not use this product in a flammable atmosphere.
WARNING
Do not submerge in water. If liquid enters product, disconnect the power cord and allow to thoroughly dry before
using again.
WARNING
Do not operate in an area where it can be splashed with water, oil, or in a hot and humid location. Especially a very
humid place with the possibility of condensation forming should be avoided.
WARNING
Do not drop or apply hard, sharp impact, this device contains a sensitive Piezo transformer.
WARNING
Before performing any maintenance, turn off and disconnect the Ionizing Air Gun from power and air supplies.


NRD USA / 2937 Alt Boulevard / PO Box 310 / Grand Island, NY 14072-0310
PHONE7167737634/FAX7167737744/EMAIL[email protected]/WEBwww.nrdllc.com
NRDAsiaPte.Ltd/114LavenderStreet#08‐90CTHub2Singapore338729
PHONE+6566791707/EMAIL[email protected]/WEBwww.nrdllc.com
- 2 -
INST6405_01/19
1. Features and Description
1-1. Features
 Neutralizes static charge on objects immediately.
 Removes dust attached by static electricity.
 Cleanable emitter point.
 Ion balance of ±50 V.
 Life expectancy is 10,000 hours.
1-2. Description
This ionizer applies high-frequency-high-voltage from the high-voltage transformer to the emitter point, giving off
alternating current corona discharge toward the metal cap (earth electrode), producing positive and negative ions.
Compressed air (or inert gas), filtered internally, carries the ionized air to neutralize static and remove dust on the
charged object(s).
ON/OFF switch
PCB board
Filter windo
w
Power LED
Air inlet
A
larm LED
Transforme
r
Power
switch
A
ir valve
Power
connection
Filter
A
irflow/Power
control lever
Metal cap


NRD USA / 2937 Alt Boulevard / PO Box 310 / Grand Island, NY 14072-0310
PHONE7167737634/FAX7167737744/EMAIL[email protected]/WEBwww.nrdllc.com
NRDAsiaPte.Ltd/114LavenderStreet#08‐90CTHub2Singapore338729
PHONE+6566791707/EMAIL[email protected]/WEBwww.nrdllc.com
- 3 -
INST6405_01/19
2. Installation
Warranty Note: failure to use clean, dry, filtered,
compressed air will VOID warranty.
 Connect supplied AC power adaptor wire to
the power connection on the Ionizing Air
Gun.
 Connect air hose, 6mm outside diameter, to
the air inlet of the Ionizing Air Gun.
 Plug AC power adaptor into a AC outlet.
 Connect air hose to a clean, dry, and filtered
compressed air supply.
3. Operation
 Open air supply valve and adjust to desired
pressure, 35 psig is recommended. (80 psig
maximum)
 Put the ON/OFF switch in the ON position.
 Point the Ionizing Air Gun at the target to have the
static charge removed.
 Depress the airflow/power control lever to begin
airflow and activate the Ionizing Air Gun. The green
power LED will be lit to verify that the ionizer is
activated.
4. Alarm LED (red LED)
The red LED indicates that the ionizer is operating in
abnormal condition. Possible causes are:
 Metal cap is loose.
 Emitter point needs to be cleaned.
 High-voltage output is insufficient.



NRD USA / 2937 Alt Boulevard / PO Box 310 / Grand Island, NY 14072-0310
PHONE7167737634/FAX7167737744/EMAIL[email protected]/WEBwww.nrdllc.com
NRDAsiaPte.Ltd/114LavenderStreet#08‐90CTHub2Singapore338729
PHONE+6566791707/EMAIL[email protected]/WEBwww.nrdllc.com
- 4 -
INST6405_01/19
5. Maintenance
Note: Before performing any maintenance, turn
off and disconnect the Ionizing Air Gun from
power and air supplies.
Emitter Point and Metal Cap Cleaning
 Unscrew metal cap from the Ionizing Air
Gun.
 Clean emitter point with a nylon brush (do
not use a wire brush). A cotton swab with DI
water or Isopropyl Alcohol may also be used.
Caution, the emitter point is very sharp.
 After cleaning, make sure ionizer is dry
before turning power on.
N
ote: Cleaning requirements of emitter points will
vary based on operating environment and use.
Recommended cleaning interval is once a month to
once every other month.
6. Technical Specifications:
Input Voltage: 24 V DC
Output Voltage: Approximately 2 kV
Ion Balance: ±50 V
Gas: Clean, dry, compressed air
(or inert gas)
Pressure: 80 psi (5.5 bar) maximum
Air Volume: 3.5 SCFM at 35 psi (2.4 bar)
Line Connection: 6 mm O.D. tubing
Ambient conditions: 10°C ~ 40°C (50°F ~ 104°F),
80% R.H. or lower
Power cord: 14’ (4 m) cord with AC Adaptor
Weight: 9.9 oz. (280 g)
7. Dimensions
8. Warranty
Limited Warranty
N
RD expressly warrants that for a period of one (1) year
from the time of purchase, the ionizer will be free of
defects in material (parts) and workmanship (labor).
Within the warranty period, the ionizer will be tested,
repaired, or replaced at discretion of NRD, free of
charge. Any ionizer under warranty should be shipped
prepaid to the NRD factory. Call Customer Service at
[phone] for a Return Authorization number and
shipping instructions. Include a copy of your original
packing slip, invoice, or other proof of purchase date.
If the ionizer is out of warranty, NRD LLC will quote
repair charges necessary to bring your ionizer up to
factory standards.
Warranty Exclusions
The forgoing express warranty is made in lieu of all
other product warranties, expressed and implied,
including merchantability and fitness for a particular
purpose that is specifically disclaimed. The express
warranty will not apply to defects or damage due to
accidents, neglect, misuse, alterations, operator error, or
failure to properly maintain, clean or repair products.
Limit of Liability
The user shall determine the suitability of the product
for their intended use, and the user assumes all risk and
liability whatsoever in connection therein.
