nRuiT Powerporter 12.2kWh User manual

Powerporter 12.2kWh
Owner’s Manual
Version 2.0
nRuiT strongly advises to take due care in following the owner’s manual. A warranty
claim is invalid if damage is caused by human error, inconsistent with the manual.

2
For the latest Powerporter documents including the Warranty, visit www.nruit-power.com.
©2020 nRuiT Energy All rights reserved
All information in this document is subject to copyright and other intellectual property rights
of nRuiT Energy. This material cannot be modified or copied, additional information may be
provided upon request.
The following are trademarks or registered trademarks of nRuiT Energy in China and Other
Countries.
nRuiT
Powerporter
All other trademarks contained in this document are the property of their respective owners
and their use herein does not imply sponsorship or endorsement of their products or
services. The unauthorized use of any trademark displayed in this document or on the
product is strictly prohibited.
Warning: Read this entire document before installing or using Powerporter.
Failure to do so or to follow any of the instructions or warnings in this document can result
in electrical shock, serious injury, or death, or can damage Powerporter.
PRODUCT SPECIFICATIONS
This manual applies to the product:
Powerporter 12.2kWh
All specifications and descriptions contained in this document are verified
to be accurate at the time of printing. However, because continuous
improvement is a goal at nRuiT, we reserve the right to make product
modifications at any time.
The images provided in this document are for demonstration purposes only.
Depending on product version, details may appear slightly different.
ERRORS
To communicate any inaccuracies in this manual, send an email to:
[e-mail]
ELECTRONIC DEVICE: DO NOT THROW AWAY
Proper disposal of batteries is required. Refer to your local distributor for disposal
requirements

3
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.............................................................................................................................................. 4
Symbols in This Document...................................................................................................................................................... 4
WARNING INFORMATION:....................................................................................................................................................... 4
CAUTION INFORMATION: ........................................................................................................................................................ 5
REMARK INFORMATION: ......................................................................................................................................................... 6
1. Powerporter Warranty ................................................................................................................................................................ 7
2. Care and Maintenance................................................................................................................................................................. 7
Environmental Requirements................................................................................................................................................. 7
Care and Cleaning...................................................................................................................................................................... 7
Maintenance ............................................................................................................................................................................... 7
3. Powerporter Function.................................................................................................................................................................. 7
About Power Porter .................................................................................................................................................................. 7
Monitoring Your System .......................................................................................................................................................... 9
Abbreviation of manual ........................................................................................................................................................... 9
Powerporter Installation Location ......................................................................................................................................10
Powerporter interface panel................................................................................................................................................11
Powerporter power cable connection...............................................................................................................................12
Powerporter Communication Interface ............................................................................................................................14
Operating ...................................................................................................................................................................................16
Troubleshooting .......................................................................................................................................................................16
Technical Support ....................................................................................................................................................................17
4. How to deal with an emergency ............................................................................................................................................17
5. When the product is turn off and not in use......................................................................................................................18
nRuiT Quality Assurance....................................................................................................................................20

4
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE IMPORTANT SAFETY INSTRUCTIONS
Important: This product should not be used for any purpose other than that described in
this user manual.
Powerporter installation and service require knowledge of high voltage electricity and
should only be performed by nRuiT Certified Installers. Powerporter is not responsible for
injuries or property damage caused by unqualified personnel trying to repair or failing to
follow these instructions correctly. These warnings and cautions must be followed when
using Powerporter.
Symbols in This Document
This manual uses the following symbols to highlight important information:
WARNING: Indicates a hazardous situation which. If not avoided, could result in
death or serious injury.
CAUTION: Indicates that damage or injury may occur. situation which. If not avoided,
it may cause minor injury and/or property damage.
NOTE: Indicates a risk of possible damage to the product.
WARNING INFORMATION:
Powerporter installation must be carried out only by nRuiT Certified Installers who have
been trained.
In the power regulation circuit, due to the high voltage, there is a high possibility of
electric shock or severe burns.
High voltage on AC and DC cables. There is a risk of death from electric shock or serious
injury.
There are potential dangers such as death or serious injury caused by fire, high pressure
or explosion caused by this product, if you have not read or do not fully understand the
appropriate preventive measures.
Do not place flammable and explosive materials near the product.
Do not place any objects on the product during operation.
All the work of PV, power supply regulation and battery system must be completed by
qualified personnel.
Electrical installation must comply with local and national electrical safety standards.

5
Wear rubber gloves and protective clothing (protective glasses and boots) when
working on high-voltage / high-current systems (such as PCS and battery systems).
Please do not remove the product cover, there is a risk of electric shock, and there are
no user-usable parts inside. Request service from qualified and approved service
technicians. Do not touch uninsulated wires.
In the event of a failure, the system cannot be restarted. Product repairs must be
performed by qualified personnel or authorized support center personnel.
CAUTION INFORMATION:
The Powerporter and its accessories are contained in this box, the total weight is too
large. Because the product is too heavy, it may cause serious injury. Therefore, special
care must be taken when handling. Make sure that at least two people deliver and move
the package.
Do not use damaged, cracked or frayed cables and connectors. Protect the cable from
physical or mechanical damage, such as the cable being twisted, twisted, clamped,
closed on the door, or trampled by someone. Check the cable of your product regularly.
If its appearance shows damage or deterioration, stop using this product and contact a
qualified person to replace the cable.
Make sure that the product you are connecting is grounded to prevent possible electric
shock. Do not attempt to achieve grounding by connecting the product to telephone
lines, lightning rods, or gas pipes.
If the Powerporter is defective, cracked, broken or otherwise damaged or inoperable,
please do not use the Powerporter again.
This product should not come into contact with water (drip or splash), and should not
place objects filled with liquids such as vases on this product.
To prevent the risk of fire or electric shock, do not expose this product to rain or
moisture.
Do not block any vents. Ensure reliable product operation and prevent overheating. No
objects should be placed on this product to block the opening.
During operation, the temperature of the metal casing may be very high.
Products must be handled in accordance with local regulations.
The electrical installation of this device must be carried out by an electrician or
technician with PCS qualification.
To avoid radio interference, all accessories (such as smart meters) connected to the
product must be suitable for residential, commercial and light industrial areas.

6
Connect the DC + and DC- cables to the correct DC + and DC- terminals on the product.
Do not step on the product or product packaging. The product may be damaged.
Do not discard the battery in a fire. The battery may explode.
Do not open or damage the battery. The electrolyte released may be toxic and harmful
to the skin and eyes.
Batteries are in danger of electric shock and large current discharge during short circuit.
Pay attention to the following when installing the battery.
a ) Disassemble watches, rings or other metal objects.
b ) Use tools with insulated handles.
c ) Wear insulated gloves and boots.
d ) Do not place tools or metal parts on top of the battery.
REMARK INFORMATION:
Before connecting, please make sure that the open circuit voltage of the photovoltaic
array is within the acceptable range of the inverter to which the product is adapted,
otherwise the product may be damaged.
Never use any solvents, abrasives or corrosive substances to clean this product.
Do not store or place any objects on the product. It may cause serious defects or
malfunctions.
Before connecting the product to the inverter harness, make sure that the product is
turned off, the inverter is turned off and the mains and PV channels are disconnected.
The wiring harness of the Powerporter product is only allowed to be connected to the
adaptable inverter. Do not connect this product directly to the AC power supply or
generator. Connecting the product to other external devices may cause serious damage
to the device.
The product transportation process should be as stable as possible, to avoid the product
in the environment of severe vibration.
The supply of products should be performed or supervised by personnel with battery
knowledge and necessary precautions.

7
1. Powerporter Warranty
For specific warranty details, see the attached page of this document.
For more information, please refer to the Powerporter Warranty in your region.
www.nruit-power.com.
2. Care and Maintenance
Environmental Requirements
Powerporter can charge and discharge within the operating temperature range specified
below. In extreme temperature ranges, Powerporter may limit the power of the battery
when charging or discharging to improve battery life.
Battery Pack Operating Temperature
Charging: 0℃ to 45℃
Discharging: -20℃ to 45℃
Battery Pack Storage Temperature
-10℃ to 45℃
Remarks: The power porter needs to keep the ambient temperature within the range
of 0℃ ~ 45℃ during startup.
Care and Cleaning
If installed outdoors, please ensure that there are no leaves and other debris around the
Powerporter to maintain optimal airflow.
CAUTION: Do not lean, stack, or hang anything around Powerporter and from wires
to Powerporter.
CAUTION: When cleaning the Powerporter, use a soft, lint-free cloth.
It is recommended to use dry and soft cloth, if necessary, only moisten with mild water.
CAUTION: Do not use cleaning solvents to clean Powerporter, or expose Powerporter
to flammable or harsh chemicals or vapors.
Maintenance
The only maintenance required by the user for the Powerporter is to keep the
Powerporter free of debris.
3. Powerporter Function
About Power Porter

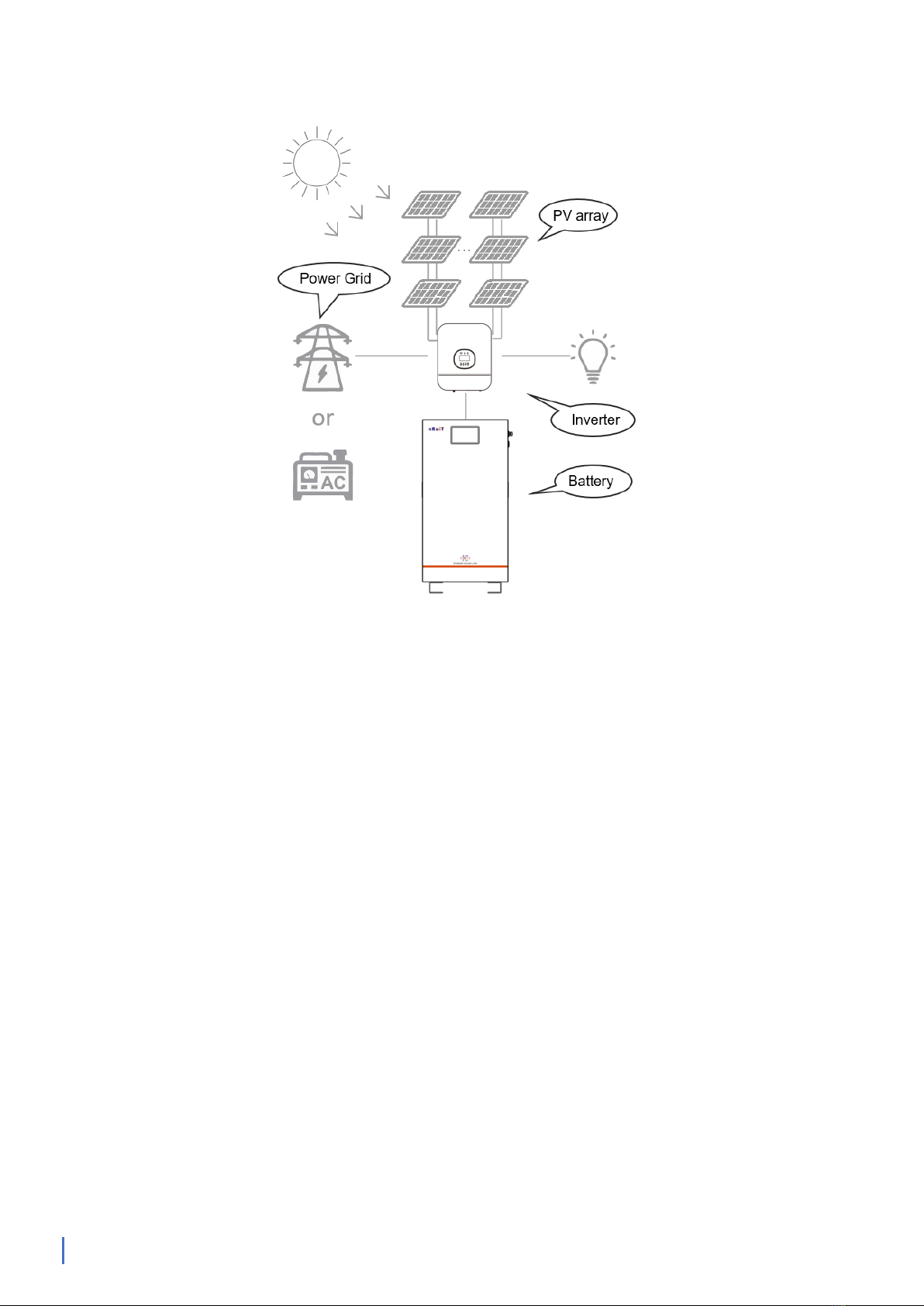

This product is mainly combined with inverter, photovoltaic (PV) and related accessories
to build residential energy storage system. The system is used to store the direct current
(DC) generated by photovoltaic (PV) in the connected battery, and convert the direct
current (DC) generated by the connected battery into alternating current (AC) and provide
it to the home grid.

8
(Note: The actual Residential ESS may also include electrical equipment such as
distribution boxes and metering meters)
Powerporter is a lithium-ion battery pack that can store electrical energy and outputs DC
current. Powerporter only maintains electrical connection with the inverter. The electrical
energy generated by the PV is converted by the inverter Dc to DC and stored in the
connected Powerporter. When Powerporter is needed, Powerporter’s electrical energy is
converted by the inverter DC to AC and transmitted to the home grid to provide power for
household appliances.
The main function of the home energy storage system depends on the inverter.
Powerporter is a device that stores electrical energy.
Functions of home ESS:
Self-production and sales of electrical energy
Use solar power and Power Porter to reduce the dependence on the grid and store
electricity during the day for night use.
Backup power
When the power grid is out of power, it can be seamlessly switched to Power Porter as
a backup power source to protect your home from power outages.
Sell electrical energy
The electrical energy generated by the photovoltaic array can be stored in a connected
Powerporter or sold to an energy supply company.

9
Pure off-grid power supply
The system can be connected to diesel generators to ensure uninterrupted power
supply in areas without city power (such as islands and remote mountain areas).
(Note: The scheduling management of electrical energy in the system depends on the
inverter. Powerporter is committed to being compatible with a variety of inverters. The
inverter you use does not necessarily contain all the above functions)
Monitoring Your System
Using the app, you can monitor system operation from your mobile device, including the
following:
Real-time power usage
Energy consumption history
Relative amounts of energy used from solar, grid, and Powerporter storage
Abbreviation of manual
Abbreviation
Full Name
Explanation
ESS
Energy Storage System
System for storing energy to battery and using
energy stored in battery.
PV
Photovoltaic
Photovoltaic system that converts solar energy
into direct current.
SOC
State of charge
Current battery level
BMS
Battery Management System
Lithium battery management system
DC
Direct Current
-
AC
Alternating Current
-

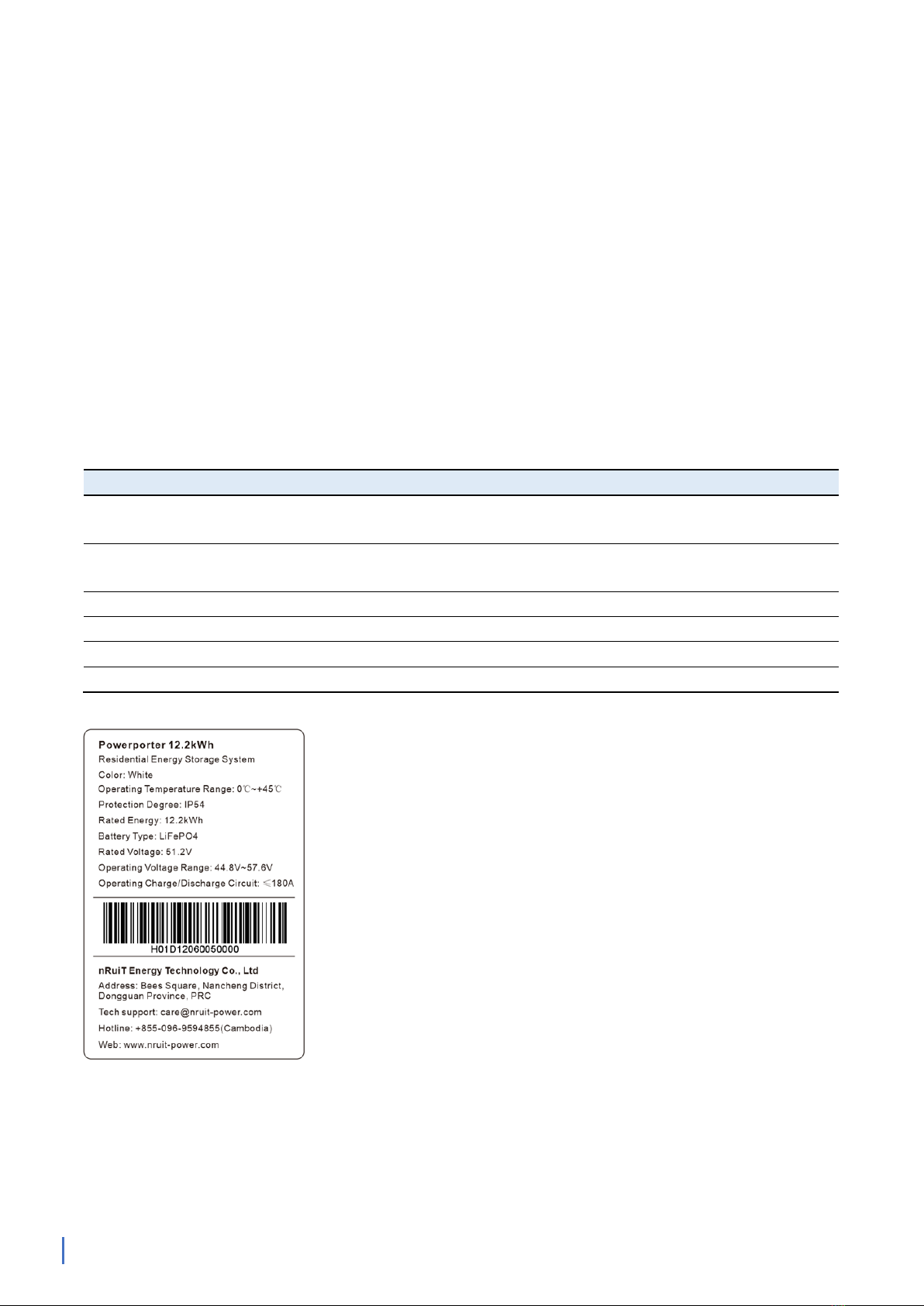

Product Label

10

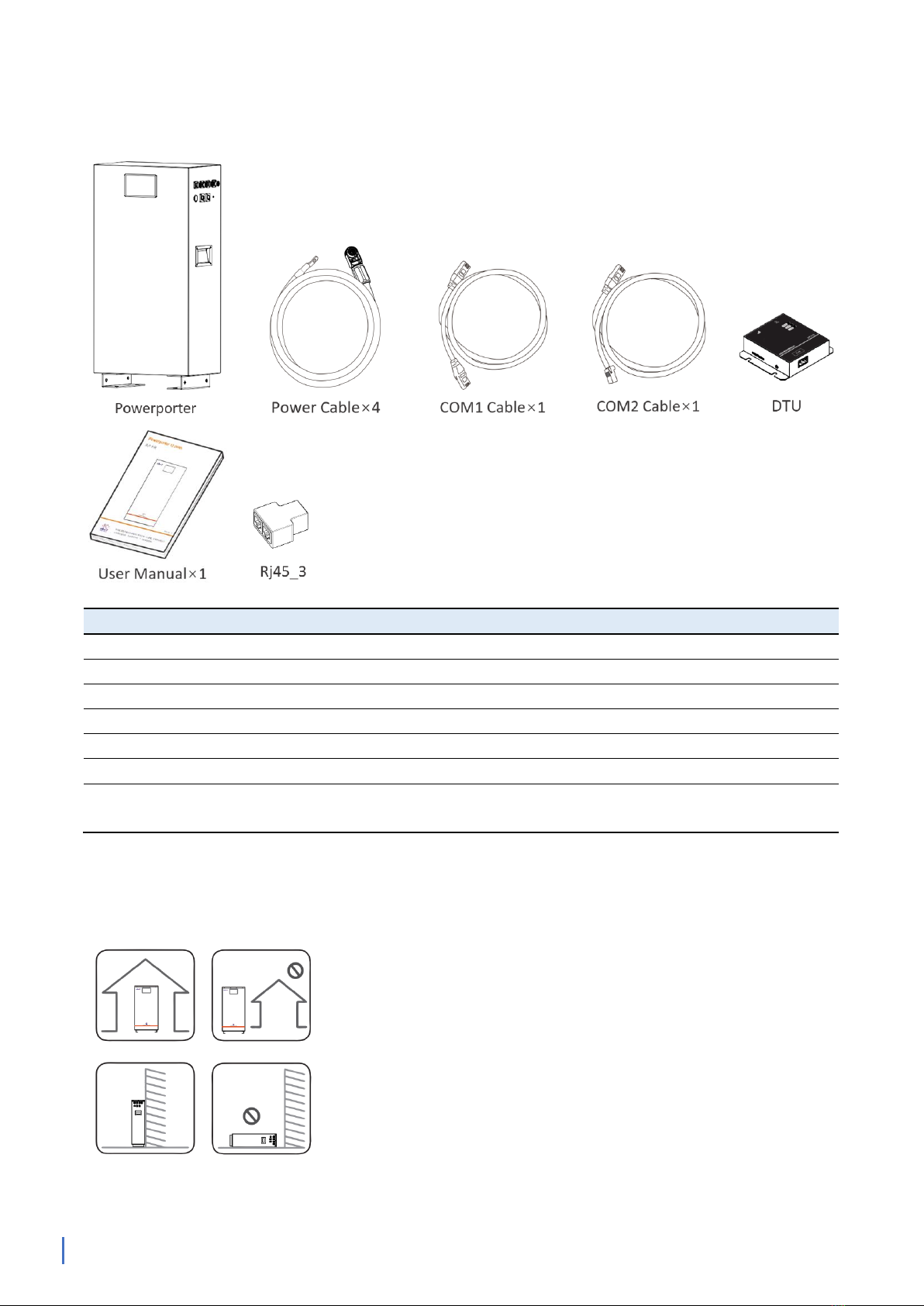

List of Goods
No.
Project
Explanation
1
Powerporter
12.2kWh energy storage battery.
2
Power Cable×4
Connect with the inverter to carry out power transmission with it.
3
COM1 Cable×1
Connect with inverter and communicate with it
4
COM2 Cable×1
Connect with DTU and communicate with it
5
DTU
Data Transfer unit
6
User Manual×1
-
7
Rj45 Port × 1
Support simultaneous communication with two inverters (for parallel
use of two inverters).
Powerporter Installation Location
The product installation must meet the requirements described below.
This product is recommended for indoor use. If the product is installed
outdoors, it must be ensured that the product is not exposed to direct
sunlight, wetted by liquid, or blown by strong wind under any
circumstances.
It is recommended to install this product in the place where
photovoltaic cables, mains cables and capacity are arranged.
This product is only suitable for vertical wall-to-wall installation. Do
not lay this product on the ground.
The mounting surface must be able to bear this weight. Product (~ 115
kg).

11
The suitable operating temperature of the product is 0℃~45℃.
Do not install this product in direct sunlight.
Install the product in a clean and cool room.
This product must not be installed or used at an altitude of more than
2000 meters.
Do not install this product in the place where frequent flooding occurs.
Do not install this product in a bathroom with high humidity.
This product generates low noise at a specific time, and the installation location needs to
consider sound insulation.
The noise level may vary depending on the installation location.
Do not install the product where there is vibration.
Do not install this product in the place with ammonia, corrosive steam, acid or salt.
Installed out of the reach of children and pets.
Do not install this product in places and environments where large amounts of dust are
likely to accumulate.
Powerporter interface panel
No.
Project
Explanation
1
＋
Battery positive

12
2
－
Battery negative
3
POWER
Power button
4
COM1
Communicate with inverter (support CAN
and RS485)
5
COM2
Communication with PC, used for product
debugging and upgrading interface
6
GND
Touchdown

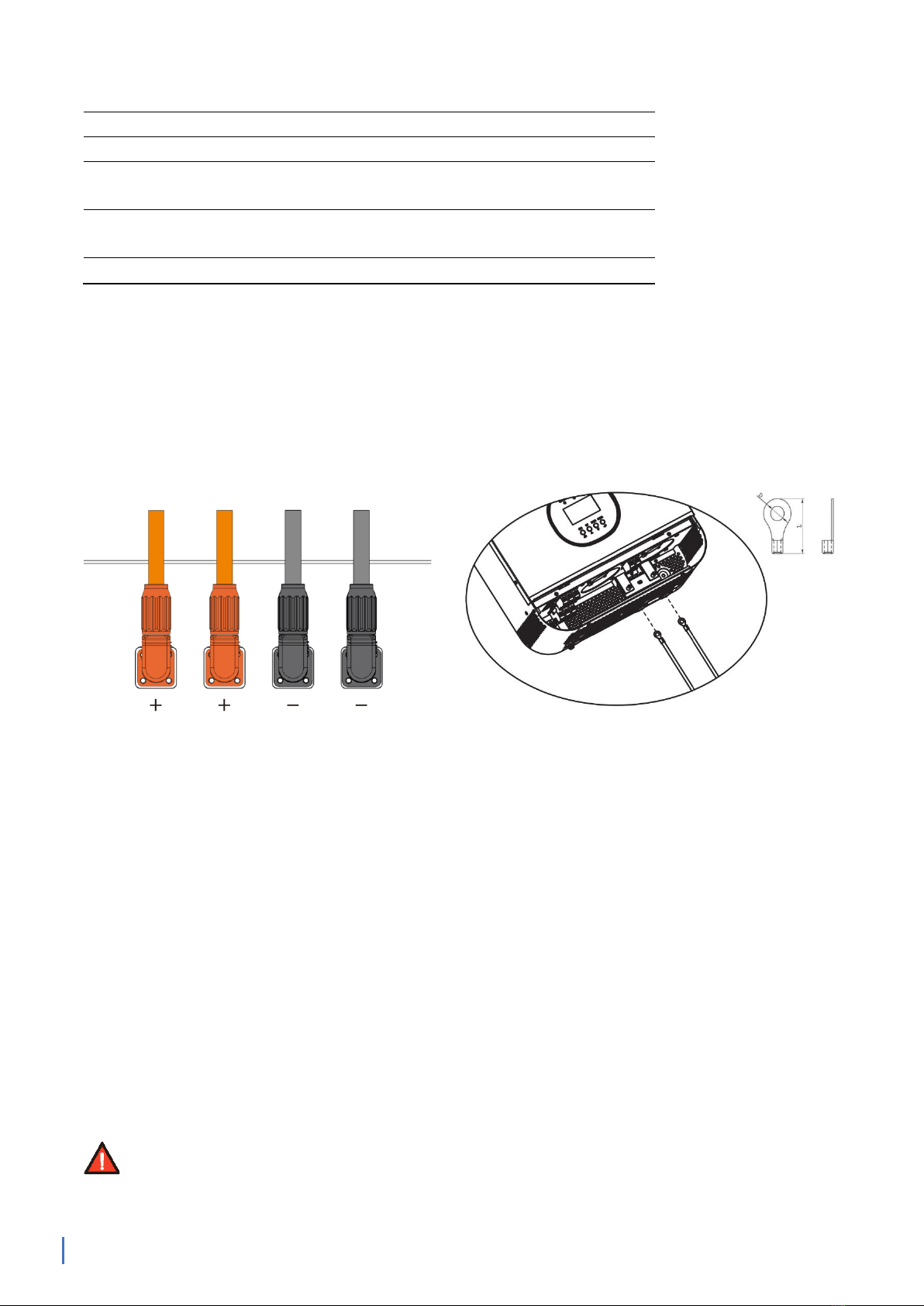

Powerporter power cable connection
The positive and negative poles of the Powerporter adopt a quick-plug interface, and the
positive and negative poles can be distinguished by color (orange indicates the positive
pole, black indicates the negative pole), and the installer can directly connect the power
harness to the positive and negative poles of the product when wearing protective gloves.
The power harness is connected with the Powerporter through a quick-plug interface, and
connected with the inverter through a ring terminal.
Insert the ring terminal of the power harness into the battery connection port of the inverter,
and ensure that the bolts are tightened with a torque of 2 ~ 3Nm. Make sure the polarity of
the battery charge is properly connected, and the ring terminal is tightened with the inverter
end.
Power wiring harness connection steps:
① Confirm that the inverter mains line is open and the PV line is open. Confirm that
Powerporter is shut down.
② The ring terminal of the wiring harness is connected to the positive and negative poles
of the DC terminal of the inverter.
③ The negative quick connector is connected to the negative port of Powerporter.
④ The positive quick connector is connected to the positive port of the Powerporter.
Warning: Before the installation of the power harness, the Powerporter and the

13
inverter must be turned off.
Power harness disconnection steps:
① The inverter mains line is open, and the PV line is open. Turn off the inverter switch.
② Wait until the inverter screen is closed.
③ Press and hold the POWER button until the button light turns off.
④ Remove the quick plug connector of the negative power harness.
⑤ Remove the quick plug connector of the positive power harness.
⑥ Remove the ring terminal of the power harness.
Warning: Follow the steps strictly. And make sure the interface is in good contact.
Warning: The installation and disconnection of the wiring harness should be operated
by qualified installers, and the user must not operate in private.
Warning: The power harness may transmit large currents. Please make sure that the
children cannot touch the power harness.

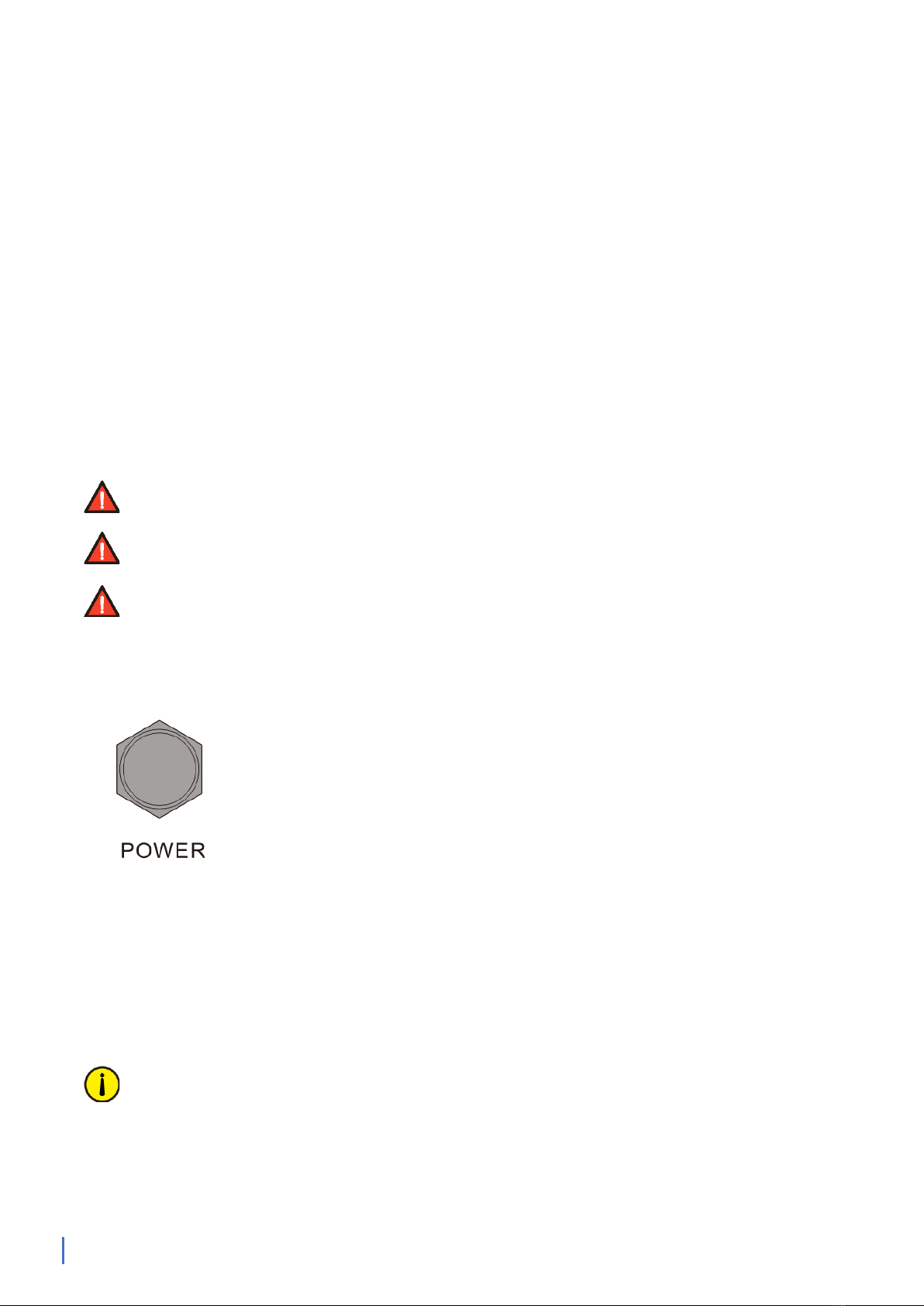

Powerporter on and off
Startup steps：
① Make sure the power harness is properly connected
② Press and hold the POWER button (2S ~ 3S) until the indicator light of the Power
button is on and release.
③ Product boot
Remarks: Before the product is turned on, the internal relay of the battery will produce
sound when it is switched on / off, which is normal.
Shutdown steps：

14
① Make sure the power harness is disconnected.
② Press and hold the POWER button (2S ~ 3S) until the Power button indicator turns off
and release.
③ Product shutdown.
Remarks: Before the product is turned off, the internal relay of the battery will produce
sound when it is switched on / off, which is normal.
Warning: The power-on and power-off actions of the POWER button are not
emergency operations for security incidents. If there is a safety problem in the home energy
storage system, please disconnect the leakage switch and isolation switch (in the
distribution box) in time. (Confirmation required).
Powerporter Communication Interface
COM1 and COM2 are Powerporter's external communication interfaces are Rj45 interfaces.
COM1 is responsible for communication with the inverter. COM2 is a debugging and
upgrading interface, which is only used by the installer when installing the Powerporter.
Under normal circumstances, users do not need to use this interface.
COM1/COM2 Pin Definition
COM1
COM2
Pin
Definition
Pin
Definition
1、8
485-B
1、8
/
2、7
485-A
2、7
/
3
485-GND
3
/
4
CAN-H
4
CAN-H
5
CAN-L
5
CAN-L
6
CAN-GND
6
CAN-GND
Powerporter supports RS485 and CAN2.0 communication, and the corresponding pins are
defined on COM1 for these two communication interfaces. Please confirm clearly before
communicating with the inverter.

15
Powerporter has a mechanism compatible with multiple inverters and is committed to
being compatible with more inverters. If you need to use our products for your inverter,
please provide communication protocol and contact us.
[e-mail]

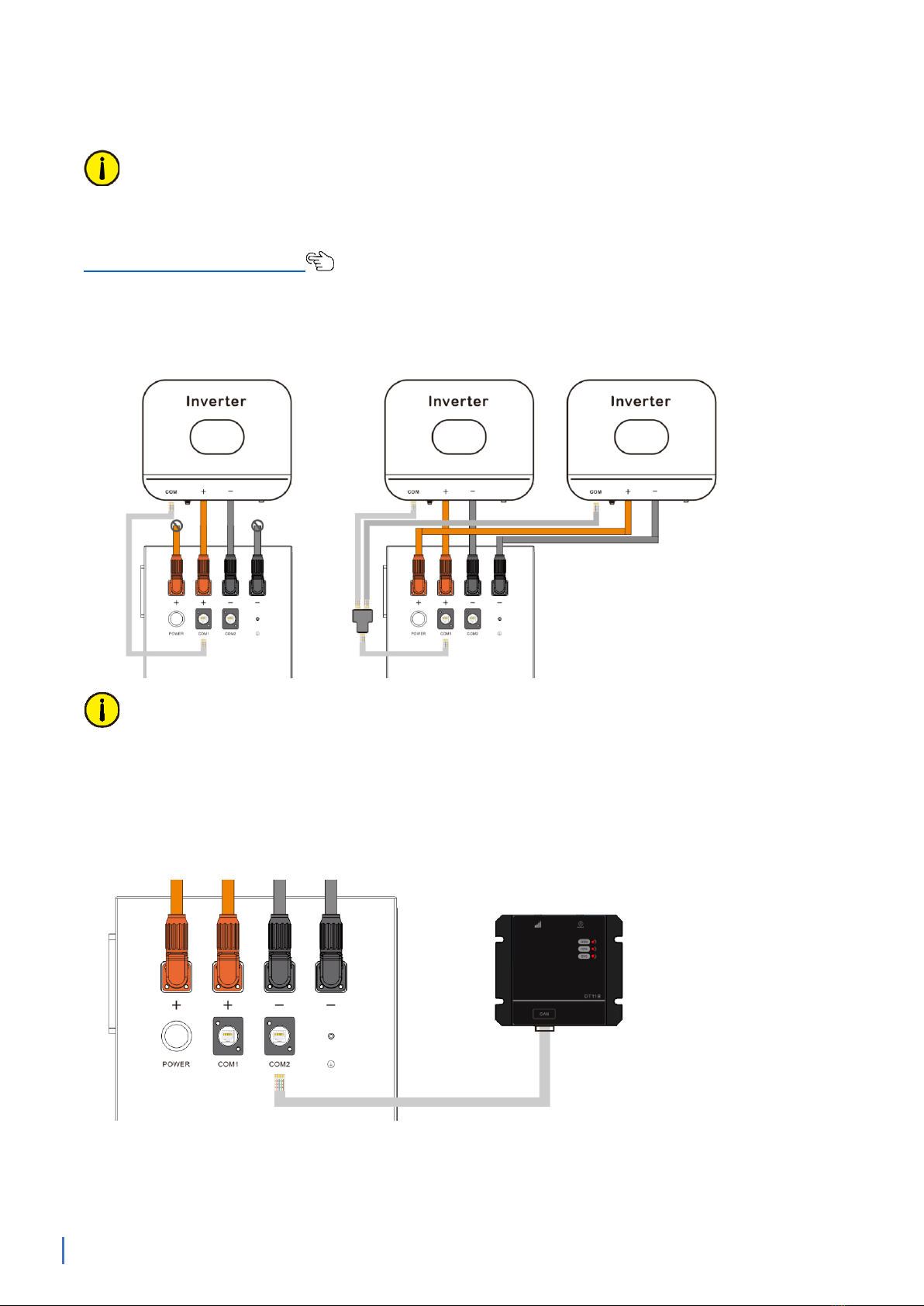

Connect with Inverter
Powerporter supports to connect two inverters at the same time, but need to consider
the output power of the inverter, long-term operation must ensure that the battery charge
and discharge current ≤180A.
Connect with DTU
Inverter Support List

16
GROWATT – SPF5000、SPF5000ES
SMA –
GOODWE–
SOFAR –
(Continuously updating …)
Operating
The inverter provides control and monitoring capabilities through the application program.
During normal operation, the Powerporter is controlled by the inverter, and the power
button of the Powerporter should remain on.
Warning: Do not try to use third-party tools and diagnostic tools to communicate
with Powerporter between Powerporter and the inverter.
Troubleshooting
If the system is not working properly, please perform the following steps：
Warning: Powerporter and inverter cannot be repaired by users, and must be
repaired by certified installers.
Warning: If the Powerporter failure causes downtime and cannot be resolved in
time, please report to nRuiT or nRuiT authorized service partner in time. If not reported to
nRuiT or nRuiT authorized service partner within 2 weeks after the failure, the warranty is
invalid.
If you cannot communicate with the inverter through the application, make sure that
the Internet connection is normal.
If neither the inverter nor the power switch responds：
1. Turn off the inverter
2. Cut off all input and output circuit breakers in the distribution box
3. Press and hold POWER button for 2 ~ 3 seconds to turn off Powerporter
4. Wait at least one minute
5. Press and hold the POWER button again for 2 ~ 3 seconds to turn on the
Powerporter
6. Close the inverter switch and all input and output circuit breakers.
Note: If an event (such as a thunderstorm) causes the system to become unresponsive. Do
the following：
1. Turn off the inverter.
2. Open all input and output circuit breakers in the distribution box.
3. Press and hold POWER button for 2 ~ 3 seconds to close Powerporter.
4. Contact nRuiT support or nRuiT authorized dealer for help.

17
Technical Support
If you need further assistance, please contact the nRuiT service team via the support phone
in your area, or send an email to：[e-mail]
When contacting nRuiT, please provide the following information：
Name of owner.
Your effective way (phone, mobile phone or email) can let nRuiT contact.
Powerporter serial number
Brief description of the problem.
4. How to deal with an emergency
If your health or safety is threatened, please always start with the following two steps before
dealing with the following other suggestions：
1. Contact the fire department or other emergency team immediately.
2. Inform all people who may be affected to ensure that they can evacuate the area.
WARNING The actions suggested below can only be performed under safe
conditions.
In case of fire：
Turn off the inverter
Press and hold POWER button for 2 ~ 3 seconds to turn off Powerporter
Cut off all input and output circuit breakers in the distribution box
Acceptable fire extinguisher types include: water, CO2, and ABC fire extinguishers
Avoid using type D (flammable metal) fire extinguishers.
In case of flood：
If any part of the battery and inverter or wires are submerged in water, please keep
away from water.
Turn off the inverter
Press and hold POWER button for 2 ~ 3 seconds to turn off Powerporter.
Cut off all input and output circuit breakers in the distribution box
If possible, protect the system by finding and stopping the water source and pumping
the water away.
Contact nRuiT technical support or nRuiT authorized dealers for help in time.
If there is odor or smoke：
Turn off the inverter
Press and hold POWER button for 2 ~ 3 seconds to turn off Powerporter
Cut off all input and output circuit breakers in the distribution box.
Make sure there is no electrical connection with Powerporter.
Ventilate the room and contact nRuiT technical support or nRuiT authorized dealers
for help in time.
If Powerporter makes abnormal noise：
Turn off the inverter

18
Press and hold POWER button for 2 ~ 3 seconds to turn off Powerporter
Cut off all input and output circuit breakers in the distribution box.
Contact nRuiT technical support or nRuiT authorized dealers for help in time.
5. When the product is turn off and not in use
Powerporter is a lithium-ion battery product and should not be stored for a long time.
Regardless of the reasons why the product is shut down and not used, please observe the
Powerporter storage requirements in the following table.
storage temperature
Short-term storage of less than 1 month
-10℃~＋45℃
Long-term storage of no more than 3 months
0℃~＋45℃
Do a full charge and discharge of the battery before the storage of the product
expires, and the final charge SOC remains at about 50%.
6. System Message
The serial number of the product is on the Powerporter label. If your system needs repair,
please keep this information.

nRuiT Warranty Policy
（Product Name：Powerporter 12.2kWh）
This Limited Warranty (hereinafter "Warranty") specified below is applicable to nRuiT energy storage batteries system
(hereinafter “Products”) provided by Dongguan nRuiT Energy Technology Co, Ltd. (hereinafter “nRuiT” or “Seller”) to
End-user (hereinafter “Buyer”) through nRuiT or Authorized Reseller.
1. Purpose
The primary purpose of this Warranty is to clearly define the matters related to warranty policy of Products.
2. Warranty Condition
nRuiT warrants that, under normal use, the Product will be free from defects in material and workmanship in accordance
with its applicable technical specifications.
2-1. Warranty Period
The Powerporter 12.2kWh products are provided with 5-year free Warranty. Since the installation date.
Note: when Warranty is required, the buyer must provide with the installation date. If the buyer is unable to submit any
proof of installation date, nRuiT will calculate the product Warranty period from the date of manufacture (date written
on the product label).
Note: Outside the warranty period, nRuiT provides paid maintenance for the product.
nRuiT provides two methods of Warranty if the product‘s operation does not meet the technical specifications during
the free Warranty period: (I) Repair the nonconforming or defective products; or (II) provide the buyer with replacement
parts. nRuiT shall be responsible for all reasonable repair or replacement costs associated with such non-conforming
or defective products; however, the buyer shall bear the cost of removing the defective products and re-installing the
repaired or replacement products.
nRuiT products can be connected to the Internet to achieve remote monitoring functions. It is recommended that the
product is connected to the network so that it can get monitoring operations and software (excluding firmware) updates.
The product can operate without an internet connection (ie standalone mode).
2-2. Limitation of Warranty Scope
nRuiT's liability under this Warranty shall be limited to replacement, repair, refund and compensation. Replaced or
repaired Products shall be warranted for the remainder of the original Term of Warranty. In any event, the replacement
shall not justify the automatic renewal or extending of the term of Warranty.
2-3. Exclusion of Warranty
Damage to the Products resulting from any of following activities is NOT covered by this Limited Warranty:
The warranty period has expired
Improper transportation, storage, installation or wiring of the product
Modification, alteration, disassembly, repair works or replacements by someone other than a personnel certified
by nRuiT
Noncompliance with nRuiT’s official installation, user guide and / or maintenance instructions

External influences, such as power failure surge, lightning, flood, fire, accidental damage or other events
beyond nRuiT's control.
Use of non-specified and / or incompatible components like batteries, inverters, rectifiers or PCS.
Any damage to the product caused by goods / other products (including any part ) incorporated, installed or
used together with the products.
No report to nRuiT or nRuiT authorized service partners within 2 weeks after product failure.
Product defects due to the updating of national or regional laws and regulations.
When the product is sold to the end user, the defects cannot be overcome under the technical conditions.
The user fails to provide the correct product serial number or the product serial number cannot be decoded or
modified without nRuiT's permission.
When the product is turned off, it does not meet the storage requirements.
2-4. Warranty Service
The buyer shall contact the installer directly to avoid additional problems with the product.
Note: in shutdown mode, the product cannot protect itself from self-discharge.
3. Out of Warranty Policy
Products damage which is not caused by seller, nRuiT shall provide charged service, including all the expenses of such
as material cost, labor cost, warehouse cost, transportation cost, customs duties, analysis cost, management overheads,
disposal expense (If necessary) and so on.
4. About Service Products/Parts
Service products/parts are able to be used as new or refurbished condition which performance is equal to or higher than
defective Products and guaranteed by nRuiT.
In the event the Products are not available in the market anymore, nRuiT, at its option, may replace it with different
kind of product with equivalent functions and performances.
5. Product Recycling Service
Customers are provided with product recycling services after the end of product life cycle by nRuiT. The judgment
condition at the end of the life cycle is that the existing maximum capacity of the product is less than or equal to
60% of the nominal capacity of the product.
6. Claim Payment Policy
Returns of any products will not be accepted unless nRuiT authorizes them in writing in advance. The written
authorization shall include the product model name, defect and / or fault description, serial number on the product label
on the back of the product and the installation date.
Buyers who are unable to contact the Authorized Reseller from whom the Product was purchased should contact nRuiT
by send mail to [e-mail]
7. Contact nRuiT
Website for submitting service application form:
nRuiT service email：[e-mail]
nRuiT complaint and suggestion email：[e-mail]
