NSK iCare User manual

English
1
Thank you for purchasing the NSK iCare. Please read this Operation Manual carefully before use to become familiar with
operation instructions and care & maintenance. Keep this Operation Manual for future reference.
1Intended Use
2Precautions for handling and operation
Maintenance (lubrication and internal cleaning) of handpieces.
Class Degree of Risk
DANGER Hazard that could result in personal death or serious injury if the safety instructions are not correctly followed.
WARNING Hazard that could result in serious injury or damage to the device if the safety instructions are not correctly
followed.
CAUTION Hazard that could result in light or moderate injury or damage to the device if the safety instructions are not
correctly followed.
NOTICE General product specification information highlighted to avoid product malfunction and performance reduction.
•Please read these precautions carefully and use only as intended or instructed.
•Safety instructions are intended to avoid potential hazards that could result in personal injury or damage to the device. Safety instructions are
classified as follows in accordance with the seriousness of the risk.
DANGER
•Do not install or use this product or fill it with Maintenance Oil in a room where explosion or fire is a risk.
•Do not install or use the product in direct sunlight or where the temperature exceeds 40°C.
•Provide adequate ventilation periodically. If odor is a concern, ventilate immediately.
WARNING
•Do not handle the AC power cord with wet hands. Wet hand contact with electricity may result in an electric shock.
•If the product overheats or smells of burning, immediately turn off the power and disconnect the main power plug. Contact your Authorized
NSK Dealer.
•TO PREVENT ELECTRIC SHOCK, use a main electrical outlet that is earthed.
•Be careful not to get water or liquid disinfectant or maintenance oil on the Unit. This could cause short circuits and lead to fire and/or electric
shock.
•Excessively turning the Main Power Switch ON and OFF may blow a fuse.
- Contents -
1. Intended Use ........................................................................................... 1
2. Precautions for handling and operation ........................................................................ 1
3. Package Contents ....................................................................................... 3
4. Part names ............................................................................................ 4
5. Checking and how to connect each part ....................................................................... 5
6. Oil priming ............................................................................................. 7
7. Check before use ........................................................................................ 8
8. Operation Procedures ..................................................................................... 8
9. Maintenance of iCare .................................................................................... 11
10. Periodical Maintenance Checks ............................................................................ 15
11. Error LED ............................................................................................ 16
12. Troubleshooting ....................................................................................... 16
13. Specification ......................................................................................... 17
14. Symbols ............................................................................................ 17
15. Warranty ............................................................................................ 17
16. Option Parts List ...................................................................................... 18
17. Spare Parts List ....................................................................................... 18
18. Disposal of the product .................................................................................. 18
19. EMC Information (Electromagnetic Compatibility Information) ...................................................... 18
English
(CS5) iCare-EN_140507.indd 1 2014/05/22 9:02:53

2
•When installing the product, provide space of approximately 10cm around the product for easy access to the inlet and the Power Cord.
•For safety, install the Unit in a place where the AC power cord can be easily removed.
CAUTION
•Read this Operation Manual before use to fully understand the product functions and file for future reference.
•Do not lubricate air scalers and Phatelus air motors by using iCare. iCare lubricating method is improper to those structure. Maintain
individual handpieces according to the procedure described in the operation manual of each handpiece.
•If blood infiltrates inside a handpiece, iCare may not totally clean the internal handpiece components, and internal blood coagulation may
cause product failure. In this case, NSK recommends to immediately lubricate those handpieces with PANA SPRAY Plus / PANA SPRAY.
•Autoclave handpieces AFTER lubricating with this product.
•Place a collector such as a tray under the Unit.
•After use, turn off the Power Switch and shut off the air supply (Air Compressor).
•Drain water from the Air Compressor and Air Filter at least once a week as required. Moisture from the tank could mix with the Maintenance
Oil and defeat the purpose of this device.
•Remove the Air Tube and the AC power cord from the Unit if the Unit is not to be used for a long time.
•Do not store the Maintenance Oil in contact with halogen, strong acid, alkali, and oxidizing substance or in the same place as these
substances.
•Use only consumable parts such as maintenance oil, and accessories such as an AC power cord specified by NSK. Other than what we
specify may cause product failure due to insufficient lubrication.
•This device is for indoor use only.
•Keep the Unit on a level surface.
•Do not attempt to disassemble the product or tamper with the mechanism except as recommended by NSK in this Operation Manual.
•Do not allow any impact on to the product. Do not drop the product.
•Should the product function abnormally, cease operation immediately and contact your Authorized NSK Dealer.
•Perform regular function and maintenance checks.
•If the product is not used for a long period check it is functioning correctly before use.
•Installation and use of this product requires special precautions regarding EMC according to the EMC information.
•Portable and mobile RF communications equipment can affect Medical Electrical equipment. Do not use RF equipment near the product.
•The use of ACCESSORIES such as cables, other than those specified by the manufacturer, with the exception of cables sold by the
manufacturer of this product as replacement parts for internal components, may result in increased EMISSIONS or decreased IMMUNITY of
this product.
•This product should not be used adjacent to, or stacked with, other equipment. If adjacent or stacked use is necessary, this product should
be observed to verify normal operation in the configuration in which it will be used.
•The system may present a possibility of malfunction when used in the presence of an electromagnetic interference wave. Do not install the
system in the vicinity of any device which emits magnetic waves. Turn off the Main Power Switch of the system as an ultrasonic oscillation
device or an electrode knife is located close to the vicinity of use.
•U.S. Federal law restricts this device to sale by or on the order of a licensed physician.
NOTICE
•No special training is required for this device.
(CS5) iCare-EN_140507.indd 2 2014/05/22 9:02:53

English
3
3Package Contents
No. Part Name Quantity
1 iCare Unit 1
2 AC Power cord 1
3 Maintenance Oil for iCare 1
4 Oil Filling Nozzle 1
5 Mist Filter Set 1set
(Pack of 12)
6Air Tube 1
7Oil Absorber Sheet 1set
(Pack of 10)
8 Chuck Cleaning Nozzle 1
9 O-ring Set 1set
(Pack of 3)
10 Test Bur 1
(CS5) iCare-EN_140507.indd 3 2014/05/22 9:02:55

4
4Part names
iCare Unit
Control Panel
4-1 Buttons on Control Panel
(1) Joint Select Button
Use this Button when selecting a joint to use.
(2) Chuck Cleaning Button
Use this Button when selecting Chuck Cleaning Mode.
(3) Air Select Button
Use this Button when selecting Air Mode.
(4) Start Button
Use this Button when starting lubrication.
Control Panel
Door
Power Switch
Joint
Air Filter
Inlet
Fuse Box
(2) Chuck Cleaning Button(1) Joint Select Button
(4) Start Button
(3) Air Select Button
(C) Error LED (Oil)
(F) Air LED (S/M/L)
(A) Power LED
(B) Joint LED
(D) Error LED (Door)
(E) Error LED (Air Pressure)
(G) Chuck Cleaning LED
Cover
(CS5) iCare-EN_140507.indd 4 2014/05/22 9:02:56

English
5
5Checking and how to connect each part

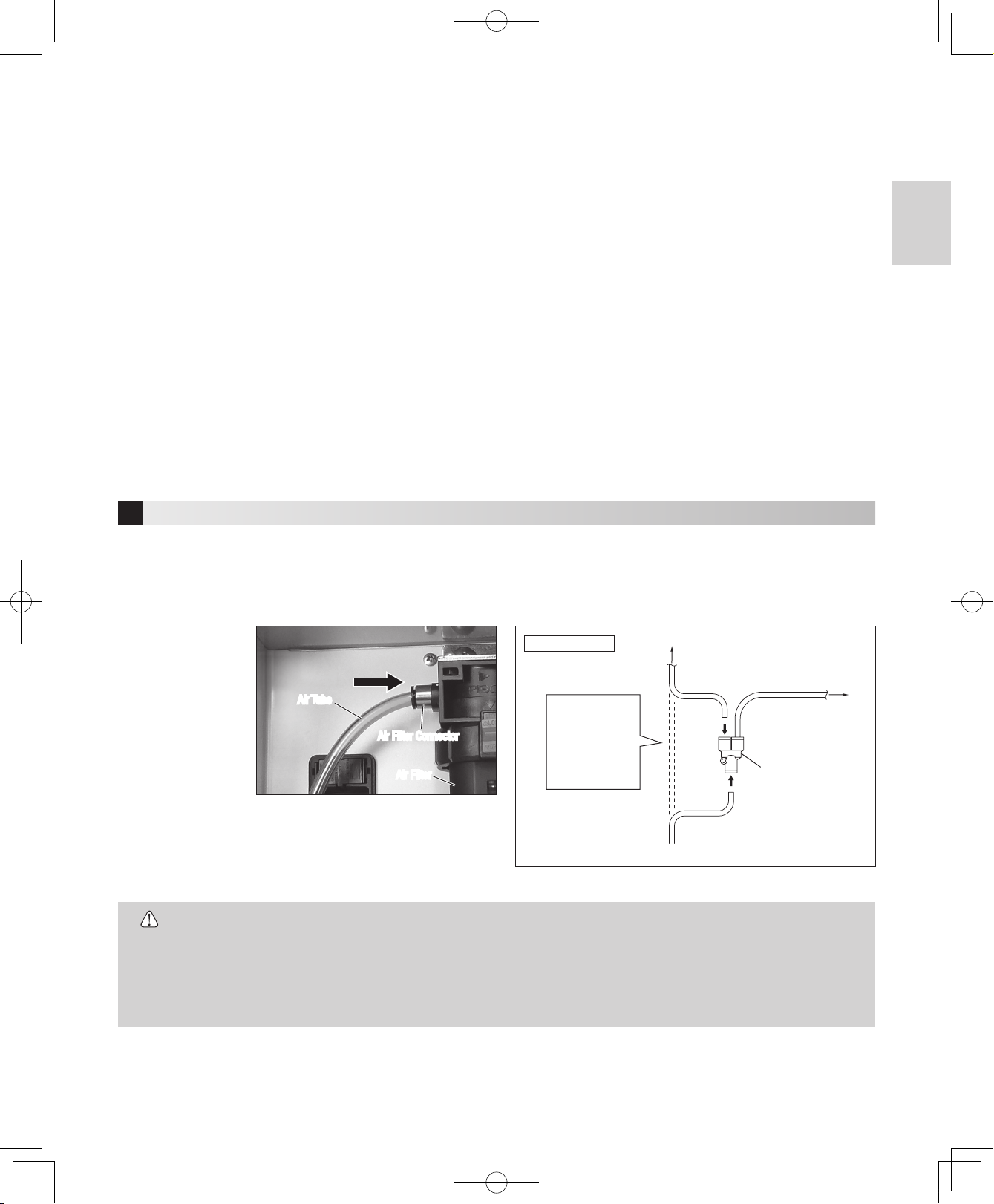

5-1 Connecting Air Tube
1) Securely insert the Air Tube into the Air Filter Connector at the back of the Unit (Fig. 1).
2) Connect the Y-type One-Touch Connector to the air source (Air Compressor) as shown in Fig. 2.
3) Push and pull the Air Tube to be sure that it is firmly connected.
4-2 Display part on Control Panel
(A) Power LED
This LED lights up when power is ON (l side).
(B) Joint LED
This LED lights up when the joint is selected. This LED blinks during lubrication.
(C) Error LED (Oil)
See "11. Error LED".
(D) Error LED (Door)
See "11. Error LED".
(E) Error LED (Air Pressure)
See "11. Error LED".
(F) Air LED (S/M/L)
The selected Air mode lights up.
(G) Chuck Cleaning LED
This LED lights up when the Chuck Cleaning is selected. This LED blinks during cleaning.
Fig. 2
CAUTION
Fig. 1
Example of connection
•The optimum air pressure for this product is between 0.5 - 0.6MPa (5 - 6kgf/cm2). The product does not operate if the air
pressure is set less than 0.5MPa (5kgf/cm2).
•Do not twist or bend the Air Tube.
•If you have difficulty connecting the Air Tube, contact your Authorized NSK Dealer.
•Drain water from the Air Compressor and Air Filter at least once a week as required. Moisture from the tank could mix with the
Maintenance Oil.
Air Tube
Air Filter Connector
Air Filter
Air Filter of iCare
Y-type One-Touch
Connector
Air Compressor
To other device
Cut the air tube
connecting the Air
Compressor and the
other device and
connect to the Y-type
One-Touch Connector.
(CS5) iCare-EN_140507.indd 5 2014/05/22 9:02:56

6
1) Open the Cover (Fig. 4).
2) Remove the Oil Fill Cap by turning it counter clockwise (Fig. 5).
3) Remove the cap for Maintenance Oil and install the Oil Filling Nozzle (Fig. 6).
4) Fill with Maintenance Oil slowly (Fig. 7).
5) When filling is complete, securely attach the Oil Fill Cap by turning it clockwise.
5-2 Filling with Maintenance Oil
Fig. 3
DANGER
CAUTION
CAUTION
Fig. 5
Fig. 7
Fig. 4
Fig. 6
Drain Screw
•Do not fill Maintenance Oil in a room where there is a risk of explosion or fire.
•Do not overfill Maintenance Oil in order to avoid accidental oil leaks. Pour slowly.
•Use only the NSK Maintenance Oil for iCare. Use of oil other than NSK Maintenance Oil for iCare may cause a failure and result
in insufficient product lubrication.
•Before filling with Maintenance Oil, be sure that the Drain Screw on the
underside of the Unit is tightened securely. Oil may leak if the screw is loose
(Fig. 3).
Oil Fill Cap
Oil Filling Nozzle
Oil Filling Hole
Oil Filter
Maintenance Oil
Cover
(CS5) iCare-EN_140507.indd 6 2014/05/22 9:02:57

English
7
6Oil priming
Be sure to prime iCare with the Maintenance Oil when using the product for the first time or after draining the oil from the oil tank. Lack of oil
priming may reduce the performance of the product.
1) Close the door then turn ON the Power Switch (l side) while pressing the Chuck Cleaning Button. Then a beep sounds.
2) Be sure that the Error LED (Oil) lights up. Then open the door.
3) Keep pressing any one of the Joint Select Button "1 to 4", while being sure that the Oil exits from the joint.
4) Close the Door.
5) Turn OFF the Power Switch (O side), and turn it ON (l side) again.
6) Press each Joint Select Button to light the Joint LED of all (1 to 4).
7) Press the Start Button to start Oil priming.
8) When Oil priming is completed, a beep sounds and the Joint LED turns off.
5-3 Mist Filter
Attach Mist Filters to the inside of the Door (Fig. 8).
5-4 Oil Absorber Sheet
Place an Oil Absorber Sheet at the bottom of the lubricating chamber of the Unit. The Oil
Absorber Sheet is designed to absorb residual Maintenance oil after lubrication (Fig. 9).
5-5 Connecting AC Power Cord
1) Turn OFF (O side) the Power Switch before connecting the AC power cord.
2) Insert the AC power cord plug so that it fits the Connector Socket at the rear of the Unit
(Fig. 10).
3) Plug the AC power cord into a wall outlet.
5-6 Setting of sound volume
"High" and "Low" sound volume can be switched by repeating the following procedure.
Close the Door then turn ON the Power Switch (I side) while pressing the Air Select Button.
Fig. 9
Fig. 8
Fig. 10
CAUTION
Oil Absorber Sheet
Mist Filter
•Hold the plug when pulling out the AC power cord. If holding the cord part, the cord may be damaged.
•Be sure that the device has completely stopped before pulling out the AC power cord.
(CS5) iCare-EN_140507.indd 7 2014/05/22 9:02:58

8
8Operation Procedures
8-1 Attaching Handpiece
Air Turbine
When connecting a Midwest 4 Hole air turbine (According to ISO 9168)
1) Remove the bur from the handpiece.
2) Open the iCare Door, insert the air turbine to the shape of the air turbine joint, and tighten the nut securely (Fig. 11).
To 4)
When connecting another type of air turbine
1) Remove the bur from the handpiece.
2) Open the iCare Door, insert the adaptor (option) to the shape of the air turbine joint, and tighten the nut securely (Fig. 12).
3) Insert the air turbine into the adaptor (Fig. 13).
* Refer to "16. Option Parts List" for the correct adaptor.
To 4)
4) Push and pull the handpiece to be sure that it is securely attached.
5) Point the bur insertion hole toward the door and close the door securely (Fig. 14).
7Check before use
Before use, check the product by referring to the check points below. If you find something abnormal such as looseness, when checking or
using, stop use and contact your Authorized NSK Dealer.
•Check that the turbine joint part is securely fastened and the Nut screw is free of wear, seizure or adherence of dirt.
•Check that the E-type joint part is secure and free of flaws or adherence of dirt.
Fig. 12Fig. 11
CAUTION
*C3 Type *C2 Type
•Do not lubricate air scalers and Phatelus air motors by using iCare. iCare lubricating method is improper to those structure.
Maintain individual handpieces according to the procedure described in the operation manual of each handpiece.
•If blood infiltrates inside a handpiece, iCare may not totally clean the internal handpiece components, and internal blood
coagulation may cause product failure. In this case, NSK recommends to immediately lubricate those handpieces with PANA
SPRAY Plus / PANA SPRAY.
•Maintain individual handpiece according to the procedure described in the operation manual of handpiece.
Air Turbine Joint
Nut
Adaptor
Nut
Tighten
Tighten
(CS5) iCare-EN_140507.indd 8 2014/05/22 9:02:58

English
9
E Type handpiece (According to ISO 3964 type)
Straight Handpiece
1) Insert the supplied Test Bur into the handpiece and lock the chuck by turning the Bur Lock
Ring (Fig. 15).
2) Open the iCare door and attach the handpiece to the E-Type handpiece joint until it locks
(Fig. 16).
3) Push and pull the handpiece to be sure that it is securely attached.
4) Close the door securely.
Contra Angle Handpiece
1) Remove the bur from the handpiece.
2) Open the iCare door and attach the handpiece to the E-Type handpiece joint until it locks
(Fig. 16).
3) Push and pull the handpiece to be sure that it is securely attached.
4) Point the bur insertion hole toward the door and close the door securely (Fig. 14).
Fig. 14
Fig. 16
Fig. 13
Fig. 15
CAUTION
NOTICE
*C2 Type
*C2 Type
Bur insertion Hole
E-Type handpiece Joint
Bur Lock Ring
•Be sure to remove the bur from Air Turbine and Contra Angle Handpieces before attaching the handpiece to the adaptor or Joint.
For Straight handpieces be sure to insert the supplied Test Bur and lock the chuck before connecting to the E-Type handpiece
joint (Fig. 15).
•For Contra Angle and Air Turbine Handpieces point the Bur Insertion Hole towards the door and close the door (Fig. 14). Mist
Filters absorb the oil coming out of the handpiece.
•NSK offers Handpiece Head Filters, which help absorption of oil from the handpiece during lubrication.
* For replacement Handpiece Head Filters, refer to "16. Option Parts List".
Test bur
Adaptor
Point toward the door
(CS5) iCare-EN_140507.indd 9 2014/05/22 9:02:58

10
8-3 Removing Handpieces
Removing Air Turbine
For Midwest 4 Hole Air Turbine (According to ISO 9168)
1) Open the door after the Joint LED has turned OFF and lubrication has completely finished.
2) Loosen the nut and pull out the handpiece straight from the Air Turbine Joint (Fig. 17).
For other types of air turbine handpieces
1) Open the door after the Joint LED has turned OFF and lubrication has completely finished.
2) Pull out the Air Turbine straight from the adaptor, or pull out the Air Turbine while pushing up the connector ring of the adaptor (Fig. 18).
4) When the Start Button is pressed lubrication starts. The Joint LED blinks during lubrication.
5) When lubrication is completed, a beep sounds and the Joint LED turns off.
1) Turn on (I side) the Power Switch.
2) Press the Joint Select Button to select the joint to which handpiece is attached. The relevant LED light will illuminate.
3) Press the Air Select Button to select an air purge mode among S, M and L.
8-2 Lubrication and internal cleaning
Mode Joint Lubrication and Cleaning Time
per Handpiece Handpiece
S mode
(Short)
Air Turbine Joint 28 sec. Air Turbine (M4/B2 type only)
E-type Handpiece Joint 50 sec. Contra Angle Handpieces, Straight Handpieces
(The oil drainage time is shorter than that in M mode)
M mode
(Medium)
Air Turbine Joint 30 sec. Air Turbine (Other than M4/B2 type)
E-type Handpiece Joint 64 sec. Contra Angle Handpieces, Straight Handpieces
L mode
(Long)
Air Turbine Joint 33 sec. Handpieces from which oil cannot be drained sufficiently in M
mode (The oil drainage time is longer than that in M mode)E-type Handpiece Joint 84 sec.
CAUTION
CAUTION
Fig. 18Fig. 17*C3 Type *C2 Type
NOTICE
•When Joint LED is off, lubrication for the joint will not start.
•If debris is contained in the oil expelling from a handpiece even after lubrication, lubricate the handpiece again.
Adaptor
Nut Loosen
•iCare has preset lubrication modes optimal for various handpiece types. Lubricate and clean handpieces by following the
instruction below.
(CS5) iCare-EN_140507.indd 10 2014/05/22 9:02:59

English
11
8-4 Chuck Cleaning
This product can clean the Chuck of Air Turbine and Contra Angle handpieces.
1) Insert the chuck cleaning nozzle into the Joint "4" until it locks (Fig. 20).
2) Press the Chuck Cleaning Button to illuminate the Chuck Cleaning LED.
3) Holding the handpiece securely by hand, insert the chuck cleaning nozzle into the bur insertion hole of the handpiece (Fig. 21).
4) Press the Start Button and chuck cleaning will start. The Chuck Cleaning LED will blink during cleaning.
5) When cleaning is completed, a beep sounds and the Chuck Cleaning LED will turn off.
6) Lubricate the handpiece following the instruction in "8-1 Attaching Handpiece" and "8-2 Lubrication and internal cleaning".
Removing E-type handpieces (According to ISO 3964 type)
1) Open the door after the Joint LED has turned OFF and lubrication has completely finished.
2) Pull out the handpiece straight while pressing the Release Button on the E-type Handpiece
Joint (Fig. 19).
9Maintenance of iCare
9-1 Cleaning the iCare
1) Turn OFF (O side) the Power Switch.
2) Remove the AC power cord from Unit.
3) Wipe the surface using a cloth moistened with water, warm water or soapy water (neutral detergent), then again wipe using another cloth
moistened with disinfectant alcohol.
Fig. 21Fig. 20
CAUTION
CAUTION
CAUTION
NOTICE
NOTICE
Fig. 19*C2 Type
*C2 Type
Chuck Cleaning Nozzle
•Do not clean the chuck of NSK Straight Handpieces as this may cause handpiece malfunction.
•Never use solvent such as benzine or thinner for cleaning.
•Do not leave an alcohol-immersed cloth in contact with the Unit for a long period. Bleaching, deformation or failure of the Unit
may occur.
•With a cloth, wipe off any Oil collected at the bottom of the chamber and the
door. The collected oil could leak from the bottom of the door. Dispose of the
cloth as medical waste according to the laws and regulations in your country.
•Only Joint "4" is available for chuck cleaning.
•Clean the chuck at least once a week.
•The door can easily be detached when necessary and be cleaned with tap water (See "9-2 Detaching and reattaching the
door").
Release Button
(CS5) iCare-EN_140507.indd 11 2014/05/22 9:02:59

12
9-2 Detaching and reattaching the door
9-2-1 Detaching the door
Slide the detachment lever (lower right corner) inward then pull the door out to remove
(Fig. 22).
9-2-2 Reattaching the door
1) Fit the installation hole on the door into the pin on the front left side (Fig. 23).
2) Align the other installation hole on the door right side with the pin while pulling the
detachment lever. Release the detachment lever. A 'click' sound will indicate that the
door is secure (Fig. 24).
9-3 Replacing Mist Filter
Open the door and remove the used Mist Filters. Replace with new Mist Filters as shown in
Fig. 25.
9-4 Replacing the Oil Absorber Sheet
Open the door and remove used Oil Absorber Sheet. Place new Oil Absorber Sheet at the
bottom of the lubricating chamber of the Unit as shown in Fig. 26.
Fig. 23
Fig. 22
Fig. 24
CAUTION
CAUTION
CAUTION
Fig. 25
Fig. 26
Pin
Detachment lever
Detachment lever
•Attach or detach the door on a level surface. During attachment or detachment, be careful not to drop the door or the Unit.
•Do not soak the door in alcohol and do not leave an alcohol-immersed cloth in contact with the door for a long period. Bleaching
or door deformation may occur.
•Replace immediately with new Mist Filters when signs of debris appear.
•Dispose of used Mist Filters as medical waste according to the laws and
regulations in your country.
•Replace immediately with a new Oil Absorber Sheet when signs of debris
appear.
•Dispose of used Oil Absorber Sheets as medical waste according to the laws
and regulations in your country.
Installation hole
Mist Filter
Oil Absorber Sheet
Pin
Installation hole
(CS5) iCare-EN_140507.indd 12 2014/05/22 9:03:00

English
13
9-5 Draining the Air Filter
1) When water accumulates in the Air Filter case, press the Drain Button at the bottom of the
case to drain the Air Filter (Fig. 27).
2) In addition to the Air Filter, drain the air supply attached to this device (Air Compressor) at
least once a week.
9-7 Replacing the O-ring
The O-Ring attached to the E-type handpiece joint may deteriorate or break due to wear. If
any abnormality is found, replace the O-Ring with a new one following the instruction below.
1) Remove the O-ring using a thin needle (Fig. 29).
2) Insert a new O-ring into the empty groove.
* For replacement O-ring, refer to the Spare Parts List.
9-8 Changing Fuses
1) Turn OFF (O side) the Power Switch.
2) Remove the AC power cord from the Unit.
3) Pull out and remove the Fuse while squeezing the ratchets of the Fuse Box inward at the
same time (Fig. 30).
4) Replace the Fuse with a new one.
5) Place the Fuse holder in the original position.
* For replacement Fuse, refer to the Spare Parts List.
9-6 Oil removal from the oil tank
Before relocating or requesting product service, remove oil in the oil tank following the
instruction below.
1) Turn OFF (O side) the Power Switch.
2) Remove the AC power cord plug from wall outlet.
3) Remove the AC power cord from the Unit.
4) Prepare an oil receiving container.
5) Remove the Oil Fill Cap.
6) Put the oil receiving container below the drain screw and remove the drain screw.
7) When oil draining is completed, securely fasten the drain screw.
Fig. 29
Fig. 30
Fig. 28
Fig. 27
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
NOTICE
Drain Button
O-ring
Fuse
Drain Screw
•Use only the fuse which NSK specifies.
•If you cannot identify the cause for the blowout of the fuse, be sure to contact your Authorized NSK Dealer for an inspection.
•The air supply (Air Compressor) and Air Filter need to be clean and free from
moisture. Drain the Air Compressor and Air Filter at least once a week as
required. Moisture from the tank could mix with the Maintenance Oil.
•A deteriorated O-ring would cause excess flow of oil from the joint. If such
abnormality is found, replace the O-ring with a new one. Use only the O-ring
which NSK specifies.
•When it is difficult to pull out the fuse holder, pull it out while pushing the ratchet with a hard-tipped object.
Fuse Box
(CS5) iCare-EN_140507.indd 13 2014/05/22 9:03:00

14

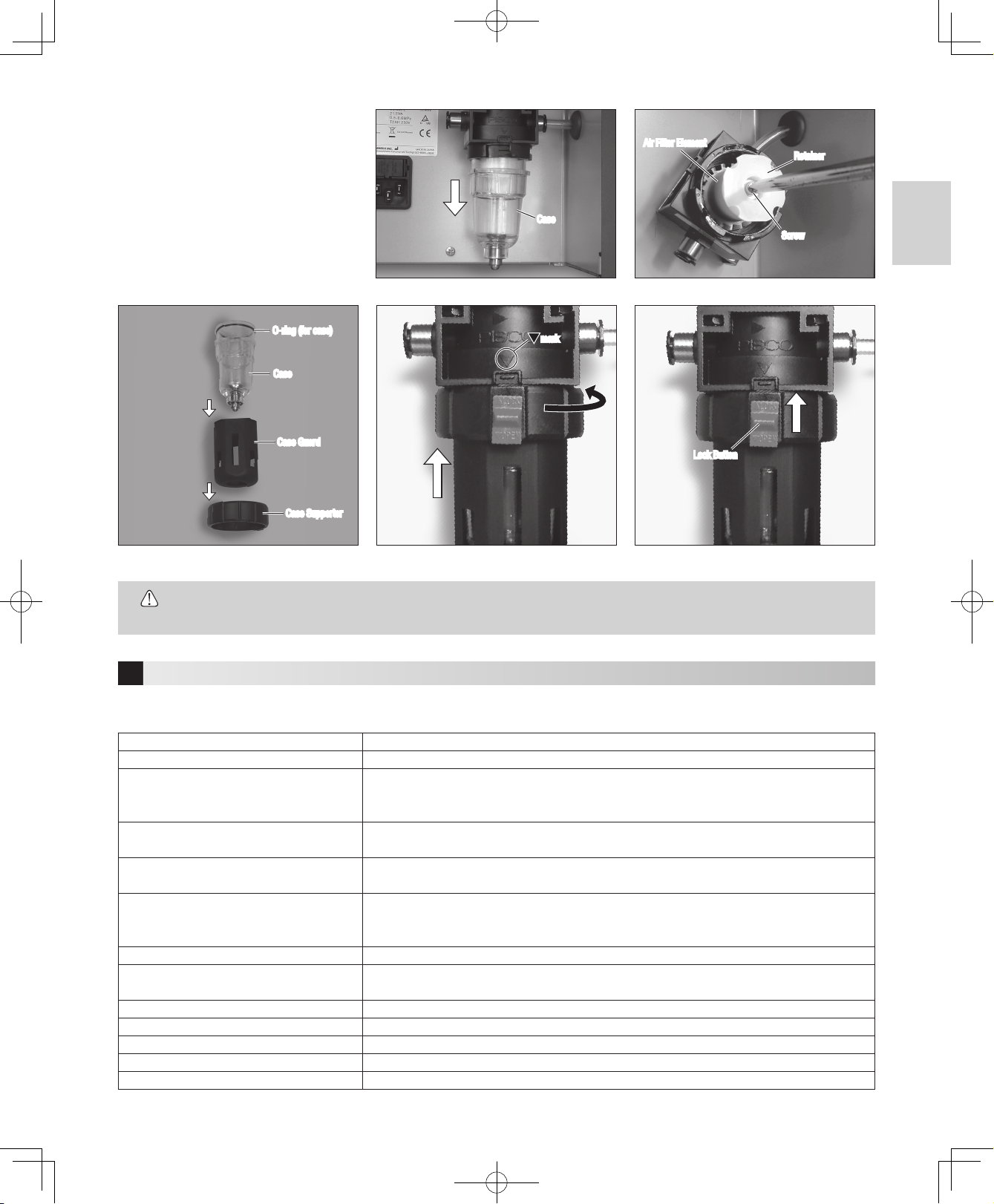

9-9 Replacing the air filter element
1) Drain the Air Filter (See "9-5 Draining Air Filter").
2) Pull out the air tube while pushing the connector ring on the air filter (Fig. 31).
3) Remove the two screws using a cross slot screwdriver to remove the air filter (Fig. 32).
4) Move the red lock button down to " OPEN" (Fig. 33).
5) Turn the case supporter clockwise and pull it down. The case supporter and case guard can now be removed (Fig. 34).
6) Remove the case (Fig. 35).
7) Remove the screw at the bottom of the retainer using a cross slot screwdriver (Fig. 36).
8) Remove the retainer and the air filter element.
9) Install a new air filter element into the retainer and securely tighten them to the original position with the screw.
10) Insert the case into the case guard then insert them into the case supporter (Fig. 37).
11) Align the lock button with the position of the groove in the air filter body to insert, and push it up until there is no gap between the case
supporter and the air filter body. Turn it counter clockwise until the lock button reaches the portion (Fig. 38).
12) Move the red lock button up to " LOCK" to lock (Fig. 39).
13) Attach the two screws in the reverse order of "3)".
14) Insert the air tube into the air filter connector.
Fig. 33 Fig. 34
Fig. 32
CAUTION
Fig. 31
Lock Button
Screw
•Replace the air filter element every one or two years.
Case Supporter
Air Tube
Connector Ring
(CS5) iCare-EN_140507.indd 14 2014/05/22 9:03:02

English
15
10 Periodical Maintenance Checks
Perform periodical maintenance checks every three months, referring to the check sheet below. If any abnormalities are found, contact your
Authorized NSK Dealer.
Points to check Details
Connection of AC power cord Confirm whether the AC power cord is completely inserted all the way into the inlet.
Air Tube
Confirm whether the Air Tube is damaged, or bent.
Confirm whether the Air Tube is completely inserted into the Air Filter connector, and cannot be
removed by pushing and pulling.
Air Filter Confirm whether any water accumulates in the Air Filter. If water accumulates then drain the
water.
Air Purge Press each Joint Select Button while pressing the Air Select Button to confirm that air comes
out.
E-Type Handpiece Joint
Confirm whether the insert part is free of damage or adherence of debris.
Attach the handpiece to confirm that there is no backlash, etc.
Confirm that the O-ring is not damaged or cut.
Air Turbine joint Install the air turbine to confirm that there is no backlash, etc.
Oil Filter Remove the oil fill cap to confirm that no debris has accumulated in the filter. Remove any
accumulated debris.
Oil is blocked See "6. Oil priming" and confirm that oil properly comes out from the joint.
Beep sound Turn on the power switch (l side) to confirm that a beep sounds.
Drain Screw Confirm that the Drain Screw is firmly tightened.
Chuck Cleaning Nozzle Confirm if the Chuck Cleaning Nozzle is clogged.
LED Turn on the Power Switch and confirm that all the LEDs illuminate.
Fig. 36Fig. 35
CAUTION
Fig. 37 Fig. 39Fig. 38
Screw
•Be sure to STOP the air pressure before removal and reinstallation of the air filter.
•When installing and removing the air filter, apply Maintenance Oil onto the O-ring of the case.
Case
O-ring (for case)
Case Guard
Case Supporter
mark
Retainer
Air Filter Element
Case
Lock Button
(CS5) iCare-EN_140507.indd 15 2014/05/22 9:03:03

16
12 Troubleshooting
When a problem is detected, check the following again before requesting service. If none of these are applicable or if the trouble is not remedied
even after an action has been taken, a failure of this product is suspected. Contact your Authorized NSK Dealer.
In addition, when asking for service, drain oil from the oil tank in the main body according to the tank oil removal procedures (9-6 Oil removal
from the oil tank) described in the Operation Manual.
Trouble Cause Remedy
Power cannot be turned on.
The power cord plug is not connected. Or electricity
is disconnected. Check the connection.
The AC power cord is not connected to the Unit. Check the connection.
The power is not turned ON (l side). Turn ON the power (l side).
The internal fuse has malfunctioned. Replace the fuse.
The device does not operate.
Joint is not selected (The Joint LED is OFF). Press the Joint Select Button to select joint.
The door is OPEN before or during operation. Close the door before or during operation.
The door is CLOSED before Chuck Cleaning. Open the door before Chuck Cleaning.
Oil chamber is empty (Error LED (Oil) lights up). Fill with NSK maintenance oil.
Air is not supplied. Or the air pressure is low (Error
LED (Air Pressure) lights up). Check air supply and air pressure.
The room temperature is too low.
Use this product in an operating environment of
10 - 40°C. Especially in winter, wait until the room
temperature reaches the operating temperature.
Maintenance oil and air do not flow
from the Chuck Cleaning Nozzle.
The hole of the Chuck Cleaning Nozzle is clogged
with debris.
Remove dirt in the hole using a brush (Do not use a
metal brush).
11 Error LED
The error LED illuminates on the Control Panel when the device ceases to operate due to failure, excessive pressure, disconnection and incorrect
usage. When this happens, restart the Unit to repeat the error check. If there are no problems, the error is cancelled and the operation can be
resumed. If the error is displayed again, refer to the table below and take appropriate actions.
Error LED Description of error Cause of error Check/Remedy
Error LED (Oil) illuminates Oil level is too low
There is a small remaining amount
of oil (Remaining amount is 150ml
or less).
Refill oil (However, the device can
be used for a while after the LED
lights up).
Error LED (Door) illuminates Door abnormality
The door is OPEN before or during
maintenance operation.
Close the door before or during
maintenance operation.
The door is CLOSED before Chuck
cleaning.
Open the door before Chuck
cleaning.
Error LED (Air Pressure)
illuminates Air supply pressure abnormality
The supplied air pressure is out of
the allowable range of the product
specification.
Confirm whether the supplied air
pressure is correct.
Error LED (Oil) blinks Lubricating pump circuit
abnormality Failure of parts Contact your Authorized NSK Dealer for repair.
Error LED (Door) blinks Abnormality of power circuit Failure of parts Contact your Authorized NSK
Dealer for repair.
All of Error LED (Oil), Error LED
(Door) and Error LED (Air Pressure)
blink
Flash memory abnormality Failure of parts Contact your Authorized NSK
Dealer for repair.
(CS5) iCare-EN_140507.indd 16 2014/05/22 9:03:03

English
17
14 Symbols
Conforms to CE European Directive.
Manufacturer.
Authorized representative in the European community.
Follow the waste of electric and electronic equipment (WEEE) Directive (2012/19/EU) for product and accessory disposal.
Caution, Refer to attached instructions.
TUV Rhineland of North America is a Nationally Recognized Testing Laboratory (NRTL) in the United States and is accredited by the
Standards Council of Canada to certify electro-medical products with Canadian National Standards.
Marking on the outside of Equipment or Equipment parts that include RF transmitters or that apply RF electromagnetic energy for
diagnosis or treatment.
Caution: U.S. Federal law restricts this device to sale by or on the order of a licensed physician.
15 Warranty
NSK products are warranted against manufacturing errors and defects in materials. NSK reserves the right to analyze and determine the
cause of any problem. Warranty is voided should the product be not used correctly or for the intended purpose or has been tampered with by
unqualified personnel or has had non NSK parts installed. Replacement parts are available for seven years beyond discontinuation of the model.
13 Specification
Model iCare
Rated Voltage AC100V - 240V 50/60Hz
Input Voltage 21.5VA
Air Pressure 0.5 - 0.6MPa (5 - 6kgf/cm2)
Oil Tank Capacity 1.2L
Dimensions W280 x D240 x H350mm
Weight C2 Type: 6.5kg
C3 Type: 6.5kg
C2 Type: Air Turbine = 2pcs. E Type Handpiece = 2pcs.
C3 Type: Air Turbine = 1pc. E Type Handpiece = 3pcs.
Temperature Humidity Atmospheric Pressure
Use Environment 10 - 40°C 25 - 75%
Transportation and Store
Environment -10 - 50°C 10 - 85% 500 - 1,060hPa
(CS5) iCare-EN_140507.indd 17 2014/05/22 9:03:03

18
18 Disposal of the product
In order to avoid the health risks of operators handling the disposal of medical equipment, as well as the risks of environmental contamination
caused thereof, a surgeon or a dentist is required to confirm the equipment is sterile. Ask specialist firms who are licensed to dispose of
specially controlled industrial wastes, to dispose the product for you.
19 EMC Information (Electromagnetic Compatibility Information)
Guidance and manufacturer's declaration - Electromagnetic Emissions
The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an
environment.
Emissions test
RF emissions
CISPR11/EN55011
RF emissions
CISPR11/EN55011
Harmonic emissions
EN/IEC61000-3-2
Voltage fluctuations/flicker emissions
EN/IEC61000-3-3
Compliance
Group 1
Class B
Class A
Not Applicable
Electromagnetic environment - guidance
The product uses RF energy only for its internal function. Therefore, its RF emissions are very low
and are not likely to cause any interference in nearby electronic equipment.
The product is suitable for use in all establishments, including domestic establishments and those
directly connected to the public low-voltage power supply network that supplies buildings used for
domestic purposes.
17 Spare Parts List
Model Order Code Remarks
Maintenance Oil for iCare Z016130 Quantity: 1 Bottle
Maintenance Oil Set for iCare Y1002783 Pack of 6 Bottles
Mist Filter set Y900159 Pack of 12
Oil Absorber Sheet U433135 Pack of 10
O-ring set M154060 Pack of 3
Fuse D1202220010 Rated value T2AH250V
Air Tube U508038 3m
Chuck Cleaning Nozzle Z257301
Test Bur Z070101
Air Filter Element U508353
Air Filter U508352
Case U508354
O-ring (for case) U508355
Oil Filter U1120116
Oil Fill Cap U1120038
16 Option Parts List
Model Order Code Remarks
PTL Type Adaptor Z257010 For Phatelus Coupling
B2/M4 Type Adaptor T904 For Borden 2 Hole Coupling
KV Type Adaptor Z257020 For Kavo Coupling
SR Type Adaptor Z257023 For Sirona Coupling
WH Type Adaptor Z257021 For W&H Coupling
BA Type Adaptor Z280022 For Bien Air Coupling
F-Type Adaptor Z280042 For Endo MateTC2/TC, TASKAL Wizard head
Handpiece Head Filter U1120118 Pack of 200
* Some adaptors cannot be mounted depending on the type of air turbine. Please consult your Authorized NSK Dealer.
(CS5) iCare-EN_140507.indd 18 2014/05/22 9:03:03

English
19
Guidance and manufacturer's declaration - Electromagnetic Immunity
NOTE: 'Ut' is the AC mains voltage prior to application of the test level.
*: eg: "25/30 a cycles" means "25 cycles for a 50Hz test", or "30 cycles for a 60Hz test".
The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an
environment.
Immunity test
Electrostatic discharge (ESD)
EN/IEC61000-4-2
Electrical fast transient/burst
EN/IEC61000-4-4
Surge
EN/IEC61000-4-5
Voltage dips, short
interruptions and voltage
variations on power supply
input lines
EN/IEC61000-4-11
Power frequency (50/60Hz)
magnetic field
EN/IEC61000-4-8
IEC61326-1 Test Level
±(2) 4kV Contact
±(2, 4) 8kV Air
±2kV for power supply lines
±1kV line(s) to line(s)
±2kV line(s) to earth
0% Ut
(100% dip in Ut)
for a cycles
40% Ut
(60% dip in Ut)
for 10/12 a cycles*
70% Ut
(30% dip in Ut)
for 25/30 a cycles*
0% Ut
(100% dip in Ut)
for 250/300 a cycles*
30A/m
Compliance level
±(2) 4kV Contact
±(2, 4) 8kV Air
±2kV for power supply lines
±1kV line(s) to line(s)
±2kV line(s) to earth
0% Ut
(100% dip in Ut)
for a cycles
40% Ut
(60% dip in Ut)
for 10/12 a cycles*
70% Ut
(30% dip in Ut)
for 25/30 a cycles*
0% Ut
(100% dip in Ut)
for 250/300 a cycles*
30A/m
Electromagnetic environment - guidance
Floors should be wood, concrete or ceramic tile. If floors are
covered with synthetic material, the relative humidity should
be at least 30%.
Mains power quality should be that of a typical commercial or
hospital environment.
Mains power quality should be that of a typical commercial or
hospital environment.
Mains power quality should be that of a typical commercial or
hospital environment. If the user of the product requires
continued operation during power mains interruptions, it is
recommended that the product be powered from an
uninterruptible power supply or a battery.
Power frequency magnetic fields should be at levels
characteristic of a typical location in a typical commercial or
hospital environment.
Electromagnetic environment - guidance
Portable and mobile RF communications equipment should be
used no closer to any part of the product, including cables,
than the recommended separation distance calculated from
the equation applicable to the frequency of the transmitter.
Recommended separation distance
d = 1.2 P
d = 0.35 P 80MHz to 800MHz
d = 0.70 P 800MHz to 1.0GHz
d = 2.3 P 1.4GHz to 2.0GHz
d = 7.0 P 2.0GHz to 2.5GHz
Where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer, and (d ) is the recommended separation
distance in meters (m).
Field strengths from fixed RF transmitters as determined by
an electromagnetic site survey(a) should be less than the
compliance level in each frequency range(b).
Interference may occur in the vicinity of equipment marked
with the following symbol:
Guidance and manufacturer's declaration - Electromagnetic Immunity
The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an
environment.
NOTE1: At 80MHz and 800MHz, the higher frequency range applies.
NOTE2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
a: Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and
TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should
be considered. If the measured field strength in the location in which the product is used exceeds the applicable RF compliance level stated above, the product should be
observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the product.
b: Over the frequency range 150kHz to 80MHz, the field strength should be less than 3V/m.
Immunity test
Conducted RF
EN/IEC61000-4-6
Radiated RF
EN/IEC61000-4-3
IEC61326-1 test level
3Vrms
150kHz to 80MHz
10V/m
80MHz to 1.0GHz
3V/m
1.4GHz to 2.0GHz
1V/m
2.0GHz to 2.7GHz
Compliance level
3V
10V/m
80MHz to 1.0GHz
3V/m
1.4GHz to 2.0GHz
1V/m
2.0GHz to 2.7GHz
(CS5) iCare-EN_140507.indd 19 2014/05/22 9:03:04
