OPERATION MANUAL
Vibratory plate compactors
V
D15P, 18P,
VD20P, 24P

Vibratory plate compactors Operation manual
page 2
ES PROHLÁŠENÍ O SHODĚ (originál)
EC Declaration of Conformity (překlad/translation)
Prohlašujeme, že zařízení definované níže uvedenými údaji je ve shodě s požadavky níže uvedených NV a směrnic
We declare that the trough below mentioned specifications defined equipment complies with requirements of below cited Directives
Výrobce (manufacturer): NTC STAVEBNÍ TECHNIKA spol. s r.o.
Sídlo firmy (company domicile): V Aleji 654, Nové Město nad Metují 549 01
Sídlo provozovny: Maloskalická 120, Česká Skalice 552 03
(office premises)
IČ (identification number): 63221152
Osoba pověřená sestavením a NTC STAVEBNÍ TECHNIKA spol. s r.o.
uchováváním technické dokumentace:
(Person in charge of assembling
and storing technical documentation)
Název (model):
VIBRAČNÍ DESKA JEDNOSMĚRNÁ / VIBRATORY PLATE
Typ (type):
VD15P, 18P, 20P, 24P
Výrobní číslo (serial number)
Popis (description): Vibrační desky jsou určeny pro zhutňování všech druhů zemin včetně navazujících půdních úseků, pro zhutňování
příkopů a ploch, jakož i pro zhutňování asfaltových povrchů. Při použití s plastovou podložkou je možné vibrační
desku používat rovněž pro zahutnění zámkové dlažby. Pohon vibrační desky je zajištěn čtyřdobým jednoválcovým
motorem HONDA (čistý výkon: 3,6 kW).
The forward vibratory plates are designed for compaction of soils or asphalt layers, when used with an optional
plastic pad it can be used also for compaction of asfalt surfaces. The machine is driven with four-stroke single-
cylinder engine HONDA (net power 3,6 kW).
Všechna příslušná ustanovení, Strojní zařízení – směrnice 2006/42/ES; NV č.176/2008 Sb.
která výrobek splňuje Machinery Directive 2006/42/EC
(The product meets all relevent provisions)Emise hluku – směrnice 2000/14/ES; NV č.9/2002 Sb.
Noise Emission 2000/14/EC
Elektromagnetická kompatibilita – směrnice 2004/108/ES; NV č.616/2006 Sb.
Electromagnetic Compatibility Directive 2004/108/EC
Harmonizované technické normy a ČSN EN ISO 12100, ČSN EN ISO 14121-1, ČSN EN 500-1+A1, ČSN EN 500-4,
technické normy: ČSN EN 474-1+A1, ČSN EN 602204-1 ed.2, EN ISO 14982:2009
(The harmonized technical standards
and technical standards)
Osoby zúčastněné na posouzení Autorizovaná osoba č. 255 (authorized Body No. 255)
shody Notifikovaná osoba č. 1016 (the European Notified Body No. 1016)
(Persons involved in the conformity Státní zkušebna zemědělských, potravinářských a lesnických strojů, a.s., Třanovského 622/11, 16304 Praha 6-Řepy, ČR
assessment) The Government Testing Laboratory of Agricultural, Food Industry and Forestry Machines,Jjoint-stock company
Použitý postup na posouzení shody: Na základě směrnice 2000/14/ES příloha VI; NV č.9/2002 Sb., příloha č.5
(To the conformity assessment Pursuant to the Directive for Noise Emission 2000/14/EC Annex VI
applied procedure) Na základě směrnice 2006/42/ES příloha VIII; NV č.176/2008 Sb., příloha č.8
Pursuant to the Machinery Directive 2006/42/EC Annex VIII
Naměřená hladina akustického výkonu: LWA =
104, 103 dB
(Measured sound power level)
Garantovaná hladina akustického výkonu: LWA =
105, 104 dB
(Guaranteed sound power level)
Poznámka: Veškeré předpisy byly použity ve znění jejich změn a doplňků platných v době vydání tohoto prohlášení bez jejich citování.
Note: All regulations were applied in wording of later amendments and modifications valid at the time of this declaration issue without any citation of them.
Místo a datum vydání: Osoba zmocněná k podpisu za výrobce:
Place and date of issue: Signed by the person entitled do deal in the name of producer:
Česká Skalice, 01.12.2011
Jméno (Name): Funkce (Grade) Podpis (signature)
Ing. Petr Ratsam jednatel společnosti (Company Executive)

Vibratory plate compactors Operation manual
page 3
Congratulations! You have purchased a non-reversible vibratory plate
compactor. You receive high-quality and powerful compaction machine,
intended for professional use under the heaviest conditions.
Read carefully this operation manual before starting the machine and always
keep the instruction - this way you will secure safe operation, high working
output and long durability of the machine.
The manufacturer bears no responsibility for damages arising from not keeping
the operation manual.
The manufacturer of this machine is the company NTC STAVEBNÍ TECHNIKA spol. s r.o.
Address: Maloskalická 120
552 03 Česká Skalice
tel.: [phone], fax: [phone]
E-mail: [email protected]
CONTENTS:
1. SAFETY INSTRUCTIONS...........................................................................................................................5
1.1. GENERAL SAFETY INSTRUCTIONS FOR WORK WITH SMALL TOOLS AND DEVICE ..............................................5
1.1.1. Qualification Requirements.....................................................................................................................5
1.1.2. Contractor's Obligations .........................................................................................................................5
1.1.3. Operator's Obligations............................................................................................................................5
1.1.4. Machine Operation..................................................................................................................................6
1.1.5. Inspections, Maintenance & Repairs.......................................................................................................6
1.1.6. Loading & Transportation.......................................................................................................................7
1.2. PROHIBITED OPERATIONS..................................................................................................................................7
1.3. HYGIENIC PRINCIPLES .......................................................................................................................................7
1.4. ENVIROMENTAL PRINCIPLES .............................................................................................................................8
1.5. DISPOSAL OF THE MACHINE AFTER THE END OF ITS SERVICE LIFE....................................................................8
1.6. SAFETY INSTRUCTIONS FOR WORK WITH COMPACTING MACHINES ..................................................................8
1.7. HYGIENIC DATA.................................................................................................................................................9
1.8. LIST OF SAFETY SYMBOLS USED ON THE MACHINE............................................................................................9
1.9. DISPOSAL OF THE PACKING MATERIAL............................................................................................................10
2. TECHNICKÝ POPIS...................................................................................................................................11
2.1. BASIC TECHNICAL DATA:.................................................................................................................................11
2.2. LUBRICANTS ...................................................................................................................................................12
2.3. MACHINE IDENTIFICATION...............................................................................................................................13
3. PRIOR TO STARTING...............................................................................................................................14
3.1. INSPECTION OF ENGINE OIL LEVEL ...................................................................................................................14
3.2. VISUAL INSPECTION OF THE MACHINE .............................................................................................................15
3.3. INSPECTION OF FUEL LEVEL.............................................................................................................................15
3.4. INSPECTION O AIR FILTER ................................................................................................................................15
4. OPERATING THE MACHINE..................................................................................................................16
4.1. STARTING........................................................................................................................................................16
4.2. OPERATING THE MACHINE...............................................................................................................................18
4.3. TURNING THE ENGINE OFF..............................................................................................................................18
4.4. HANDLING,TRANSPORT,STORAGE ..................................................................................................................19
4.4.1. Manual handling ...................................................................................................................................19
4.4.2. Handling by crane.................................................................................................................................19
4.4.3. Handling by forklift ...............................................................................................................................20
4.4.4. Transport...............................................................................................................................................20

Vibratory plate compactors Operation manual
page 4
4.4.5. Storage...................................................................................................................................................20
4.5. SPECIAL CONDITIONS OF OPERATION ...............................................................................................................20
4.5.1. Operation at low ambient temperature..................................................................................................20
4.5.2. Operation at high altitudes....................................................................................................................20
4.5.3. Operation in Dusty Environment...........................................................................................................20
5. MAINTENANCE .........................................................................................................................................20
5.1. ENGINE MAINTENANCE....................................................................................................................................20
5.2. TENSIONING OF THE DRIVE BELT .....................................................................................................................21
5.3. INSPECTION OF VIBRATOR OIL LEVEL...............................................................................................................21
5.4. EXCHANGE OF OIL IN THE VIBRATOR ...............................................................................................................22
5.5. INSPECTION OF BOLTED CONNECTIONS............................................................................................................22
5.6.SETTING THE CENTRIFUGAL CLUTCH ...............................................................................................................22
5.7. ADJUSTMENT OF ENGINE SPEED.......................................................................................................................23
7. MAINTENANCE SCHEDULE...................................................................................................................24
8. WARRANTY TERMS................................................................................................................................25
Revision No.
Content
Date

Vibratory plate compactors Operation manual
page 5
1. SAFETY INSTRUCTIONS
1.1. General Safety Instructions for Work with Small Tools and Device
As a rule, no machine operator's card is required for work with small tools and devices. Nevertheless, the
person in charge of operating small tools and devices individually should meet the following conditions:
1.1.1. Qualification Requirements
1. The persons to be charged with working with small tools and devices should:
•be older than 18;
•be physically and mentally fit for this kind of work;
•be properly trained and have shown the employer their capabilities to operate such machines;
•be expected to work duly and properly according to their supervisors' instructions;
2. Before the work is started, the operator should acquaint himself with the Operating Instructions
and to follow them during the work.
3. The operator should acquaint himself with the safety instructions applicable to the respective
machine and follow these instructions for the whole time of work. The acquaintance with the
instructions should be provable, which means that the operator should confirm this fact by his or
her signature.
The contractor is deemed to be a natural or legal entity in charge with performing the construction work
using the given machine. The contractor is responsible for safety of the work with the machine.
1.1.2. Contractor's Obligations
The contractor is especially obliged:
•To designate the machine operator and to train him duly and properly;
•To provide the operator with safe conditions for working with the machine;
•To supervise the observance of the respective safety instructions;
•To supervise whether the operator follows the respective Operating Instructions;
•To provide organizational backup for regular inspections, maintenance a repairs od the machine;
•To provide suitable, safe and secured place for storing the machine if not in use.
Moreover, the contractor is obliged to provide organizational backup for observing other legal
requirements for labour safety and other regulations applicable to the given workplace.
The machine operator should be designated by the contractor providing always that the provisions of Par.
1.1.1 above are met.
1.1.3. Operator's Obligations
The operator is especially obliged:
•To acquaint himself with the Operating Instructions including the applicable labour-safety rules
before the work is started;
•To follow all the provisions of the Operating Instructions;
•To acquaint himself with the workplace itself including the labour-safety rules applicable for the
given workplace and to follow the rules;
•To pay full attention to the machine operation;
•To provide organizational backup for regular inspections, maintenance a repairs of the machine;
•To require the employer to provide the conditions for following the safety instructions, for
carrying out regular inspections, maintenance and repairs of the machine.
•To prevent the machine from being damaged or stolen and from unauthorized use. To store the
machine in a safe and duly secured place after fork.

Vibratory plate compactors Operation manual
Page 6
1.1.4. Machine Operation
1. Check the machine, especially all its protective elements (e.g. covers) and controls. Make sure
that there are no leaks of fuel from the fuel system or oil from the engine. Should a defect is
found, the machine must not be operated until the defect is repaired.
When working with the machine operator must observe the following guidelines:
2. Use personal protective means (such as the respective crash helmet, ear protectors, protective
goggles, gloves, shoes). The protective clothing should be close-fitting, not loose. Loose or
damaged (torn) clothing should not be used. Any chains, watches, rings, etc. should not be worn
as they can be caught by rotating parts of the machine and injure the operator.
3. Before work, check whether the machine can be safely started up without endangering the
operating staff or other persons nearby.
4. Do not start up the engine in closed spaces unless sufficient ventilation is provided.
5. Pay full attention to the machine operation to prevent injury or collision with solid obstacles,
other machines or vehicles.
6. Listen the run of the machine carefully. In case of unusual sounds or if smoke appears, stop the
machine immediately check the machine and get it repaired.
7. Fill the machine with fuel only at standstill. The fuel must not come into contact with hot parts of
the machine. If the fuel is spilled over, wipe up the fuel immediately. Do not fill the tank up to
the neck.
8. See to it that that the fuel tank cap is tight. If not in operation, the fuel valve should be closed. If
the machine is transported for a longer distance the fuel tank should be emptied.
CAUTION – broken or leaking fuel tanks and fuel piping can cause explosion, it is necessary to
replace them without delay.
9. The machine should not be operated everywhere where there is danger of explosion of
combustible gases or dust.
10. When operating the machine in closed spaces (tunnels, shafts, deep holes, etc.), the operator
should be provided with fresh air supply (see the applicable regulations for constructional work).
11. After the work is finished, stop the engine, put the machine in a safe place, secure it against theft
or unauthorized use. The machine should be stored in such a manner that it cannot fall down or
overturn and that it is not an obstacle to other machines and vehicles.
1.1.5. Inspections, Maintenance & Repairs
2. Machine servicing may only be carried out by a duly qualified person authorized by the
contractor. Machine servicing can also be carried out by the worker of the respective service
organization.
1. Check the technical condition of the machine regularly and focus on perfect functioning of
protective and control elements. If a defect is found, have it repaired without delay.
3. The machine should be serviced in a clean and safe place. If possible, service the machine in a
workshop with the adequate equipment. If it is necessary to service the machine in-situ, the place
should be secured in such a manner that any collision with other machines or vehicles is
eliminated. The machine should not be serviced in otherwise dangerous places (landslides, cave-
ins, operation of other machines and vehicles etc.).
4. Service the machine at standstill with the engine off only. If there is a need for starting up the
engine when servicing the machine, pay full attention to labour safety.
5. When repairing the machine, use the original spare parts only. Only original spare parts (that
have been tested and approved by the manufacturer) can guarantee save operation of the
machine.
6. Any changes and modifications of the machine can only be made with the manufacturer's express
consent.

Vibratory plate compactors Operation manual
Page 7
1.1.6. Loading & Transportation
2. When loading the machine with a crane, all the regulations applicable to work with a crane
should be observed. This should be done by a duly qualified person(s).
1. The machine may only be loaded and transported using a device or a vehicle with the lifting or
loading capacity corresponding to the weight of the machine (see "Basic Specifications").
3. The sling should be placed in the marked place on the machine frame.
4. When handling the machine manually, more persons is necessary in order not to exceed
maximum permissible weight to be lifted by one person.
5. During transportation, the machine should be sufficiently secured against overturning, falling or
shifting. The slings should be fixed on the marked place(s).
6. During transportation, the shaft of the machine should be lifted and duly fixed in position.
It is strictly prohibited:
1.2. Prohibited Operations
•To use the machine for purposes other than those the machine is intended for;
•To control the machine in a different way from that set forth in the Operating Instructions;
•To operate the machine under influence of alcoholic beverages or drugs;
•To operate the machine in such a manner that safety of persons, buildings, structures, things or
road traffic and its smoothness is endangered.
•To operate the machine if other persons are within the working radius of the machine;
•To operate the machine with any of its protective elements removed or damaged;
•To operate the machine in dangerous areas with imminent external danger such as caving-in the
machine, landslides, overturning the machine, release of dangerous substances, risk of explosion
or fire, electric shock hazard, etc.)
•To operate the machine in the areas where buildings, other structures or underground services
could be damaged (e.g. by excessive vibrations).
•To operate the machine within the protective zones of electric lines and transformer stations;
•To cross electric cables with the machine unless they are sufficiently protected against
mechanical damage;
•To operate the machine at poor visibility or at night without sufficient illumination of the whole
workplace;
•To leave the machine while in operation or to leave the machine without having secured it
against unauthorized use;
•To disactivate safety and protective elements or to change their parameters;
•To operate the machine with leaking oil, fuel or other liquids;
•To start up the engine in a manner different from that mentioned in the Operating Instructions;
•To clean the machine or to remove dirt while in operation;
•To smoke or use open fire when fueling or lubricating the machine, when checking the fuel level
or the accumulator.
Oil products (fuels, lubricants) are substances dangerous to health. Workers who come into contact with
these substances when operating, maintaining or repairing machines should observe general principles of
health protection and follow the hygienic and safety instructions issued by manufacturers of such
substances. They are especially obliged:
1.3. Hygienic Principles
•To protect their skin from coming into contact with such substances;
•To wash their hands thoroughly after work, before eating and to put a suitable regenerating
cream on them.

Vibratory plate compactors Operation manual
Page 8
Oil products as well as other detergents, preservatives and dangerous substances should at all times be
stored in original, properly marked containers. Never allow storing such substances in different
containers, in unlabelled containers or in food containers or bottles in order to prevent confusion. Store
such substances out of the reach of children. If such substance come into contact with the skin, eyes or if
inhaled or ingested, apply the first-aid measures and seek medical attention immediately.
1.4. Enviromental Principles
Fuels, lubricants and operating liquids in individual systems of the machine are dangerous for the
environment. After the end of their service life, they become dangerous waste materials. Moreover, the
parts of the machine that come into contact with the above substances are also dangerous (e.g. filters).
Please prevent these substances from their getting into soil or water (including sewerage systems). These
substances should be stored in such a manner that all accidental spills can be caught. If such substances
are released when refueling or lubricating the machine, dispose them in a proper and safe manner
(sprinkle them with an absorbent, have them disposed by a specialized firm). Dispose the used liquids
according to the respective regulations.
When disposing the machine after the end of its service life, the user is obliged to comply with all the
applicable legal regulations. When disposing the machine, the oil filling from the engine and the
vibrating mechanism as well as the respective filters should be removed. Pursuant to the Waste Material
Disposal Act, the owner of the disposed machine is obliged:
1.5. Disposal of the Machine after the End of Its Service Life
•To hand over the metal parts of the machine only to those persons who are duly authorized to
dispose, collect or purchase metal materials;
•To hand over the used engine and hydraulic oil only to those persons who are duly authorized to
dispose used oils;
NTC cannot be held responsible for any damages to the user's health or to the environment if the
aforementioned hygienic and environmental principles are not observed.
Compacting machines are vibration plates, vibration (jumping) rammers and vibration rollers. When
working with these machines, the following safety instructions should be followed:
1.6. Safety Instructions for Work with Compacting Machines
1. Before work, evaluate the bearing capacity of the terrain, locate the places of underground spaces
and underground services to prevent caving-in the machine or damaging the underground
structures.
2. When working with the machine close to buildings and structures, bear in mind the possibility of
damaging the buildings or structures by vibrations.
3. When operating the machines in excavation pits, secure the walls of the pit to prevent them from
sliding and causing injury to the operators.
4. When operating the machines on embankments, do not work on the very edge of the embankment
so that it should not slide down causing turning the machine over.
5. It is strictly prohibited to operate the machine on such slopes where there is danger of turning the
machine over or of loss of adhesion resulting in an uncontrolled skid of the machine.

Vibratory plate compactors Operation manual
Page 9
Noise:
1.7. Hygienic data
Declared level of acoustic pressure A in workplace of the operator
(measured according to ČSN EN ISO 11201 by conditions determined in ČSN EN 500-4+A1, Annex B)
VD15P VD18P VD20P VD24P
LpA,d [dB] 91+4 92+4 93+4 91+1
Guaranted level of acoustic power A
(measured according to NV č.9/2002 Sb., Annex č. 3, part B, point 9c) and ČSN EN ISO 3744.
VD15P VD18P VD20P VD24P
LWA,G [dB] 105 105 105 104
Vibration:
Declared overall value of vibrations acceleraiton – trasferred to hand – arm of vibratory plate operator
(measured according to ČSN EN ISO 20643 by conditions determined in ČSN EN 500-4+A1, Annex C).
VD15P VD18P VD20P VD24P
ahvd [m.s-2] 7,6+3,1 6,0+2,4 9,4+3,8 8,7+3,5
With regard to value of declared level of acoustic pressure in operator´s area and value of vibrations
transferred to operator´s arms, when operating particular type of vibratory plate it is necessary to use, in
accordance to Government regulation no. 148/2006 Sb. in valid version, personal protection equipment
effectual in such level of acoustic pressure or vibrations transferred to arms, whose values for particular
type of vibratory plate are determined by machine operator by workplace categorization.
Manuals for operation of vibratory plate must be modified so, that there are obvious technological pauses
leading to interruption of operator machine usage.
At the designated types of machinery vibration plate types VD15P, 18P, 20P a 24P to comply with the
Act No. 22/1997 Coll. on technical requirements for products, as amended, located stickers symbols
safety signs, symbols and informative descriptions of the design and implementation determine the
technical norm.
1.8. List of safety symbols used on the machine
The following text shows individual stickers (labels) placed on the machine. Each individual sticker is
provided with the respective explanatory text.

Vibratory plate compactors Operation manual
Page 10
1.
A united sticker comprising safety signs according to ČSN
ISO 3864 (symbols B.2.5, B.3.1 and NB.2.26) and the CE
symbols pursuant to Governmental Order 291/2000 Sb.
including the explanatory text.
Sign B.2.5 orders the operating staff to wear ear protectors
when the machine is in operation.
Sign 7.28 informs the operating staff that they are obliged to
read the Operating Instructions before work with the machine.
The NB.2.26 sign ord
ers the operating staff (operators) to
wear protective gloves when working with the machine to
protect the hands from vibrations.
Warning sign B.3.1 (exclamation mark) warns the operators
against danger.
Information for the operating staff how to perform repairs,
cleaning and setting the machine.
2. Sticking label No. 8.1 pursuant to ČSN ISO 6405-1 marks the
location of the engine oil discharging screw.
3.
Sticking label No. 7.25 pursuant to ČSN ISO 6405-1 (the
symbol marks the hoisting point, (i.e. the place in which the
machine can be hoisted).
4.
A sticker informing the operating staff about the fuel to be
used for the engine of the machine.
5.
Sticker with the symbol vibrator and verbal indication of the
type specified oil and its maximum volume
6.
Sticker "RED CIRCLE"
Sticker indicates the closing screw hole for pouring oil into
the vibrator machine.
7.
A sticker showing the noise level measured according to the
conditions set forth in NV 9/2002 Sb.
The company of NTC STAVEBNÍ TECHNIKA spol. s r.o. is registered with the EKO-KOM a.s. company.
This means that there is a contract between EKO-KOM a.s. and NTC STAVEBNÍ TECHNIKA spol. s r.o.
on repurchase of all kinds of packing materials either by NTC or by suppliers of the packing materials.
1.9. Disposal of the Packing Material

Vibratory plate compactors Operation manual
Page 11
Vibratory plates are designed for compaction of all types of soils, including soil related sections for
compaction of trenches and areas - the machine without sprinkling. Machines are also designed for
compacting asphalt surfaces – the machine with sprinkling.
2. TECHNICAL DESCRIPTION
When used with a plastic backing plate vibration can also be used for ground paving.
These vibratory plates have optimized centrifugal force and compaction area and thus reach optimal
compaction effect. The vibratory effect is ensured by non-directed eccentric which creates circular
vibration. The main working part - the base plate - is a structure made of welded steel. The vibrator is
bolted or welded to the base plate. The engine plate is mounted to the base plate through the rubber
mounts.
The vibratory plate is driven by a four-stroke single-cylinder air cooled engine. The engine is connected
with the vibrator by a drive belt, with a centrifugal clutch which disengages the drive at idle speed.
The operator controls the machine using its handle.
Special equipment to transport the chassis vibration plates, plastic mat compaction paving and operating
hours counter.
2.1. Basic technical data:
Vibration plates are characterized by one-way design with a comfortable cushioned handle and folding
ROPS, which protects the engine from damage and ease of handling.
Type
VD15P
VD18P
VD20P
VD24P
Weight
[kg]
85
95
105
110
Frequency
[Hz]
100
100
100
100
Centrifugal force
[kN]
15
18
20
24
Max. speed
[m/min]
25
25
25
25
Max. gradability
[%]
30
30
30
30
Width of base plate
[mm]
400
450
500
500
Length of base plate
[mm]
564
564
564
564
Height of base plate
[mm]
980
980
980
980
ENGINE
HONDA
HONDA
HONDA
HONDA
Model
GX160
GX160
GX160
GX160
Fuel
gasoline
gasoline
gasoline
gasoline
Oil sensor
YES
YES
YES
YES
Net engine power
[kW]
3,6
3,6
3,6
3,6
Rated engine speed
[RPM]
3600
3600
3600
3600
Fuel consumption
[l/hr]
1,4
1,4
1,4
1,4
Capacity of water tank
[l]
12
12
12
12
Actual output of the engine installed in the machine can be different with regard to various factors,
such as operation speed of the engine, operation conditions, maintenance and other factors.
Engine operation speed is not identical with engine rated speed and this is set according to
technical parameters of the machine.

Vibratory plate compactors Operation manual
Page 12

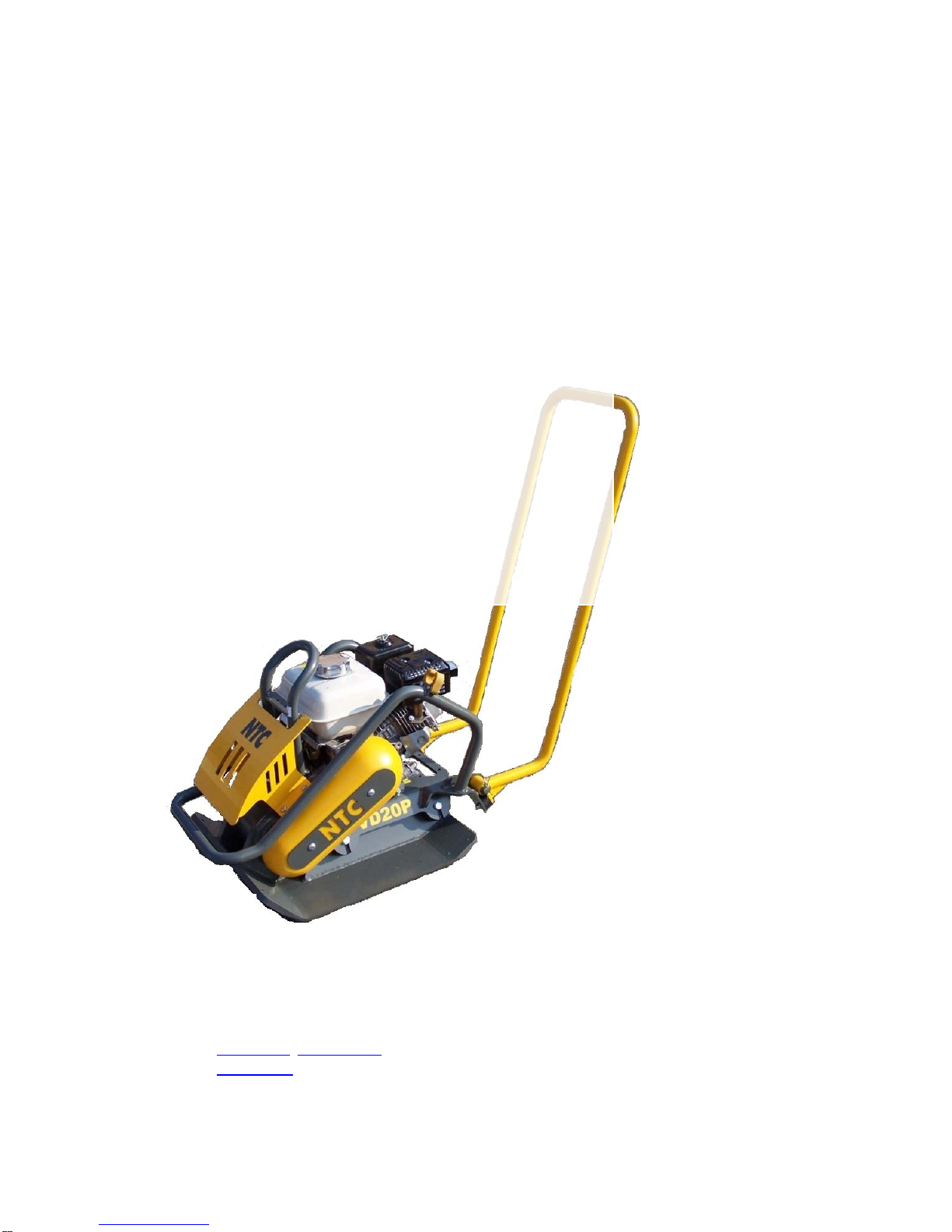

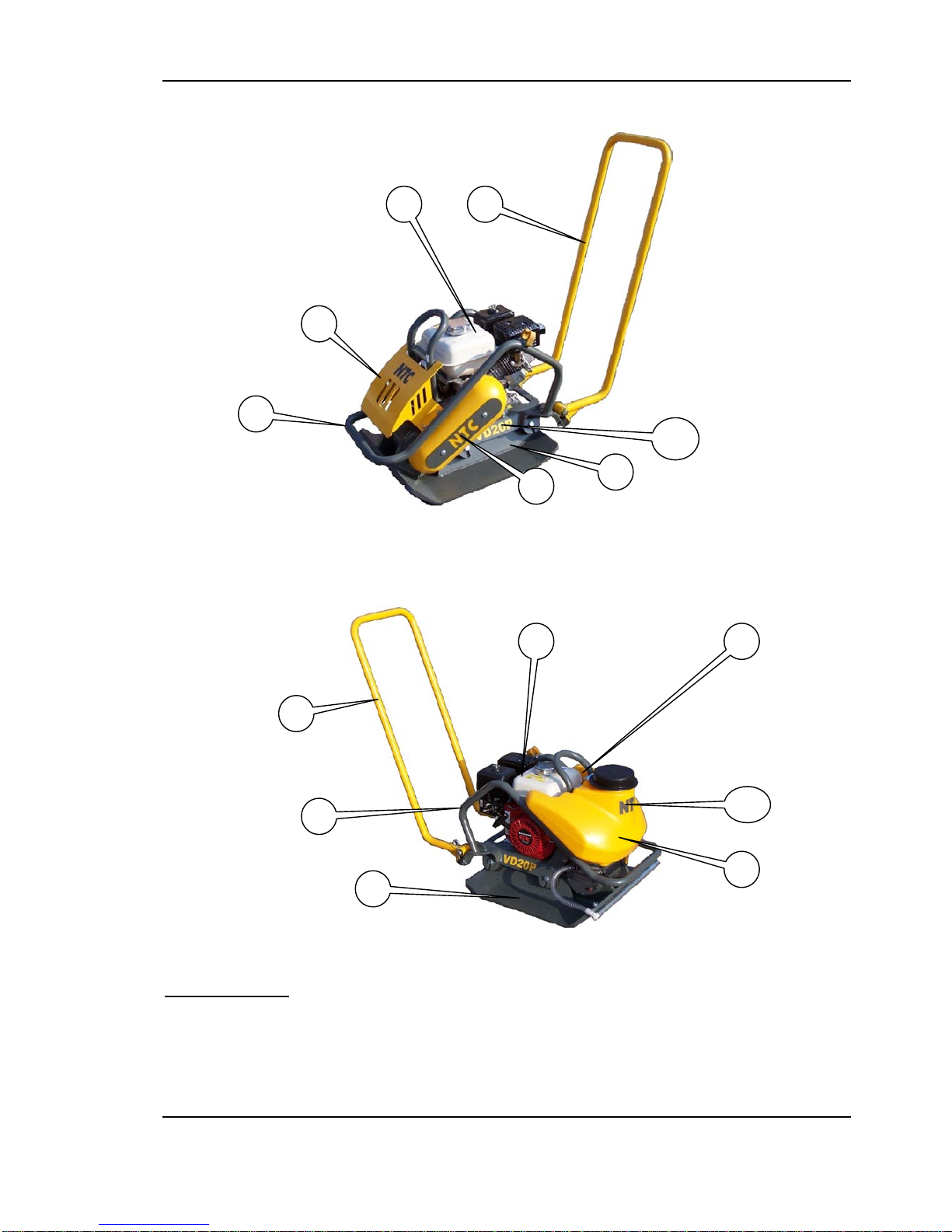

Fig. Basic description of the machine – a variant without sprinkling
1. Plate with vibratory, 3. Frame with handlebars Praktik, 4. Engine, 6. Cover, 7. Cover VD, 10. Signs
Fig. Basic description of the machine – a variant with sprinkling
1. Plate with vibratory, 3. Frame with handlebars Praktik, 4. Engine, 5. Sprinkling, 6. Cover, 10. Signs
For use in both engine and the vibrator use high-quality engine oils of the following specifications:
15W-40 API SJ/CF
2.2. Lubricants
- engine oil HONDA GX160 capacity 0,60 l
- oil in the vibrator capacity 0,07 l ± 5%
1
3
4
7
10
6
3
1
5
6
3
4
10
3

Vibratory plate compactors Operation manual
Page 13
2.3. Machine identification
It is highly important to refer the exact type and serial number of your machine whenever contacting the
manufacturer or the dealer (i.e. for warranty reasons, ordering of spare parts or service, for technical
questions). These data are stated at the type plate.
Fig. Location of type plate
Fig. Example of type plate
In the case of engine related problems refer also the engine type and serial number. This number of
stamped at the engine block (for HONDA). In a case of doubts please contact an authorized service or the
manufacturer.
2.4. Identification of the engine
Fig. Location of serial number at the HONDA engine

Vibratory plate compactors Operation manual
Page 14

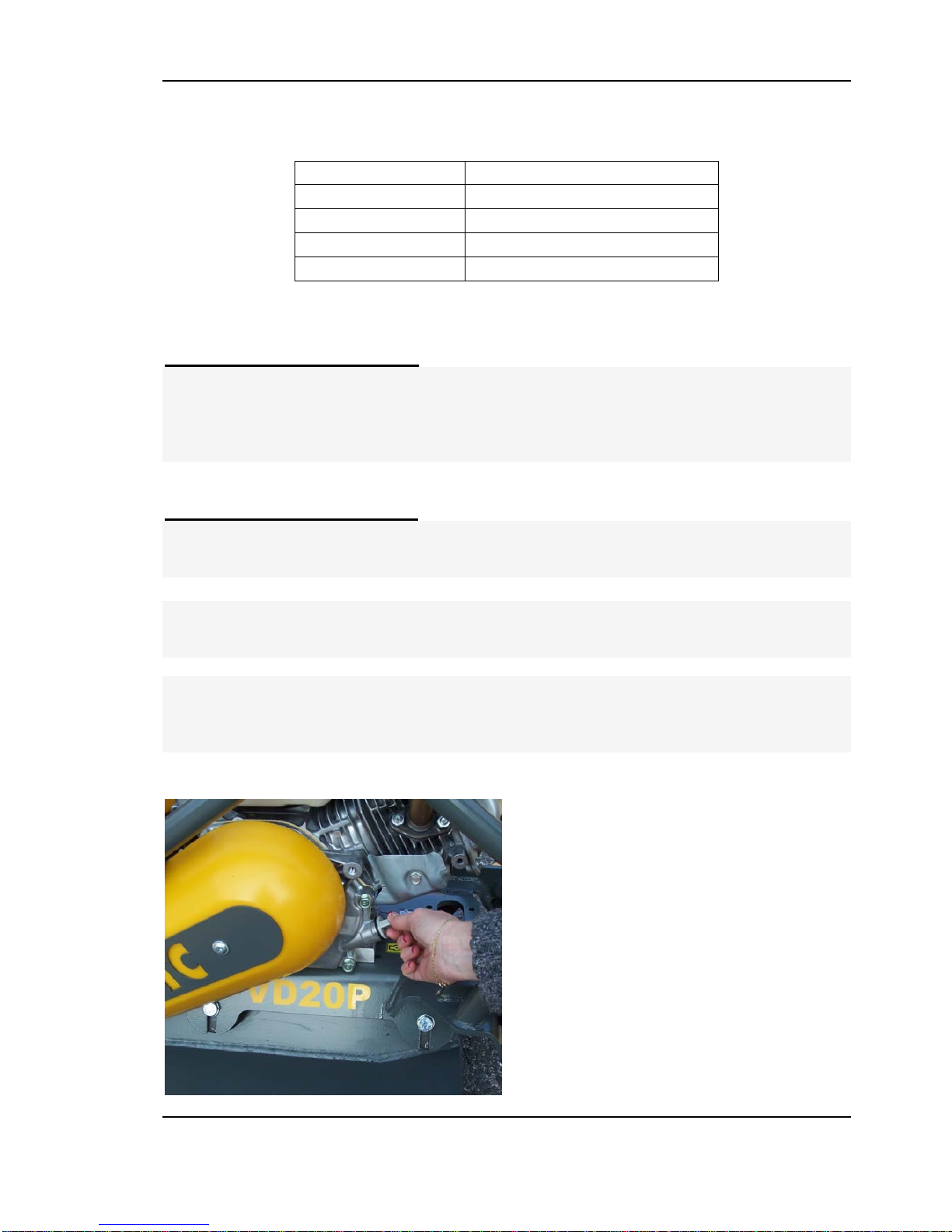

It is recommended to write down important identification data of your machine into the following table.
You will find it useful when ordering parts or service, in case of a warranty claim or in the event of
reporting stolen equipment:
Model
Serial number
Year of production
Engine type
Engine serial number
- Continually check that the engine leaks or a vibrator oil. In case of failure to contact an authorized
service center or manufacturer.
- Bolted joints are glued to rubber mount. We therefore recommend against any potential activity
associated with the tightening and loosening of joints and contact information to an authorized service or
the manufacturer.
3. PRIOR TO STARTING
Check the oil level every day!
Use only the recommended types of oil. Choose the oil viscosity to match the thermal conditions of space
use.
3.1. Inspection of engine oil level
ATTENTION:
Running the engine with insufficient oil level can result in serious engine damage.
In case of oil leakage from the engine immediately stop the operation of the machine and call service or
contact the manufacturer.
Checking the oil level must be in accordance with the instructions for operating the engine!
Place the machine into a horizontal position. Before you unscrew the plug from the control / filler on the
engine, so carefully clean the area to prevent degradation of oil contamination and subsequent engine
damage. With proper oil level is level with the hole at the same time, oil is leaking slightly.
Fig. Check engine oil level

Vibratory plate compactors Operation manual
Page 15
Inspect the machine regularly, with particular attention to:
3.2. Visual inspection of the machine
•completeness of the machine (missing parts);
•condition of the protective devices (covers) and controls;
•bolter connections;
•fuel or oil leakage;
•intactness of rubber mounts.
For gasoline engines use gasoline for motor vehicles with an octane rating of 90 or more.
3.3. Inspection of fuel level
We recommend that petrol NATURAL 95.
At low levels of fuel is the fuel necessary to fill up the edge of the filtered water.
Never use dirty gasoline or mixture with oil. Prevent dust, dirt or water from entering into the tank.
This activity is performed in accordance with the instructions for operating the engine!
3.4. Inspection o air filter
Place the machine into a horizontal position.
Paper cartridge air filter, check to make sure that it is clean and in good condition.
Paper filter cartridge carefully clean with compressed air from the inside out. In the case of significant
pollution filter paper cartridge change.
Wash the foam cuff Jarov water, not flammable! In case of damage replace the foam cuff.

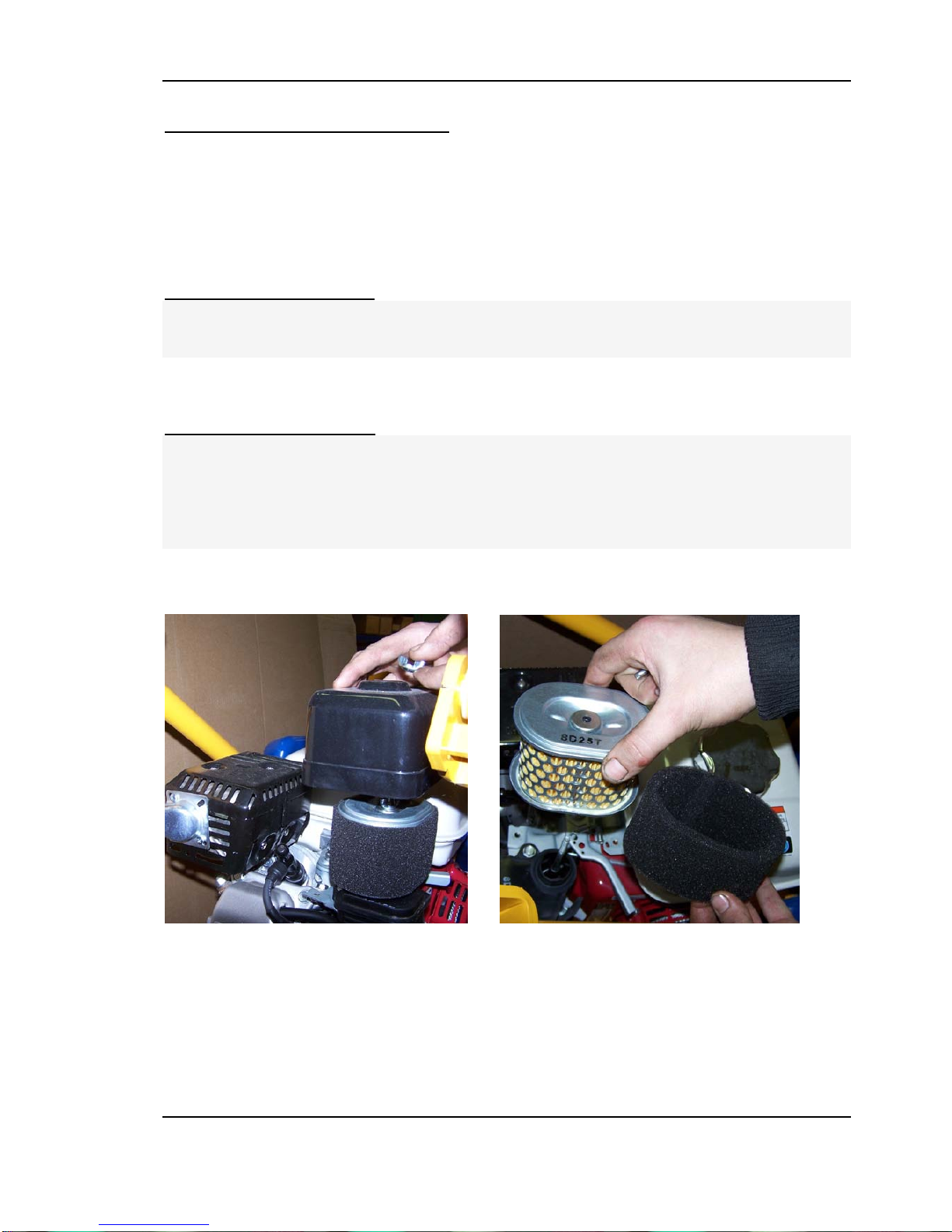

Fig. Inspection of air filter - HONDA engines
Never operate the engine without the filter or with a damaged one. Dirt and dust entering the
engine would cause its rapid damage.

Vibratory plate compactors Operation manual
Page 16
4. OPERATING THE MACHINE
1. Turn the fuel valve to the open position
4.1. Starting

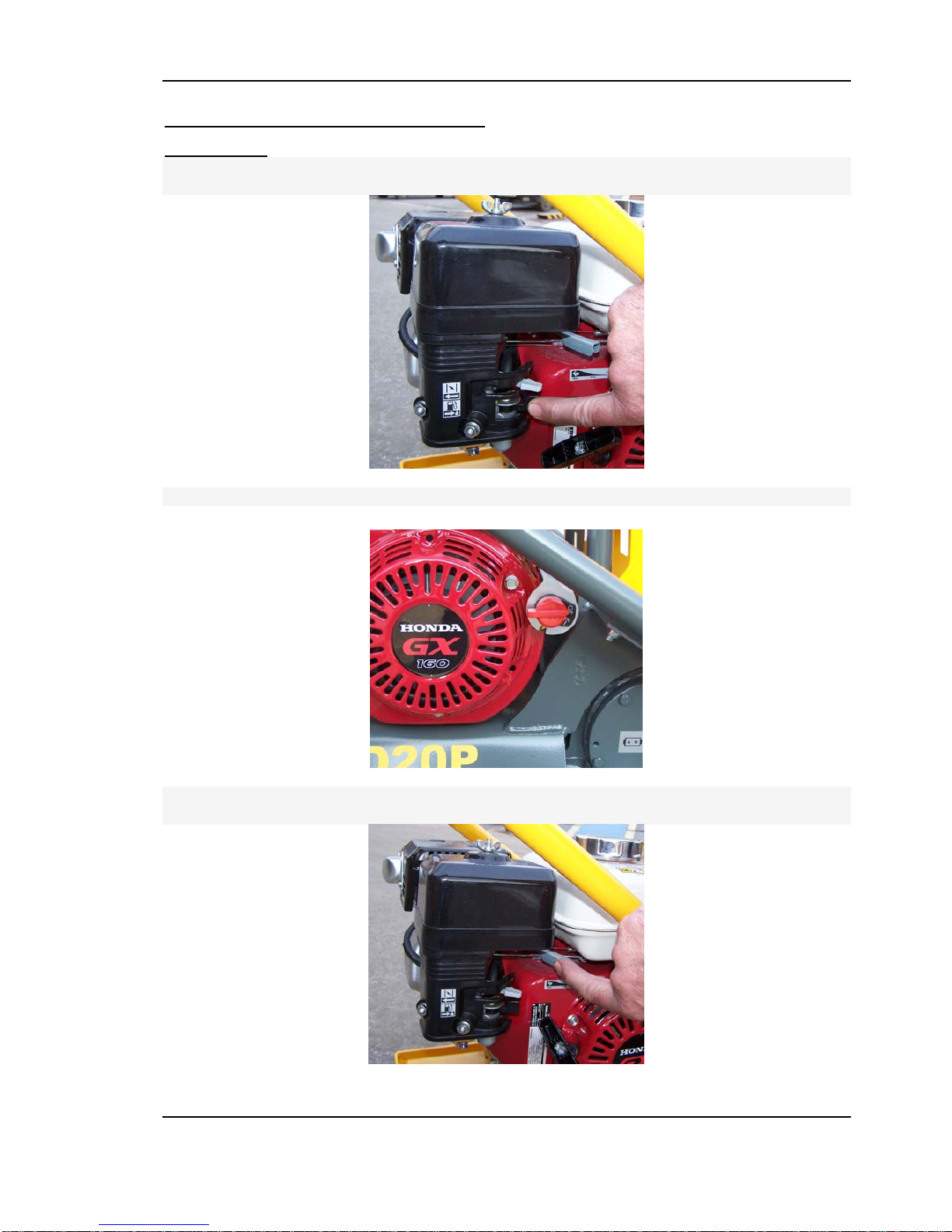

Fig. Open fuel valve engine
2. Turn the switch (ignition switch) the motor position ON (lever switch down)
Fig. Engine ON/OFF switch
3. Engine throttle position to give SLOWLY (slightly open throttle)
Fig. Lever position in gas engine slowly

Vibratory plate compactors Operation manual
Page 17
4. Turn the choke to start position.
Do not choke when the engine is warm or if the higher ambient temperature.
Fig. On the motor choke
5. Handle pull the starter cord until you feel resistance, then pull rapidly
Starter cord handle drop sharply back. In retrospect, moving her hands to hold.
Fig. Starter motor pulled out cord
6. After a gradual warm up the engine, move the choke lever to OFF position.
Fig. Choke off the engine

Vibratory plate compactors Operation manual
Page 18
7. Motor full load before running moment leave to heat up.
8. Move the throttle to full throttle position. At about 1700 rev / min centrifugal clutch automatically
switches the machine begins to vibrate.
Fig. The lever position, engine throttle
Starting and stopping the engine is described in detail in the attached instruction manual Honda
engine.
Run the machine across the area to be compacted, keeping slightly overlapping lanes. For good
compaction, it is recommended to do 4 travels in each lane.
4.2. Operating the machine
For soil compaction, the best results will be reached when compacting by layers, each layer not thicker
than 20-30 cm of loose soil, depending on the type of soil.
Approximate compaction effect for compaction to 90% (95%) of Proctor Standard is shown in the
following table. For exact control of the degree of compaction, some method of compaction measurement
must be used.

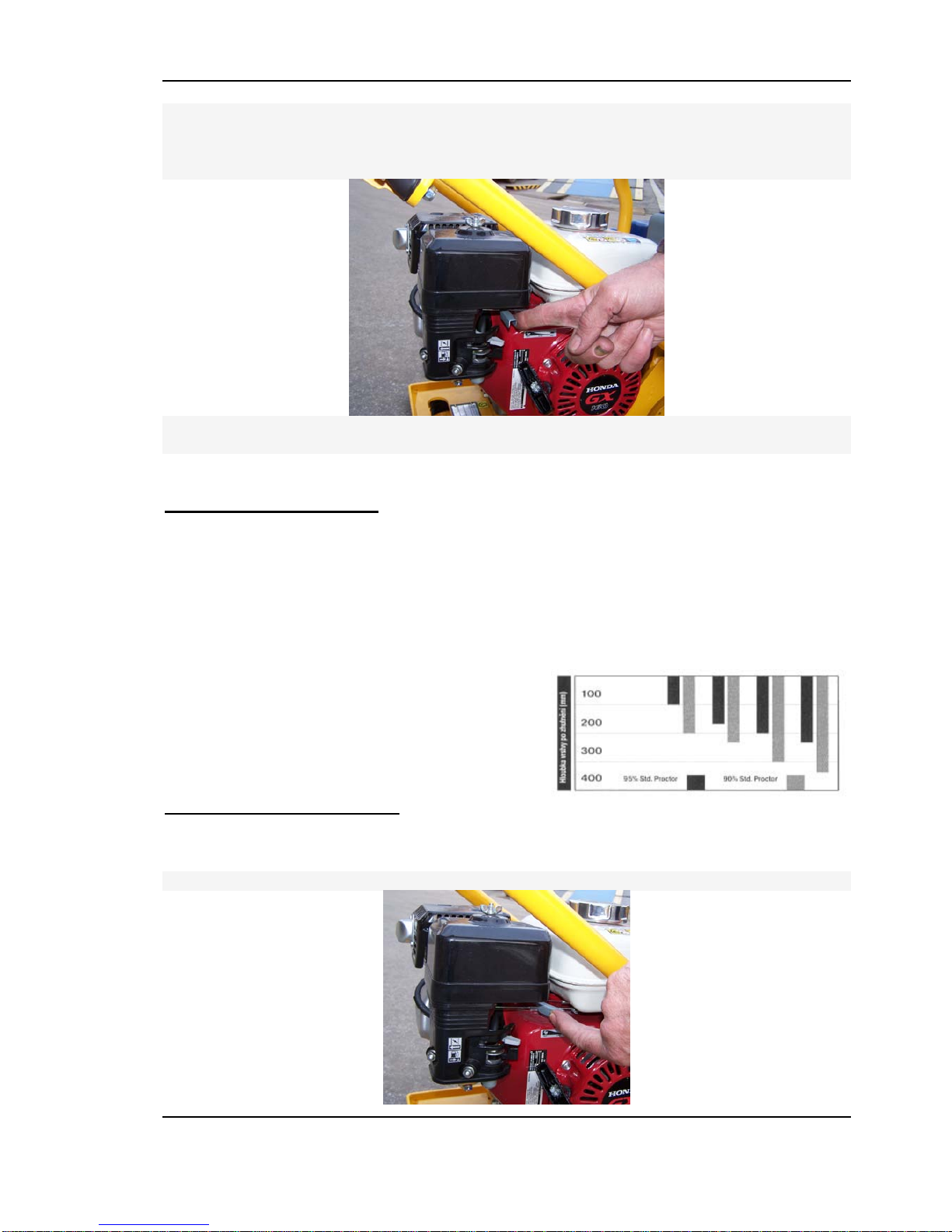

TAB. Compaction effect
This table is valid for sand and gravel, considering 4
passes. For mixed soils derate by approx. 30%.
4.3. Turning the engine OFF
1. Set up the throttle control leer into the idle position. The centrifugal clutch gets disengaged and
vibration will stop.
Fig. Lever position in gas engine slowly

Vibratory plate compactors Operation manual
Page 19
2. Turn the ignition switch into the "OFF" position (switch lever up).

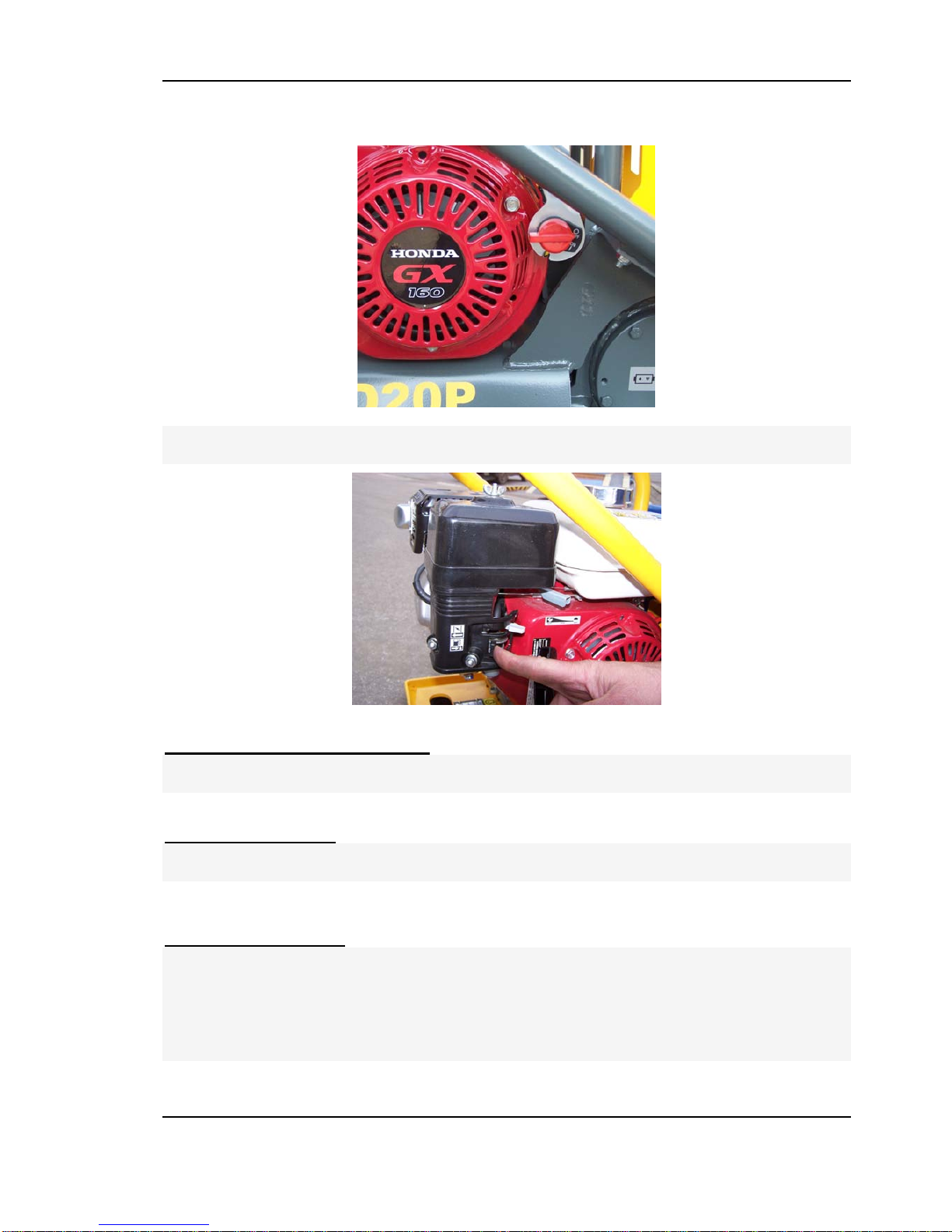

3. Fig. Engine ON/OFF switch
3. Turn the fuel valve to the closed position.
Fig. Closed fuel valve engine
When handling the machine and its transport strictly follow the safety instructions in this manual, as well
as generally applicable transcripts to work with handling equipment or lifting equipment.
4.4. Handling, transport, storage
4.4.1. Manual handling
When manual handling is usually needed to co-parties in order to comply with the maximum load weight,
which the worker may lift. Lift the machine frame for or. the grips. Do not lift the machine engine!
4.4.2. Handling by crane
The machine is allowed to handle and transport the equipment only with adequate capacity (weight
machines is given in chapter "Technical Specifications").
When loading crane must comply with applicable regulations to work with the crane. This activity may
be performed only by qualified person (s) with valid card.
Binding means fix it in the space frame of the machine.

Vibratory plate compactors Operation manual
Page 20
4.4.3. Handling by forklift
If the machine is often handled with a forklift (for example when sending collection service), we attach a
variety of machine and send it together with a variety. For one machine is suitable for "small" range of
dimensions 0.8 x 0.6 m, two machines for a variety of standard EUR 1.2 x 0.8 m.
4.4.4. Transport
When transporting the machine must be adequately secured against overturning, falling or shifting to the
base.
The machine must be transported in an upright position.
4.4.5. Storage
Store the machine in place secured against theft and misuse. We recommend a dry sheltered place does
not affect the chemical substances and where there is excessive dust.
Before long-term storage engine first clean, repair the damaged areas and preserve the paint (including
the preservation of the motor). Clearly label the machine is conserved.
4.5. Special conditions of operation
Compaction at temperature below freezing is highly dependent on water content in the soil to be
compacted. Under such conditions, soil becomes harder and more difficult to compact. It is possible to
compact dry materials or rapidly compact fresh soil, before it gets frozen.
4.5.1. Operation at low ambient temperature
With increasing altitude, engine power decreases due to changed oxygen content. Within certain extent,
it is possible to improve the engine power by installing different main nozzle and by adjusting the
carburetor (gasoline engines) or by adjusting the injection system (diesel engines). Should the machine
be operated in high altitudes (above 1500 m above sea level), contact the engine manufacturer to carry
out the adjustments.
4.5.2. Operation at high altitudes
In case that you intent to operate the machine in high altitudes in the time of purchase, consult the
manufacturer.
In case that the machine is operated in extremely dusty environment, it is recommended to shorten the
service intervals for cleaning or replacement of the air filter.
4.5.3. Operation in Dusty Environment
Clean the machine from dust regularly.
Basic maintenance as described in this Operation Manual can be carried out by the operator. Repairs and
adjustments beyond the extent of this Manual should be done by an authorized service center.
5. MAINTENANCE
In the warranty period it is strictly prohibited to dismantle the vibrator; such repair can be done
exclusively by an authorized service center. Further, no interventions into engine except of the prescribed
maintenance are allowed in the warranty period.
Bolts of the rubber mounts are secured with a glue. Therefore it is highly recommended to contact
authorized service before dismantling or mounting the rubber mounts.
- see enclosed engine operation manual.
5.1. Engine maintenance
