NTI XTENDEX ST-1FO3GSDI-LC User manual

MAN419 Rev Date 3/8/2022
ST-1FO3GSDI-(12V)LC
SD/HD/3G-SDI Extender via Fiber Optic Cable
Installation and Operation Manual
XTENDEX®Series

TRADEMARK
XTENDEX and the NTI logo are registered trademarks of Network Technologies Inc in the U.S. and other countries. All other
brand names and trademarks or registered trademarks are the property of their respective owners.
COPYRIGHT
Copyright © 2022 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the
right to make changes in the product design without reservation and without notification to its users.

TABLE OF CONTENTS
Introduction......................................................................................................................................................................1
Materials..........................................................................................................................................................................1
Connectors and LEDs.....................................................................................................................................................2
Preparation for Installation ..............................................................................................................................................3
Connections.....................................................................................................................................................................4
Technical Specifications..................................................................................................................................................5
Troubleshooting...............................................................................................................................................................5
Warranty Information.......................................................................................................................................................6

NTI SD/HD/3G-SDI EXTENDER via FIBER OPTIC CABLE
1
INTRODUCTION
The XTENDEX®SD/HD/3G-SDI Extender via Fiber Optic Cable locates up to two displays from a SD/HD/3G-SDI video source
up to 12.4 miles (20 kilometers) away using a single singlemode LC fiber optic strand and 1,640 feet (500 meters) using
multimode fiber optic cable (OM2 and above). Each extender consists of a transmitter that connects to a SD/HD/3G-SDI video
source and a local loop out, and a receiver that connects to up to two SD/HD/3G-SDI displays.
Features:
Signal transmission via one singlemode or multimode LC fiber optic cable.
oUsing singlemode 9-micron cable, extend to 12.4 miles (20 kilometers).
oUsing multimode 50-micron cable, extend to 1,640 feet (500 meters).
Supports HDTV resolutions to 1080p @60Hz.
Simultaneously transmits to two SD/HD/3G-SDI displays at the receiver.
Supports a local display via loop out SDI connector.
Supports unidirectional RS485 from the receiver to the transmitter.
Plug-and-play functionality –no software needed.
Low RFI/EMI for sensitive applications.
Cables can be installed in conduit prior to extender installation.
Integrated mounting brackets for easy surface/wall mounting.
Available power options: 5VDC or 12VDC
MATERIALS
Materials supplied with this kit:
Local and Remote Unit
2 x 100-240VAC, 50 or 60Hz-5VDC/3A AC Adapter (For ST-1FO3GSDI-LC)
or
2 x 100-240VAC, 50 or 60Hz-12VDC/1A AC Adapter (For ST-1FO3GSDI-12VLC)
2- Country-specific power cords
URL Slip with path to this manual
Note: ST-1FO3GSDI-LC12VNP is does not include any power supply
Materials Not supplied but REQUIRED:
Interface cables (RG6) between the video source/display and the transmitter/receiver are required for proper operation.
o3G-SDI: up to 328 ft (100 m)
oHD-SDI: up to 656 ft (200 m)
oSD-SDI: up to 984 ft (300 m)
Use a simplex LC singlemode 9/125-micron fiber optic cable to extend the receiver from the transmitter up to 12.4 miles (20
kilometers).
Use a simplex LC multimode 50/125-micron (OM2/OM3/OM4) fiber optic cable to extend the receiver from the transmitter up
to 1640 feet (500 meters).

NTI SD/HD/3G-SDI EXTENDER via FIBER OPTIC CABLE
2

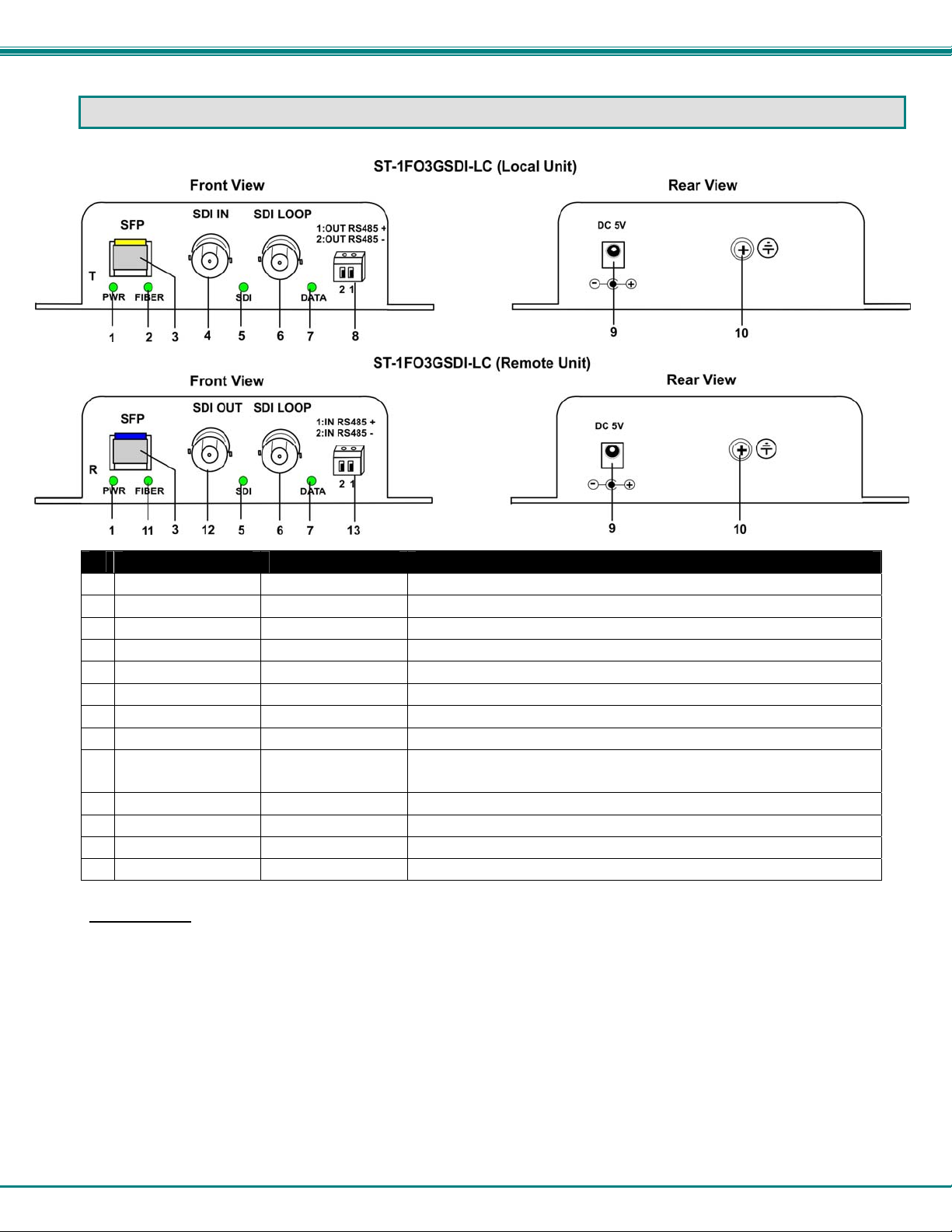

CONNECTORS AND LEDS
# LABEL CONNECTOR DESCRIPTION
1 PWR Green LED Status LED to indicate power ON at the Local/Remote
2 FIBER Green LED Status LED to indicate a fiber connection with the Remote Unit
3 SFP SFP Module For connecting fiber cable between the Local and Remote units
4 SDI IN BNC Female For connecting BNC cable from SDI video source
5 SDI Green LED Status LED to indicate SDI transfer between Local and Remote
6 SDI LOOP BNC Female For connecting SDI cable from display device
7 DATA Green LED Status LED blinks to indicate there is an active RS485 signal present.
8 2 & 1 2-Terminal Block For connecting RS485 device to be controlled
9 DC 5V Power Jack For connecting DC power supply
ST-1FO3GSDI-12VLC power jack will be labeled "DC 12V" instead.
10 GND Symbol Ground Screw For connecting earth ground wire
11 FIBER Green LED Status LED to indicate an SDI video signal from the Local Unit
12SDI OUT BNC Female For connecting BNC cable from SDI display device
132 & 1 2-Terminal Block For connecting RS485 control device
LED Behavior
Local PWR - Illuminates when the Local Unit has power ON.
Remote PWR - Illuminates when the Remote Unit has power ON.
Local and Remote FIBER - If there is no source connected to "SDI IN", but there is a fiber between the Local and Remote Unit,
the "FIBER" LED on the Local will illuminate, and the "FIBER" LED on the Remote will not.
If a source is connected to "SDI IN", the "PWR", "FIBER" and "SDI" LEDs on the Local and Remote
Unit will illuminate.
Local and Remote DATA - When an active RS485 signal is present, this LED will blink.

NTI SD/HD/3G-SDI EXTENDER via FIBER OPTIC CABLE
3
PREPARATION FOR INSTALLATION
Locations should be chosen for the monitor that also has space to connect the Remote unit within the distance provided by
the cables.
All cables should be installed in such a way that they do not cause stress on their connections to the equipment. Extended
lengths of cable hanging from a connection may interfere with the quality of that connection. Secure cables as needed to
minimize this.
The RG6 cables must be routed such that the cables are away from any sources of magnetic fields or electrical interference
that might reduce the quality of the video signal (i.e. AC motors, welding equipment, etc.).
Properly shut down and disconnect the power from the video source and monitor(s) to be separated. If other equipment is
involved whose connections are being interrupted, be sure to refer to the instruction manuals for that equipment for proper
disconnection and reconnection procedures before proceeding.

NTI SD/HD/3G-SDI EXTENDER via FIBER OPTIC CABLE
4
CONNECTIONS
1. Connect camera or other output device to "SDI IN" BNC connector on the Local Unit.
2. If the output device has RS485 control connections, connect the "-" wire to terminal "2" and the "+" wire to terminal
"1" of the Local Unit.
3. Optionally connect an SDI display to the "SDI LOOP" BNC connector on the Local Unit.
4. Connect type LC simplex fiber optic cable between the Local Unit and Remote Unit.
5. Power ON the Output device and SDI display (if installed).
6. Connect a DC adapter to the Local Unit and power the Local Unit ON.
7. Connect SDI display(s) to "SDI OUT" and "SDI LOOP" BNC connectors.
8. If the output device has RS485 control connections, connect the controller "-"wire to terminal "2" and the "+" wire to
terminal "1" of the Remote Unit from the RS485 controller.
9. Power ON the SDI display(s).
10. Power ON the Remote Unit.
Cables to Use:
Interface cables (RG6) between the video source/display and the transmitter/receiver are required for proper operation.
o3G-SDI: up to 328 ft (100 m)
oHD-SDI: up to 656 ft (200 m)
oSD-SDI: up to 984 ft (300 m)
Use a simplex LC singlemode 9/125-micron fiber optic cable to extend the receiver from the transmitter up to 12.4 miles
(20 kilometers).
Use a simplex LC multimode 50/125-micron (OM2/OM3/OM4) fiber optic cable to extend the receiver from the transmitter
up to 1640 feet (500 meters).
Cables are not included.

NTI SD/HD/3G-SDI EXTENDER via FIBER OPTIC CABLE
5
TECHNICAL SPECIFICATIONS
Items Specification
Local Unit
Devices supported SD/HD/3G-SDI Video Source
SD/HD/3G-SDI Video Display
Connectors 2- Female 75 ohm BNC connector
1- Female LC fiber connector
1- 2-pin terminal block (RS485)
Remote Unit
Connectors 2- Female 75 ohm BNC connector
1- Female LC fiber connector
1- 2-pin terminal block (RS485)
General
Operating Temperature -4 to 131°F (-20 to 55°C).
Storage Temperature -40 to 185°F (-40 to 85°C).
Operating and Storage Humidity 0 to 95% RH (no condensation)
Video Resolutions Supported Supports HDTV resolutions to 1080p @60Hz.
Protocols supported: SMPTE 292M, SMPTE 424M, SMPTE 425M
Supports NTSC and PAL video.
RS485 Supported Supports unidirectional RS485 from the receiver to the transmitter.
Baud rate: 1200, 9600, 115200
Power Supply ST-1FO3GSDI-LC Local and remote unit:
Input: 100 to 240 VAC at 50 or 60Hz via AC adapter (included).
Output: 5VDC, 3A
ST-1FO3GSDI-LC12V Local and remote unit:
Input: 100 to 240 VAC at 50 or 60Hz via AC adapter (included).
Output: 12VDC, 1A
Power Consumption ST-1FO3GSDI-LC Local and remote unit: 2.5W
ST-1FO3GSDI-LC12V Local unit: 2.52W
Remote unit: 2.16W
Dimensions (WxDxH) 4.81x4.11x1.13 in (122x104x29 mm)
Maximum Extension Distance 12.4 miles (20 km) over singlemode 9/125-micron LC simplex fiber optic cable.
1640 feet (500 meters) over multimode 50/125-micron (OM2/OM3/OM4) LC
simplex fiber optic cable.
Weight Local: 221g (.488lb) Remote: 215g (.474lb)
Regulatory Approvals CE, FCC,RoHS
TROUBLESHOOTING

NTI SD/HD/3G-SDI EXTENDER via FIBER OPTIC CABLE
6
Problem Solution
Local Unit
Power LED not working Check power connections thoroughly.
No Video Signal Check the SDI LED on the Remote Unit.
If LED illuminates, it means there is a video signal on this channel. Check
the connections of the video display equipment.
If LED is dark, it means there is no video signal to the Remote Unit.
Check if the SDI LED on the Local Unit is illuminated or not. Cycle power
on the Remote and Local Units to sync the signals up.
Display has "snow" interference This is normally caused by attenuation of the fiber cable or a long cable
between the video source and the Local Unit. Always use the highest quality
cables available.
1. Make sure the fiber cable does not have any bends in it that exceed the
cables specification
2. Check the cleanliness of the fiber port and fiber cable ends. Clean using
cotton swab and alcohol.
3. Use 75 ohm impedance RG6 cables between the displays and the
Local/Remote units and to the video source. Be sure to route away from
other sources of electromagnetic interference.
WARRANTY INFORMATION
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at [phone] (800-RGB-TECH) or [phone] or visit our website at http://www.networktechinc.com for
information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
MAN419 Rev. 3/8/22
