NTI XTENDEX ST-FO4K18GB-RSLA-LCV2 User manual

MAN423 Rev Date 8/10/2022
ST-FO4K18GB-RSLA-LCV2
4K 18Gbps HDMI Extender with Stereo Audio
And Local HDMI Loop-Through via One LC
Singlemode or Multimode Fiber Optic Cable
Installation and Operation Manual
Front View (Remote Unit) and Rear View (Local Unit)
XTENDEX®Series

TRADEMARK
XTENDEX and the NTI logo are registered trademarks of Network Technologies Inc in the U.S. and other countries. All other
brand names and trademarks or registered trademarks are the property of their respective owners.
COPYRIGHT
Copyright © 2022 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the
right to make changes in the product design without reservation and without notification to its users.

TABLE OF CONTENTS
Introduction......................................................................................................................................................................1
Materials..........................................................................................................................................................................2
Features and Functions...................................................................................................................................................3
Connections.....................................................................................................................................................................5
Technical Specifications..................................................................................................................................................6
Warranty Information.......................................................................................................................................................7

NTI XTENDEX 4K 18GBps Extender via Fiber Optic Cable
1
INTRODUCTION
The XTENDEX® 4K 18Gbps HDMI Extender via Fiber Optic Cable locates an Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display, IR,
stereo audio, and RS232 up to 6.21 miles (10 km) away from a 4K HDMI source using a single LC singlemode fiber optic strand
and 984 feet (300 meters) using OM3 multimode fiber optic cable. Each extender consists of a transmitter that connects to an
HDMI source and a local display via the HDMI loop output, and a receiver that connects to an HDMI display.
Features
Signal transmission via single-strand singlemode or multimode LC fiber optic cable.
oUsing singlemode 9-micron cable, extend to 6.21 miles (10kilometers).
oUsing multimode 50-micron OM3 (or better) cable, extend to 984 feet (300 meters).
Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30/50/60Hz YUV 4:4:4, HDTV resolutions to
1080p @120Hz, and up to 1920x1200 (WUXGA).
HDMI features supported:
oHDMI 2.0
o8-bit, 10-bit, and 12-bit Deep Color
oDolby TrueHD, DTS-HD Master Audio, Dolby Digital, Dolby Digital+, Dolby Atmos, LPCM 2/5.1/7.1CH, DTS 5.1,
and DTS:X
oYUV 4:4:4, 4:2:2, and RGB
oBandwidth up to 600 Mhz (18Gbps)
o3D (1080p @60Hz)
oHDR
HDCP 2.2 and 1.4 compliant.
Supports local and remote HDMI displays.
Supports audio embedding and de-embedding.
o Use the switch on the transmitter to select HDMI digital audio or analog stereo audio source.
Simultaneously outputs both HDMI digital audio and analog stereo audio.
When HDMI audio is selected, the extender passes the embedded digital audio to the HDMI connector
and also converts/de-embeds the digital signal to analog stereo audio.
When LINE audio is selected, the extender passes the analog stereo audio to the 3.5mm analog audio
connector and also converts/embeds the analog signal to digital audio.
Bi-directional IR control from input and output locations.
Support full-duplex RS232 up to 115200 baud.
Plug-and-play functionality – no software needed.
Low RFI/EMI for sensitive applications.
Cables can be installed in conduit prior to extender installation.
Integrated mounting brackets for easy surface/wall mounting.

NTI XTENDEX 4K 18GBps Extender via Fiber Optic Cable
2
MATERIALS
Materials supplied with this kit:
One transmitter unit with fiber transmitter module installed
One receiver unit with fiber receiver module installed
Two IR emitters
Two IR receivers
Two AC Adapters- 100 to 240 VAC at 50 or 60Hz; DC 5V, 1A
US, UK, EU, AUS power supply plugs included.
Two 3-screw terminal blocks for RS232
URL Slip with path to this manual
Materials Not supplied but REQUIRED:
Interface cables between the video source/display and the transmitter/receiver are required for proper
operation.
oSupports cable lengths to 20 feet.
oCables longer than 20 feet can be used provided they have a built-in video equalizer (also known as
"active HDMI cables").
Use HD-xx-MM cable to connect an HDMI source or display.
Use DVI-HD-xx-MM cable to connect a DVI source or display.
Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet.
oHD-ACT-20/25/30/40/50/60-MM supports resolutions to 4K@60Hz (18 Gbps).
oHD-ACT-75/100-MM supports resolutions to 4K@30Hz (10.2 Gbps).
Use a simplex LC singlemode 9/125-micron fiber optic cable to extend the receiver from the transmitter up
to 6.21 miles (10 km).
Use a simplex LC multimode 50/125-micron OM3 (or better) fiber optic cable to extend the receiver from
the transmitter up to 984 feet (300 meters).
where:
xx is the length of the cable in feet
MM indicates male-to-male connector
Cables can be purchased from Network Technologies Inc by calling [phone] (800-RGB-TECH) in the US and Canada or
[phone] (worldwide).

NTI XTENDEX 4K 18GBps Extender via Fiber Optic Cable
3
FEATURES AND FUNCTIONS

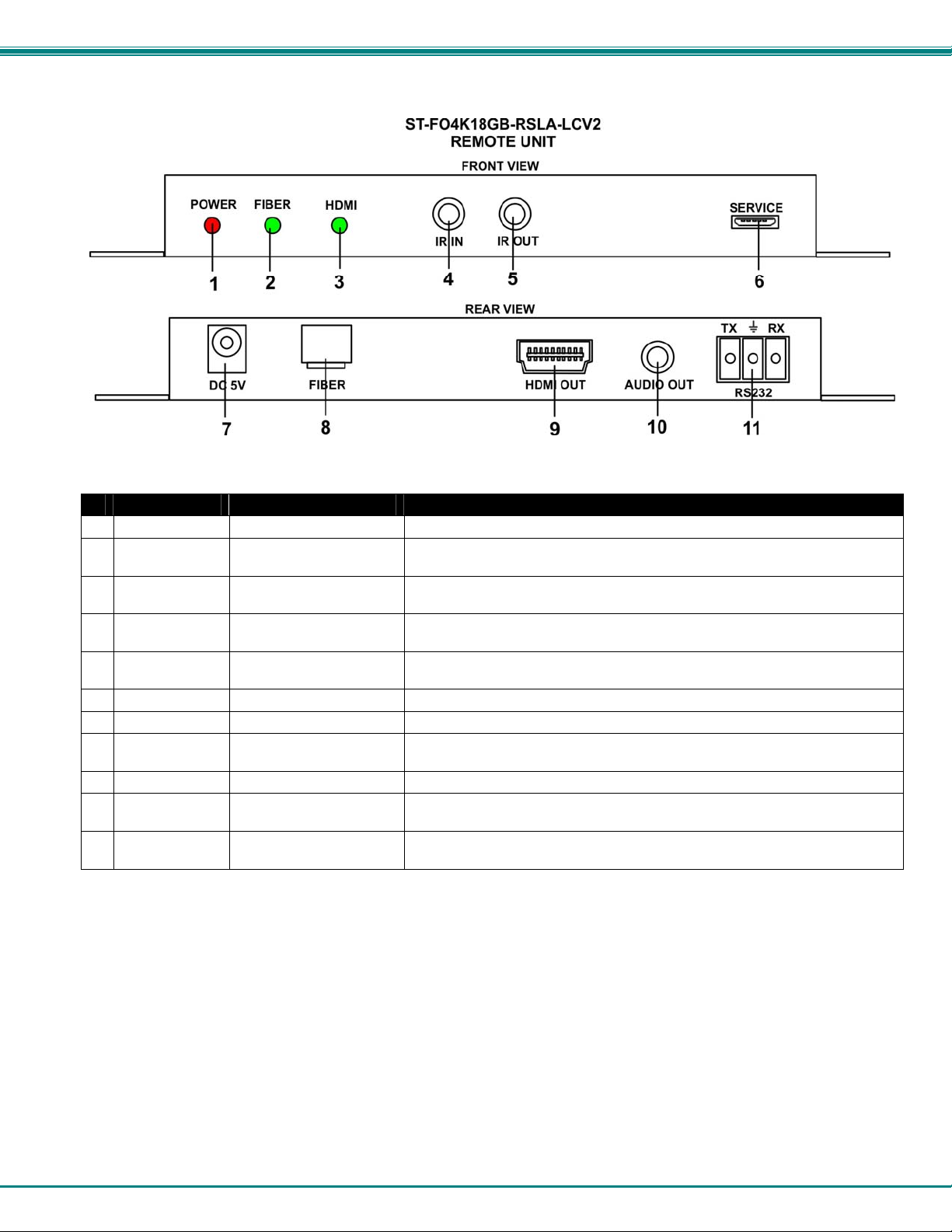

# LABEL CONNECTOR/LED DESCRIPTION
1 POWER Red LED Illuminates to indicate proper power to the unit
2 FIBER Green LED Illuminates solid to indicate the Local and Remote units have a normal signal
connection
3 HDMI IN-LOOP Green LED (x2) IN: ON when there is a signal on the HDMI IN port
LOOP: ON when the HDMI OUT port of the Transmitter is sending signals
to the HDMI display device.
4 IR IN 3.5mm Jack Connect the IR Receiver cable here. Signal will be sent to the IR OUT port
on the Remote Unit
5 IR OUT 3.5mm Jack Connect the IR Blaster cable here. The IR signal is from the IR IN port of the
Remote Unit.
6 HDMI-LINE Audio Switch Switch to select audio signal source (HDMI IN for digital or LINE IN for
analog stereo). When there is no video signals input, audio signals can be
transmitted separately
7 EDID DIP Switch Dial switch to set EDID:
11 : Copy the RX HDMI OUT
10: Copy the TX HDMI LOOP OUT
01: 4K60_2CH
00: 1080P_2CH
8 SERVICE USB Female For performing a firmware update
9 DC 5V 2.1x5.5mm Power Jack For connection of power supply
10 FIBER Fiber module socket Installed Transmitter optical fiber module for connection of the fiber optic
signals to the Remote Unit.
11 HDMI OUT HDMI Female HDMI video loop output port for connection to an HDMI display device
12 HDMI IN HDMI Female HDMI signal input port for connection to an HDMI source.
13 LINE IN 3.5mm Jack Audio signal input port, connect to audio source device
14 RS232 Terminal Block Pass-through terminals for transmitting RS232 command signals between
the Local and Remote Unit

NTI XTENDEX 4K 18GBps Extender via Fiber Optic Cable
4
# LABEL CONNECTOR/LED DESCRIPTION
1 POWER Red LED Illuminates to indicate proper power to the unit
2 FIBER Green LED Illuminates to indicate the Local and Remote units have a proper signal
connection
3 HDMI Green LED Illuminates when the HDMI OUT port is sending signals to the HDMI display
device.
4 IR IN 3.5mm Jack Connect the IR Receiver cable here. Signal will be sent to the IR OUT port on
the Local Unit
5 IR OUT 3.5mm Jack Connect the IR Blaster cable here. The IR signal is from the IR IN port of the
Local Unit.
6 SERVICE USB Female For performing a firmware update
7 DC 5V 2.1x5.5mm Power Jack For connection of power supply
8 FIBER Fiber module socket Installed Receiver optical fiber module for connection of the fiber optic signals
to the Remote Unit.
9 HDMI OUT HDMI Female HDMI video loop output port for connection to an HDMI display device
10 AUDIO OUT 3.5mm Jack For connection of self-powered amplifier or speakers - Audio signal extracted
from the HDMI OUT signal
11 RS232 Terminal Block Pass-through terminals for transmitting RS232 command signals between the
Local and Remote Unit

NTI XTENDEX 4K 18GBps Extender via Fiber Optic Cable
5

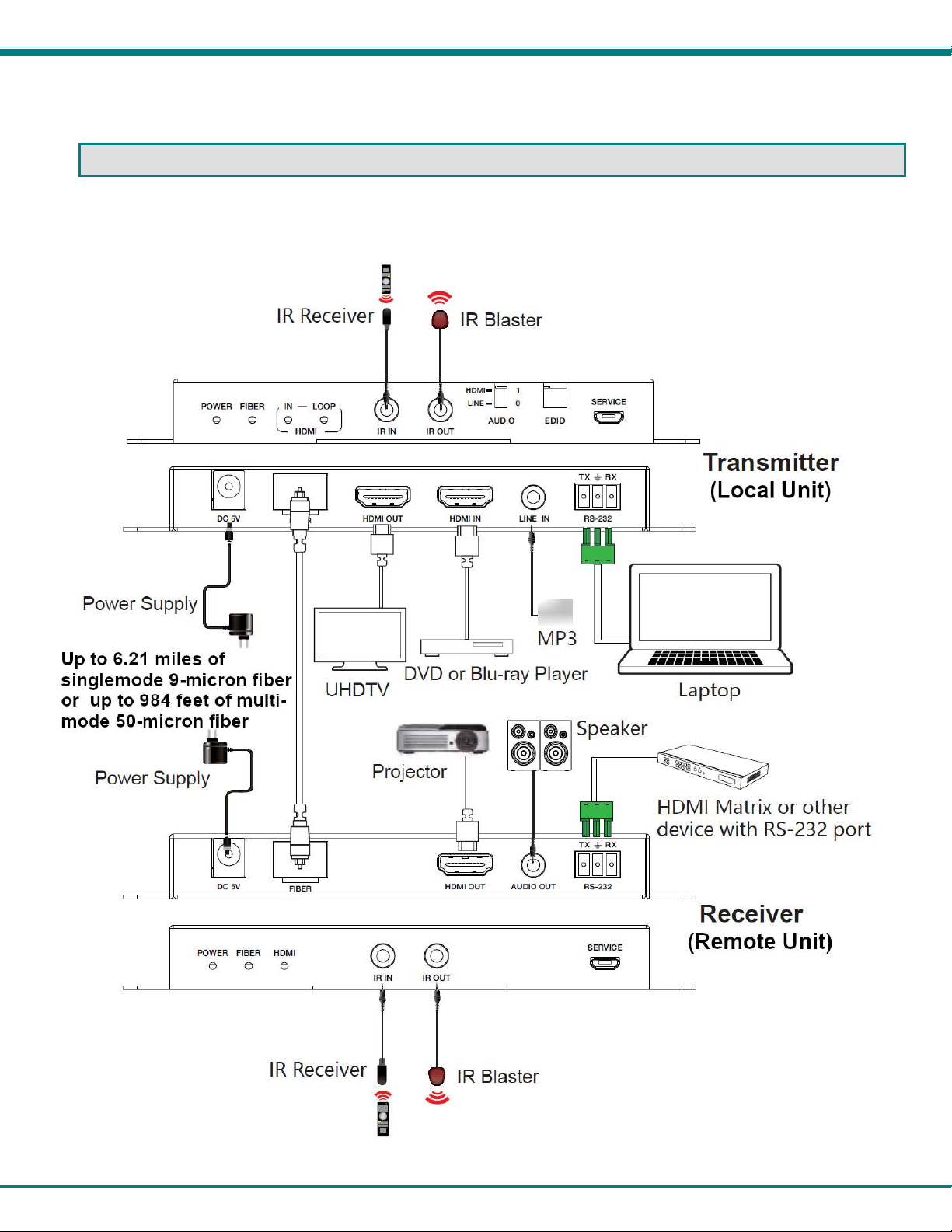

CONNECTIONS
See below connections made in a typical application.

NTI XTENDEX 4K 18GBps Extender via Fiber Optic Cable
6
TECHNICAL SPECIFICATIONS
Local Unit
Connections One female HDMI connector for source.
One female HDMI connector for local display.
Two female 3.5mm ports for connecting an IR emitter and receiver (included).
-IR frequency: 20KHz to 60KHz
One female 3.5mm port for stereo audio input.
3-pin screw terminal for RS232.
-Supports full-duplex RS232 up to 115200 baud.
One simplex female LC fiber optic port for sending video/audio, IR, and RS232 signals.
Female USB Micro Type B connector for firmware updates.
Resolution Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30/50/60Hz YUV 4:4:4,
HDTV resolutions to 1080p @120Hz, and up to 1920x1200 (WUXGA).
HDCP Supports HDCP 2.2 and 1.4
Remote Unit
Connections One female HDMI connector for display.
Two female 3.5mm ports for connecting an IR emitter and receiver (included).
-IR frequency: 20KHz to 60KHz
One female 3.5mm port for stereo audio output.
3-pin screw terminal for RS232.
-Supports full-duplex RS232 up to 115200 baud.
One simplex female LC fiber optic port for sending video/audio, IR, and RS232 signals.
Female USB Micro Type B connector for firmware updates.
Resolution Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30/50/60Hz YUV 4:4:4,
HDTV resolutions to 1080p @120Hz, and up to 1920x1200 (WUXGA).
HDCP Supports HDCP 2.2 and 1.4
Data Rate 18Gbps
General
Max Distance 6.21 miles (10 km)over singlemode 9/125-micron LC simplex fiber optic cable.
984 feet (300 meters) over multimode 50/125-micron OM3 (or better) LC simplex fiber optic
cable.
Operating environment
temperatures and RH Operating temperature: 32 to 104°F (0 to 40°C). Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and storage relative humidity: 20 to 90% non-condensing RH.
Power Supply Local and remote unit: 100 to 240 VAC at 50 or 60Hz via AC adapter.
Input voltage: 5VDC, 1A
US, UK, EU, AUS power supply plugs included.
Power Consumption Local unit: 3.75W
Remote unit: 3W
Weight 2.305 lbs.
Size (In.) WxDxH 6.32x3.20x0.73 (161x81x18 mm)
Approvals CE,FCC,RoHS

NTI XTENDEX 4K 18GBps Extender via Fiber Optic Cable
7
IR Receiver and Blaster Pinout
WARRANTY INFORMATION
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at [phone] (800-RGB-TECH) or [phone] or visit our website at http://www.networktechinc.com
for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
MAN423 Rev. 8/10/22
