Nu-Flame FENTON CF User guide

FENTON CONVENTIONAL FLUE
CONVENTIONAL FLUE OUTSET CONVECTION HEATER
SUITABLE FOR NATURAL GAS & PROPANE
USE, INSTALLATION & SERVICING INSTRUCTIONS
The glass panel and outer parts of this fire will become hot during use, cloths or combustible items
must not be placed close to or on the fire. We recommend that a Fireguard conforming to BS8423
should be used for protection of Young Children the Elderly, Infirm and Pets.
ALL INSTRUCTIONS MUST BE LEFT WITH THE USER FOR
SAFE KEEPING
MANUFACTURED by:
Nu-Flame Limited
Unit 4, Kimpton Trade & Business Centre
Minden Road, Sutton, Surrey SM3 9PF
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Country of Destination – GB & IE
Revision 27.2.20 GAR

2
CONTENTS
Section No Subject Page
User Section
- Contents Page 2
- Box Contents 2
- Fitting Kit Contents 3
1Important Notes 4
2Lighting & Controlling the Fire 5
3Cleaning the Fire 8
4Servicing 8
Installation Section
- Record Data 8
- Site Surveying 9
5Installation Requirements 10
6Appliance Data 10
7a Appliance Dimensions 10
8Flue Requirements 11
9Ventilation 11
10 Gas Supply 11
14 Fixing the Fire 18
15 Arrangement of the Fuel Effect 20
16 Testing, Commissioning & Use 26
17 Briefing the Customer 27
18 Servicing 27
19 Fault Finding Guide, Symptoms & Possible Cause 28
20 Energy Class & Product Fiche & EU Declaration of Conformity 30
21 EU Declaration of Conformity 32
22 Diagram of Thermatronic Radio Frequency Control System 33
- Guarantee 34
BOX CONTENTS (The Fire comes in a number of boxes)
Box 1 - Large box - contains the Fire, the Matrix Tray, chosen Control System plus Fitting Kit (see over-
leaf for contents).
Box 2 - The Fuel Bed, (Coal or Wood and Matrix’s).
Box 3 - The Fenton Case with Fixing Brackets.
The Fenton Fixing Brackets will have to be fitted to the main Fire see the next page.
Sections 11 - 13 are for the various installation applications -
Ensure you refer to the section relevant to your requirement
11 Class 1 & Lined Flue Fire Surround Application 12
(Fireplace Construction)
12 Pre-Cast Fireplace Application & Requirements 14
(Fire Surround Requirements)
13 BS715 Shallow Flue Box with 5” Twin Wall Flue Application 16
(False Chimney Breast Construction with Fire Surround)

3
FENTON CF FITTING KIT CONTENTS:
Cable Fixing Kit (2 # cables and fittings, 4 # eye screws, 4 # plastic plugs)
1 # Flue Restrictor
2 # No6 x 10mm pointed self tapping screws for above.
2 # No6 x 5mm blunt self tapping screws for fixing the Case.
1 # 10mm Back Nut & olive to connect 8mm copper pipe gas supply to the burner (via the isolation elbow)
1 # 2.1 metre length of 6mm x 4mm self adhesive silicone sealing foam strip.
1 # No2 Posidriv screwdriver (for glass removal)
1 # Set of Instructions / Warranty
Note – No6 screws are a smaller diameter than No8 screws.

4
1. - IMPORTANT NOTES
a. This appliance must be installed by a properly qualified (in accordance with National & Local Regulations) Installation Engineer.
b. The connection of this appliance and ventilation requirements (if any) are to be according to National & Local Codes.
c. This appliance does not normally require any purpose provided additional ventilation, however if it has been found necessary to
add a vent periodically check that it is free from obstruction.
d. Consult all Instructions before Installation and Use.
e. Do not throw rubbish on, or attempt to burn any materials on this appliance. Any Debris or Foreign Matter must be removed from
the fire.
f. Under No Circumstances must this fire be used if the Glass Panel is broken, damaged, cracked or has been removed.
g. The glass panel and outer parts of this fire will become hot during use, cloths or combustible items must not be placed close to or
on the fire. We recommend that a Fireguard conforming to BS8423 should be used for protection of Young Children the
Elderly, Infirm and Pets.
h. The appliance should be Serviced Annually in accordance with the Gas Safety & Uses Regulations.
i. Where the flue has been used for Solid Fuel it must be swept before Installation.
j. If at any time you smell gas or fumes turn the fire off and contact your Installer.
k. These Instructions must be left with the User for future reference.
l. During its first period of use any protective coatings and oils will burn out of the appliance and it is wise to ventilate the room for the
first hour of use.
m. This appliance is fitted with an oxygen depletion sensing system, which automatically shuts off the gas supply to the fire if the
oxygen level in the room is depleted, due to lack of primary air, or obstructed flue (blocked chimney) that would lead to incomplete
combustion of the gas. It must not be tampered with and only replaced with a genuine Nu-Flame ODS.
n. In the event that the fire shuts down for any reason, attempt to restart it. If there is a continuing problem, call in a properly
qualified specialist engineer.
o. There are no user replaceable parts in the appliance apart from the batteries, for the Thermatronic Electronic Control System.
p. The chimney should be regularly checked to ensure that all the products of combustion are entering the flue & that there is no build
up of soot. If there is, the appliance must be serviced.
q. Coal & Wood Effect Parts are manufactured from RCF (Refractory Ceramic Fibre are supplied with this appliance, see Health &
Safety guidance).
Do not use real coals or wood as this is dangerous. If the simulated fuel bed components need renewing please obtain suitable
replacements from a Nu-Flame Stockist.
r. The fire must be installed in accordance with the rules in force and these Instructions it must be installed in front of a fireplace or
builders opening on a non combustible hearth as detailed in these Instructions.
s. No combustible materials e.g. curtains must be closer than 500mm to the fire.
t. For Fire Surround Applications a 150mm (6”) combustible shelf can be fitted above the fire provided it is 750mm above the Hearth.
u. The Fire can be installed into a suitably designed fire surround with a 150ºC Rating.
v. Explain to the customer that over time some wall staining will occur above the fire and this is due primarily to particles of dust
present in the hot convection air circulating up and over the fire/surround and sticking to the wall.
! IMPORTANT NOTE ! THE GLASS PANEL ON THIS FIRE WILL BECOME VERY HOT DURING
OPERATION - SEE ITEM ‘g.’ ABOVE.
It is quite normal for the fire to make popping and burbling sounds when in use, as would a solid fuel fire.
THE FENTON CF
USER INSTRUCTIONS
Health & Safety Advice
Refractory Ceramic Fibre (RCF)
Advice when working with Fuel Bed Components including Installing, Servicing and Disposal.
The Fuel Effect parts and possible Linings of this fire are made from Refractory Ceramic Fibre (R.C.F.) a Class 2 Carcinogen which is
a material designed for this Application. Excessive exposure to these types of materials may cause temporary irritation to eyes, skin
and respiratory tract. Therefore take care when handling these articles to ensure dust is kept to a minimum.
It is not necessary to wear protective clothing when handling these articles but we do recommend you follow the normal hygiene rules
of not smoking, eating or drinking in the work area, and always wash your hands before eating or drinking.
To minimise the release of RCF fibres during installation and servicing a HEPA filtered vacuum is recommended to remove any dust
accumulated in and around the fire both before and after working on it.
When Servicing and if replacing these parts we do not recommend they are broken up but are sealed within a heavy duty polythene
Bag and labelled as “RCF waste”. This is not classified as “hazardous waste” and may be disposed of at a local licensed landfill site.

5
2. - LIGHTING & CONTROLLING THE FIRE
General
The fire is available with 3 Control Options: Manual Control (Fire is lit and adjusted manually), or Thermatronic Radio Frequency Electronic
Control System (Fire is lit & operated with a Handset) or the Thermostatic Thermatronic Radio Frequency Electronic Control System (Fire is
lit & operated with an Handset which also can control the room temperature plus other features).
2.1- LIGHTING & CONTROLLING THE FIRE - MANUAL CONTROL
Open the Door at the bottom of the fire by pulling at the right side.
a. Switching On/Ignition. Depress the control knob & turn counter clockwise. Gas will flow to the Pilot Burner (Pilot Burner is visible
looking down through the glass at the left side), the Piezo Igniter will give off first one, then, as you turn, a second high voltage spark & the
Pilot Burner will Light. (More than one attempt may have to be made on first lighting.)
Keep the Control Knob depressed for approximately 10 seconds to heat up the Thermocouple.
Turn the Control Knob fully counter clockwise to release gas to the Main Burner.
b. Control of Gas Flow. Turning the Control Knob clockwise reduces the gas flow from
Maximum to the Pre-Set Minimum Setting.
Turning between Maximum & Minimum does not actuate the Piezo Igniter. The Control Valve can
only be set on the Pilot by depressing the control knob & turning it to the pre-selected pilot position.
c. Switching Off. Press the Control Knob in at the Pilot Position & turn Clockwise to Off.
2.2- LIGHTING & CONTROLLING THE FIRE – Thermatronic & Thermatronic (Thermostatic) Remote Control Systems
The Remote Control Systems are both battery operated gas fire remote control systems that uses a microprocessor to provide the working
sequences needed by the fire, and when used with an oxypilot have all the safety features required by law and CE approval.
Commands are accepted by the microprocessor when buttons are pressed. An audible beep means that the command has been received,
and the push button should immediately be released to allow the control to operate .
Using the Thermatronic Remote Control System
Control can only be achieved if the Handset is pointed at the Fire. The red light will flash each time you press a button on the Handset.
a. Ignition. Simultaneously press and hold the red button and the right upper button (linked by line) until a short
acoustic signal confirms that the sequence has begun, then release the buttons. Continuous audible signals confirm that
ignition is in progress.
When pilot ignition is confirmed the motor will open the valve to maximum flame height – this takes about 30 seconds.
It is normal for condensation to appear on the glass on start-up. This will clear after a minute or so.
b. Flame Height Adjustment. Press the small flame button until the flame height is at the desired position. If you try
to go beyond the preset low flame minimum height the fire will turn off leaving the pilot burner alight (this is the standby
position). You will learn from experience the minimum preset flame height.
c. Relighting the Fire. To relight the fire from the standby position, or to increase the flame height from low flame,
simultaneously press and hold the large flame button until the desired flame height is achieved.
Please note that you can have the flame height anywhere between maximum and preset low.
For fine adjustment simply tap the small or large flame buttons.
d. Switching Off. Press the red/off button on the handset.
2.3 - LIGHTING & CONTROLLING THE THERMATRONIC (Thermostatic) REMOTE CONTROL SYSTEM
Control can only be achieved if the Handset is pointed at the Fire.
You will see that the Handset as a screen with symbols and reference should be made to the following screen settings shown for each stage
of operation. With the fire in the off position the screen will look as shown below.
This is the Manual Setting display and will be used to first light the fire.
The screen with symbols are shown below.
Note: Radio Frequency Symbol Shows Only When Pressing Handset
Room Temperature Battery Charge Level
Handset in Manual
Time of Day

6
2.4 Using the Thermatronic (Thermostatic) Remote Control System
Control can only be achieved if the Handset is pointed at the Fire.
a. Ignition. Simultaneously press the Off and Large Flame Buttons (linked by the line/star
symbols) until a short acoustic signal confirms that the sequence has begun, then release the
buttons.
Continuous audible signals confirm that ignition is in progress.
When pilot ignition is confirmed the motor will open the valve to maximum flame height – this takes
about 30 seconds. The main burner will then light at the high flame setting.
b. Flame Height Adjustment. Press the small flame button until the flame height is at the
desired position. For fine adjustment tap the Large Flame or Small Flame buttons.
If you try to go beyond the low flame setting the fire will turn off the main burner leaving the pilot
burner alight (This is the standby position).
You will learn from experience how to achieve the minimum low flame setting.
c. Relighting the Fire. To relight the fire from the standby position, or to increase the flame
setting from low flame, simply press the large flame button.
Please note that you can have the flame height anywhere between maximum and low.
For fine adjustment simply tap the large and small flame buttons.
Note: You can also automatically set the fire at either Tall or Low Flame setting by pressing the desired flame Button twice.
d. Switching Off. Press the off button
You can now proceed to the other features of the Handset such as Setting the Time, Temperature and Time Programmes.
e. Setting Temperature - Time in Centigrade-24Hour Clock or Fahrenheit-12Hour Clock.
. Simultaneously Press the Off and the Down Arrow buttons until the display changes from Fahrenheit -12Hour Clock to
Celsius -24Hour Clock and visa versa.
f. Setting the Time.
The time of day will flash after either:
. Installing the batteries or
. By Pressing the Large Flame and Small Flame buttons at the same time.
. Press the Large Flame button to set the Hour.
. Press the Small Flame button to set the Minute.
. Press Off or simply wait to return to the manual screen.
IMPORTANT : For the following modes of controlling the fire automatically for Temperature or Timer Programs the Fire
Must be left in the Standby Setting (Pilot Lit) and left on the chosen Setting, with the Screen showing either Temp or Timer.
g. Setting the Day Time Temperature.
. Briefly Press the Set Button to scroll to TEMP (Sun Symbol - Daytime) Mode.
. Hold the Set Button until the TEMP flashes then release.
. Now press the Large Flame button to increase the Daytime - Sun temperature. or
. Press the Small Flame button to decrease the Sun-Daytime temperature.
. You can now press the Set Button to scroll to setting the Night Time Temperature or press off to return to Manual Screen.
h. Setting the Night Time Temperature.
. Briefly Press the Set Button to scroll to TEMP (Moon Symbol  Night Daytime) Mode.
. Hold the Set Button until the TEMP flashes then release.
. Now press the Large Flame button to increase the Night Time - Moon temperature. or
. Press the Small Flame button to decrease the Night Time  Moon temperature.
. You can now either leave the handset on the TEMP setting and with the fire lit the room temperature will be controlled or
return to the Manual Screen. Your Settings will remained stored.
Note: With the Temperature Settings now set the Handset will have to be left in the TEMP mode to control the fires temperature.
Note: In the Manual Mode neither of the Automatic TEMP or TIMER settings will be active.
Note: If you Set the Room Temperature below the present room temperature the fire will go straight to the Standby Setting until
the temperature drops below the Set Temperature at which point the main burner will relight.
Note: The Room Temperature is sensed by the Handset so place it in the ideal position to control the room temperature.
Note: An Holder is available for the Handset as an optional extra and this should be positioned to control the set room
temperature.
Note: If at any time you wish to correct or check the settings you have made you can simply keep pressing the Set Button until
the screen displays the Manual Setting and repeat the operations as detailed above.

7
i. Setting the Timer Programs P1 and P2 for Daytime & Night Time Settings.
. The Timer Programs are identified by the symbols P1 and P2 on the screen and each can be set for both daytime
(sun symbol) and night time (moon symbol) settings.
Note : Both Programs have to be set, you cannot just set one program, however you can set both at the same settings.
Setting the P1 (Program 1), On Time
. Briefly Press the Set Button to scroll to TIMER Mode.
. Hold the Set Button until P1 Sun Symbol (Daytime) is displayed and the time flashes.
. Press the Large Flame button to set the Hour.
. Press the Small Flame button to set the Minute.
Setting the P1 (Program 2), Off Time
. Briefly press the Set Button to scroll to the P1 Moon Symbol (Night time) is displayed and the time flashes.
. Press the Large Flame button to set the Hour.
. Press the Small Flame button to set the Minute.
Setting the P2 (Program2), On Time
. The Screen will automatically proceed to setting the P2 Settings
. Briefly Press the Set Button to scroll to the P2 Sun Symbol (Daytime) is displayed and the time flashes.
. Press the Large Flame button to set the Hour.
. Press the Small Flame button to set the Minute.
Setting the P2 (Program2), Off Time
. Briefly press the Set Button to scroll to the P2 Moon Symbol (Night time) is displayed and the time flashes.
. Press the Large Flame button to set the Hour.
. Press the Small Flame button to set the Minute.
. Both Programs Press Off or simply wait to return to the Manual Screen.
Note : With the Programs now set the Handset will have to be left in the TIMER mode to enable the programs to control the fire.
2.5 - GENERAL - ALL THERMATRONIC CONTROLS
a. Battery replacement is recommended at the beginning of each heating season, or when an acoustic error message sounds at ignition.
b. Error Message – Long signals (0.8 second tone – 0.2 second break) during ignition – probable cause batteries in electronic receiver box
are nearly discharged.
c. Error Message – 5 second continuous tone – probable cause – cable disconnected or on/off switch on valve is in off position.
d. Batteries - Electronic Receiver Box - 4 x AA good quality alkaline - Handset - 1 x PP3 good quality alkaline.
e. To change the Handset battery slide open the plastic panel on the back of the Handset.
f. To change the Receiver Batteries remove the Ash Pan Cover and locate the electronic receiver box, underneath the fire on the
left hand side. Slide open the plastic cover to gain access to the battery compartment. You can detach the Receiver by pulling it off its
Velcro Pad to make access easier but remember to put it back in the same position under the metal shield.
Note: Only Change The Batteries When The Fire Is Cold
2.6 - RESETTING THE MERTIK MAXITROL LOGIC CIRCUITS - IF THE HANDSET DOES NOT WORK
ONLY APPLIES TO THE THERMATRONIC HAND HELD RADIO FREQUENCY CONTROLS
Basic Reset - It sometimes happens that (such as when the handset buttons are pressed out of sequence) the fire stops working
because the logic circuits get confused and need to be reset.
To do this, simply remove the 4 x AA batteries from the Receiver Box (see section 2.5f above), wait for 1 minute and then refit the batteries.
Wait for another minute and then point the handset at the fire and press the red/off button. Wait for another minute and then start the fire as
normal. If the fire does not start repeat the resetting procedure. If the fire still does not work a Full Reset can be tried (see next page).
Full Reset - If you obtain a new handset the control system will need to learn the handset’s unique code via a Full Reset.
Also, if the fire is not working and the Basic Reset (described on page 7) has not worked a Full Reset can be carried out:
Remove the Ash Pan Cover and locate the electronic Receiver Box.
Locate the Reset Hole on the side of the Receiver and using a pen press and hold in the Reset button until you hear two beeps.
The first beep is short and the second beep is long. After the second beep release the Reset Button.
Now on the Handset, within the next 20 seconds press and hold the Small Flame Button until you hear two additional short beeps
confirming the code is set in the Receiver.
If you hear one long beep the Code as not been set so repeat the procedure.
If after carrying out the above procedure the situation is not corrected it will be necessary to contact your Installer.
Note: For the Installation/Service Engineer - Resetting of the Handset & Control System is also covered in Section 21.1 page 32.

8
3. - CLEANING THE FIRE
Note: Marks on the Glass Panel are Not Covered by the Manufactures Warranty.
a. Important : Always Allow the fire to cool before carrying out any cleaning.
b. Please Note: The glass panel surface within the room will be marked by air borne particles as air circulates through the fire
from the room, this is quite normal and cannot be prevented.
So the glass surface within the room can be cleaned with proprietary glass cleaners and any residue removed and dried afterwards.
No Abrasive Cleaners Must be used.
c. Within the fire it is quite normal for soot and stains to build-up on the inside of the glass panel, this is why we advise that the glass
panel must be fully cleaned during the Annual Service, however you can remove the glass panel for cleaning as follows:
i. Remove the Ash Pan. Remove the Outer Frame Assembly, it is held in place with magnets quite tightly, Pull to Remove.
ii. Using the Screw Driver provided Slacken the 2 Screws at the Bottom Left and Right Corners Securing the Glass Panel, Swivel
the Brackets Off the Glass Panel then Ease it outward slightly at the base then Pull down and remove.
iii. To clean the glass panel use proprietary glass cleaners, however for stubborn stains use ‘T Cut Original’ and following treatment
remove all residue and polish with a dry cloth. Take care not to damage the door seal and reposition around the glass if necessary.
Note: The glass is etched with the Nu-Flame logo ensure it is at the bottom right hand corner when refitting the glass panel.
d. The outer surfaces of the fire can be cleaned with a damp cloth, do not use any abrasive cleaners.
For Stainless Steel finishes we recommend a small amount of Baby Oil.
! IMPORTANT ! The Fire Must Never be used without the Glass Panel in place or if the Glass Panel is in any way damaged.
4. - SERVICING
a. The fire should be Serviced Annually in accordance with the Gas Safety & Uses Regulations.
b. This fire contains no User Serviceable Parts apart from the batteries which are only used with the Thermatronic Control System option.
c. Servicing must be carried out by a Registered Installer.
d. For Servicing or Spare Parts contact your Installer quoting the Fire Name, Model and Serial Number, which can be found on the Data
Badge. To find the Data Badge/Plate; with the fire cool remove the Ash Pan, the Data Badge can be found at the base next to the
Control Knob.
e. In the event that the fire shuts down due to any reason, attempt to restart it. If there is a continuing problem, call in a properly qualified
specialist engineer.
f. Under No Circumstances must this fire be used without the Glass Panel or if it is broken damaged or cracked.
g. The Matrix in the fire is a Moulded Ceramic Fibre component incorporating Silicone Binders and you may notice that it develops
cracks during operation. This is natural shrinkage caused by exposure to high temperatures and is quite normal for the material and will
in no way affect the operation of the fire.
RECORD DATA TO BE COMPLETED & KEPT BY USER:
IMPORTANT : THE FENTON CF CAN ONLY BE USED WITH NU-FLAME’S CE APPROVED FRETS & FENDERS
PLACE OF PURCHASE ..................................................................…………………… DATE ……....................
ADDRESS & TEL. NO. …………….......................................…..................................................................................
.................................................................................................................................………………………..........….....
.................................................................................................................................………………………..........….....
APPLIANCE SERIAL NO. ..............................................
INSTALLED BY ........................................………………………………… GAS SAFE REG. NO. .........................
FENTON CF
INSTALLATION & SERVICING INSTRUCTIONS

9
SITE SURVEYING - SURVEYING THE PROPERTY PRIOR TO INSTALLATION
THE FOLLOWING ARE RECOMMENDATIONS FOR SURVEYING AND ARE IN ADDITION TO THE REQUIREMENTS OF THESE
INSTRUCTIONS, NATIONAL STANDARDS AND BUILDING REGULATION REQUIREMENTS.
The following recommendations should be considered to try to avoid problems that will result in issues after the fire has been fitted.
a) Downdraught can be a major problem which may result in return visits with problems after the fire has been fitted so:
i) Check the geographical position of the property taking account of any known downdraught issues in the area.
ii) Check any existing Properties for any special chimney terminals that would indicate downdraught problems.
iii) Check any existing fires for signs of downdraught, e.g. discolouration above the fire.
iv) Ask the Customer if they ever suffer from wind blowing down the chimney.
b) With Pre-cast flues check the following:
i) Any signs of walls over heated both on adjoining walls and upstairs. Bring any issues found to the attention of the Customer.
ii) Check for any Cracks in the wall above the fire.
ii) Check the soundness of any connecting tubes in the loft area.
c) Take account of the type, size and height of the chimney when considering the suitability of the fire being considered.
For instance if the chimney is quite large or high a higher efficient fire may be more suitable or flue lining may need considering.
d) Take account of the fire previously fitted and if the heat output will be sufficient for the room size and heat requirements of the
room.
e) Check the condition and soundness of the chimney before proceeding with the installation or any building work.
f) Check any wall decoration around the fire for its suitability for withstanding temperatures especially with high efficient fires.
g) Take account of the size of the room any large windows ensuring that the fire being considered will provide sufficient heat.
Make the Customer aware if you feel this could be an issue.
h) Check if the suitability of the Control being considered will meet the Customers requirements, specifically with people with arthritic
problems. Consider if a High level or Remote Control System would be more suitable and make the Customer aware of the
advantages.
i) If an high efficient fire is being considered into an existing fire surround determine if it is a suitable material, for example some
micro marble surrounds are prone to discolouration. Check for any signs of discolouration and make the Customer aware of the
possible problem. You may wish to advise that a more suitable Fire Surround be considered.
j) Carry out a gas soundness check on the current installation prior to Installation.
We would recommend that if you come across known problems in your area that you add them to the above survey points.
If you are unsure of any aspect of the Installation seek expert advice.

10
5. - INSTALLATION REQUIREMENTS (FENTON CF)
THIS APPLIANCE MUST BE INSTALLED AND SERVICED BY A PROPERLY QUALIFIED, (IN ACCORDANCE WITH LOCAL &
NATIONAL CODES), INSTALLATION ENGINEER.
It is the Law in the UK that All gas appliances are installed by a competent person in accordance with the GAS SAFETY (INSTALLATION
AND USE) REGULATIONS 1998 (As amended), the relevant British Standards for Installation work, Building
Regulations, Codes of Practice and these Instructions. In the UK a Registered Installer is deemed competent. In the
Republic of Ireland, all Irish Standards, Local Codes and Bord Gais recommendations should be adhered to.
The Installation should also be carried out in accordance with the following where relevant:
1. BS5871 Part 2 2. BS5440 Parts 1 & 2 3. BS6461 Parts 1 & 2 4. BS6891 5. BS8303
Building Regulations and Standards issued as relevant by the Department of the Environment or the Scottish Development
Department.
In the Republic of Ireland Installation should be carried out in accordance with IS813, ICP3, IS327, Building Regulations, Codes of
Practice, these Manufacturers Instructions and any Rules In Force.
Particular Reference should be made to the Ventilation Requirements, for the UK this Appliance would not normally require any
additional purpose provided ventilation, for the Republic of Ireland ventilation should be in accordance with IS813 Domestic Gas
Installations.
Failure to comply with the above could leave the Installer Liable to Prosecution and Invalidate the Warranty.
IMPORTANT
BEFORE PROCEEDING WITH THE INSTALLATION READ THESE INSTRUCTIONS CAREFULLY. THESE INSTRUCTIONS SHOULD
BE LEFT WITH THE USER FOR SAFE KEEPING AND FUTURE SERVICING. PRIOR TO INSTALLATION ENSURE THAT THE GAS
TYPE AND PRESSURE ARE AS STATED ON THE APPLIANCE DATA BADGE.
6. - APPLIANCE DATA
a. Gas Type: See Data Plate, (Natural Gas at 20mbar or Propane at 37mbar).
b. Burner Pressure: Natural Gas 16.9mbar (Thermotronic & High Level Controls) 19.0mbar (Manual Control) cold.
: Propane 36.6mbar cold.
c. Control System: Manual or Thermatronic (Fully Sequential) Control System operated by Handset pointed at Receiver.
d. Fire Safety: Oxygen Depletion & Flame Failure Device.
e. Ignition: Manual-Integral Piezo Igniter, Thermatronic-Full Sequential Control.
f. Inlet Connection: 8mm Compression Fitting to Gas Isolation Elbow.
g. Category: I2H, I3P.
h. Injector: Natural Gas (G20)- 310 Multi hole. Propane (G31) - 160 Single hole.
i. Heat Input: High: Natural Gas (G20) - 5.0kW Gross (4.5kW Nett) Propane (G31) - 4.73kW Gross (4.35kW Nett)
j. Heat Input: Low: Natural Gas (G20) - 2.8kW Gross (2.5kW Nett) Propane (G31) - 2.7kW Gross (2.5kW Nett)
k. Efficiency Class: 1. The Efficiency of this appliance has been measured as specified in BS7977-1:2009 + A1 2013 and the results
obtained were Natural Gas 76.5% gross (84.9% Nett) and Propane 78.7% gross (85.6% Nett). The test data has been certified by BSI
Group (0086) and can be used in the UK Government’s Standard Assessment Procedure (SAP) for Energy Rating of Dwellings.
l. Heat Output: High: Natural Gas (G20) - 3.82kW Propane (G31) - 3.72kW
m. Heat Output: Low: Natural Gas (G20) - 1.73kW Propane (G31) - 1.75kW
n. Pilot ODS Type: Natural Gas (G20) - P448D. Propane (G31) - P449.
o. Nitrous Oxide (NOx) - 130mg/kWh.

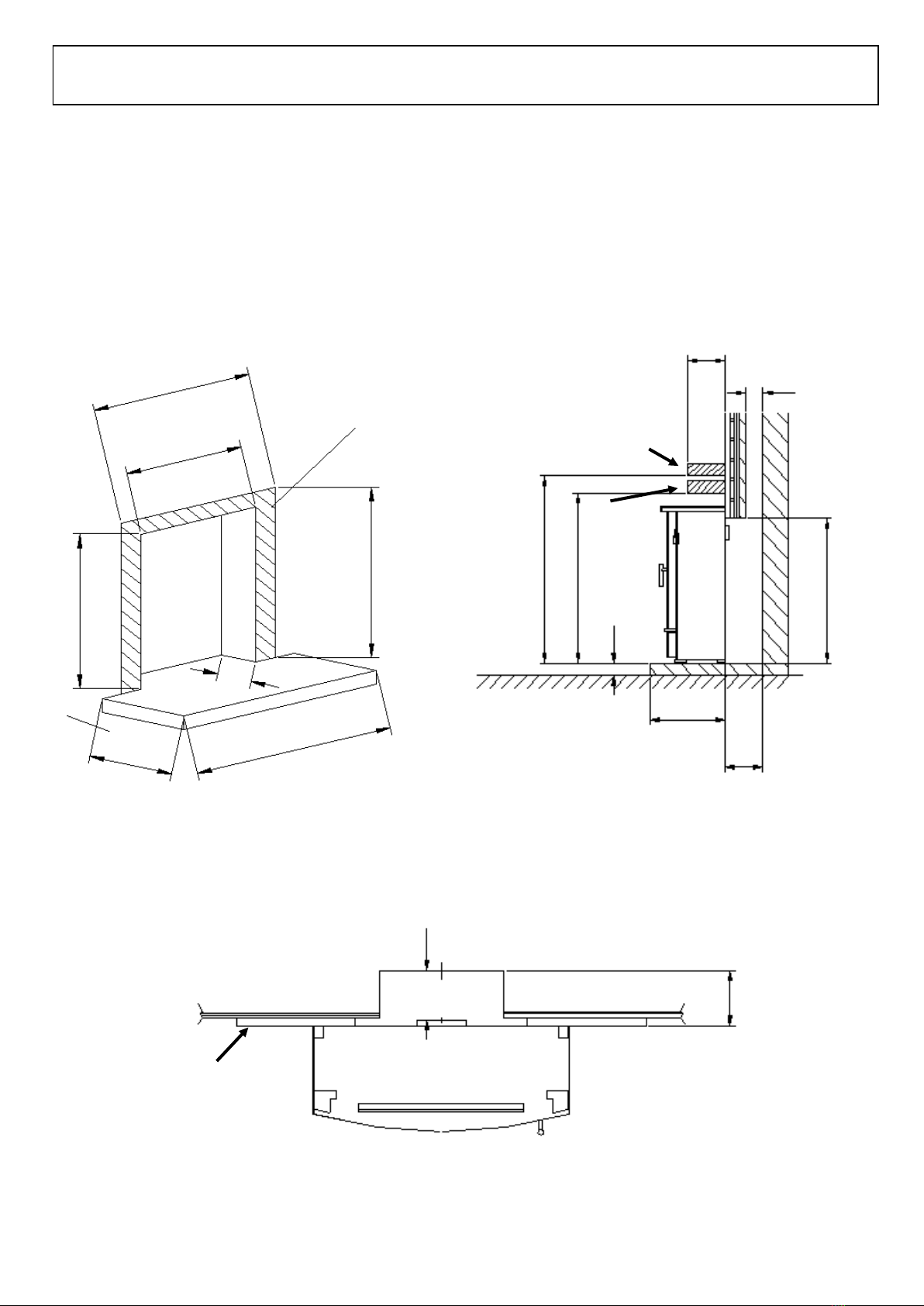

7. - APPLIANCE DIMENSIONS
FENTON CF DIMENSIONS
552
226 625
258
627
100
120
15
57
The diagram above shows the important dimensions only.

11
8. - FLUE REQUIREMENTS
These checks MUST be made before constructing the Builders Opening
The Appliance is suitable for Installation into the following types of Flue:
a. Conventional Stone/Brick Built Flue (Class 1) with a minimum cross sectional dimension of 175mm (7”) with a minimum effective
height of 3 meters.
b. The flue MUST be free of any obstructions. Any dampers or restrictors MUST be removed. Some dampers are impractical to be
removed; therefore they MUST be fixed in some way in the OPEN position.
c. The chimney/flue should be swept if it has been used for solid fuel.
d. A Flue Lined with a 5” Flexible Flue Liner connected to a Register Plate fitted and sealed at the top of the Builders Opening with a
minimum effective height of 3 meters.
e. A Pre-cast Flue with Starter Blocks conforming to BS1289: 1975, 1986, or 1989 or BS EN1858 and having a minimum cross sec-
tional flue of 198mm by 67mm and Starter Blocks providing 115mm deep by 304mm wide with a minimum height of 555mm. No
part of the Pre-cast Flue must be less than 63mm.
f. The Fire may be used in conjunction with a Fully Sealed Rebated 150C rated or Equivalent Purpose Built Fire Surround.
g. Any Pre-Cast Flue must be Sound and Free from Obstructions (Mortar Fangs or Protrusions into the Flue Way) and have an
effective height of over 3 meters.
h. For Pre-cast Flues the walls should be dry-lined over the route of the flue to prevent cracking.
i. A Purpose Designed Flue Box to BS715 fitted with a 5” twin walled flue with a minimum effect height of 3 meters. Details are
available from your authorised supplier.
j. Ensure that only one fireplace is served by the flue system.
K. Ensure that the chimney/flue is continuous from inlet to termination.
l. Ensure that the chimney/flue is structurally sound, so that combustion products do NOT come into contact with combustible
materials outside the chimney.
m. CHECK FLUE PULL. Apply a smoke match or smoke generator to the flue opening at hearth level and observe smoke.
If there is a definite flow into the flue aperture, proceed with installation. If there is not a definite flow into the flue aperture,
preheat the flue for approximately 10 minutes and re-test. If there is not a definite flow towards the flue aperture the flue may
need attention.
DO NOT FIT THE APPLIANCE, SEEK EXPERT ADVICE.
9. - VENTILATION
a. No additional purpose provided ventilation is normally required for the fire when installed in the UK; however this must be
confirmed by the Spillage Test, see Section 18.2.
b. For other Countries refer to National Regulations and Local Codes.
c. This appliance is fitted with an oxygen depletion sensing system, which automatically shuts off the gas supply to the fire if the
oxygen level in the room is depleted, due to lack of primary air, or obstructed flue that would lead to incomplete combustion of the
gas. It must not be tampered with and only replaced with a genuine Nu-Flame ODS Pilot.
10. - GAS SUPPLY
It Is Recommended to Check The Next Section as Building Work May Affect the Gas Supply Routing.
a. Carry out a gas soundness test before working on the gas supply.
b. Gas supply provision should be made in accordance with the latest Gas Safety (Installation and Use) Regulations as amended.
c. Confirm that the fire has been supplied for the correct gas to be used by checking the Data Badge in the base of the fire.
d. A route for a concealed gas supply is provided through a hole in the rear of the fire, at a position of 83.5mm to the left of the centre
of the fire and 28mm up from the base of the Fireplace/Builders opening. An isolation elbow is provided at the control inlet.
Your 8mm gas supply pipe needs to protrude through the back of the convector box by approximately 145mm to achieve a neat
connection onto the back of the isolator elbow on the burner. (This applies to both Manually Controlled and Thermatronic
Radio Frequency Controlled burners.)
e. Where the gas supply passes through walls, floors, voids, concrete and wall cavities the supply should be sleeved.
f. Determine the gas supply pipe size required taking into account any other gas appliances.
g. Determine where the gas supply pipe needs to terminate and fit the 8mm compression isolation/pressure test elbow provided.
h. In common with all other gas appliances, dirt and debris in the gas system can block the valve and gas injectors on this
appliance, and faults caused by this are not covered by the guarantee.
Therefore it is important that all gas pipes must be purged of both air and debris.
i If you suspect that there may still be dirt and/or debris in the gas system, fit a filter in the pipeline, before the gas isolation/pressure
test elbow.
J. Do not use jointing compound on any compression fittings on the fire. The use of jointing compound on the compression joints on
this appliance will possibly invalidate the guarantee, as it can get into the control mechanism and cause a malfunction.
k. Seal off the isolation/pressure test elbow and check all gas connections for gas soundness before proceeding to fit the fire.
! IMPORTANT NOTE ! Always reseal the pressure test point and check that it is gas tight.
(This accounts for a lot of recalls.)

12
Fireplace Construction
The Installation Applications Options Are:
11.0 Installation into a Class 1 or Lined Flue with a 150ºC rated Fire Surround fitted to a Suitable
Fireplace Opening.
12.0 Installation into a Pre-cast Flue. (Fire Surround Requirements)
13.0 Installation into a BS 715 Shallow Flue Box with Twin Wall 5”Flue, False Chimney Breast with
Fire Surround Requirements.
11.1 - FIRE SURROUND APPLICATIONS
There must be no combustible materials inside the fireplace opening.
Sections 11 - 13 are for the various Installation Applications -
Only one will apply.
! IMPORTANT NOTE ! The chosen installation should have
been predetermined and arranged before installing the fire.
Ensure you refer to the section relevant to your requirement.
11. FIRE SURROUND APPLICATION INTO CLASS 1 OR LINED FLUES
FIREPLACE CONSTRUCTION
Fireplace Minimum Requirements
630
min
470 max
300 min
630 min
700 min
300 min
580 max
560 min
Min
Hearth
Min Flat
Area
65min
See
Note
Note: There MUST be 50mm minimum depth from the end of the Spigot
150 min
750
min 680
min 50
Min
350 min deep
by 50 high
Hearth
Chairbrick
Combustible
Shelf
Non Combustible
Shelf
Floor

13
11.2 - FIRE SURROUND REQUIREMENTS (See diagram in section 11.1)
a. If the Fire is to be fitted into a purpose made Fire Surround it must have a temperature rating of 150ºC.
b. Where the fire is to be fitted into an existing 16” chair brick a minimum depth of 65mm must be provided to ensure there is 50mm
minimum from the spigot to any part of the chairbrick. This will allow sufficient volume for Debris.
If sufficient depth is not available the rear of the Chair Brick should be removed or extra depth added to the front.
c. The Fire requires a non-combustible hearth with a upper surface of at least 12mm thick.
d. The surface of the hearth must stand at least 50mm above the floor and level with the fireplace opening.
e. The hearth must project at least 300mm in front of the fireplace opening and 150mm either side (700mm minimum hearth width).
f. The base of the fireplace must be flat, level and square to the face of the fireplace opening.
g. The Surround must cater for a minimum flat surface around the Fireplace Opening allowing 630mm high by 630mm wide.
This is essential in order to achieve a good seal between the face of the surround and the fire.
h. The Fire Surround must be fully sealed to the Fireplace Opening to ensure a good flue seal.
i. The Fireplace Opening should have provision for a gas supply through the rear, see Section 10 Gas Supply.
j. The Thermatronic fire is fitted with Electronic Equipment, which is sensitive to dampness and high humidity so it is very
important that any rendering/building work is allowed to thoroughly dry out before Installation.
! IMPORTANT NOTE ! Dry lined walls – ensure that any air gaps between the back of the plasterboard and wall are
sealed around the builders opening or fireplace as this can affect flue pull and wall staining.
11.3 - CLEARANCES TO COMBUSTIBLE MATERIALS AND SHELVES (Ref: Diagram in section 11.1)
a. A 150mm deep non combustible shelf can be fitted above the fire and should be positioned at least 680mm above the hearth.
For deeper non-combustible shelves they must be raised a further 25mm for every extra 25mm of depth.
b. A 150mm combustible shelf can be fitted above the fire but must be positioned at least 750mm above the hearth.
For deeper combustible shelves they must be raised a further 25mm for every extra 25mm of depth.
c. The sidewalls of a combustible fire surround can be 250mm from the inside of the builders/fireplace opening provided its depth is
no more than 150mm, however this must be increased by 25mm per side for every extra 25mm of depth.
d. With all heating appliances, soft furnishings, decorations and wall coverings may discolour or scorch if placed too close.
e. No combustible material, e.g. curtains must be closer than 500mm to the builders opening.
f. Any combustible wall claddings (wall paper) must be cut back to a height of 750mm and 300 mm either side of the Fireplace
Opening.
g. Due to the heat output of The Fenton CF it is not recommended to use blown vinyl wall covering around the fire.
NOW PROCEED TO SECTION 14 - FIXING THE FIRE.

14
12.1 - EXISTING MINIMUM PRE-CAST FLUE FIREPLACE REQUIREMENTS
! IMPORTANT NOTE ! THERE ARE NUMERIOUS DIFFERENT SIZES OF PRECAST FLUE FIREPLACES
AND THE FOLLOWING DETERMINES THE MINIMUM REQUIREMENTS AND THE
ADDITIONAL BUILDING WORK REQUIRED.
There must be no combustible materials inside the builders opening.
12. INSTALLATION INTO A PRE-CAST FLUE
(Fire Surround Requirements)
Pre-Cast Flue Application
With Fire Surround or
Equivalent
Pre-Cast Fireplaces
Minimum Requirements
65
Min
Fire Surround Back Panel
630
min
470 max
300 min
630 min
65min
See
Note
Min Flat
Area
300 min
Min
Hearth
580 max
560 min
150
67mm by 198mm
Min Flue Size
Combustible
Shelf Position
Non
Combustible
Shelf Position
300 Min
Hearth
65
Min
Depth
580 Max
560 Min
50
680
Min
750
Min
Pre Cast Flue Fireplace
Depth Construction
Note: There MUST be 50mm minimum depth from the end of the Spigot
700 min
50 Min

15
12.2 - FIREPLACE MINIMUM REQUIREMENTS (See diagram in section 12.1)
With the Majority of Pre-Cast Flue Fireplaces there should be sufficient depth-width however the minimum
Dimension shown in the diagram on the previous page must be provided
a. The Minimum Pre-cast Flue Size is 67mm deep by 198mm wide with Starter Blocks providing a Minimum Depth of 115mm by 305mm
wide. No part of the Flue must be less than 63mm.
b. The height of the Pre-cast Fireplace opening must be between 555mm and 580mm. If the Starter Blocks have not been provided
down to Floor level then building work will be required.
c. Where the Pre-cast Flue Fireplace with Starter Blocks provide less than minimum depth of 65mm and width of 305mm a purpose built
extension will be required..
This Extension must be made of Non Combustible materials and fully sealed to the Existing Fireplace.
d. With more up to date Pre-cast Fireplaces the minimum dimensional requirements may be available with no additional building work.
e. If the Fire is to be fitted with a Rebated Fire Surround it must have a temperature rating of 150ºC.
f. The Fire Surround must be fully sealed to the Fireplace Opening to ensure a good flue seal.
g. The Fire requires a non-combustible hearth with an upper surface of at least 12mm thick.
h. The surface of the hearth must stand at least 50mm above the floor and level with the fireplace opening.
i. The hearth must project at least 300mm in front of the fireplace opening and 150mm either side (700mm minimum hearth width).
j. The base of the fireplace must be flat, level and square to the face of the fireplace opening.
k. The Surround must cater for a minimum flat surface around the Fireplace Opening allowing 630mm high by 630mm wide.
This is essential in order to achieve a good seal between the face of the surround and the sealing flanges of the fire.
l. The Fireplace Opening should have provision for a gas supply through the rear, see Section 10 Gas Supply.
m. The Thermatronic controlled fire is fitted with Electronic Equipment, which is sensitive to dampness and high humidity so it is
Very Important that any rendering/building work is allowed to thoroughly dry out before Installation.
! IMPORTANT NOTE ! Dry lined walls – ensure that any air gaps between the back of the plasterboard and wall are sealed
around the builders opening or fireplace as this can affect flue pull and wall staining.
Pre-Cast Flues – ensure the walls are dry lined over the route of the flue otherwise wall cracking will
occur.
12.3 - CLEARANCES TO COMBUSTIBLE MATERIALS AND SHELVES (Ref: Diagram in section 12.1)
a. A 150mm non combustible shelf can be fitted above the fire and should be positioned at least 680mm above the hearth.
For deeper non-combustible shelves they must be raised a further 25mm for every extra 25mm of depth.
b. A 150mm combustible shelf can be fitted above the fire but must be positioned at least 750mm above the hearth.
For deeper combustible shelves they must be raised a further 25mm for every extra 25mm of depth.
c. The sidewalls of a combustible fire surround can be 250mm from the inside of the builders/fireplace opening provided its depth is no
more than 150mm, however this must be increased by 25mm per side for every extra 25mm of depth.
d. With all heating appliances, soft furnishings, decorations and wall coverings may discolour or scorch if placed too close.
e. No combustible material, e.g. curtains must be closer than 500mm to the builders opening.
f. Any combustible wall claddings (wall paper) must be cut back to a height of 750mm and 300 mm either side of the Fireplace Opening.
g. Due to the heat output of The Fenton CF it is not recommended to use blown vinyl wall covering around the fire.
NOW PROCEED TO SECTION 14 - FIXING THE FIRE.

16
13.1 FALSE CHIMNEY BREAST CONSTRUCTION
IMPORTANT
Where The Flue Box Only As An Internal Width of 407mm then the Plaster Board or Surround Back
with a Minimum Opening Width of 420mm is Required see the Diagram Below.
There must be no combustible materials used inside the flue box.
13.2 – BS 715 FLUE BOX BUILT INTO A FALSE CHIMNEY BREAST WITH FIRE SURROUND OR HOLE IN THE WALL
INSTALLATION WITH REQUIREMENTS (See diagrams above).
A BS 715 Flue Box can be built into a false chimney breast and installed at floor level with a suitable Fire Surround.
or
The Fire can be Built-In part way up the wall to create a Hole in the Wall Installation, however it is essential to use marble, slate or stone
slips, fitted around the builders opening. The slips must have a temperature rating of 150ºC and be 20mm (min) thick by 100mm (min) wide.
In order to direct the flow of heated air away from the wall we recommend that a non combustible shelf (lip) is fitted above the top slip,
protruding 30mm – see diagram.
If a Combustible shelf is to be fitted then the top Slip must extend up to the underside of the shelf.
a. A suitable BS715 Shallow Flue Box should be used with the minimum dimensions quoted above.
b. The base of the Flue Box must be level and square to the face of the fireplace opening.
c. The Flue Box must sit on Non Combustible Material of at least 12mm Thick.
d. The Flue Box can be placed against a Non Combustible wall at the rear, however if the wall is combustible it must be spaced 50mm
from the wall.
Shallow Flue Box Application Hearth Mounted BS715 Flue Box
Typically
150
Must Be
65min
470 max
420min
50 mm thick
Insulation
580 max
560 min
Studding No Closer Than 50mm to
Any Part of Flue Box or Flue Pipe
20
Flue Box
Typically 150mm
(But Must Be 65min)
407min
Dimension of Flue Box
420min
Dimension of Front Opening
12min
A Typical Shallow Flue Box
50mm Insulation
on Top & Sides
Note : There Must Be A Minimum Flat Area around The
Fire Of 630mm High by 630mm Wide
13. BS 715 SHALLOW FLUE BOX WITH TWIN WALL 5” FLUE
FALSE CHIMNEY BREAST CONSTRUCTION WITH FIRE SURROUND
50mm
Insulation
50 min to
Combustible
Any Material
Plaster Board
Fire Surround
Back Panel
12mm Min
Non Combustible
Base
Floor
Non
Combustible
Shelf
Non Combustible
Shelf Position
750
min 680
min
300
min
50
min
BS 715
Flue Box

17
e. When building a False Chimney Breast No Combustible materials must be closer than 50mm to the Flue Box.
f. No Combustible materials must be closer than 50mm to the Twin Wall Flue over its entire route through the Property.
g. The Flue Box must be Insulated on its top and sides with 50mm thick Non Combustible Fibreglass Insulation or Equivalent.
h. If plaster board is used in front of the flue box it must be sealed to the box with high temperature Silicone Sealant or an equivalent
flexible sealant.
i. If the Fire is to be fitted with a purpose made Fire Surround it must have a temperature rating of 150ºC.
j. The Fire requires a non-combustible hearth with an upper surface of at least 12mm thick.
k. The surface of the hearth must stand at least 50mm above the floor and level with the fireplace opening.
l. The hearth must project at least 300mm in front of the fireplace opening and 150mm either side (700mm minimum hearth width).
m. The Surround must cater for a minimum flat surface around the Fireplace Opening allowing 630mm high by 630mm wide.
This is essential in order to achieve a good seal between the face of the surround and the sealing flanges of the fire.
n. The Fire Surround must be fully sealed to the Fireplace Opening to ensure a good flue seal.
o. The Fireplace Opening should have provision for a gas supply through the rear, see Section 10 Gas Supply.
p. The Thermatronic fire is fitted with Electronic Equipment, which is sensitive to dampness and high humidity so it is very important that
any rendering/building work is allowed to thoroughly dry out before Installation.
! IMPORTANT NOTE ! Do not forget to take account of the difference in height of the base of the Flue Box when mounting the
box on the floor; it must be level with the Hearth.
13.3 - CLEARANCES TO COMBUSTIBLE MATERIALS AND SHELVES (Ref: Diagrams on Page 19)
a. For Fire Surrounds with a 150mm non combustible shelf it must be fitted above the fire at least 680mm above the hearth.
For deeper non-combustible shelves they must be raised a further 25mm for every extra 25mm of depth.
b. For Fire Surrounds with a 150mm combustible shelf it must be fitted at least 750mm above the hearth.
For deeper combustible shelves they must be raised a further 25mm for every extra 25mm of depth.
c. Any combustible sidewall must be at least 500mm from the inside of the builders/fireplace opening, however with a non combustible
fire surround it can be 250mm from the inside of the builders/fireplace opening provided it does not protrude more than 150mm
and this must be increased by 25mm for every extra 25mm of depth.
d. With all heating appliances, soft furnishings, decorations and wall coverings may discolour or scorch if placed too close.
e. No combustible material, e.g. curtains must be closer than 500mm to the builders opening.
f. Any combustible wall claddings (wall paper) must be cut back to a height of 750mm and 300 mm either side of the Fireplace
Opening.
g. Due to the heat output of The Fenton CF it is not recommended to use blown vinyl wall covering around the fire.
NOW PROCEED TO SECTION 14 - FIXING THE FIRE.

18
14.1 - FITTING The Silicone Sealing Strip (Heat Engine & Fenton Case)
Heat Engine.
It is very important that a good seal is achieved between the Heat Engine Back Box flanges and the front of the
fireplace back panel/wall for safety reasons and to achieve maximum efficiency. Take the self adhesive silicone
sealing strip from the fitting kit and neatly apply to the flanges of the back box as shown,
(apply as close to the edge as possible), cutting to the appropriate lengths as required.
To also ensure there is a good seal between the base of the Heat Engine and the hearth apply a length of
self adhesive silicone sealing strip to along fire bottom flange of the back box.
The foam seals will ensure that when the Heat Engine is fixed to the Fireplace/Builders opening it will be fully
sealed ensuring the flue draw isn’t affected.
Fenton Case
Also apply Sealing Foam to the back flanges of the Fenton case.
14.2 - FITTING THE Fire –reference should be made to the photographs
a. Using a Dust Sheet or equivalent protect the area around the Fire Installation.
b. Remove the Fire from the box and lay it on its back. Using the Screw Driver provided slacken the
2 Screws at the Bottom Left and Right corners Securing the Glass Frame and ease it
outward slightly at the base then pull down and remove.
! IMPORTANT NOTE ! TAKE GREAT CARE WHEN WORKING INSIDE THE FIRE NOT TO MARK THE CERAMIC LINING PANELS.
c. Now with the fire on its Base, now remove the Glass Frame Assembly
by firstly remove the 2 screws holding Front Coal Support.
d. Now remove the Burner Assembly by taking out the 2 screws towards the back then slide the
Assembly forward taking care not to Mark the Liners, if the fire is fitted with a Remote Control
System then slide out the Receiver Box noting how it fits snuggle at the right side.
e. Remove the Debris Plate at the back by removing the 2 screws allowing access through the Debris Duct for fitting the Gas Supply.
f. There are fixing holes in the front side flanges which can be used if there is sufficient strong material for fixing. We don’t however
recommend drilling/fixing through a Fire Surround Back Panel as this could later cause cracking.
We do however recommend our cable fixing system which is supplied to secure the unit into the fireplace.
The cable fixing system will also pull the unit tight back into the fireplace to make a good seal.
This is very important to ensure efficient and safe operation of the fire.
See details with diagram of the Cable Fixing System on the next page .
14. FIXING THE FIRE

19
g. Make reference to the diagram below.
h. There are 2 cables supplied; 1 to be used each side of the unit.
and Working at 200mm centres in the builders opening drill the lower holes 27mm up from the base and drill the higher holes 510mm up
from the base see drawing below. Secure the 4 Eyebolts supplied with the Raw plugs to the back of the fireplace.
Ensure the Eyebolts are fully screwed in.
IMPORTANT: ENSURE THE MATERIAL THE EYEBOLT/RAWPLUG IS FIXED INTO IS SOLID AND SOUND.
If the fixing is not sound the Rawlplug/Eyebolt will be pulled out and the fire will not be sealed to the Fireplace Opening.
Note: With the minimum depth fireplace enclosure it may be necessary to sink the Eye Bolt Heads into the Brickwork.
Reference Should Be Made To The Diagram Below
i. There are 2 holes in the Back Box of the fire; 1 each side towards the top. Feed a cable through each hole.
j. Then feed the cables though the eyebolts on either side and then through the holes in the back of the Back Box.
k. Slide the Fire part way up against the fireplace (leaving it sticking out approximately 50mm) checking the gas supply pipe and
isolation/pressure test elbow clears through the Debris Duct into the front of the Fire.
l. Slide the Fire fully home ensuring that the sealing strips on the rear of the Back Box outer frame stay in position to make a seal against
the fireplace back panel. While sliding the unit into the fireplace opening pull on the excess cable.
m. Locate the supply pipe into the slot in the Debris Opening and replace the Debris Plate.
n. The Cable Fix Adjuster and Lock Screw can now be fitted through the hole in the Back Box onto the cable and tightened up to tension the
fire back into the fireplace.
The fire should be secure and not liable to movement.
Surplus fixing cable MUST NOT be cut off and must be tucked back through the central hole in the Back Box.
This is particularly important with the Thermatronic Control System to keep the cables away from any electronics.
o. If any of the silicone sealing strips are not compressed and/or if there are gaps they must be filled with a suitable sealant, ideally high
temperature silicone or fireclay. Refit the Burner/Controls Assembly with the 2 screws and with the Thermatronic Control System slide the
Receiver Box into place if it as come out of place.
IMPORTANT : AFTER FITING THE PIPEWORK ENSURE THE PIPES ARE FREE OF DEBRIS AS THIS CAN CAUSE MAJOR ISSUES.
p. Connect the isolation/pressure test elbow to the control valve and with it fully open check the joint for gas soundness.
q. Check that all gas connections are sound. The appliance has been factory tested; however the connections may have been disturbed in
transit or storage.
! IMPORTANT NOTE ! Always reseal the pressure test point and check that it is gas tight. (This accounts for a lot of recalls.)
Hole Positions in back of
Fireplace Opening
Do not cut excess cable, it will
be needed each time the fire is
removed. Push the excess cable
through the central hole. Keep
any excess cable away from the
Electronic Control System.
Pull up the cable as tight as
possible before tightening the
Clamp Bush and winding out
with the Tension Bolt.
Side View Of Cable System
Cable Stop End with cable
pushed through Holes in the
Back Box
Eyebolts
and
Rawlplugs
Clamp Bush
and
Tension Bolt.
Back Box
Position of
Holes in
Back Box

20
15. - ARRANGEMENT OF THE FUEL EFFECT.
Fitting the Fuel Effect Parts
Remove all the Fuel Effect parts & familiarise yourself with each part. The Fuel Effect depends on the one ordered be it the Coal Fuel
Bed or the Wood Fuel Bed.
Both the Coal and Wood Fuel Effects have a common Back Matrix (sits at the back of the burner, see ‘a’ below).
The additional Fuel Effect Parts are detailed below.
Coal Fuel Bed:
You will see that there are 3 individually wrapped Large Coals pieces plus three small bags containing the
following Loose Coals : 3off Long Larger ‘K’ coals, 11off marked ‘J’ Coals and 6off marked ‘G’ Small coals.
Wood Fuel Bed:
You will see there are 3 individually wrapped Large Wood pieces plus 5off Smaller Wood pieces marked 1 to 5.
! Tip ! TAKE CARE NOT TO DAMAGE THE LINER PANELS INSIDE THE FIRE WHEN FITTING THE FUEL BED.
The First Stage ‘a’ is common to both the Coal & Wood Effects
a. Fit the Rear Matrix behind the Burner as shown.
Ensure it is sat up against the back with the word
‘TOP’ facing you.
FOR COAL EFFECT PLEASE READ ON FOR WOOD EFFECT TURN TO PAGE 24
15.1 - ARRANGING THE COAL EFFECT
a. Slide the Front Moulded Coal
into positions between Front Heat
Shield and Burner as shown.
Health & Safety Advice
Refractory Ceramic Fibre (RCF)
Advice when working with Fuel Bed Components including Installing, Servicing and Disposal.
The Fuel Effect parts and possible Linings of this fire are made from Refractory Ceramic Fibre (R.C.F.) a Class 2 Carcinogen which is
a material designed for this Application. Excessive exposure to these types of materials may cause temporary irritation to eyes, skin
and respiratory tract. Therefore take care when handling these articles to ensure dust is kept to a minimum.
It is not necessary to wear protective clothing when handling these articles but we do recommend you follow the normal hygiene rules
of not smoking, eating or drinking in the work area, and always wash your hands before eating or drinking.
To minimise the release of RCF fibres during installation and servicing a HEPA filtered vacuum is recommended to remove any dust
accumulated in and around the fire both before and after working on it.
When Servicing and if replacing these parts we do not recommend they are broken up but are sealed within a heavy duty polythene
Bag and labelled as “RCF waste”. This is not classified as “hazardous waste” and may be disposed of at a local licensed landfill site.
