Nuband ACTIVE 3 User manual

- 1 -

- 1 -
EN
INDEX
DEVICE ACTIVATION AND CHARGING P. 2
PRODUCT QUICK USE P. 3
PAIRING BRACELET P. 4
PERSONAL DATA SETTINGS P. 6
SYNCHRONOUS DATA P. 7
FUNCTION ICONS P. 8
SLEEP MONITOR P. 9
CALL AND NOTIFICATION REMINDER P. 10
SEDENTARY REMINDER P. 11
ALARM SETTING P. 12
REMOTE CAMERA CONTROL P. 13
SET YOUR GOALS P. 14

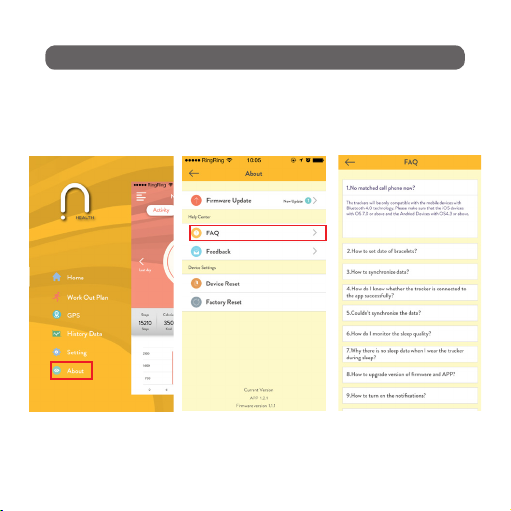

NUBAND ACTIVE 3 FAQ P. 15
FIRMWARE UPDATE P. 16
SHARING FUNCTION P. 17
UNPAIR P. 18
PRODUCT SPECIFICATION P. 19
WARRANTY P. 20
DISCLAIMER & RETURNS P. 21

- 2 -
EN
1.DEVICE ACTIVATION AND CHARGING
A) How to charge it
1. Built-in USB Charger. No additional
charger needed.
2. Pull out the band (the side without
wristband buckle, both sides can be
pulled out).
3. Plug the device (the side with chip)
directly into any USB port, Laptop or
an Adaptor to charge the battery.
B) Activate the Device
Before use, please connect the battery charger to charge
the device for activation. The progress bar will change
from empty to full to indicate full activation. After
activation, the device will start charging the battery.
C) Battery Indicator
The battery indicator is displayed on the home screen of the
device. When the battery of the device is lower than 10%, all
functions are closed and only lower battery icon will show to
remind you to charge the battery.
Fitness Tracker Get Started
What included
1. Activity tracker
2. User Manual
3. Gift Box
A) How to charge it
Size: Main body: 42 X 10 X 247mm
Wristband: 209.6*16.8 mm
Weight: 21.45 g
Battery: 55mAh Rechargeable
lithium polymer battery
Display: 0.87’ OLED
Data Memory: 30 days
Walking distance: Max 999.99km
Calories burned: Max 9999.9kcal
Activity time: 99h59min
Specifications
Set different notification on the app, the device will vibrate
when users have incoming calls, text message,
Whatsapp, Twitter, Facebook, Wechat, QQ, etc.
5. Phone Notifications
Customize your personal reminder for better life habit,
like pill time, drinking water, etc. Sedentary Alarm is also
supported to remind you exercise more.
6. Personal Reminder
B) Activate the Device
Touch the screen to cycle through each function display
Set vertical or horizontal display from the APP
3. Activity Mode 4. Sleep Mode
C) Battery Indicator
The device can recognize and
calculate the sleep status without
any action by users. It will track
your sleep hours and quality. If you
wear the bracelet at the night and
set the alarm clock, then it will
wake you up with slight vibration








1822

 
 

7. Phone GPS Supported
The app combines with phone
GPS to track the exercise
trajectory, to record the Speed,
Distance, Calories and Duration.
1. Built-in USB Charger. No additional charger needed.
2. Pull out the band (the side with wristband buckle,
both sides can be pulled out).
3. Plug the device (the side with chip) directly
into any USB port, Laptop or an Adaptor or
an Adaptor to charge the battery.
Built-in USB Charger
Before use, please connect the battery charger to
Charge the device for activation. The progress bar will
change from empty to full to indicate full activation. After
activation, the device will start charging the battery.
The battery indicator is displayed on the home screen of
the device. When the battery of the device is lower than
10%, all functions are closed and only lower battery icon
will show to remind you to charge the battery.
Low
battery Fully
charged
battery
Fitness Tracker Get Started
What included
1. Activity tracker
2. User Manual
3. Gift Box
A) How to charge it
Size: Main body: 42 X 10 X 247mm
Wristband: 209.6*16.8 mm
Weight: 21.45 g
Battery: 55mAh Rechargeable
lithium polymer battery
Display: 0.87’ OLED
Data Memory: 30 days
Walking distance: Max 999.99km
Calories burned: Max 9999.9kcal
Activity time: 99h59min
Specifications
Set different notification on the app, the device will vibrate
when users have incoming calls, text message,
Whatsapp, Twitter, Facebook, Wechat, QQ, etc.
5. Phone Notifications
Customize your personal reminder for better life habit,
like pill time, drinking water, etc. Sedentary Alarm is also
supported to remind you exercise more.
6. Personal Reminder
B) Activate the Device
Touch the screen to cycle through each function display
Set vertical or horizontal display from the APP
3. Activity Mode 4. Sleep Mode
C) Battery Indicator
The device can recognize and
calculate the sleep status without
any action by users. It will track
your sleep hours and quality. If you
wear the bracelet at the night and
set the alarm clock, then it will
wake you up with slight vibration








1822

 
 

7. Phone GPS Supported
The app combines with phone
GPS to track the exercise
trajectory, to record the Speed,
Distance, Calories and Duration.
1. Built-in USB Charger. No additional charger needed.
2. Pull out the band (the side with wristband buckle,
both sides can be pulled out).
3. Plug the device (the side with chip) directly
into any USB port, Laptop or an Adaptor or
an Adaptor to charge the battery. Built-in USB Charger
Before use, please connect the battery charger to
Charge the device for activation. The progress bar will
change from empty to full to indicate full activation. After
activation, the device will start charging the battery.
The battery indicator is displayed on the home screen of
the device. When the battery of the device is lower than
10%, all functions are closed and only lower battery icon
will show to remind you to charge the battery.
Low
battery Fully
charged
battery

- 3 -
EN
When using this band for the first time, please charge 2-3 hours prior
to use. When charging, the battery symbol will appear and the band will
automatically switch on, time and date will automatically update when the
phone is synced and connected.
Notice:
1. Press the front touch button, the band screen will lit up, and it will enter
the clock interface by default
2. Open ‘Lift wrist to light on screen’ under app setting, the screen would lit up
when the wrist is turned over.
2.PRODUCT QUICK USE
Download and install
You have to download and install the “ Nuband Health”
App from the App store or Google Play store.

- 4 -
EN

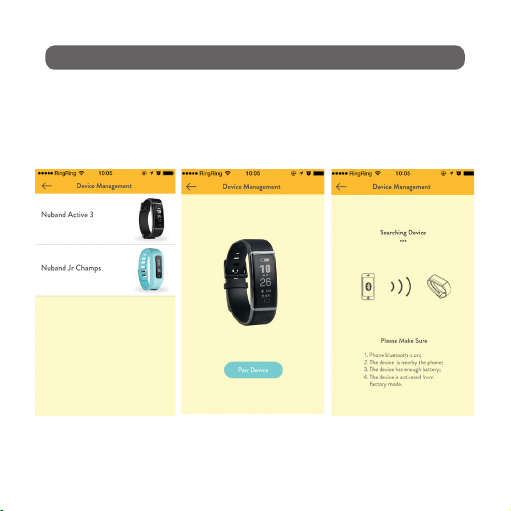

3.PAIRING BRACELET
1. Open the Bluetooth on the phone
2. Open App > Select Nuband Active 3 > click “Pair Device” >”Searching
Device ” > click the device code when it is searched > pair successfully.
3. After pairing , it will show “Bluetooth Pairing Request ”, click “Pair”.

- 5 -
EN
“Nuband Active 8E:0F:64” would like
to pair with your iPhone.

- 6 -
EN
Under Home Screen click on the left top Menu Bar , then click Setting
>Personal Info to enter personal information. This will then personalize
information on your band for more accurate data.
4.PERSONAL DATA SETTINGS
(Menu Bar)

- 7 -
EN

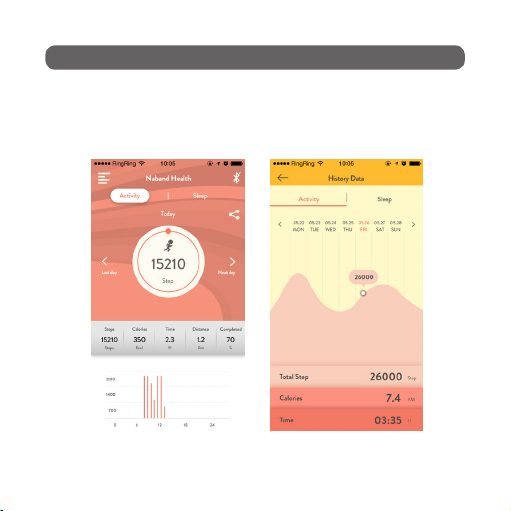

The band automatically synchronizes the data after pairing/connecting with
the smart phone or you may hold and swipe down the interface to manually
synchronize. Data includes steps, calories, distance, date and time. You can
check the history data by the menu bar .
5.SYNCHRONOUS DATA

- 8 -
EN

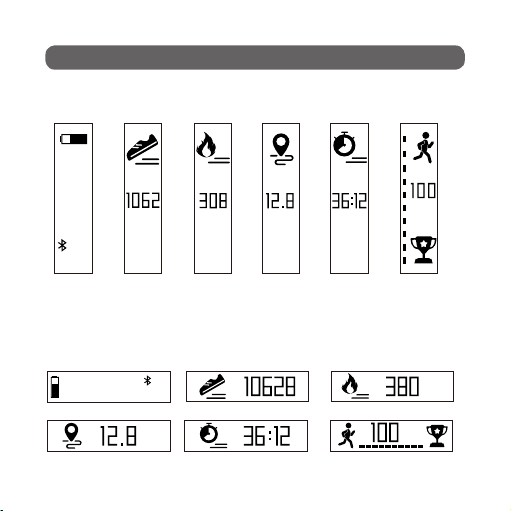

6.FUNCTION ICONS
Touch the screen to cycle through each function display.
Set vertical or horizontal display from the APP.
KCAL KM
%
Firmware Update
10:
26
AM
11/09
Move Food Water
Pill Well Done
Linda
[phone]
Linda
[phone]
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
横屏效果图
KCAL
KM
%
Firmware Update
10: 26
AM
11/09
Move Food Water
Pill Well Done
Linda
[phone]
Linda
[phone]
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
横屏效果图
KCAL
KM
%
Firmware Update
10: 26
AM
11/09
Move Food Water
Pill Well Done
Linda
[phone]
Linda
[phone]
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
横屏效果图
KCAL KM
%
Firmware Update
10: 26
AM
11/09
Move Food Water
Pill Well Done
Linda
[phone]
Linda
[phone]
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
横屏效果图
KCAL
KCALSTEPS
KM
%
Firmware Update
10: 26
10
26
AM
AM
11/09
11/09
Move Food Water
Pill Well Done
Linda
[phone]
Linda
[phone]
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
Linda
Hey, play
football tonight.
:
KM
%
M
o
v
e
Linda
F
o
o
d
W
a
t
e
r
P
i
l
l
Well
Done
！
Linda +7(90
8) 69
29181
+7(90
8) 69
29181
Firm
ware
Updat
e
Linda
Hey,
play
foot
ball
toni
ght.
Linda
Hey,
play
foot
ball
toni
ght.
Linda
Hey,
play
foot
ball
toni
ght.
Linda
Hey,
play
foot
ball
toni
ght.
Linda
Hey,
play
foot
ball
toni
ght.
Linda
Hey,
play
foot
ball
toni
ght.
Linda
Hey,
play
foot
ball
toni
ght.
Linda
Hey,
play
foot
ball
toni
ght.
横屏效果图 竖屏效果图

- 9 -
EN
You need to wear the band during sleep, and the band will analyze the quality
of your sleep according to your nocturnal movements and monitor your
entire sleep schedule. You can view this information daily or check the
History Data by the menu bar.
7.SLEEP MONITOR

- 10 -
EN
8.CALL AND NOTIFICATION REMINDER
8.1 After connecting the band to your smart device, enter the notification
page under setting to turn on the incoming call and message reception, and
the band will receive the message, phone call, Facebook messages and/or
selected chat apps.
Please accept phone app permission under the Phone Setting.

- 11 -
EN
9.SEDENTARY REMINDER
To set a sedentary reminder, go under the notification page, go to Sedentary
Reminder > Start Date > Set Your Time. If you are not active within the set time,
the band will vibrate to remind you to move.

- 12 -
EN
10.ALARM SETTING
Under the notification screen, select ‘Wakeup Alarm’to set the alarm; the
band will vibrate at the preset times. The alarm clock can be set daily, by a
day of the week, alarm type, and you can create up to 5 alarm clocks.

- 13 -
EN
11.REMOTE CAMERA CONTROL
Go to Setting > Camera Control, turn on the phone camera > then shake
the band to take a photo. The screen will display taking photo. Remember to
accept the app to access your camera.

- 14 -
EN
12.SET YOUR GOAL
You can set your goals by selecting ‘Work Out Plan’ under homepage, then
select ‘Setting’ and select your customize workout plan.

- 15 -
EN
13.NUBAND ACTIVE 3 FAQ
There are “FAQ” under the About page, it will answer the most common
questions about the application, including setting and using additional
functions.

- 16 -
EN
14.FIRMWARE UPDATE
There is a “Firmware upgrade” section under the About page, which will show
the current firmware version and new update for the latest firmware version.

- 17 -
EN
15.SHARING FUNCTION
Click on the Sharing icon to share your information via Facebook, Twitter ,
Instagram or other social media.

- 18 -
EN
16.UNPAIR
If you need to disconnect the band , click ‘Setting’ , click “About Device” ,
press “Unpair”.
