Nuband JR CHAMPS User manual

- 1 -

- 1 -
EN
INDEX
DEVICE ACTIVATION AND CHARGING P. 2
PRODUCT QUICK USE P. 2
BINDING BRACELET P. 3
PERSONAL DATA SETTINGS P. 4
SYNCHRONOUS DATA P. 5
FUNCTION ICONS P. 6
SLEEP MONITOR P. 6
CALL AND NOTIFICATION REMINDER P. 7
SEDENTARY REMINDER P. 8
ALARM SETTING P. 9
REMOTE CAMERA CONTROL P. 10
SET YOUR GOALS P. 11
NUBAND JR CHAMPS FAQ P. 12
FIRMWARE UPDATE P. 13
SHARING FUNCTION P. 14
UNPAIR P. 15
PRODUCT SPECIFICATION P. 16
WARRANTY P. 17
DISCLAIMER & RETURNS P. 18

- 2 -
EN
1.DEVICE ACTIVATION AND CHARGING
When using this band for the first time, please charge 2-3 hours prior to
use. When charging, the battery symbol will appear and the band will
automatically switch on, time and date will automatically update when
the phone is synced and connected.
A) How to charge it
1. Insert tracker into USB charger holder.
Ensure direction is correct for both metal
contacts touch.
2. Plug USB charger directly into any USB port.
Laptop or an adapter to charge the battery.
B) Activate the Device
Before use, please connect the USB charger to
charge the device for activation. The progress
bar will change from empty to full to indicate full
activation. After activation, the device will start
charging the battery.
C) Battery Indicator
The battery indicator is displayed on the home
screen of the device. When the battery of the device
is lower than 10%, all functions are closed and only
lower battery icon will show to remind you to charge
the battery.
Notice:
1. Press the front touch button, the band screen will lit up, and it will
enter the clock interface by default
2. Open ‘Lift wrist to light on screen’ under app setting, the screen would
lit up when the wrist is turned over.
2.PRODUCT QUICK USE
Download and install
You have to download and install the “Nuband Health”
App from the App store or Google Play store.
Fitness Tracker Get Started
What included
1. Activity tracker
2. User Manual
3. Gift Box
A) How to charge it
Size: Main body: 42 X 10 X 247mm
Wristband: 209.6*16.8 mm
Weight: 21.45 g
Battery: 55mAh Rechargeable
lithium polymer battery
Display: 0.87’ OLED
Data Memory: 30 days
Walking distance: Max 999.99km
Calories burned: Max 9999.9kcal
Activity time: 99h59min
Specifications
Set different notification on the app, the device will vibrate
when users have incoming calls, text message,
Whatsapp, Twitter, Facebook, Wechat, QQ, etc.
5. Phone Notifications
Customize your personal reminder for better life habit,
like pill time, drinking water, etc. Sedentary Alarm is also
supported to remind you exercise more.
6. Personal Reminder
B) Activate the Device
Touch the screen to cycle through each function display
Set vertical or horizontal display from the APP
3. Activity Mode 4. Sleep Mode
C) Battery Indicator
The device can recognize and
calculate the sleep status without
any action by users. It will track
your sleep hours and quality. If you
wear the bracelet at the night and
set the alarm clock, then it will
wake you up with slight vibration








1822

 
 

7. Phone GPS Supported
The app combines with phone
GPS to track the exercise
trajectory, to record the Speed,
Distance, Calories and Duration.
1. Built-in USB Charger. No additional charger needed.
2. Pull out the band (the side with wristband buckle,
both sides can be pulled out).
3. Plug the device (the side with chip) directly
into any USB port, Laptop or an Adaptor or
an Adaptor to charge the battery. Built-in USB Charger
Before use, please connect the battery charger to
Charge the device for activation. The progress bar will
change from empty to full to indicate full activation. After
activation, the device will start charging the battery.
The battery indicator is displayed on the home screen of
the device. When the battery of the device is lower than
10%, all functions are closed and only lower battery icon
will show to remind you to charge the battery.
Low
battery Fully
charged
battery
10 :26PM
DEC
13
Tracker
Metal
Contact
USB Charger
Holder

- 3 -
EN
3.BINDING BRACELET
1. Open the Bluetooth on the phone
2. Open App > Select Nuband Jr Champs > click “Pair Device” >
”Searching Device ”> click the device code when it is searched >
bind successfully.
3. After binding , it will show “Bluetooth Pairing Request ”, click “Pair”.
Nuband

- 4 -
EN
Under Home Screen click on the left top Menu Bar, then click Setting >
Personal Info to enter personal information. This will then personalize
information on your band for more accurate data.
4.PERSONAL DATA SETTINGS
(Menu Bar)

- 5 -
EN

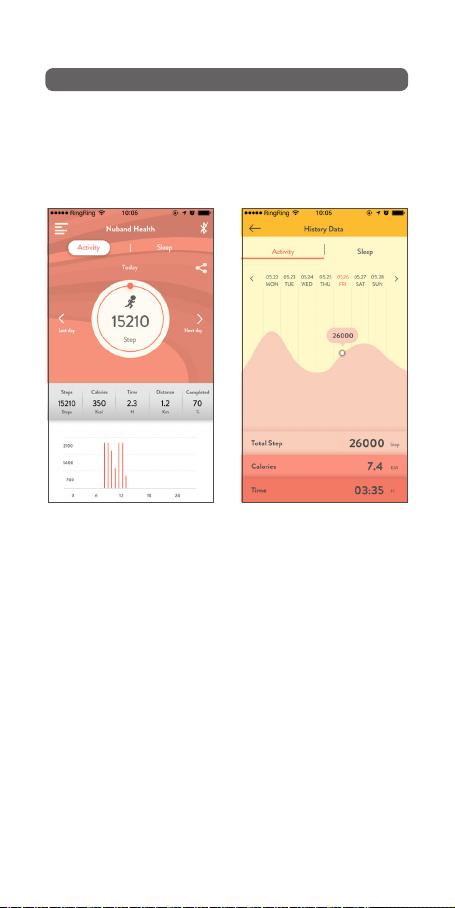

The band automatically synchronizes the data after pairing/connecting
with the smart phone or you may hold and swipe down the interface to
manually synchronize. Data includes steps, calories, distance, date and
time. You can check the history data by the menu bar .
5.SYNCHRONOUS DATA

- 6 -
EN

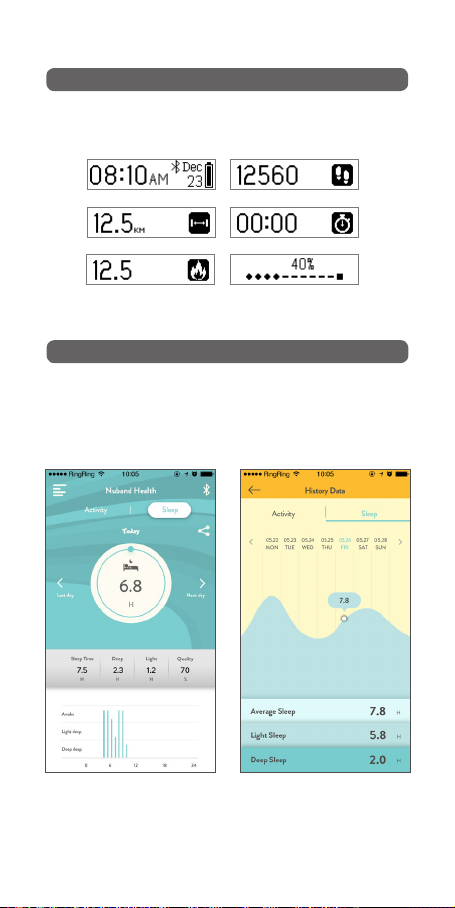

6.FUNCTION ICONS
Touch the screen to cycle through each function display.
You need to wear the band during sleep, the band will analyze the
quality of your sleep according to your nocturnal movements and
monitor your entire sleep schedule. You can view this information daily
or check the History Data by the menu bar.
7.SLEEP MONITOR

- 7 -
EN

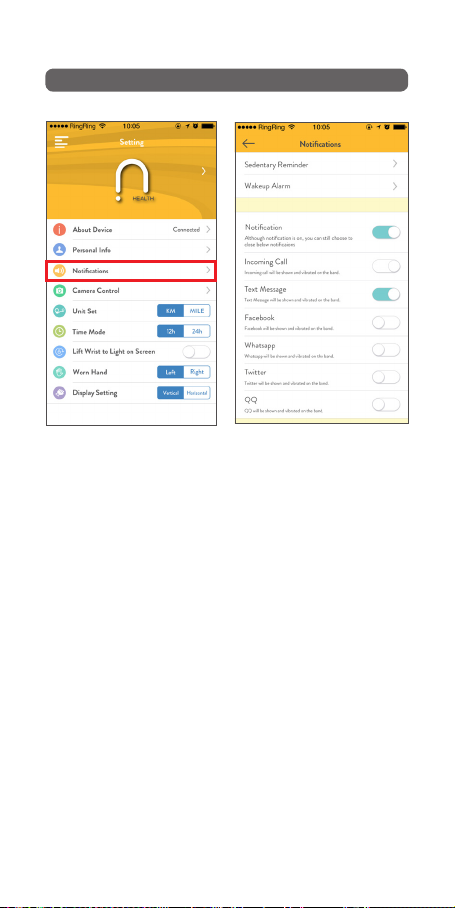

8.CALL AND NOTIFICATION REMINDER
8.1 After connecting the band to your smart device, enter the
notification page under setting to turn on the incoming call and
message reception, and the band will receive the message, phone call,
Facebook messages and/or selected chat apps.
* Android phone - Please accept phone app permission under the
Phone Setting.

- 8 -
EN

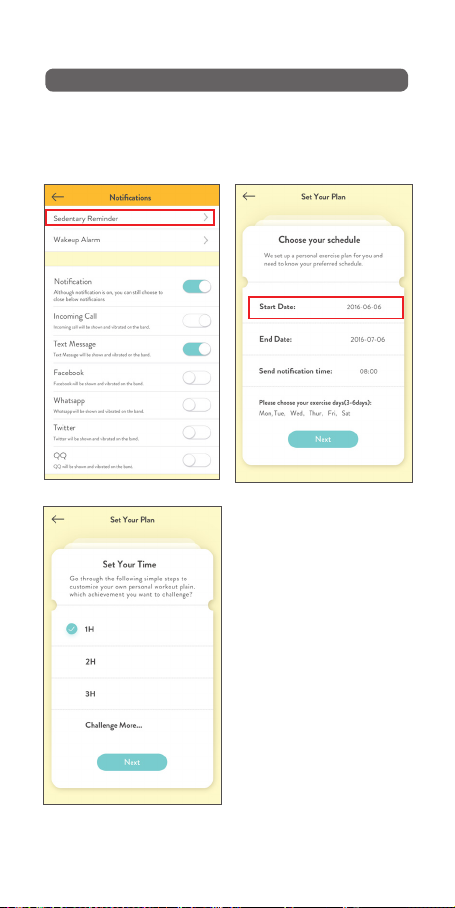

9.SEDENTARY REMINDER
To set a sedentary reminder, go under the notification page, go to
Sedentary Reminder > Start Date > Set Your Time. If you are not
active within the set time, the band will vibrate to remind you to move.

- 9 -
EN

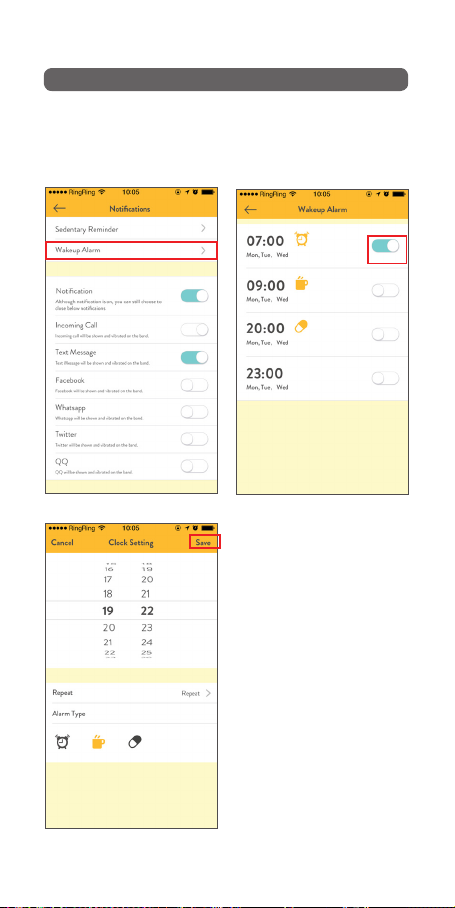

10.ALARM SETTING
Under the notification screen, select ‘Wakeup Alarm’to set the alarm;
the band will vibrate at the preset times. The alarm clock can be set daily,
by a day of the week, alarm type, and you can create up to 5 alarm clocks.

- 10 -
EN
11.REMOTE CAMERA CONTROL
Go to Setting > Camera Control, turn on the phone camera > then
shake the band to take a photo. The screen will display taking photo.
Remember to accept the app to access your camera.

- 11 -
EN

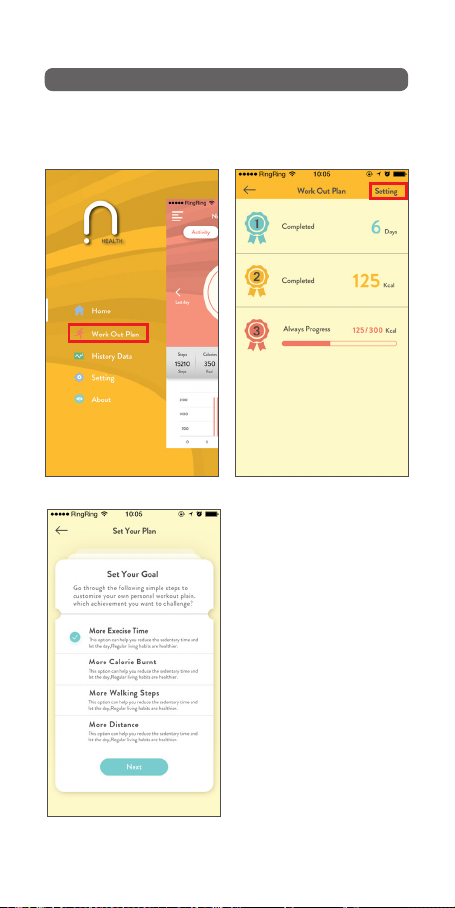

12.SET YOUR GOAL
You can set your goals by selecting ‘Work Out Plan’under homepage,
then select ‘Setting’ and select your customize workout plan.

- 12 -
EN
13.NUBAND JR CHAMPS FAQ
There are “FAQ” under the About page, it will answer the most common
questions about the application, including setting and using additional
functions.

- 13 -
EN

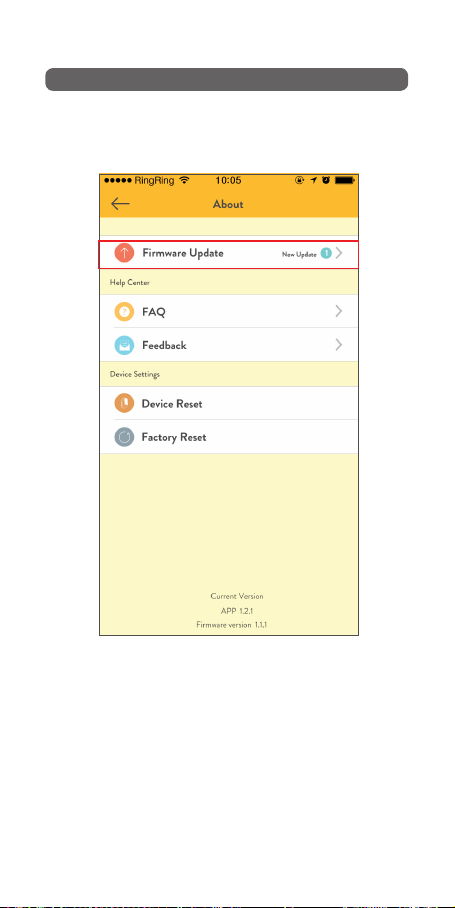

14.FIRMWARE UPDATE
There is a “Firmware upgrade” section under the About page, which
will show the current firmware version and new update for the latest
firmware version.

- 14 -
EN
15.SHARING FUNCTION
Click on the Sharing icon to share your information via Facebook, Twitter
and Instagram.

- 15 -
EN
16.UNPAIR
If you need to disconnect the band , click ‘Setting’ , click “About Device”
, press “Unpair”.

- 16 -
EN
PRODUCT SPECIFICATION
The battery indicator is displayed on the
home screen of the device.
When the battery of the device is lower
than 10%, all functions are
closed and only lower battery icon will
show to remind you to charge the
battery.
Fitness Tracker Get Started
What included
1. Activity tracker
2. User Manual
3. Gift Box
How to charge it
1. Built-in USB Charger. No additional charger needed
2. Pull out the band (the side with wristband buckle, both
sides can be pulled out)
3. Plug the device (the side with chip) directly into any USB
port, Laptop or an Adaptor or an Adaptor to charge the
battery
Size: Main body: 38 X 15.5 X 11mm
Wristbands: 230*14mm / 190*14mm
Weight: 22g
Battery: 55mAh Rechargeable
lithium polymer battery
Display: 0.91’ OLED
Data Memory: 30 days
Walking distance: Max 999.99km
Calories burned: Max 9999.9kcal
Activity time: 99h59min
Waterproof Level: IP65
Bluetooth: 4.0
Specifications
Set different notification on the app, the device will vibrate
when users have incoming calls, text message,
Whatsapp, Twitter, Facebook, Wechat, QQ, etc.
5. Phone Notifications
Customize your personal reminder for better life habit,
like pill time, drinking water, etc. Sedentary Alarm is also
supported to remind you exercise more.
6. Personal Reminder
Before use, please connect the battery
charger to Charge the device for
activation. The progress bar will change
from empty to full to indicate full
activation. After activation, the device
will start charging the battery.
1. Activate the Device
Touch the screen to cycle through each function display
Set vertical or horizontal display from the APP
3. Activity Mode 4. Sleep Mode
2. Battery Indicator
The device can recognize and
calculate the sleep status without
any action by users. It will track
your sleep hours and quality. If you
wear the bracelet at the night and
set the alarm clock, then it will
wake you up with slight vibration
Built-in USB Charger
Low
battery
Fully charged
battery








1822

 
 

7. Phone GPS Supported
The app combines with phone
GPS to track the exercise
trajectory, to record the Speed,
Distance, Calories and Duration.
247mm
Working condition: -10°C~50°C

- 17 -
EN
Nuband Jr Champs 24 month Warranty
Nuband Jr Champs is covered by a 24 months (2 years) warranty against
defects in materials and workmanship under normal use.
If a hardware defect occurs within the warranty period of 24 months
Nuband Jr Champs will either replace defective part or provide a
replacement product, providing proof of purchase is sent with the item.
A replacement product or part assumes the remaining warranty of the
original product or 24 months from the date of replacement or repair,
whichever is longer.
When a product is exchanged or part of product is exchanged, any
replacement becomes your property and replaced item becomes Nuband
Jr Champs property. Parts provided by Nuband Jr Champs in fulfillment
of this warranty obligation must be used in products for which warranty
services is claimed. When returning product under warranty, item must
be returned along with original packaging and retailer receipt. Without
the receipt, the warranty will be considered invalid.
It is your responsibility to back any data up. If in repair or replacement,
goal data is lost Nuband Jr Champs claim no responsibility for this.
Nuband Jr Champs is not responsible for product failure caused by none
compliance with product instructions. The warranty does not cover the
cost of returning the product, this must be born by the customer.
No Nuband Jr Champs reseller, agent or employee is authorized to make
any modification, extension or addition to this limited warranty. If any
term is held to be illegal, or unenforceable, the legality or enforceability
of the remaining terms shall not be affected or impaired.

- 18 -
EN
Nuband Jr Champs Product Disclaimer
Nuband Jr Champs is a device developed to assist monitoring aspects of your
health but should never replace the professional advice of your Doctor or
Physician.
Nuband Jr Champs are not a licensed medical conditions or any kind, or
We strongly recommend that you should consult a Doctor or Physician before
partaking in any type of physical exercise fitness plan or diet.
Returns
If your Nuband Jr Champs should ever need to be replaced under warranty, send your
Nuband Jr Champs along with proof of purchase to the following address:
Dartmouth Brands Ltd
C/O Ibex Fulfilment Logistics
Unit 15 Hearder Court
Beechwood Way
Plymouth PL7 5HH
UK
Email: [e-mail]
Because of possible loss, we recommend insuring your Nuband Jr Champs , return
receipt requested, when using the mail. If you do not obtain the proper receipt within
a reasonable time, start a tracer through the origina ce. Please allow 2
to 3 weeks from the date we receive your package for your replacement Nuband Jr
Champs to arrive.
iPhone®, iPod®, iPad®, iPad Mini®, iPad Air®, iOS®, Retina display®,
Apple and the Apple logo are trademarks of Apple Inc.,
registered in the U.S. and other countries. App Store is a service mark of Apple Inc
Android and Google Play are trademarks of Google Inc.
Samsung Galaxy S® and Samsung Galaxy Note® are trademarks of Samsung in the United States and other countries.
All other trademarks are property of their respective owners.
