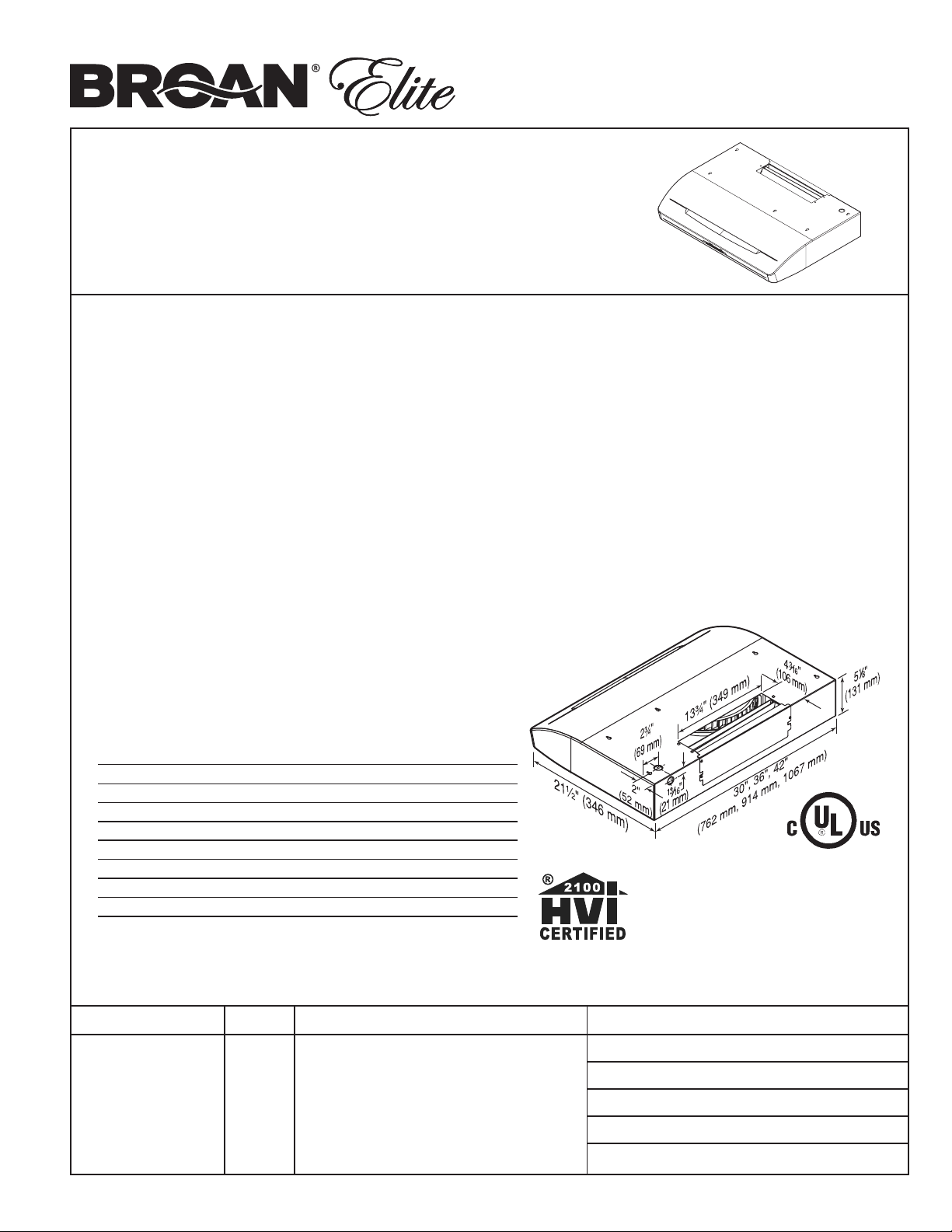

SPECIFICATION SHEET
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
TYPICAL SPECIFICATION
Range hood shall be Broan Elite E661.
Unit will have all over smooth design, with no sharp edges.
Finish to be powder-coated paint (brushed finish stainless
steel). It must have a fully enclosed stainless steel bottom
and full aluminum filters.
Hood discharge to be 3¼” x 14”, horizontal or vertical.
Range hood to have a centrifugal blower and twin, 50-watt
(max.)halogenfloodmax.Blowerandlightshallbeoperated
using a specially-designed, 3-speed control with boost,
memorizes last setting, with 5-minute delayed “off’’.
Air delivery shall be no less than 550 cfm. Sound level to be
no greater than 0.3 sones/110 cfm - 3.0 sones/300 cfm - 8.5
sones/550 cfm (boost mode).
AirandsoundratingstobecertifiedbyHVI.UnitshallbeU.L.
and cU.L. listed.
HK0078
50B 99043668B
The Broan Elite E661 model is part of our new
generation of range hoods: stylish, powerful, and
most of all, quieter than ever.
FEATURES
•Sleek, classic smooth shell design makes cleaning easy
•Created to work over high BTU residential grade cooking
equipment
•Colors available: White or Black durable powder-coated
paint finishes for 30’’ and 36’’ widths, and Stainless Steel
for 30’’, 36’’ or 42’’ widths
•Dishwasher safe aluminum filters with metal latch
•Dual 50-Watt halogen lights focus toward the center for
brilliant full cooktop lighting
(MR16 GU10 bulbs not included)
•New High Flow centrifugal blower wheel provides greater
performance and quieter operation
•Flush-mounted electro-mechanical controls with
Amber-Yellow LED status lights
•5-minute off delay
•Broan Heat Sentry - automatically turns blower to third
speed when excess cooking heat is detected
•Versatile design allows for a 3¼’’ x 14’’ horizontal or
vertical discharge
E661 RANGE HOOD
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
Broan-NuTone Canada, Inc., 1140 Tristar Drive, Mississauga, Ontario, L5T 1H9 (1-888-882-7626)
HB0038
HVI-2100 CERTIFIED RATINGS comply with the
newtestingtechnologiesandproceduresprescribed
by the Home Ventilation Institute, for off-the-shelf
products,astheyareavailabletoconsumers.Product
performanceisratedat0.1 in. static pressure, based
on tests conducted in AMCA's state-of-the-art
laboratory.Sonesareameasureofhumanlyproduced
loudness, based on laboratory measurements.
SPECIFICATIONS
Volts 120
HZ 60
Amps 2.4
CFM (high) 300*
Sones (norm.) <0.3
Sones (high) 3.0*
Controls 3-speed electronic with memory, plus boost mode.
Halogen Flood Light MR16 GU10†
Broan Heat Sentry Yes
* 550 cfm & 8.5 sones in boost mode.
† 2 bulbs req. (not included).
