NW Global Vending Festival Specification sheet

INSTALLATION, USE, MAINTENANCE
EN English
Festival
Doc. No. H 3775EN 00
Edition 1 03- 2012


Italiano Si dichiara che la macchina, descritta nella targhetta di identicazione, è
conforme alle disposizioni legislative delle Direttive Europee elencate a lato e suc-
cessive modiche ed integrazioni.
English The machine described in the identication plate conforms to the legisla-
tive directions of the European directives listed at side and further amendments and
integrations
English The harmonised standards or technical specications (designations) which
comply with good engineering practice in safety matters in force within the EU have
been applied are:
Français La machine décrite sur la plaquette d’identication est conforme aux
dispositions légales des directives européennes énoncées ci-contre et modications
et intégrations successives
Español Se declara que la máquina, descrita en la etiqueta de identicación, cum-
ple con las disposiciones legislativas de las Directrices Europeas listadas al margen
y de sus sucesivas modicaciones e integraciones
Português Declara-se que a máquina, descrita na placa de identicação está con-
forme as disposições legislativas das Diretrizes Européias elencadas aqui ao lado e
sucessivas modicações e integrações
Deutsch Das auf dem Typenschild beschriebene Gerät entspricht den rechts aufge-
führten gesetzlichen Europäischen Richtlinien, sowie anschließenden Änderungen
und Ergänzungen
Nederlands De machine beschreven op het identicatieplaatje is conform de
wetsbepalingen van de Europese Richtlijnen die hiernaast vermeld worden en latere
amendementen en aanvullingen
Italiano Le norme armonizzate o le speciche tecniche (designazioni) che sono
state applicate in accordo con le regole della buona arte in materia di sicurezza in
vigore nella UE sono:
Français Les normes harmonisées ou les spécications techniques (désignations)
qui ont été appliquées conformément aux règles de la bonne pratique en matière de
sécurité en vigueur dans l’UE sont :
Deutsch Die harmonisierten Standards oder technischen Spezikationen (Bestim-
mungen), die den Regeln der Kunst hinsichtlich den in der EU geltenden Sicherheits-
normen entsprechen, sind:
Español Las normas armonizadas o las especicaciones técnicas (designaciones)
que han sido aplicadas de acuerdo con las reglas de la buena práctica en materia de
seguridad vigentes en la UE son:
Português As normas harmonizadas ou as especicações técnicas (designações)
que foram aplicadas de acordo com boas regras de engenharia em matéria de seg-
urança em vigor na UE são:
Nederlands De geharmoniseerde normen of technische specicaties (aanwijzingen)
die toegepast werden volgens de in de EU van kracht zijnde eisen van goed vakman-
schap inzake veiligheid zijn de volgende:
DICHIARAZIONE DI CONFORMITA’
DECLARATION OF CONFORMITY
DÉCLARATION DE CONFORMITÉ
KONFORMITÄTSERKLÄRUNG
DECLARACIÓN DE CONFORMIDAD
DECLARAÇÃO DE CONFORMIDADE
VERKLARING VAN OVEREENSTEMMING
Targhetta di identicazione
Identication label
Valbrembo, 01/01/2012
ANDREA ZOCCHI
C.E.O
Direttive europee
European directives
Sostituita da
Repealed by
2006/42/EC
73/23/EC + 93/68/CE 2006/95/CE
89/336/EC + 92/31/CE +
93/68/CE
2004/108/EC
90/128/EC 2002/72/CE
80/590/EEC and 89/109/
EEC
EC 1935/2004
EC 10/2011
2002/96/EC
Norme armonizzate /
Speciche tecniche
Harmonised standards
Technical specica-
tions
EN 60335-1:2002 + A1:2004 + A11:2004 + A12:2006
+ A2:2006+ A13:2008
EN 60335-2-75:2004 + A1:2005 + A11:2006 +
A2:2008 + A12:2010
EN 62233:2008
EN 55014-1: 2006 + A1: 2009
EN 55014-2: 1997 + A1: 2001 + A2: 2008
EN 61000-3-2: 2006 + A1: 2009 + A2: 2009
EN 61000-3-3: 2008
EN 61000-4-2: 2009
EN 61000-4-3: 2006 + A1: 2008
EN 61000-4-4: 2004
EN 61000-4-5: 2006
EN 61000-4-6: 2009
EN 61000-4-11: 2004
Il fascicolo tecnico è costituito presso:
The technical le is compiled at:
N&W GLOBAL VENDING S.p.A.

Declaration of conformity
The declaration of conformity with the European Direc-he declaration of conformity with the European Direc-
tives and Standards provided for by the laws in force
is supplied by the rst page of this manual, which is an
integral part of the machine.
It is declared that the machine described by
the identication plate is in compliance with the
provisions of the European Directives, its sub-
sequent amendments and integrations as well as with
the harmonised standards or technical specications
(designations) applied in compliance with the safety
rules of good practice enforced in the EU and listed on
the same page.
Warnings
f o r i n s t a l l a t i o n
The installation and any subsequent maintenance
operation shall be carried out by the personnel
skilled and trained on the utilisation of the machine
according to the rules in force.
The machine is sold without any payment system. As
a consequence, only the installer will be liable for any
damage that may be caused to the machine or to things
and persons by an incorrect installation of the payment
system.
The intactness of the machine and its compliance
with the standards of relevant installations must be
checked by skilled personnel at least once a year.
Package materials must be disposed of in observance of
the environment.
f o r u s e
The machine can be used by children and by people
having reduced physical, sensorial or mental skills under
the supervision of people responsible for their safety or
specically trained on the use of the machine. Children
shall be prevented from playing with the machine by the
people in charge of their supervision.
f o r t h e e n v i r o n m e n t
Some tricks will help you to protect the environment:
- use biodegradable products to clean the machine;
- properly dispose of all the packages of the products
used to fill and clean the machine;
- power off the machine during inactivity for energy sav-
ing.
f o r s c r a p p i n g
The symbol shows that the machine can not
be disposed of as common waste, but it must
be disposed of as it is established by the
2002/96/CE (Waste Electrical and Electronics
Equipments - WEEE) European Directive and
by the national laws arising out of it in order to prevent
any negative consequence for environment and human
health.
The dierentiated collection of the machine at the end of
its life is organised and managed by the manufacturer.
For the correct disposal of the machine contact the sales
point where you have purchased the machine or our
after-sales service.
The unlawful disposal of the machine implies the appli-
cation of the administrative sanctions provided for by the
rules in force.
Attention!
If the machine is equipped with a cooling system, the
cooling unit contains HFC-R134a uoridised greenhouse
eect gas ruled by the Kyoto protocol, the total heating
potential of which is equal to 1300.



© by N&W GLOBAL VENDING S.p.A. 103-2012 3775 00
English
CONTENTS
PAGE
PAGE
dEclaration of conformità
warnings
INTRODUCTION 2
machinE idEntification and charactEristics 2
in casE of failurE 2
transport and storagE 2
usE of hErmEtically sEalEd products vEnding machinEs 3
positioning of thE vEnding machinE 3
tEcHNical cHaractEristics 4
powEr consumption 5

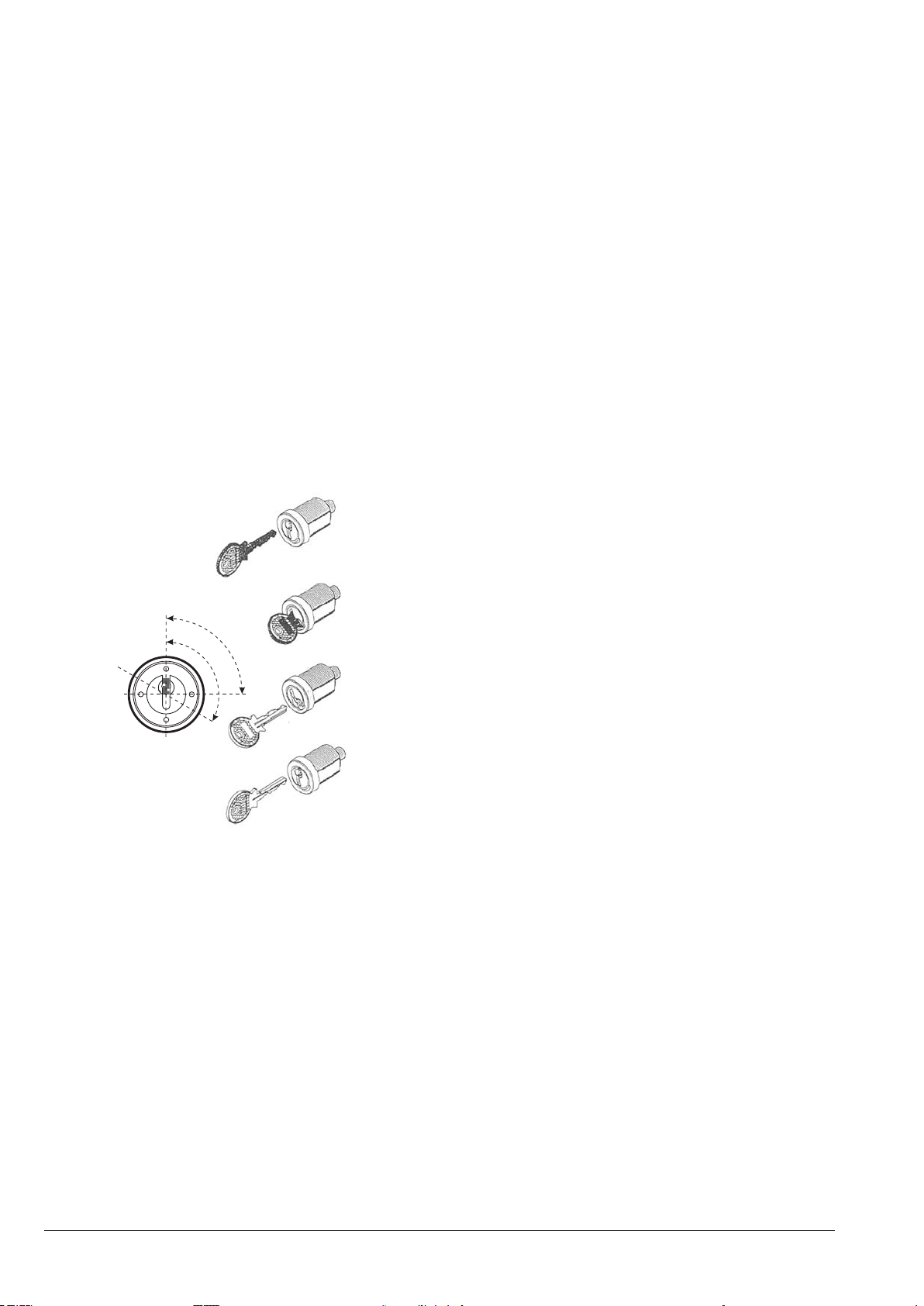

variablE combination locks 6
CLEANING AND LOADING 7
hygiEnE, clEaning and food safEty 7
switchEs 7
salEs modE 7

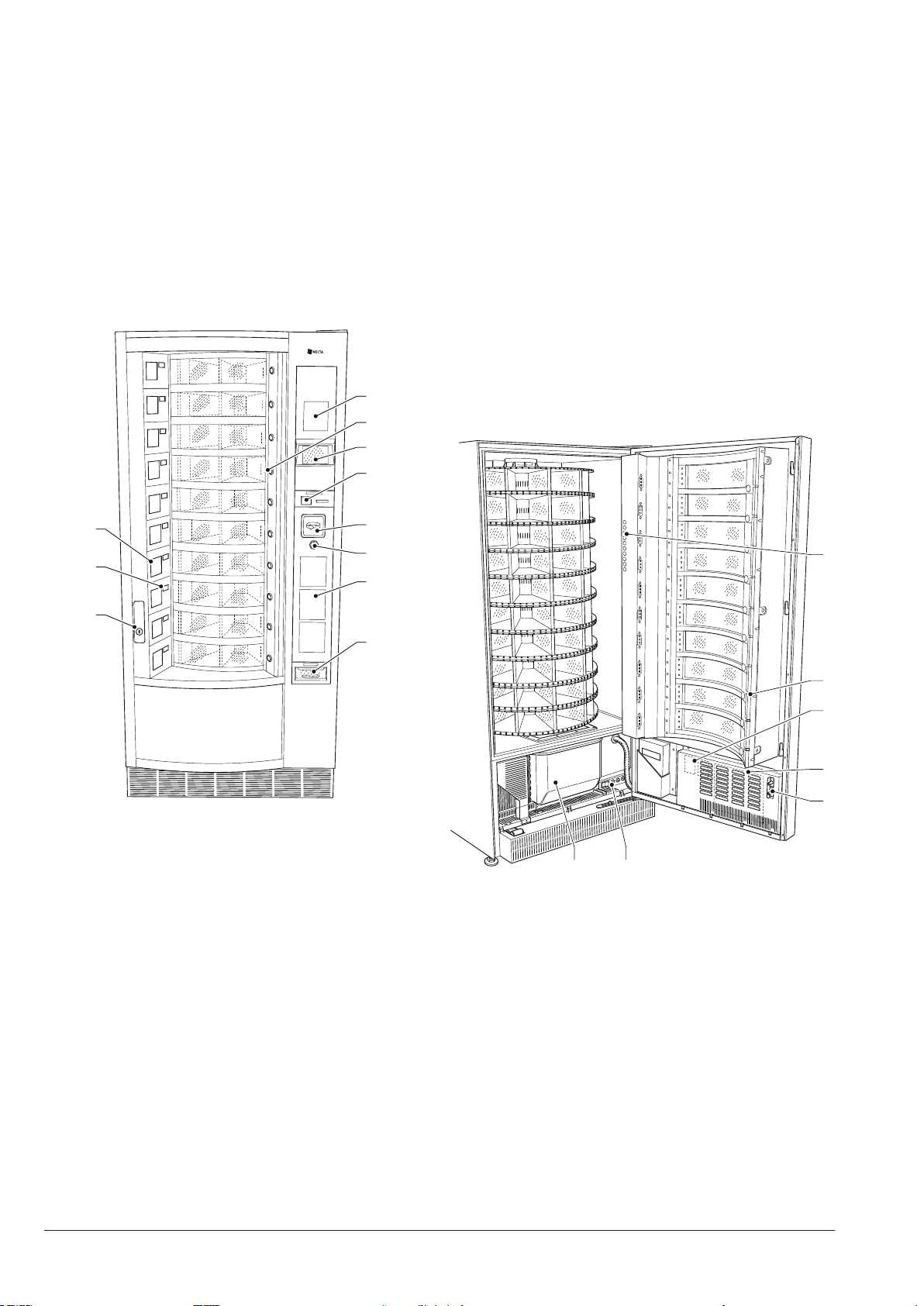

commaNDs aND compoNENts 8
loaDiNg proDucts 9
opEn door loading 10
closEd door loading 10
start-up 11
pEriodic clEaning 11
clEaning air ducts and rEfrigEration assEmbly 12
sErvicE suspEnsion 12
INSTALLATION 13
main switch 13
unpacking and positioning 13
fitting thE paymEnt systEm 14
ElEctrical connEction 14
first start-up 15
opEratioN 15
salEs systEms 15
distribution cyclE 15
automatic dEfrost 16
air flow sEtting 16
PROGRAMMING 17
opEratioN iN Normal usEr status 17
NavigatioN 18
EntEring thE programming modE 18
loaDEr mENu 19
statistics 19
disk pricEs 20
managEmEnt of thE coin box tubEs 20
air flow sEtting 20
tEst 20
gsm 20
Evadts 20
tEcHNiciaN'smENu 21
paymEnt systEms 21
pricEs 25
da configuration 26
tEst 30
statistics 31
communication 34
faults 35
MAINTENANCE 36
maintEnancE and clEaning 36
products disks assEmbly and disassEmbly 36
changEs in adisk slot 37
disassEmbling disks column 38
ElEctric panEl 38
boarDs fEaturEs 39
cpu card 39
activations board 40
powEr controllEr card 41
switching powEr supply cards 41
softwarE updatE 41
cooling systEm 42
automatic dEfrost dEvicE 42
APPENDIX 43

© by N&W GLOBAL VENDING S.p.A. 203-2012 3775 00
INTRODUCTION
The technical documentation forms an integral part
of the equipment and must therefore accompany
any movement or transfer of ownership in order to
allow further consultations by the operators.
Before installing and using the equipment you need to
scrupulously read and understand the contents of the
documentation, as it provides important information
related to installation safety, to the utilisation standards
and to the maintenance operations.
tHE maNual is DiviDED iNto tHrEE cHaptErs.
The rst chapter describes the loading and ordinary
cleaning operations to be performed in the areas of the
machine which can be accessed through just the use
of the door opening key, without the need of using other
tools.
The second chapter contains the instructions related
to a correct installation and the information required to
make the best use of the machine.
The third chapter describes the maintenance opera-
tions which require the use of tools for accessing poten-
tially dangerous areas.
The operations described in the second and third
chapter shall be carried out only by personnel with
specic knowledge of the operation of the machine
both from the point of view of electrical safety and
of hygiene.
MACHINE IDENTIFICATION
AND CHARACTERISTICS
number which can be read from the plate placed inside
the machine on the right side.
The plate is the only one to be recognised by the manufac-
data which enables the manufacturer to provide, promptly
and safely, technical information of any kind and facilitate
the management of spare parts.
Fig. 1
1- Product code
2- Type
3- Model
4- Work voltage
5- Power absorbed
6- Serial number
7- Frequency
8- Current
9- Type and quantity of refrigerating gas
TYPECODE MODEL SERIALNR
BOILER SOLUBLE
PRESSURE Mpa
CAPACITY dm3
MAINS WATER PRESSURE
VOLTAGE FREQUENCY
POWER CURRENT
WPOWER CAFE VAPOUR
N&W GLOBAL VENDING S.P.A. - Valbrembo Bg ITALY
Mpa Min - Max
REFRIGERATOR SYSTEM
XX
A
I
K
XXXXXXXXX
1
2
3
4
5
6
7
8
9
IN CASE OF FAILURE
In most cases, technical problems can be solved by
means of small interventions; we therefore suggest to
read this manual carefully before contacting the manu-
facturer.
In case of anomalies or malfunctioning which cannot be
solved, please contact:
N&W GLOBAL VENDING S.p.A.
Via Roma 24
24030 Valbrembo
Italy - Tel. +39 035606111
TRANSPORT AND STORAGE
In order to avoid causing damage to the machine, the
loading and unloading manoeuvres must be performed
with particular care.
It is possible to lift the machine with a motorised or manual
forklift, by positioning the fork underneath the machine
and on the side which is clearly indicated by the sign on the
cardboard packaging.
Instead, the following should be avoided:
- Overturn the machine
- drag the machine with ropes or similar;
- lift the machine with lateral grips;
- lift the machine with straps or ropes
- shake the machine
Thestorageenvironmentneedstobedry and of atempera-
ture between 0 and 40 °C.
We recommend not to overlay the machines and keep
them upright, as shown by the arrows on the packaging.

© by N&W GLOBAL VENDING S.p.A. 303-2012 3775 00
USE OF HERMETICALLY SEALED
PRODUCTS VENDING MACHINES
The electronic control feature of the machine allows as-
The functions can be programmed with the selection but-
tons, without any additional machine.
-
spacers, allowing the machine to suit the size of the prod-
ucts to optimise its capacity.
The machine is suitable for the distribution of re-
frigerated hermetically sealed products. (food).
Food products must be handled and managed in
accordance with the existing food safety and hy-
giene regulations.
Thoroughly comply with the manufacturer's instruc-
tions for what concerns storage temperature and
expiration date of each product.
Any other use is considered improper and therefore
potentially dangerous.
POSITIONING OF THE VENDING MACHINE
The machine is not suitable for outdoors installations,
it needs to be installed inside dry premise. away from
sources of heat with a temperature between 5° and
35° C.
It cannot be installed in environments in which jets of
water are used for cleaning (i.e.: large kitchens, etc.).
Themachineshallbepositionedsothatthemaximumincli-
nation does not exceed 2°.If needed, level it out using the
appropriate adjustable feet provided with the machine.
1
3 42
5

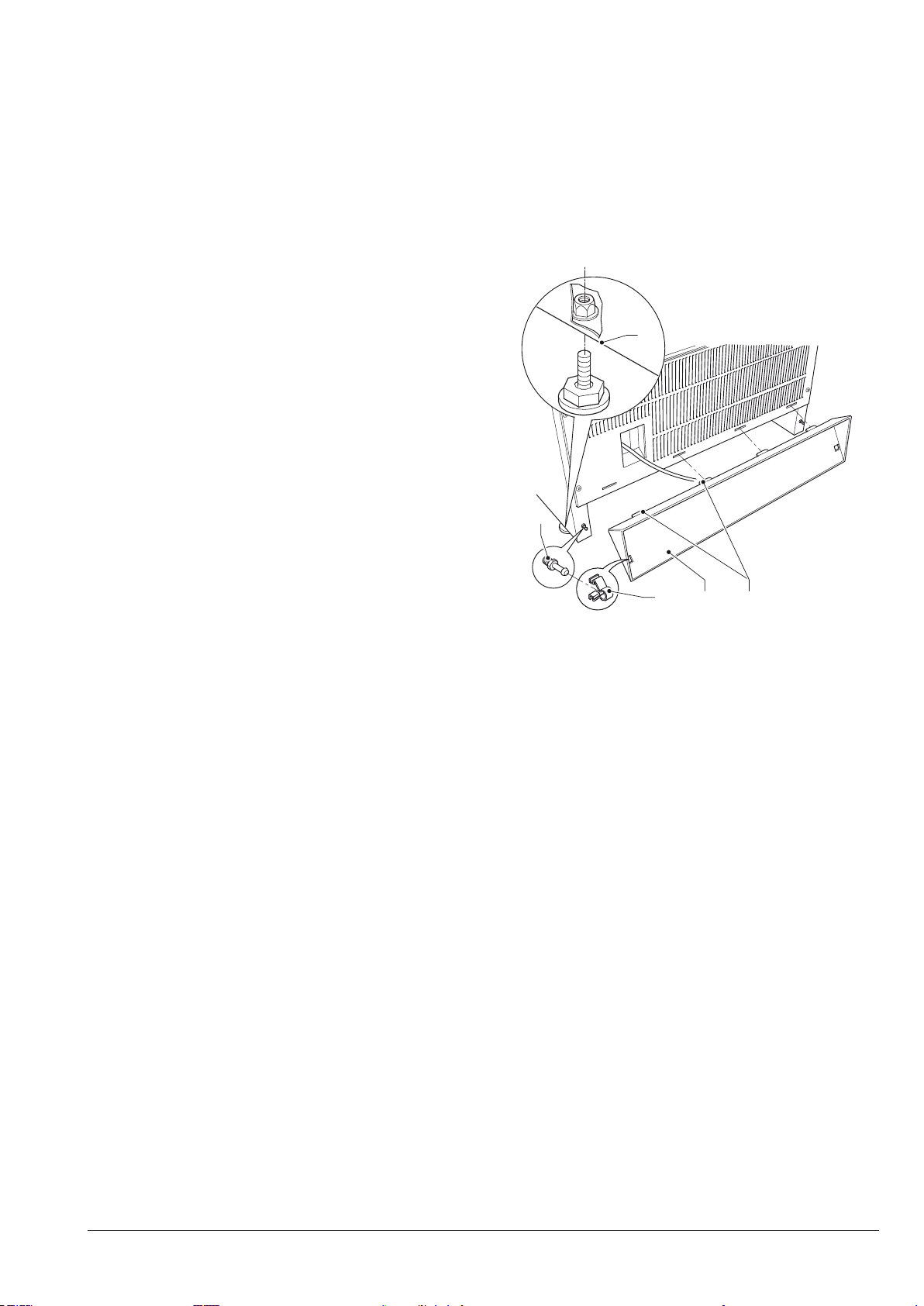

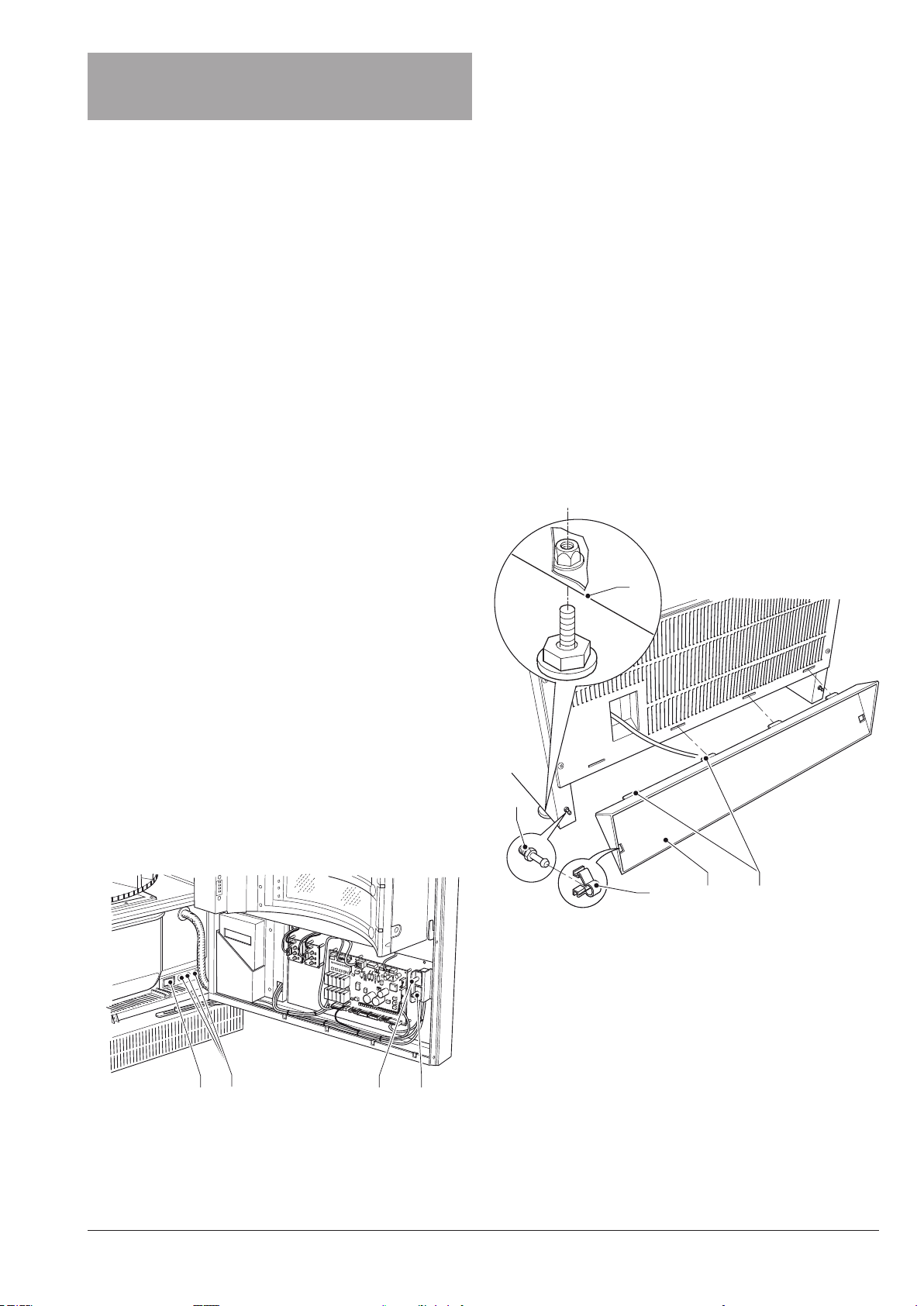

Fig. 2
1- Quick-fit
2- Clips
3- Air duct
4- Fixing flaps
5- Adjustable foot
The machine shall be positioned next to a wall away
from sources of heat and in such a way that the
back of it is at a minimum distance of 100mm from
the wall in order to allow regular ventilation.
Warning!!!
Incorrect ventilation could negatively aect the
proper operation of the refrigerator.
mounted on the back of the machine by means of the
respective clips.
The front skirting is included too.

© by N&W GLOBAL VENDING S.p.A. 403-2012 3775 00

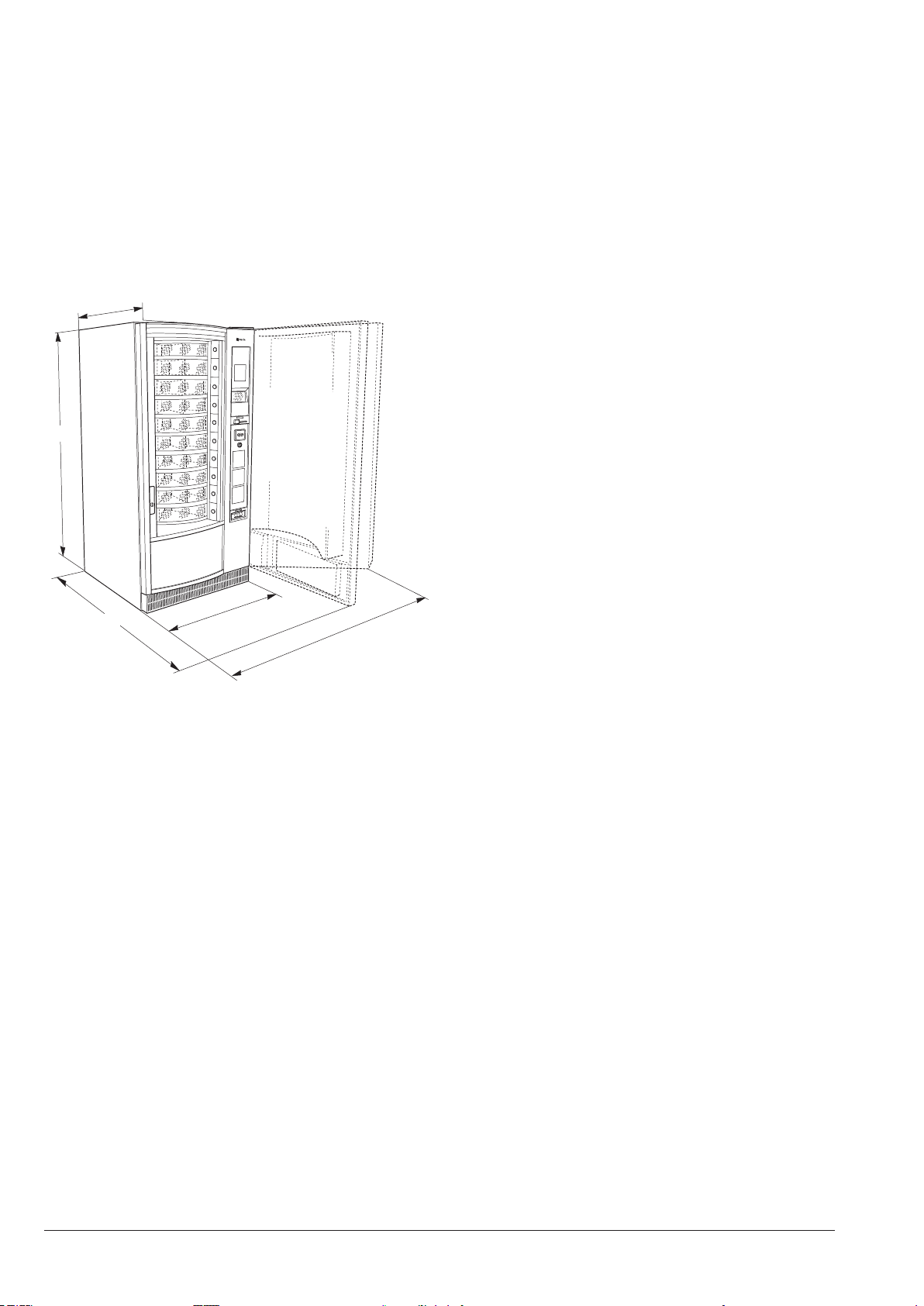

TECHNICAL CHARACTERISTICS
- Height mm 1830
- Width mm 850
- Depth mm 895
with air deflector mm 995
- With the door open
Width mm 1100
Depth mm 1630
- Unloaded weight Kg 320
359
850
XXX
1830
895
Fig. 3
-
- Power supply frequency Hz 50
- Power absorbed W 950
- Modular and adjustable disks
- Sectors per disc 6,12,18,24,36
maximum opEratiNg coNDitioNs
- Room temperature °C 34
- Relative humidity % 65
rEfrigEratioN systEm
- Refrigeration power of the compressor W 787
- Ventilated evaporator
- Programmable cyclic defrost
ligHtiNg
LED;
generally the light generated by LED's is screened with
panels (risk free).
If for any reason the lighting is active without screening
(average risk) do not x light sources.
paymENt systEm
The machine is supplied with electrical arrangement
for systems with protocol Executive, BDV, MDB and for
monitoring 24 Vdc validators.
Apart from the coin box housing, there is space for the op-
tional installation of the most common payment systems.
salEs pricEs
each day of the week.
The standard setting has the same sales price for all selec-
tions, without time bands.
casH till for coiNs
Cover and lock available as accessories.
safEty DEvicEs aND iNspEctioNs
- Door switch
- Compressor thermal protection
- line fuses
- main and secondary transformer fuses
- thermal protection of motors
opEratiNg tEmpEraturE
The machine may operate in environments with a tem-
perature between 5°C and 34°C.
The cell's default temperature varies according the ma-

© by N&W GLOBAL VENDING S.p.A. 503-2012 3775 00
accEssoriEs
-
ries in order to vary its performances:
The installation kits are supplied with installation and test
instructions, which shall be scrupulously followed in order
to maintain the safety of the machine.
The party that performed the installation is responsible for
any damage that may occur to the machine, or to things
and people due to incorrect installation.
Important!!!
Using kits that have not been approved by the manufac-
turer does not guarantee the compliance with the safety
standards, especially for what concerns live-parts.
The manufacturer declines any responsibility for the use of
non-approved components.
The installation and the subsequent test operations
shall be performed by qualied personnel, with
specic knowledge of the operation of the machine
both from the point of view of electrical safety and
of hygiene.
POWER CONSUMPTION
such as temperature and ventilation of the room where
the machine is placed, loading temperature of the prod-
ucts and temperature of the refrigerating cells.
Under average conditions:
- Room temperature °C 25
- cell: °C 3
- humidity: % 60
- temperature of products °C 25
The following energy consumption was detected:
- average daily consumption KW 5.8
The power consumption calculated on the above-men-
tioned average data shall be deemed as purely indicative.

© by N&W GLOBAL VENDING S.p.A. 603-2012 3775 00
VARIABLE COMBINATION LOCKS
Some models are supplied with variable combination
locks.
The lock is supplied with a silver key to be used for
opening and closing it normally.
It is possible to customise the locks using a kit, available
as an accessory, which allows the lock combination to be
changed.
The kit is composed of a change key (black) for changing
the standard combination and of change keys (gold) and
use keys (silver) for changing and using the new combina-
tions.
Change and use key packs with other combinations can be
supplied on request.
Furthermore,other use key(silver)packs can be requested
specifying the combination printed on the keys.
Usually the use key (silver) is the only one used, whereas
thecombinationchangekeys(gold)maybe keptasaspare
key.
Avoid using the change keys for normal opening as
this could damage the lock.
0°
9
0
°
1
2
0
°
Fig. 4
to cHaNgE tHE combiNatioN:
- Open the door of the machine to avoid forcing rotation;
- Lightly lubricate using a spray inside the lock;
- Insert the current change key (black) and turn it to the
change position (reference notch at 120°);
- Extract the current change key and insert the change key
(gold) with the new combination;
- Turn to the closing position (0°) and extract the change
key.
The lock has now assumed the new combination.
The keys of the old combination can no longer be
used for the new combination.

© by N&W GLOBAL VENDING S.p.A. 703-2012 3775 00
Chapter 1
CLEANING AND LOADING
HYGIENE, CLEANING AND FOOD SAFETY
In accordance with current health and safety
regulations, the operator of a vending machine is
responsible for the hygiene of the materials and the
cleaning of the machine.
The machine needs to be installed inside dry premises,
with temperature between 5° and 34° C and it cannot be
installed in environments in which jets of water are used
for cleaning
This machine is intended for the sale and distribution of
food products that need to be stored cold (food).
The machine can be used for the sale and distribution of
packaged products that do not need to be stored cold
(snacks).
Packaged products for cold storage (food) must
be managed in compliance with the existing food
safety requirements.
Thoroughly comply with the manufacturer's instruc-
tions for what concerns storage temperature and
expiration date of each product.
Any other use is considered improper and therefore
potentially dangerous.
It is recommended that sterilising products also be used
when cleaning the surfaces which are not directly in
contact with the food products.
Some parts of the machine can be damaged by aggressive
detergents.
The manufacturer shall not be held responsible for
any damage caused by the non-compliance with
the existing regulations.

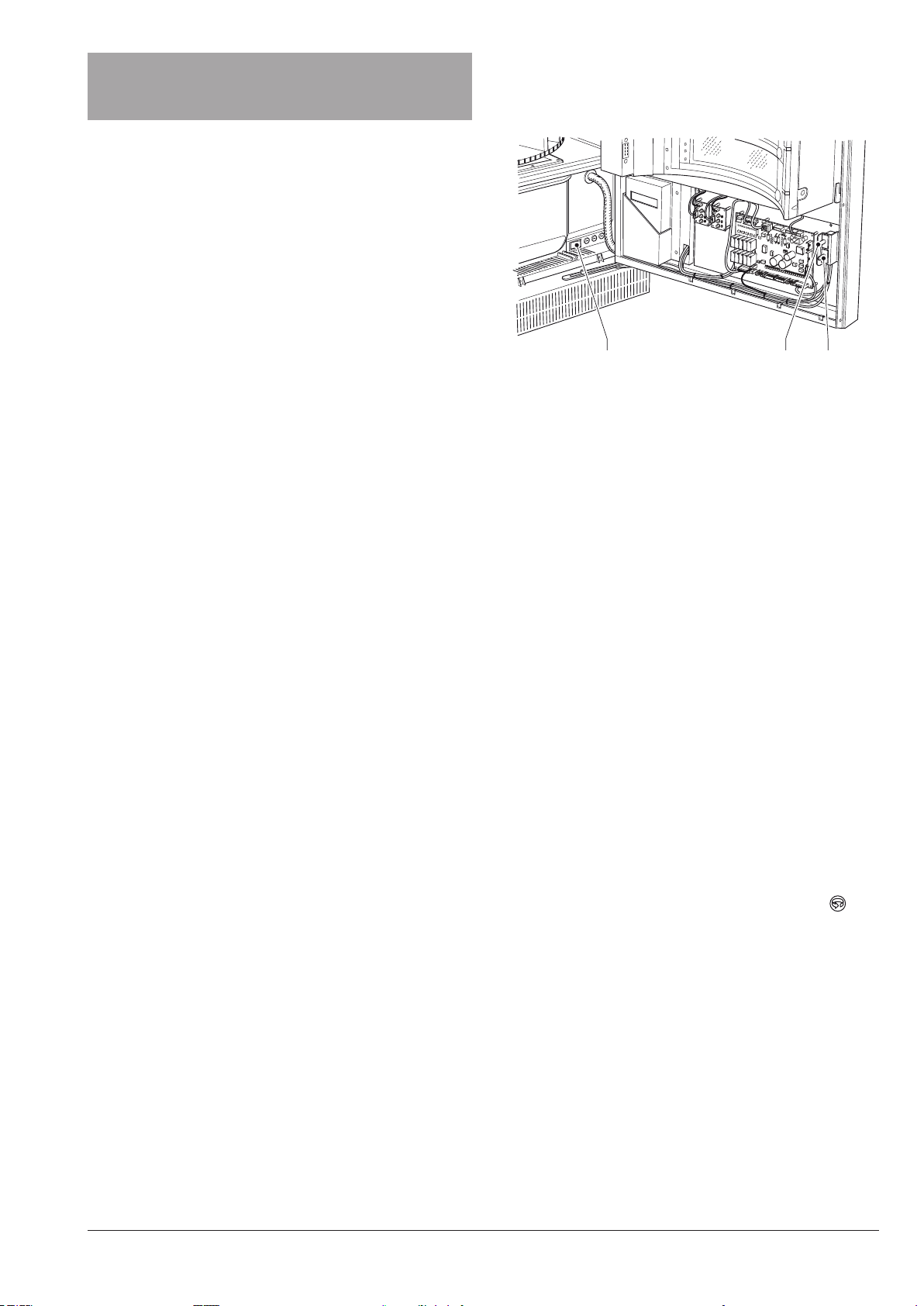

SWITCHES
Opening the door activates the loading and program-
ming switches.
321
Fig. 5
1- Main switch
2- Open door switch
3- loading switch
IMPORTANT!!
The door and loading switches DO NOT disconnect
voltage supply to the machine.
Inside the machine, only those parts which are protected
by covers and which are highlighted with a label "discon-
nect voltage before removing the cover" remain live.
turn o the main
switch and unplug the machine from the power
supply socket.
All the operations which require the machine to be
under voltage and the removals of covers, shall be
performed exclusively by qualied personnel who
has been informed of the specic risks deriving
from such situation.
lEvEl of NoisE
The weighted continuous equivalent sound pressure
level is less than 70 dB.
SALES MODE
When loading the products, keep into account that each
disk can be programmed to dispense the products in the
following modes:
-frEE cHoicE: by pressing the disk rotation button the
desired product can be brought into sale position (right
of the collection unit).
-first iN/first out: the product is in sale positions (First
out) according to the loading sequence (First in).
The availability of products is checked by counting the
number of selections against the selectors.
The two modes can be combined according to the de-
sired sequence.

© by N&W GLOBAL VENDING S.p.A. 803-2012 3775 00

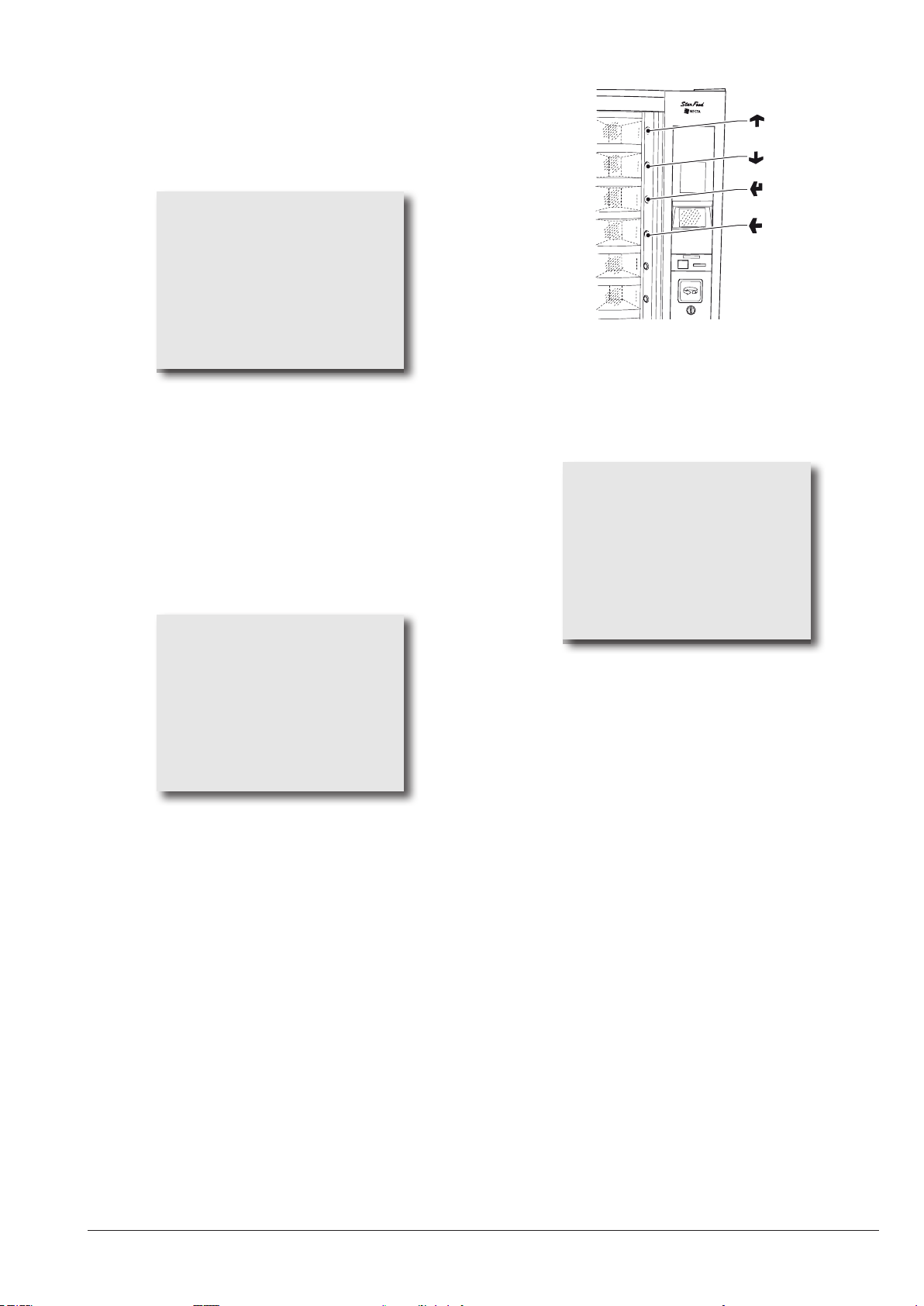

COMMANDS AND COMPONENTS
ExtErNal
The controls and the information to the user are on the
external side of the door .
- Display: displays credit and machine operation instruc-
tions.
- Price displays corresponding to each disk show the price
of each product.
- Selection and disk rotation buttons
- Coin slot and coin recovery door
4
5
6
8
9
10
11
7
1
2
3
Fig. 6
1- Lock
2- Price displays
3- Product tags
4- Slot for payment systems
5- Selection button
6- Display
7- Coin insertion and recovery
8- "Disk rotation" button
9- Payment systems slot lock
10- User instructions areas
11- Money recovery door
iNtErNal
The machine has the following components:
- Modular and adjustable disks; each disk can be divided
in 6, 12, 18, 24 or 36 sectors
- Refrigeration assembly placed in the lower part of the
machine that allows keeping the correct temperature for
the products.
The evaporator is defrosted automatically every 6 hours,
-
grammed between 1 and 99 hours.
loaDiNg switcH
of the door.
Once the door is open, the disk rotation keypad is enabled
to allow loading.
The message "Open door loading" is displayed and the
sale is disabled.
1
2
3
4
5
6
7
8
9
0
6
5
4
7
1 2
3
Fig. 7
1- Refrigeration assembly
2- Electrical panel
3- Open door loading switches
4- Activation board
5- LED power control card
6- Door micro-opening
7- Loading keypad

© by N&W GLOBAL VENDING S.p.A. 903-2012 3775 00

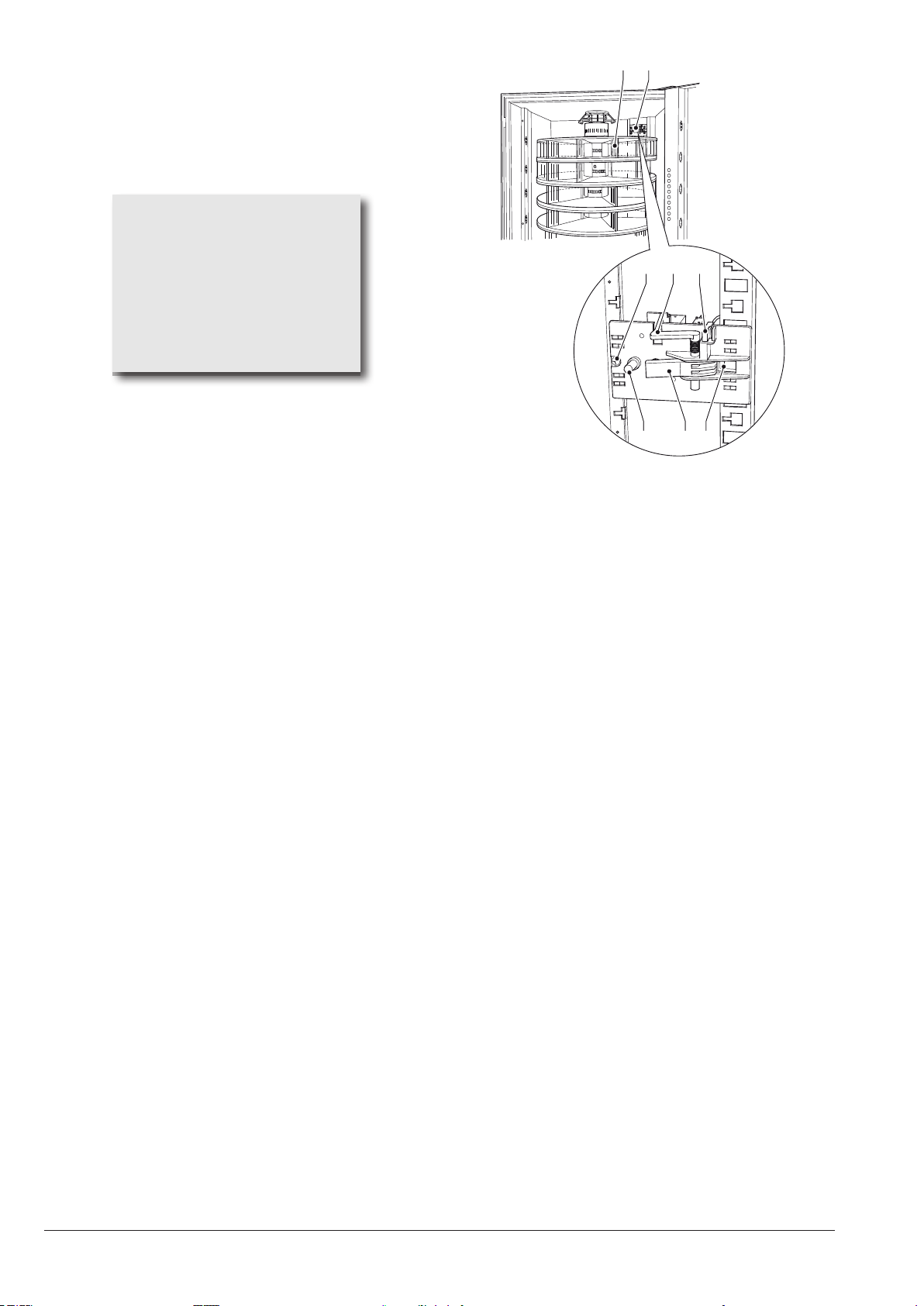

programmiNg switcH
Opening the payment systems slot's door, the program-
ming switch is enabled.
Themessage"Loading"isdisplayedandtheselectionkeys
switch to programming functions.
This allows programming and/or loading operations to be
performed when the refrigerated cell's door closed.
Sales cycle is disabled.
8
7
6
1
2
3
4
5

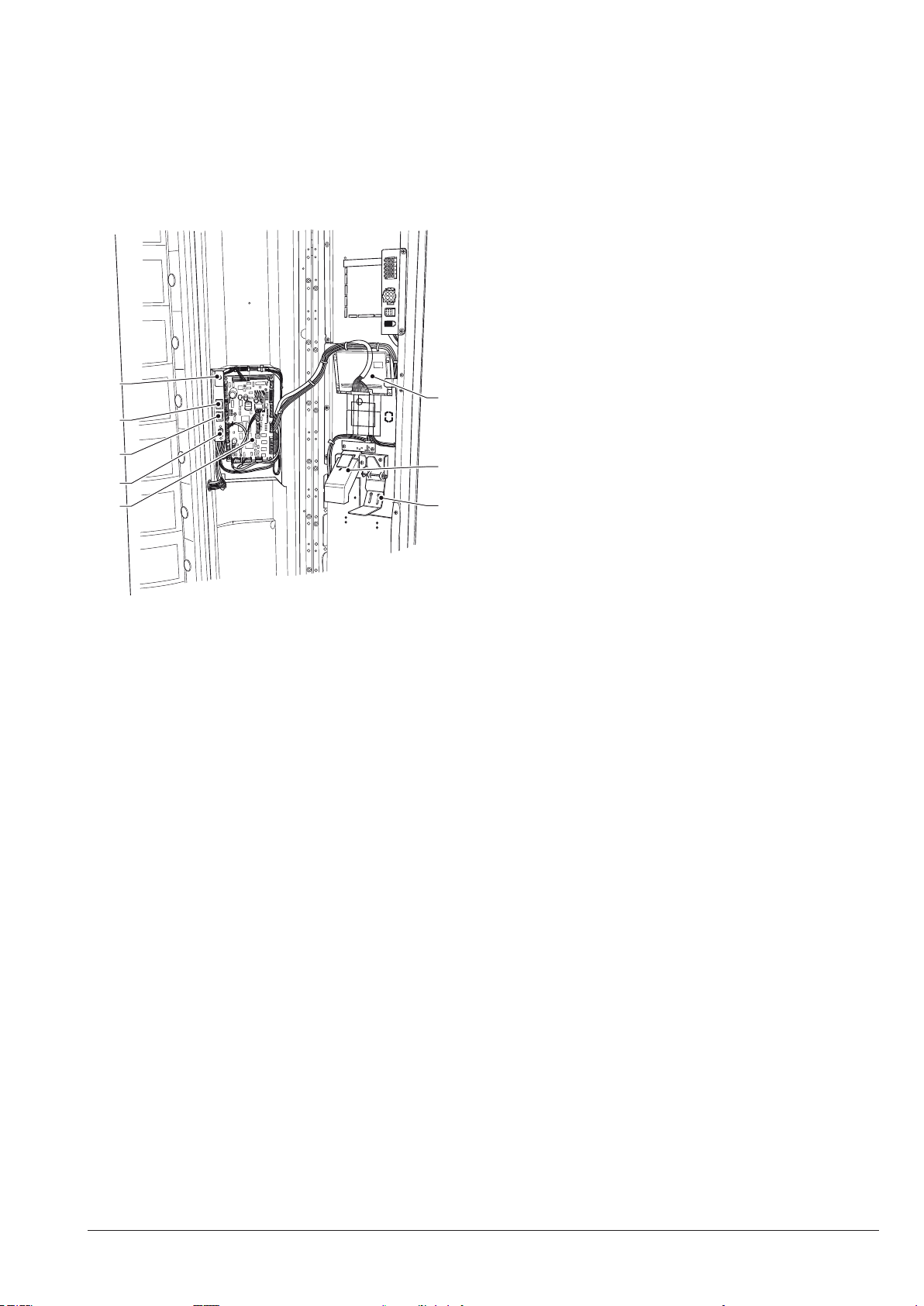

Fig. 8
1- CPU card
2- RS 232 serial port
3- Programming input button
4- Failure reset button
5- Programming switch
6- LCD DISPLAY
7- Coins slide
8- Coin recovery lever
Important!!
The door and loading switches DO NOT disconnect volt-
age supply to the machine.
and unplug the machine from the power supply socket.
All the operations which require the machine to be
under voltage and the removals of covers, shall be
performed exclusively by qualied personnel who
has been informed of the specic risks deriving
from such situation.
LOADING PRODUCTS
The products can be loaded in two ways:
- with open door: if there are many products to load
- with closed door: if there aren't many products to load;
they can be put inside the machine through the sale
doors, without opening the main door.
Load the products making sure that the label is visible and
the products can be recognised by the user.
The products must not be "forced" into the slots and must
not stick out.
If the machine was inactive for a long time you must
wait until the operational temperature is reached
(pull down up to 3 hours), before loading refriger-
ated products.
In case the message “Safety temperature exceeded" is
displayed and the food sections are put out of service,
refrigerated food in the machine must be considered
non-usable and disposed.
Also in this case it is necessary to wait until the operating
temperature is reached before introducing refrigerated
products.
Warning!!!
Before loading it is required to check that the tem-
perature in the "food" zone is lower than 4°C.
Do not introduce products above 4°C
Loading operations must be completed as quickly
as possible (do not exceed 10 minutes), to prevent
the temperature of the "food" zone from exceeding
the safety temperature of 7°C.

© by N&W GLOBAL VENDING S.p.A. 10 03-2012 3775 00
OPEN DOOR LOADING
door, when the door is open the "disk rotation"button is
enabled to allow loading.
Themessage"Opendoorloading"isdisplayedandthesale
is disabled.
Open door loading
The control system of the machine, allows memorising
the expiration date of a product in a compartment; after
that date, the product will become unavailable for sale.
The loading keypad is enabled by opening the front or rear
By pressing one of the loading buttons, the respective disk
rotates, showing its compartments;
the disk will be considered as fully loaded and the
expiration date countdown of its compartments will
be reset.
Please pay attention to the sales mode set for the disk
that you are loading; if it is set of free choice, some
compartments may be let empty, if is set on f.i.f.o. every
compartments must be loaded in sequence.
When loading follow the instructions inside the door, mak-
ing sure that:
- the products are loaded avoiding to introduce prod-
ucts at a temperature above 5°C for refrigerated
food, checking that all the compartments have been
loaded;
- the label of the product faces the window and is prop-
erly readable from the outside.
- the product's packaging does not interfere with the
spacer counting lever.
1
2
3
4
5
6
7
8
9
0
21
54
6 7 8
3
Fig. 9
1- Separator
2- Spacer disks management system
3- Fixing screw
4- Spacers count lever
5- Source magnet sensor
6- Lock electromagnet pin
7- Autorotation lever
8- Quick-mount hook
CLOSED DOOR LOADING
If there aren't many products to load; they can be put
inside the machine through the sale doors, without open-
ing the main door, to avoid heating the products that are
already in the machine.
Opening the payment systems slot's door, the machine
goes into manual loading mode, showing the number of
expired or empty slots per each disk on the price display.
expired slot and the respective door opens to allow intro-
ducing a new product.
Press the selection button again to display the following
available slot, or close the door if the disk is full.
Diskloading operations maybeinterrupted bypressingthe
button corresponding to another selection.
Loading operations must be completed as quickly
as possible, to prevent the temperature of the
refrigerated products from exceeding the safety
temperature.

© by N&W GLOBAL VENDING S.p.A. 11 03-2012 3775 00
START-UP
At each start-up, the electronics check the machine's
When closing the main door:
- The display shows the name and the version of the soft-
ware.
Festival
Rev. X.XX
Total number of strokes = XXXXXX
The following information are displayed:
- name and version of the software of the machine and
the activations board
- cell temperature measured by the probe
- total number of strokes (if set)
rEfill coDE (if rEquirED)
menu), to reset the counters that manage the product
running out” alerts.
TOTAL AUTO REFILL
Insert code
[- - - -]
-
ters and the machine goes into normal operation mode.
Use the and
Fig. 10
Alternatively press to restore normal operation of the
machine without resetting the counters.
If no button is pressed for 1 minute, the machine goes auto-
matically into normal operation mode, without resetting
the counters.
SELECT PRODUCT
Temperature= XX°C
The refrigeration assembly allows to reach, with the
machine under full operation capacity, to reach 7° C
in the cell within 45 minutes from the completion of
the loading operations.
If the machine was inactive for a long time you must
wait until the operational temperature is reached,
before loading products.
The manufacturer shall not be held responsible for
any damage caused by the non-observance of the
above-mentioned precautions.
PERIODIC CLEANING
The machine must be cleaned regularly; we recommend
using a solution of warm water and non-aggressive
cleaning products, rinse and let dry.
When cleaning the metal parts, absolutely avoid using
detergent products containing abrasive or corrosive sub-
stances.
Jets of water are to be absolutely avoided for wash-
ing the machine.

© by N&W GLOBAL VENDING S.p.A. 12 03-2012 3775 00
CLEANING AIR DUCTS AND
REFRIGERATION ASSEMBLY
The air ducts and the refrigeration assembly must be
cleaned at least every 30 days, using a vacuum cleaner,
as follows:
- Open the main door and clean the aeration grid of the
refrigeration assembly and the condensing unit.
Jets of water are to be absolutely avoided for wash-
ing the machine.
Before starting maintenance, always turn the ma-
chine o.
The integrity of the device and compliance of its
systems with the existing regulations must be
checked at least once a year, by qualied person-
nel.
SERVICE SUSPENSION
For long downtime periods proceed as follows:
- unplug the machine from the power supply
- remove the products and clean the accessories and the
internal parts;
- clean the machine inside, using a solution of warm water
andnon-aggressivecleaningproducts,andletthoroughly
dry.

© by N&W GLOBAL VENDING S.p.A. 13 03-2012 3775 00
Chapter 2
INSTALLATION
The installation and the subsequent maintenance
operations shall be carried out with the machine con-
nected to the power supply and therefore by specialised
personnel, trained for the use of the machine who has
situation.
This machine is NOT suitable for the following type
of installations::
- Outdoors, the machine shall be installed in dry prem-
ises, with a temperature between 5° and 34° C.
- in environments with a humidly rate higher than 65%;
- in environments in which jets of water are used for clean-
ing (i.e.: large kitchens, etc.).
The machine shall be positioned so that the maxi-
mum inclination does not exceed 2°; if needed, level
it out using the appropriate adjustable feet provid-
ed with the machine.
MAIN SWITCH
switch that disconnects the voltage supply to the elec-
tric system of the machine when the payment systems
removable compartment is open.
Inside the machine, only those parts which are protected
by covers and which are highlighted with a label "discon-
nect voltage before removing the cover" remain live.
Before removing these covers it is necessary to dis-
connect the power supply cable from the mains.
To give power to the system when the removable com-
partment is open, just insert the appropriate key in the
hole in the main switch.
Warning!!!
When power is given to the machine with the door
open, the lighting of the window is switched on: DO
NOT look directly into the light sources.
321 4
Fig. 11
1- Main switch
2- Open door switch
3- loading switch
4- Fuses
UNPACKING AND POSITIONING
After removing the packaging, verify the integrity of the
machine.
In case of doubt, do not use the machine.
The packaging materials (plastic bags, expanded
polystyrene, nails, etc.) shall be kept out of the
reach of children as they are a potential source of
danger.
The packaging needs to be disposed authorised spaces.
Recyclable materials shall be given to specialised recy-
cling companies.
If the vending machine had been laid down for
transportation, wait al least an hour before connect-
ing it to the mains.
The machine is not suitable for outside installations, it
needs to be installed inside dry premises away from
heat sources, with temperature between 2° and 32° C
and it cannot be installed in environments in which jets
of water are used for cleaning (i.e.: large kitchens, etc.).
The machine shall be positioned so that the maximum
inclination does not exceed 2°.If needed, level it out using
the appropriate adjustable fee.
1
3 42
5
Fig. 12
1- Quick-fit
2- Clips
3- Air duct
4- Fixing flaps
5- Adjustable foot
Warning!!!
The machine shall be positioned next to a wall away
from sources of heat and in such a way that the
back of it is at a minimum distance of 100mm from
the wall in order to allow regular ventilation.
mounted on the back of the machine by means of the
respective clips.

© by N&W GLOBAL VENDING S.p.A. 14 03-2012 3775 00
mouNtiNg air DEflEctor
Screw the two quick-connect hooks provided on the
back feet and apply clips in the respective grooves.
FITTING THE PAYMENT SYSTEM
The machine is sold without a payment system,
therefore whoever performs the installation of it
bears the responsibility for any damage to the
machine or to objects and people deriving from the
wrong installation of the payment system.
- Fit the desired payment system following the instruc-
tions provided and make sure that the settings are
programmed correctly.
- Adjust the fixing bracket of the selector's opening lever in
order to allow the sector to open completely;
- Adjust the coins slide according to the type of coin box
fitted.
6
4
5
3
2
1

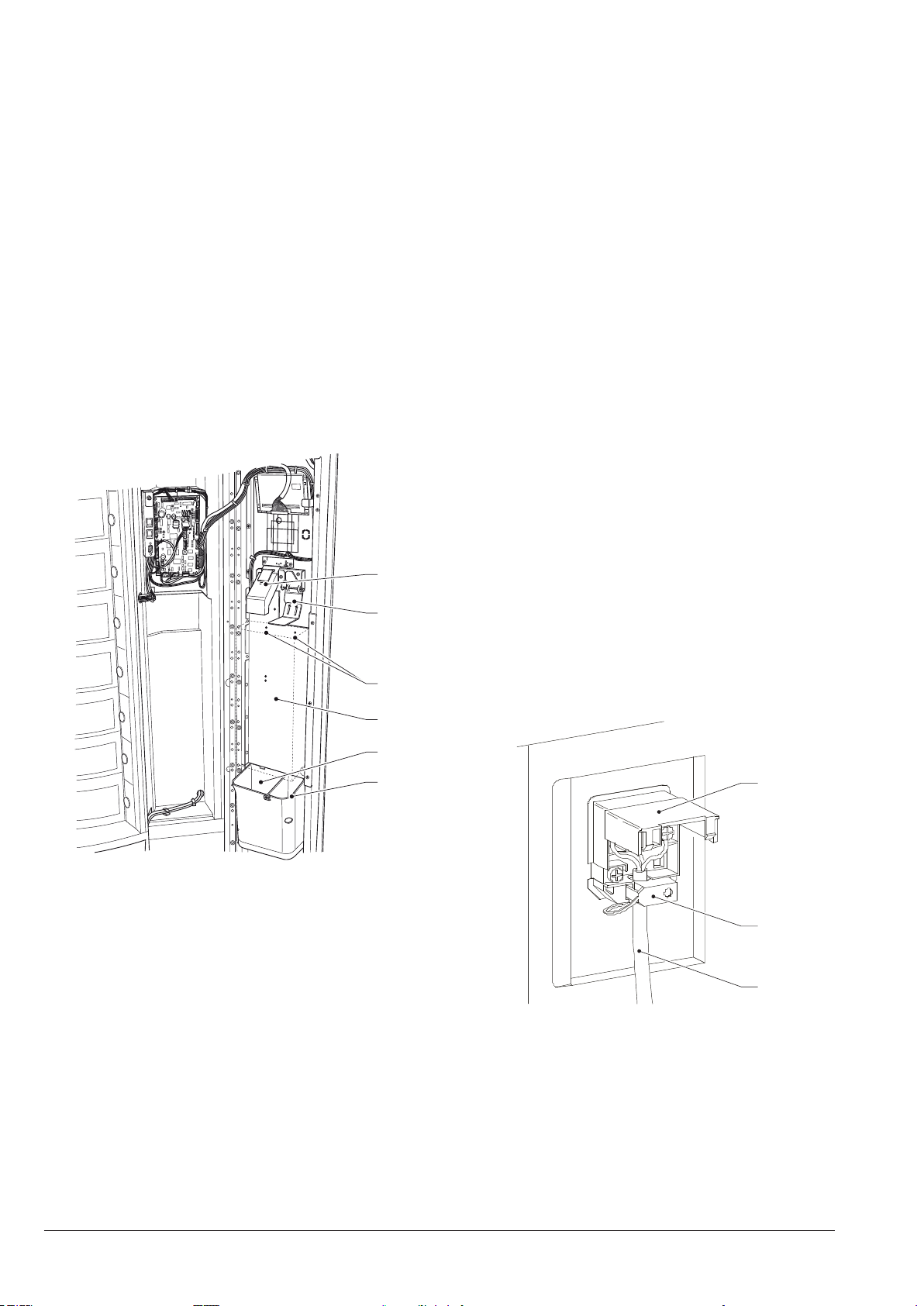

Fig. 13
1- Coins slide
2- Selector opening lever
3- Coin box fixing holes
4- Coin box support plate
5- Coin recovery slide
6- Coins slide
ELECTRICAL CONNECTION
The machine requires a single phase voltage of 230 V~
and it is protected by a 15 A fuse.
For the connection, make sure that the plates data corre-
spond to the mains data, and in particular:
- The value of the voltage shall be within the recommended
limits;
- The general switch shall have suitable characteristics for
supporting the maximum load requested and it shall
ensure an omnipolar switch-off with a switch-contact gap
of at least 3 mm.
The switch, the socket and the plug shall be placed
in an accessible position.
The electrical safety of the machine is ensured only
earthling system, as foreseen by the current safety regu-
lations.
It is necessary to verify this fundamental safety
requirement and, in case of doubt, request an ac-
curate check of the system by qualied personnel.
The power supply cable has a non-separable plug.The
replacement of the connection cable (see Fig. 18) shall
HO5 RN - F or HO5 V V-F or H07 RN-F cables, 3x1-1.5
mm² cross sections, or using cables and plugs compli-
ant with the existing regulations.
The use of adapters, multiple plugs and/or exten-
sion cables is forbidden.
tHE maNufacturEr sHall Not bE HElD rEspoNsiblE
for aNy DamagE causED by tHE NoN-obsErvaNcE
of tHE abovE-mENtioNED prEcautioNs.
1
2
3
Fig. 14
1- Liftable cover
2- Lead fixing terminal
3- Electric cable
Table of contents
Popular Vending Machine manuals by other brands

N&W Global Vending
N&W Global Vending Colibri Quick reference guide

Westomatic
Westomatic EVOLVE manual

AutoCrib
AutoCrib ROBOCRIB TX750 Operation manual

Automatic Products
Automatic Products PREMIER 937 SATELLITE Setup and installation

Westomatic
Westomatic primo MINI manual

Automatic Products
Automatic Products SNACKSHOP 113 instruction manual

Bianchi
Bianchi REPARTO CORSE SADDLE Use and maintenance manual

Seaga
Seaga ENVISION ENV5 Service and parts manual

Royal Vendors
Royal Vendors GII Service bulletin

Crane
Crane Dixie-Narco 504 P Series Technical manual

CribMaster
CribMaster ProStock Removal and Replacement

Royal Vendors
Royal Vendors TDV Helpful hints
