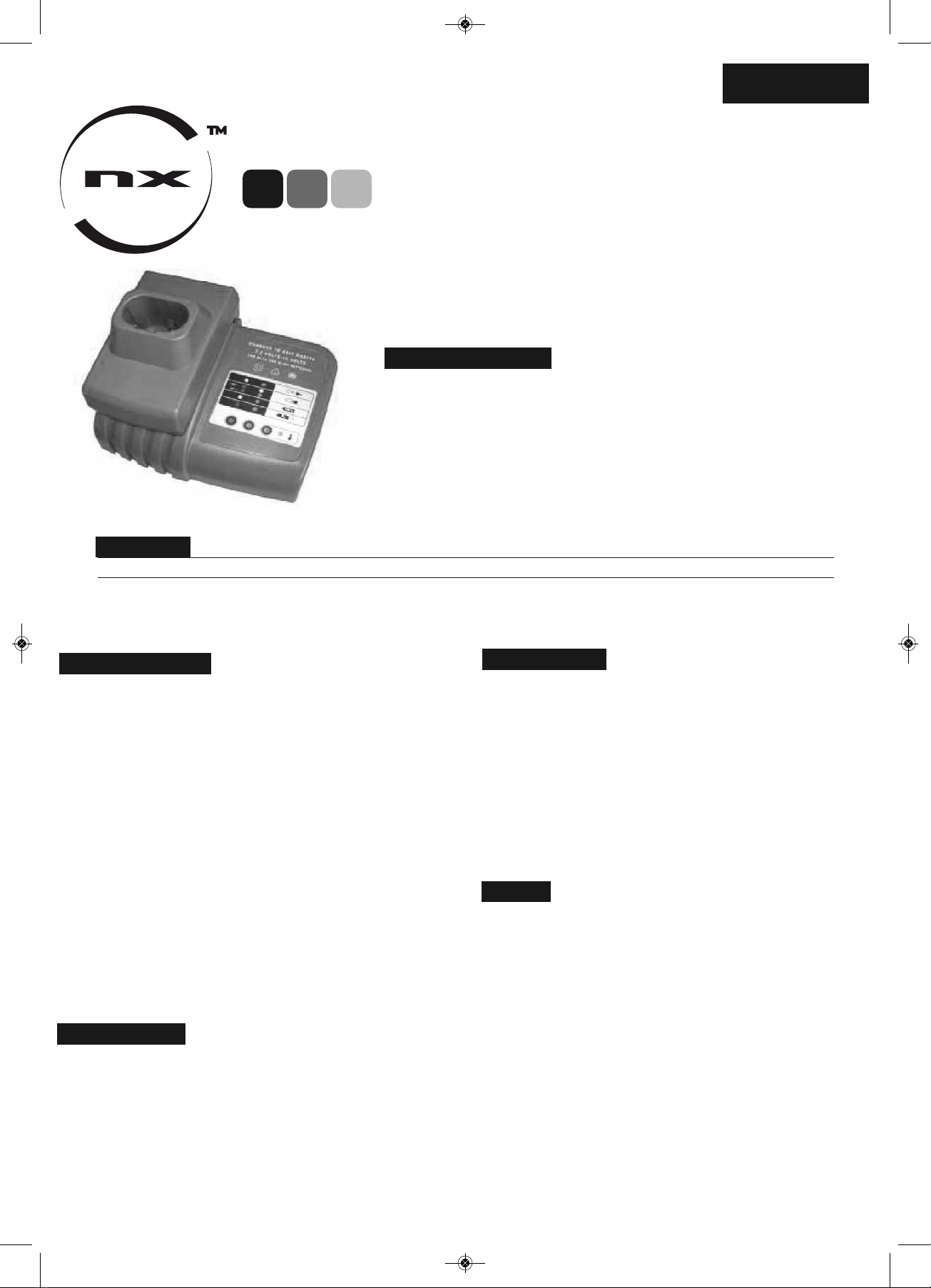

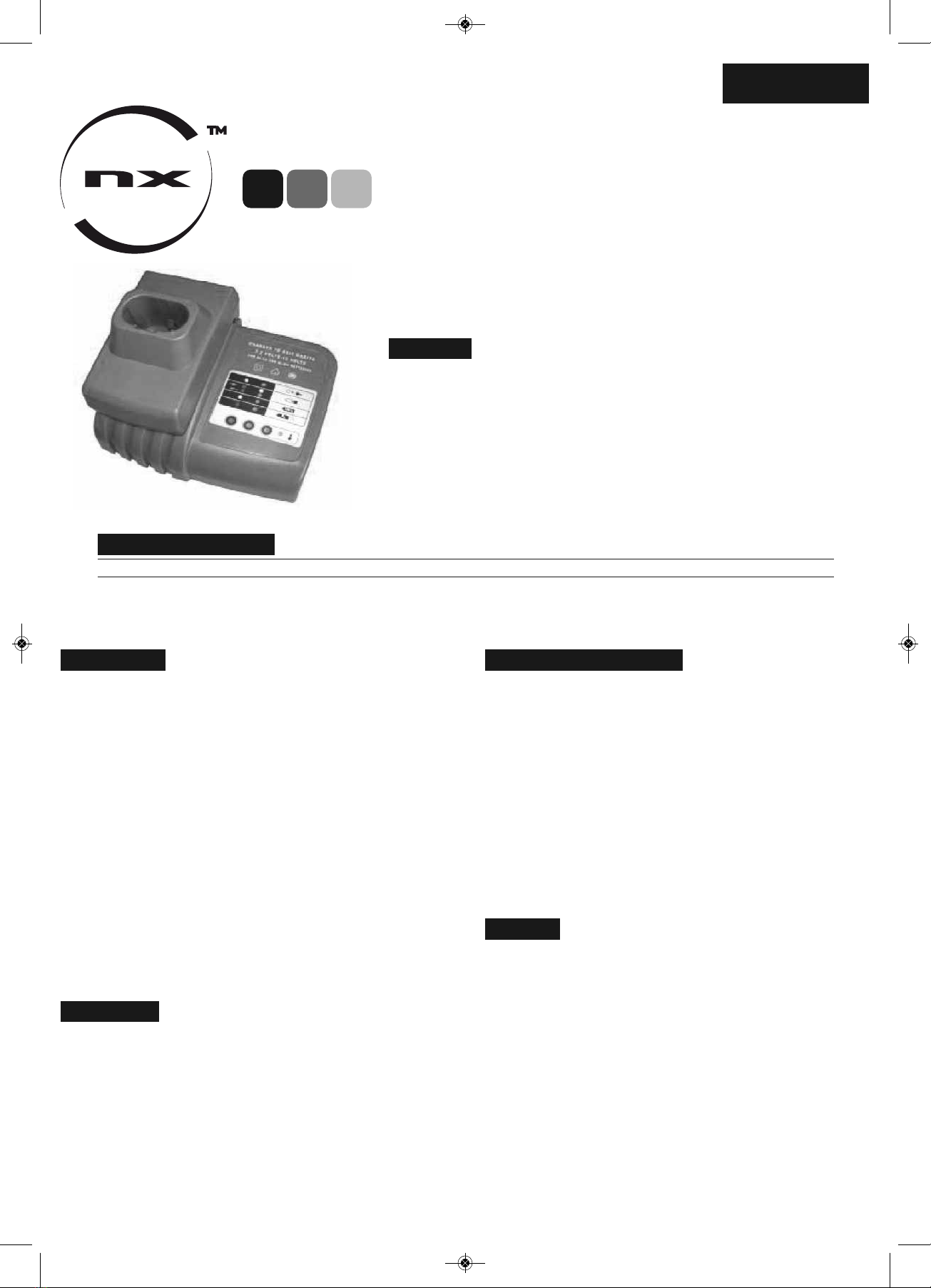

INSTRUCTION MANUAL
Charger for Makita batteries 7.2V to 18V
(NiCd/NiMH/Li-Ion)
CEH9106
CHARGER SPECIFICATIONS
•The separate universal AC adaptor (power supply) can be used with
world wideAC voltage of 100V~240V,50~60Hz.
It has an output of 36V DC 2Amp and is plugged into the battery
charger unit.
CHARGE TIME:Nickel Cadmium Nickel Metal Hydride
Capacity (Ah) 1,3 1,5 2,0 2,1 2,5 3,0 3,3
Time in Mins 52 60 80 84 100 120 132
CHARGING ADVICE:
• DO NOT charge the battery pack in an air temperature below
+0ºC (32ºF),or above +40ºC (104ºF).This is important and
will prevent serious damage to the battery pack.
• It is normal for the charger and battery pack to become
warm to the touch while charging.
• DO NOT CONTINUE to use a battery with low voltage or
capacity. Immediately charge the battery.
CHARGING PROCEDURE:
1• Connect the powersupplyoutput plug to theinput socket
on the charger, and then plug the other side cord into an
appropriate AC power outlet.
2 • Insert the battery pack into the charger, making sure the
pack is fully seated in the battery cavity.The red light will
come on indicating the charging process has started.
3 •The charger will show a steady red light up to when the
battery is 80% capacity then the red and green light will
be steady over 80%.Then only the green light will then
be steady when fully charged.
If the battery is left in the charger after the battery is fully
chargeditwillautomatically switchtotricklechargemode
4 •After charging is complete unplug the charger from the
power source.
LIGHT INDICATORS:
• Pack charging:Red light to 80% of capacity then red
and green light over 80%
• Fully charged:Steady green light
• Faulty battery or short circuit: red and green light blink
at once per second
• Temperature delay:red light and yellow light on and steady
• No load indication: green light blinking at once per second
CAUTION
:
• Please read all instructions before using the charger.
•This charger is designed for indoor use only.
• Do not probe with conductive metal objects during charging.
• Do not insert a cracked or damaged battery into the charger
• Do not allow any liquid to get inside charger.Keep it away
from water and moisture.
• Make sure the power supply and adaptor cord is located so
that it will not be stepped on,tripped over, or otherwise
subjected to damage or stress.
• To reduce the risk of damage to the electric plug and cord
when disconnecting the charger from the wall socket,pull by
the plug rather than the cord.
• Use only the power supply supplied,to avoid any possible
damage to the charger
