Nyrius NPCS549 User manual

Thank you for your purchase of this Nyrius product. Please read this instruction manual carefully before
using product to ensure proper use. Keep this manual in a safe place for future reference.
USER GUIDE
ARIES™ Prime
Wireless HD Transmitter
NPCS549 www.NYRIUS.com

- 2 -
• DigitalWireless HDTransmitter
• DigitalWireless HD Receiver
• 1 x 100-240V AC Power Adapter
• 5 ft HDMI® Cable
• Right Angle HDMI® Adapter
• USB Power Cable
• 2 x Screw Anchors
• 2 x Screws
• Instruction Manual
• Quick Start Guide
• 1YearWarranty
• Lifetime Live Customer Support
Table of Contents..........................................................................................................................2
What’s Included ...........................................................................................................................2
Features .......................................................................................................................................2
Buttons and Connections .............................................................................................................3
Setup ...........................................................................................................................................5
Troubleshooting.........................................................................................................................15
Specications.............................................................................................................................16
FCC Statement............................................................................................................................17
Safety Information.....................................................................................................................18
DrillingTemplate........................................................................................................................20
Notes..........................................................................................................................................21
NYRIUSWarranty .......................................................................................................................22
TABLE OF CONTENTS
WHAT’S INCLUDED
• Wirelessly send high denition movies,TV shows, games & music from your PC, Blu-ray™/
DVD player, gaming console or other HDMI® device to an HDTV or projector
• Stream uncompressed, true 1080p video and surround sound audio in real-time with zero
latency; 3D compatible
• Powerful 30ft digital signal eliminates the hassle of installing messy cables
• Easy to install plug‘n play setup gets you connected fast; no software required
• Compact ash drive design optimized for laptop use; powered by USB or wall adapter
FEATURES

- 3 -
BUTTONS AND CONNECTIONS
Transmitter - FRONT
Transmitter - SIDE
12
4
1Pairing button To PAIR transmitter & receiver
2LED Status Indicator Is a SOLID BLUE colour when the power is ON and has a
successful wireless connection
3USB Power Input Connect the transmitter to the desktop or laptop’s USB port
with the provided USB cable
4HDMI input Plug in theTransmitter directly to a PC, cable box or any
HDMI device
3

- 4 -
BUTTONS AND CONNECTIONS
Receiver - TOP
1
2
3
Receiver - SIDE
56
1Power Button with LED
indicator
Press to turn the receiver ON and OFF.The indicator in the
power button lights up in BLUE when the power is ON,
and turns RED in STANDBY MODE.
2INFO Button Press this button to display OSD information on the
HDTV screen.
3Status LED Displays the VIDEO STATUS information.
4Mounting Holes Allows you to hang the Receiver on the wall.
5DC Input Connect to receiver’s power adapter.
6HDMI Output Connect to HDTV via an HDMI cable.
Receiver - BOTTOM
4

- 5 -
SETUP

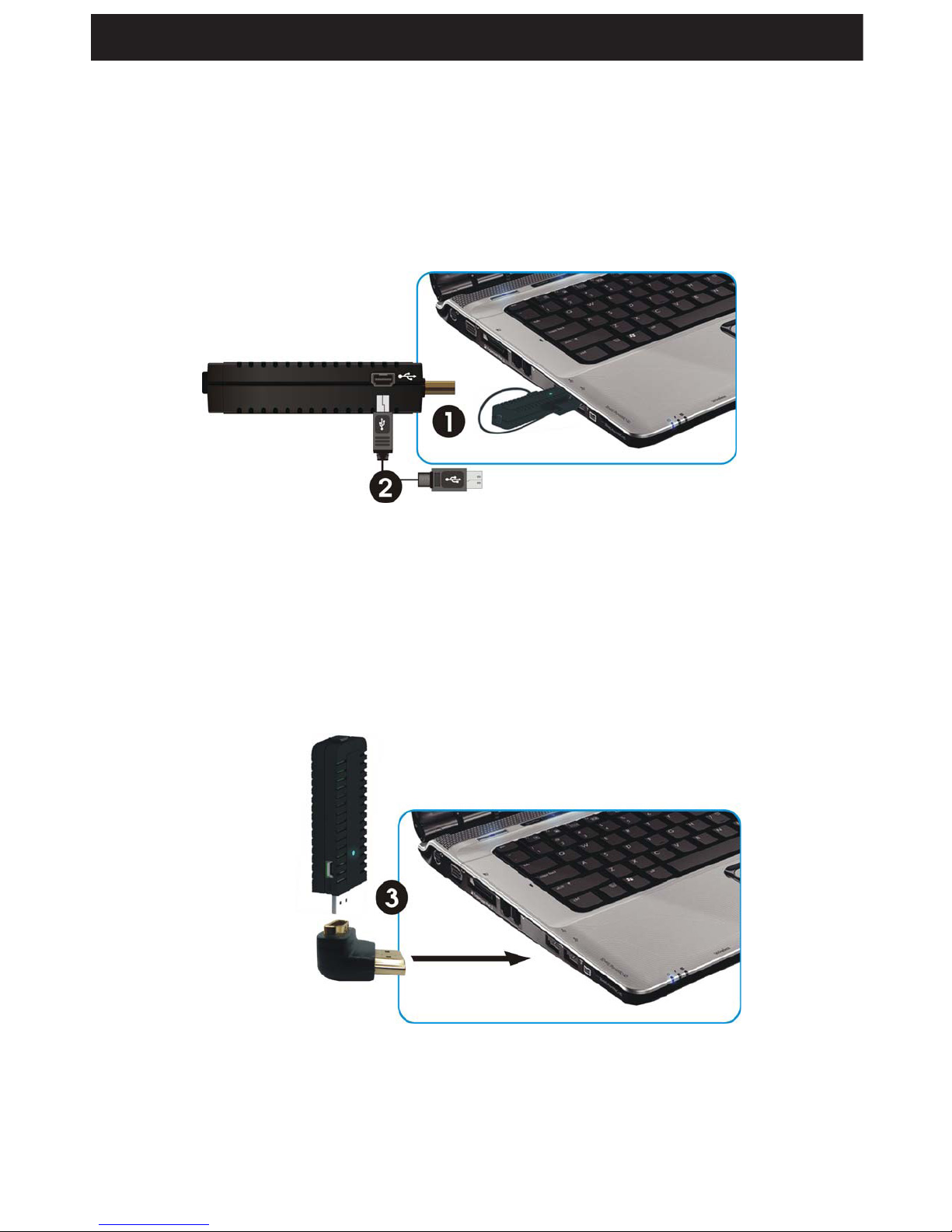

CONNECTING THE TRANSMITTER
1. Connect theTransmitter directly to a PC, cable box or any HDMI device.
2. Connect theTransmitter directly to a PC, cable box or any HDMI device using the USB cable
provided or connect the power adapter to the mini USB port of the transmitter and plug it to
an available wall outlet.
3. You may also connect the Right Angle HDMI® Adapter for easier setup with certain
computers.
• The LED indicator on the POWER BUTTON should light up in BLUE when theTransmitter is
properly connected to the computer via USB.

- 6 -
MOUNTING THE RECEIVER
1. Cut out the DRILLINGTEMPLATE on page 19
and tape it to the wall in the location that you
would like the Receiver installed.
2. Pre-drill the holes in the marked location.
3. Insert the two supplied Anchors into the
pre-drilled holes.
4. Insert two screws into the anchors and
tighten until the screws only stick out about
an 1/8 inch away from the wall.
5. Locate the wall mounting holes on the back of
the Receiver. Slide the holes over the screws
sticking out of the wall to mount into place.
CONNECTING THE RECEIVER TO HDTV
1. Connect the HDMI cable to the HDMI Output of the receiver and to your HDTV television or HD
projector.
2. Connect the power adapter to the DC Input of the Receiver and into a wall outlet.When the
unit is successfully connected, the Power LED indicator on the POWER button lights up
in BLUE.
SETUP
DRILLING
TEMPLATE
PC / LAPTOP

- 7 -
3. Once the Transmitter and Receiver are both connected, they will automatically pair to
each other.
SETUP
4. When you disconnect the transmitter and the link is disconnected over 10 minutes, the
Receiver will enter STANDBY MODE (Power LED of receiver is RED).

- 8 -
5. Connect the power adapter to the DC Input of the Receiver and into a wall outlet.When the
unit is successfully connected, the Power LED indicator on the POWER button lights up in
BLUE.
6. Once the Transmitter and Receiver are both connected, they will automatically pair to
each other.
7. During the warm-up period, the POWER LED will ash while BLUE until the signal between
theTransmitter and the Receiver is established. It will take aproximately 15 ~ 20 seconds to
boot-up and establish a link providing everything is operating normally.
8. Ensure your TV or projector is powered ON and is in"HDMI input" mode.
SETUP

- 9 -
SETUP
MODE STATUS POWER
LED
STATUS
LED OSD DISPLAY
STANDBY Power-save mode Solid RED OFF
WARMUP During 15-20 second
warm-up
Flashing
BLUE Flashing
SEARCHING
CHANNELS
System not able to establish
link after 80 seconds (see
Notes A and D)
Flashing
BLUE Flashing
WIRELESS
MODE
No input from selected
source (See Note B) Solid BLUE Flashing quickly
Video format not
recognized (See Note C) Solid BLUE Flashing slowly
Video format is recognized Solid BLUE Solid
BLUE -
Alternates
between
images on
OSD
4 Levels
looping -
Searching
NOTES
A. If the system is unable to establish a connection within 80 seconds, the connection has
been lost or theTransmitter is out of range.Verify the distance between theTransmitter and
Receiver.The maximum video transmission range for 1080p content is up to 30ft. in line of
sight (LOS).The minimum range is 6.5 ft.
B. Please conrm that the computer is powered ON and that HDMI OUT has been selected; check
that HDMI cable is properly connected.
C. If no video is displayed and OSD message states "NOT SUPPORTED FORMAT", then the video
frame rate from the computer is NOT supported. See " Supported Resolution" section to
change resolutions.
D. If you have more than one pair of each Transmitter/Receiver, each pair should be at least 6.5
feet away from each other. If both pairs ofTransmitter/Receiver are in the same room, the
suggested the distance between the two is a minimum distance of 6.5 feet.
9. If all is operating normally, the POWER LED and INFO/CHANNEL LED will be SOLID BLUE. Please
refer to the chart below for detailed LED and OSD transmitter/receiver alert descriptions:

- 10 -
RECEIVER
BUTTON OSD OSD DISPLAY
POWER Press the POWER button onTOP of the receiver to go
from " Active mode" to " Active Standby mode".
INFO
Press the INFO button onTOP of the receiver. The
Signal Quality, Source, Channel and Resolution will be
displayed on the OSD for your reference. Press the INFO
button again to exit.
HDMI
CH10
1280x1024
= OFF
SETUP

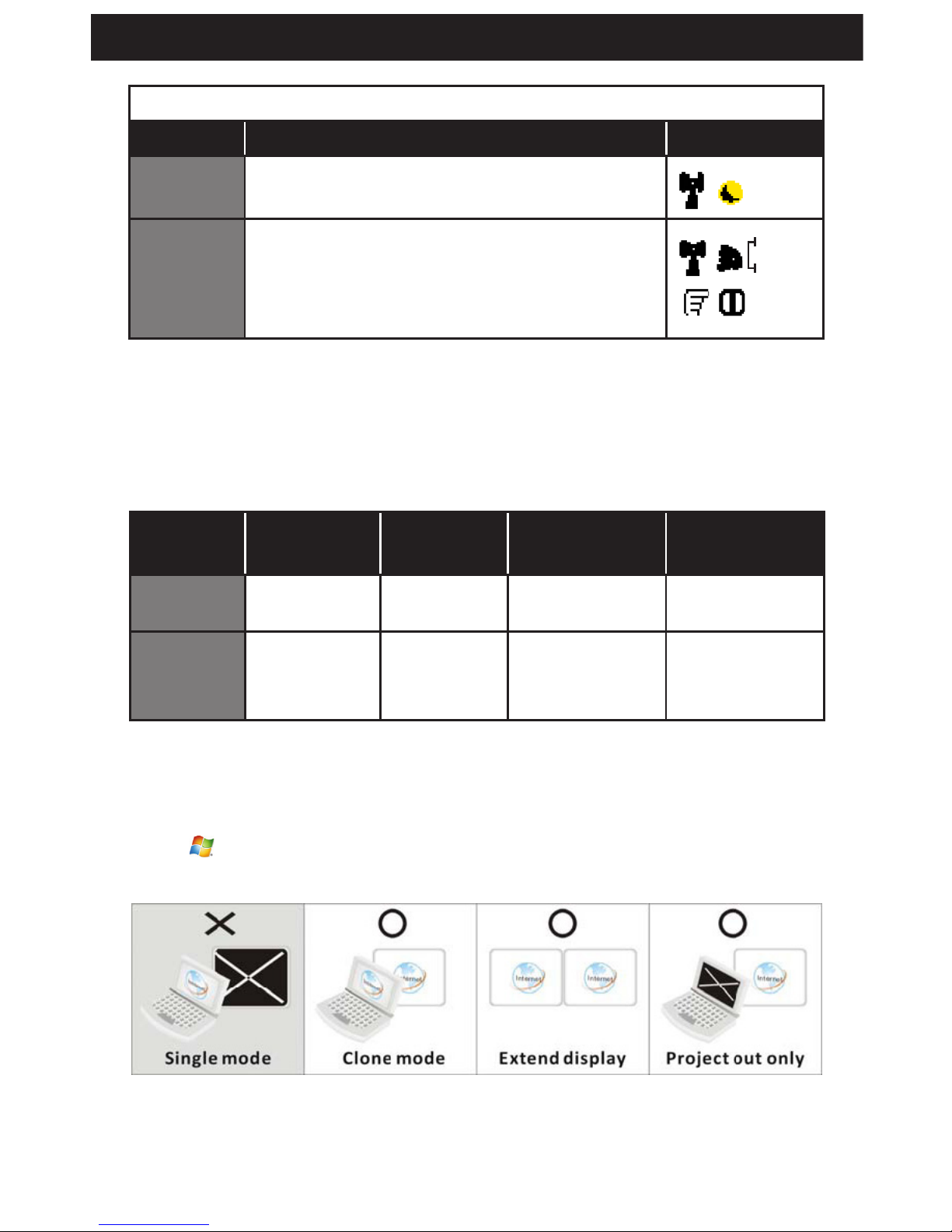

AUDIO BIT RATE SUPPORT
• Digital Audio from HDMI inputs: Up to 6Mbit/s bit-rate support.
• Support AC3 and DTS.
• 2-Channel PCM audio : 16~24 bits audio sample with 32~48KHz sampling rate
2 CHANNEL
PCM 32KHZ 44.1KHZ 48KHZ 96KHZ
16 Bits YES YES YES YES
24 bits YES YES YES YES

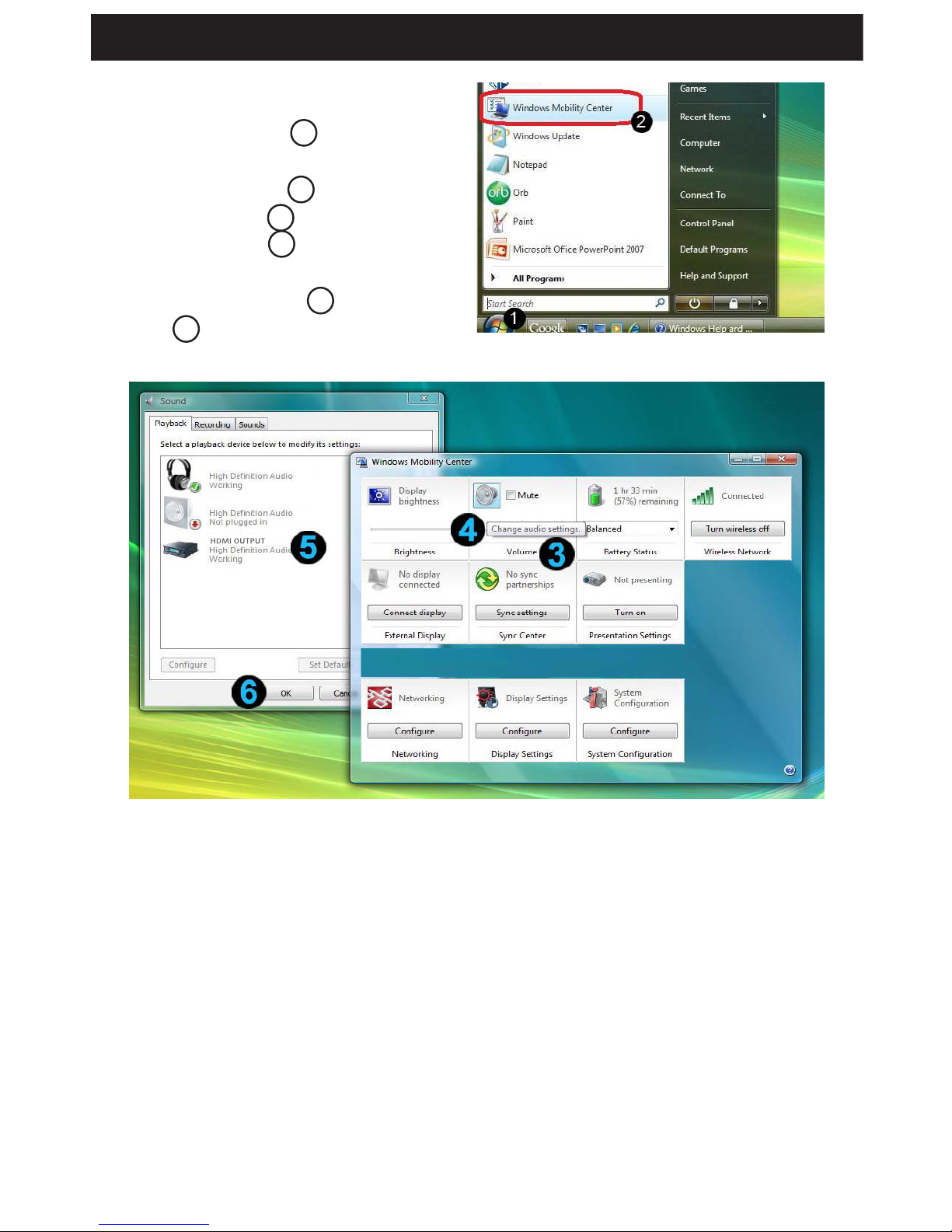

Windows OS Display setting of Laptop for external display:
Windows7 OS:
1. Press key + P key
2. There is a POP icon displayed on the screen, as seen below :
3. Select Clone mode, Extend Display or Project out only to enable external display.
