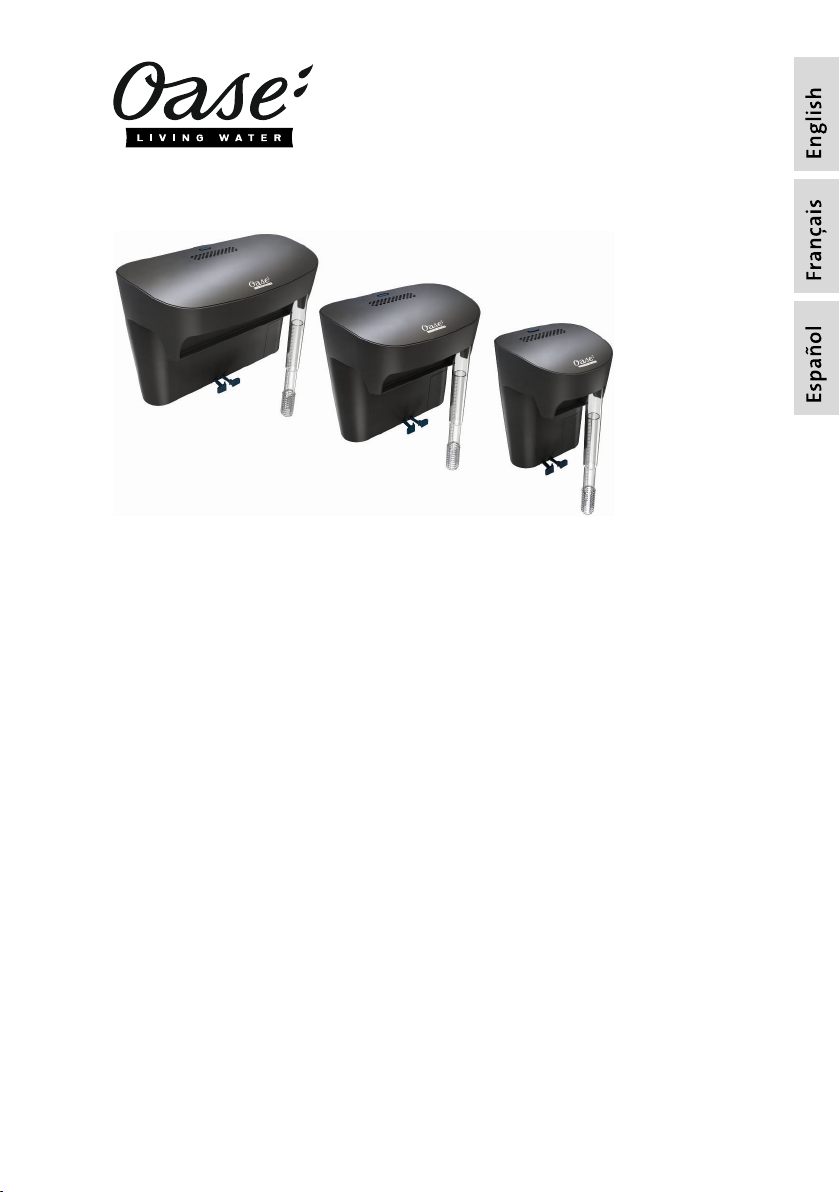

Oase BioStyle 20 User manual

BioStyle
20, 30, 30 Thermo, 50, 50 Thermo
O
p
eratin
g
instructions
Notice d'em
p
lo
i
Instrucciones de us
o

2
EN
WARNING
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
xClose supervision is necessary when the unit is used by or near children.
xTo avoid injury, do not contact moving parts or hot parts, and the like.
xAlways unplug the unit from an outlet when not in use, before putting on or taking
off parts, and before cleaning. Never yank cord to pull plug from outlet. Grasp the
plug and pull to disconnect.
xDo not use the unit for other than intended use. The use of attachments not rec-
ommended or sold by the unit manufacturer may cause an unsafe condition.
xDo not install or store the unit where it will be exposed to the weather or to tem-
peratures below freezing.
xMake sure the unit mounted on a tank is securely installed before operating it.
xRead and observe all the important notices on the unit.
xIf an extension cord is necessary, a cord with a proper rating should be used. A cord
rated for less amperes or watts than the unit rating may overheat. Care should be
taken to arrange the cord so that it will not be tripped over or pulled.
xOnly connect the unit if the electrical data of the unit and the power supply match.
xDo not use the unit as a toy. Close attention is necessary when the product is used
by or near children.
xDo not use the unit, if electrical lines or the housing are damaged.
xA damaged connection cable cannot be replaced. Dispose of the unit.
xDo not carry or pull the unit by its power cable.
xShould problems occur, please contact the authorized customer service or OASE.
SAVE THESE INSTRUCTIONS

3
DANGER
To avoid possible electric shock, special care should be taken since water is employed
in the use of aquarium equipment. For each of the following situations, do not at-
tempt repairs by yourself, return the unit to an authorized service facility for service
or discard the unit.
fIf the unit falls into the water, don't reach for it! First unplug it and then retrieve it.
If electrical components of the unit get wet, unplug the unit immediately.
fCarefully examine the unit after installation. It should not be plugged in if there is
water on parts not intended to be wet.
fDo not operate any unit if it has a damaged cord or plug, or if it is malfunctioning
or has been dropped or damaged in any manner.
fTo avoid the possibility of the unit plug or receptacle getting wet, position aquar-
ium stand and tank to one side of a wall-mounted receptacle to prevent water

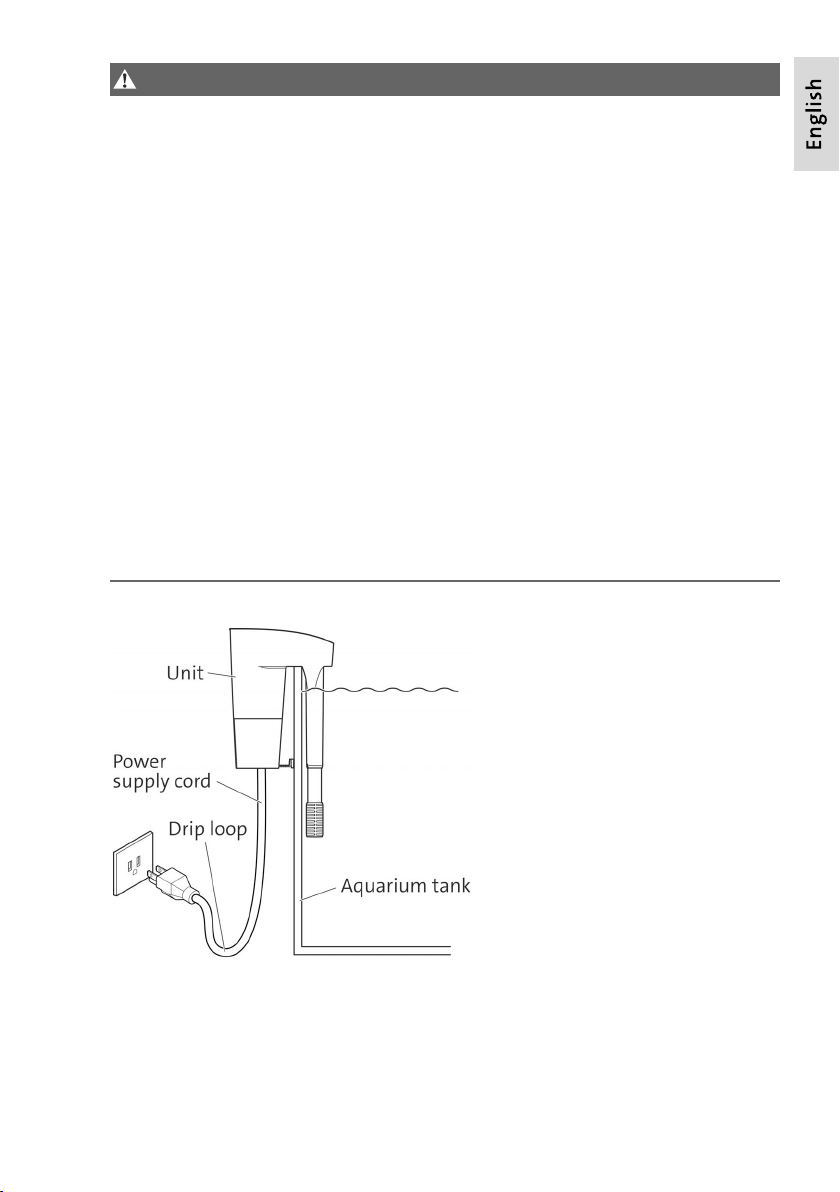

from dripping onto the receptacle or plug. A "drip loop," shown in the figure below,
should be arranged by the user for each cord connecting an aquarium unit to a re-
ceptacle. The "drip loop" is that part of the cord below the level of the receptacle, or
the connector if an extension cord is used, to prevent water traveling along the
cord and coming in contact with the receptacle. If the plug or receptacle does get
wet, don't unplug the cord. Disconnect the fuse or circuit breaker that supplies
power to the unit. Then, unplug and examine for presence of water in the recepta-
cle.
BBSE0015

4
Contents
Product description ..............................................................................................................................5
Overview..............................................................................................................................................5
Symbols on the unit........................................................................................................................ 6
Intended use.......................................................................................................................................... 6
Questions, problems, missing parts?............................................................................................. 6
Installation..............................................................................................................................................7
Prepare filter cartridge....................................................................................................................7
Attach filter.........................................................................................................................................7
Commissioning/start-up....................................................................................................................8
Maintenance and cleaning ............................................................................................................... 9
Replace filter media ........................................................................................................................ 9
Cleaning the filter housing..........................................................................................................10
Cleaning/replacing the impeller unit........................................................................................11
Remove / install heater................................................................................................................. 12
Troubleshooting.................................................................................................................................. 12
Technical data...................................................................................................................................... 13
Wear parts.............................................................................................................................................14
Disposal..................................................................................................................................................14

5
Product description
Overview
BSE0016
1 Maintenance indicator, shows when you have to change or clean the filter medi
a
2 Ventilation openings
3 Filter cartridge (B
i
oStyle 20: 1×, BioStyle 30: 2×, BioStyle 50: 3×
)
4 Flow regulator, adjusting the amount of water flowing through the filte
r
5 Pump
6 Heater, only available with the "Thermo" version
7 Suction pipe, adjustable in length
8 Spacer, adjustable, for alignment and stabilization of the filter
9 Filter foam (BioStyle 20: 1×, BioStyle 30: 2×, BioStyle 50: 3×
)

6
Symbols on the unit
The device is dustproof and waterproof to 3.3 ft (1 m).
The unit is protected against the ingress of splash water.
Use the device indoors only.
Do not dispose of the unit with normal household waste.
Read the operating instructions.
Intended use
Only use the product described in this manual as follows:
xFilter and circulate water.
x"Thermo" version: Heat, filter and circulate water.
xUse for private purposes only.
xOperate the product in compliance with the technical data.
The following restrictions apply to the unit:
xNever use the unit with fluids other than water.
xDo not use in conjunction with chemicals, foodstuff, easily flammable or explosive
substances.
xDo not use for commercial or industrial purposes.
xNever run the unit without water.
Questions, problems, missing parts?
Before returning to your retailer, call us at 1-866-627-3435, EST, Monday-Friday, or
email us at [e-mail].

7
Installation
Prepare filter cartridge
LThoroughly rinse all filter materials with cold water before the first use. Do not
open the Multi-stage filter cartridges.

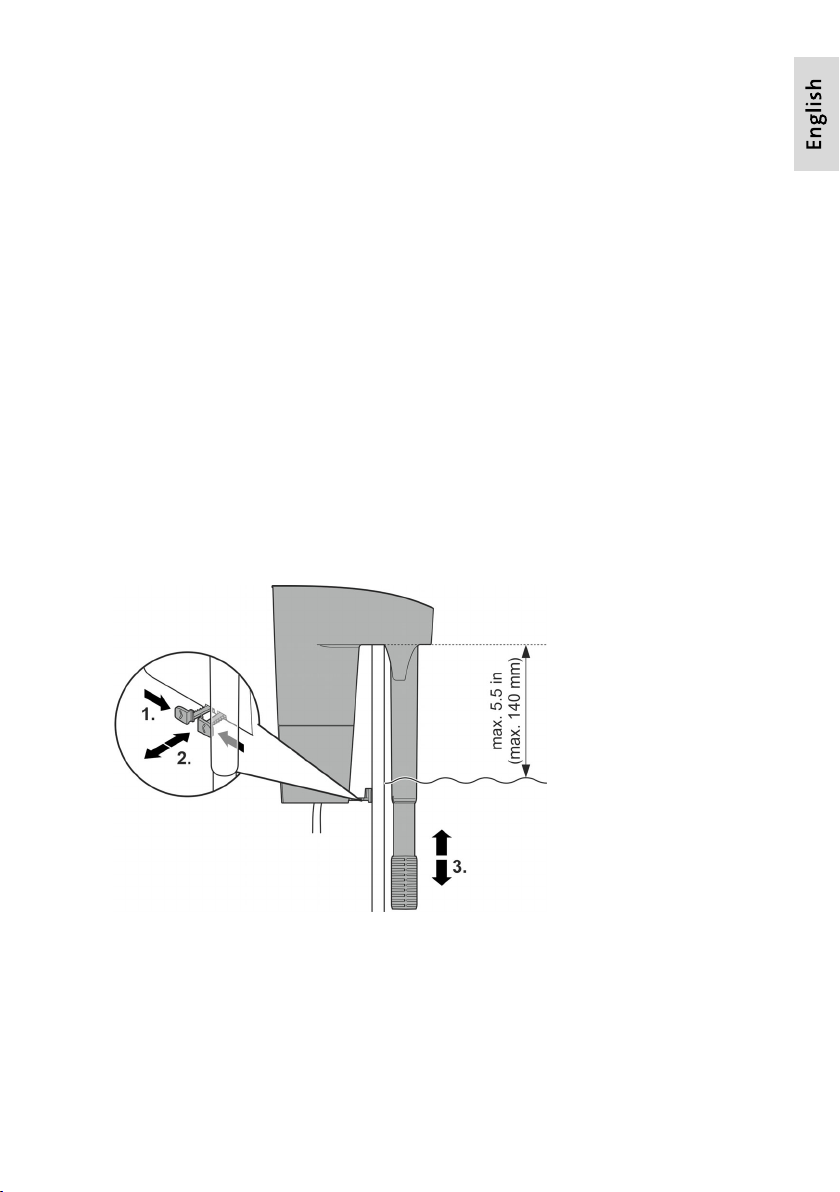

Attach filter
How to proceed:
1. Place the filter on the aquarium rim so that the filter hangs vertically on the side of
aquarium.
2. Use the adjustable leveler to align the filter.
– The adjustable leveler holds the filter vertically and supports it against the
aquarium wall.
3. Extend the telescopic intake to the desired height.
– Make sure that no aquarium substrate (e.g. sand) is sucked in.
Requirements for reliable water intake:
xDo not let the water level drop more than 5.5 in from the aquarium rim. This will
ensure that the pump draws in the water safely, e.g. after a power failure.
xFill the filter housing completely with water (before the first start-up and after
cleaning the filter housing).
BSE0002

8
Commissioning/start-up
NOTE
BioStyle 30 Thermo, 50 Thermo:
Fire hazard due to highly flammable material on hot surface.
fOnly switch on the heater when it is completely submerged in water.
LIf there is air in the telescopic intake, it may take up to 3 minutes for the pump to
deliver water.
xSwitching on: Plug the power plug into the outlet.
– The unit switches on immediately.
– Lay the power supply cord so that a drip loop is formed and the lowest point is
below the socket. This prevents dripping water from entering the socket.
– Set the desired flow rate.
xSwitching off: Pull the power plug from the outlet.

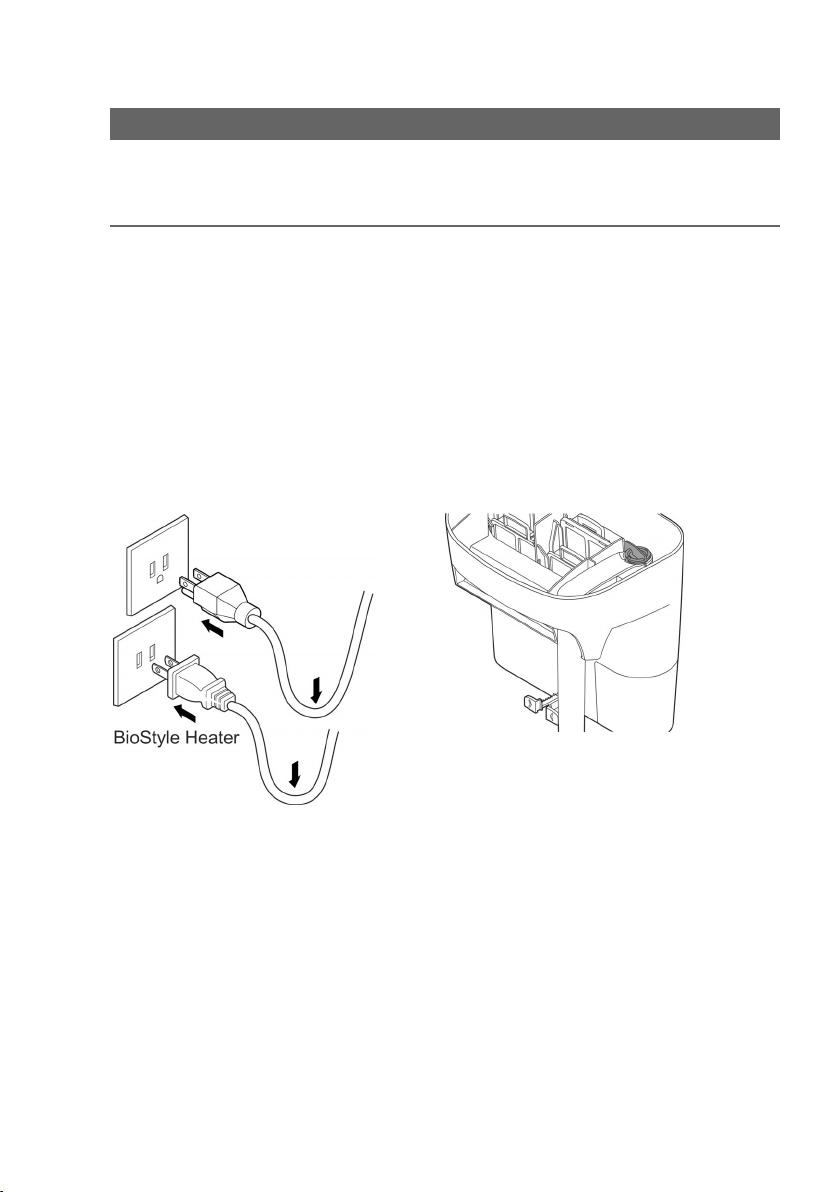

Form drip loop Adjust flow rate
BSE0024 BSE0013

9
Maintenance and cleaning
WARNING
Serious injury or death from electric shock is possible.
fDisconnect all electrical devices in the water from the power supply before reach-
ing into the water.
fDisconnect the device from the power supply before starting work on the unit.
NOTE
Do not use aggressive cleaning agents or chemical solutions. These agents can dam-
age the housing, impair the function of the device and harm animals, plants and the
environment.
fClean the unit only with clean water and a soft brush or sponge.
Replace filter media

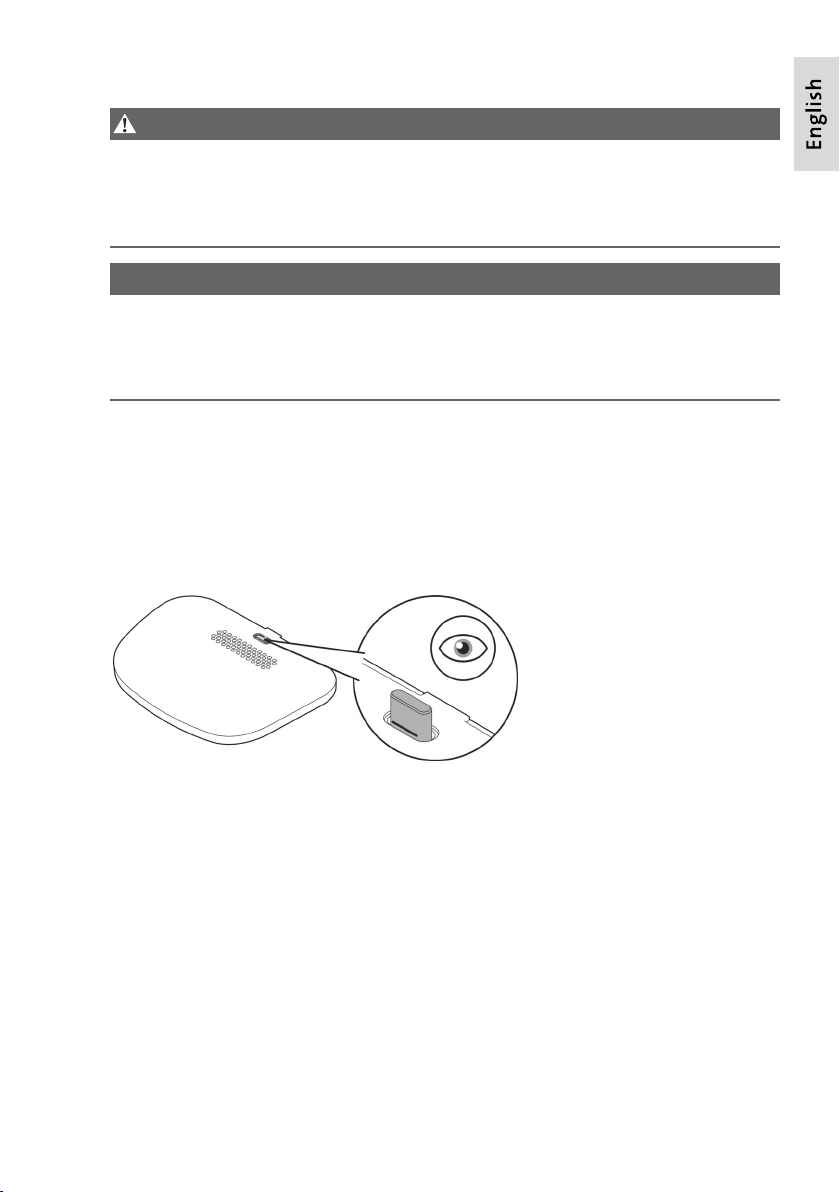

If the cleaning indicator has risen high enough that the line is visible, the filter capac-
ity is no longer sufficient. You must replace or clean the filter media.
LThe filter foam is also available without a frame. You can reuse the frame. This
protects the environment.
BSE0005

10
Cleaning the filter housing
CAUTION
Risk of burns from hot surface.
fTurn the heater off and let it cool down before removing it from the water.
NOTE
Fire hazard due to highly flammable material on hot surface.
fTurn the heater off and let it cool down before removing it from the water.
fDo not leave the heater unattended after removing it from the water.
For thorough cleaning of the filter housing, remove all filter media, the telescopic in-
take, and the partition wall.
BSE0007

11

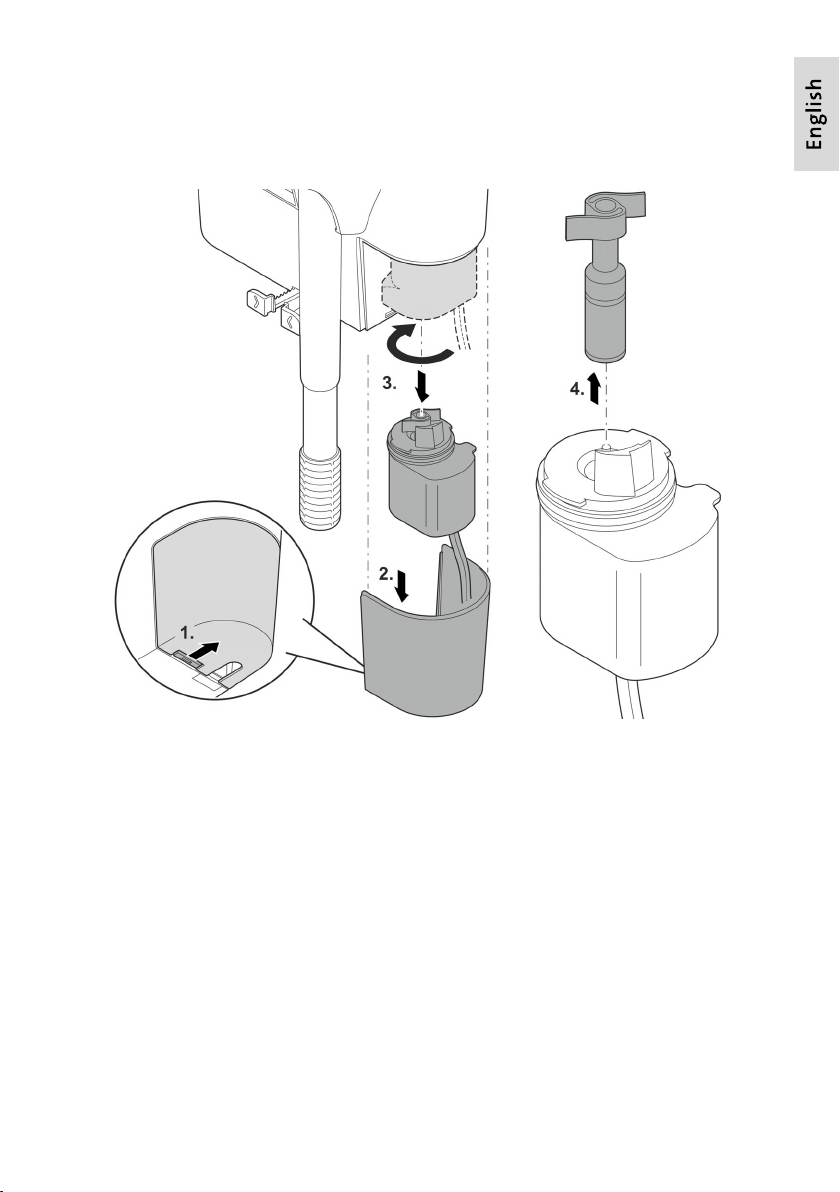

Cleaning/replacing the impeller unit
xUnplug the filter unit.
xRemove the filter unit from the aquarium.
xDrain the filter housing completely before removing the pump.
BSE0006

12
Remove / install heater
You can remove or install the heater to
xRetrofit your filter with a heater,
xThoroughly clean the filter housing,
xReplace a defective heater.
Prerequisite:
xThe pump is removed.
BSE0008
Troubleshooting
Malfunction Possible caus
e
Remed
y
Pump does not start up Insufficient power Check the power supply
cor
d
Impeller unit blocke
d
Cleaning
Insufficient water flow Filter housing or impeller dirty Cleaning
Impeller unit worn out Replace impeller unit
Filter media dirt
y
Replace filter medi
a
Telescopic intake blocked Clean telescopic intake
Telescopic intake and partition wall
not assembled correctl
y
Assemble telescopic intake
and partition wall correctl
y
Filtration insufficient Filter media soiled or worn Replace filter media
Filter housing clogge
d
Clean filter housing
Water heating insufficient
(only "Thermo" version)
Insufficient power for heater miss-
ing
Check the power supply
cord
Heater defectiv
e
Replac
e

13
Technical data
BioStyle 20 30 30
Thermo
50 50
Thermo
Rated voltage AC V 120 120 120 120 120
Mains frequenc
y
H
z
6
0
6
0
6
0
6
0
6
0
Power consumption W 4.
5
5.
0
5.
0
5.
5
5.
5
Protection class – IPX4 IPX4 IPX4 IPX4 IPX4
Length of connection cable ft 6 6 6 6 6
m1.
8
1.
8
1.
8
1.
8
1.
8
Max. delivery rate gph 100 150 150 250 250
l/h 38
0
56
0
56
0
95
0
95
0
Rated voltag
e
AC V
–
–
12
0
–
12
0
Mains frequency Hz – – 60 – 60
Max.
p
ower consumption W
–
–
11
0
–
22
0
Max. current consumption A
–
–
0.92
–
1.83
Protection class – – – IPX8 – IPX8
Length of connection cable ft
–
–
6
–
6
m
–
–
1.8
–
1.8
Max. immersion depth ft – – 0.35 – 0.35
m
–
–
1
–
1
Length in 6.
0
8.
5
8.
5
11.
0
11.
0
Width in 5.25 6.0 6.0 6.75 6.75
Height in 8.
5
8.
5
8.
5
8.
5
8.
5
Length m
m
152 21
6
21
6
279 279
Width mm 133 152 152 171 171
Height m
m
21
6
21
6
21
6
21
6
21
6
Max. size aquarium ga
l
2
0
3
0
3
0
5
0
5
0
l 75 115 115 190 190
Weight lbs 2.
0
2.
4
2.73 2.9 3.2
8
kg 0.9 1.
1
1.2
5
1.3 1.4
7

14
Wear parts
The following components are wear parts and are excluded from the warranty.
xFilter media
xImpeller unit
Disposal
NOTE
Do not dispose of this unit with household waste.
fContact your local waste disposal company for instructions on proper disposal of
the unit.
fRender the unit unusable by cutting the cables.

15

OASE North America Inc.
1-866-627-3435
[email protected]
www.oase-livingwater.com
