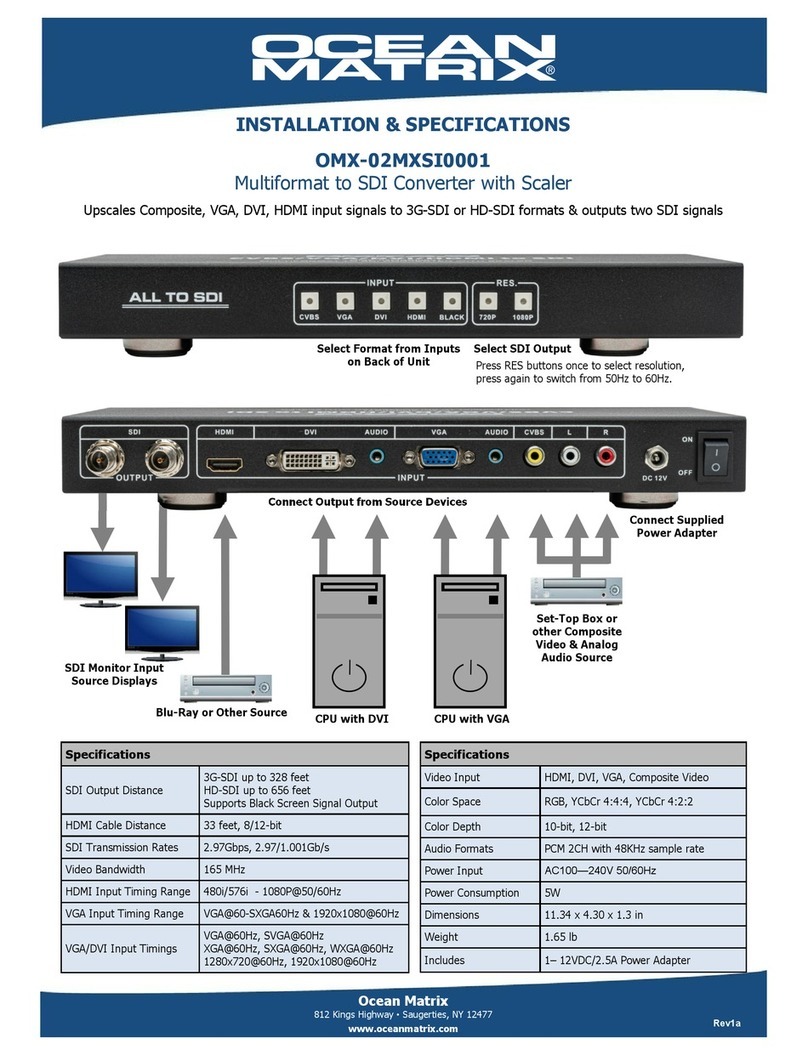

Ocean Matrix OMX-02MXSI0001 User manual

Ocean Matrix

Ocean Matrix OMX-02MXSI0001 User manual

Ocean Matrix OMX-HDMI-HDB1X8 User manual

Ocean Matrix

Ocean Matrix OMX-HDMI-HDB1X8 User manual

Ocean Matrix OMX-01HMHM0006 User manual

Ocean Matrix

Ocean Matrix OMX-01HMHM0006 User manual

Ocean Matrix OMX-02MXSI001 User manual

Ocean Matrix

Ocean Matrix OMX-02MXSI001 User manual

Ocean Matrix OMX-7030 User manual

Ocean Matrix

Ocean Matrix OMX-7030 User manual

Ocean Matrix Professional User manual

Ocean Matrix

Ocean Matrix Professional User manual

Ocean Matrix OMX HDMI SDI User manual

Ocean Matrix

Ocean Matrix OMX HDMI SDI User manual

Ocean Matrix OMX-02HMHM0001 User manual

Ocean Matrix

Ocean Matrix OMX-02HMHM0001 User manual

Ocean Matrix OMX-COMPVGA-HDMI User manual

Ocean Matrix

Ocean Matrix OMX-COMPVGA-HDMI User manual

Ocean Matrix OMX-HDCAT1X4-LR User manual

Ocean Matrix

Ocean Matrix OMX-HDCAT1X4-LR User manual

Ocean Matrix OMX-16HMHM0001 User manual

Ocean Matrix

Ocean Matrix OMX-16HMHM0001 User manual

Popular Media Converter manuals by other brands

TR-Electronic CMS582M-4096/4096 IOL DMS 14H7 KRF Assembly instructions

TR-Electronic

TR-Electronic CMS582M-4096/4096 IOL DMS 14H7 KRF Assembly instructions

Korenix JetCon 2301S user manual

Korenix

Korenix JetCon 2301S user manual

StarTech.com ET91000LCOAM manual

StarTech.com

StarTech.com ET91000LCOAM manual

Alesis AI-3 Reference manual

Alesis

Alesis AI-3 Reference manual

Caton Vpro 5100 user guide

Caton

Caton Vpro 5100 user guide

Cypress CSC-5500 Operation manual

Cypress

Cypress CSC-5500 Operation manual

H&B TX-100 Installation and instruction manual

H&B

H&B TX-100 Installation and instruction manual

Bolin Technology D Series user manual

Bolin Technology

Bolin Technology D Series user manual

IFM Electronic Efector 400 RN30 Series Device manual

IFM Electronic

IFM Electronic Efector 400 RN30 Series Device manual

GRASS VALLEY KUDOSPRO ULC2000 user manual

GRASS VALLEY

GRASS VALLEY KUDOSPRO ULC2000 user manual

Linear Technology DC1523A Demo Manual

Linear Technology

Linear Technology DC1523A Demo Manual

Lika ROTAPULS I28 Series quick start guide

Lika

Lika ROTAPULS I28 Series quick start guide

Weidmuller IE-MC-VL Series Hardware installation guide

Weidmuller

Weidmuller IE-MC-VL Series Hardware installation guide

Optical Systems Design OSD2139 Series Operator's manual

Optical Systems Design

Optical Systems Design OSD2139 Series Operator's manual

Tema Telecomunicazioni AD615/S product manual

Tema Telecomunicazioni

Tema Telecomunicazioni AD615/S product manual

KTI Networks KGC-352 Series installation guide

KTI Networks

KTI Networks KGC-352 Series installation guide

Gira 0588 Series operating instructions

Gira

Gira 0588 Series operating instructions

Lika SFA-5000-FD user guide

Lika

Lika SFA-5000-FD user guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

Rev1a
Ocean Matrix
812 Kings Highway •Saugerties, NY 12477
www.oceanmatrix.com
Specifications
Audio Formats
LPCM 7.1CH
Dolby TrueHD
DTS-HD Master Audio
Dimensions 6.42 x 2.48 x 0.63 in
Weight 9.17 oz
Includes 1– 5VDC/1A Power Adapter
Power Consumption 2W
VESA Mode Video
Format Up to QSXGA@60Hz
Specifications
Compliance HDMI 2.0a
HDCP 2.2
Certification CE, RoHS
Video Bandwidth 600 MHz/18Gbps
Video Resolutions Up to 4K2K@60Hz
Color Space RGB/YCBCR 4:4:4/YCBCR 4:2:2
Color Depth 8-bit
3D Frame Sequential
Video Format Up to 4K2K@30Hz & 1080p@60
LED Power
Indicator
Connect Supplied
Power Adapter
LEDs Indicate Connection to Active Display Manufacturer
Use Only
INSTALLATION & SPECIFICATIONS
OMX-06HMHM0001
4K HDMI 1X4 Splitter
EDID STD: Uses Unit’s Settings
Video: 1080P@60Hz
Audio: LPCM 2CH Stereo
EDID TV: Uses Display Unit
Settings Connected to HDMI OUT 1
LED Indicates
Source is
Connected
UHD TV or Other 4K HDMI Display
Transmits one HDMI signal to four HDMI displays supporting video output up to 4K2K@60Hz without data
loss. EDID switch allows a choice of standard (video output of 1080p@60Hz and audio output at LPCM 2CH
stereo) or TV mode (settings of the display device connected to HDMI OUT 1).
Blu-Ray or Other
HDMI Source Device
SAFETY PRECAUTIONS
1. To prevent fire or shock hazard, do not expose this equipment to high humidity and/or dust.
Do not use in an unprotected outdoor installation nor any area classified as overly damp or wet.
2. The temperature for installation should be kept between 32°F to 140°F (0°C to 60°C). Avoid direct
sunlight exposure or extreme changes of temperature over a short period of time.
3. Do not disassemble the unit or place it on an unstable base.
4. Do not drop the unit and avoid heavy impact.
5. This unit should not be permanently installed unless proper ventilation is provided. Any enclosure open-
ings must not be blocked or covered as they protect the unit from overheating.
6. Before cleaning, turn off the power and unplug the unit from all connections. Use a damp cloth. Do not
use liquid cleaners nor aerosol cleaners.
7. Do not overload outlets and extension cords as this may result in a risk of fire or electric shock.
8. Enclosure entry is dangerous. Never push objects of any kind, including liquids, into this unit through
openings as they may touch dangerous voltage points or short-out parts that could result in a fire or
electric shock.
9. Do not attempt to open or service this unit yourself as opening or removing covers may expose you to
dangerous voltage and other hazards.
10.There are no user-serviceable parts inside the unit. If the unit requires service contact your authorized
dealer, or an authorized repair service company.
Troubleshooting
No image output
 Ensure power supply is firmly connected. Only use the 5VDC power adapter included with the unit.
 Check that the cables are securely connected.
 Check that the display/TV has been set to the proper channel or input.
 For PC connections via HDMI, set output mode to mirror or extend.
Display is unstable
 Check all connections.
 Connect the source directly to the display device to ensure there is a signal output.
Change the signal source if necessary.
 Use only high-quality HDMI or appropriate cables.
Rev1a
Ocean Matrix
812 Kings Highway •Saugerties, NY 12477
www.oceanmatrix.com
