Ocean Optics HL-2000-FHSA User manual

Halogen Light Source with Attenuator
and TTL-Shutter
HL-2000-FHSA/ HL-2000-FHSA-LL / HL-2000-FHSA-HP
A Product
Installation and Operation Manual
Document Number 000-10000-070-02-0505
Offices: Ocean Optics, Inc.
830 Douglas Ave., Dunedin, FL, USA 34698
Phone [phone]
Fax [phone]
8 a.m.– 8 p.m. (Mon-Thu), 8 a.m.– 6 p.m. (Fri) EST
Ocean Optics B.V. (Europe)
Geograaf 24, 6921 EW DUIVEN, The Netherlands
Phone [phone]
F
ax 31-(0)26-3190505
E-mail: [email protected] (General sales inquiries)
[email protected] (European sales inquiries)
[email protected] (Questions about orders)
[email protected] (Technical support)

Ocean Optics offers the most comprehensive, innovative and high-quality line of modular spectroscopy
tools in the world. Mikropack, a leading supplier of spectroscopy and thin film components, is an
essential and valuable partner in this enterprise. We have partnered with Mikropack because they are
committed to the same goals of innovation and quality that inspire us here at Ocean Optics. As always,
Ocean Optics conducts its business in an open, honest and technically available fashion. We invite you to
contact us at Ocean Optics, Inc. (see front cover for contact information) or Mikropack GmbH with any
technical questions, comments, or applications inquiries. Mikropack GmbH can be contacted at the
following location:
MIKROPACK GmbH
Maybachstraße 11
D-73760 Ostfildern
Germany
Tel.: [phone]• Fax.: [phone]
e-mail: [email protected]
internet: www.mikropack.de
Copyright © 2001-2005 Ocean Optics, Inc.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, by any means, electronic,
mechanical, photocopying, recording, or otherwise, without written permission from Ocean Optics, Inc.
This manual is sold as part of an order and subject to the condition that it shall not, by way of trade or otherwise, be lent, re-sold, hired out or
otherwise circulated without the prior consent of Ocean Optics, Inc. in any form of binding or cover other than that in which it is published.
Trademarks
Microsoft, Windows, Windows 95, Windows 98, Windows Me, Windows NT, Windows 2000, Windows XP and Excel are either registered
trademarks or trademarks of Microsoft Corporation.
Limit of Liability
Every effort has been made to make this manual as complete and as accurate as possible, but no warranty or fitness is implied. The information
provided is on an “as is” basis. Ocean Optics, Inc. shall have neither liability nor responsibility to any person or entity with respect to any loss or
damages arising from the information contained in this manual.

Important Safety Notices
1. Do not remove or modify any installed safety device on this equipment. Doing so will void your
warranty and create an unsafe operating environment.
2. Dangerous voltages are present in this device. There are NO user serviceable parts inside.
3. Only allow qualified personnel to service this unit.
4. Do not use the unit if it is damaged in any way. Contact your dealer for repair or replacement
information.
Warranty
Mikropack GmbH warrants to the original user of this instrument that it shall be free of any defects
resulting from faulty manufacture of this instrument for a period of 12 months from the original data of
shipment.
This instrument should not be used for any Clinical or Diagnostic purposes.Data generated in these
areas is not warranted in any way by Mikropack GmbH. Any defects covered by this Warranty shall be
corrected either by repair or by replacement, as determined by Mikropack GmbH.
There are no warranties that extend beyond the description herein.
This Warranty is in lieu of, and excludes, any and all other warranties or representations expressed,
implied, or statutory, including merchantability and fitness, as well as any and all other obligations or
liabilities of Mikropack GmbH including, but not limited to, special or consequential damages. No
person, firm, or corporation is authorized to assume for Mikropack GmbH. Any additional obligation or
liability not expressed provided for herein except in writing duly executed by an officer of Mikropack
GmbH:
MIKROPACK GmbH
Maybachstraße 11
D-73760 Ostfildern
Tel.: [phone] • Fax.: [phone]
e-mail: [e-mail]
000-10000-070-02-0505 A

Important Safety Notices
B 000-10000-070-02-0505

Table of Contents
About This Manual .......................................................................................................... iii
Document Purpose and Intended Audience .............................................................................. iii
What’s New in this Document.................................................................................................... iii
Document Summary .................................................................................................................. iii
Product-Related Documentation................................................................................................ iii
Upgrades......................................................................................................................... iv
Chapter 1:Setup..................................................................................1
Overview.......................................................................................................................... 1
Unpacking the HL-2000-FHSA........................................................................................ 1
Contents .......................................................................................................................... 2
Setting Up the HL-2000-FHSA Light Source................................................................... 2
Enabling Automatic Shutter Control ................................................................................ 3
Optimizing the Optical Power Output .............................................................................. 4
Attenuating the Optical Power Output ............................................................................. 5
HL-2000-FSHA Diagrams................................................................................................ 6
Chapter 2:HL-2000-FHSA Specifications .........................................9
Specifications .................................................................................................................. 9
Pinout Information ........................................................................................................... 10
Pinout Diagram .......................................................................................................................... 11
Parts List ......................................................................................................................... 11
Appendix A: Bulb Replacement.........................................................13
Overview.......................................................................................................................... 13
Replacing the Bulb .......................................................................................................... 13
Index.....................................................................................................15
000-10000-070-02-0505 i

Table of Contents
ii 000-10000-070-02-0505

About This Manual
Document Purpose and Intended Audience
This document provides you with an installation section to get your system up and running.
What’s New in this Document
This version of the Halogen Light Source with Attenuator and TTL-Shutter HL-2000-FHSA / HL-2000-
FHSA-LL / HL-2000-FHSA-HP Installation and Operation Manual adds our partnership agreement.
Document Summary
Chapter Description
Chapter 1: Setup Contains instructions for setting up the unit, enabling
automatic shutter control, and optimizing and
attenuating the optical power output.
Chapter 2: HL-2000-FHSA Specifications Contains operating environment specifications, as
well as other physical details of the product.
Appendix A: Bulb Replacement Provides instructions for changing the bulb.
Product-Related Documentation
You can access documentation for Ocean Optics products by visiting our website at
http://www.oceanoptics.com. Select Technical →Operating Instructions, then choose the appropriate
document from the available drop-down lists. Or, use the Search by Model Number field at the bottom
of the web page.
You can also access operating instructions for Ocean Optics products on the Software and Technical
Resources CD included with the system.
Engineering-level documentation is located on our website at Technical →Engineering Docs.
000-10000-070-02-0505 iii

About This Manual
Upgrades
Occasionally, you may find that you need Ocean Optics to make a change or an upgrade to your system.
To facilitate these changes, you must first contact Customer Support and obtain a Return Merchandise
Authorization (RMA) number. Please contact Ocean Optics for specific instructions when returning a
product.
iv 000-10000-070-02-0505

Chapter 1
Setup
Overview
The following sections provide instructions on unpacking and setting up your HL-2000-FHSA Light
Source.
Before using the HL-2000-FHSA for the first time check for transport damage. Be sure to adhere to all
warnings on the unit and in this manual.
Unpacking the HL-2000-FHSA
►Procedure
000-10000-070-02-0505 1

1: Setup
1. Unpack your lamp assembly carefully. Dropping this instrument can cause permanent damage.
2. Inspect the outside of the instrument and make sure that there is no damage. Do not use the
instrument if damage is present. Contact your dealer for repair or replacement information, if
necessary.
3. Use this instrument in a clean laboratory environment (see Error! Reference source not found.).
Contents
Your HL-2000-FHSA package should contain the following:
 HL-2000 Light Source
 One IC-DB15-2 interface cable for shutter operation
Setting Up the HL-2000-FHSA Light Source
Use the following procedure and refer to HL-2000-FSHA Diagrams to set up your light source.
►Procedure
Perform the steps below to set up your HL-2000-FHSA Light Source:
1. Plug the power supply into a wall outlet.
Power Supply
2. Plug the other end of the power supply cable into the socket of HL-2000-FHSA.
2000-10000-070-02-0505

1: Setup
HL-2000-FHSA Rear View
3. Connect the SMA connector of your fiber optic cable to the SMA plugs.
HL-2000-FHSA Right Side View
4. Turn the Halogen lamp on using the power switch on the rear of the HL-2000-FHSA.
HL-2000-FHSA Rear View
Enabling Automatic Shutter Control

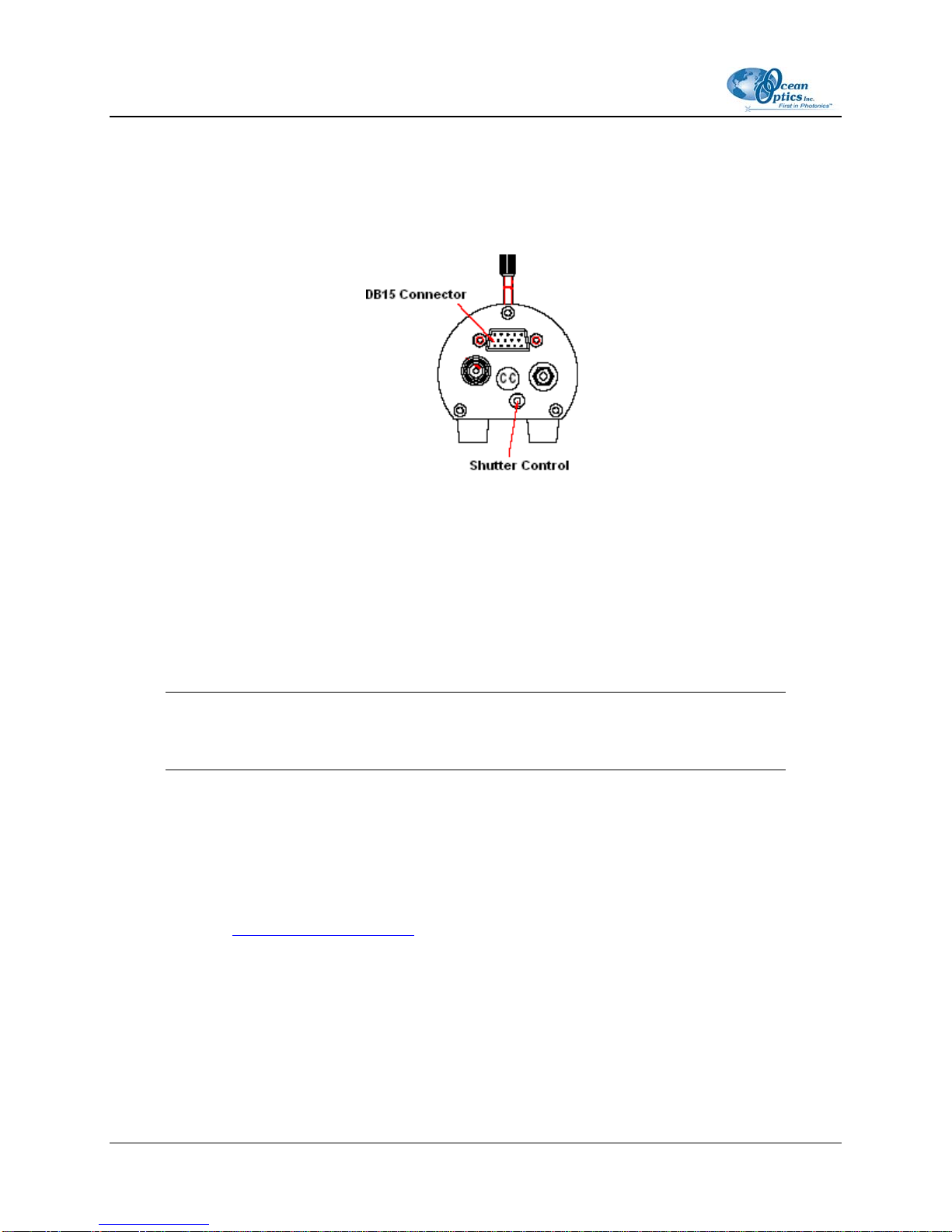

The HL-2000-FHSA is equipped with a 15-pin TTL port on the rear of the unit that allows an external
source to control the shutter of the HL-2000-FHSA.
000-10000-070-02-0505 3

1: Setup
►Procedure
To enable automatic shutter control (TTL), perform the following steps:
1. Insert the supplied IC-DB-15-2 15 pin connector into the port on the rear of the HL-2000-FHSA.
HL-2000-FHSA Rear View
2. Move the shutter switch on the rear of the unit into the appropriate position to select the shutter
mode.
• Open – Shutter open
• Close – Shutter closed
• TTL – Controlled by external TTL (High = Open, Low = Closed)
Note
Use Ocean Optics OOIBase32 software for automatic save dark.
Optimizing the Optical Power Output
The HL-2000-FHSA is adjusted at the factory to provide maximum power into a 200µm fiber. If a lower
optical power is required or a different fiber (bundle) diameter is used, you can adjust the optical power of
the unit. Refer to HL-2000-FSHA Diagrams while using the following procedure.
►Procedure
Follow the steps below to adjust the optical power of the HL-2000-FHSA Light Source:
1. Connect a fiber optic spectrometer or an optical power meter to a fiber, and then connect the other
end of the fiber to the HL-2000-FHSA’s SMA plug.
4000-10000-070-02-0505

1: Setup
2. Loosen the blocking screw with the provided 1.3mm Allen wrench.
3. Shift the SMA socket to optimize the optical power of the HL-2000-FHSA.
4. Tighten the blocking screw to secure the SMA socket position.
Attenuating the Optical Power Output
The HL-2000-FHSA allows you to attenuate the optical output of the unit by adjusting the attenuation
screw.
►Procedure
To attenuate the optical output of the HL-2000-FHSA, follow the steps below:
1. Ensure that the shutter switch on the rear of the unit is in the open position.
2. Loosen the fixture screw with the provided 2.0mm Allen wrench.
3. Turn the attenuation screw until the desire optical power is achieved.
4. Tighten the fixture screw when finished.
5. To attenuate the optical output of the HL-2000-FHSA, turn the attenuation-screw clockwise.
000-10000-070-02-0505 5

1: Setup
HL-2000-FSHA Diagrams
Power Connector
Power Supply

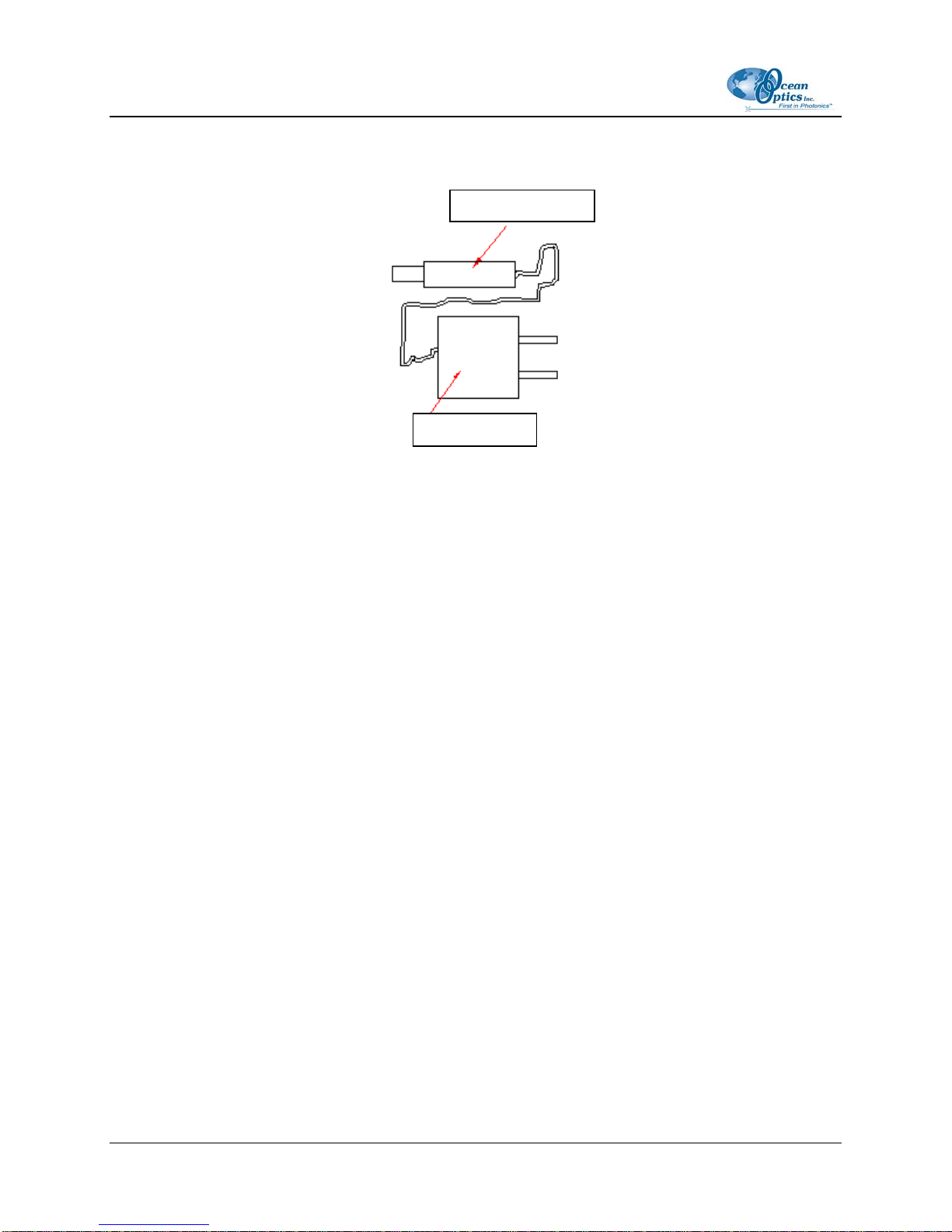

Figure 1: HL-2000-FHSA Power Supply
6000-10000-070-02-0505

1: Setup
A
ttenuation Screw
Rear Screw
Power Switch
15-Pin TTL Connecto
r
Power Socket
Rear Screw
Shutter Mode Switch
Rear Screw
Figure 2: HL-2000-FHSA Rear View
Filter Holder Fixture Screw
SMA Connector
Figure 3: HL-2000-FHSA Side View
000-10000-070-02-0505 7

1: Setup
Cooling Fan
Bottom
Plate Screw
Blockin
g
Screw
SMA Connector
Figure 4: HL-2000-FHSA Bottom View
8000-10000-070-02-0505

Chapter 2
HL-2000-FHSASpecifications
This section provides information on the operating environment, physical controls, and dimensions of the
HL-2000-FHSA, as well as pinouts for the DB-15 connector. It also provides a parts list.
Specifications
HL-2000-FHSA HL-2000-FHSA-LL HL-2000-FHSA-HP
Wavelen
g
th ran
g
e 360 nm
–
1700 nm
Stabilit
y
0.5 %
Drift <0.1% per hou
r
Time to stabilize Approximatel
y
5 Minutes
Output to bulb 5V DC / 1,435A 5V DC / 0,970A 2V DC / 1,67A
Bulb life time 1.500 h 10.000 h 2000 h
Characteristic Focused
Shutte
r
TTL max. 5Hz
DB-15 Connecto
r
PIN 13: TTL PIN 10: Ground
Bulb color temperature 2.960K 2.800K 3.000K
Room temperature 5°C
–
35°C
Humidit
y
5 - 95% at 40°C
Output 7W 7W 20W
Wei
g
ht Approximatel
y
0.5 k
g
Size 58 x 59 x 140 mm
000-10000-070-02-0505 9

2: HL-2000 Specifications

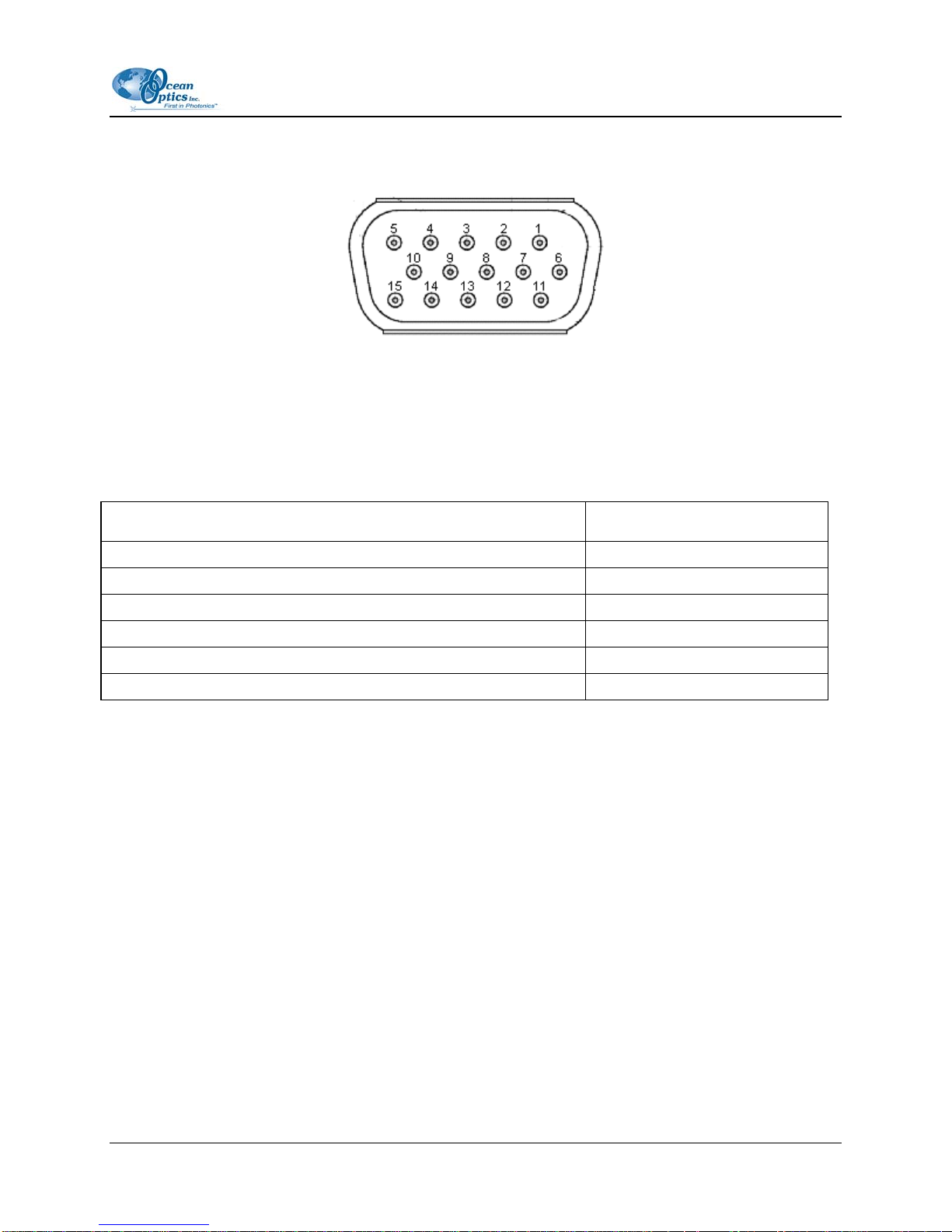

Pinout Information
The following table contains pinout information for the HL-2000-FHSA Light Source:
Pin Description
1 na
2 na
3 na
4 na
5 na
6 na
7 na
8 na
9 na
10 Ground
11 na
12 na
13 TTL Signal – Shutter control
14 na
15 na
na = not applicable
10 000-10000-070-02-0505

2: HL-2000 Specifications
Pinout Diagram
Parts List
Spare Parts / Order Information Catalog Number
H
a
l
oge
n li
g
h
t
sou
r
ce
wi
t
h fil
te
r h
o
l
de
r
/s
h
utte
r
a
n
d
atte
n
uator
HL-2
000
-FH
S
A
H
a
l
oge
n li
g
h
t
sou
r
ce,
f
a
n
coo
l
ed,
l
o
n
g
lif
e
HL-2
000
-FH
S
A-LL
H
a
l
oge
n li
g
h
t
sou
r
ce
Hi
g
h-P
o
w
e
r wi
t
h A
tte
n
uato
r
a
n
d
TTL-
S
h
utter
HL-2
000
-FH
S
A-HP
H
a
l
oge
n
spa
r
e
bu
l
b
2.
960
K
/
1.
500
hr
s
HL-2
000
-B
H
a
l
oge
n
spa
r
e
bu
l
b
2.
800
K
/
1
0
.
000
hr
s
HL-2
000
-LL-B
H
a
l
oge
n
spa
r
e
bu
l
b
Hi
g
h-P
o
w
er
HL-2
000
-HP-B
000-10000-070-02-0505 11

2: HL-2000 Specifications
12 000-10000-070-02-0505
