Ocean Optics SpectroClip-R User manual

000-00000-000-02-A
SpectroClip Probe
SpectroClip-R/SpectroClip-TR/Jaz-SpectroClip-TR
Installation and Operation Manual
Document Number 000-specc-110-02-201203
Offices: Ocean Optics, Inc. World Headquarters
830 Douglas Ave., Dunedin, FL, USA 34698
Phone [phone]
Fax [phone]
8 a.m.– 8 p.m. (Mon-Thu), 8 a.m.– 6 p.m. (Fri) EST
E-mail: [email protected] (General sales inquiries)
[email protected] (Questions about orders)
[email protected] (Technical support)
WARNING
Protective Eye Wear Must Be Worn When
Using This Instrument -
Intense Ultraviolet Radiation Present
See Important Safety Notices inside.

Additional
Offices: Ocean Optics Asia
666 Gubei Road, Kirin Tower, Suite 601B, Changning District,
Shanghai, PRC. 200336
Phone [phone]
Fax [phone]
E-Mail [email protected]
Ocean Optics EMEA
Sales and Support Center
Geograaf 24, 6921 EW DUIVEN, The Netherlands
Phone [phone]
Fax [phone]
E-Mail [email protected]
Copyright © 2012 Ocean Optics, Inc.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, by any means, electronic, mechanical,
photocopying, recording, or otherwise, without written permission from Ocean Optics, Inc.
This manual is sold as part of an order and subject to the condition that it shall not, by way of trade or otherwise, be lent, re-sold, hired out or otherwise
circulated without the prior consent of Ocean Optics, Inc. in any form of binding or cover other than that in which it is published.
Trademarks
Microsoft, Windows, Windows 95, Windows 98, Windows Me, Windows NT, Windows 2000, Windows XP and Excel are either registered trademarks or
trademarks of Microsoft Corporation.
Limit of Liability
Every effort has been made to make this manual as complete and as accurate as possible, but no warranty or fitness is implied. The information provided is on
an “as is” basis. Ocean Optics, Inc. shall have neither liability nor responsibility to any person or entity with respect to any loss or damages arising from the
information contained in this manual.

Important Safety Notices
1. Read this manual before you attempt to use this instrument.
2. Do not remove or modify any installed safety device on this equipment. Doing so will void
your warranty and create an unsafe operating environment.
3. Only allow qualified personnel to service this unit.
4. Before using the optical tool for the first time check for transport damage. Do not use the unit
if it is damaged in any way. Contact your dealer for repair or replacement information.
000-specc-110-02-201203 A

Important Safety Notices
B 000-specc-110-02-201203

Table of Contents
About This Manual .......................................................................................................... iii
Document Purpose and Intended Audience.............................................................................. iii
Document Summary.................................................................................................................. iii
Product-Related Documentation ............................................................................................... iii
Upgrades......................................................................................................................... iii
Chapter 1: Setup and Operation........................................................1
Overview ......................................................................................................................... 1
SpectroClip Models ......................................................................................................... 2
Unpacking SpectroClip.................................................................................................... 2
Package Contents ..................................................................................................................... 3
SpectroClip Parts....................................................................................................................... 3
Using SpectroClip............................................................................................................ 4
Using SpectroClip-R .................................................................................................................. 4
Using SpectroClip-TR................................................................................................................ 4
Transmission Measurement Loss of Intensity ........................................................................... 5
Adjustment of the 8° Coupling Port ................................................................................. 5
Chapter 2: SpectroClip Specifications..............................................7
Index.....................................................................................................9
000-specc-110-02-201203 i

Table of Contents
ii 000-specc-110-02-201203

About This Manual
Document Purpose and Intended Audience
This document provides you with an installation section to get your light source up and running.
Document Summary
Chapter Description
Chapter 1: Setup and Operation Provides a list of package contents and unpacking
instructions. Also contains a list of parts and
operating instructions.
Chapter 2: SpectroClip Specifications Contains product specifications.
Product-Related Documentation
You can access documentation for Ocean Optics products by visiting our website at
http://www.oceanoptics.com. Select Technical →Operating Instructions, then choose the appropriate
document from the available drop-down lists. Or, use the Search by Model Number field at the bottom
of the web page.
You can also access operating instructions for Ocean Optics products on the Software and Technical
Resources CD included with the system.
Engineering-level documentation is located on our website at Technical →Engineering Docs.
Upgrades
Occasionally, you may find that you need Ocean Optics to make a change or an upgrade to your system.
To facilitate these changes, you must first contact Customer Support and obtain a Return Merchandise
Authorization (RMA) number. Please contact an Ocean Optics Application Scientist for specific
instructions when returning a product.
000-specc-110-02-201203 iii

About This Manual
iv 000-specc-110-02-201203

Chapter 1
Setup and Operation
Overview
The SpectroClip probe is designed to measure thin materials such as leaves and other thin samples in the
field. Transmission, reflection and absorbance can be measured on materials with a maximum thickness
of 5 mm. SpectroClip features specially designed integrating spheres that function as collection probes
and can be connected to any Ocean Optics spectrometer to acquire data. The top integrating sphere also
includes an input port for a fiber-coupled light source to illuminate your sample. SpectroClip's integrating
spheres capture diffuse reflected or transmitted light more efficiently than lens-based collection optics.

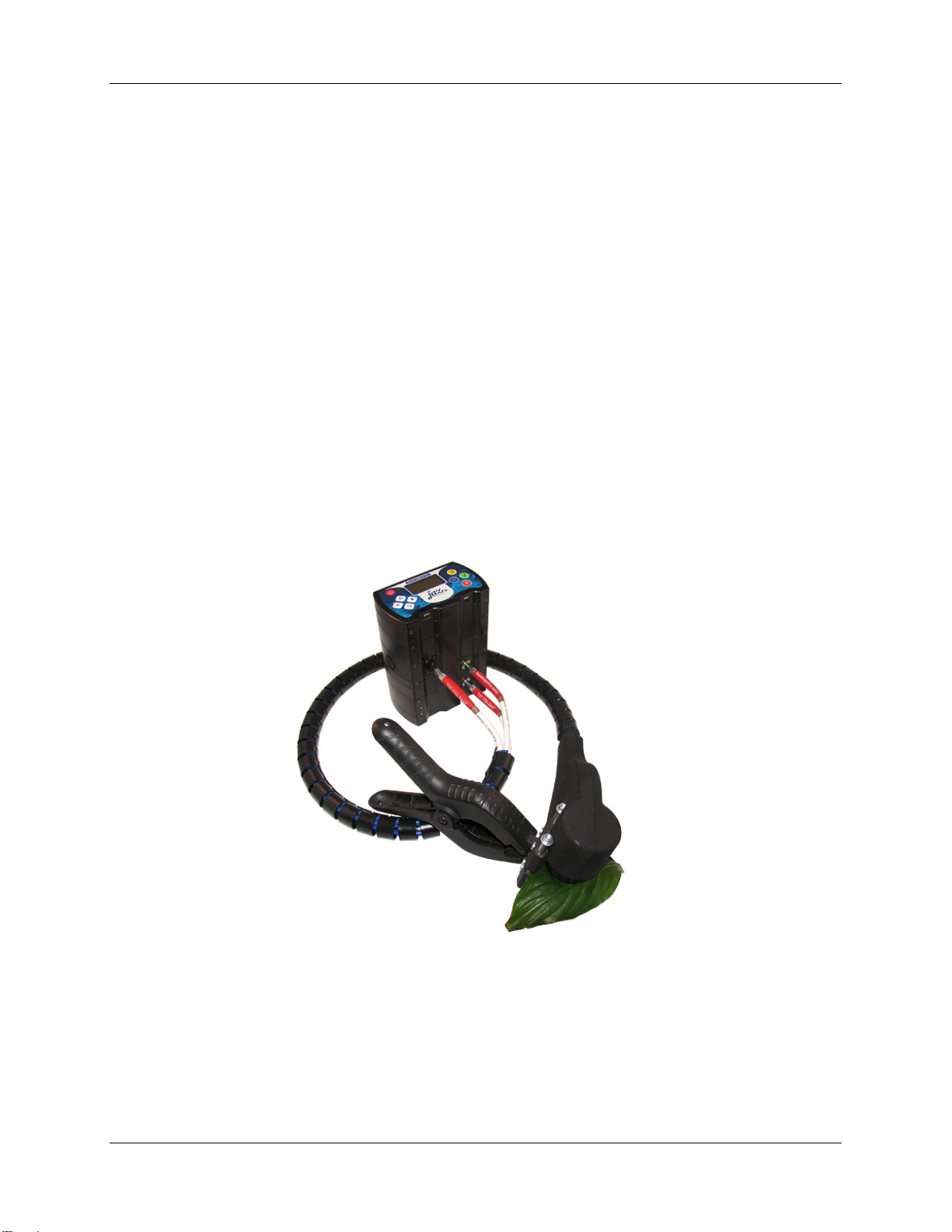

Jaz-SpectroClip-TR
SpectroClip can support wavelength ranges from 200-2500 nm -- depending on which light source, fiber
(UV-VIS or VIS-NIR) or spectrometer configuration you use. The active illuminated area is 5 mm.
000-specc-110-02-201203 1

1: Setup and Operation
2000-specc-110-02-201203
SpectroClip Models
SpectroClip includes the following models:
Model Purpose Included Equipment Other Recommended
Equipment*
SpectroClip-R Collects reflected light from
the sample
One integrating sphere Spectrometer, one light
source, two fibers
SpectroClip-TR Collects both transmitted
and reflected light from the
sample
Two integrating spheres Two spectrometers (or
one 2-channel Jaz), one
light source, three fibers
Jaz-SpectroClip-TR Performs transmission and
reflectance characterization
of (thin) samples in the field
Two integrating
spheres; a Jaz
spectrometer (400 –
1000 nm) with two
spectrometer channels,
a tungsten-halogen light
source module, and a
battery module; 3 fibers,
and the Spectro-Clip-TR
probe
N/A
* Fibers are sold separately. The recommend fiber core is 600 µm or larger because of the attenuation of
the sphere.
Unpacking SpectroClip
The following sections provide instructions on unpacking and setting up your SpectroClip.
Before using the SpectroClip for the first time, check for transport damage. Be sure to adhere to all
warnings on the unit and in this manual.
►Procedure
1. Unpack your SpectroClip device carefully.
2. Inspect the outside of the instrument and make sure that there is no damage. Do not use the
instrument if damage is present.
3. Detach the outer side of the fiber protection and inspect the SMA connectors. Do not use the
instrument if damage is present.

1: Setup and Operation
000-specc-110-02-201203 3
Package Contents
Your SpectroClip package should contain the following:
SpectroClip device (plus Jaz spectrometer for Jaz-SpectroClip-TR)
Black and white reference device
Spiral coiled tube 1.5 meters long (for fiber protection)
Hexagonal socket screw keys SW 2.5 mm and SW 1.3 mm
SpectroClip Parts
For optimal optical measurements, take care that no objects or liquids enter into the integrating spheres.
To do this, use protection caps on open SMA connectors, and keep the gripper closed while not using the
SpectroClip. In addition, keep the reference clean and undamaged for best reference measurements.

1: Setup and Operation
4000-specc-110-02-201203
Using SpectroClip
The procedure for using your SpectroClip differs, depending on which model you have.
Using SpectroClip-R
►Procedure
1. Unscrew one part of the fiber cover.
2. Slip the spiral coiled tubes over the fibers.
3. Connect the two fibers to the SMA connectors. You shouldn’t use a fiber thicker than 400 µm on
the focusable SMA connector from the picture above.
4. Assemble the fiber cover and tighten the three screws. The spiral coiled tube should begin inside
the fiber cover.
5. To record a dark spectrum use the black/ white reference with the black side turned to the
reflectance sphere.
6. To record a reference spectrum use the black/ white reference with the white side turned to the
reflectance sphere.
7. Clamp your measuring object into your SpectroClip and start the measurement.
Caution
For mechanical reasons, you can use samples with a height of up to 15 mm only.
Avoid stray light. During your measurement there should be no light bypassing
your sample.
Using SpectroClip-TR
1. Unscrew one part of the fiber cover.
2. Slip the spiral coiled tubes over the fibers.
3. Connect three fibers to the SMA connectors. If you don’t use all SMA connectors cover the
empty connector with a protection cap.

1: Setup and Operation
000-specc-110-02-201203 5
4. Assemble the fiber cover and tighten the three screws. The spiral coiled tube should begin inside
the fiber cover.
5. To record a dark spectrum, use the black/ white reference with the black side turned to the
reflectance sphere.
6. To record a reference spectrum use your SpectroClip without any object between the clamps.
7. Clamp your measuring object into your SpectroClip and start the measurement.
Caution
Don’t use samples thicker than 5 mm. With thicker samples, the amount of
unwanted stray light increases.
Transmission Measurement Loss of Intensity
It is recommended to use the same distance between integrating spheres to measure the reference spectra
as was used for the sample measurement. The loss of intensity for a port difference of 1 mm is 3 %
@620 nm with respect to zero difference. Other losses of intensity for the reference spectra are shown in
the table below.
Fiber and Diameter Distances (Valid for Optical Alignment)
Fiber Diameter (µm) Maximum Port Difference Loss in Reference Spectrum (relative to 0 distance)
100 8 10%
400 4 10%
Adjustment of the 8° Coupling Port
You can adjust the focus of the light beam between the upper fiber and the opening of the reflectance
sphere.
►Procedure
To adjust the focus,
1. Loosen the screw on the SMA connector (#7 in SpectroClip Parts) with the hexagon socket screw
key (SW 1.3 mm).
2. Move the SMA connector for optical performance.
3. Block the screw after adjustment.

1: Setup and Operation
6000-specc-110-02-201203

Chapter 2
SpectroClip Specifications
Specification Value
Size (without fibers)(LxHxW) 22 cm x 12 cm x 17 cm
Weight (without fibers) 500 g
Wavelength Range
(Spectrometer) Spectralon®
000-specc-110-02-201203 7

2: SpectroClip Specifications
8000-specc-110-02-201203

Index
A
adjusting the coupling port, 5
C
coupling port
adjustment, 5 D
document
audience, iii
purpose, iii
summary, iii J
Jaz-SpectroClip-TR, 2
M
models, 2 O
operation, 1
P
package contents, 3
parts, 3
product-related documentation, iii
S
safety notices, A
setup, 1
specifications, 7
SpectroClip-R, 2
using, 4
SpectroClip-TR
using, 4
Spectro-Clip-TR, 2 T
Transmission
loss of intensity, 5 U
unpacking, 2
upgrades, iii
