Ocean Optics HPX-2000 Owner's manual

High-Power Xenon Light Source
HPX-2000
A Product
Installation and Operation Manual
Document Number 000-10000-080-02-0505
Offices: Ocean Optics, Inc.
830 Douglas Ave., Dunedin, FL, USA 34698
Phone [phone]
Fax [phone]
8 a.m.– 8 p.m. (Mon-Thu), 8 a.m.– 6 p.m. (Fri) EST
Ocean Optics B.V. (Europe)
Geograaf 24, 6921 EW DUIVEN, The Netherlands
Phone [phone]
F
ax 31-(0)26-3190505
E-mail: [email protected] (General sales inquiries)
[email protected] (European sales inquiries)
[email protected] (Questions about orders)
[email protected] (Technical support)
WARNING
Protective Eye Wear Must Be Worn
When Using This Instrument -
Intense Ultraviolet Radiation Present
See Important Safety Notices inside.

Ocean Optics offers the most comprehensive, innovative and high-quality line of modular spectroscopy
tools in the world. Mikropack, a leading supplier of spectroscopy and thin film components, is an
essential and valuable partner in this enterprise. We have partnered with Mikropack because they are
committed to the same goals of innovation and quality that inspire us here at Ocean Optics. As always,
Ocean Optics conducts its business in an open, honest and technically available fashion. We invite you to
contact us at Ocean Optics, Inc. (see front cover for contact information) or Mikropack GmbH with any
technical questions, comments, or applications inquiries. Mikropack GmbH can be contacted at the
following location:
MIKROPACK GmbH
Maybachstraße 11
D-73760 Ostfildern
Germany
Tel.: [phone]• Fax.: [phone]
e-mail: [email protected]
internet: www.mikropack.de
Copyright © 2001-2005 Ocean Optics, Inc.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, by any means, electronic,
mechanical, photocopying, recording, or otherwise, without written permission from Ocean Optics, Inc.
This manual is sold as part of an order and subject to the condition that it shall not, by way of trade or otherwise, be lent, re-sold, hired out or
otherwise circulated without the prior consent of Ocean Optics, Inc. in any form of binding or cover other than that in which it is published.
Trademarks
Microsoft, Windows, Windows 95, Windows 98, Windows Me, Windows NT, Windows 2000, Windows XP and Excel are either registered
trademarks or trademarks of Microsoft Corporation.
Limit of Liability
Every effort has been made to make this manual as complete and as accurate as possible, but no warranty or fitness is implied. The information
provided is on an “as is” basis. Ocean Optics, Inc. shall have neither liability nor responsibility to any person or entity with respect to any loss or
damages arising from the information contained in this manual.

Important Safety Notices
1. Do not remove or modify any installed safety device on this equipment. Doing so will void your
warranty and create an unsafe operating environment.
2. Dangerous voltages are present in this device. There are NO user serviceable parts inside.
3. Only allow qualified personnel to service this unit.
4. Do not use the unit if it is damaged in any way. Contact your dealer for repair or replacement
information.
5. Always screw in the fiber optic cables before starting the instrument.
WARNING
Protective eyewear must be worn when using this equipment. Intense
ultraviolet radiation is present.
Never look directly into the light beam, as this can cause eye damage.
Warranty
Mikropack GmbH warrants to the original user of this instrument that it shall be free of any defects
resulting from faulty manufacture of this instrument for a period of 12 months from the original data of
shipment. There are no warranties for the Xenon Bulb (HPX-2000-B) and the Xenon-Bulb-Module
(HPX-2000-BM).
This instrument should not be used for any Clinical or Diagnostic purposes.Data generated in these
areas is not warranted in any way by Mikropack GmbH. Any defects covered by this Warranty shall be
corrected either by repair or by replacement, as determined by Mikropack GmbH.
There are no warranties that extend beyond the description herein.
This Warranty is in lieu of, and excludes, any and all other warranties or representations expressed,
implied, or statutory, including merchantability and fitness, as well as any and all other obligations or
liabilities of Mikropack GmbH including, but not limited to, special or consequential damages. No
person, firm, or corporation is authorized to assume for Mikropack GmbH. Any additional obligation or
liability not expressed provided for herein except in writing duly executed by an officer of Mikropack
GmbH:
MIKROPACK GmbH
Maybachstraße 11
D-73760 Ostfildern
Tel.: [phone] • Fax.: [phone]
e-mail: [e-mail]
000-10000-080-02-0505 A

Important Safety Notices
B 000-10000-080-02-0505

Table of Contents
About This Manual .......................................................................................................... iii
Document Purpose and Intended Audience .............................................................................. iii
What’s New in this Document.................................................................................................... iii
Document Summary .................................................................................................................. iii
Product-Related Documentation................................................................................................ iii
Upgrades......................................................................................................................... iv
Chapter 1: Setup .................................................................................1
Overview.......................................................................................................................... 1
Unpacking the HPX-2000................................................................................................ 2
Contents .......................................................................................................................... 2
Connecting the Fiber Optic Cable ................................................................................... 2
Chapter 2: HPX-2000 Specifications .................................................3
Operating Environment.................................................................................................... 3
HPX-2000 Components................................................................................................... 3
Front Panel ................................................................................................................................4
Rear Panel................................................................................................................................. 5
Specifications .................................................................................................................. 6
Parts List ......................................................................................................................... 6
Pinout Information ........................................................................................................... 7
Pinout Diagram .......................................................................................................................... 7
000-10000-080-02-0505 i

Table of Contents
Chapter 3:Operating Instructions.....................................................9
Operating the Xenon Lamp ............................................................................................. 9
Starting Main Power .................................................................................................................. 9
Starting the Lamp ...................................................................................................................... 9
Turning the Lamp Off................................................................................................................. 10
Warming Up the Lamp............................................................................................................... 10
Operating the TTL Shutter............................................................................................... 10
Automatic Operation .................................................................................................................. 10
Manual Operation ...................................................................................................................... 10
Operating the Filter Slit.................................................................................................... 10
Chapter 4: Troubleshooting...............................................................11
Appendix A: Bulb Replacement.........................................................13
Replacing the Bulb .......................................................................................................... 13
Index.....................................................................................................15
ii 000-10000-080-02-0505

About This Manual
Document Purpose and Intended Audience
This document provides you with an installation section to get your system up and running.
What’s New in this Document
This version of the High-Power Xenon Light Source Installation and Operation Manual adds our
partnership agreement.
Document Summary
Chapter Description
Chapter 1: Setup Contains a list of package contents and unpacking
instructions. Also contains instructions for connecting
the fiber optic cable.
Chapter 2: HPX-2000 Specifications Contains operating environment specifications, as
well as other physical details of the product, a parts
list, and pinout information for the15 DB-15
connector.
Chapter 3: Operating Instructions Provides instructions for operating the Xenon lamp
and the TTL shutter.
Chapter 4: Troubleshooting Contains a table of troubleshooting information.
Appendix A: Bulb Replacement Provides instructions for changing the bulb.
Product-Related Documentation
You can access documentation for Ocean Optics products by visiting our website at
http://www.oceanoptics.com. Select Technical →Operating Instructions, then choose the appropriate
document from the available drop-down lists. Or, use the Search by Model Number field at the bottom
of the web page.
You can also access operating instructions for Ocean Optics products on the Software and Technical
Resources CD included with the system.
Engineering-level documentation is located on our website at Technical →Engineering Docs.
000-10000-080-02-0505 iii

About This Manual
Upgrades
Occasionally, you may find that you need Ocean Optics to make a change or an upgrade to your system.
To facilitate these changes, you must first contact Customer Support and obtain a Return Merchandise
Authorization (RMA) number. Please contact Ocean Optics for specific instructions when returning a
product.
iv 000-10000-080-02-0505

Chapter 1
Setup
Overview
The following sections provide instructions on unpacking and setting up your HPX-2000 High-power
Xenon Light Source.
Before using the HPX-2000 for the first time check for transport damage. Be sure to adhere to all
warnings on the unit and in this manual.

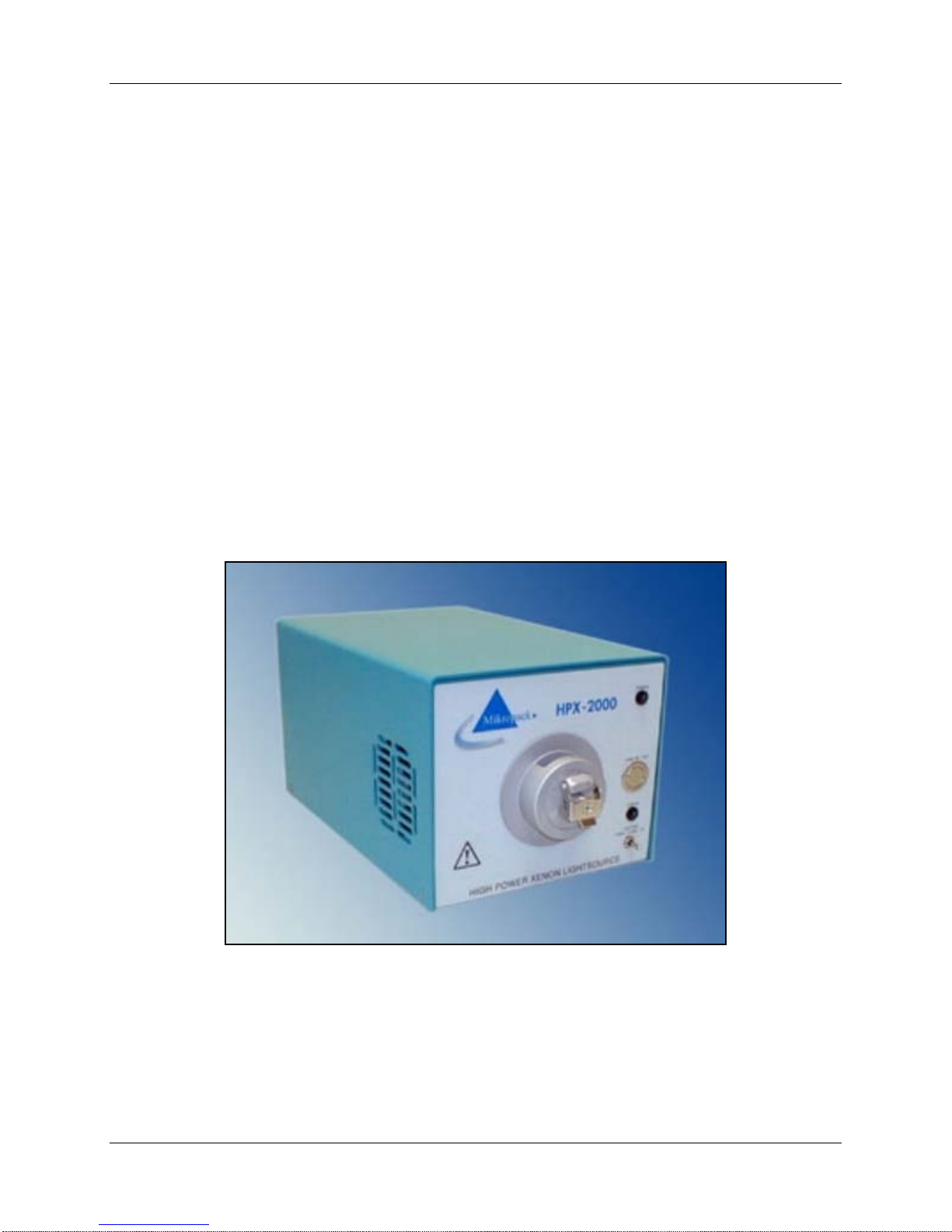

HPX-2000 High-power Xenon Light Source
000-10000-080-02-0505 1

1: Setup
Unpacking the HPX-2000
►Procedure
1. Unpack your lamp assembly carefully. Although the lamp is rigidly mounted, dropping this
instrument can cause permanent damage.
2. Inspect the outside of the instrument and make sure that there is no damage. Do not use the
instrument if damage is present. Contact your dealer for repair or replacement information, if
necessary.
3. Use this instrument in a clean laboratory environment (see Operating Environment).
Contents
Your HPX-2000 package should contain the following:
 HPX-2000 High-power Xenon Light Source
 Power cord
 UV safety goggles
 One IC-DB15-2 interface cable for shutter operation
Connecting the Fiber Optic Cable
►Procedure
To connect the fiber optic cable to the HPX-2000,
1. Locate the cap on the front of the HPX-2000.
2. Lift the cap on the front of the HPX-2000 to expose the SMA connector.
3. Connect the fiber optic cable to the SMA connector.
2000-10000-080-02-0505

Chapter 2
HPX-2000 Specifications
This section provides information on the operating environment, physical controls, and dimensions of the
HPX-2000. It also provides pinout information for the connector.
Operating Environment
The following table provides information on optimizing the operating environment of your HPX-2000.
Operating Environment The HPX-2000 Unit . . .
Moisture Is designed for operation in dry rooms only.
Ventilation Should be situated so that its location or position does not interfere
with proper ventilation.
Heat Should be situated away from any device that emits excessive heat.
Object and Liquid Entry Should be positioned so that objects do not fall on top of the unit.
Additionally, ensure that no liquids are spilled into the enclosure
through openings.
HPX-2000 Components
The following sections describe the components located on the front and rear of the HPX-2000 unit.
000-10000-080-02-0505 3

2: HPX-2000 Specifications
Front Panel

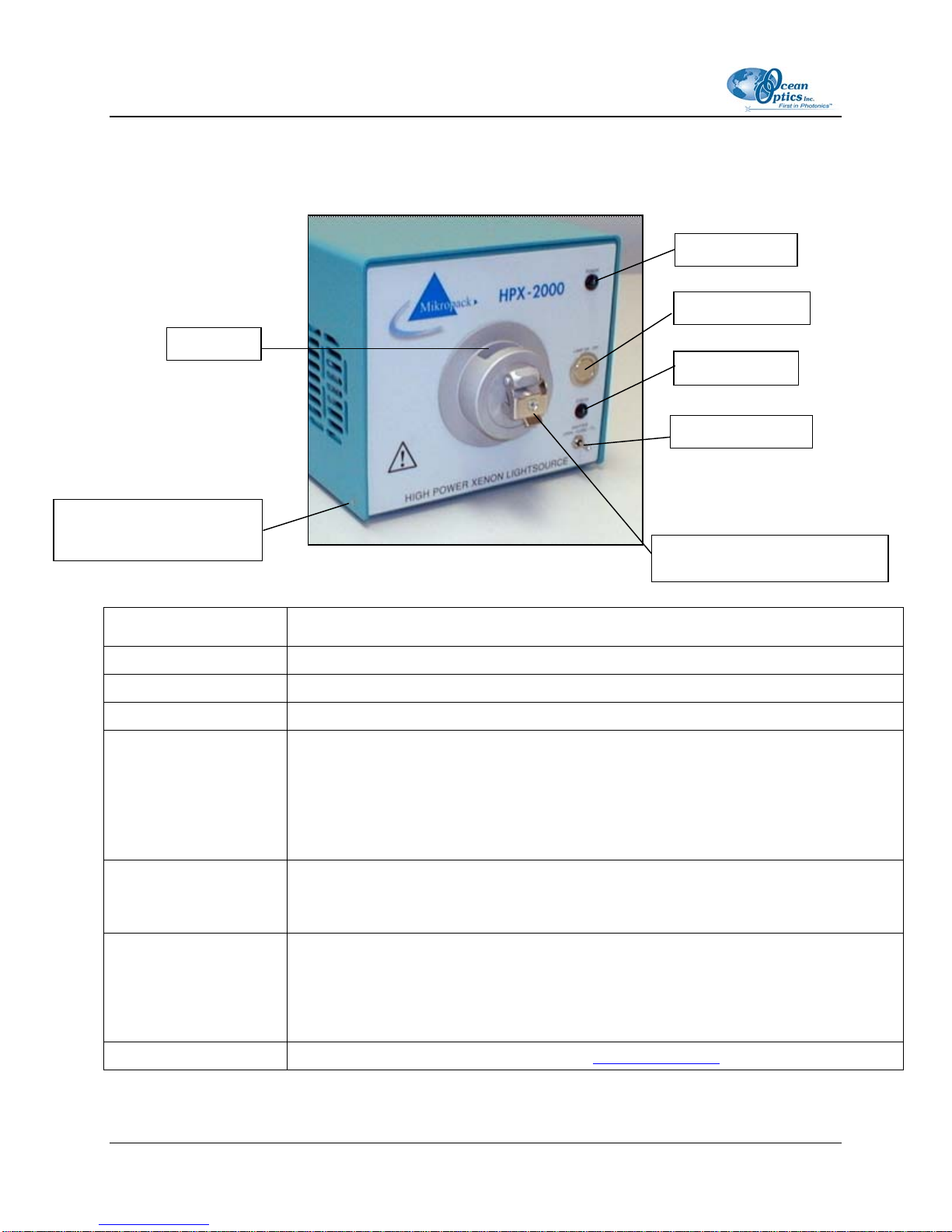

Component Description
Filter Slit Slit to accommodate optical filters.
Power LED Displays state of main power to lamp.
Xenon ON/OFF Press and hold the ON/OFF switch for more than 1 second to turn the lamp on or off.
Status LED
Status of the Xenon lamp:
• Lit – Xenon lamp is on
• Blinking – Lamp is in setup mode or cool down mode. The Lamp cannot be
started when the Status LED is blinking.
• Off – Xenon lamp is off
Shutter Switch
OPEN - Shutter open
CLOSE - Shutter closed
TTL - operation by external TTL- signal (HIGH=OPEN, LOW=CLOSE)
Mechanical Protection –
SMA Connector
Covered to protect users from unintentionally looking directly at the beam of light. Used
for SMA connections only. Connect the fiber cable to the HPX-2000 BEFORE turning
the lamp on to avoid unnecessary exposure to UV radiation. Avoid direct contact with
the fiber end.
Always wear proper eye protection when using the HPX-2000 lamp.
Four Recessed Screws Unscrew to remove the unit’s housing. See Bulb Replacement.
Filter Slit
Mechanical Protection –SMA
Connecto
r
Xenon ON/OFF
Status LED
Shutter Switch
Power LED
Four Recessed Screws
(front and back sides)
4000-10000-080-02-0505

2: HPX-2000 Specifications
Rear Panel
Component Description
Voltage Selector Switch Select regional voltage setting for lamp (AC 230-240V, 50/60Hz or AC 110-115V,
50/60Hz).
Main Power Switch Turn on to supply power to the HPX-2000. The Power LED lights when this switch
is in the On position.
Fuse Compartment Contains the fuse to protect the unit against overload:
Fuse Type: Miniature fuse 5 x 20 mm, 1 Amp slow blow
Input Terminal for Power
Cord
Plug power cord into this terminal.
Note: Only connect the power cable to the lamp when the Main Power Switch is in
the OFF position.
TTL Input SUB-D 15-pin connector for automatic shutter control.
Type Sign
Label providing lamp information:
- Type High Power Xenon Lightsource
- Version Europe / USA
- Order-No. HPX-2000
- Serial-No. Xxxxxx
- Mains connection 115 / 230V 47-63Hz
- Power consumption 50 Watt
- Max. Ambient Temperature 35°C
Cooling Fan Cools the interior of the HPX-2000. Do not obstruct.
TTL Input
Type Sign
Fuse Compartment
Main Power Switch
Input Terminal for
Power Cord
Voltage Selector Switch
Cooling Fan
000-10000-080-02-0505 5

2: HPX-2000 Specifications
Specifications
Specifications Criteria
Spectral Range 185 – 2000nm
Light Output Stability ~ 1%
Warm-up time 25 - 40 minutes
Performance guaranteed temperature 5°C – 35°C
Humidity 5 - 95% without condensation at 40°C
Power Consumption 50W
Current 4 A/DC maximum
Optical Power in 600µ Fiber > 150 mW
Time to stabilize ~ 30 minutes
Optical Fiber Connection SMA (optional FC/PC; SC...)
Lifetime Average / Guaranteed 2000h / 1000h
Shutter-Input TTL-Input, up to maximum 5 Hz
PIN position at SUB-D-15 pin Shutter PIN 13: TTL / PIN 10: Ground
Filter Dimensions possible Up to diameter or square 25mm x 4mm or 20 x 6 mm
Input Line 115 / 230VAC (switchable)
Markings, Directives CE; VDI/VDE 0160; EN 61010
Input Current 3,5 A
Weight 5kg
Dimensions 150 x 170 x 260 mm
Parts List
Descri
p
tion Part Numbe
r
High Power CW Xenon Lightsource with Shutter and Filter Holder HPX-2000
Replacement Lightsource Module complete with bulb housing optics and shutter,
for plug and play replacement on customer side
HPX-2000-BM
Trade in of used HPX-2000-BM for Xenon bulb exchange at the supplier side HPX-2000-B
Modification of device specifications and designs to improve performance may occur without notice.
6000-10000-080-02-0505

2: HPX-2000 Specifications
Pinout Information
The following table contains pinout information for the HPX-2000 Light Source:
Pin Description
1 na
2 na
3 na
4 na
5 na
6 na
7 na
8 na
9 na
10 Ground
11 na
12 na
13 TTL Signal – Shutter control
14 na
15 na
na = not applicable
Pinout Diagram
000-10000-080-02-0505 7

2: HPX-2000 Specifications
8000-10000-080-02-0505

Chapter 3
Operating Instructions
Operating the Xenon Lamp
The following sections provide instructions on operating the Xenon lamp in the HPX-2000 Light Source.
The HPX-2000 unit must be in a horizontal position for it to work.
Starting Main Power
►Procedure
To apply main power to the unit,
1. Ensure that the proper voltage is set on the Voltage Selector Switch on the rear panel of the unit
(see Rear Panel).
2. Ensure that the Main Power Switch is OFF. Then, connect the power cord to the Terminal Input
on the rear panel of the unit.
3. Turn the Main Power Switch ON. The Power LED lights, indicating that the unit is receiving
power.
Starting the Lamp
Hold the Xenon ON/OFF switch down for 1 full second to illuminate the HPX-2000 lamp.
The lamp cannot be started when the Status LED is blinking. The Status LED blinks for about 5 seconds
after the main power is switched on (main power switch is located on rear of unit).
WARNING
Protective eyewear must be worn when using this equipment - Intense ultraviolet radiation
present.
Never look directly into the light beam, as this can cause eye damage.
000-10000-080-02-0505 9

3: Operating Instructions
Turning the Lamp Off
Turn the Xenon lamp off by holding the Xenon ON/OFF switch down for one full second. The Status
LED blinks for about 30 seconds while the lamp cools down.
Warming Up the Lamp
The HPX-2000 requires 25-30 minutes of operation to reach a state of thermal equilibrium. During this
warm-up period, the intensity of the output power can vary substantially.
If applications require extreme intensity stability, the lamp should be warmed up for an additional 30-45
minutes. Once warmed up for this amount of time, the lamp will reach specified drift values.
Operating the TTL Shutter
Automatic Operation
For automatic operation, plug the SUB-D 15-pin TTL connector into the appropriate socket on your
spectrometer.
Manual Operation
Manually set the operating mode of the HPX-2000 with the Shutter Switch as follows:
• OPEN - Shutter open
• CLOSE - Shutter closed
• TTL - Controlled over external TTL signal (HIGH=OPEN, LOW=CLOSE)
Operating the Filter Slit
►Procedure
1. Rotate the light beam protection cap to open the filter slit (see Front Panel).
2. Insert your filter with a maximum size of 1” round or square into the filter slit.
3. Rotate the light beam protection cap to close the filter slit.
10 000-10000-080-02-0505

Chapter 4
Troubleshooting
If the power supply or lamp does not seem to functioning properly, check the following:
Issue Probable Cause Resolution
Line power not present Check line voltage
Power switches on, but no
LEDs light. Fuse defective Check fuse
Lifetime of the lamp is
exhausted Replace the lamp module
Xenon lamp does not start
Lamp’s internal connection plug
is not closed properly
Open unit (see Bulb Replacement)
and close connector plug.
000-10000-080-02-0505 11

4: Troubleshooting
12 000-10000-080-02-0505
