ODA EX Series User manual

Programmable DC Power Supply
User Manual
www.odacore.com
EX Series
Manual Part NO. 018EX-2.0

Legal Notices
© ODA Technologies.,Co.Ltd 2004
No part of this document may be photocopied, reproduced, or translated to another language without
the prior another language without the prior agreement and written consent of ODA agreement and
written consent of ODA Technologies.,Co.Ltd. as governed by Korea and international copyright laws.
Warranty Certification
The material contained in this document is provided “as is,” and is subject to being changed, without
notice, in future editions. Further, to the maximum extent permitted by applicable law, ODA disclaims
all warranties, either express or implied, with regard to this manual and any information contained
herein, including but not limited to the implied warranties of merchantability and fitness for a particular
purpose. ODA shall not be liable for errors or for incidental or be liable for errors or for incidental or
consequential damages in connection with the furnishing, use, or performance of this document or of
any information contained herein. Should ODA and the user have a separate written agreement with
warranty terms covering the material in this document that conflict with these terms, the warranty terms
in the separate agreement shall control.
Assistance
This product comes with the standard product warranty. Warranty options, extended support contacts,
product maintenance agreements and customer assistance agreements are also available.
Contact your nearest ODA Technologies. Sales and Service office for further information on
ODA Technologies. full line of Support Programs. Refer to below information.
www.odacore.com
[email protected]
82-2-1800-8644
Waste Electrical and Electronic Equipment
The affixed product label (see right) indicates that you must not discard
this electrical/electronic product in domestic household waste. Do not
dispose in domestic household waste. To return unwanted products,
contact our local ODA distributors, or call us for more information.
Manual Editions
Manual Part Number: 018EX-2.0 Edition 2, February, 2018 Printed in ROK
Reprints of this manual containing minor corrections and updates may have the same printing date.
Revised editions are identified by a new printing date.

Safety Notices
The following general safety precautions must be observed during all phases of operation of this
instrument. Failure to comply with these precautions or with specific warnings or instructions elsewhere
in this manual violates safety standards of design, manufacture, and intended use of the instrument.
ODA Technologies assumes no liability for the customer's failure to comply with these requirements.
understood and met.
of flammable gases or fumes.
Do not operate the instrument in the presence
Do Not Operate in an Explosive Atmosphere
is not customer accessible.
rofrepyltcerroctonfi,tahtekilehtro"slobmySytefaS" med or
adhered to, could result in personal injury or
The instrument contains an internal fuse, which notice until the indicated conditions are fully
removing the instrument cover.
the power cable and any external circuits before
remove instrument covers. Always disconnect
are aware of the hazards involved should
Only qualified, service-trained personnel who
Do Not Remove the Instrument Cover
Fuses death. Do not proceed beyond a WARNING
Make all connections to the unit before WARNING
applying power. Note the instrument's A WARNING notice denotes a hazard. It calls
external markings described under attention to an operating procedure, practice,
of important data. Do not proceed beyond a
hazard that could result in personal injury. CAUTION notice until the indicated conditions
Verify that all safety precautions are taken.
CAUTION
Before Applying Power are fully understood and met.
(safety ground) at the power outlet. Any attention to an operating procedure, practice, or
interruption of the protective (grounding) the like that, if not correctly
p
erformed or adhere
d
conductor or disconnection of the protective to, could result in damage to the product or loss
earth terminal will cause a potential shock
A CAUTION notice denotes a hazard. It calls
In Case of Damage
Instruments that appear damaged or defective
chassis and cover must be connected to an qualified service personnel.
electrical ground. The instrument must be
connected to the ac power mains through
a grounded power cable, with the ground
Do not install substitute parts or perform any u
nauthorized modification to the product. Return
the product to an ODA Sales and Service Office
for service and repair to ensure that safety
Ground the Instrument
This product is a Safety Class 1 instrument
(provided with a protective earth terminal).
wire firmly connected to an electrical ground
features are maintained.
General Do Not Modify the Instrument
Do not use this product in any manner not
To minimize shock hazard, the instrument unintended o
p
eration until they can be re
p
aired b
y
specified by the manufacturer. The protective
features of this product may be impaired if it is
used in a manner not specified in the operation
instructions.
should be made inoperative and secured against

Safety Symbol
Out position of a bi-stable
push switch Caution, risk of electric shock
Caution, hot surface Caution, refer to accompanying
documents
ylppusffOylppusnO
Standby supply. Unit is not
completely disconnected
from ac mains when switch
is off
In position of a bi-stable push
switch
Direct current
Earth (ground) terminal
Frame or chassis terminal
Protective earth ground terminal.
Alternating current
Both direct and alternating current Three phase alternating current
Terminal is at earth potential.
Neutral conductor on
permanently installed
equipment
Line conductor on
permanently installed equipment.

EX Series Operating Manual
CONTENTS
1. General Information 10
1-1. Feature 10
General Feature
Remote Interface Characteristics
Calibration
Factory Function
Self Test Characteristics
1-2. Accessories and Options 11
Accessories
Options
Homepage and Reference(www.odacore.com)
1-3. Inspecting the Unit 12
Instrument Check
Electrical Check
1-4. Operating Conditions 12
1-5. Check Before Power On ------------------------------------
-
13
Output Terminal Check
Power Cord Check
Input AC Power Line Check
1-6. Check After Power On ------------------------------------
-
15
Display Procedure on the LCD
Default Setting Values
1-7. Installation -----------------------------------------------
-
16
Cooling
Bench Operation
Rack Mounting
2. Front Panel, Rear Panel Composition & Function ------------
-
18
2-1. Front-Panel Setting 21
2-2. Rear Panel Composition 22
2-3. Output Check 24
Voltage Output Check
Current Output Check
3. Front-Panel Operating ------------------------------------
-
25
Overview 25
3-1. Constant Voltage Operating(CV) ----------------------------
-
26
3-2. Constant Current Operating(CC) ----------------------------
-
27
------------------------------------
-
---------------------------------------
-
---------------------------------------
-
---------------------------------------
-
--------------------------------------------------
-
------------------------------------
-
----------------------------------
---------------------------------------------
--------------------------------------------------
-
- 6 -

EX Series Operating Manual
3-3. Remote Voltage Sensing 28
CV Regulation
Output Rating
Output Noise
Stability
Remote Voltage Sensing Connection
3-4. Programming Over Voltage Protection(OVP) 30
3-5. Programming Over Current Protection(OCP) 33
3-6. Programming Under Voltage Limit(UVL) 35
3-7. Programming Over Voltage Limit(OVL) 36
3-8. Programming Under Current Limit(UCL) 37
3-9. Programming Over Current Limit(OCL) 38
39
40
RS232C Setting
RS232C Configuration
RS485 Setting
RS485 Connection Drawing
RS485 Configuration
USB Setting
TCP/IP Setting(Option)
Delimiter
Response
49
3-13. Store 50
3-14. Recall 51
3-15. Output ON/OFF 52
3-16. Error Message Display 53
4. Calibration 54
4-1. Characteristics --------------------------------------------- 54
4-2. Preparation for Calibration ---------------------------------- 54
4-3. Equipment required for Calibration --------------------------
-
55
4-4. Technic of Calibration ------------------------------------
-
55
Instruments Connection Drawing
Electronic Load
Current-Monitoring Resistor(shunt)
DVM(Digital Volt Meter)
Programming
Measuring Point
--------------------
-
--------------------
-
--------------------
-
-----------------
-
--------------------
-
3-11. IO/Local
-----------------
-
-
---------------------------------
-
-----------------------------------------------
-
------------------------------------------
-
-----------------------------------------------
-
3-10. Key Lock
----------------------------------
- 7 -
-----------------------------------------------
-
3-12. Limit Display ---------------------------------------------
-----------------------------------------------
-
-----------------------------------------------
-

EX Series Operating Manual
4-5. Using Front Panel Calibration -------------------------------
-
57
Calibration Key Structure
Voltage Calibraton
Current Calibration
4-6. Remote Interface Calibration -------------------------------
-
61
Instruments Connection
Remote Calibration Command Procedure
Voltage Calibraton
Current Calibration
5. Factory 63
5-1. Characteristic --------------------------------------------- 63
5-2. Factory Key Structure ------------------------------------
-
63
5-3. User-Mem Clear 64
User-Memory Clear Operating
5-4. Last State 65
Last State Operating
5-5. Auto Cursor MV 66
AUTO CURSOR MV(Moving) Operating
5-6. Auto Key Lock 67
Auto Key Lock Operating
5-7. OVP Use 68
OVP Use
5-8. OCP Use 69
OCP Use
5-9. ADC Sampling 70
ADC Sampling
5-10. CAL-RESTORE 71
CAL-RESTORE Operating
5-11. CAL-BACKUP 71
CAL-BACKUP Operating
5-12. CAL-DEFAULT 72
CAL-DEFAULT Operating
5-13. LOAD DEFAULT 72
LOAD DEFAULT Operating
6. SCPI Command ------------------------------------------
-
73
------------------------------------
-
73
-----------------------------------------------
-
------------------------------------------
-
------------------------------------------
-
------------------------------------------
-
- 8 -
--------------------------------------------------
-
---------------------------------------
-
-----------------------------------------------
-
------------------------------------------
-
------------------------------------------
-
------------------------------------------
-
------------------------------------------
-
6-1. Commands Syntax
-
---------------------------------------
-

EX Series Operating Manual
6-2. Commands 73
Output Setting Commands
Measurement Commands
Calibration Commands
Factory Commands
System Commands
6-3. Apply Commands ---------------------------------------
-
74
6-4. Output V/I Setting & Oprating Commands --------------------
-
74
6-5. Measure Commands ------------------------------------
-
80
6-6. Calibration Commands ------------------------------------
-
81
6-7. Factory Commands ------------------------------------
-
81
6-8. System Commands ------------------------------------
-
84
7. Error Messages ------------------------------------------
-
87
7-1. Operating Error ------------------------------------------
-
87
7-2. Hardware Error ------------------------------------------
-
87
7-3. Remote Calibration Error ---------------------------------- 87
7-4. Calibration Error 89
7-5. Nonvolatile Memory Check Error ----------------------------
-
89
7-6. Interface Commands Error 90
8. Specifications 91
9. Cautions 94
- 9 -
-----------------------------------------------
-
------------------------------------------
-
----------------------------------
---------------------------------------------
--------------------------------------------------
-

EX Series Operating Manual
1. General Information
1-1. Feature
EX Series Single Output products are high-performance and high- efficiency programmable DC power
supply with RS232C, RS485, USB, TCP/IP(option) interface based on SCPI (Standard Commands for
Programmable Instruments) protocol and the combination of bench-top and system features in these
power supplies provides versatile solutions for your design and test requirements in the industiral fields,
R&D institute center and education fields.
General Feature
▌Easy-to-use knob control settings.
▌2-Line * big size16Character LCD Display.
▌Output ON/OFF key.
▌Front panel key lock function.
▌Alarm beep when events occure.
▌Excellent precise and high resolution.
▌Built-in Remote Sensing for Load Voltage(V-Sensing)
▌O.V.P(Over Voltage Protection) / O.C.P(Over Current Protection) mode supplied.
▌U.V.L(Voltage under level)/O.V.L(Voltage over level) level value setting function.
▌U.C.L(Current under level)/O.C.L(Current over level) level value setting function.
▌Excellent load and line regulation.
▌Memory(operating state of voltage, current, OVP,OCP) store and recall available up to 10
▌Save and confirm up to 10 error messages.
▌19inch Rack Compact Size(600~2.5KW-1U, 2.5~5KW-2U, 5~10KW-4U)
▌High-efficient output of 80%~90%.
Remote Interface characteristics
▌Supply various interface.(RS232C, RS485, USB, TCP/IP(option))
▌adoptend SCPI(Standard Commands for Programmable Instruments) command.
▌High speed setting & measurement
▌Programmed in abundant commands in the instrument.
▌Easy interface setting by front panel key of "I/O config".
▌Technical realization of products insulation & Floating Logic.
▌Buint-in the checking of SCPI programming grammer error.
Calibration
▌No need of opening cover of instrument in other to calibrate and adopted software calibration
(by manual and PC).
▌Easy calibration operating by using independence or PC interface.
Factory Function
▌Initial function of 10 user memory.
▌Last state(before turn off the power) memory store and recall function.(state of output ON/OFF,
voltage & current value and etc)
▌The function of "Auto Key Lock & Auto Cursor Move" that prevents operator's mistake.
▌OVP & OCP disable or disable setting function.
▌LCD display speed control function of V/I value by using "ADC(Analog to Digital Conversion)
Sampling" function.
▌Calibration restore function.
▌Calibration backup function.
- 10 -

EX Series Operating Manual
Self Test Characteristics
▌Front panel test
▌Remote interface test
▌Memory date verification test
▌ADC H/W error test
▌Unregulated state test
▌ADC/DAC calibration verification test
1-2. Accessories and Options
Accessories
▌Operationg Manual 1pc.
▌Output Cable.(+, -) 1set.(1.5meter) : Usually provide when the current is below 100A.
▌AC input cord 1pc.(1.5meter)
▌Fuse 1pc.
Options
▌TCP/IP communication module
▌RS232C cable 1M, 2M, 4M
▌RS485 Cable 2/4/8-Channel 1M, 2M, 4M, 10M
▌USB Cable 1.8M/5M
▌Analog Input(0~5V/0~10V) Control.
▌AC Input Cable (Special order type)
▌Output Cable (Special order type)
▌100V ± 10% , 50~60Hz Input AC power.
▌380V ± 10% , 50~60Hz Input AC power.
▌440V ± 10% , 50~60Hz Input AC power.
▌Single or three phase Input AC power.
Homepage and Reference(www.odacore.com)
▌Operationg Manuals 1pc.
▌Output Cable.(+, -) 1set.(1.5meter) : Usually provide when the current is below 100A.
▌AC input cord 1pc.(1.5meter)
▌Fuse 1pc.
- 11 -

EX Series Operating Manual
1-3. Inspecting the Unit.
When you receive your power supply, inspect it for any obvious damage that may have
occurred during shipment. If any damage is found, notify the carrier and the nearest ODA
Sales Office immediately. Warranty information is shown in the front of this manual. Keep
the original packing materials in case the power supply has to be returned to ODA
Technologies in the future. If you return the power supply for service, attach a tag
identifying the owner and model number. Also include a brief description of the problem.
Mechanical Check
▌Check the broken key, encoder switch, power switch.
▌Check the panel surfaces are free of dents and scratches.
▌Check the broken rear output terminals.
▌Check the cabinet is free of scratches.
▌Check the LDC display is not scratched or cracked.
Electrical Check
▌When turning on the power, check the alarm sound.
If the alarm sounds, the instrument has the error during self-testing itself.
Error checking, press the error key and conform error code.
More information about error code, refer to “7.Error Messages”.
About Self-test, refer to 『1-6. Check after Power On』.
▌Check the model Number is matched with displayed model number.
▌After, it shows "**OUTPUT OFF**" message, verifies to a high level of confidence
that the power supply is operating in accordance with its specifications.
Service Center : 82-32-623-5454
Home page : www.odacore.com
1-4. Operating Conditions
This instrument is designed for following environmental conditions in other to use
optimized condition
▌Environmental Temperature : 0 ∼ 40℃
▌Relative Humidity : ≦80﹪RH
▌Operating altitude : <2000m.pollution degree Ⅱ
▌No vibration.
▌Avoid the electricmagnetic field.
Note
- 12 -

EX Series Operating Manual
1-5. Check Before Power On
Output Terminal Check
▌Check the rear panel outputs for voltage sensing and rear main outputs.
<Figure 1-1>
Floating the power supply output more than ±60 Vdc from the chassis presents an
electric shock hazard to the operator. Do not float the outputs more than ±60 Vdc
when metal shorting material or wire without insulation are used to connect
the (+) output to the (+) sense and the (-) output to the (-) sense terminals.
Outputs can be floated to maximum of ±240 Vdc provided that the metal shorting wire
without insulation are either replaced with insulated conductors or they are removed
from the terminals so there is no operator access to the output conductors without
insulation. All field wiring insulation must be adequate for the voltage present.
<Figure 1-2>
- 13 -
WARNING
WARNING

EX Series Operating Manual
▌Your power supply is equipped with a 3-wire grounding type power cord; the third
conductor being the ground. The power supply is grounded only when the power-
line cord is plugged into an appropriate receptacle. Do not operate your power
supply without adequate cabinet ground connection.
Input AC Power Line Check
▌You can operate your power supply from a nominal 198~242 V single phase AC
power source at 47 to 63 Hz. AC100V, 110V, 115V, 230V input power is optional.
Refer to chapter "1-2. Accessories & Options"
▌In other to prevent the instrument severe damage from overload, fuse is built-in
(1U, 2U products) or braker(3U products) is installed rear side. If fuse also is
broken or braker is turned down repeatedly when power turns on, check the
input power line or broken braker and then call to nearest ODA Technologies
A/S Center
If products maximum output capacity is over 5KW, fuse will be replaced to Breaker.
<Figure 1-3>
- 14 -

EX Series Operating Manual
1-6. Check After Power On.
The power-on test includes an automatic self-test that checks the internal microprocessors
and allows the user visually to check the display. You will observe the following sequence
on the display after pressing the front panel power switch to on. And also keep the
ex-remote and voltage value is zero and current value is max value.OVP & OCP level are
set to maximum output value of instrument capacity and it is under the vigilance.
Display Procedure on the LCD
▌Display "ODA Technologies".
▌Display "EX-Series Ver1.3"
▌Annunciators of ERR,LMT,RMT,LOCK on front side are lit and go off clockwise from
the left.
CV & CC annunciators are not applied.
▌During displaying above procedure, the instrument is initialized by stored in non-
volatile memory.
▌Also the instrument runs automatic self-test below mentioned.
Connection test between front panel and connector.
Remote interface test Check remote interface for PC communication.
Memory data confirm test Check product information and related setting.
ADC H/W error test Check error on ADC control condition.
Unregulated state test Check output voltage floating state.
ADC/DAC calibration test check ADC & DAC Calibration data state.
If the error occurs, alarm beeps and the error code is saved to volatile memory
automatically. You can read the error code by pressing error key.
About error code explanation, refer to “7. Error Messages”.
Default Settin
g
Values (Last state Mode is under the Disable state
)
▌OVP : OVP value is max, state is ON. ▌Remote Interface : RS-232C
▌OCP : OCP value is max, state is ON. ▌State after self-test : "**OUTPUT OFF**"
▌UVL : 0V ▌Cursor location : Default voltage select
▌OVL : Limit setting maximum value. Voltage : 1V
▌UCL : 0A Current : 100mA if current is under 5A.
▌OCL : Limit setting maximum value. In case of under 50A : 1A
▌Output Voltage : 0V In case of under 100A : 10A
▌Output Current : Limit setting maximum value. ▌KEY LOCK : OFF
Remote Interface default is RS232C and the rate is set to 9600 baud when the power supply is
shipped from the factory. TCP/IP Module is optional and bulit in type.When ordering, please request.
In case of "Last State", it is disable when the power supply is shipped from the factory. If you want to
use this function, it is able to use in "Factory Mode". Refer to "5-4. Last State"
Front panel test
Note1
Note2
- 15 -

EX Series Operating Manual
1-7. Installation.
Cooling
▌The power supply can operate without loss of performance within the temperature range
of 0 °C to 40 °C, and with derated output current from 40 °C to 55 °C. A fan cools the
power supply by drawing air through the rear panel and exhausting it out the sides.
Using an ODA rack mount will not impede the flow of air.

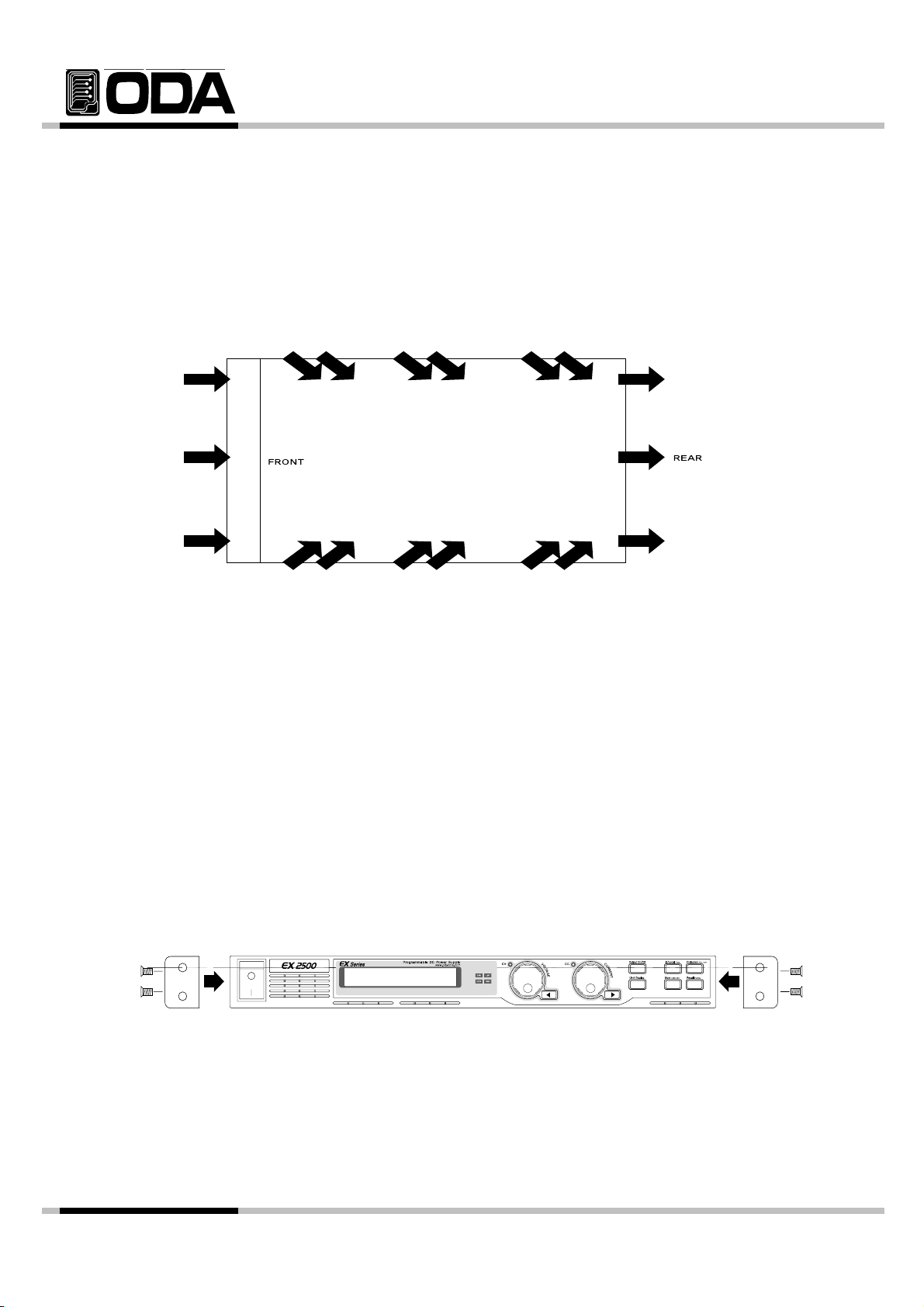

<Figure. 1-4 Bottom view>
Bench Operation
▌Your power supply must be installed in a location that allows sufficient space
at the sides and rear of the power supply for adequate air circulation.
Rack Mounting
▌Our products dimension is based on 1U * 19inch full rack size and we provide front rack
bracket basically when you purchase our goods.
- 16 -
<Figure. 1-5>

EX Series Operating Manual
▌Fasten between rack bracket and rack case by using fastener.
▌To install instruments in a sliding support shelf, order support shelf and slide kit
and it is very east to install.
- 17 -
<Figure. 1-6>
<Figure. 1-8>

EX Series Operating Manual
2. Front Panel, Rear Panel Composition & Function.
113
214
315
416
517
618
719
8
9
10
11
12 Volt Cursor or Menu Change Key
- 18 -
Current Encoder Knob
Protection Setting and Front-
p
anel Lock Ke
y
IO/Local Setting and Error Display Key
Curr Cursor or Menu Change Key
Volt/Curr Setting Limit Display Key
Voltage Encoder Knob
Limit Display Lamp
Output ON/OFF Key
Store or Calibration Key
16Character, one line LCD Display
Recall or Factory Key
Error Lamp
Key Lock Lamp
CC Mode Lamp
Ventilation slit
POWER switch
CV Mode Lamp
Remote Interface Lamp

EX Series Operating Manual
1. POWER switch.
The power supply is turned on or off by this switch. It is adopted by following power supply's
capacity.
2. Ventilation slit.
Air flow flows from front ventilation slit to rear ventilation slit compulsorily.
3. 16Character, one line LCD Display.
Voltage/current and , all kinds menu/message displayed.
4. Error Lamp.
Error occurs, LED is lit. After checked all errors, LED is turned off.
5. Limit Display Lamp.
When the instrument is under the setting of Volt/Curr, LED is lit. If the device is output on state,
LED is turned off.
6. Key Lock Lamp.
If Key lock lamp is turned on, front panel keys are not working.
7. Remote Interface Lamp.
When received the remote control signal from PC, PLC and etc, it lights and automatically,
front panel keys are under "Key Lock" state.
8. CV Mode Lamp.
The power supply is in constant voltage mode.
9. CC Mode Lamp.
The power supply is in constant current mode.
10. Voltage Encoder Knob.
Adjusts the output voltage, the over-voltage protection level, the under-voltage limit
and numeric value changing of other menu.
11. Current Encoder Knob.
Adjusts the output current, the over-current protection level, the under-current limit
and numeric value changing of other menu.
12. Volt Cursor or Menu Change Key.
Move the under bar digit to the left about voltage. It also is used to move to next menu
when selected menu mode.
13. Curr Cursor or Menu Change Key.
Move the under bar digit to the right about current. It also is used to move to next menu
when selected menu mode.
- 19 -

EX Series Operating Manual
14. Output ON/OFF Key.
Enables or disables the power supply output. This key toggles between on and off.
15. IO/Local Setting and Error Display Key
Configures the power supply for remote interfaces(Choose RS232C, RS485, USB or TCP/IP)
This key can be used to change to Local Mode from Remote Interface state.
Displays error codes generated during operation and self-test.
16. Protection Setting and Front-panel Lock Key
Enables or disables the OVP/OCP/UVL/OVL/UCL/OCL protection function, sets trip voltage
level, and clears the overvoltage condition. Also during 1 sec press this key, you can lock
pront panel operating with lighting LOCK lamp. One more press this key during 1 sec,
clear the lock key.
17. Volt/Curr Setting Limit Display Key.
Shows voltage and current limit values on the display and allows knob adjustment for setting
limit values with lighting LMT lamp. One more press this key during 1 sec, return to previous
state. You only see the setting value not just real output value.
18. Store or Calibration Key.
Stores an operating state(voltage, current, OVP, OCP and other state) in location ‘‘1’’, ‘‘2’’,
‘‘3’’ or another number / enables calibration mode with pressing this key and put the AC power
on.
19. Recall or Factory Key.
Recalls an operating state(voltage, current, OVP, OCP and other state) in location ‘‘1’’, ‘‘2’’,
‘‘3’’ or another number / enables factory mode(Memory Initializing, ,Auto Cursor Move, Auto
Key Lock, OVP Disable, OCP Disable, ADC Sampling, Calibration Restore, Calibration
Backup, Calibration Factory Default Recover and etc) with pressing this key and put the AC
power on.
- 20 -

EX Series Operating Manual
2-1. Front-Panel Setting
You can set the voltage and current limit values from the front panel using the following method.
1. Confirm the display of "OUTPUT OFF" on the LCD after turning on the power supply.
2. Press the "Limit Display" key to show the limit values on the display.
3. Left cursor key is for voltage setting from fine to course, also right cursor key is for current
setting from course to fine.
4. About both of encoder knob, left encoder is for voltage value increasing or decreasing.
Right encoder is for current value increasing or decreasing.
5. In other to increase the volt/curr limit value, turn the encoder clockwise.
In other to decrease the volt/curr limit value, turn the encoder counter clockwise.
6. Confirm the change of setting value at LCD display.
7. In other to output the setting voltage & current, press "OUTP ON/OFF" key.
If the power-on self-test fails, the ERROR annunciator turns on and then press the "Error Key"
in other to confirm the error code.
About error code, refer to “7. Error Messages”.
When the instrument is operating under the remote interface, the power supply can not be
both a listener and a talker. In other to control by front panel key, press the "IO/Local Key"
to local control after stopped the remote Interface operating.
- 21 -
Note1
Note3
