UNPACKING
After unpacking the unit, inspect carefully for any damage that
may have occurred during transit. Check for loose, missing,
or damaged parts. If any damage is observed, a shipping
damage claim must be filed with the carrier. DO NOT use
the OEMTOOLS™18 Gallon Metal Oil Drain if broken, bent,
cracked or damaged parts (including labels) are noted. Any
18 Gallon Metal Oil Drain that appears damaged in any way,
operates abnormally or is missing parts should be removed
from service immediately. If you suspect that the 18 Gallon
Metal Oil Drain was subjected to shock load (a load that
was dropped suddenly, unexpectedly, etc.), immediately
discontinue use until it has been checked by a factory
authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and
others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal
injury and/or damage to product or property. Please retain instructions for future reference.
The following safety information is provided as a guideline to help you operate your 18 Gallon Metal Oil Drain under the
safest possible conditions. Any tool or piece of equipment can be potentially dangerous to use when safety or safe handling
instructions are not known or not followed. The following safety instructions are to provide the user with the information
necessary for safe use and operation. Please read and retain these instructions for the continued safe use of your 18 Gallon
Metal Oil Drain. Failure to follow instructions listed below may result in serious injury. In addition, make sure that anyone who
uses the equipment understands and follows these safety instructions as well.
Operating Instructions and Parts Manual 87042
FOR CUSTOMER SERVICE
Technical Question?
CALL 1-866-458-2472
[email protected]
Thank you very much for choosing an OEMTOOLS™Product!
For future reference, please register your new tool at www.oem-tools.com and complete the owner’s record below:
Model: _______________ Purchase Date: ___________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product
before you begin using it. This product is designed for certain applications only. OEMTOOLS™cannot be responsible for issues
arising from modification. We strongly recommend that this product is not modified and/or used for any application other than that
for which it was designed. If you have any questions relative to a particular application, DO NOT use the product until you have first
contacted customer service to determine if it can or should be performed on the product.
Explanation of Safety Signal Words
WARNING:Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION:Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION:Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may
result in property damage.
NOTES:Provide clarity and helpful information.

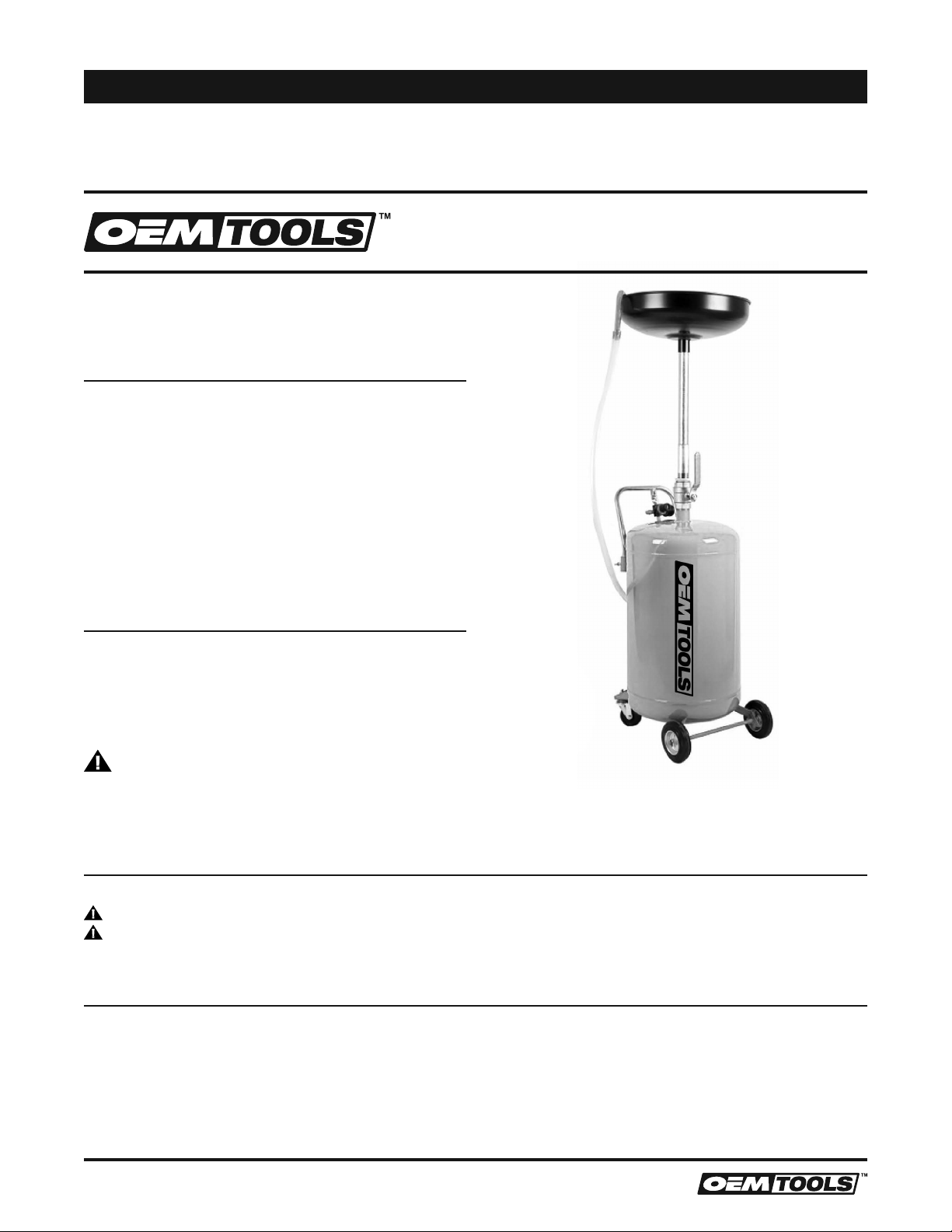

18 GALLON
METAL OIL DRAIN
1
1/19
2019 OEMTOOLS™
87042
WARNING

2
Operating Instructions and Parts Manual 87042
1/19
2019 OEMTOOLS™
18 GALLON
METAL OIL DRAIN
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your tool. Read this manual carefully. Learn the
tool’s applications and limitations, as well as potential
hazards specific to it.
2. Keep work area clean and well lit. Cluttered or dark
work areas invite accidents.
3. Keep children away. All children should be kept away
from the work area. Never let a child handle a tool
without strict adult supervision.
4. DO NOT operate this tool if under the influence of
alcohol or drugs. Read warning labels on prescriptions
to determine if your judgment or reflexes are impaired
while taking drugs. If there is any doubt, DO NOT
attempt to operate.
5. Use safety equipment. Eye protection should be
worn at all times when operating this tool. Use ANSI
approved safety glasses. Everyday eyeglasses are
NOT safety glasses. Dust mask, non-skid safety
shoes, hard hat or hearing protection should be used
in appropriate conditions.
6. Wear proper apparel. Loose clothing, gloves, neck-ties, rings,
bracelets or other jewelry may present a potential hazard
when operating this tool. Keep all apparel clear of the tool.
7. DO NOT overreach. Keep proper footing and balance
at all times when operating this tool.
8. Check for damage. Check your tool regularly. If part of
the tool is damaged, it should be carefully inspected
to make sure that it can perform its intended function
correctly. If in doubt, the part should be repaired. Refer
all servicing to a qualified technician. Consult your
dealer for advice.
9. Keep away from flammables. DO NOT attempt to operate
this tool near flammable materials or combustibles. Failure
to comply may cause serious injury or death.
10. Store idle tools out of the reach of children and
untrained persons. Tools may be dangerous in the
hands of untrained users.
11. Maintain tools with care.
12. Keep tools dry and clean.
13. Properly maintained tools are less likely to bind and
are easier to control. DO NOT use a damaged tool. Tag
damaged tools “DO NOT use” until repaired.
14. Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the tool’s operation.
15. If damaged, have the tool serviced before using. Many
accidents are caused by poorly maintained tools.
16. Use only accessories that are recommended by the
manufacturer for your model. Accessories that may
be suitable for one tool may become hazardous when
used on another tool.
17. Tool service must be performed only by qualified repair
personnel. Service or maintenance performed by
unqualified personnel could result in a risk of injury.
18. When servicing a tool, use only identical replacement
parts. Use of unauthorized parts or failure to follow
maintenance instructions may create a risk of injury.
19. Maintain a safe working environment. Keep the work
area well lit. Make sure there is adequate surrounding
workspace. Keep the work area free of obstructions,
grease, oil, trash, and other debris. DO NOT use this
product in a damp or wet location.
20. Maintain labels and nameplates on this product. These
carry important information. If unreadable or missing,
contact OEMTOOLS™for a replacement.
21. Keep the handle dry, clean, and free from brake fluid,
oil, and grease.
22. Before use, read and understand all warnings, safety
precautions, and instructions as outlined in the vehicle
manufacturer’s service manual. It is beyond the
scope of this manual to properly describe the correct
procedure and test data for each vehicle.
23. Always perform vehicle service in a properly ventilated
area. Never run an engine without proper ventilation
for its exhaust. Stop work and take necessary steps
to improve ventilation in the work area if you develop
momentary eye, nose, or throat irritation as this
indicates inadequate ventilation.
24. Engine parts that are in motion and unexpected
movement of a vehicle can injure or kill. When working
near moving engine parts, wear snug fit clothing and
keep hands and fingers away from moving parts.
25. Keep hoses and tools clear of moving parts. Always
stay clear of moving engine parts. Hoses and tools can
be thrown through the air if not kept clear of moving
engine parts.
26. The unexpected movement of a vehicle can injure or
kill. When working on vehicles, always set the parking
brake or chock the wheels.
27. Avoid accidental fire and/or explosion. DO NOT smoke
near engine fuel and battery components.
28. The warnings, precautions, and instructions discussed
in this manual cannot cover all possible conditions
and situations that may occur. The operator must
understand that common sense and caution are factors
which cannot be built into this product, but must be
supplied by the operator.
29. For safety purposes and the prevention of damage to
expensive components, it is advised that the user have
an understanding of basic automotive repair and a
working knowledge of automotive systems.
30. We believe the information contained herein to be
reliable. However, general technical information is given
by us without charge and the user shall employ such
information at their own discretion and risk. We assume
no responsibility for results or damages incurred from
the use of such information in whole or in part. Always
refer to specific instructions and technical information
supplied by vehicle manufacturer.
31. The manufacturer declines any and all responsibility
for damage to vehicles or components if said damage
is the result of unskillful handling by the operator or of
failure to observe the basic safety rules set forth in the
instruction manual.
32. This equipment is intended only for professional use by
personnel trained in performing the service functions
for which it is designed.

3
Operating Instructions and Parts Manual 87042
1/19
2019 OEMTOOLS™
18 GALLON
METAL OIL DRAIN
33. This equipment is designed for servicing a variety
of engines in a safe, convenient manner. However,
differences in engine makes and models may make it
impossible to use this equipment as it is intended. DO
NOT attempt to force the use of this equipment on an
application for which it is not designed to perform.
34. The procedures documented in this manual are to
serve as guidelines for the use of this equipment.
35. In addition to these guidelines, always follow the
manufacturer’s recommended procedures when
servicing each unique vehicle.
36. The use of this equipment is simple and straightforward
if you follow the instructions. When operating this
equipment, use common sense, and only use this
18 Gallon Metal Oil Drain for its intended purpose.
PRODUCT DESCRIPTION
The 18 Gallon Metal Oil Drain is designed to efficiently
drain waste oil from a vehicle. This unit features a
pressurized self-evacuation feature that utilizes shop air
to empty waste oil from reservoir.
PRODUCT SPECIFICATIONS
Funnel Diameter 17"
Capacity 18 Gallons
Adjustable Height 44.5" - 68.5"
Air Inlet 1/4" NPT M Industrial
Interchange
Max Reservoir Pressure 40 PSI (2.7 Bar/ATM)
Casters Swivel (Front), Fixed (Back)
SPECIFIC SAFETY INSTRUCTIONS
AND WARNINGS
WARNING:DO NOT exceed max reservoir pressure
listed in product specifications. Failure to comply may
lead to product failure and may result in personal injury
and/or property damage.
WARNING:DO NOT make any adjustments to the oil
drain while connected to shop air or while the product
is in use. Failure to comply may lead to oil spills and
property damage.
WARNING:DO NOT use this product to pump
water/gasoline or other fluids for which this product is
not intended.
WARNING:Always allow engine to cool prior to
draining oil. Hot oil can cause severe burns.
1. Not designed for use with gasoline.
2. DO NOT exceed rated capacity. Overloading can cause
damage or failure of the oil drain.
3. Keep hands clear of all adjustment points during
assembly, usage and transport.
4. Only use oil drain on dry, oil/grease free, level, ground
surfaces. Ensure the surface can support the weight of
the drain at capacity.
5. Wear protective clothing, gloves and eyewear while
working with used fluids.
6. DO NOT leave oil drain unattended while operating or
evacuating oil.
7. Never use or store near open flames or heat sources.
8. DO NOT leave under automotive lift while lowering the
vehicle to the ground surface.
ASSEMBLY
1. Remove all contents from the package.
2. Install the swivel casters. Insert the caster bolt through
the designated open holes on the front of the unit. The
washer should be placed over the bolt, followed by the
lock washer, then the retaining nut. Tighten the retaining
nut using a 19mm socket or wrench.
3. Fully open the valve lever on coupler attached to
the top of the fluid reservoir. Screw in the adjustable
extension to the threaded portion of the coupler.
NOTE:With the valve lever completely open, the
extension will enter the reservoir.
4. Press the funnel onto the top of the extension.
OPERATION
WARNING:Always read the product warnings, safety
instructions, and assembly instructions prior to use.
1. Adjust the height of the funnel to the lowest setting, by
untightening the adjustment knob on the extension.
2. Move the oil drain under the raised vehicle, ensuring
the funnel is centered directly below the engine oil drain
plug.
3. Grasping the top of the extension, raise the funnel until
the funnel is approximately 4” below the oil drain plug.
While supporting the top of the extension, tighten the
adjustment knob until finger tight.
4. Ensure the valve lever on the coupler is completely
open before moving to Step 6.
5. Ensure the valve on the evacuation hose is completely
closed before moving to Step 6.
6. Remove the engine oil drain plug and allow the used
oil to completely drain into the funnel.
7. After the oil has drained completely, lower the funnel
as described in Step 1, and remove from under the
vehicle.
NOTE:Roll the oil drain with caution when at capacity. The
center of gravity may shift, causing the drain to tip.
NOTE:Check drain capacity using the drain level indicator on
the side of the reservoir.
EVACUATION INSTRUCTIONS
1. Carefully move the drain to an oil collection reservoir
and place the drain hose into the collection reservoir.
NOTE:Ensure the hose is free of blockages and kinks.
2. Raise the extension to the highest setting, so that the
extension is completely removed from the inside of the
reservoir. While supporting the top of the extension,
tighten the adjustment knob.
3. Close the valve lever on the coupler (horizontal
position).
NOTE:The valve lever on the coupler must be completely
closed to allow evacuation.

4
Operating Instructions and Parts Manual 87042
1/19
2019 OEMTOOLS™
18 GALLON
METAL OIL DRAIN
4. Open the evacuation hose valve.
5. Connect shop air to the venturi assembly on the tank.
Reference product specifications for inlet size and type.
6. Open the valve on the venturi assembly.
WARNING:DO NOT exceed max reservoir pressure
listed in product specifications. Failure to comply may
lead to product failure, and may result in personal injury
and/or property damage.
7. Oil will drain from the reservoir through the drain hose
and into the oil collection reservoir.
8. Once all oil has drained from the oil drain, close the
valve on the venturi assembly. Disconnect air supply.
9. Close the evacuation hose valve.
10. When complete, follow all federal, state and local laws
for oil disposal and recycling procedures.
MAINTENANCE
Periodically inspect the oil drain. Ensure all parts move
freely. Apply lubrication as needed.
STORAGE
Store the portable oil drain in an upright position and in
a clean, dry area. DO NOT store near flammable items
or open flames. This could lead to explosion or result in
personal injury and/or property damage.
Figure Description Qty.
A
Funnel 1
B Extension 1
C Valve Lever on Coupler 1
D Coupler 1
E Transportation Handle 1
F Evacuator Drain Hose 1
G Venturi Assembly 1
H Venturi Valve Lever 1
I Reservoir 1
J Rear Fixed Casters 2
K Front Swivel Casters 2
L (Not Shown) Drain Level Indicator 1
M (Not Shown) Evacuation Drain Hose Valve Lever 1
PARTS LIST
A
B
C
H
J
K
G
I
D
E
F
PARTS DIAGRAM

5
Operating Instructions and Parts Manual 87042
1/19
2019 OEMTOOLS™
18 GALLON
METAL OIL DRAIN
OEMTOOLS™ ONE YEAR WARRANTY
For up to one year from the date of purchase of this OEMTOOLS™ product, if you find any defect in material or
workmanship (through normal usage), return it to the place of purchase or to OEMTOOLS™ for repair or replacement
at our discretion. In order to obtain this service, send the product and proof of purchase (transportation pre-paid) to:
OEMTOOLS™ Q.A. Dept, 3580 E. Raines Road #3, Memphis, TN 38118.
We will not be responsible for lost or damaged goods during transportation; please insure your package. If our
inspection verifies the defect, we will either repair or replace the product, or we may elect to refund the purchase price
if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if
we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you
must bear the cost of returning the product.
OEMTOOLS™ does not provide warranty for products labeled other than OEM® or OEMTOOLS™. OEMTOOLS™ will
not provide any warranty for products subjected to abnormal use. Abnormal use includes (but is not limited to) abuse,
accident, alteration, neglect, and unauthorized or unreasonable use or repairs. This warranty does not cover bits,
blades, files, batteries, or calibration. We recommend that you maintain your tools and sharpen or replace blades, bits,
files, and batteries as necessary. OEMTOOLS™ reserves the right to make any changes in construction or design at
any time without any obligation in incorporating such changes to tools or equipment previously sold.
OEMTOOLS™ makes every effort to ensure that its products meet high quality and durability standards, and warrants
to the original purchaser that this product is free from defects in materials and workmanship for the period of one
year from the date of purchase. This warranty does not apply to damage due directly or indirectly to misuse, abuse,
negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear
and tear, or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY
IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS. This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state.
Don’t forget to register your new OEMTOOLS™ product at www.oem-tools.com.

6
Operating Instructions and Parts Manual 87042
1/19
2019 OEMTOOLS™
18 GALLON
METAL OIL DRAIN
CONTACT US
3580 E. Raines Road, Suite 3, Memphis, TN 38118
Tel: [phone]
www.oem-tools.com
NOTES:
