UNPACKING
After unpacking the unit, inspect carefully for any
damage that may have occurred during transit.
Check for loose, missing, or damaged parts. If any
damage is observed, a shipping damage claim
must be filed with the carrier. DO NOT use the
OEMTOOLS™36" Tool Cabinet and Chest if broken,
bent, cracked or damaged parts (including labels)
are noted. Any 36" Tool Cabinet and Chest that
appears damaged in any way, operates abnormally
or is missing parts should be removed from service
immediately. If you suspect that the 36" Tool
Cabinet and Chest was subjected to shock load
(a load that was dropped suddenly, unexpectedly,
etc.), immediately discontinue use until it has been
checked by a factory authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and
others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal
injury and/or damage to product or property. Please retain instructions for future reference.
The following safety information is provided as a guideline to help you operate your 36" Tool Cabinet and Chest under the
safest possible conditions. Any tool or piece of equipment can be potentially dangerous to use when safety or safe handling
instructions are not known or not followed. The following safety instructions are to provide the user with the information
necessary for safe use and operation. Please read and retain these instructions for the continued safe use of your 36" Tool
Cabinet and Chest. Failure to follow instructions listed below may result in serious injury. In addition, make sure that anyone
who uses the equipment understands and follows these safety instructions as well.
Operating Instructions and Parts Manual 24567/24568/24569/24638/24639/24640
FOR CUSTOMER SERVICE
Technical Question?
CALL 1-866-458-2472
[email protected]
Thank you very much for choosing an OEMTOOLS™Product!
For future reference, please register your new tool at www.oem-tools.com and complete the owner’s record below:
Model: _______________ Purchase Date: ___________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product
before you begin using it. This product is designed for certain applications only. OEMTOOLS™cannot be responsible for issues
arising from modification. We strongly recommend that this product is not modified and/or used for any application other than that
for which it was designed. If you have any questions relative to a particular application, DO NOT use the product until you have first
contacted customer service to determine if it can or should be performed on the product.
Explanation of Safety Signal Words
WARNING:Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION:Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION:Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may
result in property damage.
NOTES:Provide clarity and helpful information.
36" 6 DRAWER TOOL CABINET &
36" 6 DRAWER TOOL CHEST
1
2/19
2019 OEMTOOLS™
WARNING
24569
Chest and Cabinet
Combo - Black
24567 36" 6 Drawer
Tool Chest – Black
24568 36" 6 Drawer
Tool Cabinet – Black
24640
Chest and Cabinet
Combo - Green
24638 36" 6 Drawer
Tool Chest – Green
24639 36" 6 Drawer
Tool Cabinet – Green

2
Operating Instructions and Parts Manual 24567/24568/24569/24638/24639/24640
2/19
2019 OEMTOOLS™
36" 6 DRAWER TOOL CABINET &
36" 6 DRAWER TOOL CHEST
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your tool. Read this manual carefully. Learn the
tool’s applications and limitations, as well as potential
hazards specific to it.
2. Keep children away. All children should be kept away
from the work area. Never let a child handle a tool
without strict adult supervision.
3. DO NOT operate this tool if under the influence of
alcohol or drugs. Read warning labels on prescriptions
to determine if your judgment or reflexes are impaired
while taking drugs. If there is any doubt, DO NOT
attempt to operate.
4. Use safety equipment. Eye protection should be
worn at all times when operating this tool. Use ANSI
approved safety glasses. Everyday eyeglasses are
NOT safety glasses. Dust mask, non-skid safety
shoes, hard hat or hearing protection should be used
in appropriate conditions.
5. Wear proper apparel. Loose clothing, gloves, neck-ties,
rings, bracelets or other jewelry may present a potential
hazard when operating this tool. Keep all apparel clear
of the tool.
6. DO NOT overreach. Keep proper footing and balance
at all times when operating this tool.
7. Check for damage. Check your tool regularly. If part of
the tool is damaged, it should be carefully inspected
to make sure that it can perform its intended function
correctly. If in doubt, the part should be repaired. Refer
all servicing to a qualified technician. Consult your
dealer for advice.
8. Keep away from flammables. DO NOT attempt to operate
this tool near flammable materials or combustibles. Failure
to comply may cause serious injury or death.
9. Store idle tools out of the reach of children and
untrained persons. Tools may be dangerous in the
hands of untrained users.
10. Maintain tools with care.
11. Keep tools dry and clean.
12. Properly maintained tools are less likely to bind and
are easier to control. DO NOT use a damaged tool. Tag
damaged tools “DO NOT use” until repaired.
13. Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the tool’s operation.
14. If damaged, have the tool serviced before using. Many
accidents are caused by poorly maintained tools.
15. Use only accessories that are recommended by the
manufacturer for your model. Accessories that may
be suitable for one tool may become hazardous when
used on another tool.
16. Tool service must be performed only by qualified repair
personnel. Service or maintenance performed by
unqualified personnel could result in a risk of injury.
17. When servicing a tool, use only identical replacement
parts. Use of unauthorized parts or failure to follow
maintenance instructions may create a risk of injury.
18. Maintain a safe working environment. Keep the work
area well lit. Make sure there is adequate surrounding
workspace. Keep the work area free of obstructions,
grease, oil, trash, and other debris. DO NOT use this
product in a damp or wet location.
19. Maintain labels and nameplates on this product. These
carry important information. If unreadable or missing,
contact OEMTOOLS™for a replacement.
20. Keep the handle dry, clean, and free from brake fluid,
oil, and grease.
21. Always perform vehicle service in a properly ventilated
area. Never run an engine without proper ventilation
for its exhaust. Stop work and take necessary steps
to improve ventilation in the work area if you develop
momentary eye, nose, or throat irritation as this
indicates inadequate ventilation.
22. Engine parts that are in motion and unexpected
movement of a vehicle can injure or kill. When working
near moving engine parts, wear snug fit clothing and
keep hands and fingers away from moving parts.
23. Keep hoses and tools clear of moving parts. Always
stay clear of moving engine parts. Hoses and tools can
be thrown through the air if not kept clear of moving
engine parts.
24. The unexpected movement of a vehicle can injure or
kill. When working on vehicles, always set the parking
brake or chock the wheels.
25. Avoid accidental fire and/or explosion. DO NOT smoke
near engine fuel and battery components.
26. The warnings, precautions, and instructions discussed
in this manual cannot cover all possible conditions
and situations that may occur. The operator must
understand that common sense and caution are factors
which cannot be built into this product, but must be
supplied by the operator.
27. We believe the information contained herein to be
reliable. However, general technical information is given
by us without charge and the user shall employ such
information at their own discretion and risk. We assume
no responsibility for results or damages incurred from
the use of such information in whole or in part. Always
refer to specific instructions and technical information
supplied by vehicle manufacturer.
28. The manufacturer declines any and all responsibility
for damage to vehicles or components if said damage
is the result of unskillful handling by the operator or of
failure to observe the basic safety rules set forth in the
instruction manual.
29. The procedures documented in this manual are to
serve as guidelines for the use of this equipment.
30. The use of this equipment is simple and straightforward
if you follow the instructions. When operating this
equipment, use common sense, and only use this
tool for its intended purpose.

3
Operating Instructions and Parts Manual 24567/24568/24569/24638/24639/24640
2/19
2019 OEMTOOLS™
36" 6 DRAWER TOOL CABINET &
36" 6 DRAWER TOOL CHEST
PRODUCT DESCRIPTION
The OEMTOOLS™36"Tool Cabinet and Chest are
designed to provide mobile tool storage.
SPECIFIC SAFETY INSTRUCTIONS
AND WARNINGS
WARNING:DO NOT exceed drawer capacity rating
(see chart in Drawer Dimensions, Volume and Capacity
section).
WARNING:ALWAYS place heavier tools in the
bottom drawers. Overloading the top drawers may cause
imbalance.
WARNING:ALWAYS be cautious when maneuvering
tool box through the shop. Large obstructions, cracks in
the floor, low ceilings, etc. may cause the tool box to tip,
which may cause property damage and/or personal injury.
WARNING:ALWAYS be cautious of pinch points
between the drawers, and top and bottom unit. Never
place fingers or extremities in the drawers while the cart
is moving. Keep extremities clear of the edges of the
drawers, openings, and drawer slides when opening or
closing drawers.
WARNING:Open the top lid of the chest with caution,
and do not place extremities below the top drawer
before the lid supports fully engage. The lid may close
unexpectedly and cause personal injury.
WARNING:ALWAYS lock the casters after moving the
units.
WARNING:ALWAYS be cautious when opening
drawers and the top lid after periods of storage and/or
moving the unit. Tools may shift in the drawers and cause
unsafe conditions, such as falling tools, pinch points, and
jammed drawers.
TOOL CABINET AND CHEST DIMENSIONS
Product Width (In.) Depth (In.) Height (In.) Weight (Lbs.)
Cabinet (24568 / 24639)
39.3 24.6 38.7 183
Chest (24567 / 24638) 35.6 24.2 25 138
Combo (24569 / 24640) 39.3 24.6 63.7 321
TOOL CABINET DRAWER DIMENSIONS, STORAGE VOLUME AND MAX CAPACITY
Drawer Size Width
(In.)
Depth
(In.)
Height
(In.)
Storage Volume
(Cu. In.)
# of
Drawers
Capacity
(Lbs.)
Extra Shallow Drawers
31.7 21.7 1.5 1,032 2 22
Shallow Drawers
31.7 21.7 2.3 1,582 2 35
Deep Drawers
31.7 21.7 5.1 3,508 1 69
Extra Deep Drawers
31.7 21.7 9 6,191 1 115
Total Storage 14,927 298
TOOL CHEST DRAWER DIMENSIONS AND STORAGE VOLUME
Drawer Size Width
(In.)
Depth
(In.)
Height
(In.)
Storage Volume
(Cu. In.)
# of
Drawers
Capacity
(Lbs.)
Top Section
33.1 24 10.1 8,023 1 n/a
Shallow Drawers
14.7 22.3 1.5 492 4 11
Deep Drawers
14.7 22.3 5.8 1,901 2 37
Total Storage 13,793 118
PRODUCT SPECIFICATIONS
PRODUCT DIMENSIONS, VOLUME, AND CAPACITY

4
Operating Instructions and Parts Manual 24567/24568/24569/24638/24639/24640
2/19
2019 OEMTOOLS™
36" 6 DRAWER TOOL CABINET &
36" 6 DRAWER TOOL CHEST

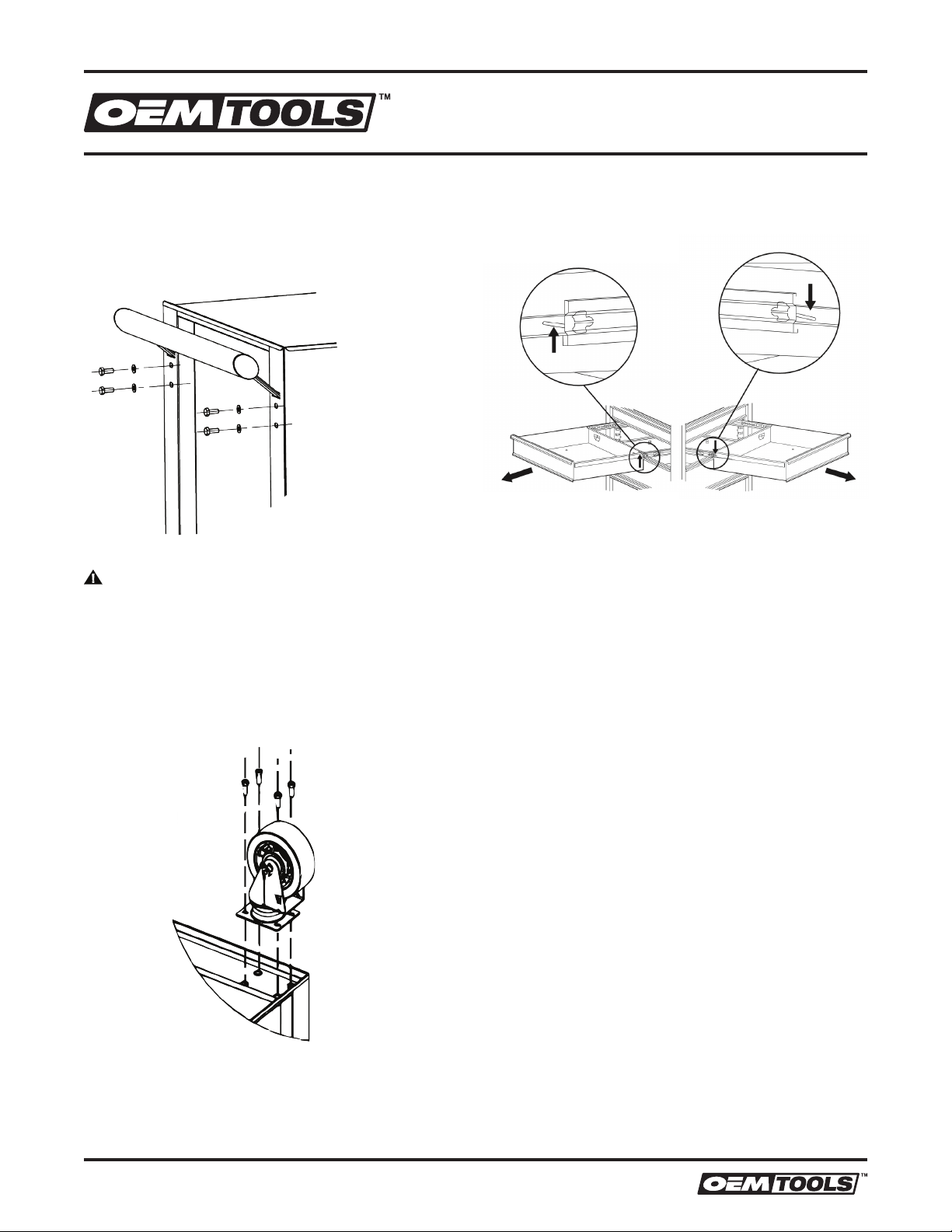

TOOL CABINET ASSEMBLY (24568/24639)
1. Position the handle over the designated holes on the
cabinet.
2. Attach by threading the 4 (10mm) bolts with washers.
NOTE:The handle can be installed on either side of the
cabinet.
3. Lock all drawers, and lay the cabinet on one side.
WARNING: Ask for assistance when tipping the tool
cabinet. This unit is heavy and can cause personal injury and
property damage if dropped.
NOTE: Ensure the product is on a soft clean surface free
from obstruction to prevent damage to the paint finish.
4.Secure the (4) casters using the 12mm bolts.
NOTE: The locking casters must be attached to the front of
the cabinet.
REMOVING THE DRAWERS
1. Fully extend the empty drawer.
2. While pushing the release lever up on the right side of
the drawer, pull down the release lever on the left side
of the drawer.
REINSTALLING THE DRAWERS
1. Fully extend the empty drawer slides.
2. Insert the brackets on each side of the drawer into
the slots on the slides, ensuring they are properly
positioned.
3. Once properly inserted, close the drawer completely to
set the slides properly.
NOTE:DO NOT force the drawers into place; if the drawer
gets stuck, remove and reinstall.
MAINTENANCE
1. Periodically tighten all hardware.
2. Lubricate the drawer slides twice a year.
3. Lubricate the lock with graphite each year.
4. Use a damp microfiber cloth to clean all surfaces.
Push up the right
back release lever
Pull down the left
back release lever

5
Operating Instructions and Parts Manual 24567/24568/24569/24638/24639/24640
2/19
2019 OEMTOOLS™
36" 6 DRAWER TOOL CABINET &
36" 6 DRAWER TOOL CHEST

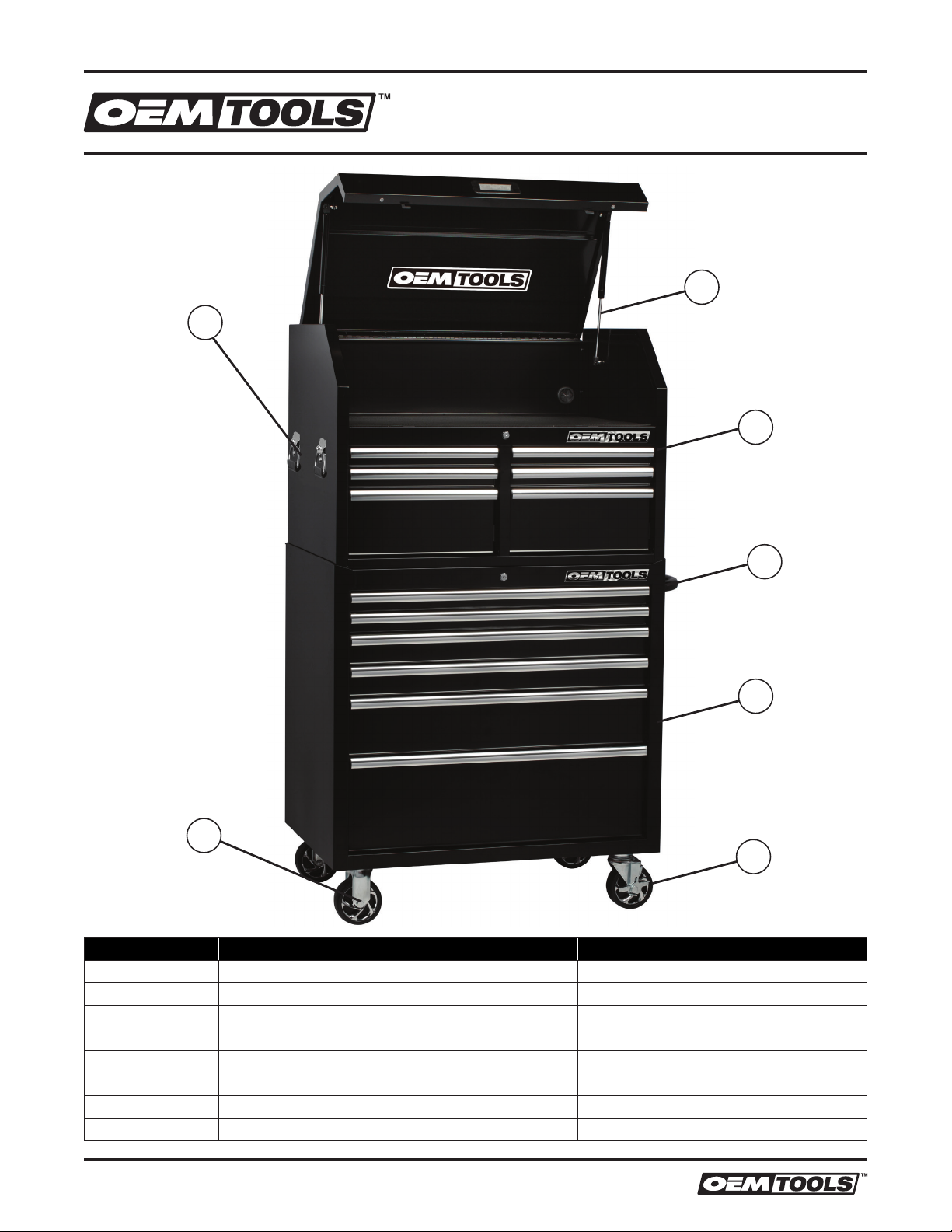

Figure Description Quantity
A
Chest 1
B Cabinet 1
C Handle 1
D Locking Swivel Casters 2
E Fixed Casters 2
F Chest Transport Handles 4
G Lid Supports 2
H Keys (Not Shown) 4 (2 per unit)
A
B
C
G
D
F
E
PARTS DESCRIPTION
PRODUCT LAYOUT

6
Operating Instructions and Parts Manual 24567/24568/24569/24638/24639/24640
2/19
2019 OEMTOOLS™
36" 6 DRAWER TOOL CABINET &
36" 6 DRAWER TOOL CHEST
Description Replacement Part #
Locking Swivel Casters
24569A
24640A
Fixed Casters 24569B
24640B
Drawer Slides 24569C
24640C
Chest Lock 24569D
24640D
Cabinet Lock 24569E
24640E
Lid Support 24569F
24640F
REPLACEMENT PARTS
Description Quantity
12mm Bolts for Casters 16
10mm Bolts for Handle 4
Drawer Liners 7
Description Quantity
Drawer Liners 7
TOOL CABINET HARDWARE
TOOL CHEST HARDWARE

7
Operating Instructions and Parts Manual 24567/24568/24569/24638/24639/24640
2/19
2019 OEMTOOLS™
36" 6 DRAWER TOOL CABINET &
36" 6 DRAWER TOOL CHEST
OEMTOOLS™ 3 YEAR WARRANTY
For up to three years from the date of purchase of this OEMTOOLS™ product, if you find any defect in material or
workmanship (through normal usage), return it to the place of purchase or to OEMTOOLS™ for repair or replacement
at our discretion. In order to obtain this service, send your tool and proof of purchase (transportation pre-paid) to:
OEMTOOLS™ Q.A. Dept., 3580 E. Raines Road #3, Memphis, TN 38118.
We will not be responsible for lost or damaged goods during transportation; please insure your package. If our
inspection verifies the defect, we will either repair or replace the product, or we may elect to refund the purchase price
if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if
we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you
must bear the cost of returning the product.
OEMTOOLS™ does not provide warranty for products labeled other than OEM® or OEMTOOLS™. OEMTOOLS™ will
not provide any warranty for products subjected to abnormal use. Abnormal use includes (but is not limited to) abuse,
accident, alteration, neglect, and unauthorized or unreasonable use or repairs. This warranty does not cover bits,
blades, files, batteries, or calibration. We recommend that you maintain your tools and sharpen or replace blades, bits,
files, and batteries as necessary. OEMTOOLS™ reserves the right to make any changes in construction or design at
any time without any obligation in incorporating such changes to tools or equipment previously sold.
OEMTOOLS™ makes every effort to ensure that its products meet high quality and durability standards, and warrants
to the original purchaser that this product is free from defects in materials and workmanship for the period of three
years from the date of purchase. This warranty does not apply to damage due directly or indirectly to misuse, abuse,
negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear
and tear, or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY
IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS. This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state.
Don’t forget to register your new OEMTOOLS™ product at www.oem-tools.com.
Description Quantity
Drawer Liners 7

8
Operating Instructions and Parts Manual 24567/24568/24569/24638/24639/24640
2/19
2019 OEMTOOLS™
36" 6 DRAWER TOOL CABINET &
36" 6 DRAWER TOOL CHEST
CONTACT US
3580 E. Raines Road, Suite 3, Memphis, TN 38118
Tel: [phone]
www.oem-tools.com
NOTES:
