Office Star Products SPACE 63-58612 User manual

63-58612/63-51712/68-11712
MANAGERS CHAIR
OPERATING INSTRUCTIONS
WARNING
1. Usethisproductonlyonepersonatatime.
2. Donotusethischairunlessallboltsscrewsand
knobsaresecurelytightened.
3. Checkthatallboltsscrewsandknobsaretightevery
threemonthsorasneeded.
4. Donotoverturnbacktiltknobwhendecreasing
tension.
5. Disposeofpackingmaterialproperly.Donotuse
plasticcoverasheadcovering.Itmaycause
suffocation.
6. Donotusechairasastepladder.
7. Usethischairforitsintendedpurposeonly.
8. Usemilddetergentonlyforcleaning.
LIMITED WARRANTY
SPACE®chairs are warranted* from the date of purchase against failure due to material and workmanship as follows:
• Lifetime on component parts including pneumatic cylinder, control mechanism, base and casters.
• 3 Years on upholstery fabric and foam against wear and deterioration.
• Leather is not warranted against routine scratching and scuffing, as leather is subject to minor blemishes in use.
*All warranties are limited to the original purchaser for normal commercial usage defined as a standard forty hour work week by persons weighing 250 lbs. or
less. This warranty will not cover labor, freight or damage from misuse, abuse, negligence, alteration, accident, vandalism, rusting, acts of nature or any other
event beyond the control of Office Star Products. The warranty does not cover cosmetic damage that may result from normal use. Liability for incidental or
consequential damages is excluded. The user assumes all risk of injury resulting from use of this product. When usage is more than 40 hours per week, a five
year warranty on all parts applies. Fabric is warranted for one year. This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
Tomakeawarrantyclaim,contactPartsDepartmentviae-mailparts@officestar.net,byFax1-909-930-5629,ortollfreeparts
number1-800-950-7262,MondaythroughFriday8:00a.m.-5:00p.m.PacicTime.Providemodelnumberanddescriptionofthe
problemandobtainconrmationnumber.Atit’soptionOfceStarProductswill:
(a)Supplycompatiblecomponentsofcurrentmanufacture.
(b)Repairthecustomer’scomponent.
Itisthecustomer’sresponsibilitytoprepayfreightonanycomponentsreturnedtothefactory.Returnfreightoncomponents
coveredbywarrantywillbepaidbyOfceStarProducts.
63-58612
63-51712

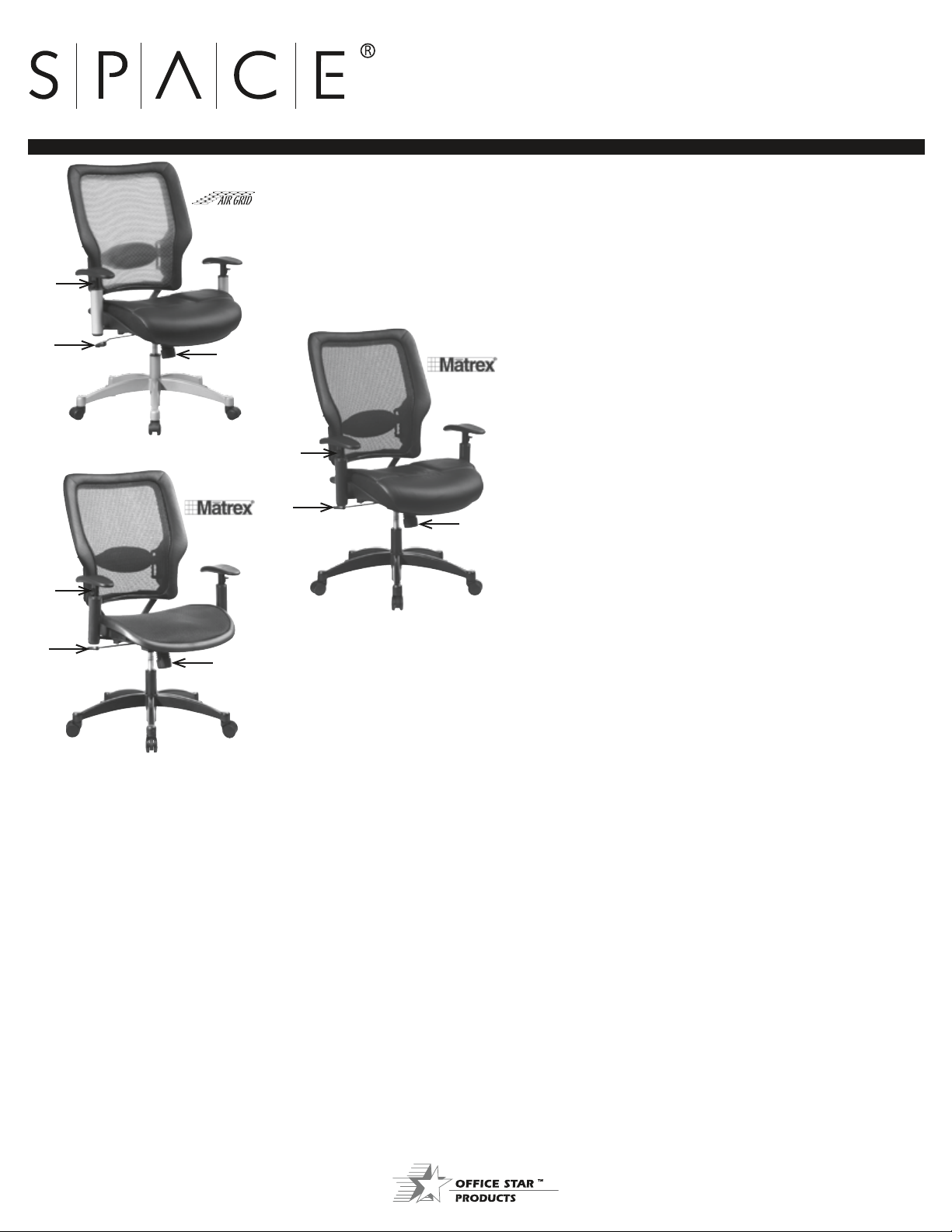

FEATURE
• PNEUMATIC SEAT HEIGHTADJUSTMENT
To raise seat remove pressure from seat and lift lever (1) up.
To lower seat height sit on chair and lift lever (1) up.
• 2-TO-1 SYNCHRO TILT & TILT TENSION ADJUSTMENT
For individual comfort, this chair has been equipped with an
adjustment that will allow the user to change the tension of the
tilting feature. Turn knob (2) clockwise to increase tension and
counter-clockwise to decrease or ease the tension. To
lock return chair to the upright position, push lever (1) in.
To unlock pull lever (1) out.
NOTE: Be careful not to loosen tilt adjustment knob completely.
• ARM HEIGHT ADJUSTMENT
To adjust arm height, lift lever (3) up to allow the arms to move up
or down freely. Release lever (3) once the desired height is reached.
12
3
1
2
3
68-11712
12
3
¤

63-58612/63-51712/68-11712
MANAGERS CHAIR
ASSEMBLY INSTRUCTIONS
© Office Star Products November 2006
PART QTY
1.Base....................1
2. Casters..................5
3.PneumaticCylinder. . . . . . . . . 1
4. Mechanism...............1
5. SeatCushion. . . . . . . . . . . . . . 1
6. BackAssembly . . . . . . . . . . . . 1
7. Arms(7L&7R). . . . . . . . . . . . 2
8. BackSupport(pre-installed) . . 1
9. AllenScrews. . . . . . . . . . . . . . 3
10. ArmScrews. . . . . . . . . . . . . . 6
11. MechanismScrews. . . . . . . . 4
12. AllenWrench. . . . . . . . . . . . . 1
Remove all parts from carton, separate by part numbers indicated on parts list, and verify part quantities.
STEP 1 Insert five Casters (2) into Base (1), push hard until you feel or hear the Caster (2) snap into place.
STEP 2 Align holes in Arms (7L & 7R) with holes in Seat Cushion (5), and secure using three Arm Screws (10) for
each arm, FULLY TIGHTEN ALL SCREWS USING PHILLIPS SCREWDRIVER (not provided).
STEP 3 Attach Mechanism (4) to Seat Cushion (5), with arrow pointing towards the from of the chair, secure Mechanism (4) using four
Mechanism Screws (11), FULLY TIGHTEN ALL SCREWS USING PHILLIPS SCREWDRIVER (not provided).
STEP 4 Attach Back Support (8) to Mechanism (4) using three Allen Screws (9),
FULLY TIGHTEN ALL SCREWS USING ALLEN WRENCH (12).
STEP 5 Insert Pneumatic Cylinder into Base (1), place assembled seat on top of Pneumatic Cylinder (3) and apply downward pressure.
ATTENTION: MAKE SURE ALL SCREWS ARE FULLY TIGHTENED BEFORE USING CHAIR.
PhillipsScrewdriveralsoneededfor
assembly(notprovided)
STEP1 STEP2 STEP3
STEP4 STEP5
X5
X3
X4
X3
X3
5
5
1
2
3
4
6
7L
8
10
10
7R
11
9
4
12
